Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck

Export reference
From $27,361
MSRP ¥19.7M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.46ton
Wheelbase:: 2400+1300mm
Tire Size:: 11.00R20 18PR
Rated payload: 15.345ton
Drive 6X2 (8 wheels)
Horsepower 245
Cargo box type: Rear dump

Overview

The Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck is a Heavy truck featuring 15.345t payload, 25t GVW, Rear dump cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06245-60 engine, 245 hp, China VI emissions and Fast Gear transmission.

China VI 245 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFV3253GP6D2
Drive type: 6X2
Wheelbase: 2400+1300mm
engine: YuchaiYCS06245-60
transmission: Fast Gear10JS90A
Rear Axle Ratio: 5.86
Cab length: 6.975m
Cab width: 2.45m
Cab height: 3.15m
Front track width: 1900mm
rear track: 1900/1750mm
Curb Weight: 9.46ton
Rated payload: 15.345ton
GVWR: 25ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 21°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS06245-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear dump
Cargo box type: Rear dump
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 1.2m
Cab parameters
Cab: D1L
Cab width: 2400mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.86
Leaf spring count: 9/7/10+8
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

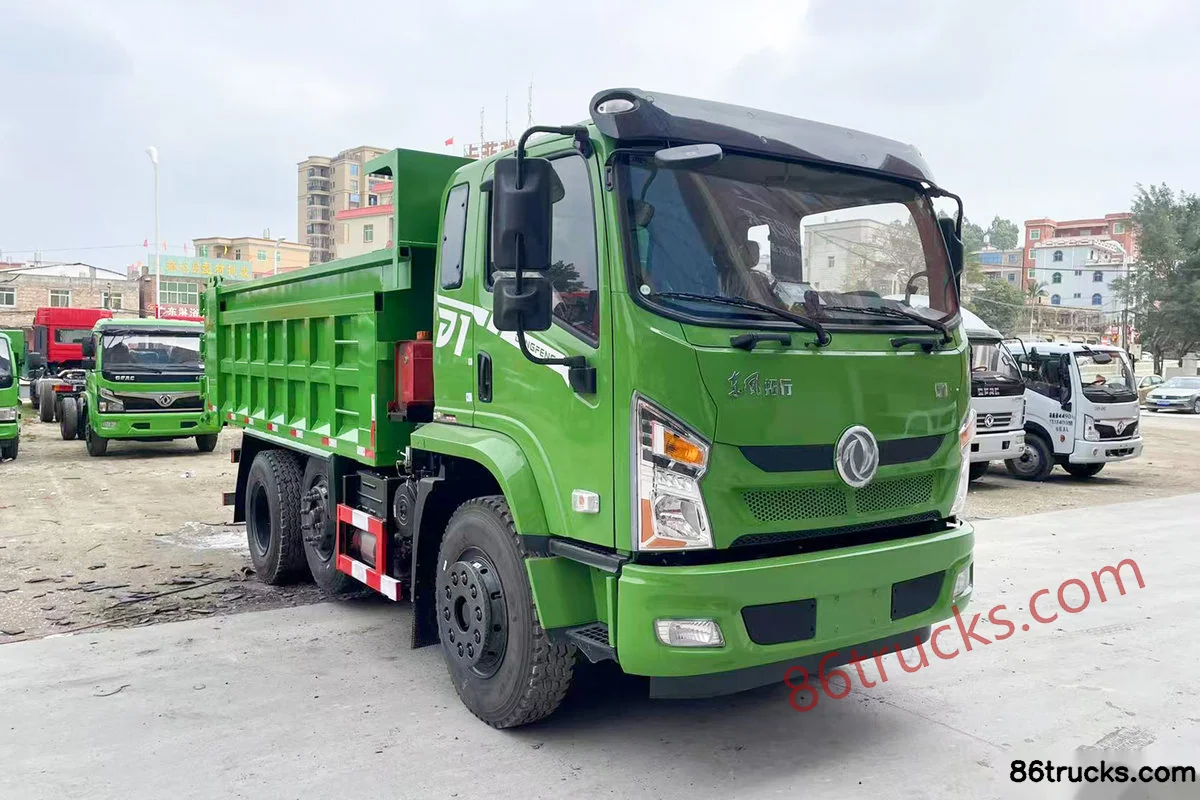

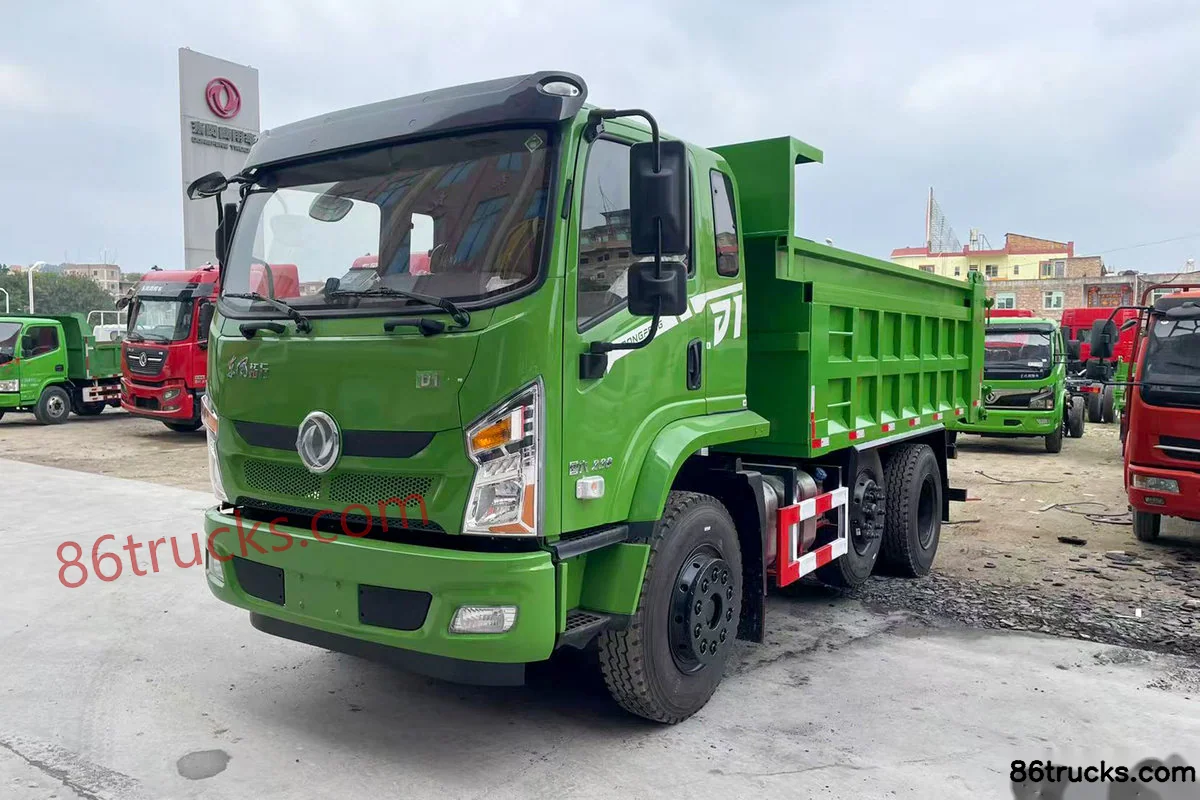

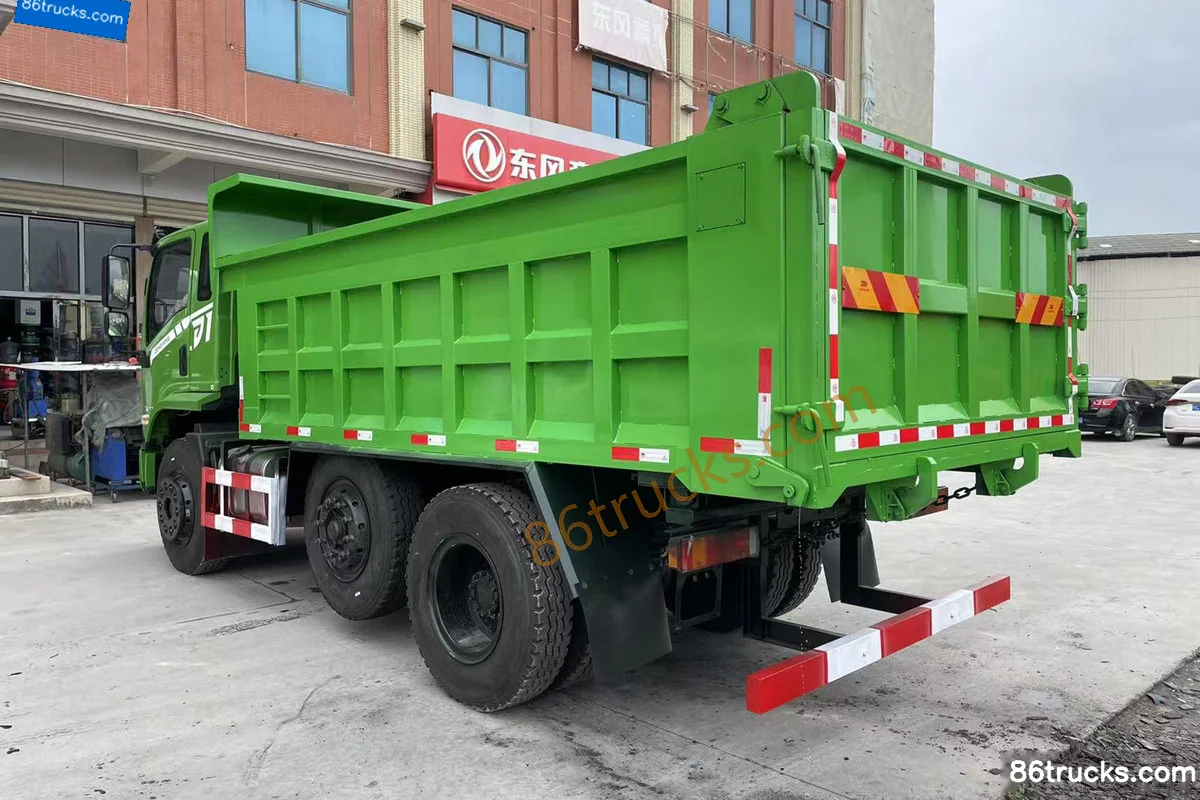

Exterior3

3 photos

FAQ

What is the export price of Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck, and what does it include?

Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck export reference is about From $27,361; MSRP is ¥19.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck?

Key specs of Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck: Drive: 6x2; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck suited for?

Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck differ from other variants in the same series?

Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck belongs to Dongfeng Tuoxing D1 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tuoxing D1L 6.2L Diesel 245 hp 6X2(8 wheels) 6X2R Fast Gear 10-speed 4.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
