New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh

Export reference
From $31,361
MSRP ¥22.58M CNY
Wheelbase:: 3350mm
Cargo box volume:: 7.2
Model code (announced):: NGA5031XXYBEV1
Cab length:: 5.428m
GVWR:: 2.81ton
Max. speed:: 90km/h
Battery Brand: CATL
Motor Type: Permanent magnet synchronous motor
Curb Weight: 1.47ton
Rated payload: 1.21ton

Overview

The New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh is a Electric Panel Van featuring CATL battery/range, Permanent magnet synchronous motor motor, 1.21t payload and 7.2 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NGA5031XXYBEV1
Wheelbase: 3350mm
Cab length: 5.428m
Cab width: 1.78m
Cab height: 1.95m
Curb Weight: 1.47ton
Rated payload: 1.21ton
GVWR: 2.81ton
Max. speed: 90km/h
Version: IoT Edition
Energy Type: Electric
electric motor
Max torque: 190N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
total rated torque: 80N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 50.23kWh
Energy Density: 135
Body parameters
Cargo box volume: 7.2
Max body depth: 3.01
Max body width: 1.71
Cargo Box Height: 1.4
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Monocoque skeleton body
Seat count: 2Seats
Door Parameters
side door type: right side upward door
Tailgate type: Asymmetric double doors
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185/65R15LT 12PR
Rear Wheel Specification: 185/65R15LT 12PR
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.):
interior configuration
Power-Adjustable Rearview Mirror:
AC control type: Manual
Seat material: Fabric
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:

Photos

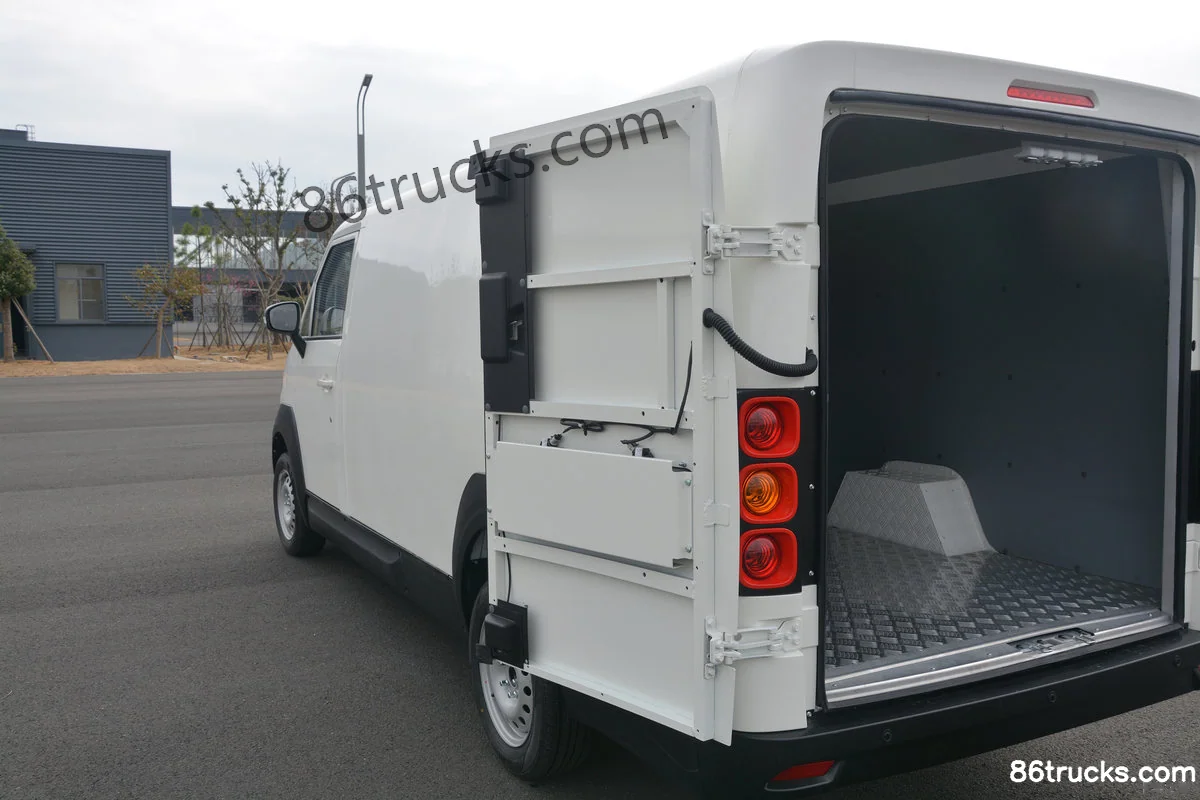

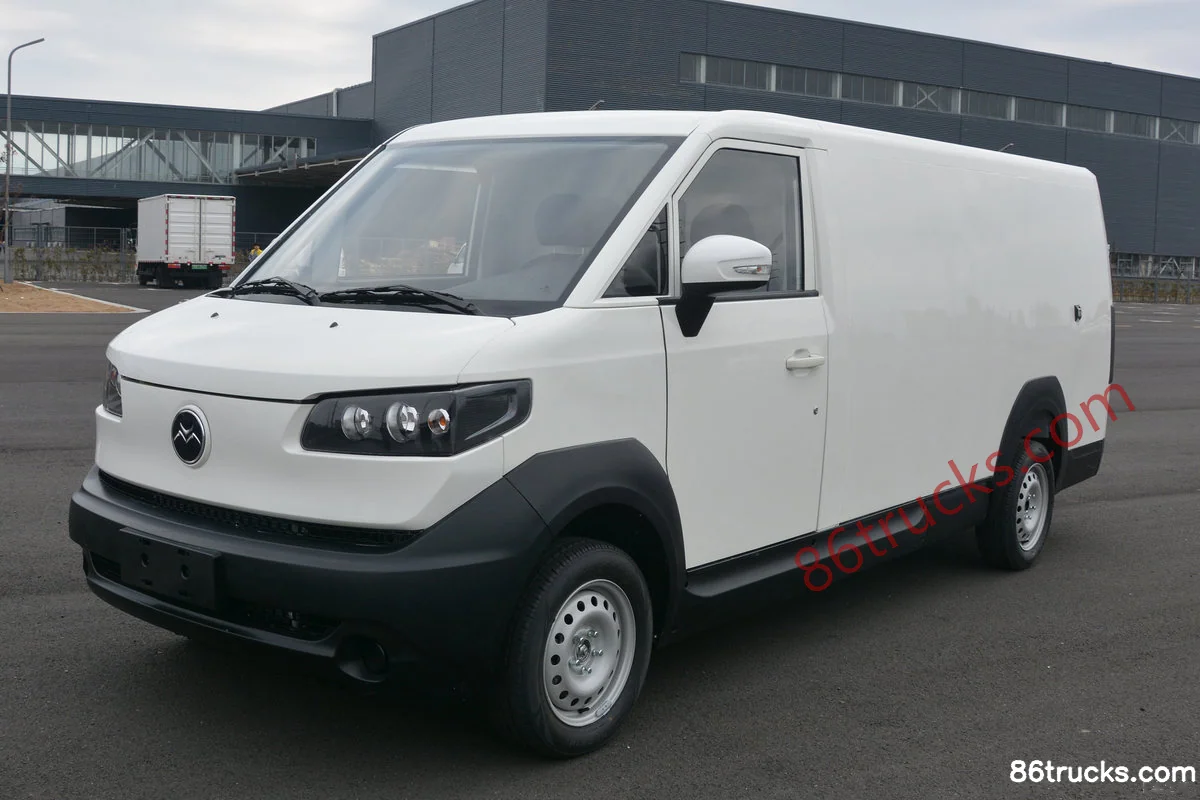

Exterior3

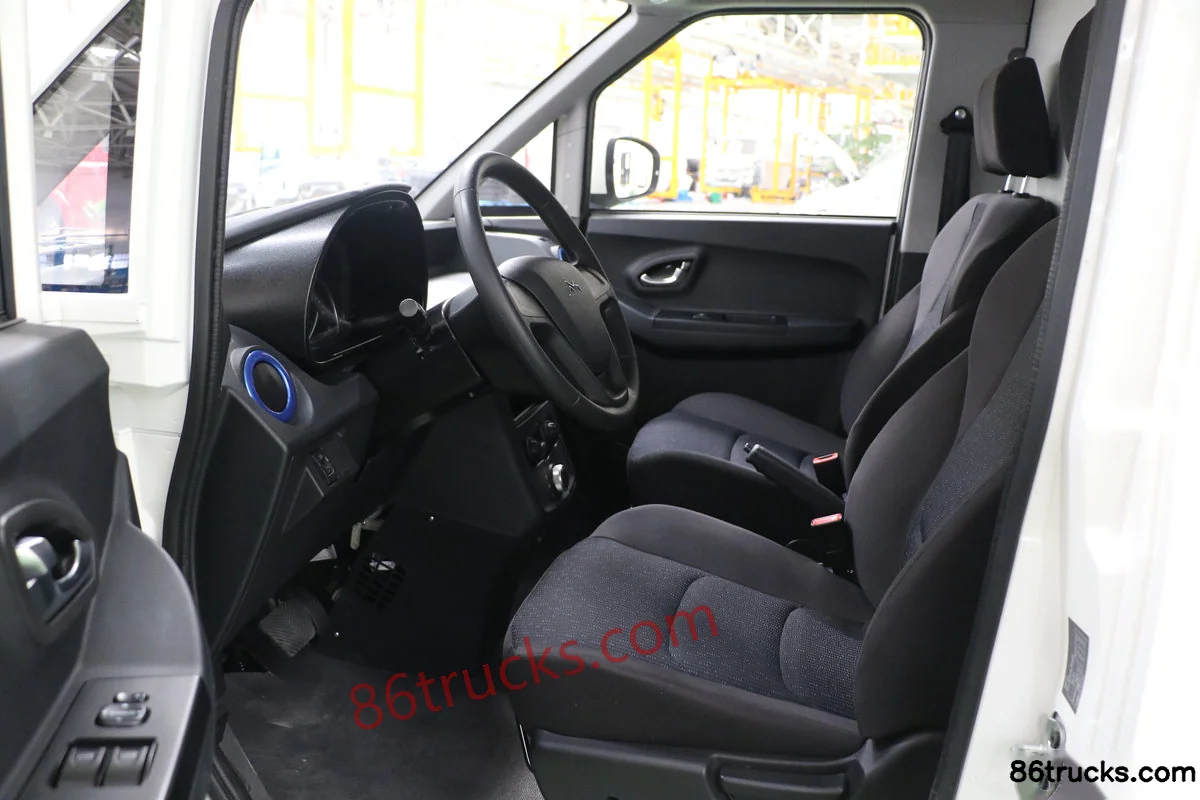

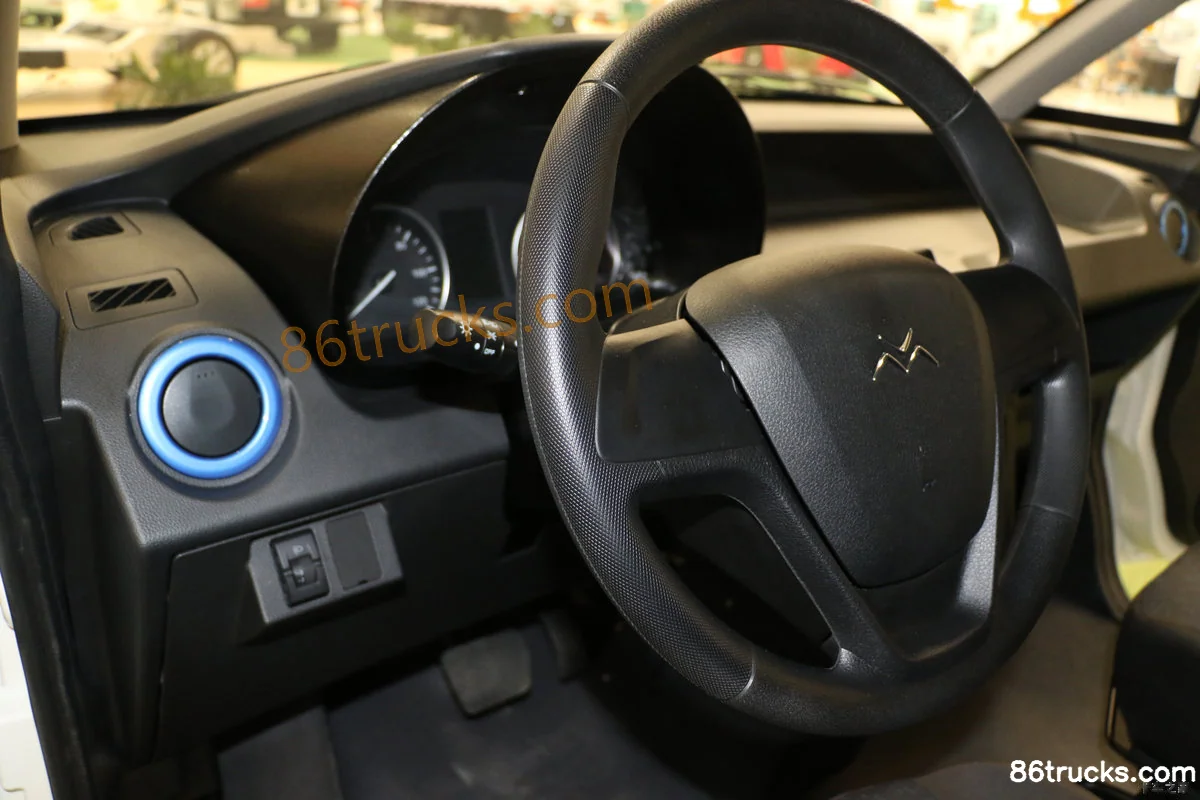

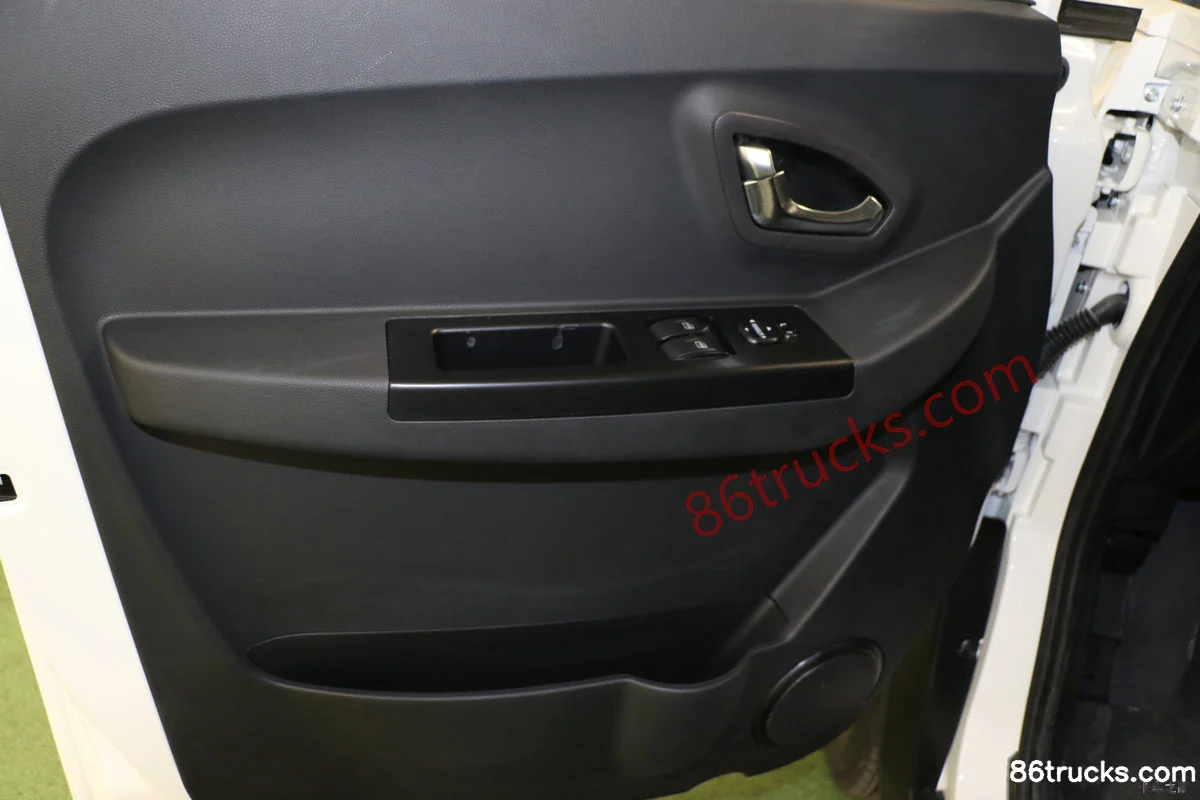

Cab3

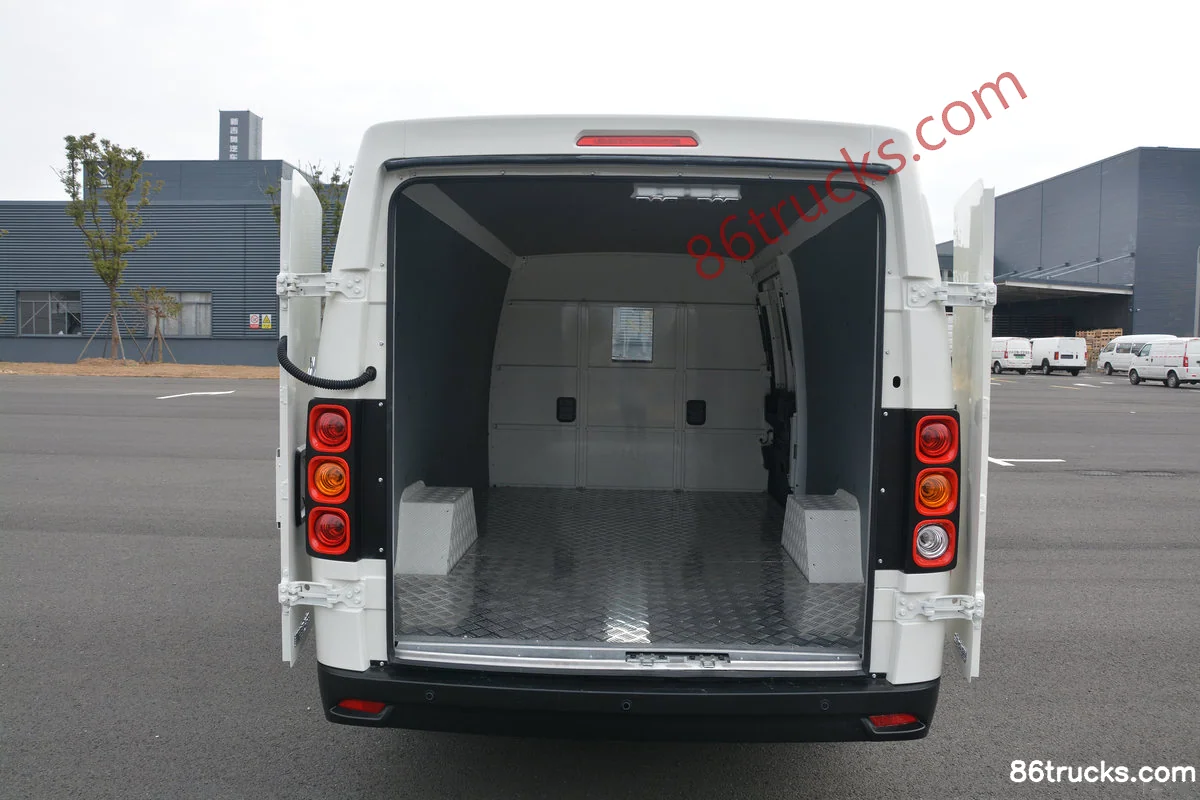

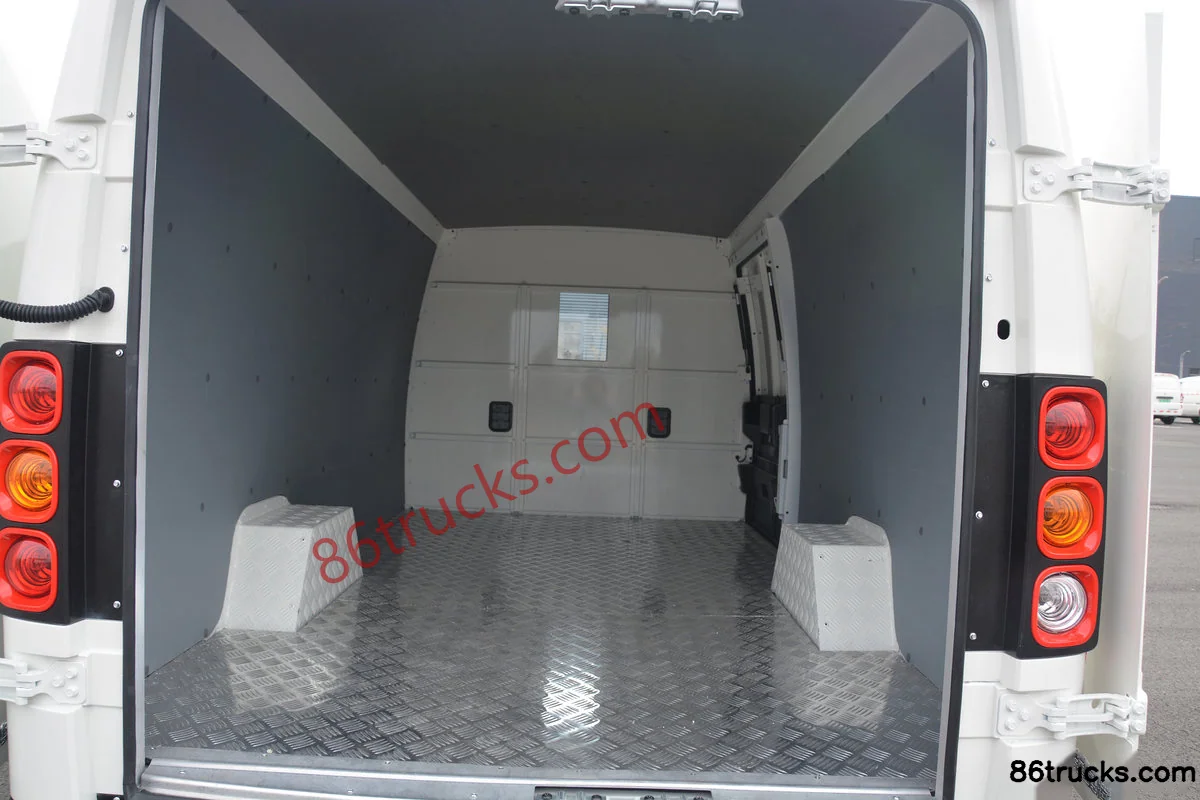

Cargo Box3

9 photos

FAQ

What is the export price of New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh, and what does it include?

New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh export reference is about From $31,361; MSRP is ¥22.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh suited for?

New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh differ from other variants in the same series?

New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh belongs to New Gonow Aoteng (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export New Gonow Aoteng IoT Edition 2.8T 3.01m Pure Electric Enclosed Van 50.23kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
