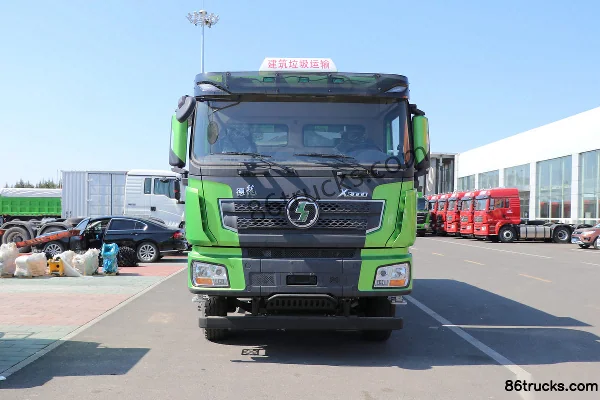

SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI)

Export reference
From $64,125
MSRP ¥46.17M CNY
Emission: China VI
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 3975+1400mm
Tire Size:: 12.00R20 16PR
Rated payload: 12.37ton
Drive 6X4 (10 wheels)
Horsepower 430
Cargo box type: Dump type

Overview

The SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI) is a Heavy truck featuring 12.37t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP13NG430E61 engine, 430 hp, China VI emissions and Fast Gear transmission.

China VI 430 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX5259ZLJ5D404TL
Drive type: 6X4
Wheelbase: 3975+1400mm
engine: WeichaiWP13NG430E61
transmission: Fast GearS13MDQ
Rear Axle Ratio: 5.262
Cab length: 8.65m
Cab width: 2.55m
Cab height: 3.6m
Front track width: 2011mm
rear track: 1860/1860mm
Curb Weight: 12.5ton
Rated payload: 12.37ton
GVWR: 25ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 25°
Remarks: Standard: construction bumper, hydraulic cab mount, Tianxingjian Zhiya Edition, oil bath air filter, reinforced driveshaft, flexible shift with cable, PTO, maintenance-free battery, radiator grille guard, construction appearance, speed limited to 89 km/h; Optional: axle ratio 5.92, Tianxingjian Zhixing Edition (with reverse camera), dump truck special configuration package, dump body floor heating, electric tilting cab, LED headlights, off-road tread tires, mining tread tires, 180Ah maintenance-free battery, extended tool kit (passenger ashtray, dashboard ashtray, jack, crowbar, vehicle tool kit).
Version: Elite Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP13NG430E61
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 12.54L
Emission standard: China VI
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2200N·m
Max torque speed: 1100-1300rpm
Rated speed: 1900rpm
Engine Type: SPI+ER+EGR+TWC
Transmission Parameters
Transmission Model: Fast GearS13MDQ
Transmission Brand: Fast Gear
Forward gears: 13Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: X3000 extended flat roof cab
Cab width: 2490mm
seating capacity: 2Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 500L
Chassis Specs
Front axle description: drum front axle beam
Front axle allowable load: 7000kg
Frame Dimensions: (970-850)×300(8+7)mm
rear axle description: drum drive axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 10/12
Suspension (front/rear): Multi-leaf spring + four U-bolts
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
lighting configuration
daytime running lights:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

0 photos

FAQ

What is the export price of SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI), and what does it include?

SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI) export reference is about From $64,125; MSRP is ¥46.17M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI)?

Key specs of SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI): Drive: 6x4; Horsepower: 430 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI) suited for?

SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI) differ from other variants in the same series?

SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI) belongs to SHACMAN Delong X3000 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 Elite Edition 430hp 6X4(10 wheels) 5.6m LNG Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
