Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI)

Export reference
From $21,667
MSRP ¥15.6M CNY
Horsepower: 160
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP2.5
Transmission: WLY
Curb Weight:: 3.2ton
seating capacity: 3Personnel
Rated payload: 1.155ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI) is a Light Truck featuring 4.15m cargo length, Van body cargo body, 3Personnel volume and 1.155t payload. On the powertrain side, it comes with a WeichaiWP2.5 engine, 160 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5048XXYG17FB9
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 4.2m
engine: WeichaiWP2.5NQ160E61
transmission: WLYWLY6G45
Rear Axle Ratio: 4.875
Cab length: 5.985m
Cab width: 2.5m
Cab height: 3.5m
Front track width: 1605mm
rear track: 1615mm
Curb Weight: 3.2ton
Rated payload: 1.155ton
GVWR: 4.485ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.175/1.53m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.5NQ160E61
Engine info: WeichaiWP2.5
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.49L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Transmission Parameters
Transmission Model: WLYWLY6G45
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.3m
Cargo box height: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1695kg
Frame Dimensions: 180/800mm
rear axle description: 4T
rear axle allowable load: 2790kg
Axle ratio: 4.875
Leaf spring count: 3/5+3
Tire
Tire Size: 7.50R16
Number of tires: 6pcs
Control configuration
ABS:

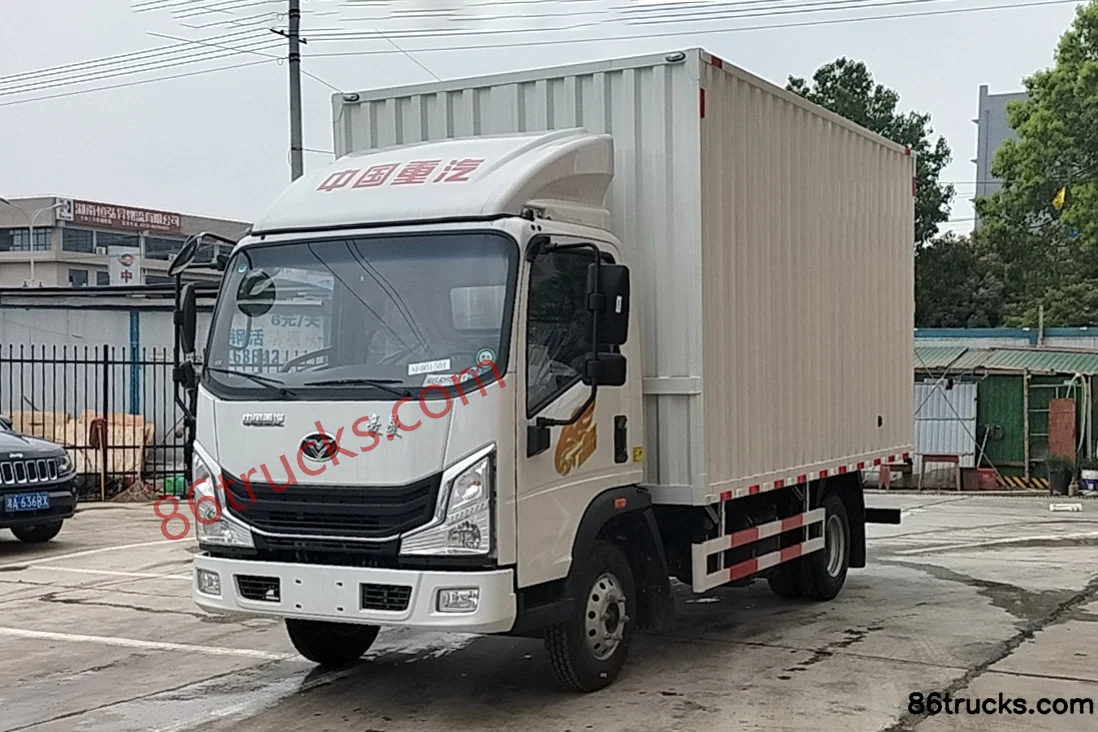

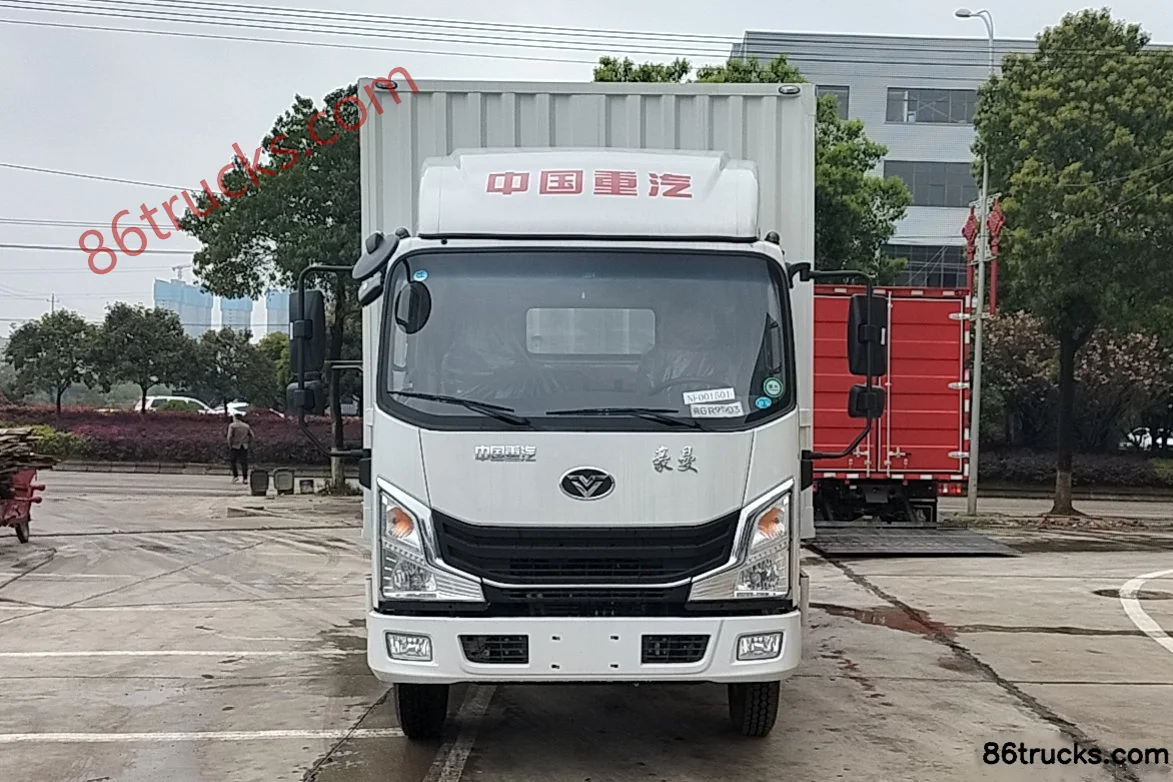

Photos

Exterior2

2 photos

FAQ

What is the export price of Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI), and what does it include?

Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI) export reference is about From $21,667; MSRP is ¥15.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI)?

Key specs of Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP2.5; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI) suited for?

Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI) differ from other variants in the same series?

Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI) belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Pioneer H3 160hp 4X2(6 wheels) 4.15m box light truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
