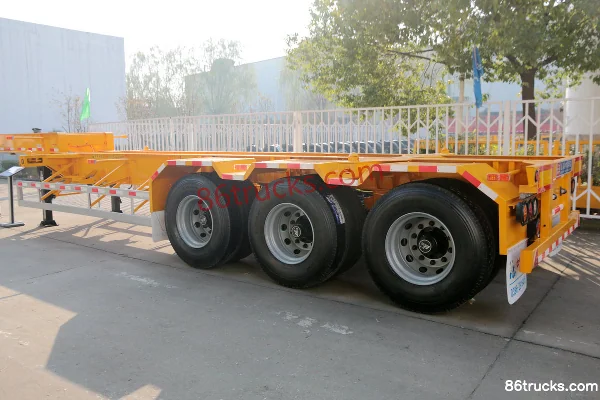

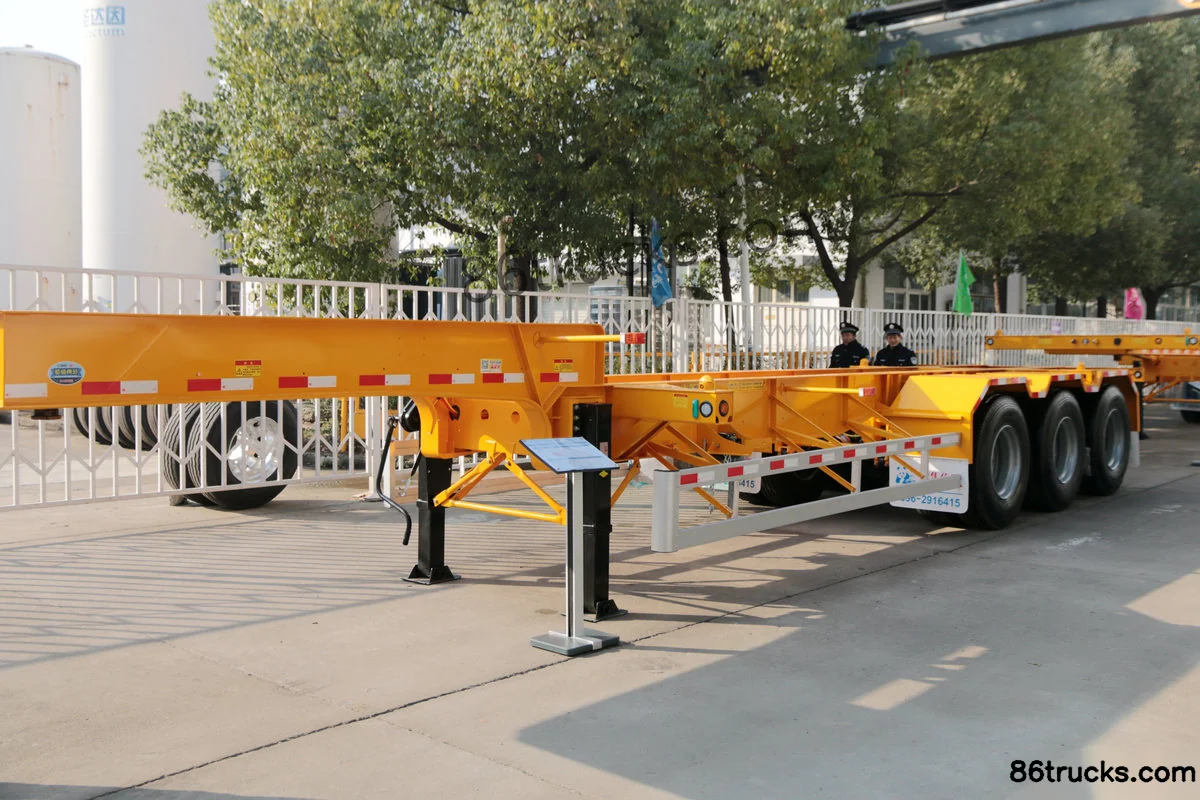

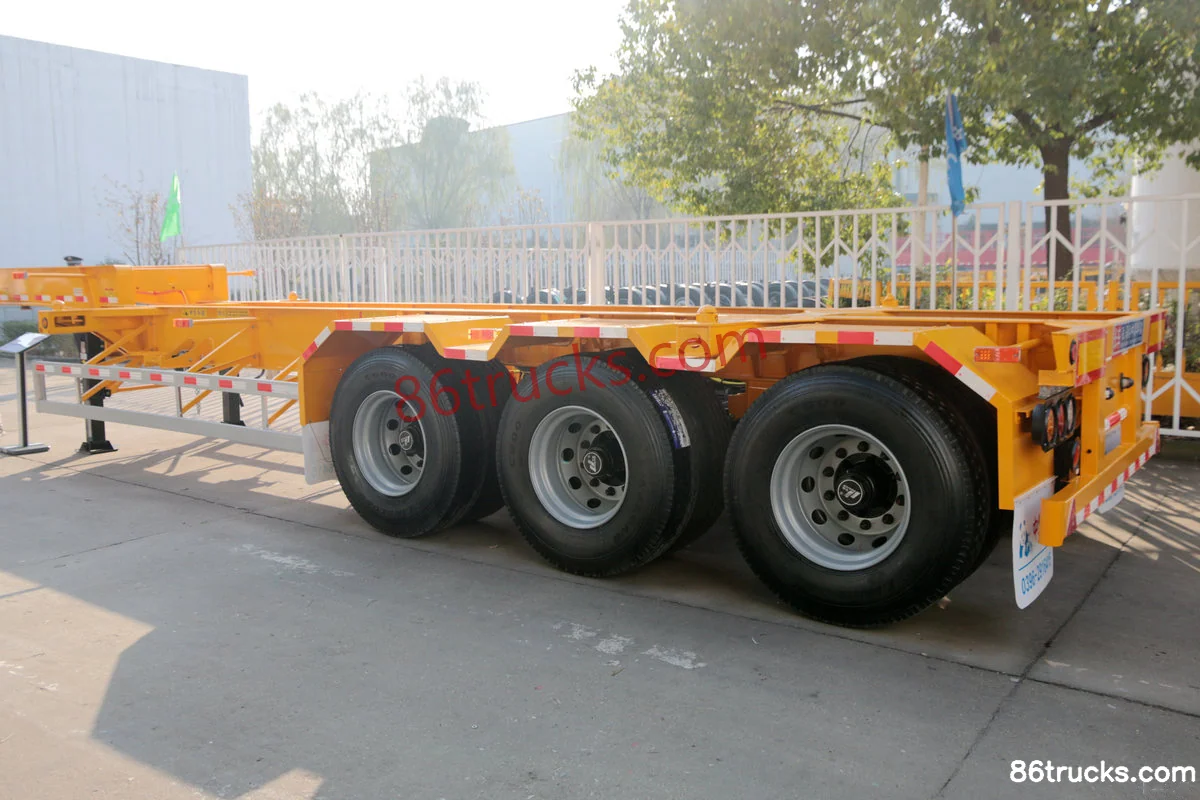

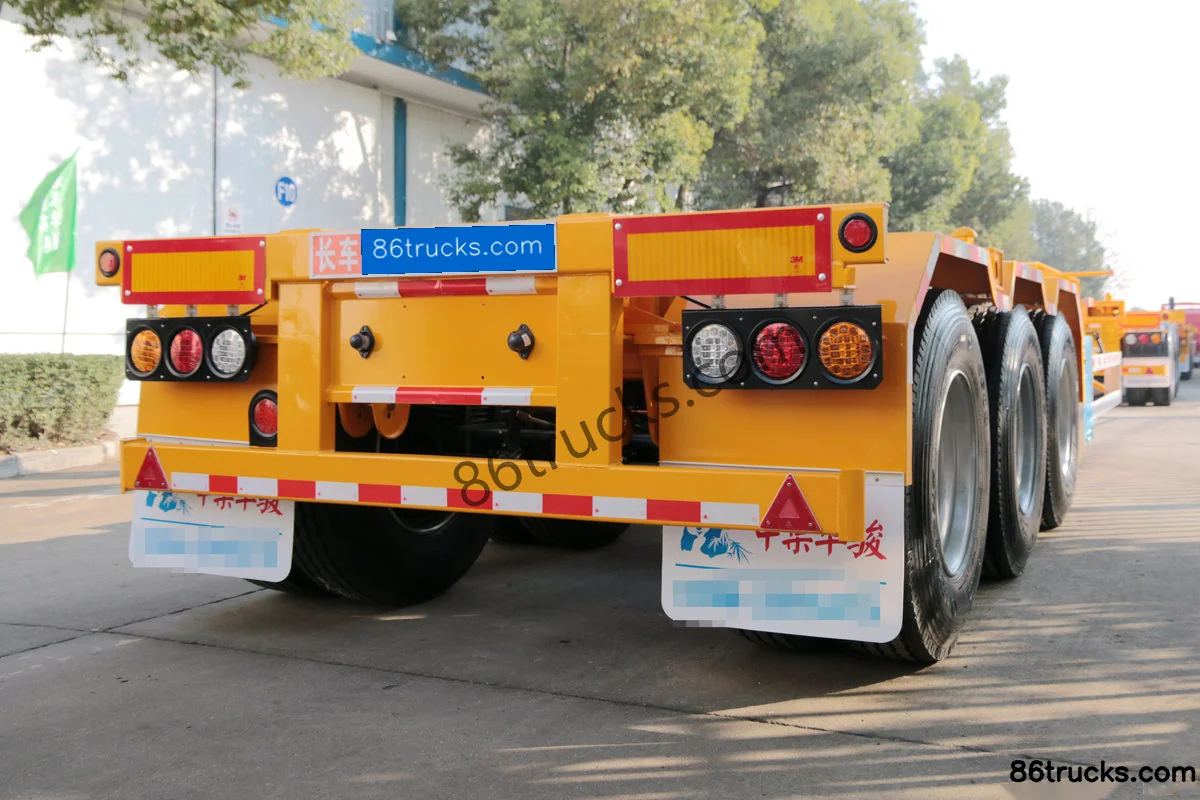

CIMC Huajun 20ft Gooseneck Skeleton Trailer (Container Transport Semi-Trailer)

Export reference
MSRP N/A
Cab width:: 2.5m
suspension:: -/4/4/4
Design load capacity:: 35ton
Cab height:: 1.55m
Number of wheels:: 12
Outrigger:: 28T FOWOT, linked
Axle Brand: Huajun 13T
Curb Weight: 5ton
Cab length: 10.86m
Tire brand: Linglong

Overview

The CIMC Huajun 20ft Gooseneck Skeleton Trailer (Container Transport Semi-Trailer) is a container semi-trailer featuring Huajun 13T-axle setup, 5ton GVW, 10.86m length and 35ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 35ton
Cab length: 10.86m
Cab width: 2.5m
Cab height: 1.55m
Curb Weight: 5ton
Chassis Specs
Axle Brand: Huajun 13T
Number of Axles: 3
Axle Load Rating: 24000 (tri-axle group)
Number of wheels: 12

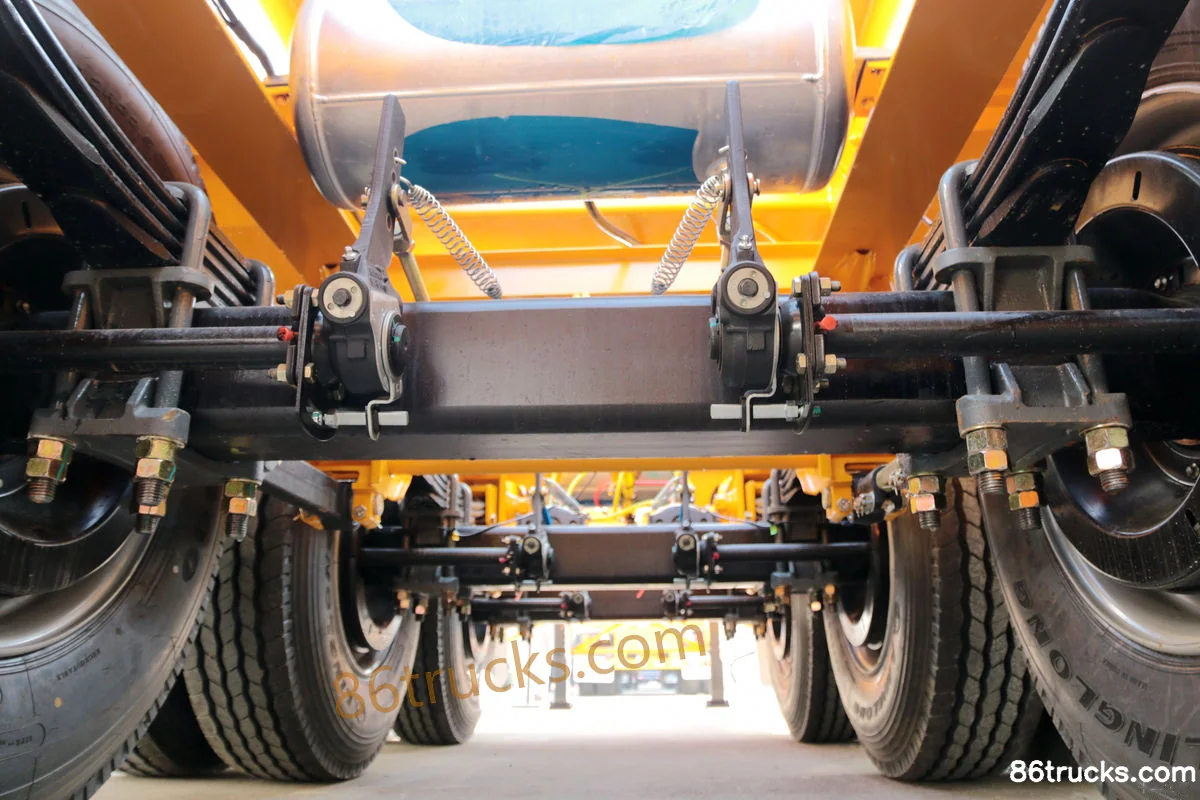

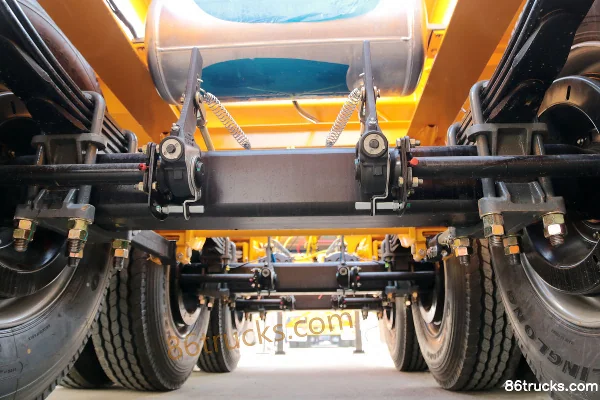

suspension: -/4/4/4
Wheel Material: Steel
Parts & accessories
Outrigger: 28T FOWOT, linked
ABS: Western Union, with low-pressure alarm
Tire

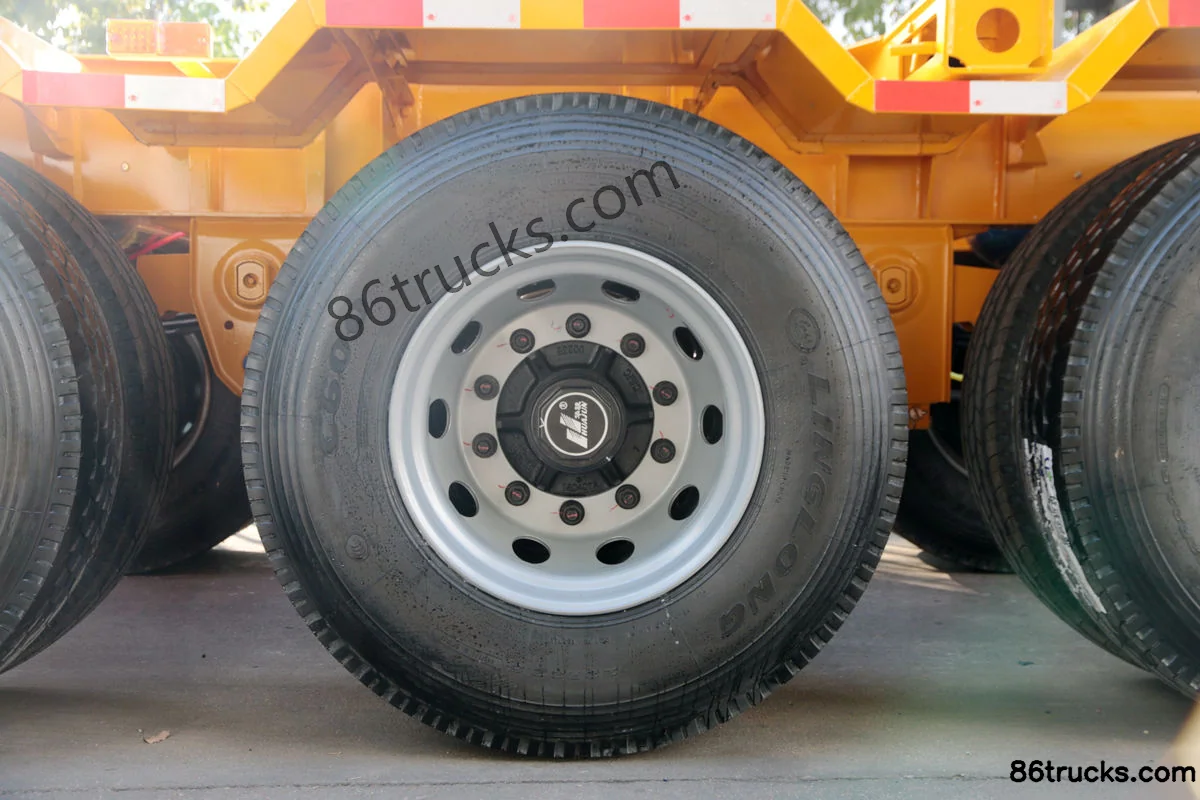

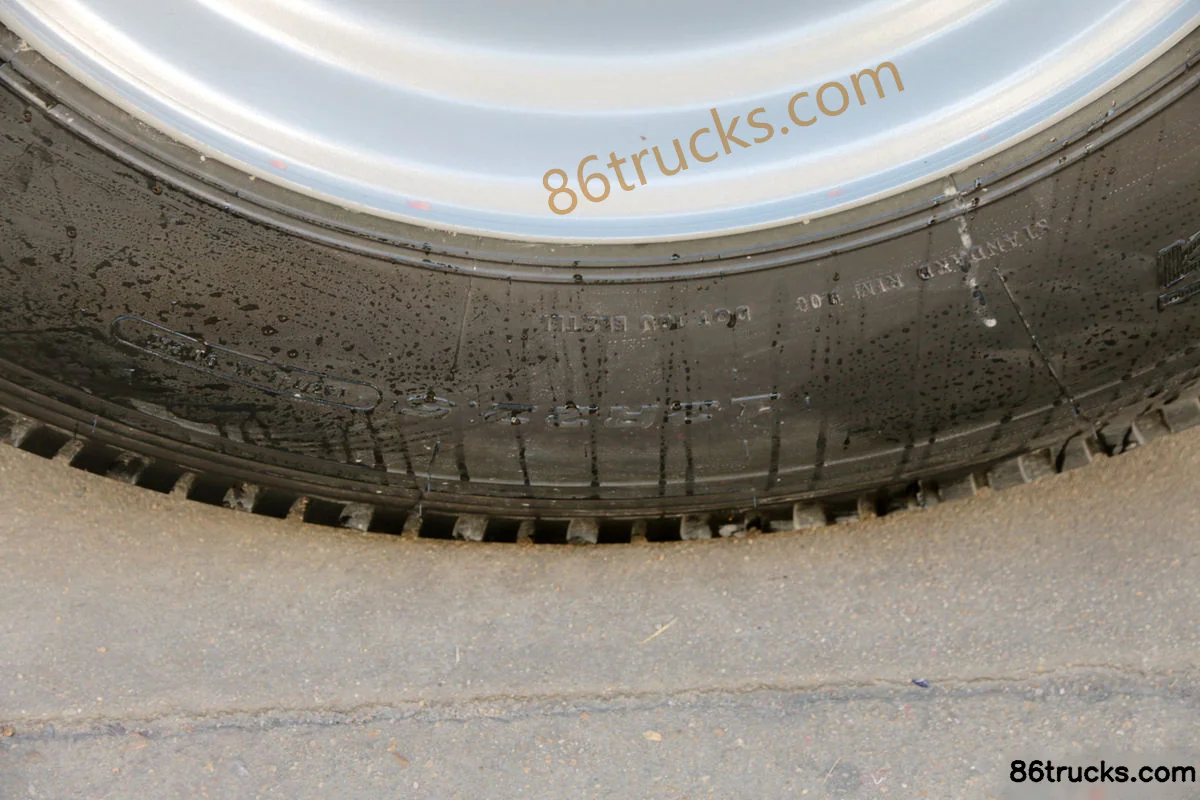

Tire brand: Linglong
Tire Size: 12R22.5
Number of tires: 12pcs

Photos

Exterior3

Cab3

6 photos

FAQ

What transport jobs is CIMC Huajun 20ft Gooseneck Skeleton Trailer (Container Transport Semi-Trailer) suited for?

CIMC Huajun 20ft Gooseneck Skeleton Trailer (Container Transport Semi-Trailer) is a container semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does CIMC Huajun 20ft Gooseneck Skeleton Trailer (Container Transport Semi-Trailer) differ from other variants in the same series?

CIMC Huajun 20ft Gooseneck Skeleton Trailer (Container Transport Semi-Trailer) belongs to CIMC Huajun 20ft Series (container semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CIMC Huajun 20ft Gooseneck Skeleton Trailer (Container Transport Semi-Trailer)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CIMC Huajun 20ft Gooseneck Skeleton Trailer (Container Transport Semi-Trailer)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
