Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 33.1ton
Wheelbase:: 4200mm
Tire brand:: Linglong tires
Front axle allowable load:: 11500kg
Displacement:: 6.87L
Drive 4X2 (6 wheels)
Horsepower 340
Emission China V
Transmission Qijiang

Overview

The Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 340 hp, 18t GVW and China V emissions. Its segment focus covers car carrier truck, matching those duty cycles. On the powertrain side, it comes with a SinotrukMC07.34-50 engine, Qijiang transmission and Diesel fuel.

China V 340 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5185TBQN4213E1
Drive type: 4X2
Wheelbase: 4200mm
engine: SinotrukMC07.34-50
transmission: Qijiang 9TS1300C
Rear Axle Ratio: 4.44
Cab length: 6.68m
Cab width: 2.55m
Cab height: 3.8m
Front track width: 1930mm
rear track: 1830mm
Gross Trailer Weight: 33.1ton
Curb Weight: 6.7ton
GVWR: 18ton
Max. speed: 102km/h
Origin: Jining, Shandong
tonnage class: Heavy truck
market segment: car carrier truck
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Qijiang 9TS1300C
Transmission Brand: Qijiang
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Housing Material: Steel shell
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 500L
Cab parameters
Cab: Flat roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Manual
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Suspension type: Leaf spring
Front axle description: 153
Front axle allowable load: 11500kg
Fifth wheel: 50#
rear axle description: 153+4.44
rear axle allowable load: 6500kg
Axle ratio: 4.44
Leaf spring count: 4/5
Tire
Tire brand: Linglong tires
Tire Size: 315/60R22.5
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
Exterior features
integrated mudguard:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
AC control type: Automatic

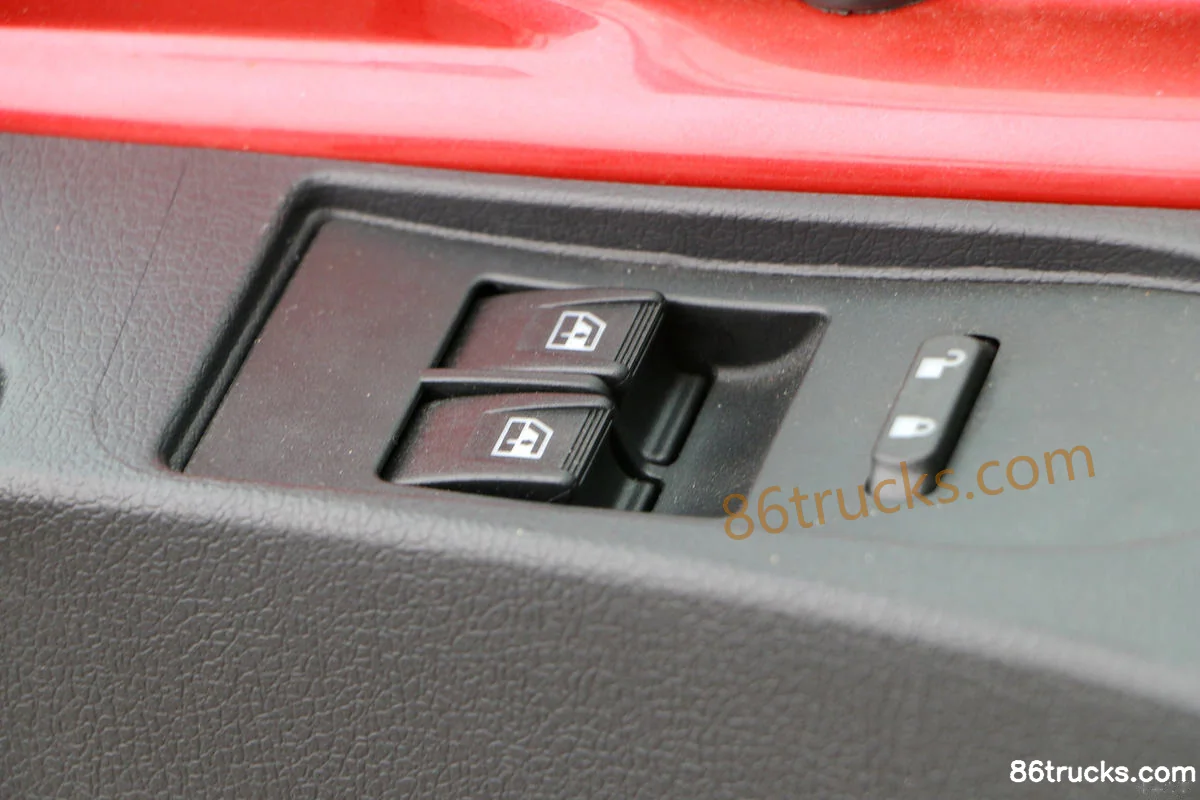

Power Windows:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

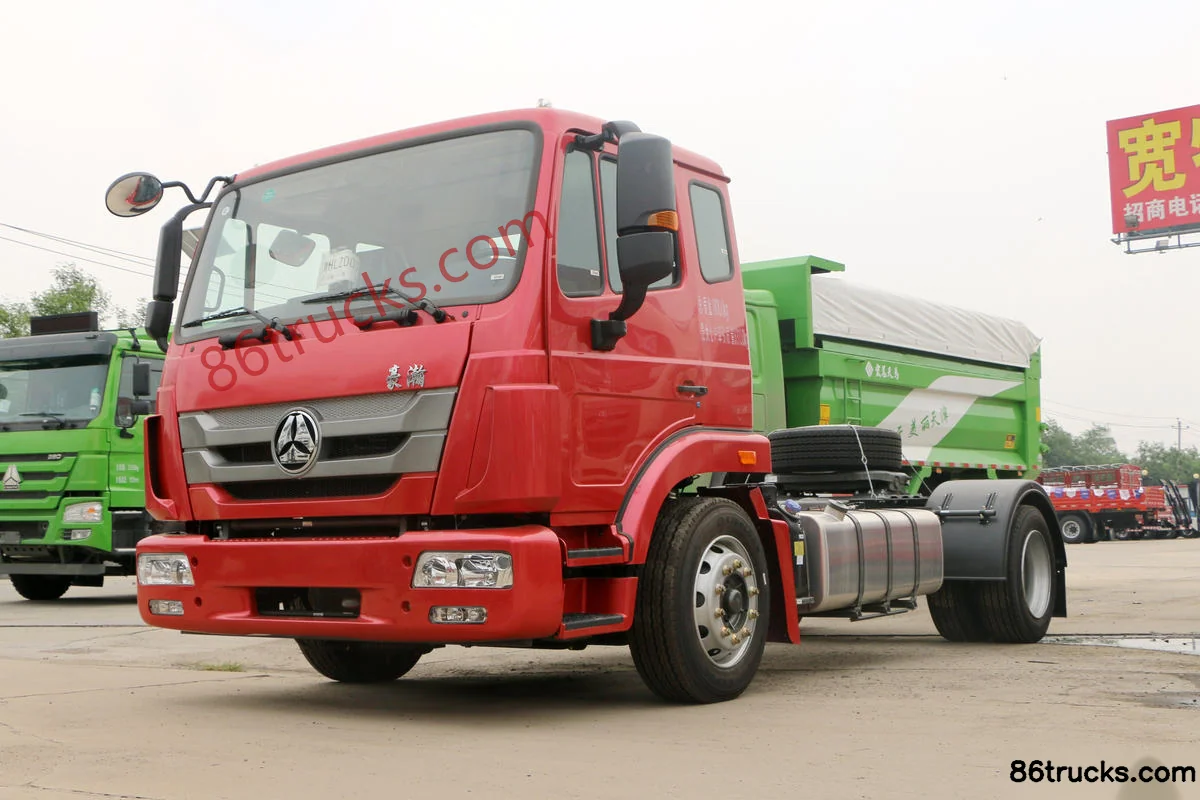

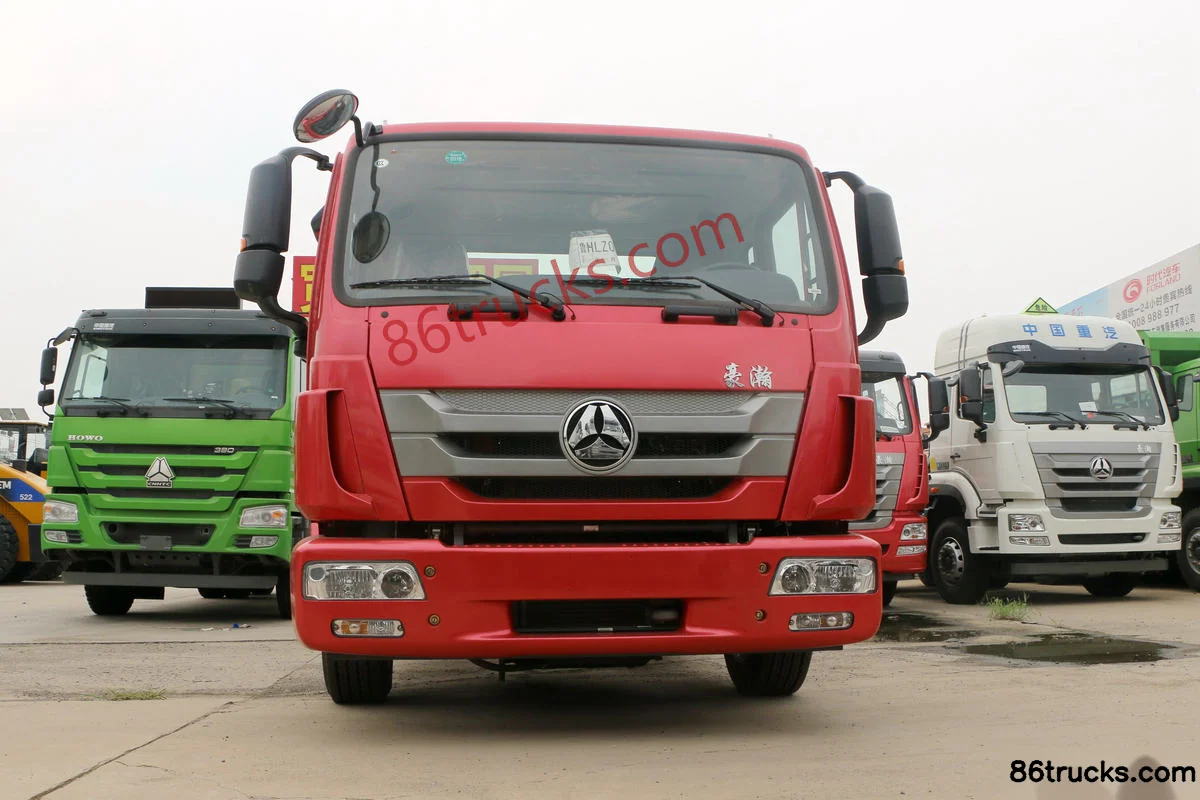

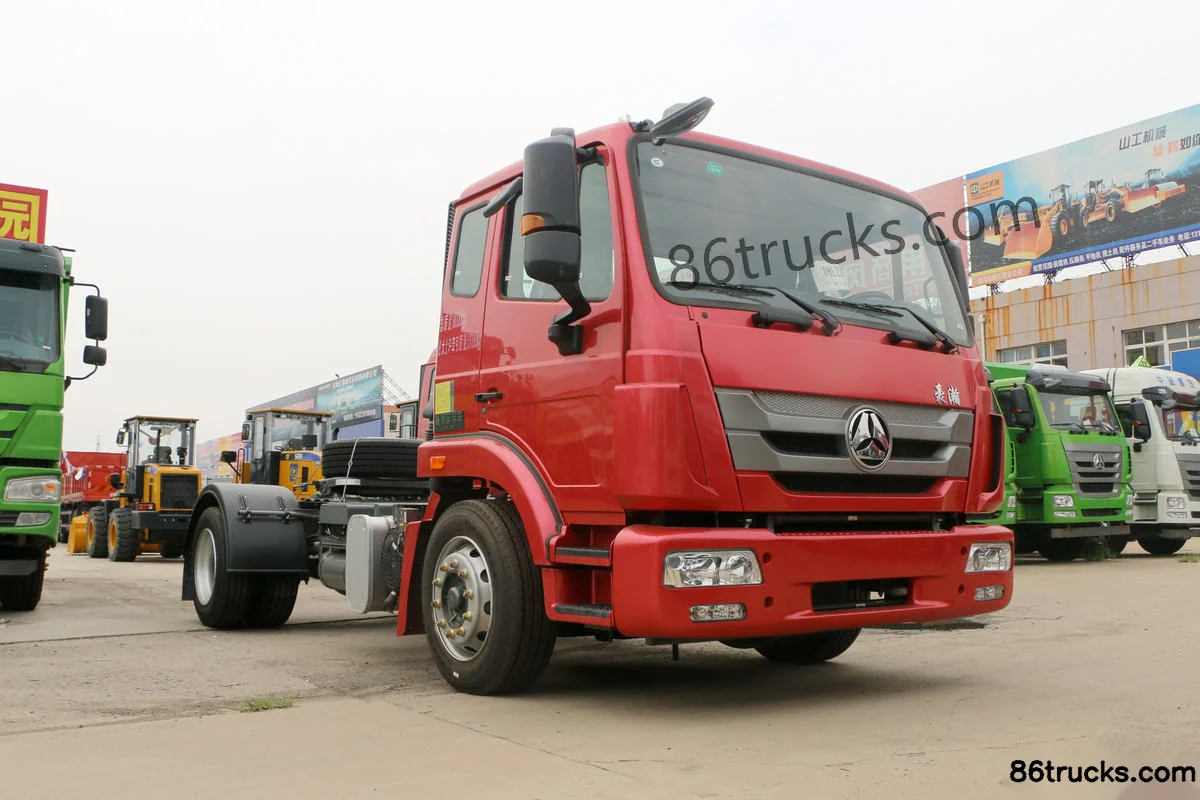

Exterior3

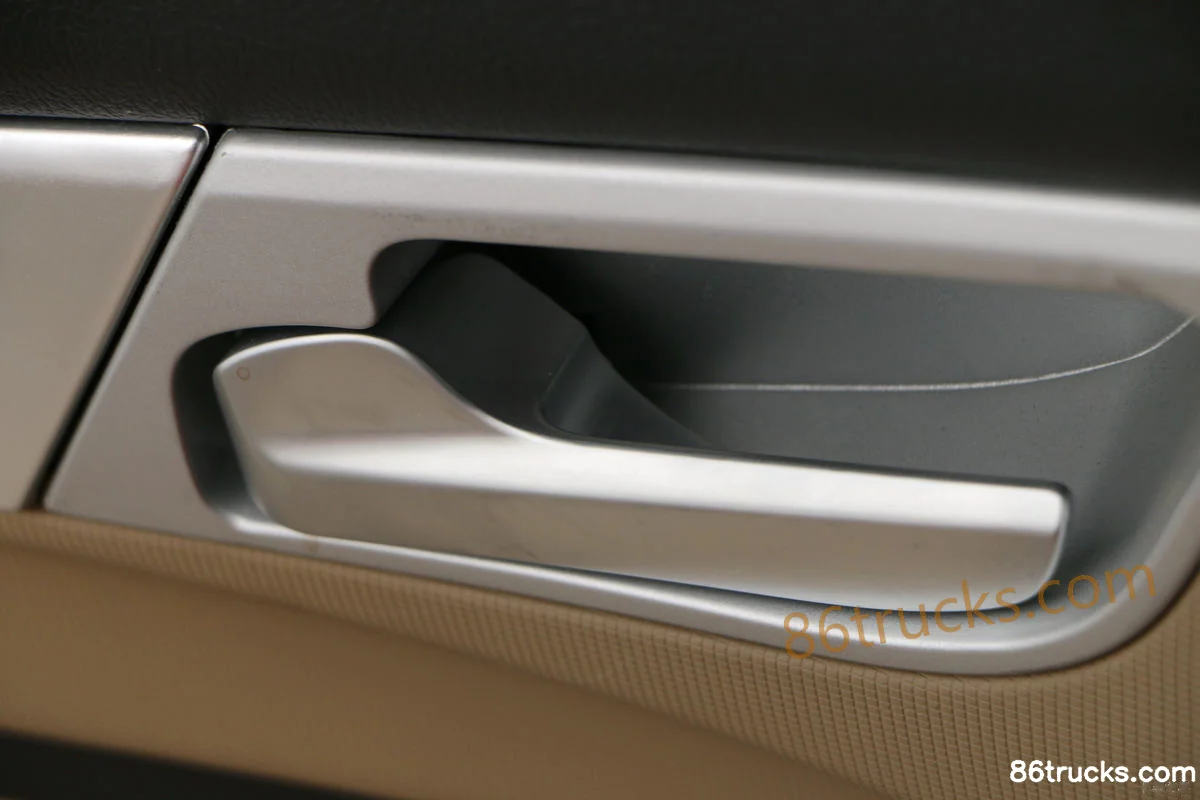

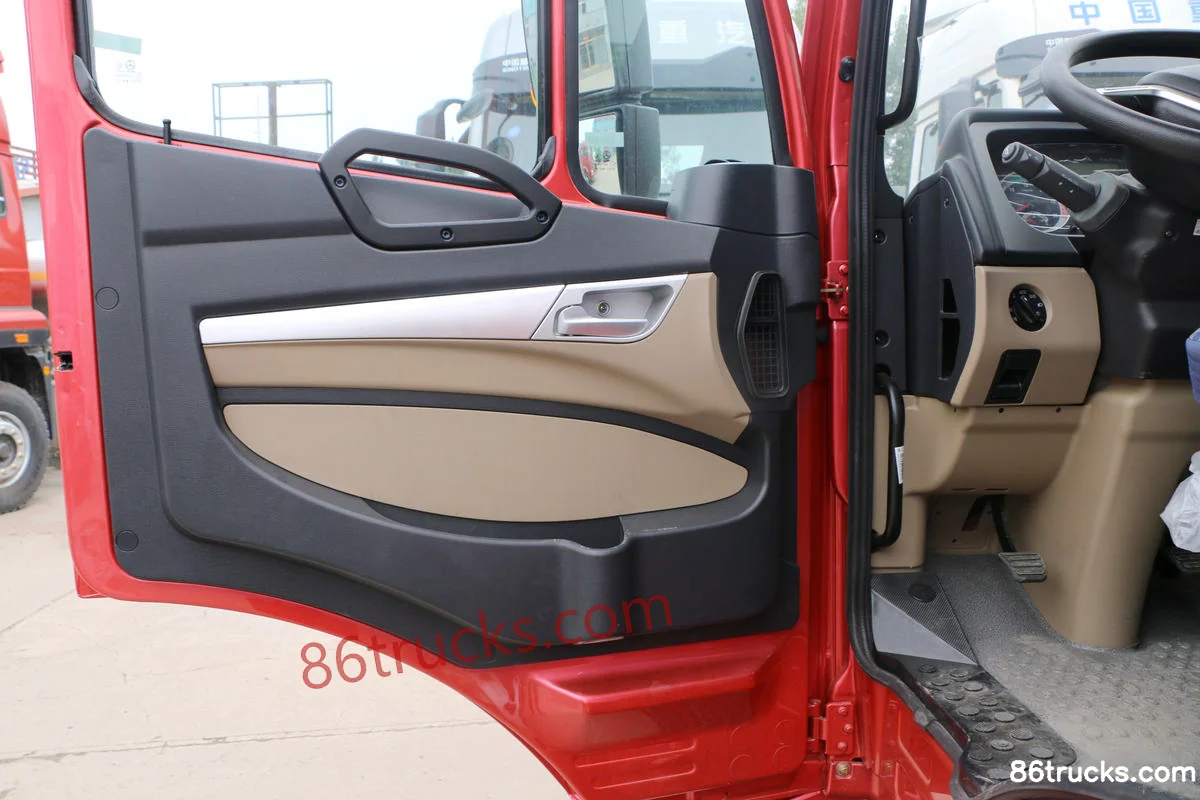

Cab3

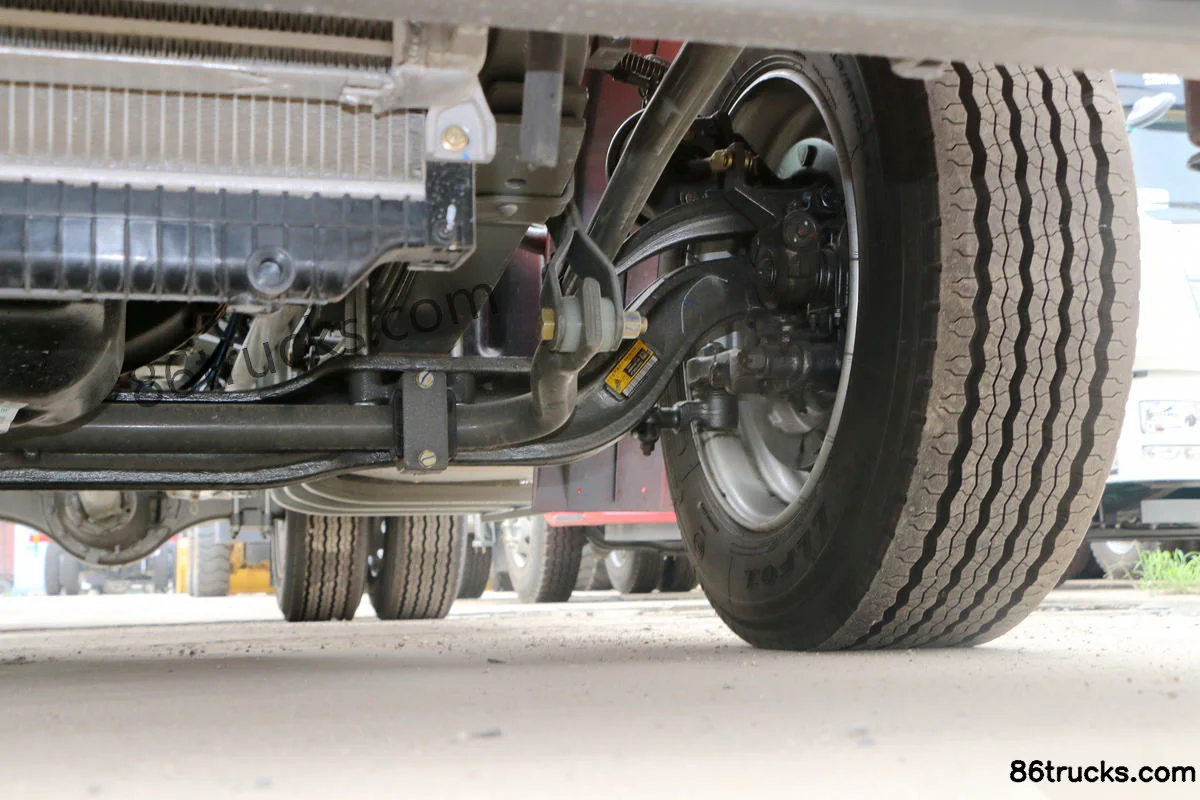

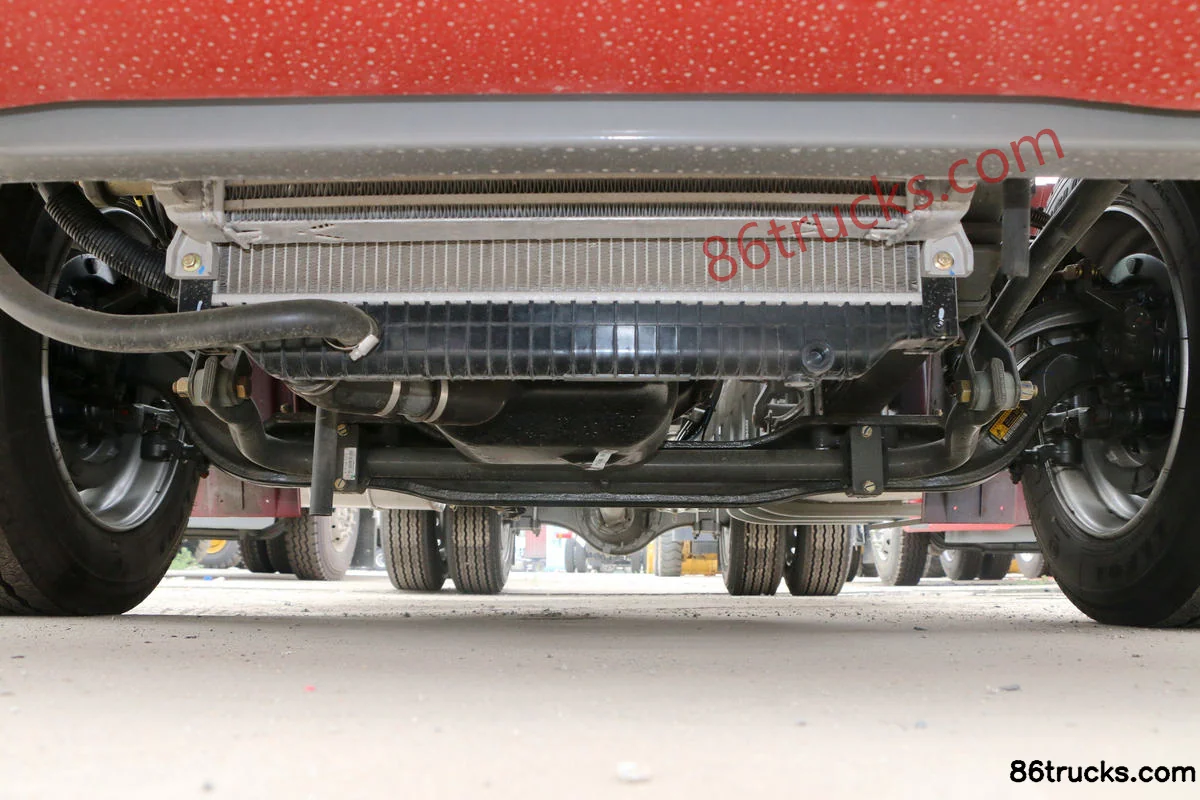

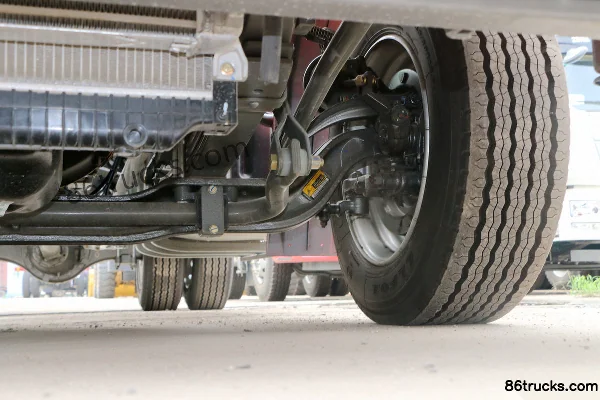

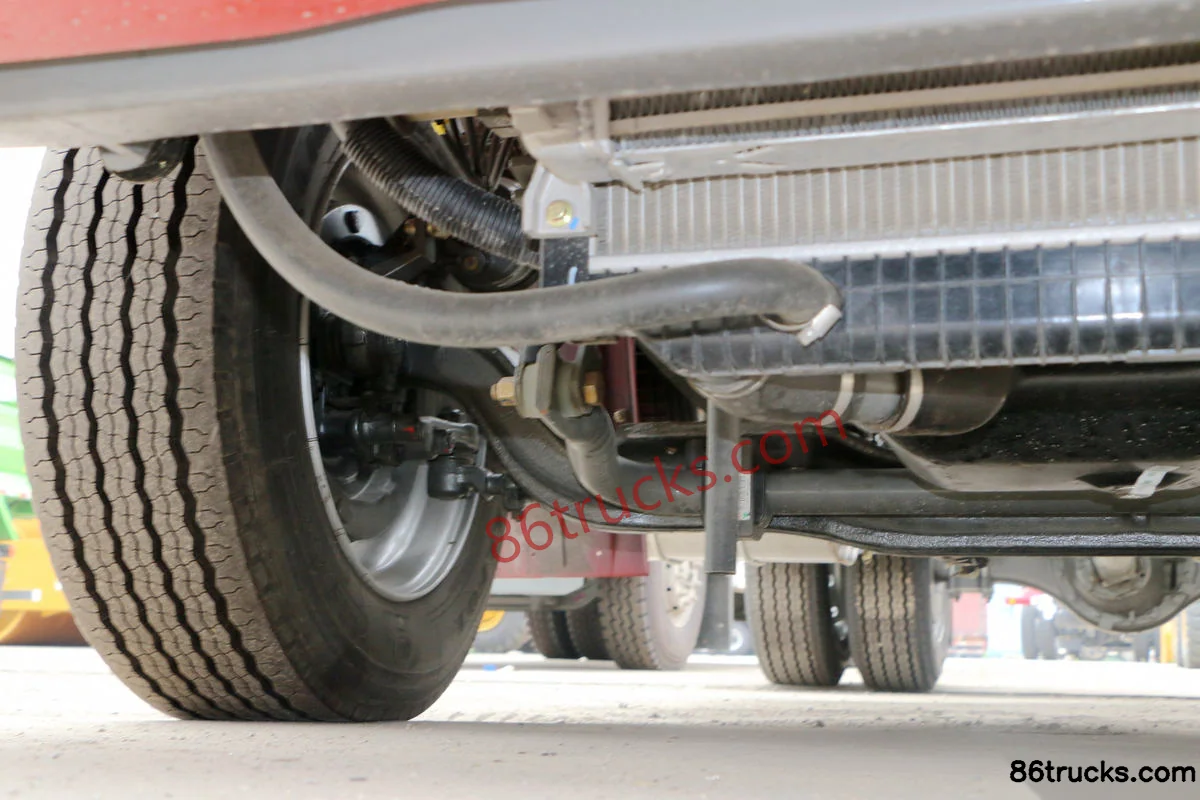

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck?

Key specs of Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck: Drive: 4x2; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Transmission: Qijiang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck suited for?

Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck differ from other variants in the same series?

Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck belongs to Sinotruk J5G Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G Heavy Truck 340 hp 4X2(6 wheels) Car Carrier Semi-trailer Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
