FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh

Export reference
MSRP N/A
Gross Trailer Weight:: 39.37ton
Front axle allowable load:: 7000kg
Wheelbase:: 3900+1350mm
Emission: China VI
Fuel: Methanol
Model code (announced):: HN4250MX27C9SHEVY
Drive 6X4 (10 wheels)
CLTC range: 1000km
Motor 2 Brand: Bosch
Horsepower 350

Overview

The FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh is a Heavy truck featuring 1000km battery/range, Bosch motor, 6X4 (10 wheels) drive and 7000kg payload. On the powertrain side, it comes with 350 hp.

China VI 350 Methanol 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN4250MX27C9SHEVY
Drive type: 6X4
Wheelbase: 3900+1350mm
Front/rear track width: Front track: 2085mm; Rear track: 1865/1865mm
Cab length: 7.6m
Cab width: 2.55m
Cab height: 3.94m
Gross Trailer Weight: 39.37ton
CLTC range: 1000km
Curb Weight: 9.5ton
GVWR: 25ton
Max. speed: 120km/h
Origin: Ma'anshan
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
Motor 2 Brand: Bosch
Motor 2 Model: TZ230XY100
Motor 1 Brand: Bosch
Motor 1 Model: TZ230XY100
Motor Type: Permanent magnet synchronous motor
total rated power: 392kW
Peak power: 530kW
total rated torque: 610N·m
Motor 1 Peak Power: 265kW
Motor 2 Peak Power: 265kW
Number of drive motors: Dual Motor
Battery/Charging
Battery Brand: Xuanwu
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 98kWh
Engine parameters
Engine Brand: Hanma
Engine Model: GS09M350H-65
Number of cylinders: 6cylinder
fuel type: Methanol
Displacement: 8.87L
Emission standard: China VI
Max output power: 258kW
Max hp: 350Horsepower
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):

Photos

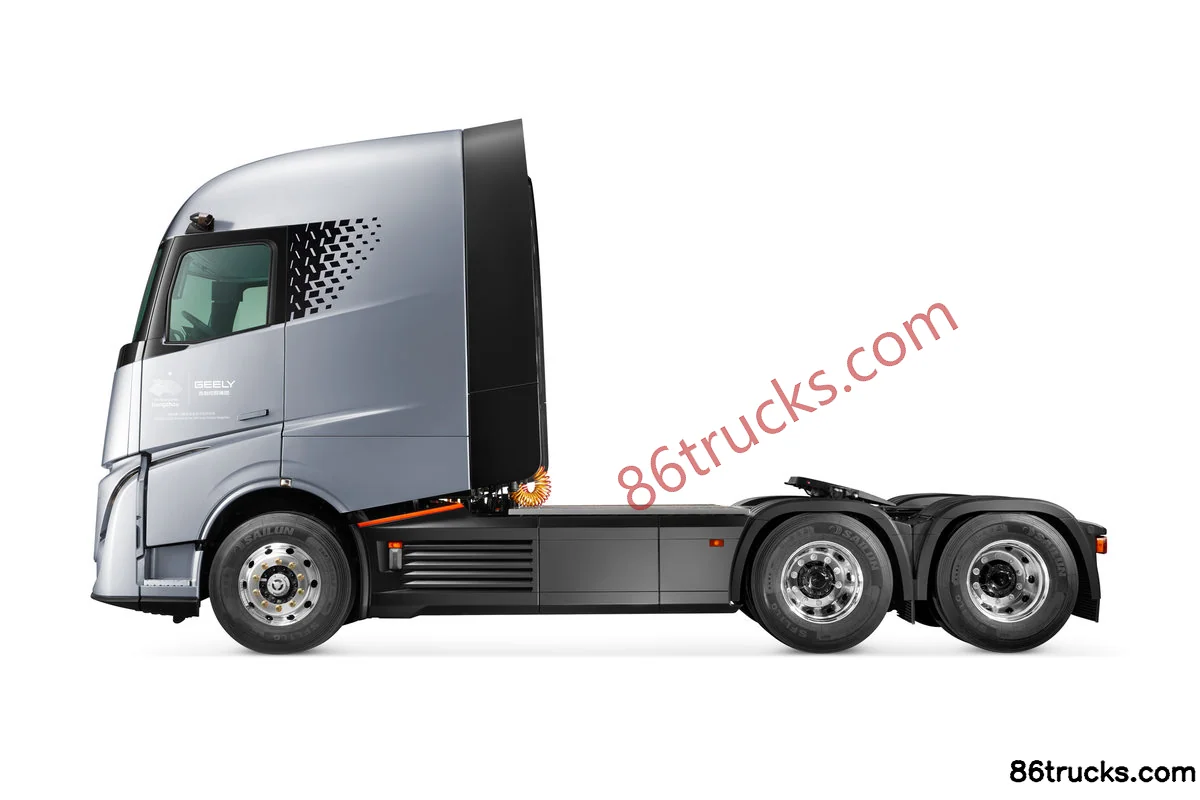

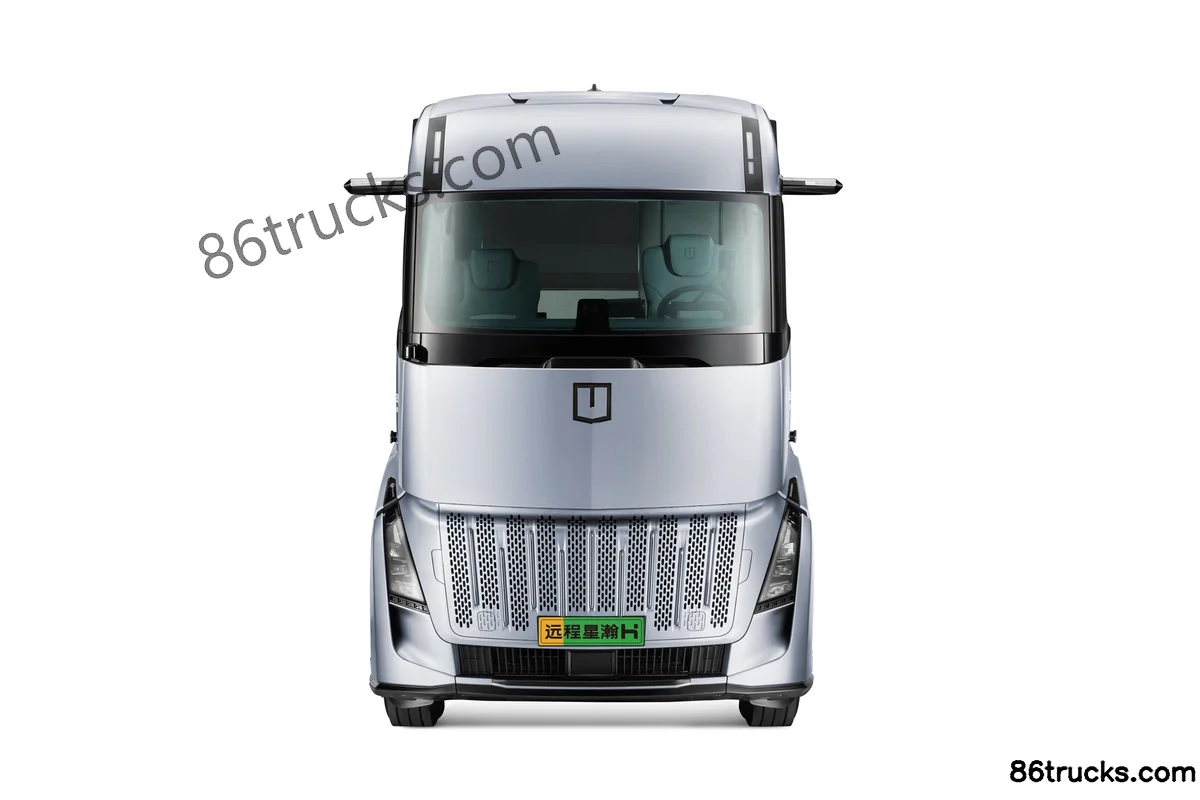

Exterior2

2 photos

FAQ

What emission standard does FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh?

Key specs of FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh: Drive: 6x4; Horsepower: 350 hp; Emission: China VI; Fuel: Methanol. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh suited for?

FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh differ from other variants in the same series?

FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh belongs to FARIZON Xinghan H Series (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON Xinghan H Series 6X4(10 wheels) Methanol Plug-in Hybrid Tractor Truck Xuanwu 98kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
