Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Wheelbase:: 1950+4500+1350mm
Cab dimensions:: 11.99×2.5×3.95m
Truck Type:: fuel tanker truck
Vehicle origin:: Beijing
Rated payload: 18.17ton
Drive 8X4 (12 wheels)
Horsepower 290
Curb Weight: 12.7ton

Overview

The Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand) is a fuel tanker truck featuring 18.17t payload, 12.7ton GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with a Dongfeng engine, 290 hp, China IV emissions and Diesel fuel.

China IV 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.5×3.95m
Drive type: 8X4
Truck Type: fuel tanker truck
Vehicle origin: Beijing
Wheelbase: 1950+4500+1350mm
Curb Weight: 12.7ton
Rated payload: 18.17ton
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: Dongfeng ISLe290 40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.9L
Emission standard: China IV
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1050N·m
Max torque speed: 1400rpm
Rated speed: 2100rpm
Engine Type: Turbocharged Air-to-Air Intercooling
Body Parameters
Vehicle certification code: SQR5311GYYD5T6
Body Brand: CIMC brand
Chassis Specs
Chassis Brand: Union Truck
Chassis Series: U290
Chassis Model: SQR5311GYYD5T6
Front axle description: Forged I-beam
rear axle description: 435 single reduction stamped-welded axle
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS119TA
Tire
Tire Size: 295/80R22.5
Number of tires: 12pcs

Photos

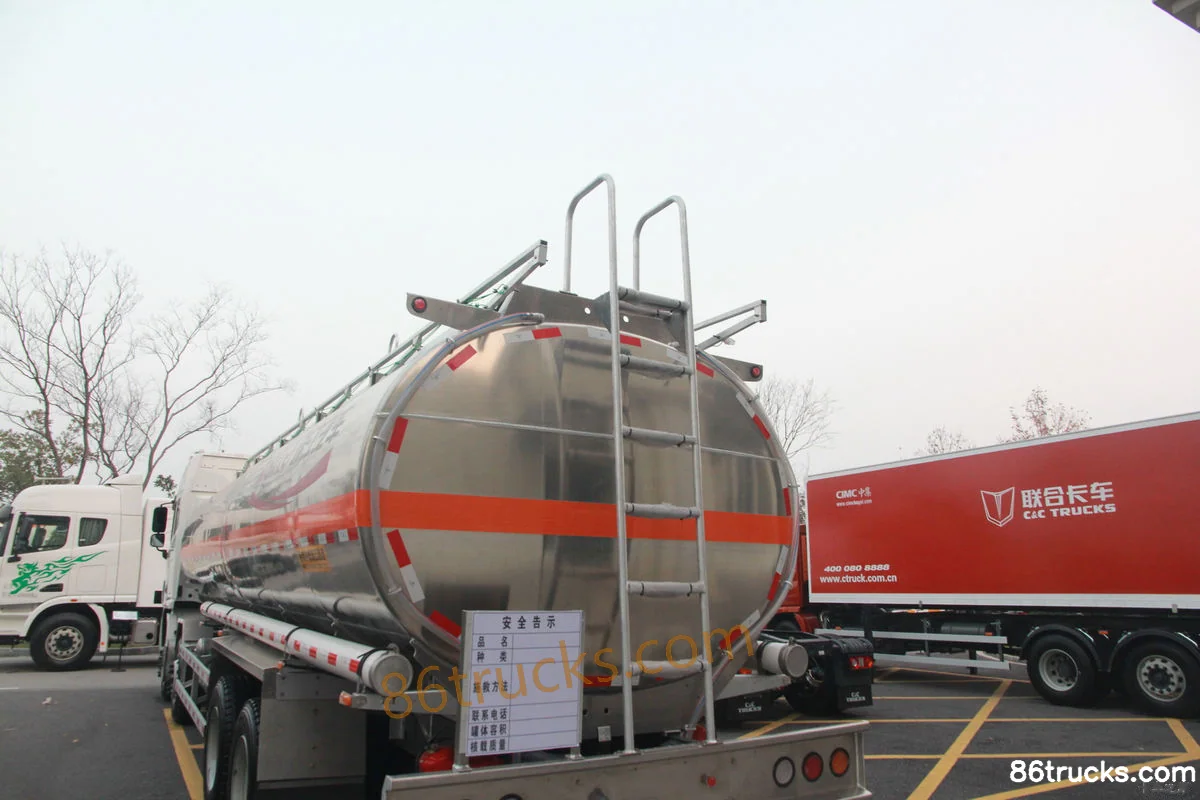

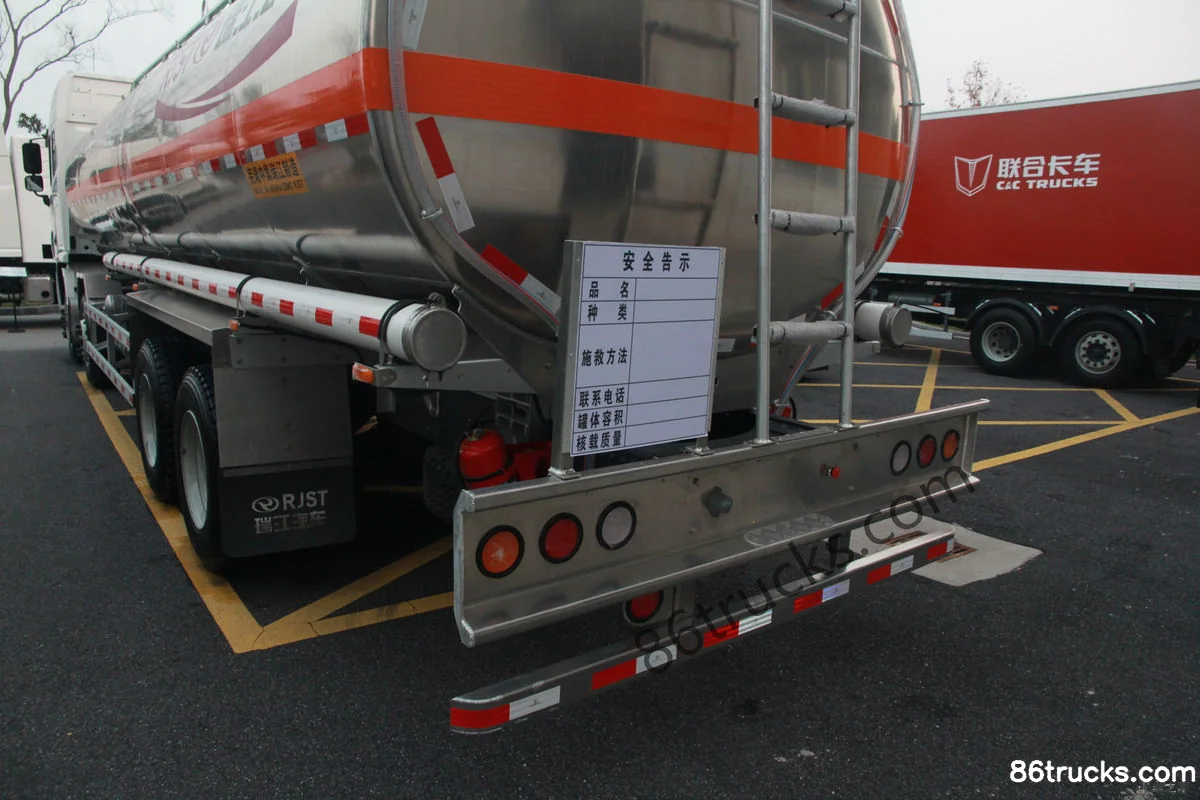

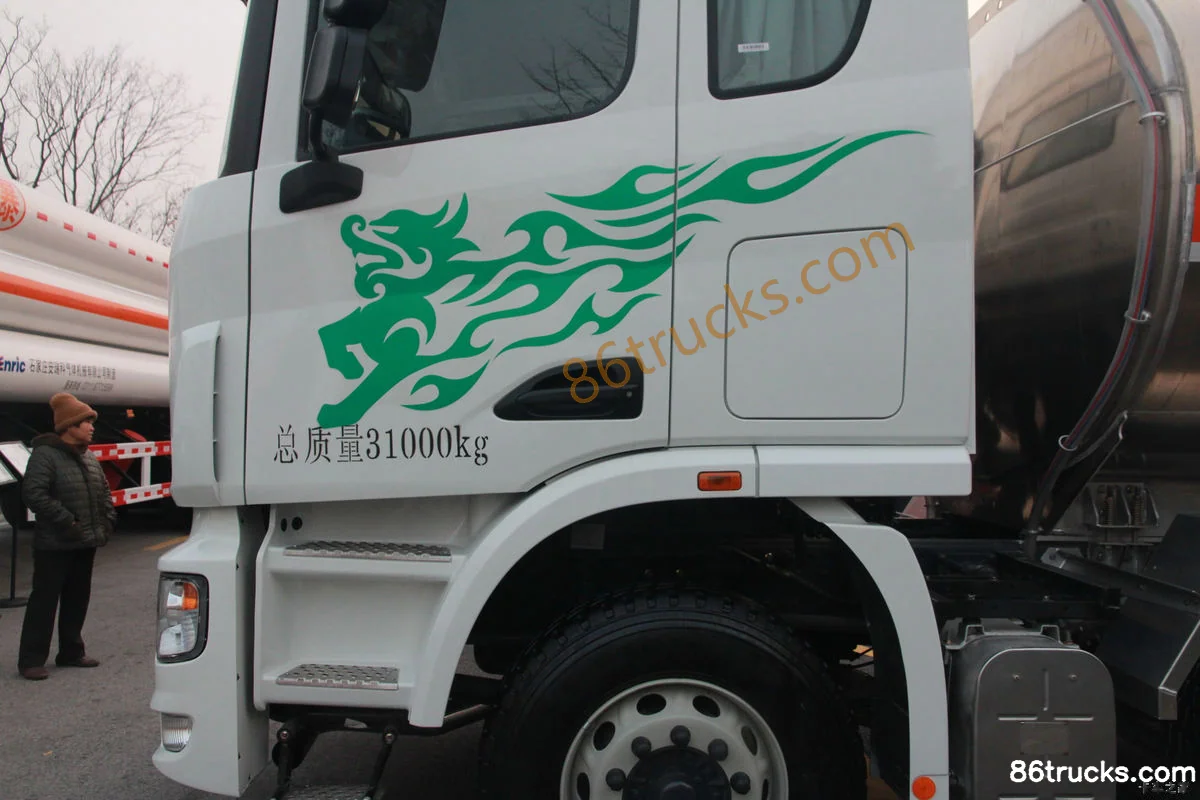

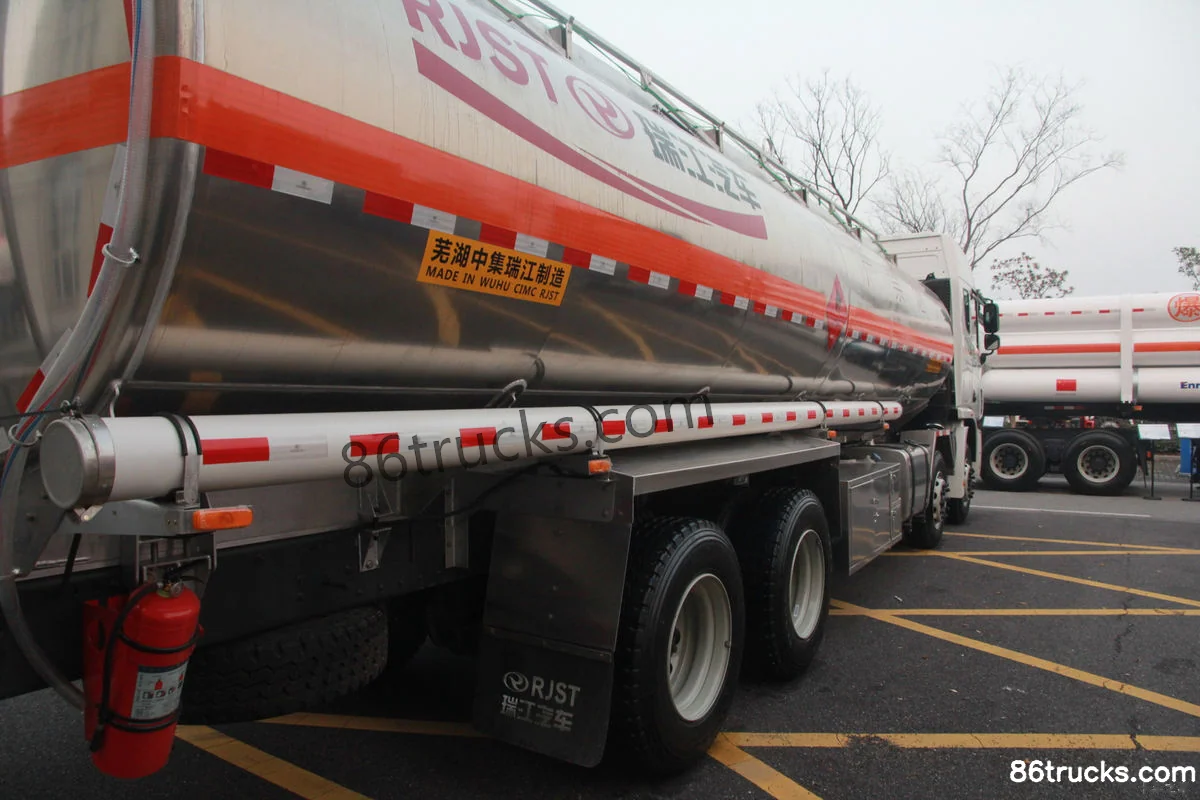

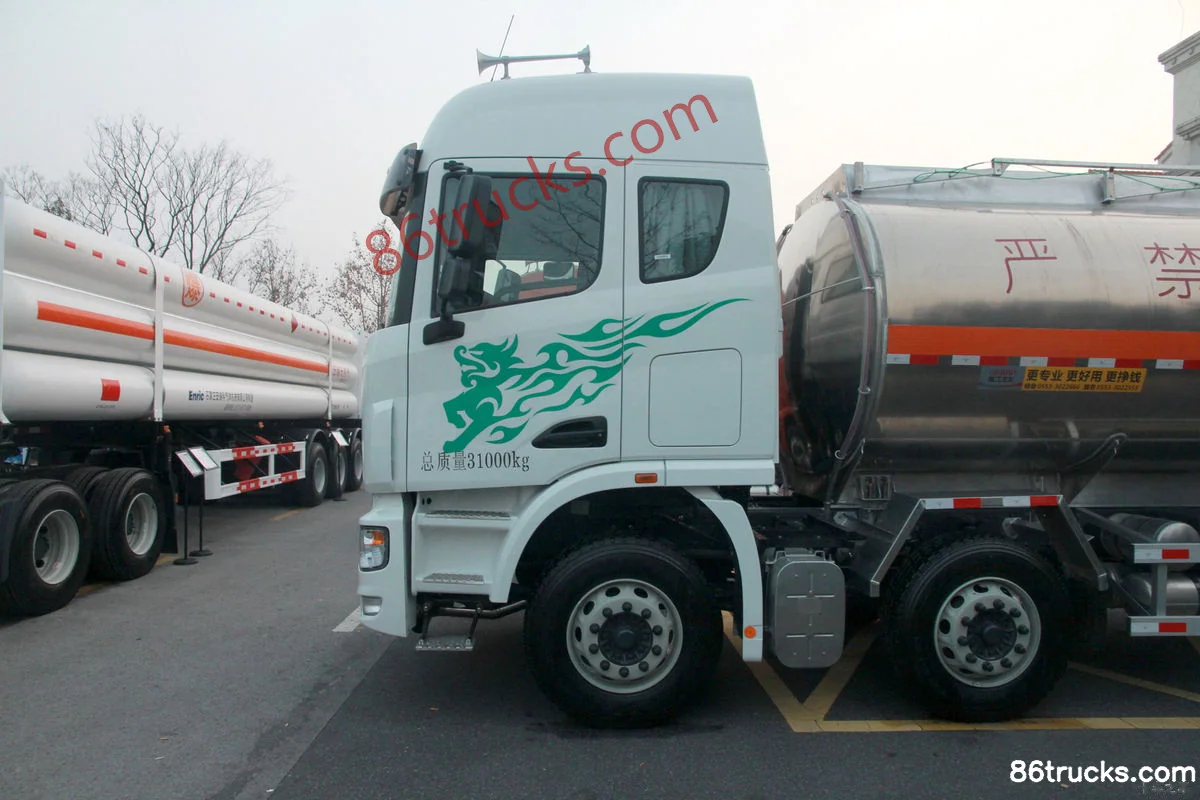

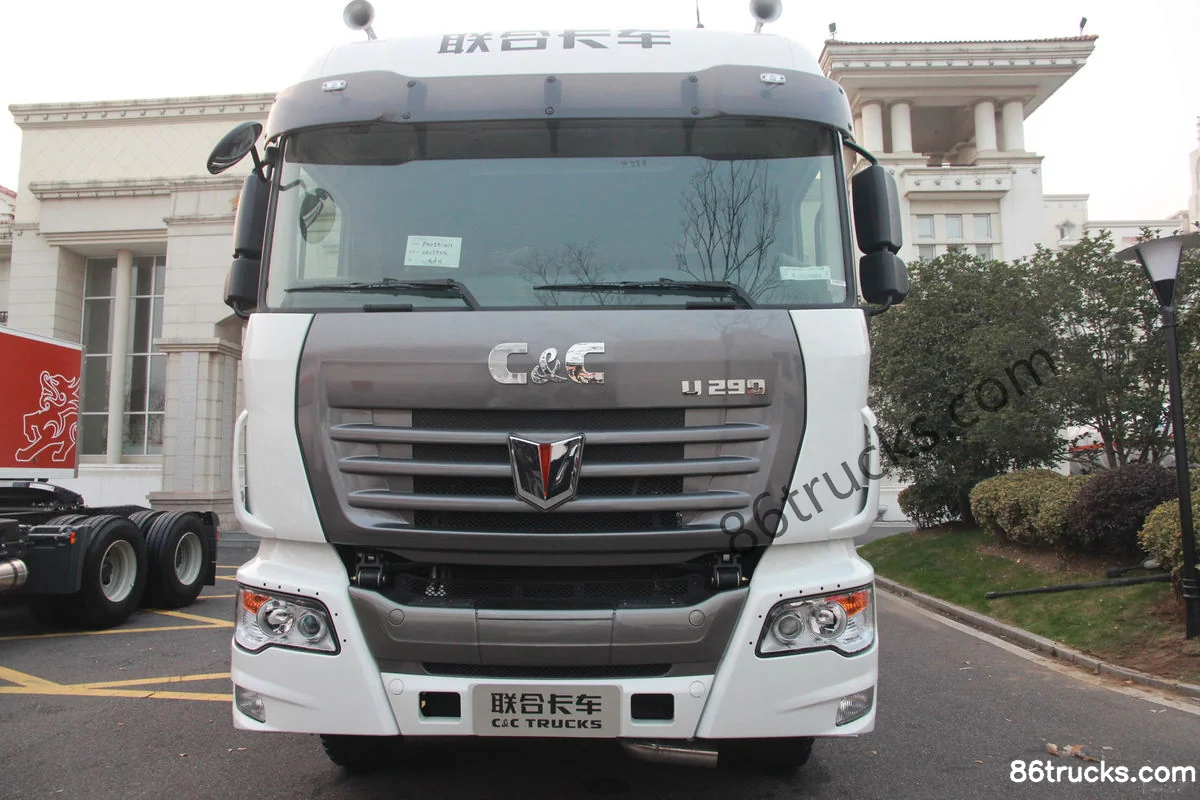

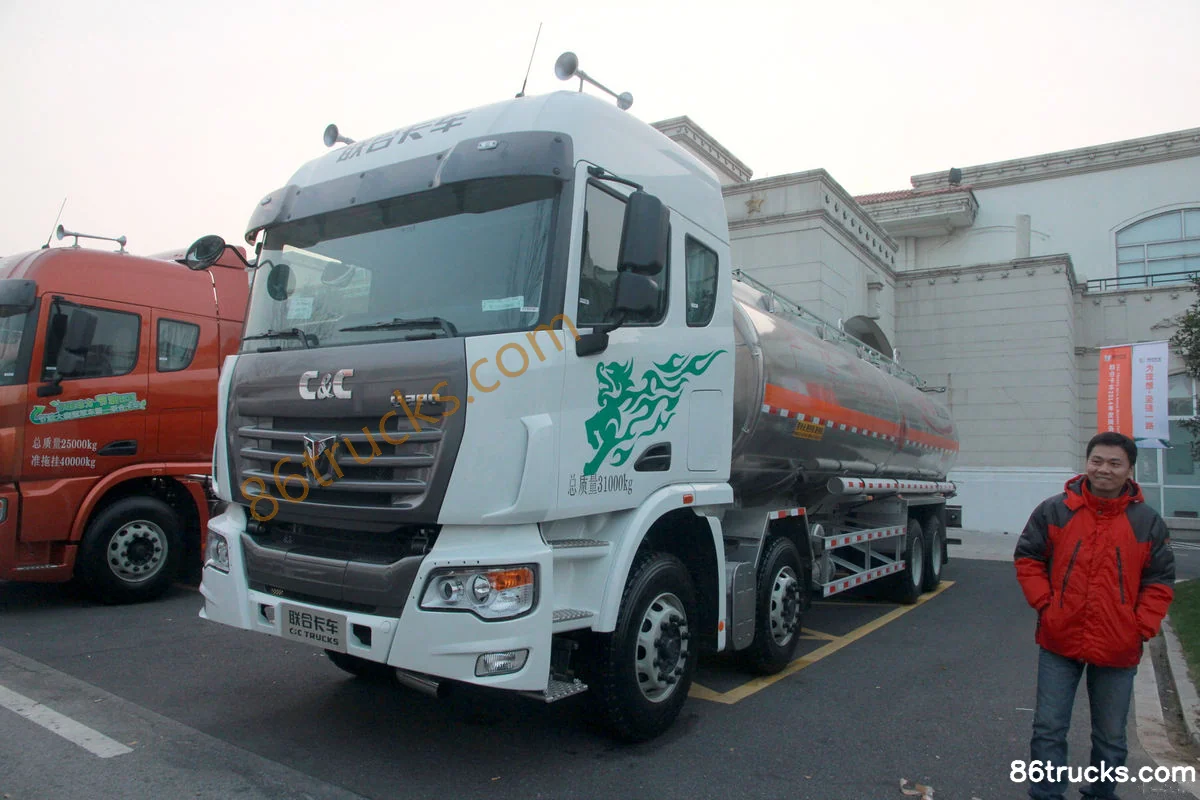

Exterior3

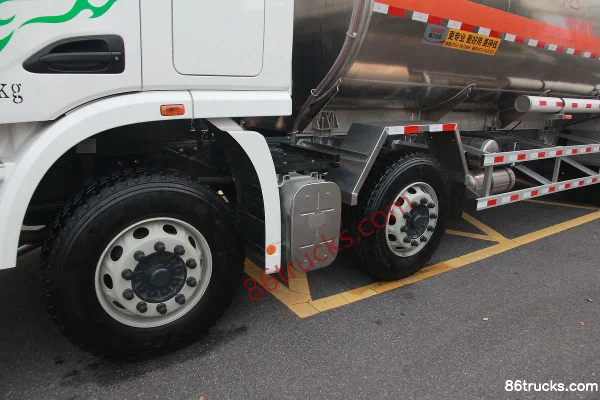

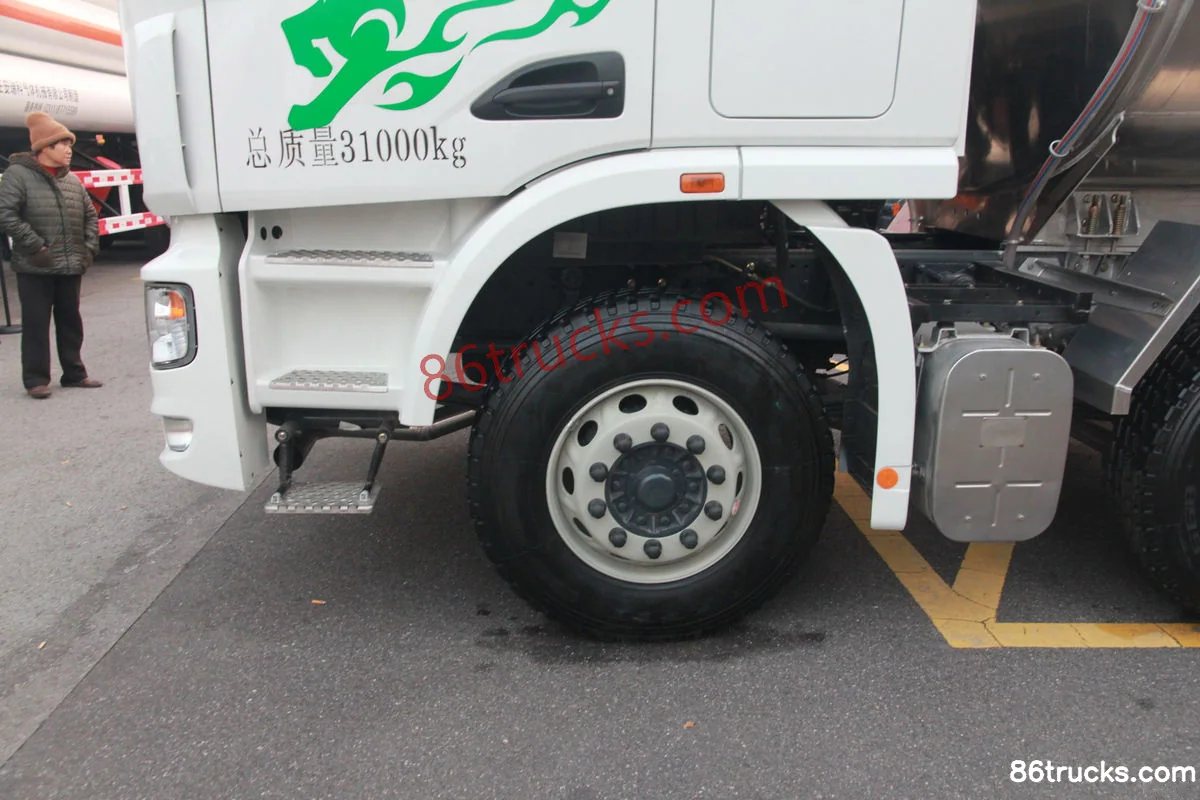

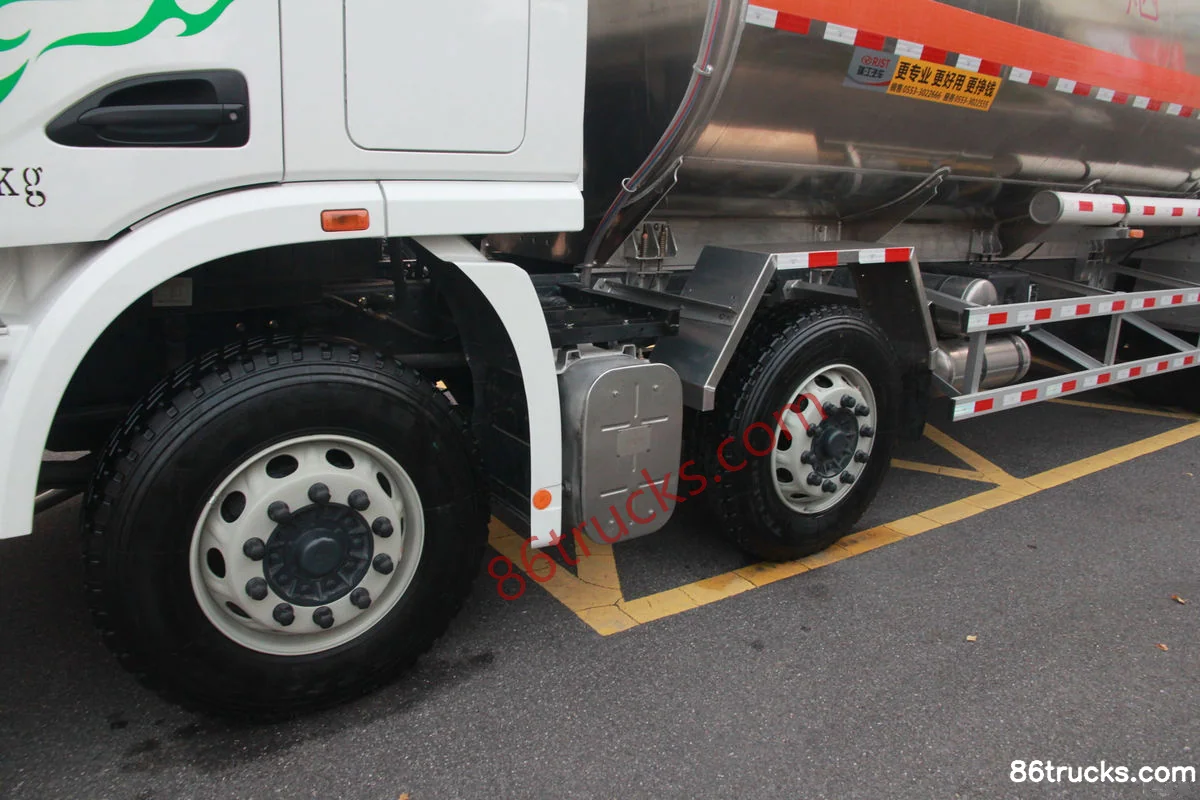

Chassis3

Chassis3

9 photos

FAQ

What emission standard does Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand)?

Key specs of Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand): Drive: 8x4; Horsepower: 290 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand) suited for?

Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand) is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand) differ from other variants in the same series?

Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand) belongs to CIMC Union Truck chassis (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U290 290 hp 8X4(12 wheels) Oil Tank Truck (CIMC Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
