Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck

Export reference
MSRP N/A
Horsepower: 180
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP2.5N
Transmission: Fast Gear
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.795ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 1.795t payload. On the powertrain side, it comes with a WeichaiWP2.5N engine, 180 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1048F17FB3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 3.8m
engine: WeichaiWP2.5NQ180E62
transmission: Fast Gear8JS85TE-C
Rear Axle Ratio: 4.875
Cab length: 5.985m
Cab width: 2.2m
Cab height: 2.52m
Front track width: 1520mm
rear track: 1595mm
Curb Weight: 2.56ton
Rated payload: 1.795ton
GVWR: 4.485ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.175/1.53m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.5NQ180E62
Engine info: WeichaiWP2.5N
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.493L
Emission standard: China VI
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 500N·m
Max torque speed: 1400-1800rpm
Rated speed: 2900rpm
Transmission Parameters
Transmission Model: Fast Gear8JS85TE-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2.1m
Cargo box height: 0.5m
*Cargo box interior width: 2.1
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1695kg
Frame Dimensions: 216 framemm
rear axle description: 7.2T
rear axle allowable load: 2790kg
Axle ratio: 4.875
Leaf spring count: 11/11+7
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

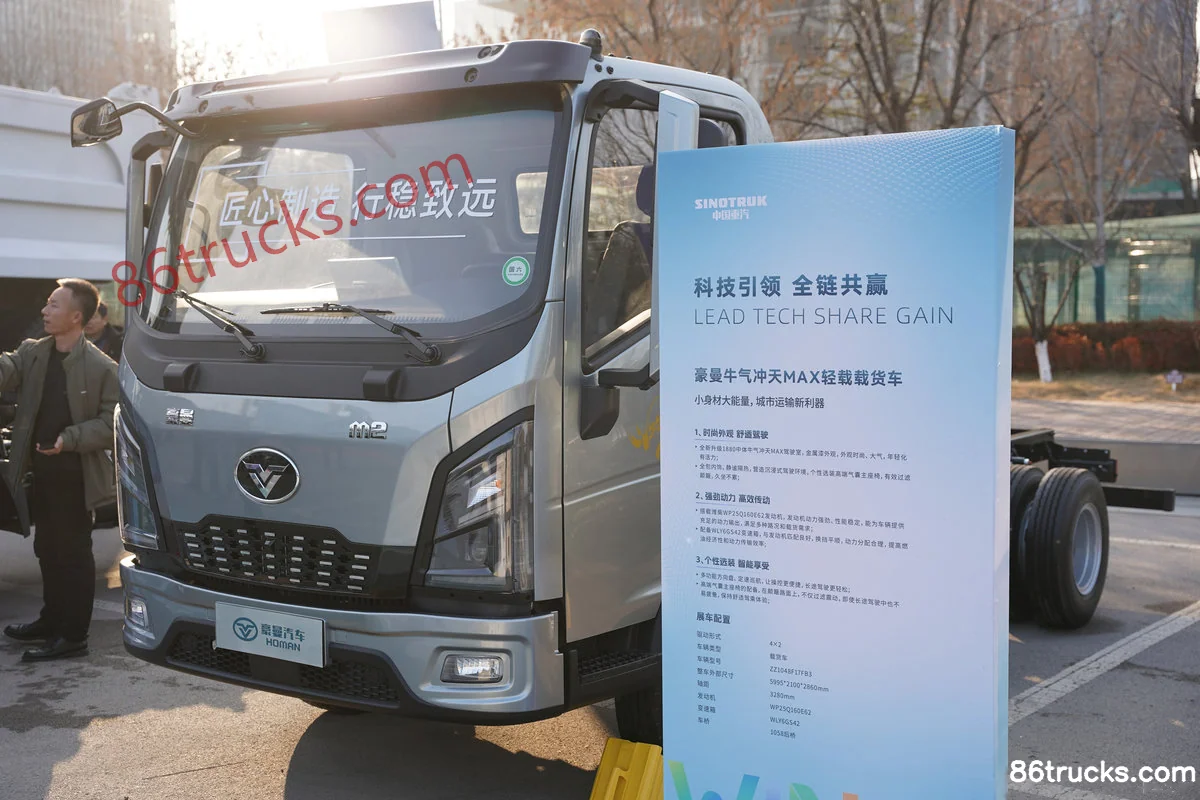

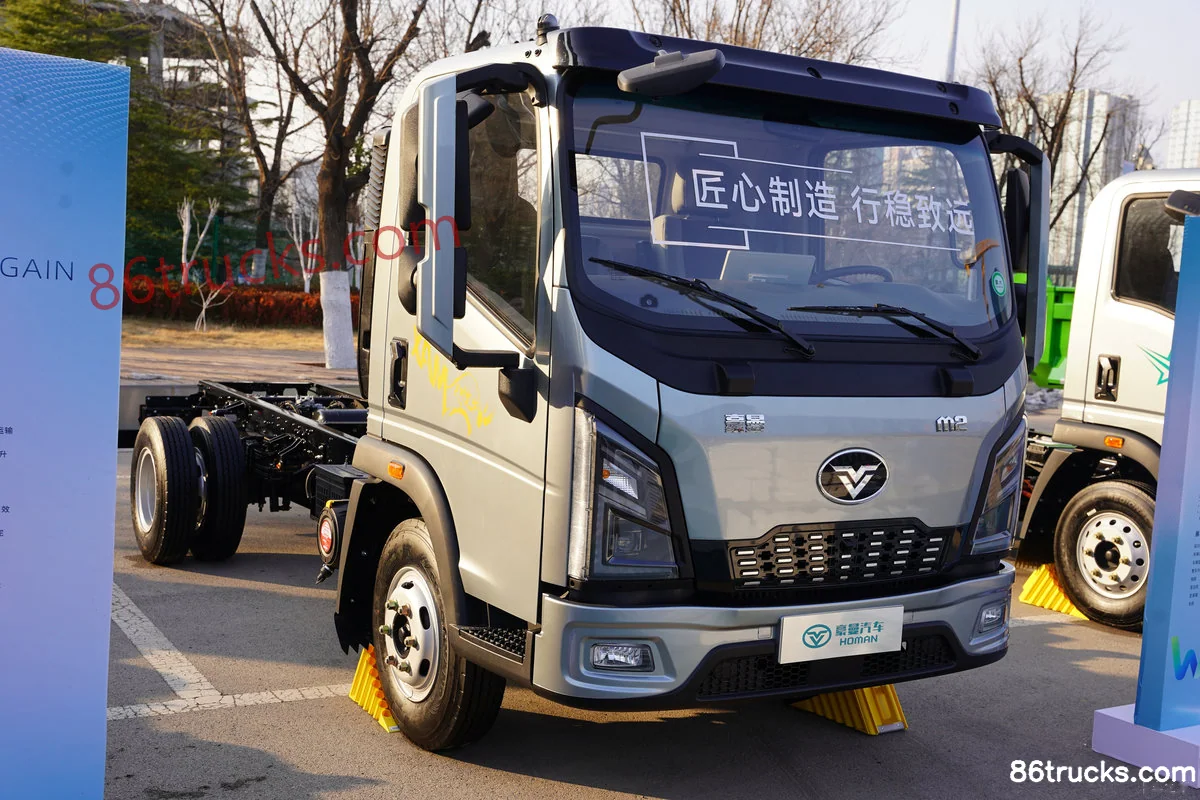

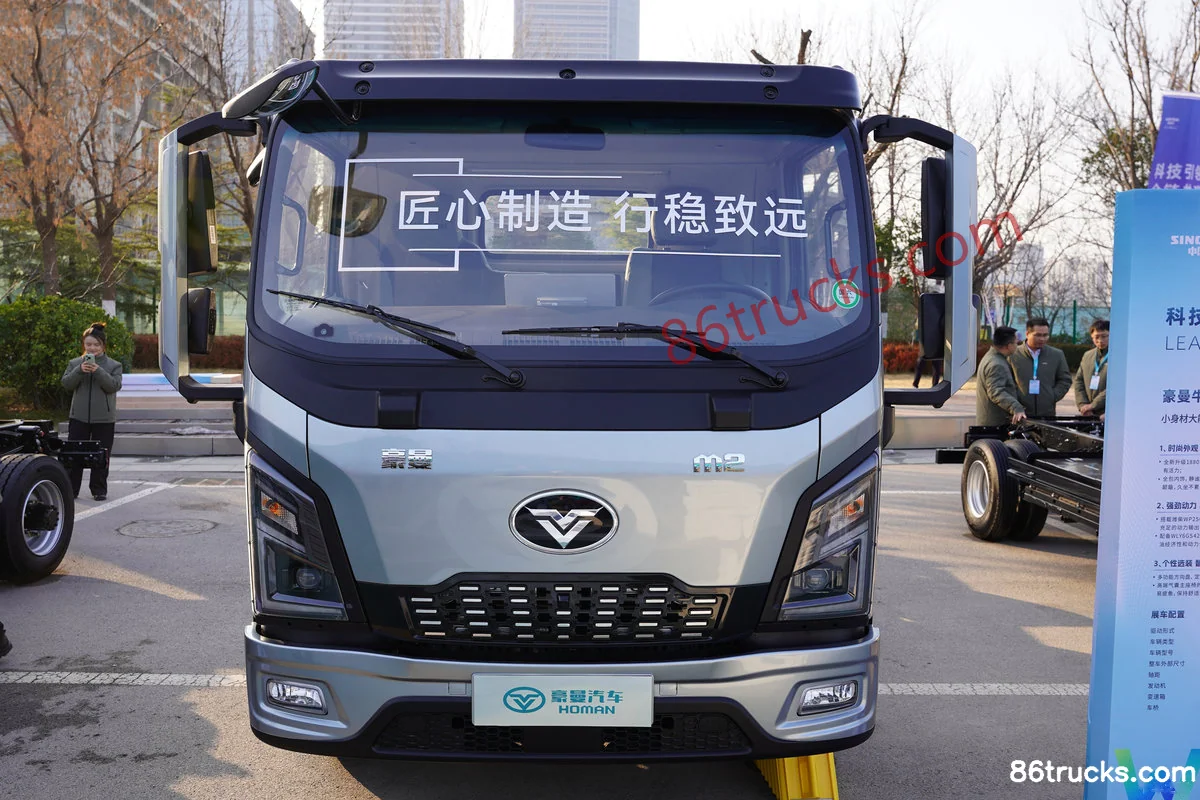

Exterior3

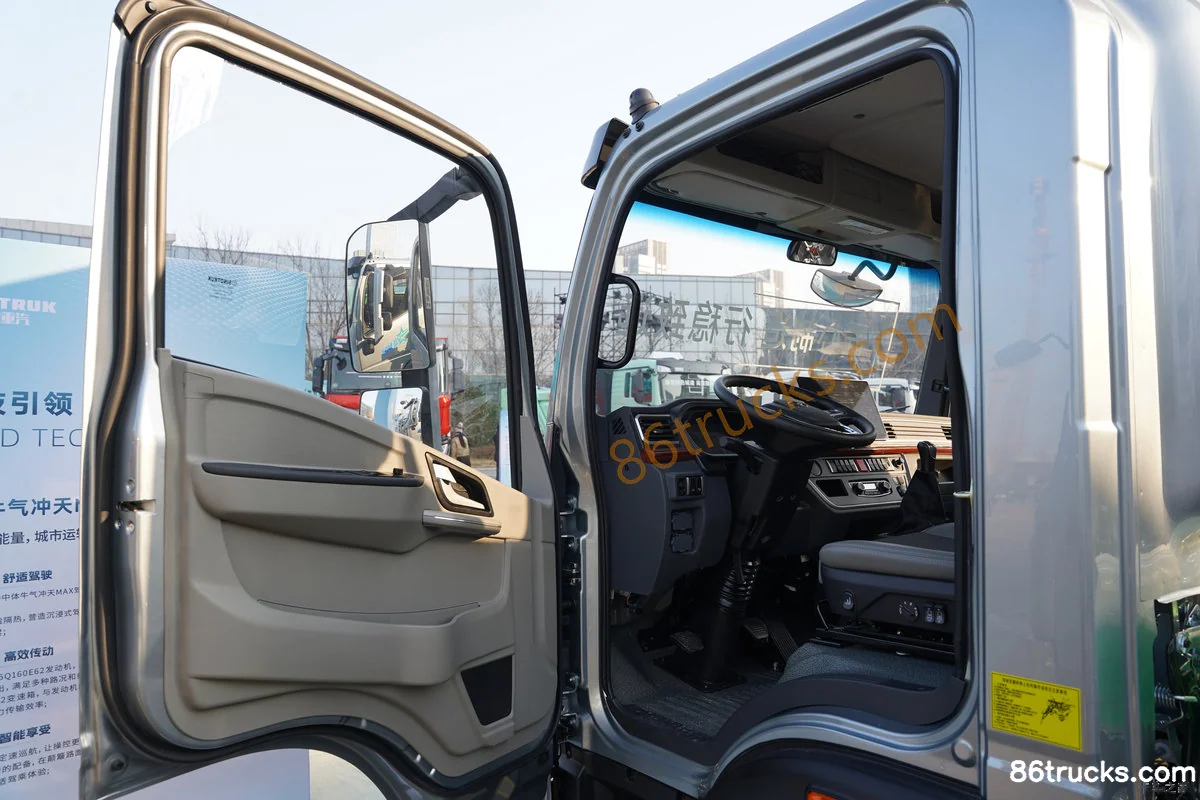

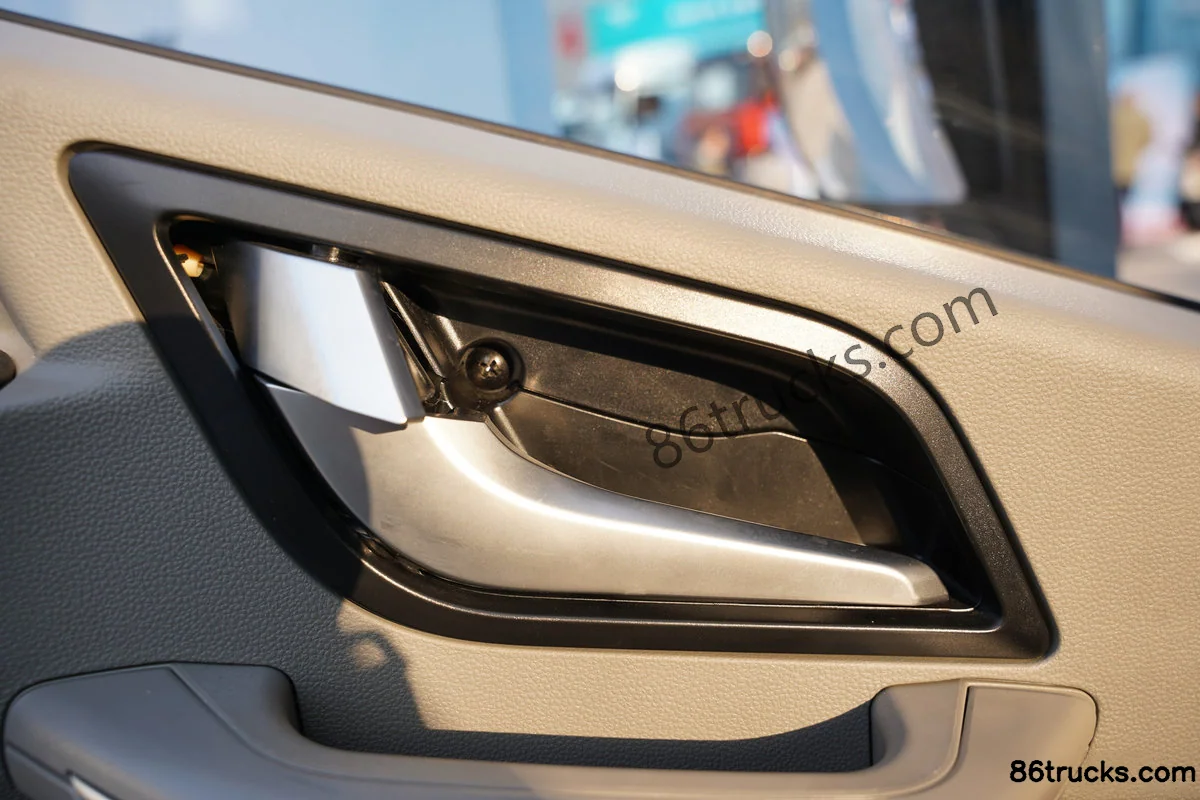

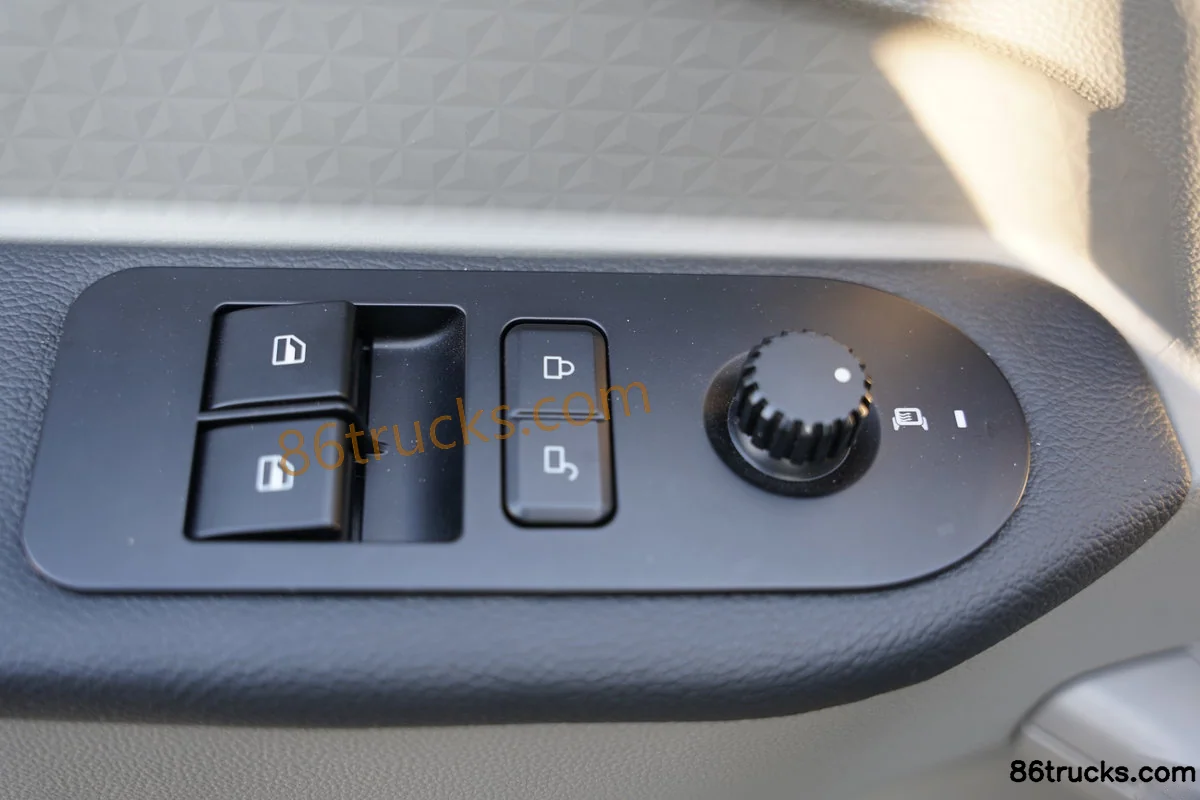

Cab3

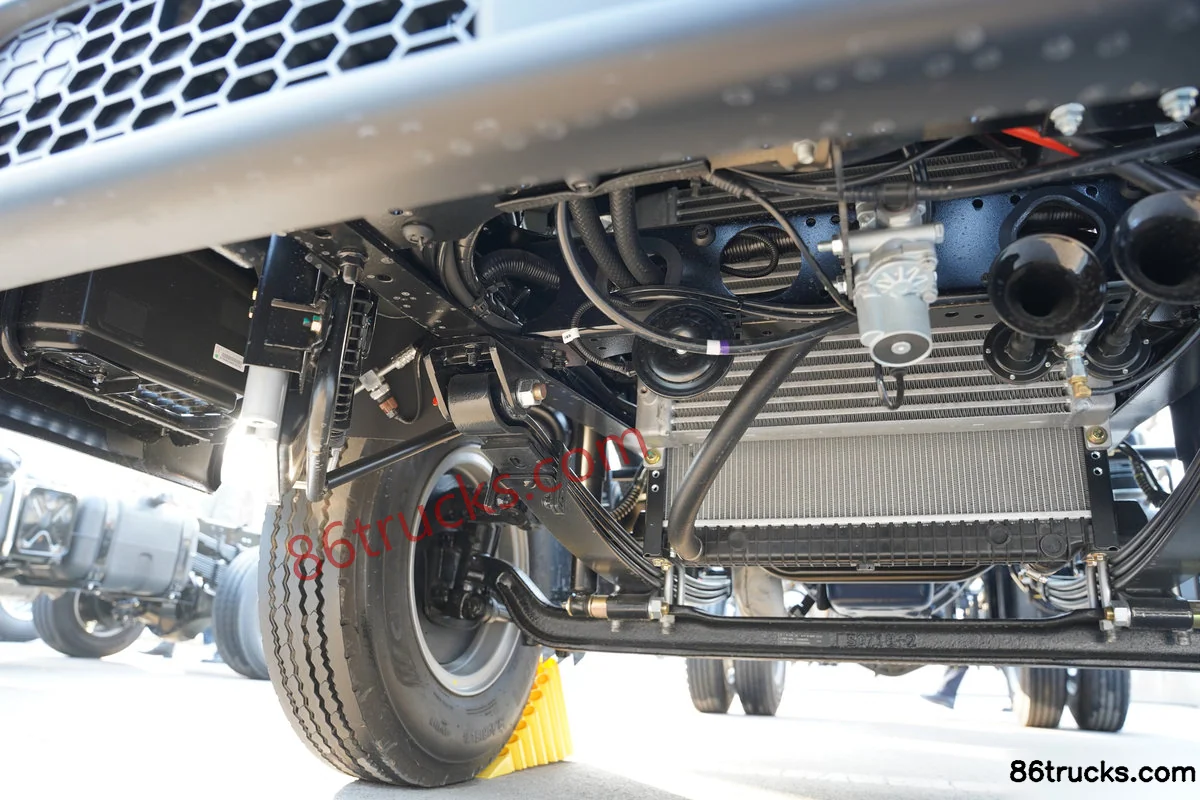

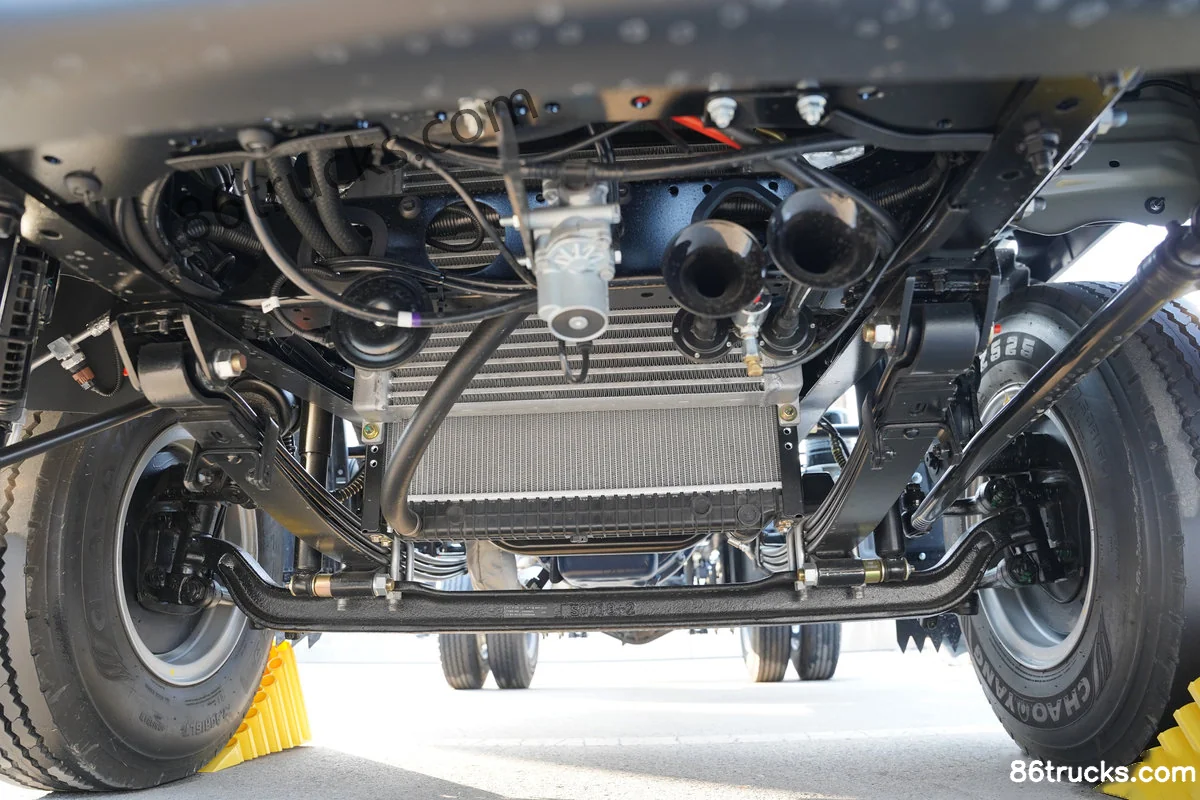

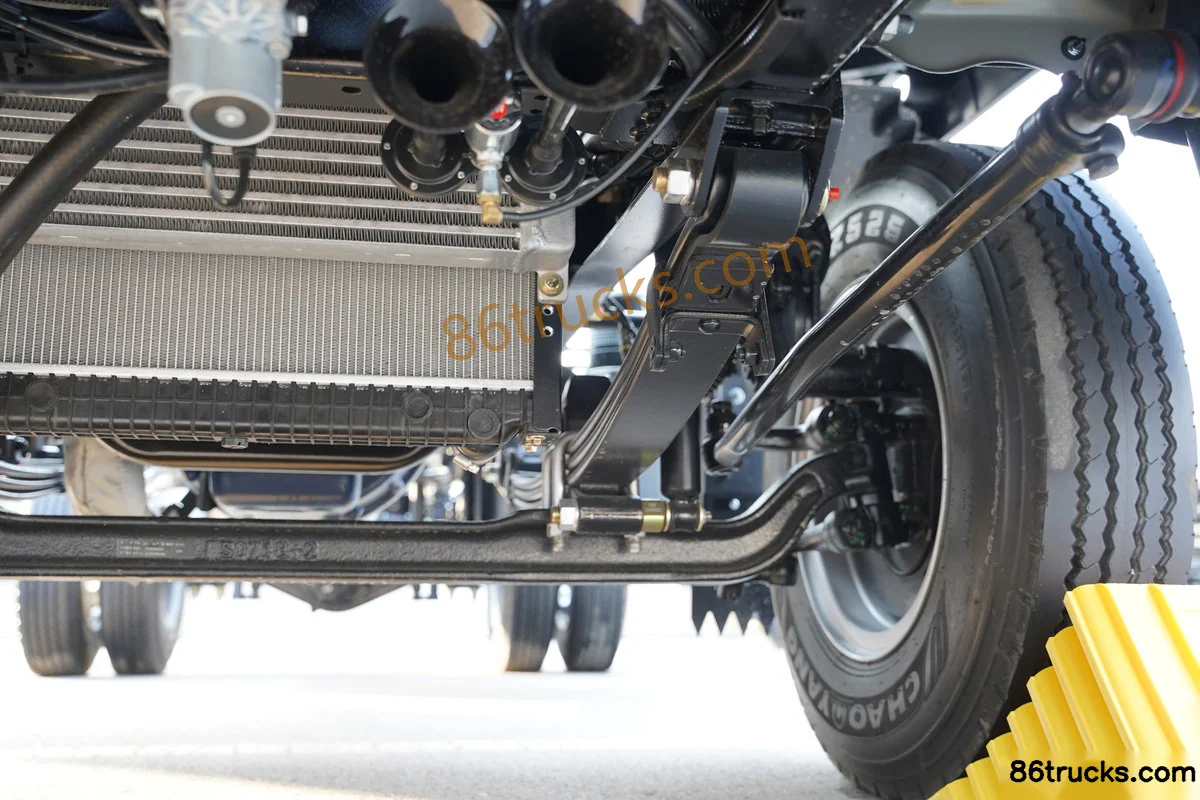

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck?

Key specs of Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP2.5N; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck suited for?

Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck differ from other variants in the same series?

Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck belongs to Sinotruk Bullish MAX (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Niuqichongtian MAX 180 hp 4X2(6 wheels) 3.85m Cab-over Chassis Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
