Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 12.9L
Drive 6X4 (10 wheels)
Horsepower 580
Emission China VI
Transmission ZF

Overview

The Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI) is a Heavy truck featuring 6X4 (10 wheels) drive, 580 hp, 25t GVW and China VI emissions. Its segment focus covers Logistics and Coal Transport, matching those duty cycles. On the powertrain side, it comes with a FotonX13NS6B580 engine, ZF transmission and Diesel fuel.

China VI 580 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ4259Y6DHL-12
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: FotonX13NS6B580
transmission: ZF12-speed
Rear Axle Ratio: 2.643
Cab length: 6.965m
Cab width: 2.525m
Cab height: 3.95m
Front track width: 2080mm
rear track: 1865/1865mm
Gross Trailer Weight: 40ton
Curb Weight: 8.87ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Beijing
tonnage class: Heavy truck
market segment: Logistics, Coal Transport
Version: Cross-country version
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX13NS6B580
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.9L
Emission standard: China VI
Max output power: 426kW
Max hp: 580Horsepower
Max torque speed: 1000-1400rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: ZF12TX2621TD
Transmission Brand: ZF
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1060L
Cab parameters
Cab: High-roof standard floor
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Suspension type: MCY12
Front axle allowable load: 7000kg
Fifth wheel: 90
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.643
Leaf spring count: 2/3
Aluminum wheels:
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

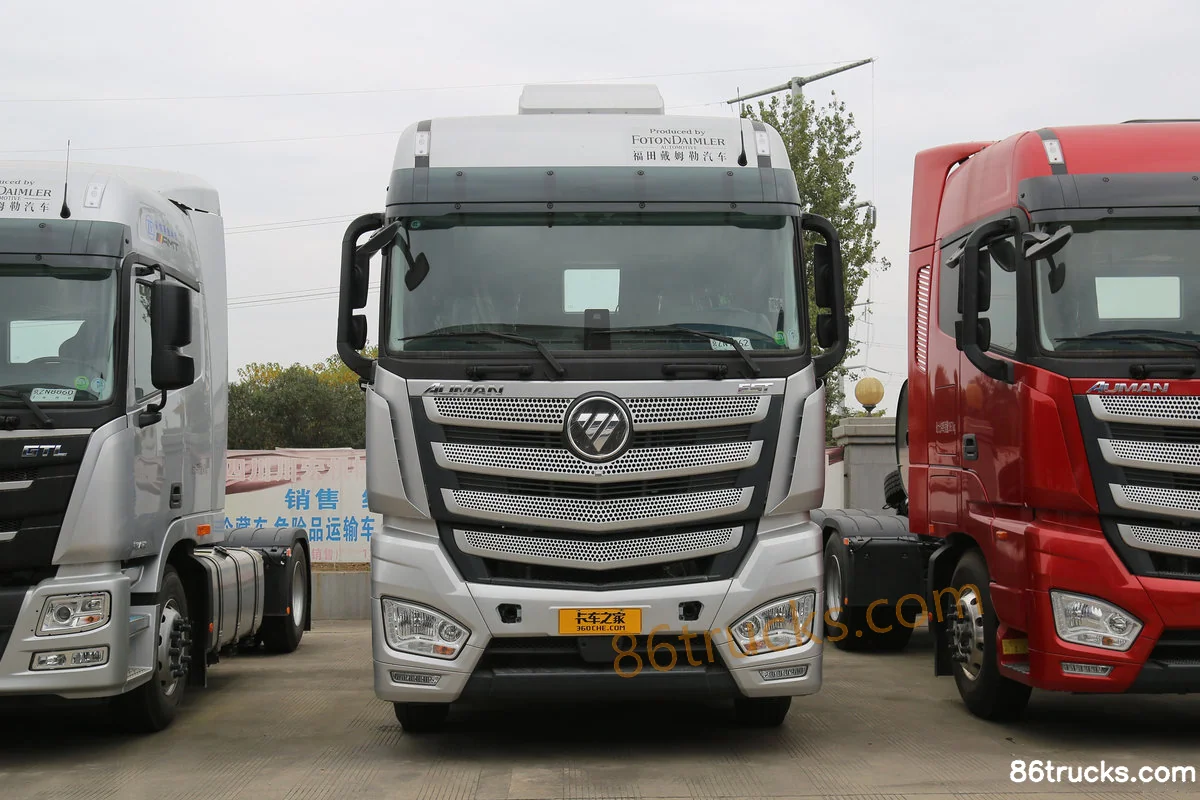

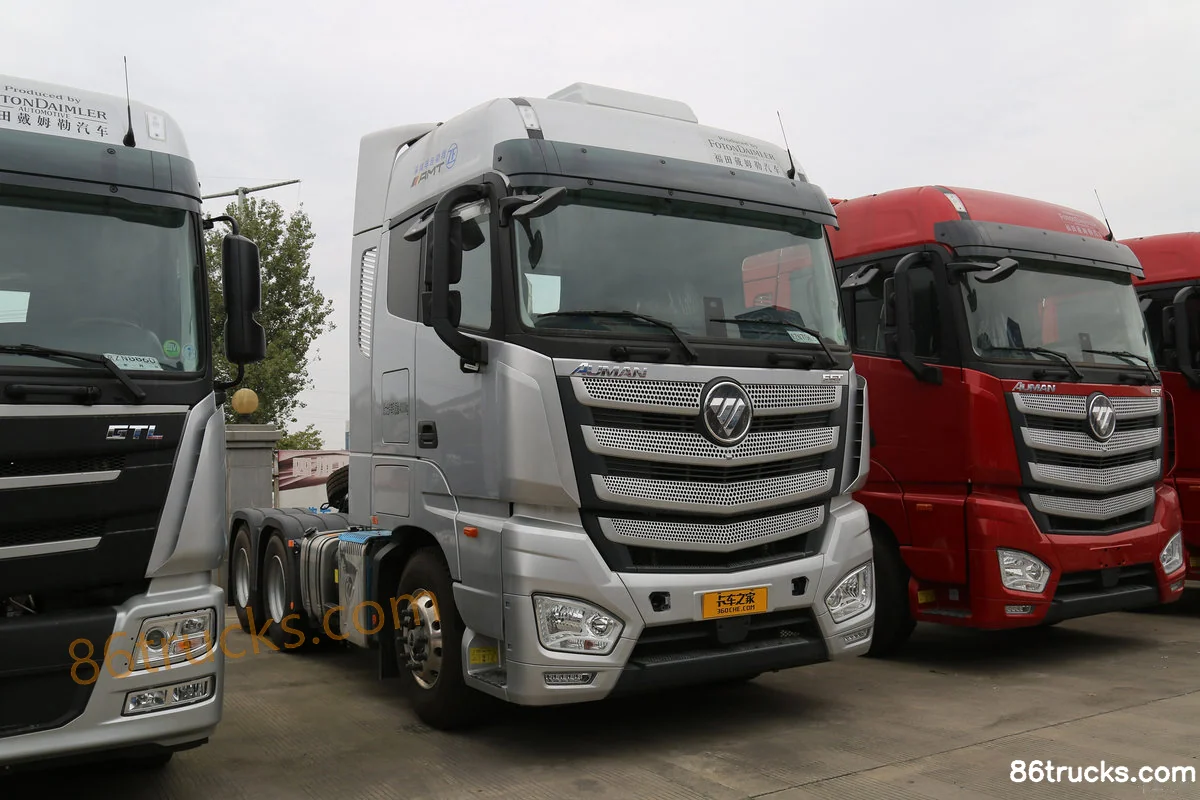

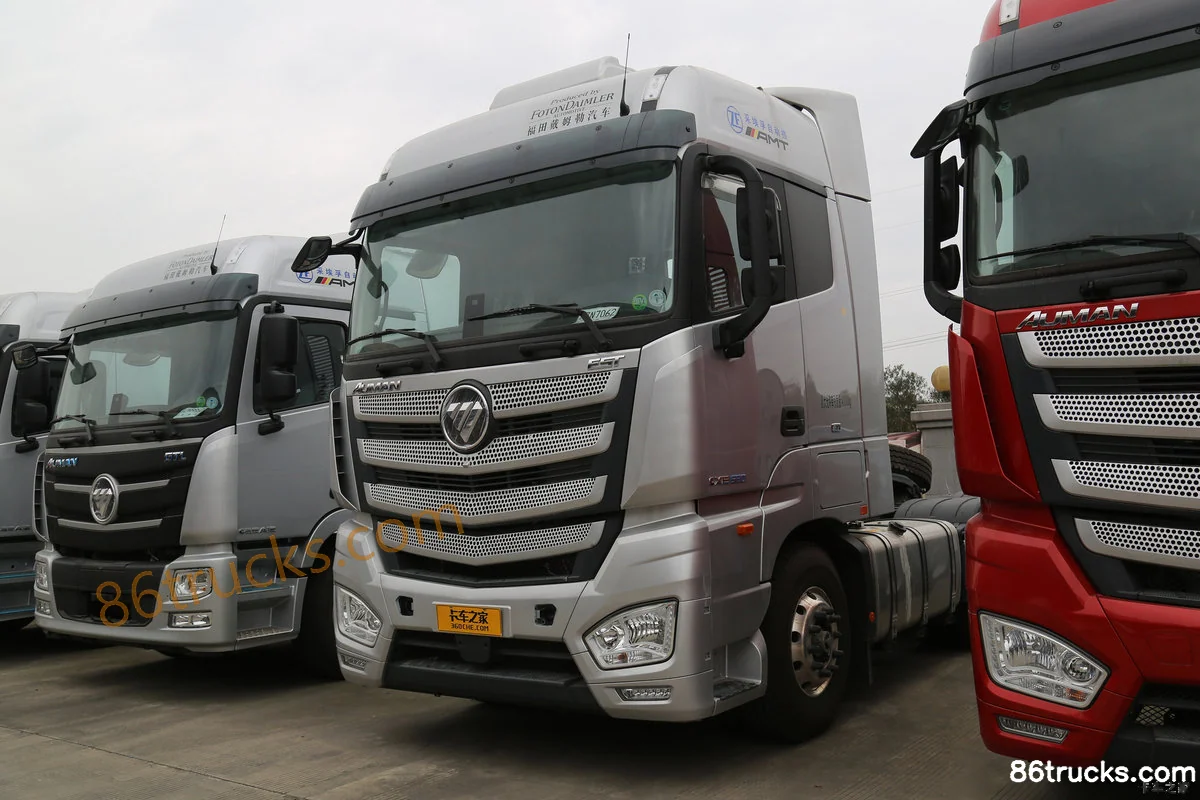

Exterior3

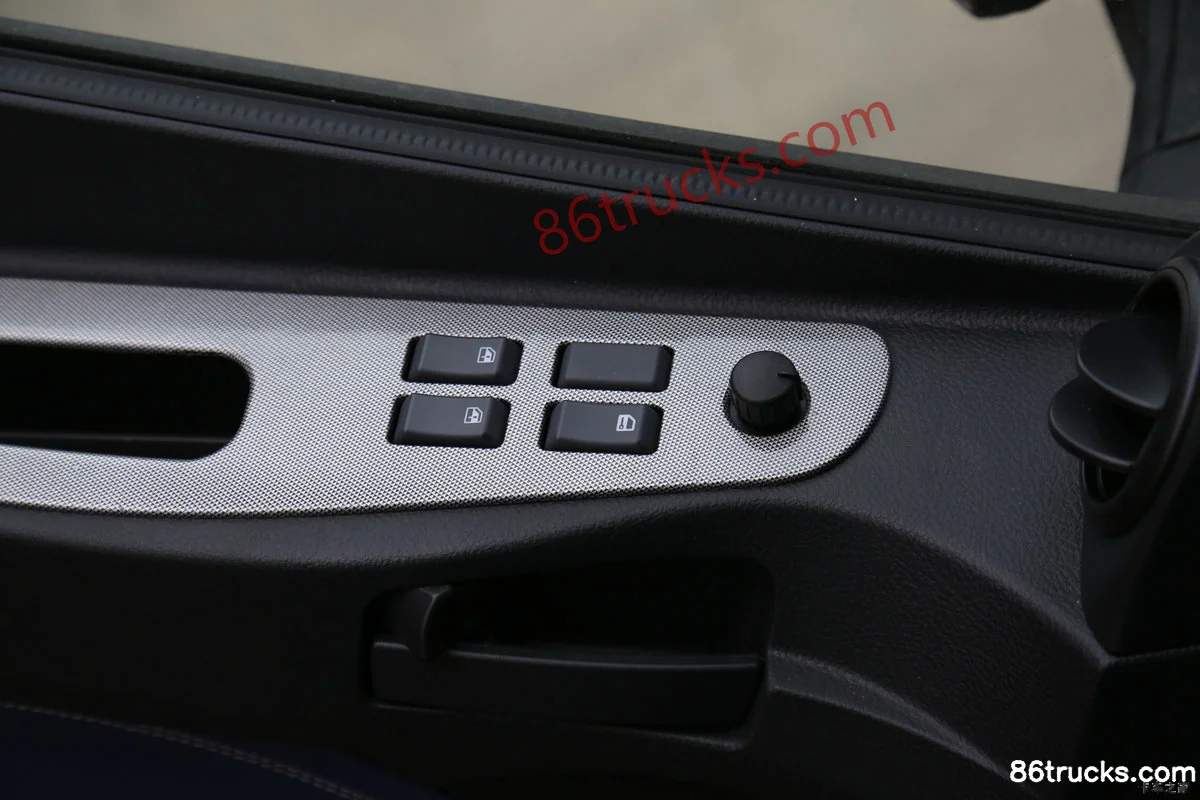

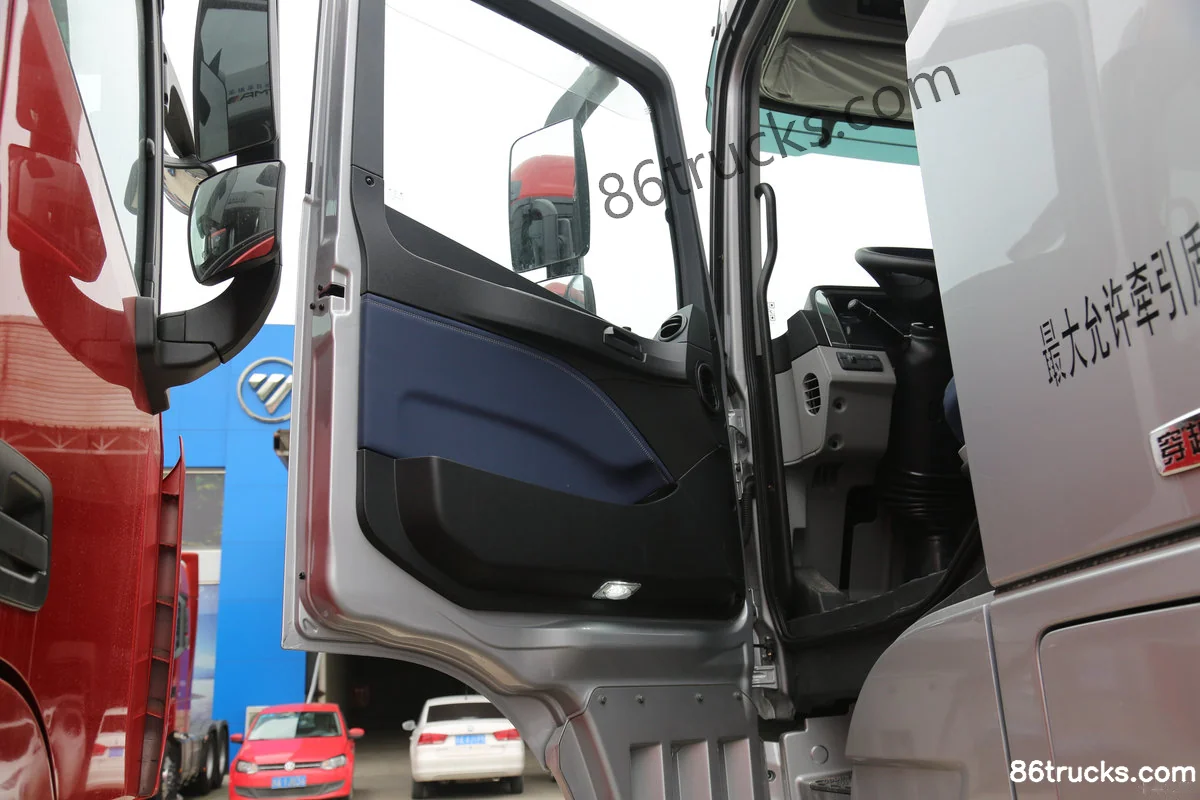

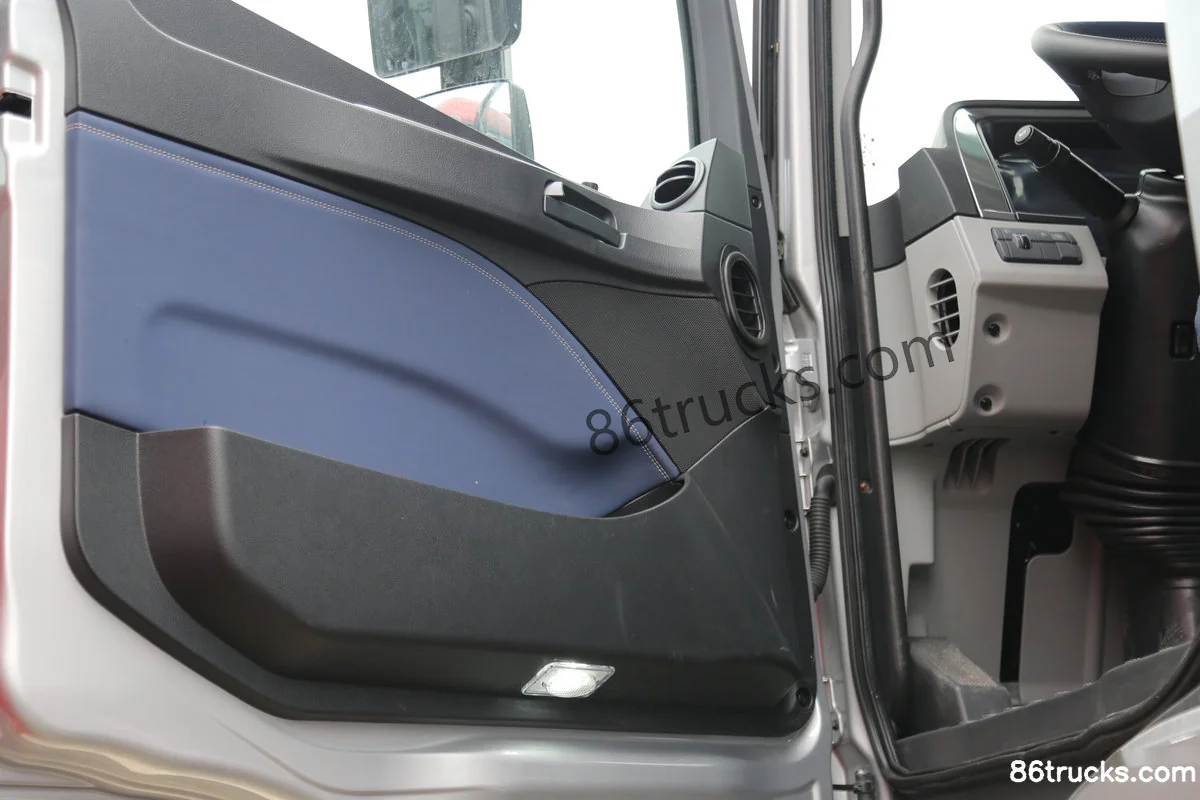

Cab3

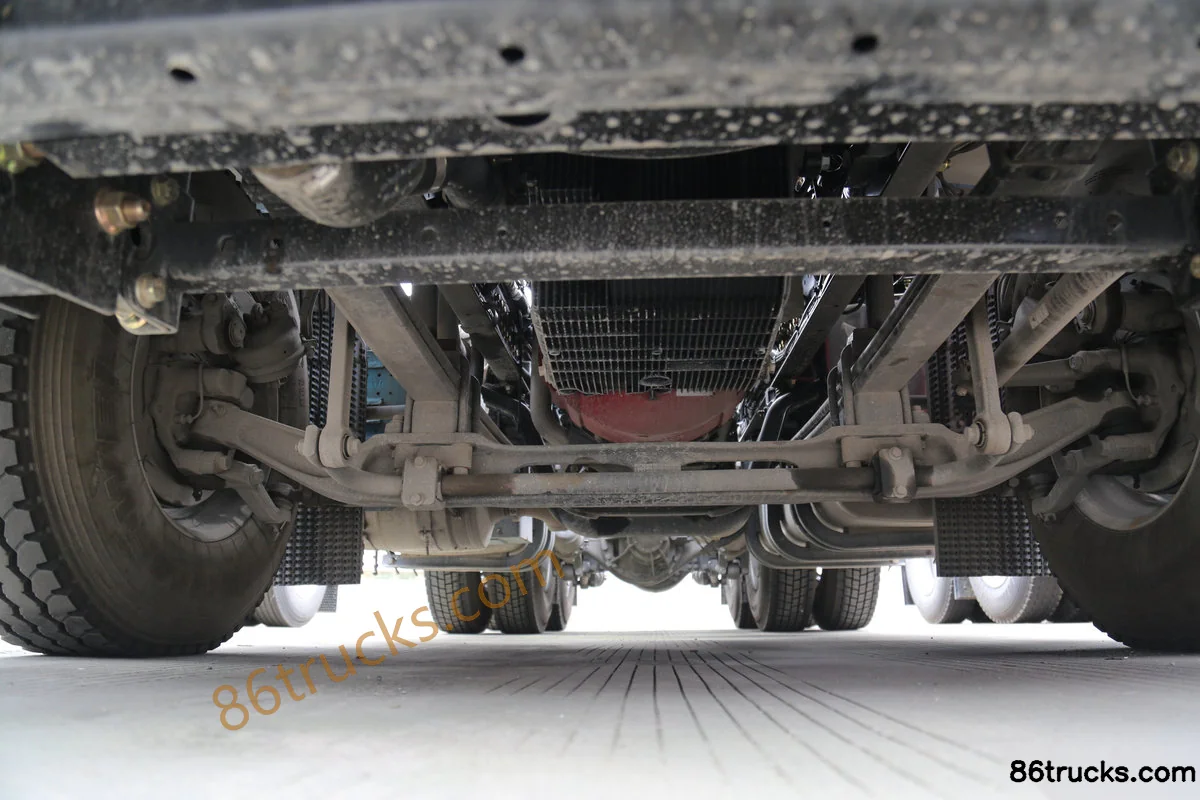

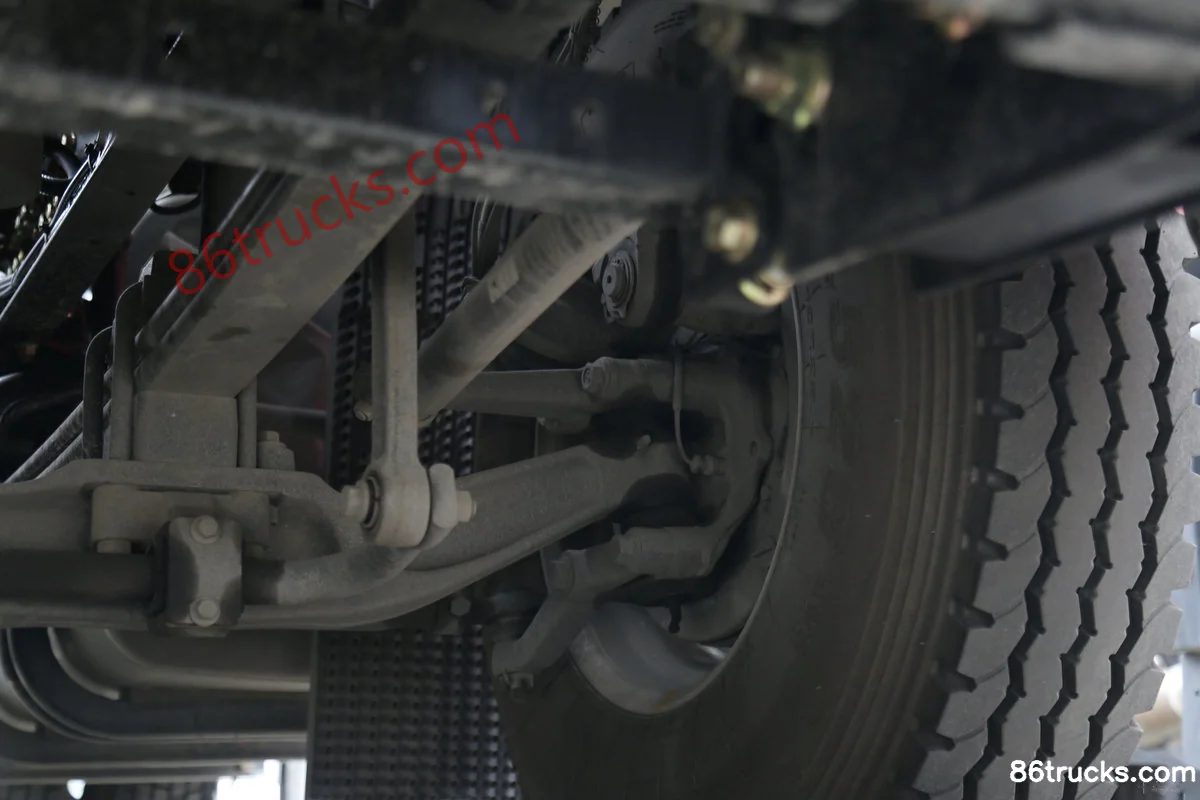

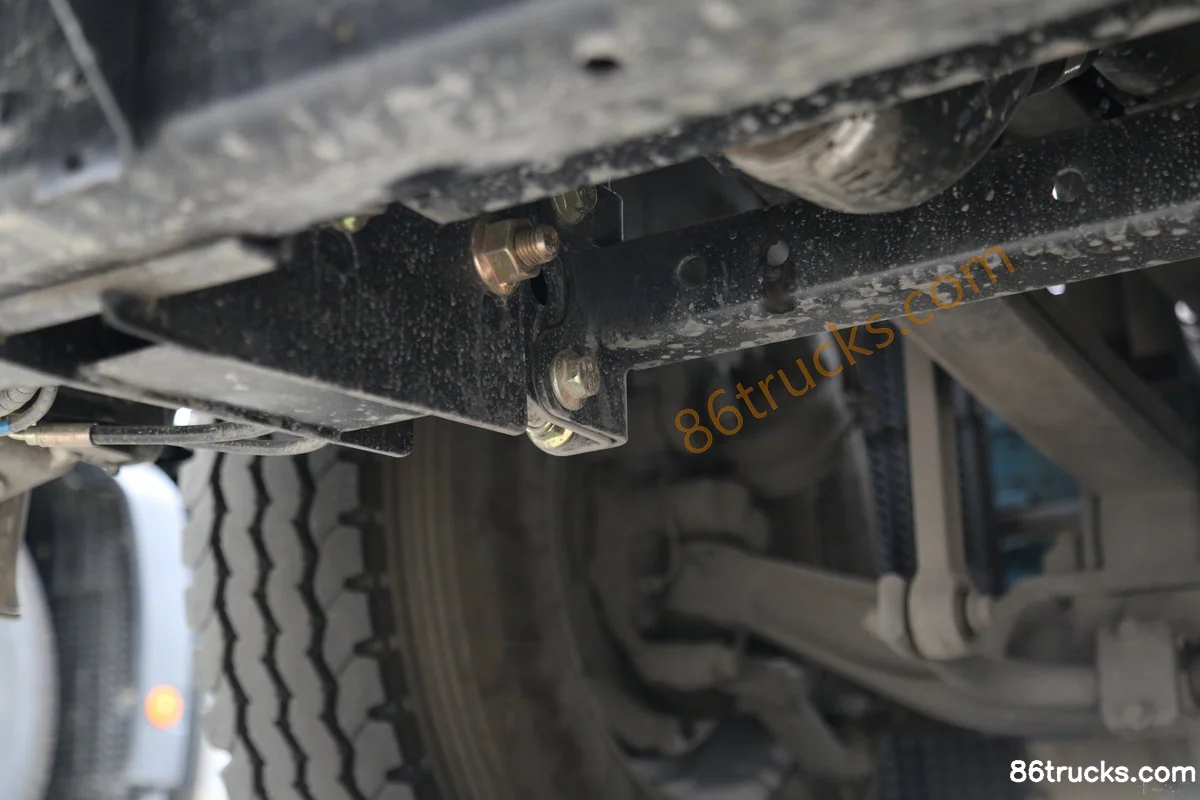

Chassis3

9 photos

FAQ

What emission standard does Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI)?

Key specs of Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI): Drive: 6x4; Horsepower: 580 hp; Emission: China VI; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI) suited for?

Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI) differ from other variants in the same series?

Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI) belongs to Foton Auman EST Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman EST Crossing Edition 580 hp 6X4(10 wheels) AMT automatic tractor truck (rear axle MCY12) (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
