FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI)

Export reference
From $33,542
MSRP ¥24.15M CNY
Fuel: Diesel
Gross Trailer Weight:: 35.375ton
Wheelbase:: 3600mm
Tire Size:: 12R22.5 16PR
Front axle allowable load:: 6500kg
Displacement:: 6.6L
Drive 4X2 (6 wheels)
Horsepower 290
Emission China VI
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI) is a Heavy truck featuring 4X2 (6 wheels) drive, 290 hp, 18t GVW and China VI emissions. Its segment focus covers Coal transport, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DLD-29E6 engine, Fast Gear transmission and Diesel fuel.

China VI 290 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4180P1K2E6A80
Drive type: 4X2
Wheelbase: 3600mm
engine: XichaiCA6DLD-29E6
transmission: Fast Gear9JS119A
Rear Axle Ratio: 4.111
Cab length: 5.925m
Cab width: 2.5m
Cab height: 2.93m
Front track width: 1964mm
Gross Trailer Weight: 35.375ton
rear track: 1847mm
Curb Weight: 6.43ton
GVWR: 18ton
Max. speed: 110km/h
Origin: Qingdao
tonnage class: Heavy truck
market segment: Coal transport
Remarks: Forward collision warning, lane departure warning, turn signal
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-29E6
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.6L
Emission standard: China VI
Max output power: 215kW
Max hp: 290Horsepower
Max torque: 1100N·m
Max torque speed: 1300-1610rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear9JS119A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cab parameters
Cab: High-roof flat floor
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Lower Bunk Width: 750mm
Chassis Specs
Front axle description: DH401
Front axle allowable load: 6500kg
Fifth wheel: 50# fifth wheel
Frame Dimensions: 300*80*8mm
rear axle description: 457 upgraded stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/4+3,11/10+9
clutch: Φ430
Tire

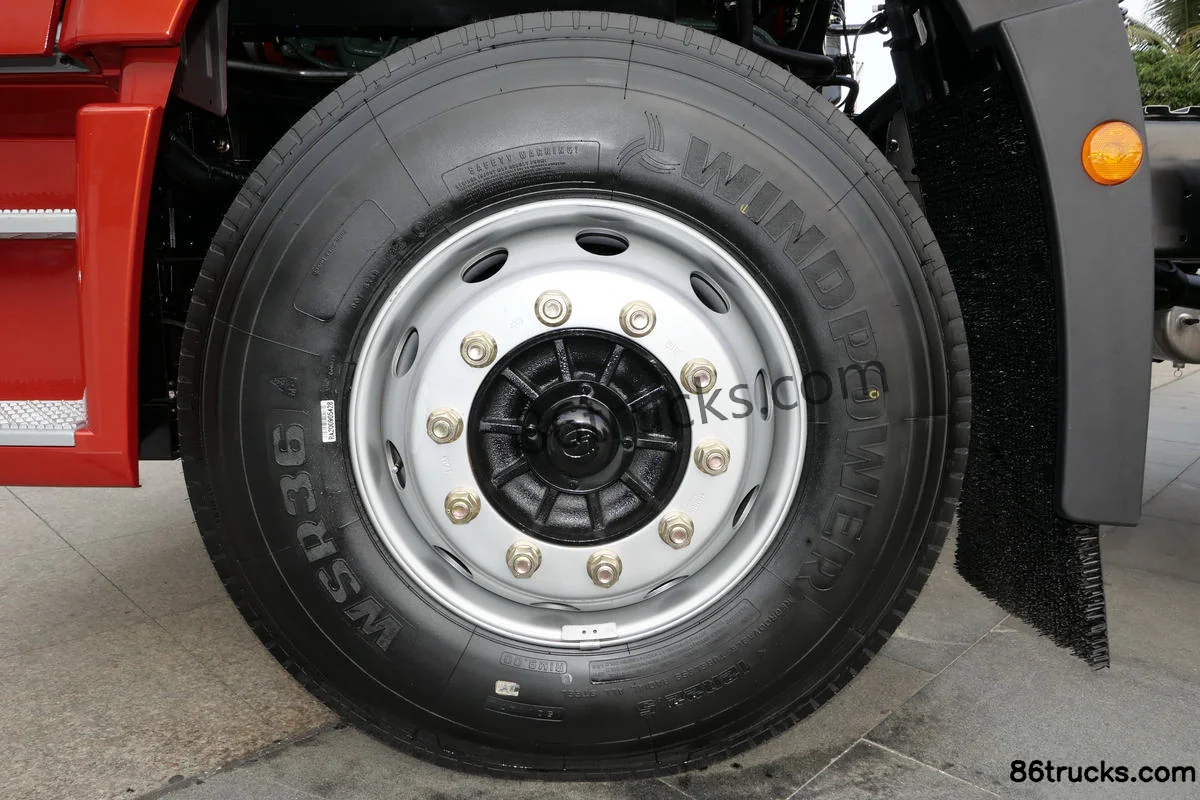

Tire Size: 12R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
side skirt:
Aluminum air tank:

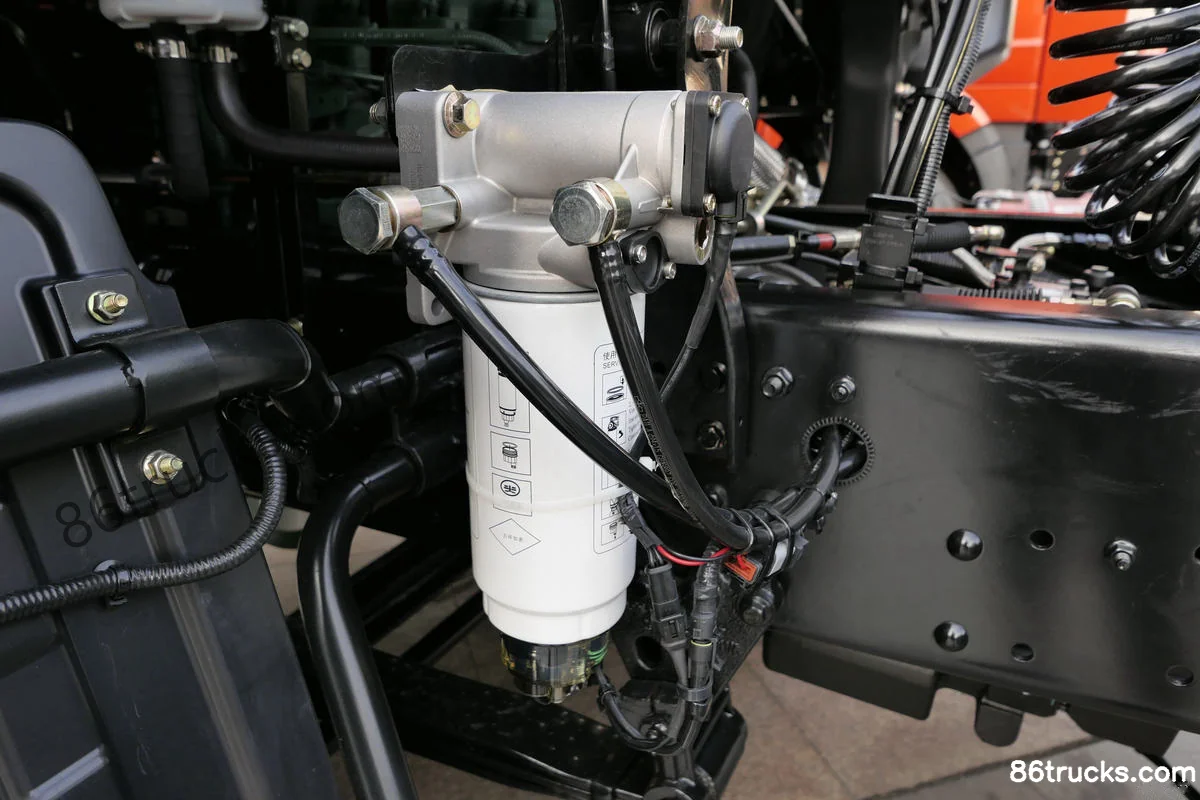

Diesel primary filter heating:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
smart configuration
Trailer stability system:
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

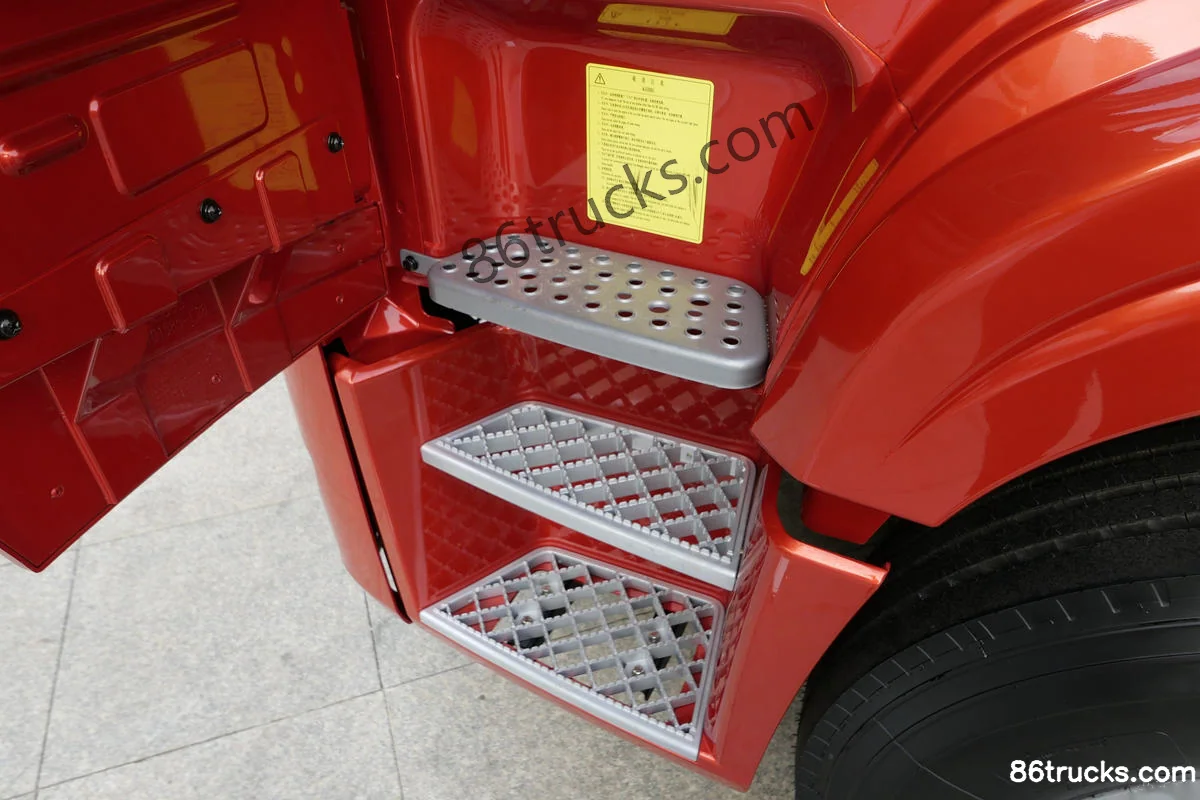

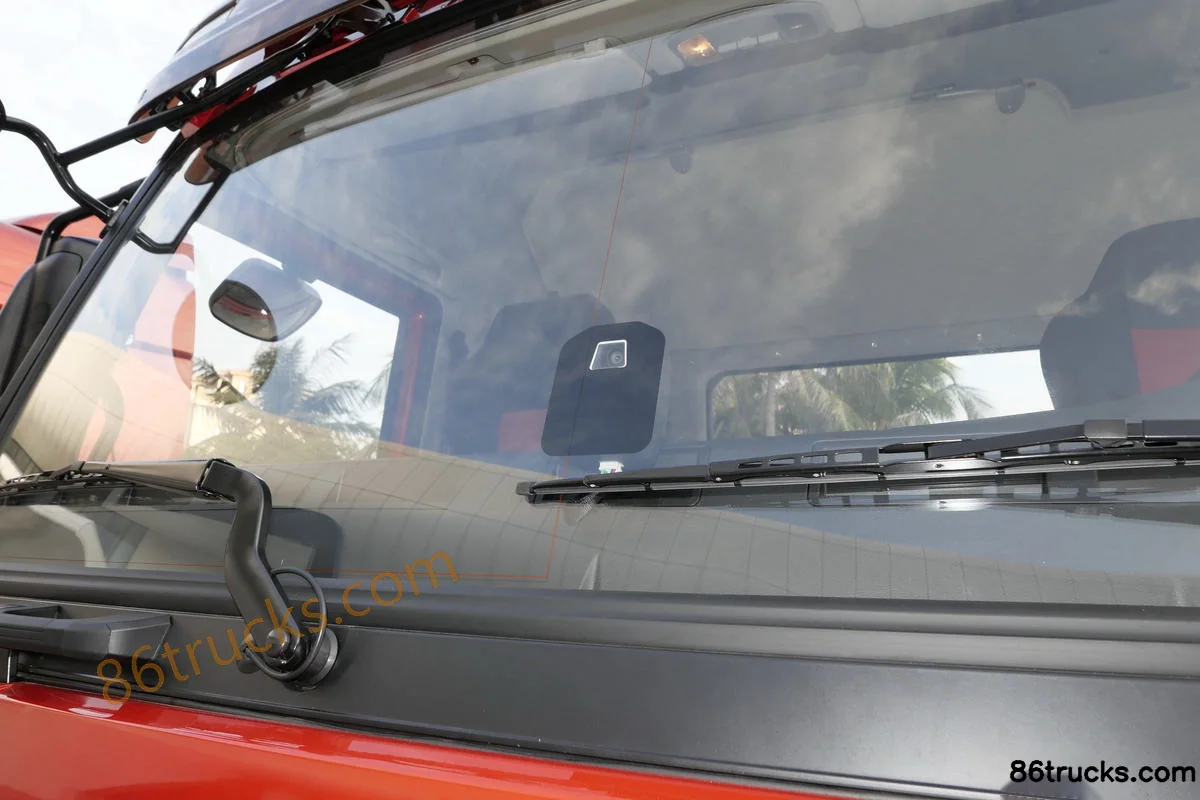

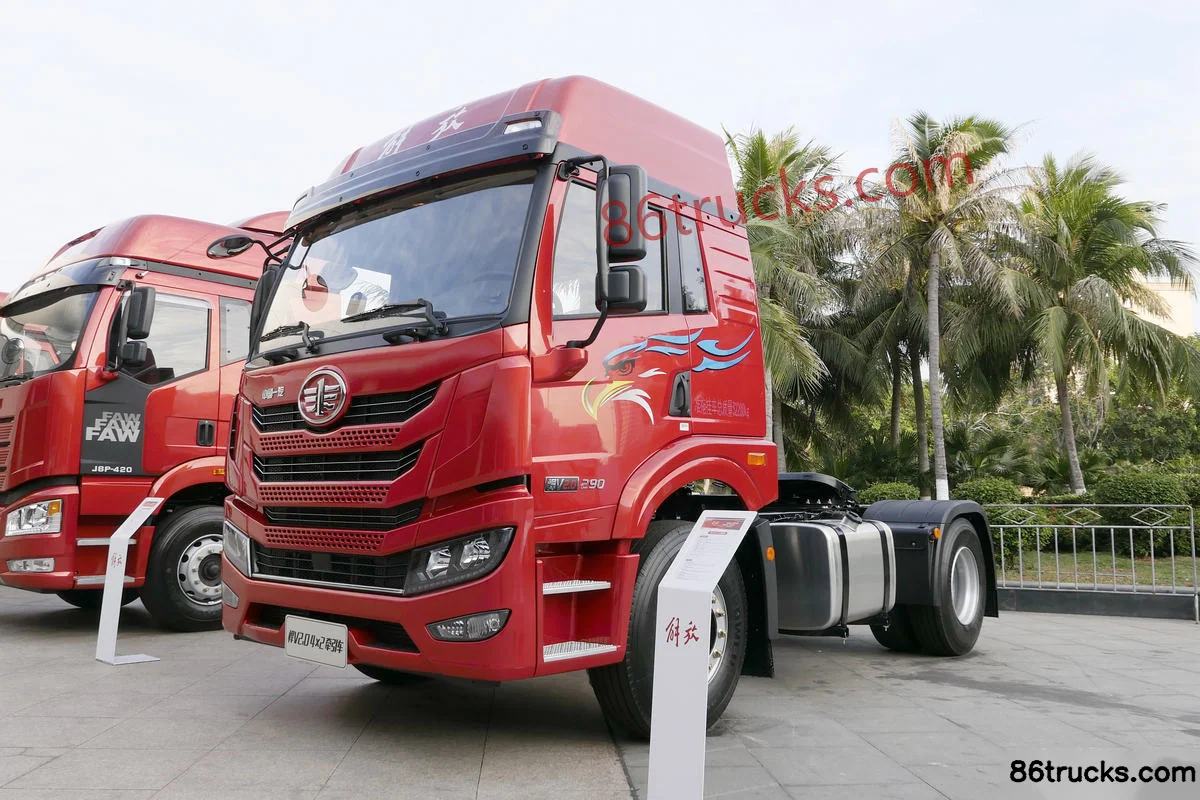

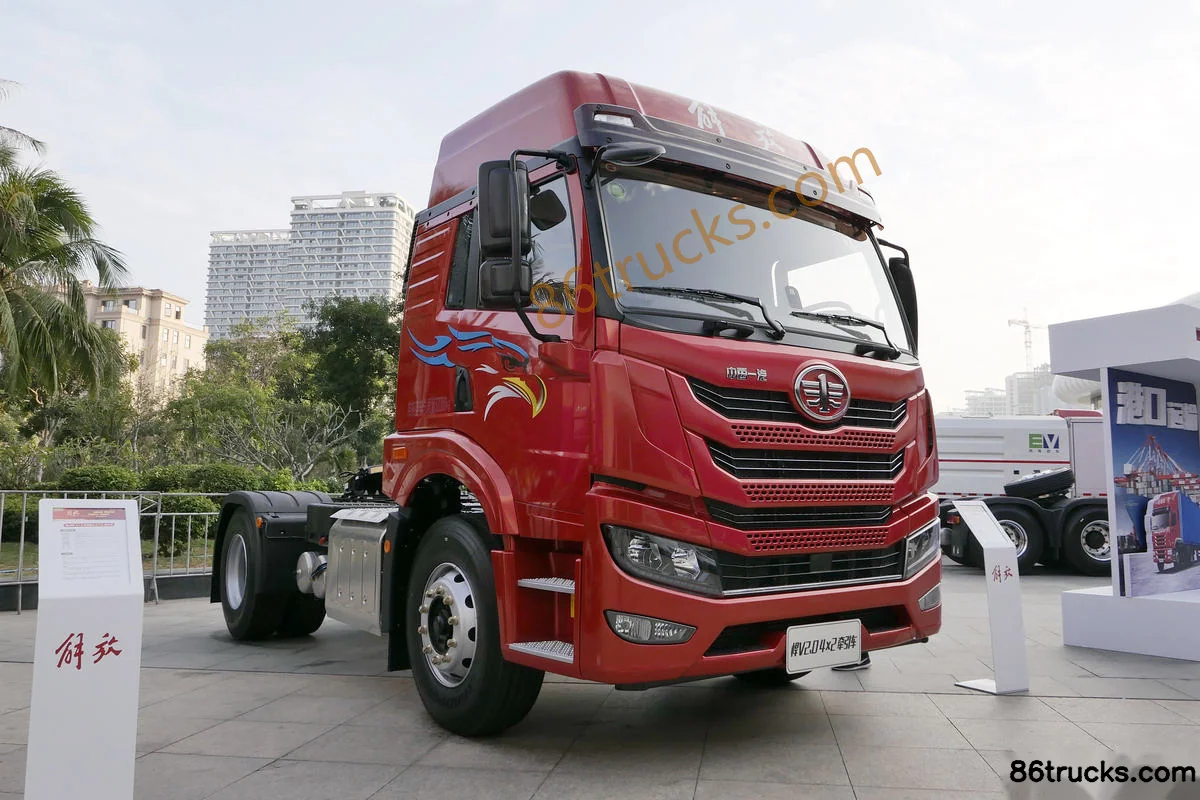

Exterior3

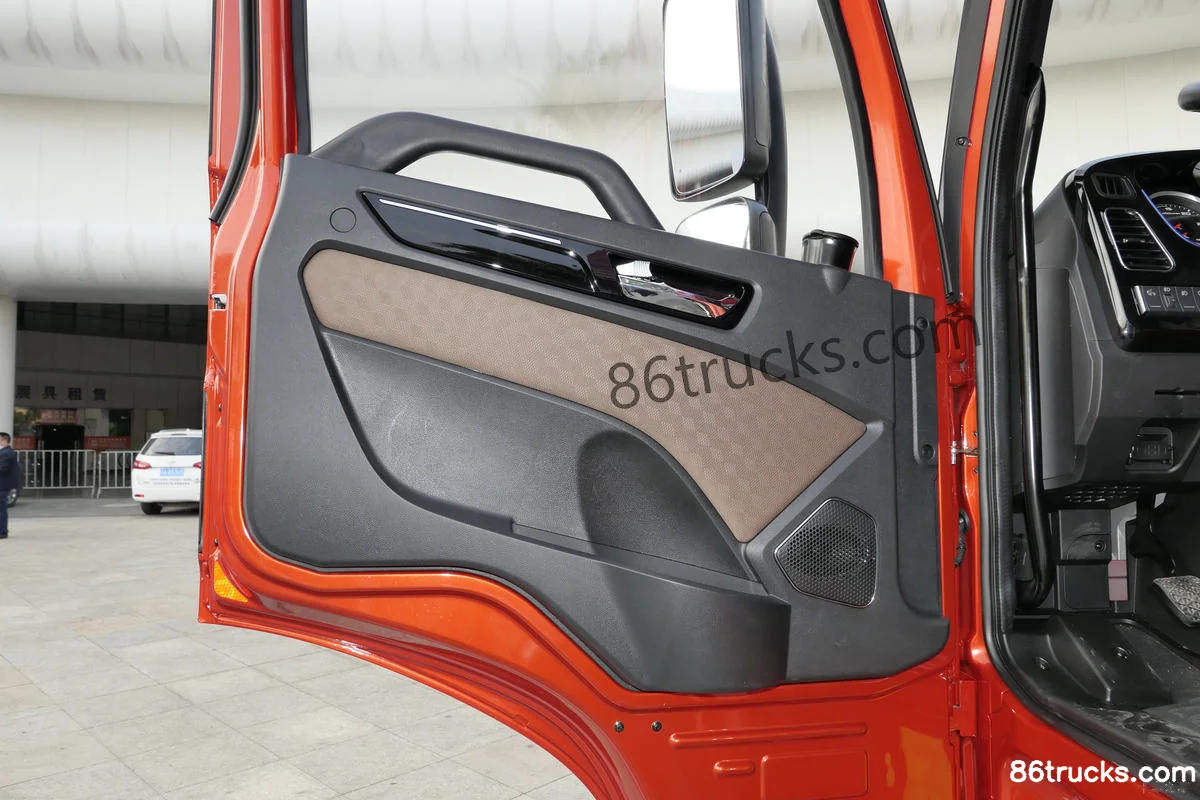

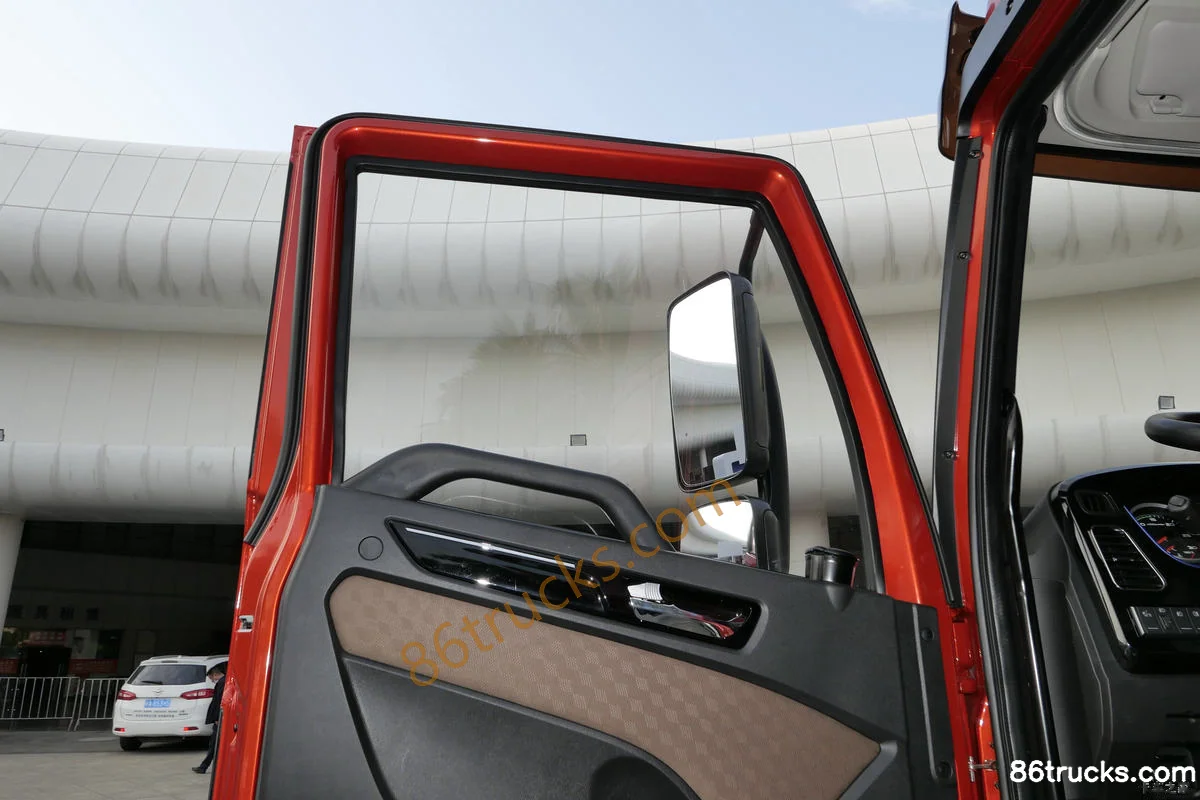

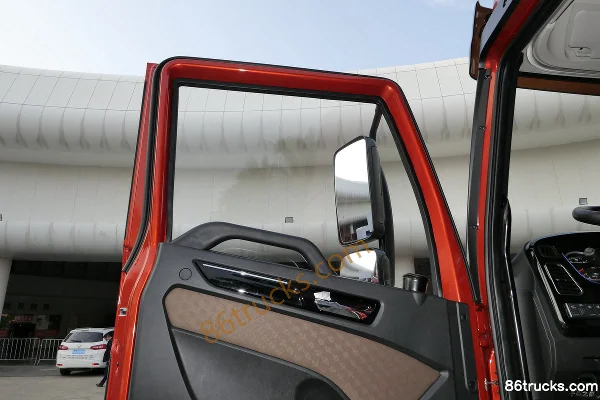

Cab3

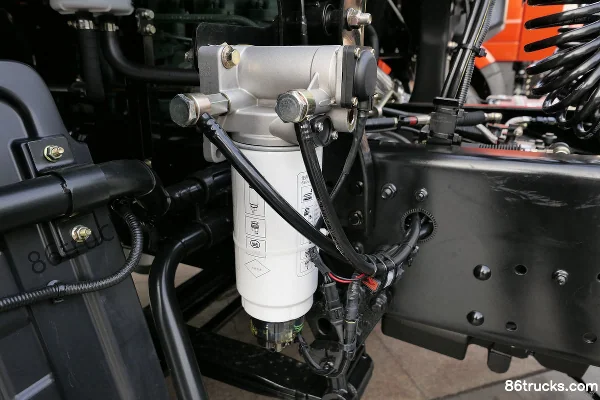

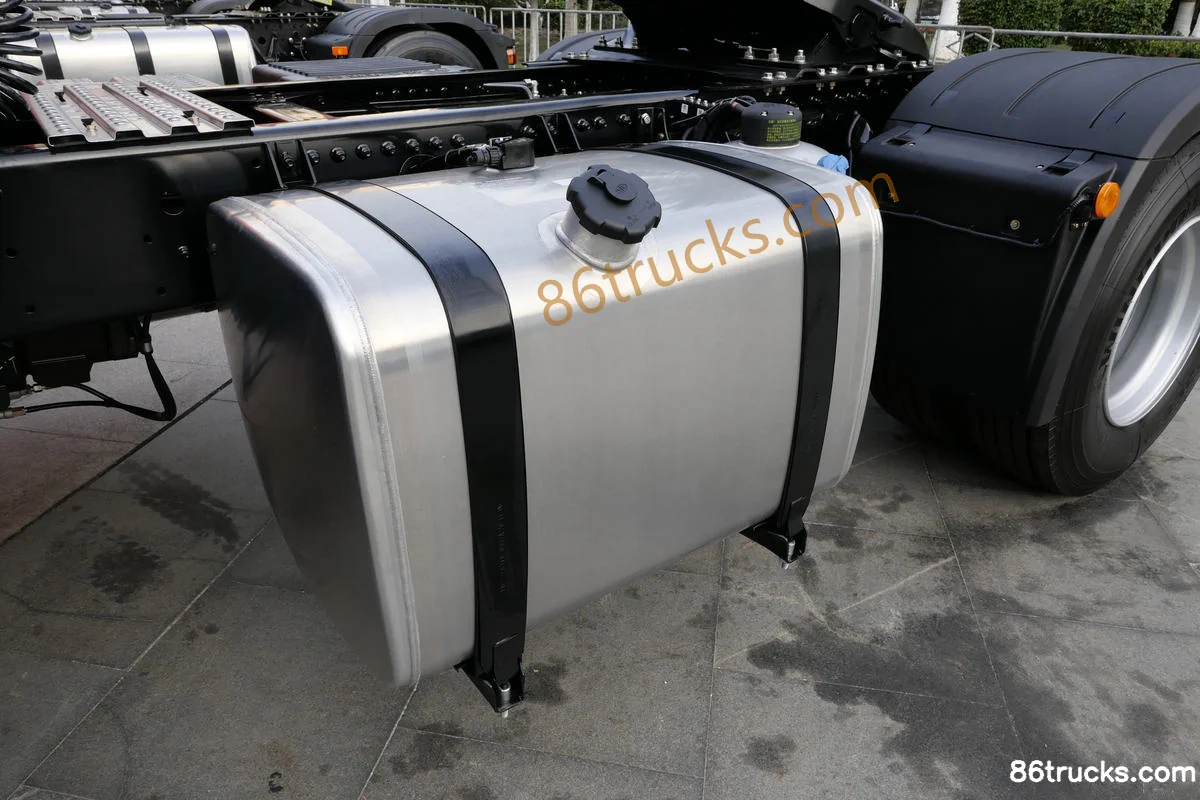

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI), and what does it include?

FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI) export reference is about From $33,542; MSRP is ¥24.15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI)?

Key specs of FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI): Drive: 4x2; Horsepower: 290 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI) suited for?

FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI) differ from other variants in the same series?

FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI) belongs to FAW Jiefang Qingdao HanV heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao HanV Heavy Truck 2.0 290 hp 4X2(6 wheels) Tractor Truck (9-speed)(China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
