Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels)

Export reference
From $33,333
MSRP ¥24M CNY
Rated payload:: 1.67ton
Wheelbase:: 2800mm
Model code (announced):: CL5040ZXXBEV
Truck Type:: Battery Electric Hook-Lift Refuse Truck
Cab length:: 5.3m
GVWR:: 4.3ton
Drive 4X2 (6 wheels)
CLTC range: 280km
Motor 1 Brand: CRRC Times
Curb Weight: 2.5ton

Overview

The Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels) is a Electric Garbage Truck featuring 280km battery/range, CRRC Times motor, 4X2 (6 wheels) drive and 1.67t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CL5040ZXXBEV
Drive type: 4X2
Truck Type: Battery Electric Hook-Lift Refuse Truck
Wheelbase: 2800mm
Cab length: 5.3m
Cab width: 1.86m
Cab height: 2m
CLTC range: 280km
Curb Weight: 2.5ton
Rated payload: 1.67ton
GVWR: 4.3ton
Max. speed: 90km/h
Origin: Suizhou, Hubei
Energy Type: Electric
electric motor
Motor 1 Brand: CRRC Times
Motor 1 Model: TZ220XS504
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 140kW
total rated torque: 110N·m
total peak torque: 290N·m
Body Parameters
Special Function Description: Collection & Transport of Urban Sanitation Waste
Body Brand: Chengli Brand
Electronic Control
ECU Brand: Jingjin Power
Battery/Charging
Battery Brand: Lishen
Charging method: DC charging, AC charging
Battery type: Lithium Iron Phosphate Battery
Battery rated voltage: 320V
fast charge time: 2h
Battery capacity: 64.64kWh
Energy Density: 136.6
Battery Model: LS1P50S-202Ah
Chassis Specs
Front axle load: 1130kgton
Rear Axle Load: 2365kgton
Chassis Series: Dongfeng
Chassis Model: EQ1040TTZEVJ1
Leaf spring count: 3/5,6/7+4
Transmission Parameters
Transmission Model: Automatic transmission
Cab parameters
Cab: Single Row, Non-tilting
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs

Photos

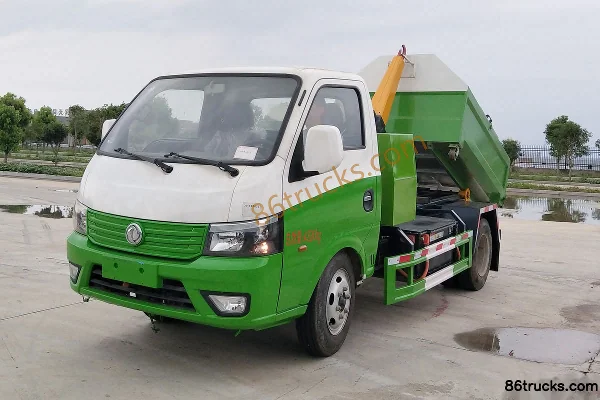

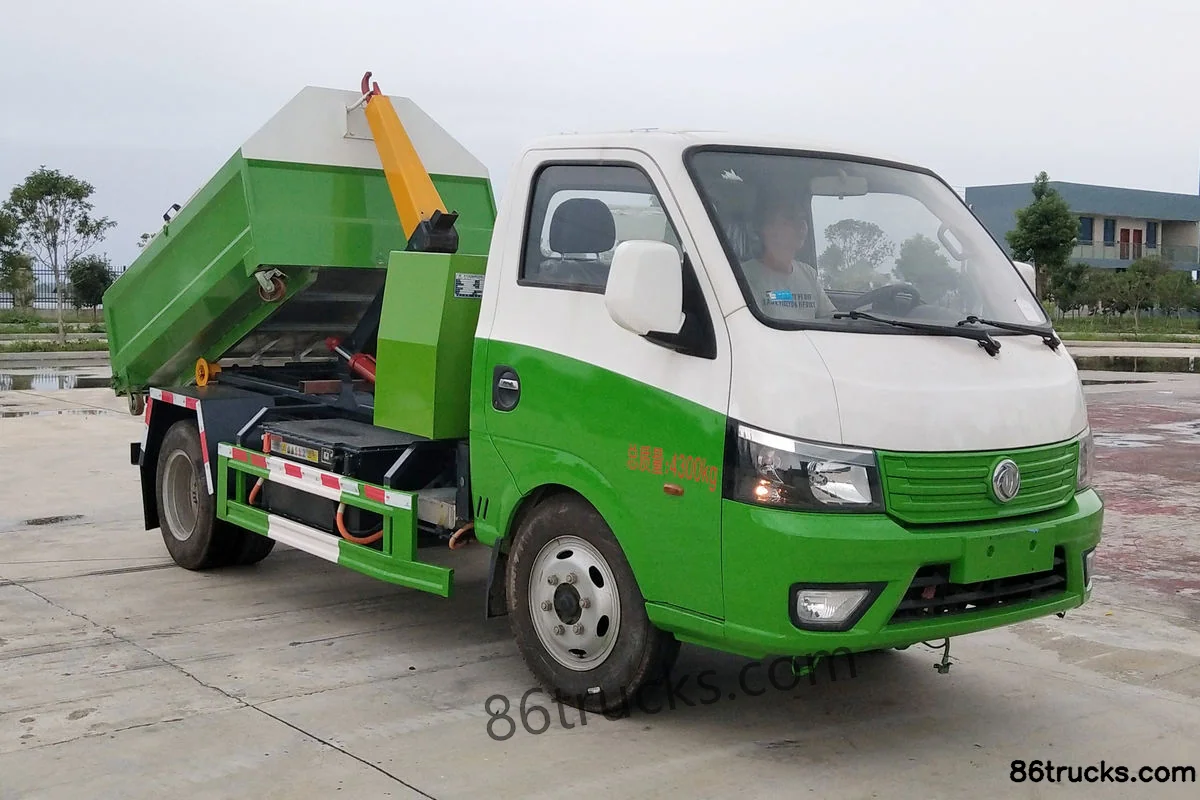

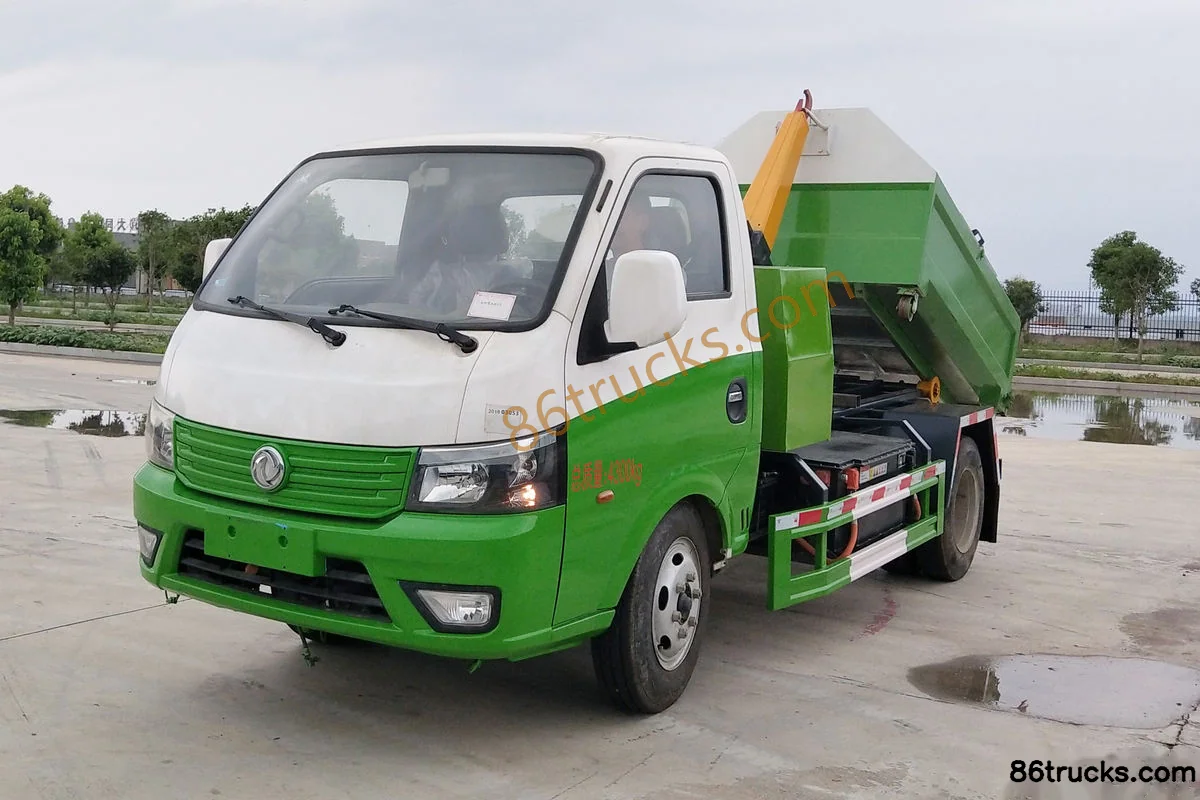

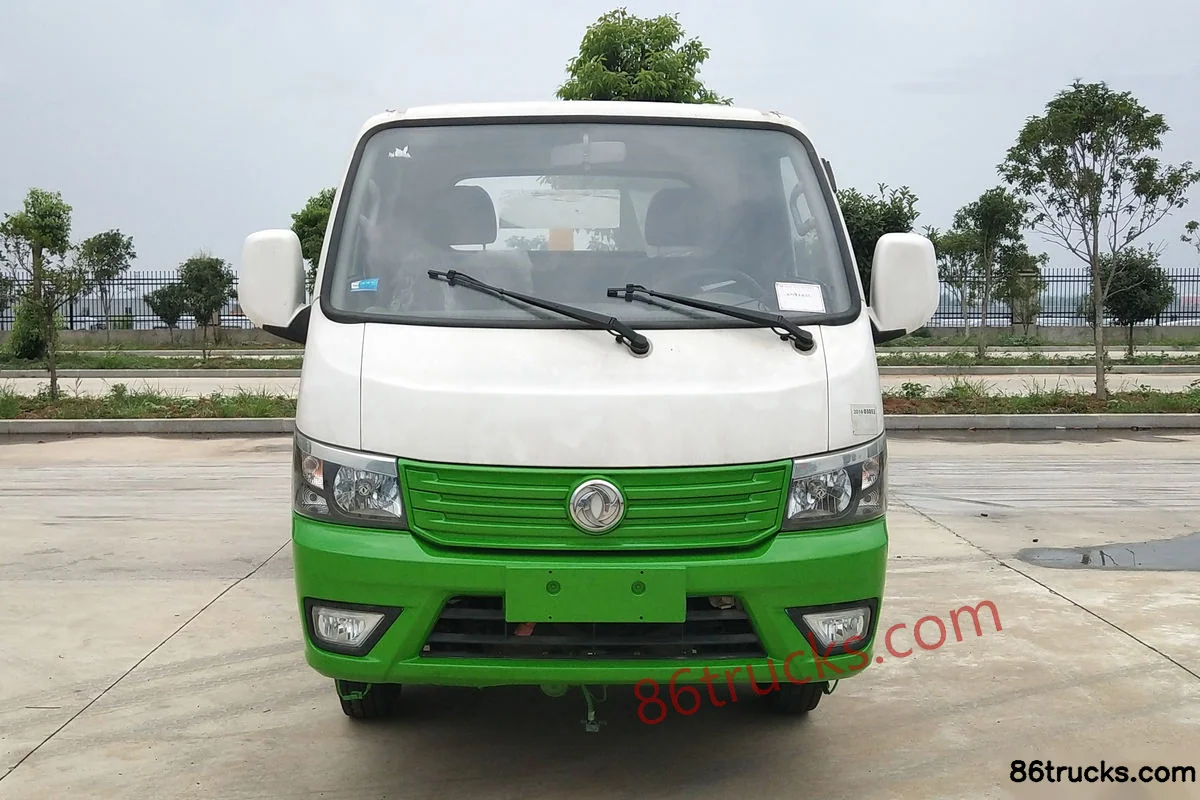

Exterior3

3 photos

FAQ

What is the export price of Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels), and what does it include?

Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels) export reference is about From $33,333; MSRP is ¥24M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels)?

Key specs of Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels) suited for?

Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels) is a Electric Garbage Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels) differ from other variants in the same series?

Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels) belongs to Chengli Dongfeng chassis (Electric Garbage Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengli New Energy 4.3T 5.3m Single Row Pure Electric Detachable Garbage Truck 64.64kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
