Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 102
Emission: China V
Fuel: Diesel
Engine: De Wei D19
Transmission: WLY
Curb Weight:: 2.12ton
seating capacity: 2Personnel
Rated payload: 1.91ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck is a mini truck featuring 4.05m cargo length, stake body cargo body, 2Personnel volume and 1.91t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a De Wei D19 engine, 102 hp, 4X2 (6 wheels) drive and China V emissions.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ1040S6BDB
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3180mm
Box length class: 4.1m
engine: Yunnei PowerD19TCIE1
transmission: WLY 5-speed
Rear Axle Ratio: 4.333
Cab length: 5.9m
Cab width: 1.84m
Cab height: 2.1m
Front track width: 1495mm
rear track: 1340mm
Curb Weight: 2.12ton
Rated payload: 1.91ton
GVWR: 4.16ton
Max. speed: 95km/h
Origin: Xiangyang, Hubei
tonnage class: mini truck
Approach angle: 19°
departure angle: 14°
market segment: Building materials, agricultural products
Front/rear suspension: 1.2/1.61m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Engine info: De Wei D19
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLY 5-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.05m
Cargo box width: 1.75m
Cargo box height: 0.4m
*Cargo box interior width: 1.75
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 1T
Front axle allowable load: 1664kg
rear axle description: 2.5T
rear axle allowable load: 2496kg
Axle ratio: 4.333
Leaf spring count: 3/5+3

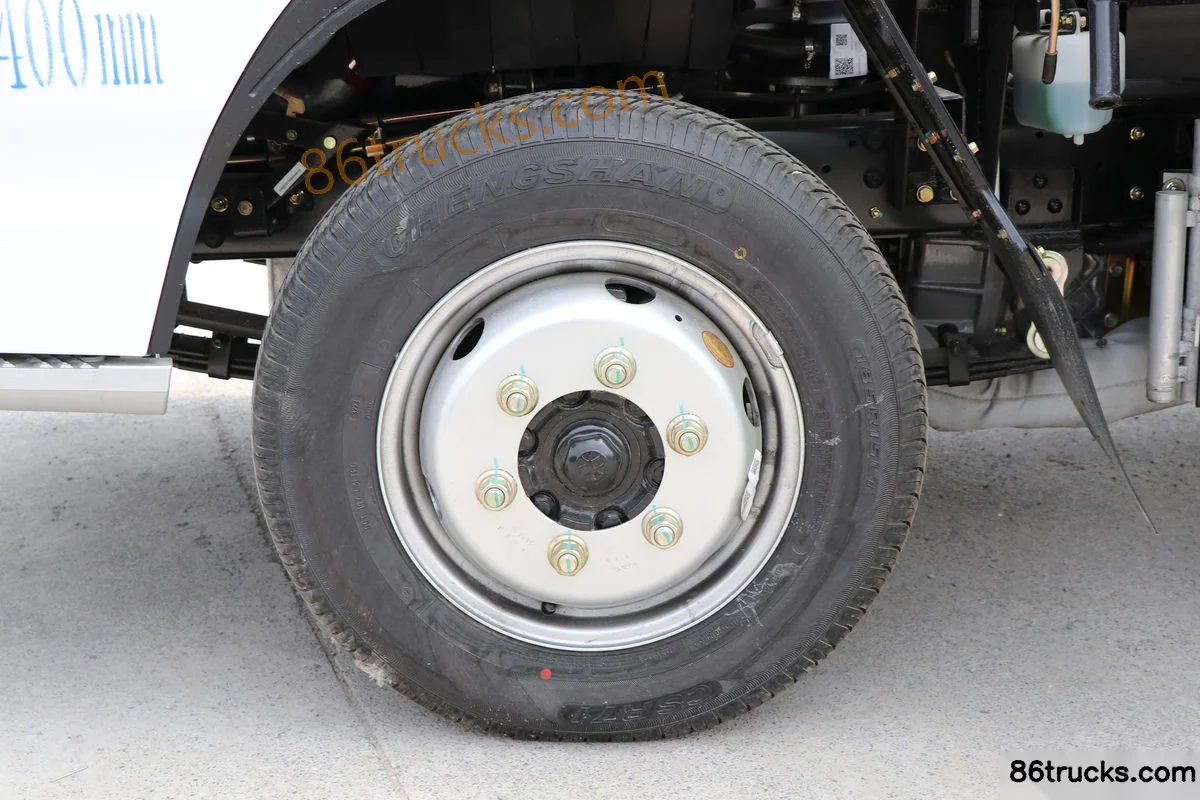

Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

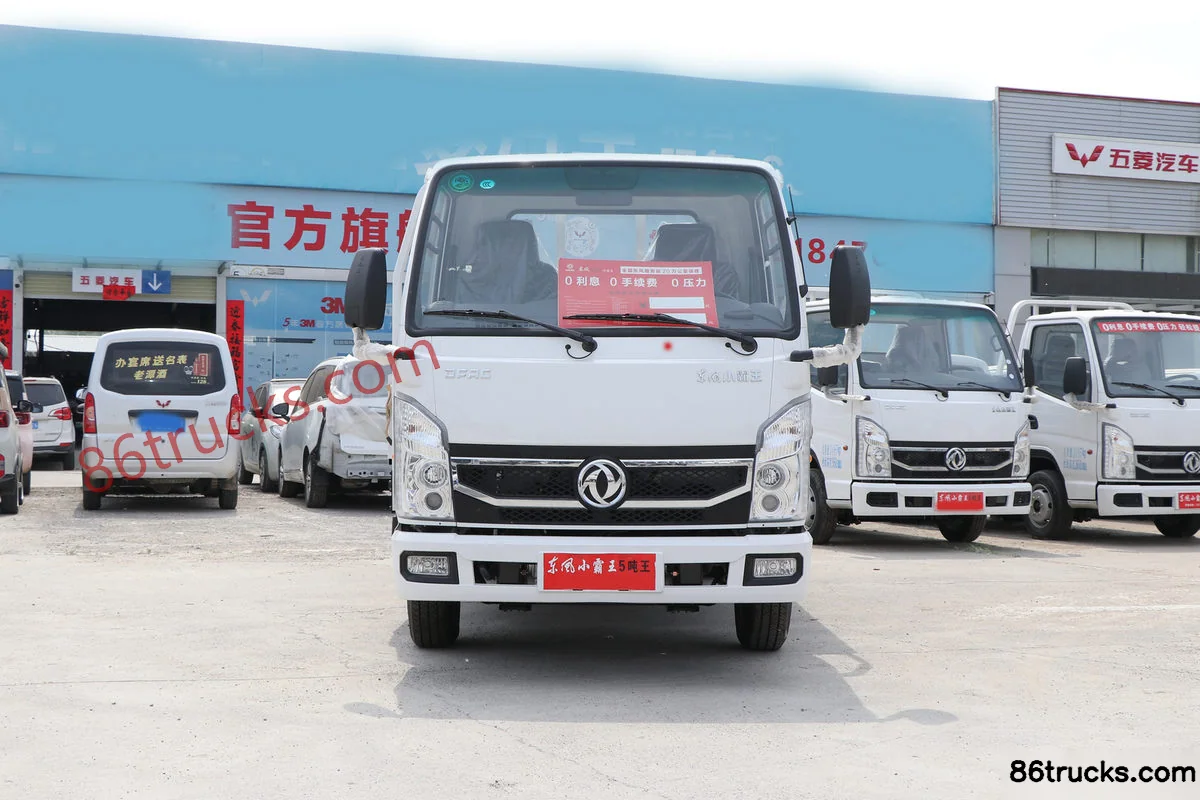

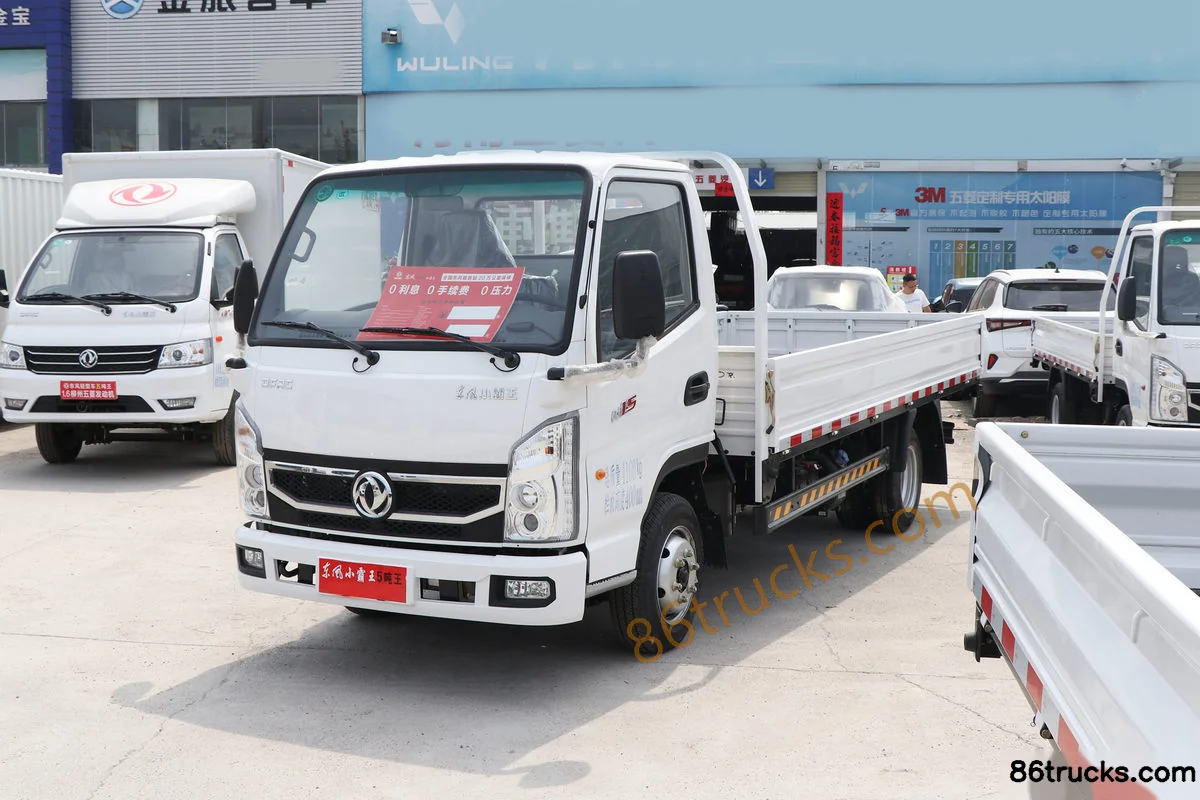

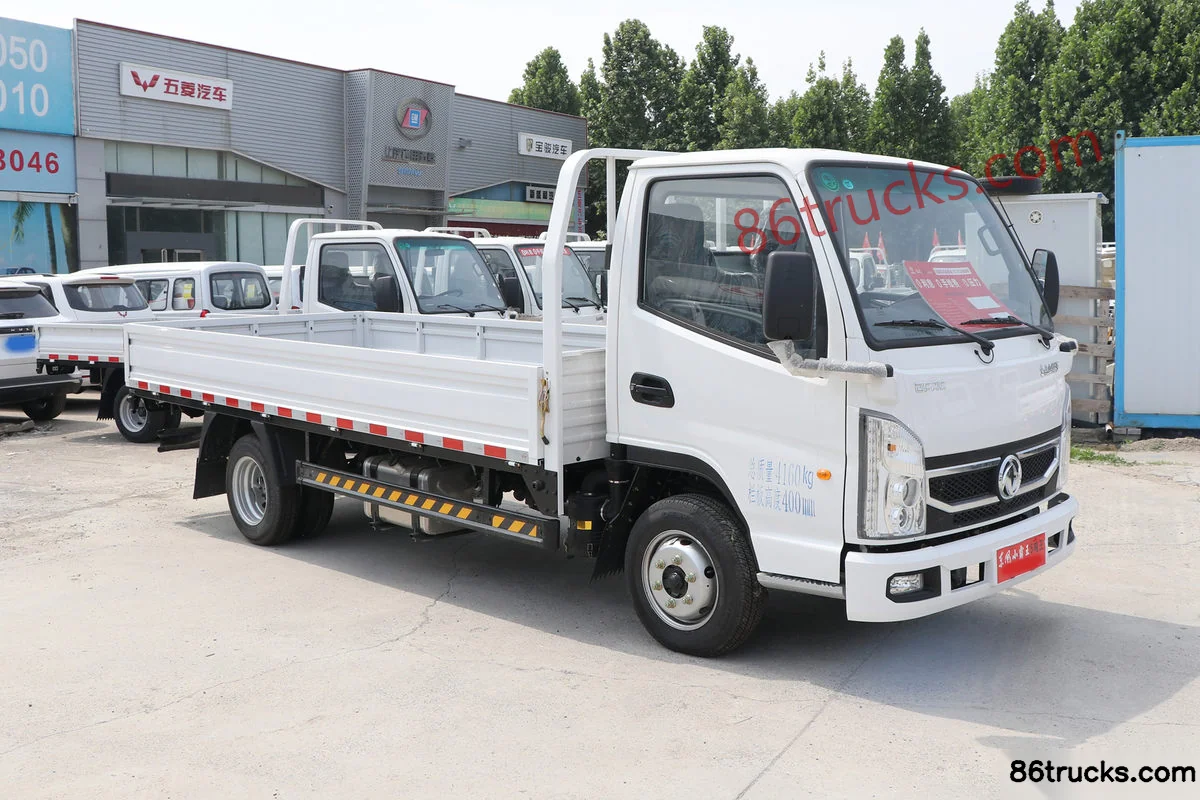

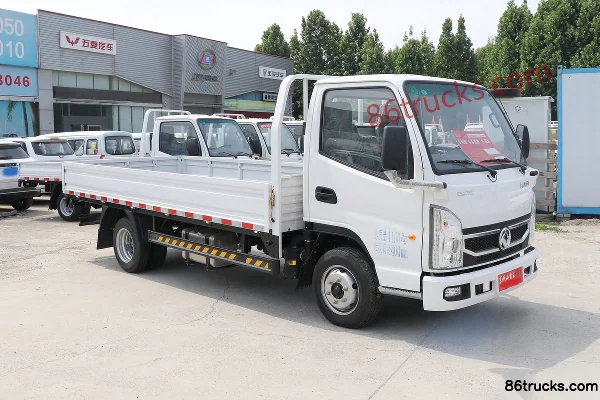

Exterior3

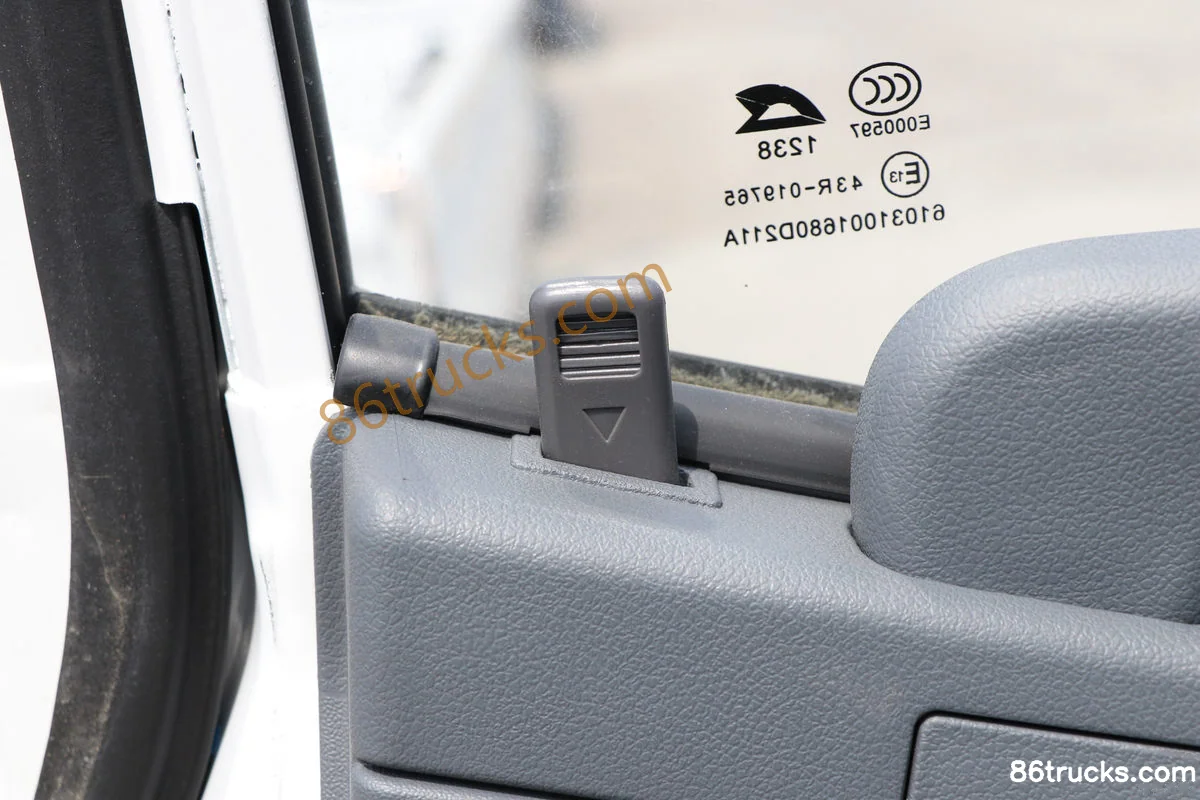

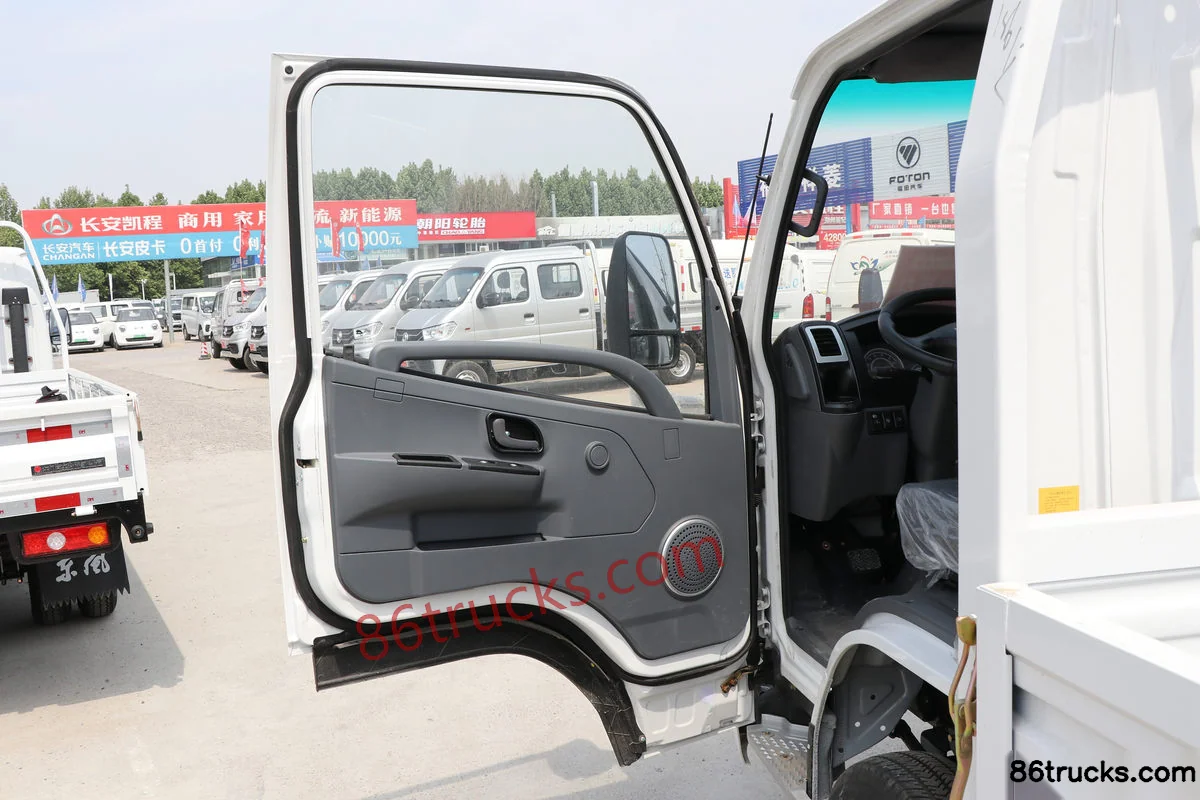

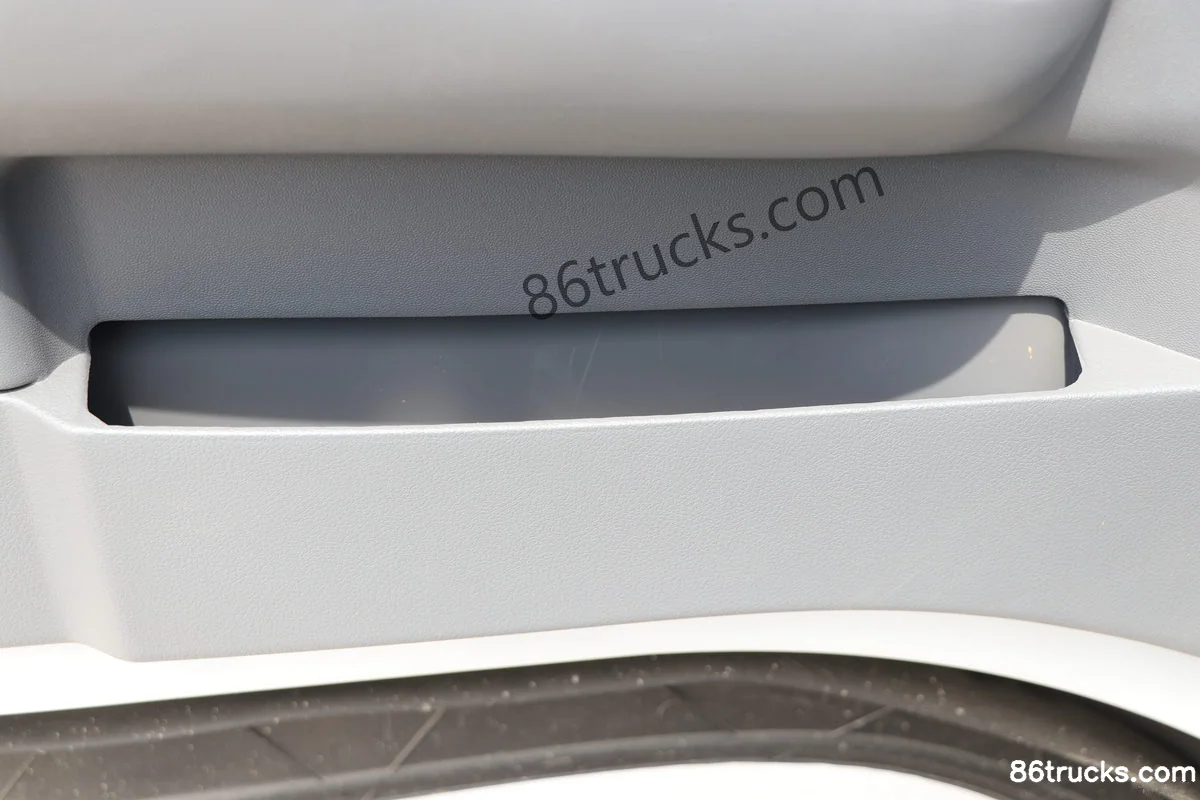

Cab3

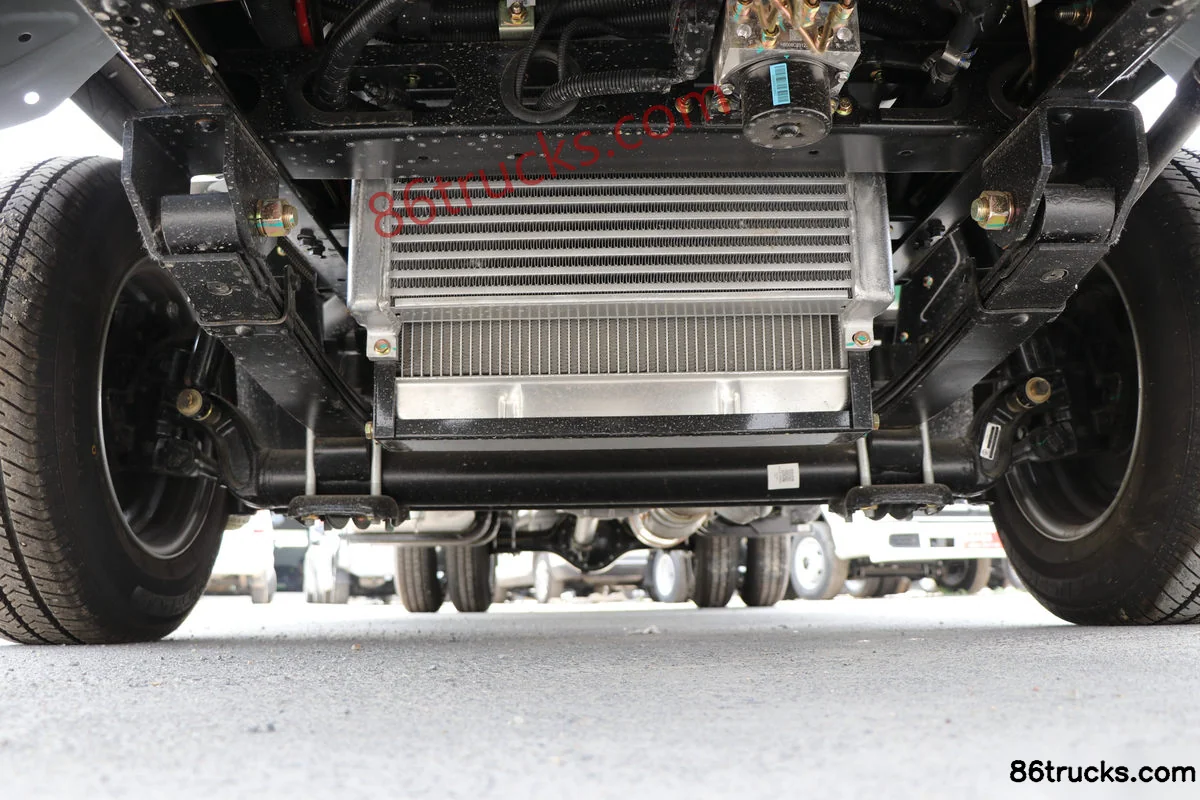

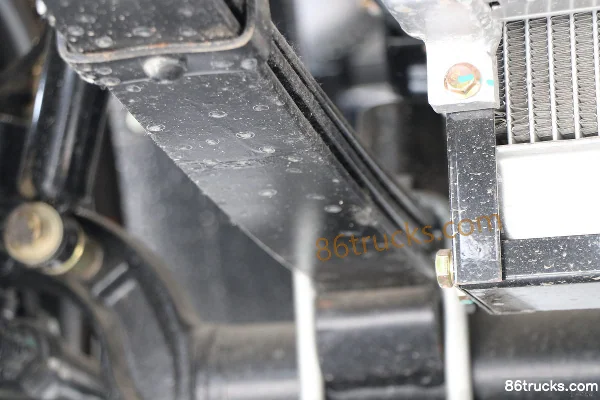

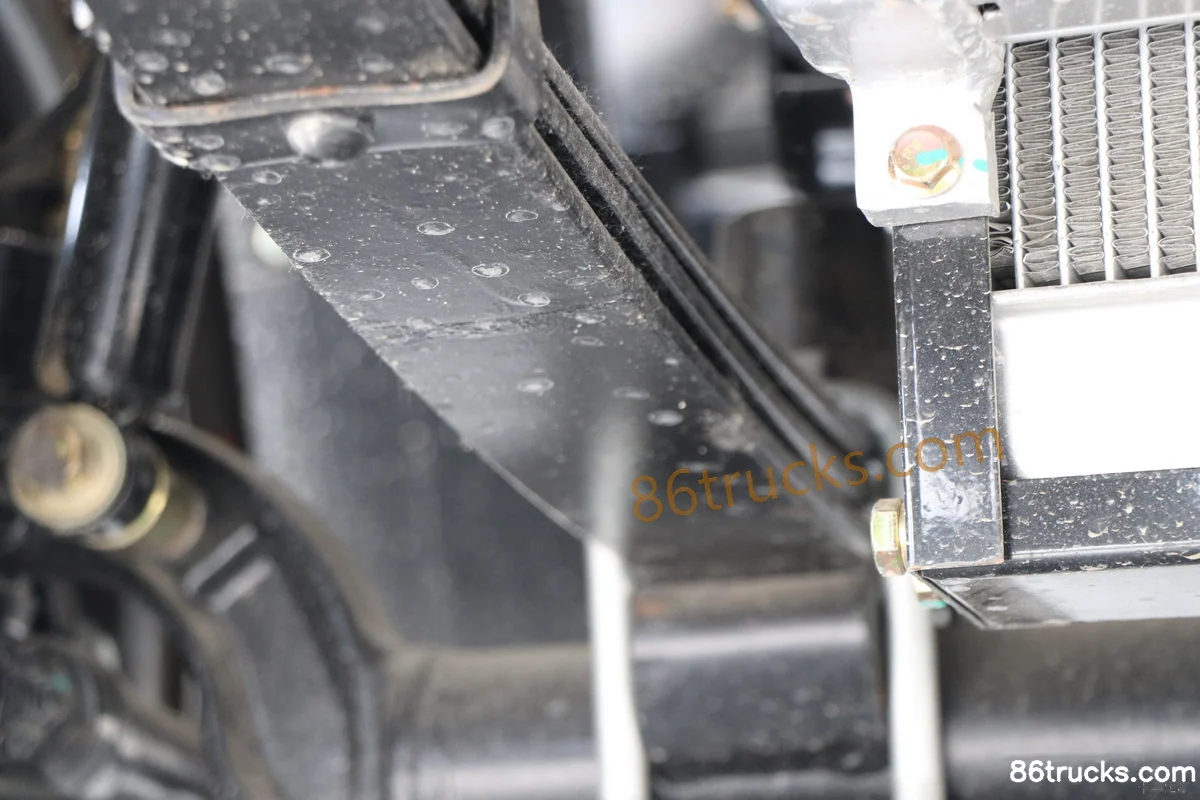

Chassis3

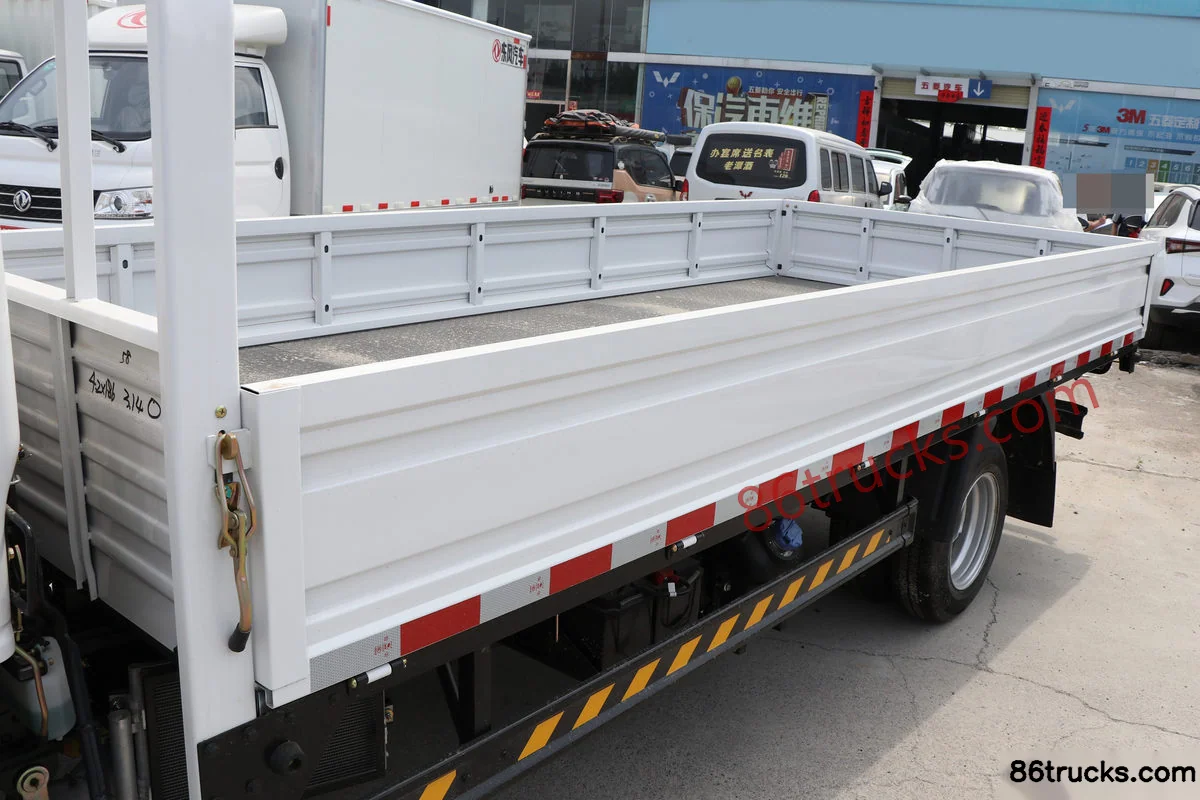

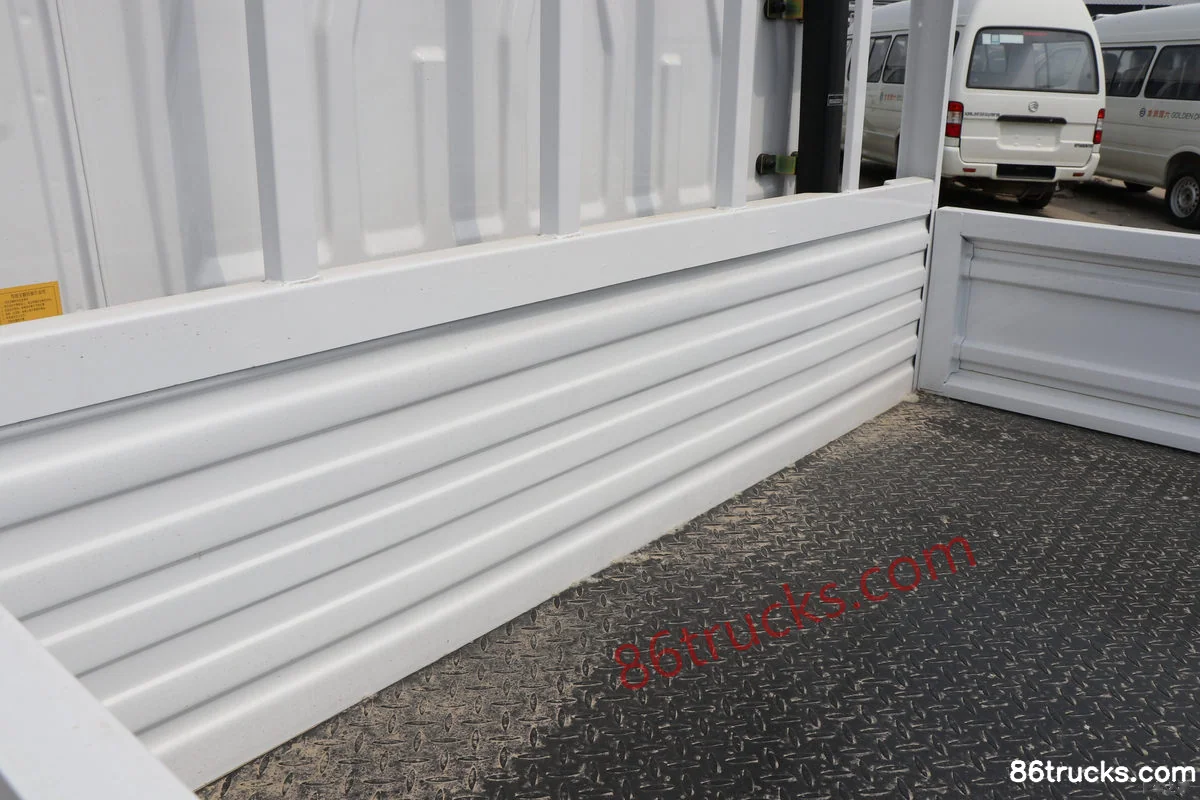

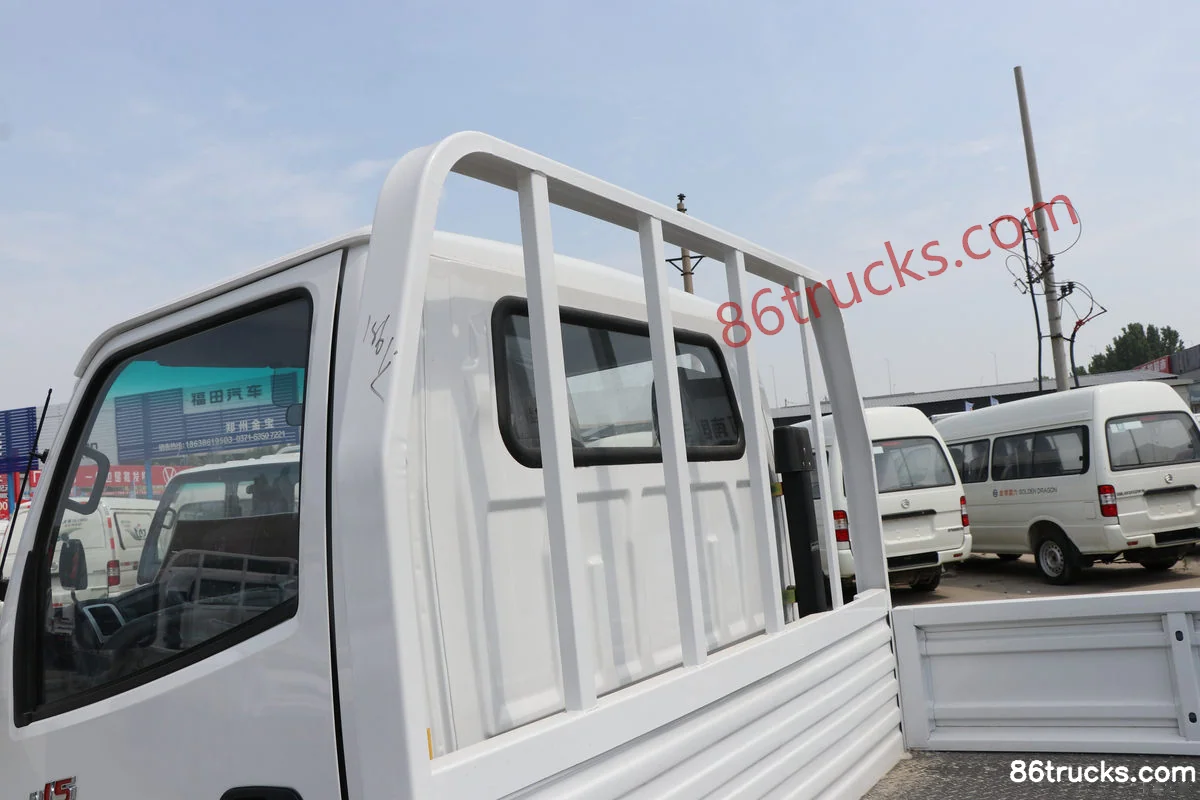

Body3

12 photos

FAQ

What emission standard does Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck?

Key specs of Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Engine: De Wei D19; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck suited for?

Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck differ from other variants in the same series?

Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck belongs to Dongfeng W15 micro truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Xiaobawang W15 102hp 4X2(6 wheels) 4.05m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
