Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis

Export reference
MSRP N/A
Horsepower: 160
Emission: China IV
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 5.89ton
seating capacity: 3Personnel
Rated payload: 10.47ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis is a Medium-duty truck featuring 6.75m cargo length, stake body cargo body, 3Personnel volume and 10.47t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC1161D4UAB
Type: Chassis
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: YuchaiYC4EG160-40
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.5m
Cab height: 3.05m
Front track width: 1967mm
rear track: 1860mm
Curb Weight: 5.89ton
Rated payload: 10.47ton
GVWR: 16ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 12°
market segment: Building materials, agricultural products
Front/rear suspension: 1.515/2.485m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG160-40
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.73L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 500N·m
Max torque speed: 1300-1600rpm
Rated speed: 2500rpm
Engine Type: BOSCH high-pressure common rail SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.75m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Qixing (full floating)
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 280L
Chassis Specs
Front axle description: 153
Front axle allowable load: 6000kg
rear axle description: 10T
rear axle allowable load: 10000kg
Axle ratio: 4.875
Leaf spring count: 3/4+3
Tire
Tire Size: 9.00-20 16PR
Number of tires: 6pcs
Control configuration
ABS:

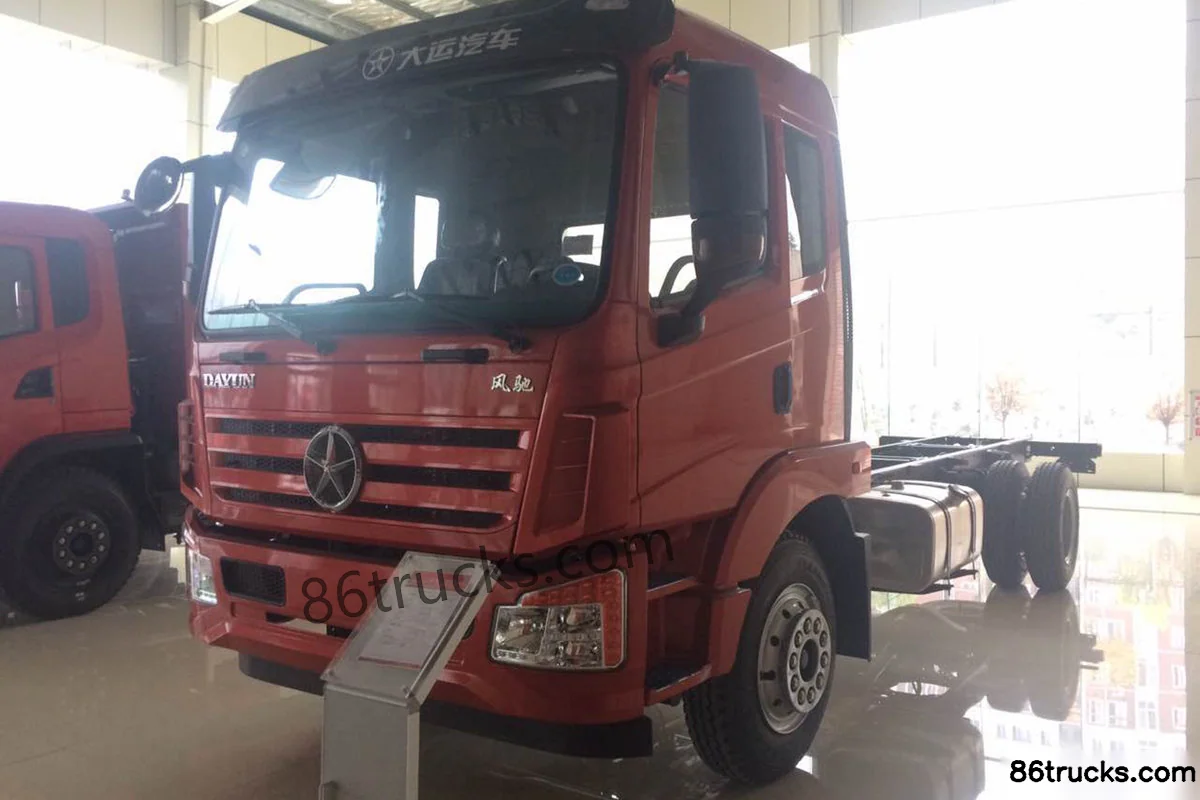

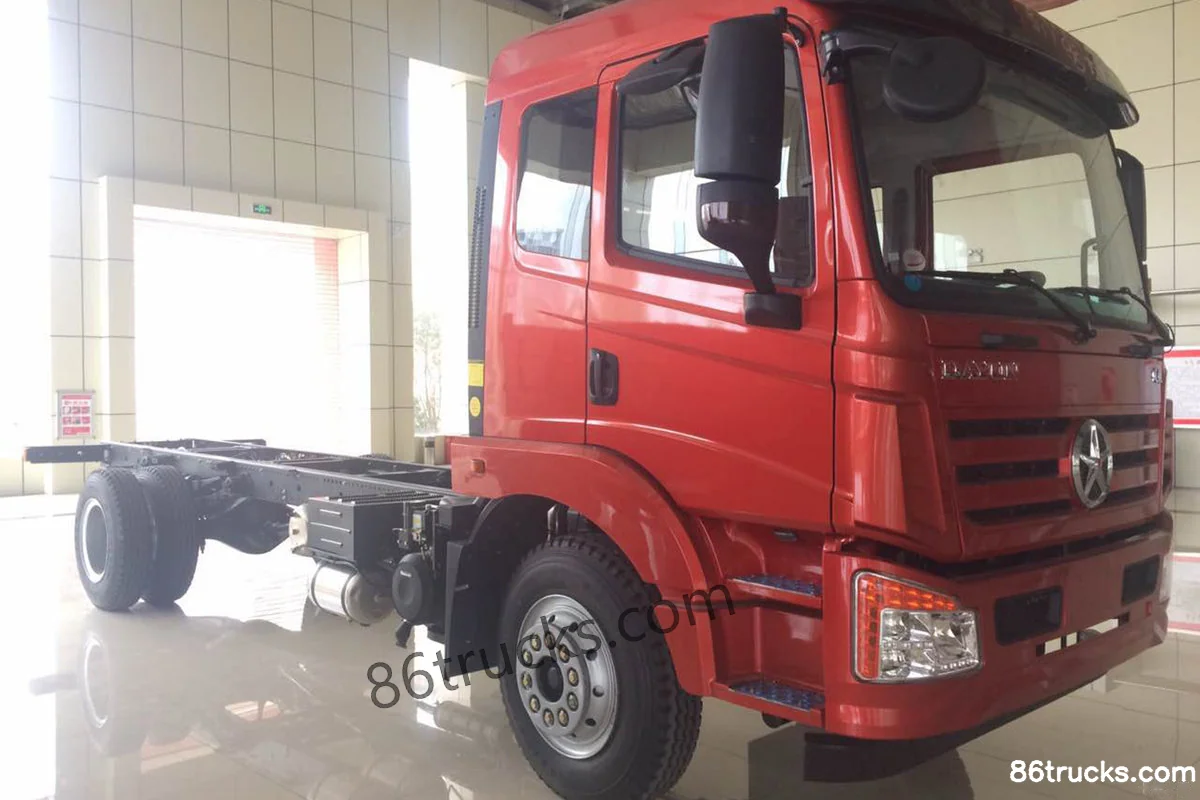

Photos

Exterior2

2 photos

FAQ

What emission standard does Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis?

Key specs of Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis: Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis suited for?

Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis differ from other variants in the same series?

Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis belongs to Dayun Fengchi Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Fengchi Medium Truck 160 hp 4X2(6 wheels) 6.75m semi-crew cab flatbed cargo truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
