Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 3.16ton
Wheelbase:: 3300mm
Tire brand:: Double Coin
Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck exterior
View more photos (9)
Rated payload: 4.925ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box thickness: floor 2.5mm side 1.5mm

Overview

The Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck is a Light Truck featuring 4.925t payload, 8.28t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRE2 engine, 102 hp, China V emissions and WLY transmission.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SH3082VEDCNZ
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerYN33CRE2
transmission: WLYWLY530HF
Rear Axle Ratio: 6.142
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.5m
Front track width: 1650mm
rear track: 1540mm
Curb Weight: 3.16ton
Rated payload: 4.925ton
GVWR: 8.28ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Remarks: Seats 3
Version: Dual-purpose
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 265N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY530HF
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 90
Cargo box thickness: floor 2.5mm side 1.5mm
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2m
Cargo box height: 0.45m
Body Parameters
Lifting type: Double Lift Cylinder
Cab parameters
Cab: Single Row Cab
Cab suspension: Front: rigid connection; Rear: mechanical
Cab tilting: Manual
Driver seat type: Rigid connection seat
Sunroof: Manual sunroof
Chassis Specs
Front axle allowable load: 3000kg
rear axle description: 1080B axle
rear axle allowable load: 5280kg
Axle ratio: 6.142
Leaf spring count: 8/10+6
Suspension (front/rear): leaf spring suspension
Tire
Tire brand: Double Coin
Tire Size: 7.50R16 14PR,8.25R16 12PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Parking brake: Spring brake

Photos

Exterior3

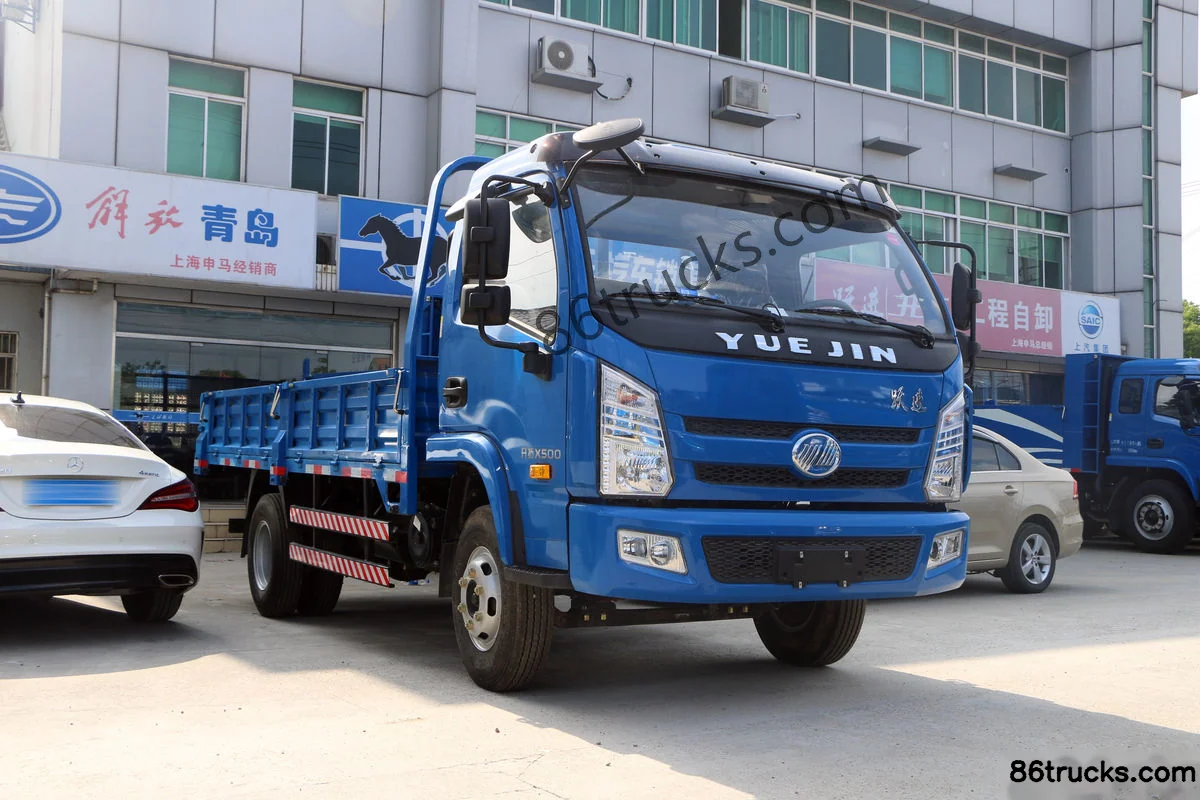

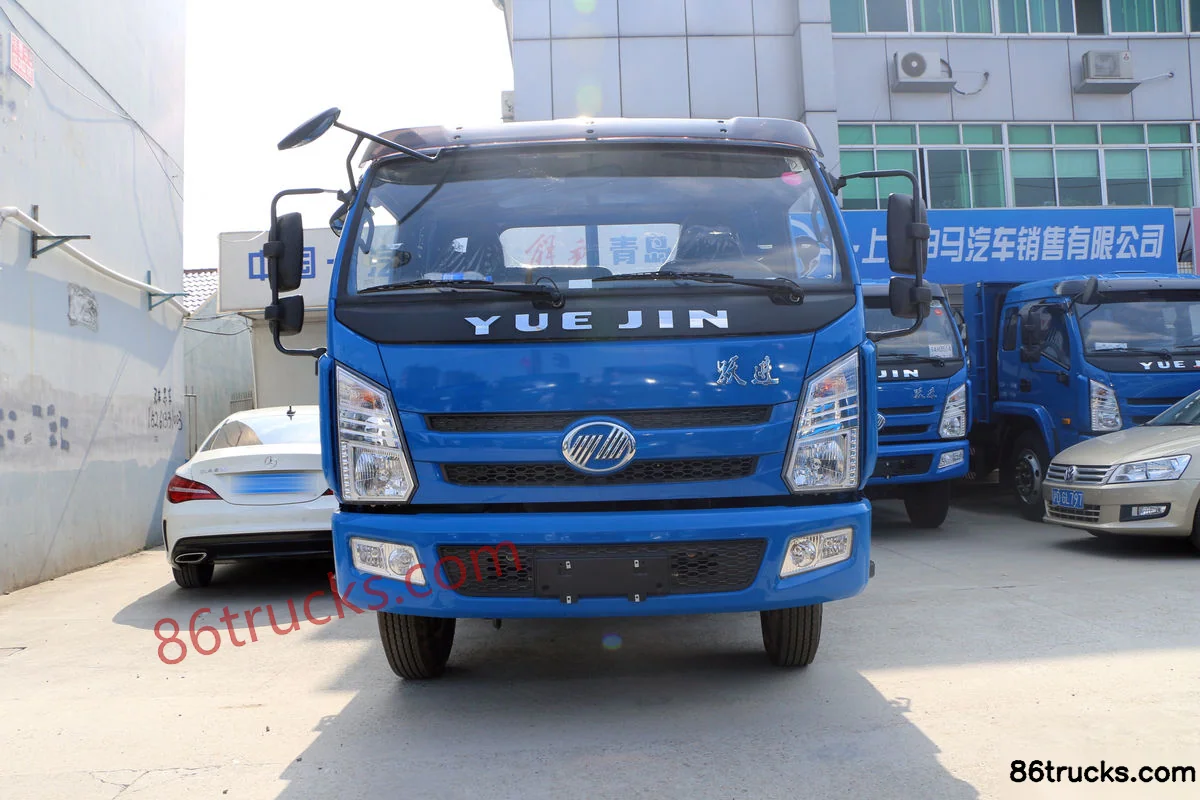

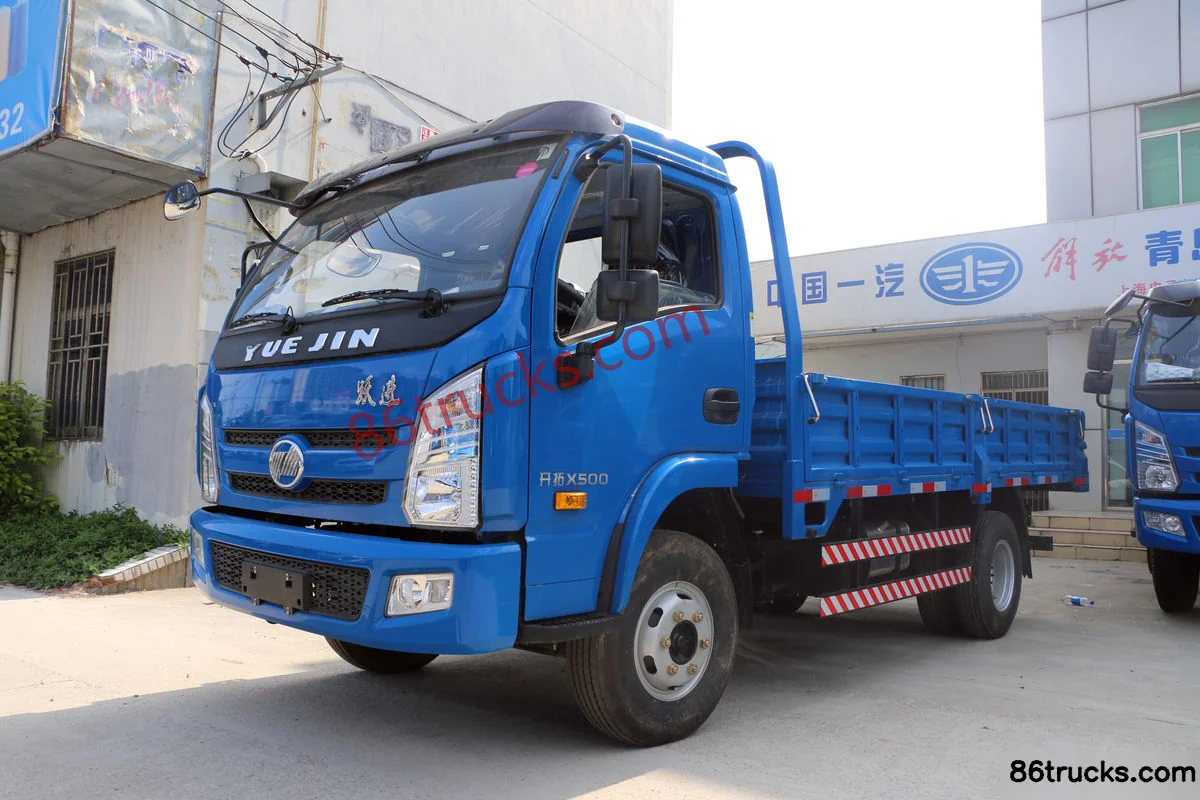

Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck Exterior (1) | 86Trucks Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck Exterior (2) | 86Trucks Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck Exterior (3) | 86Trucks

Cab3

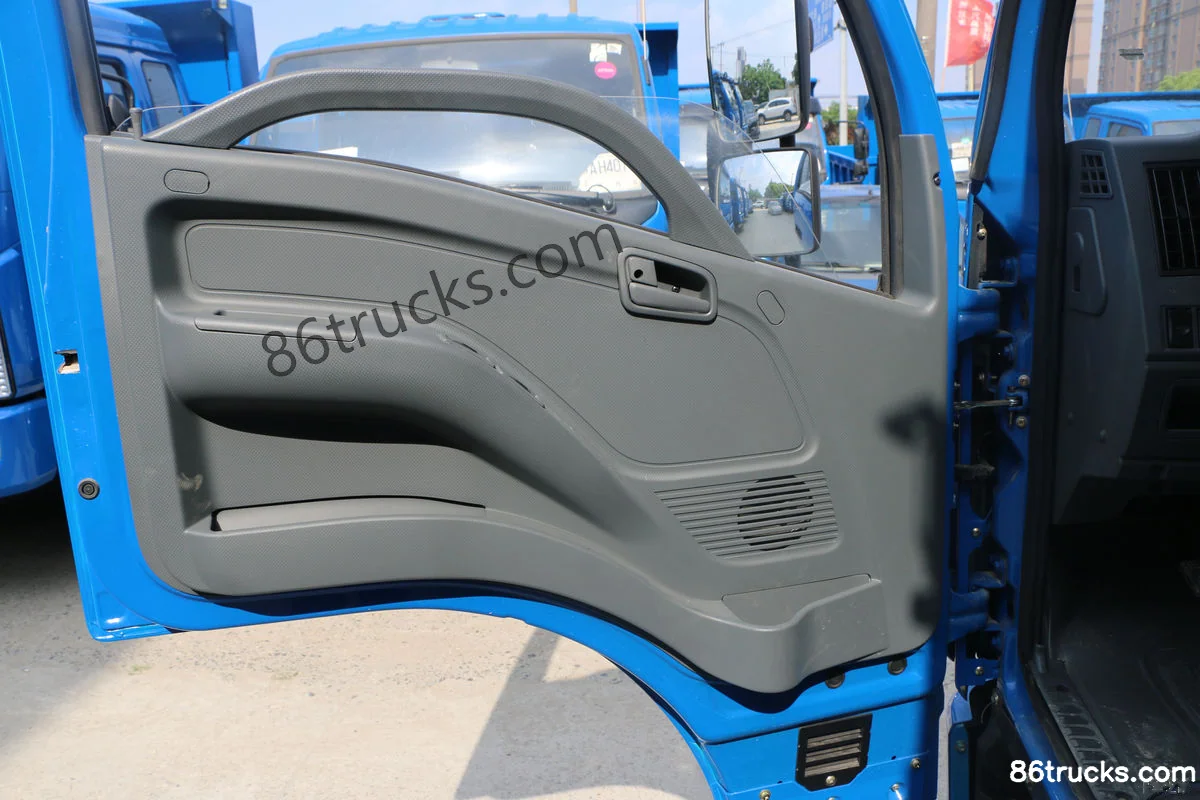

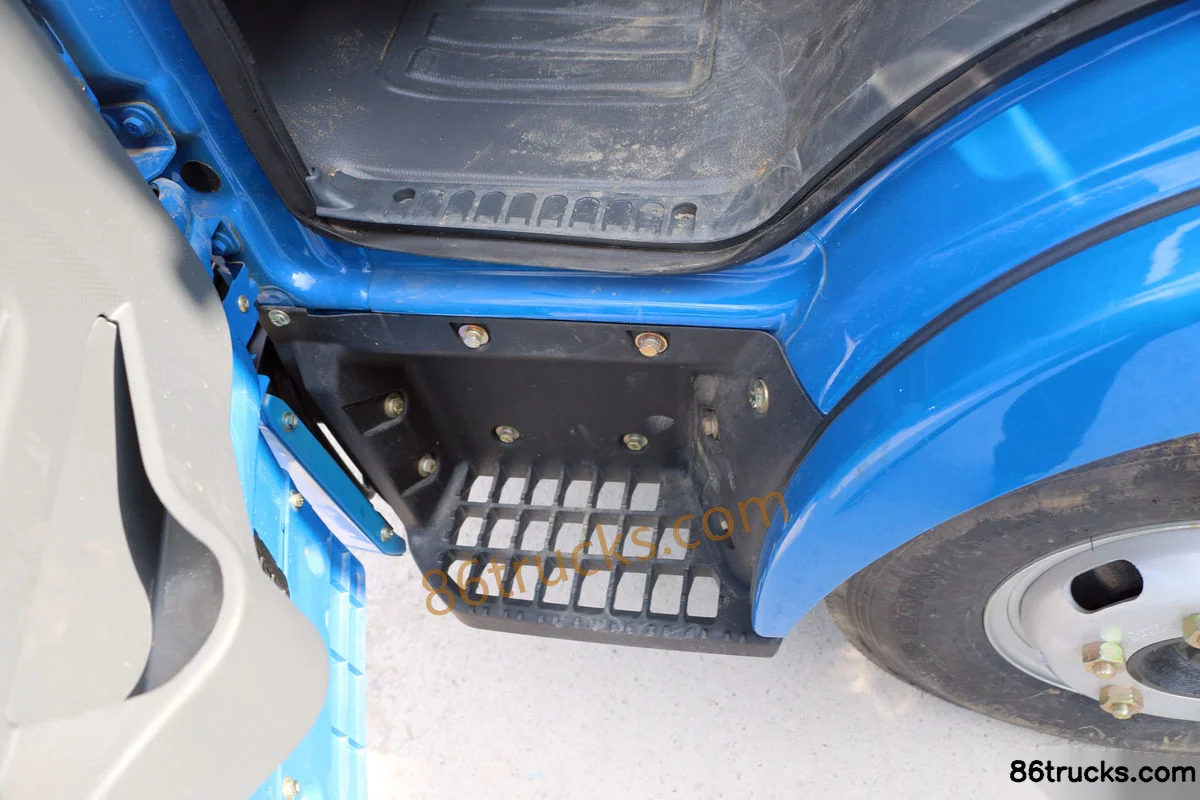

Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck Cab (1) | 86Trucks Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck Cab (2) | 86Trucks Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck Cab (3) | 86Trucks

Chassis3

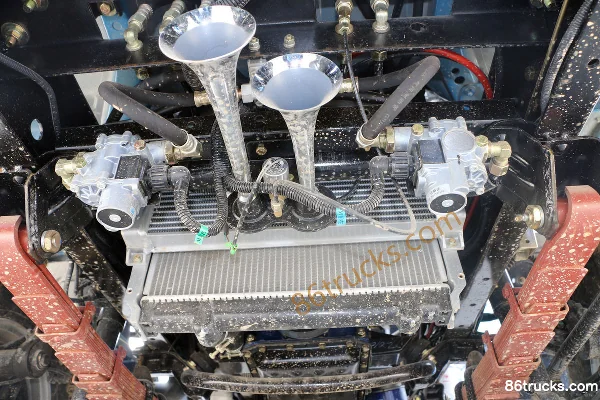

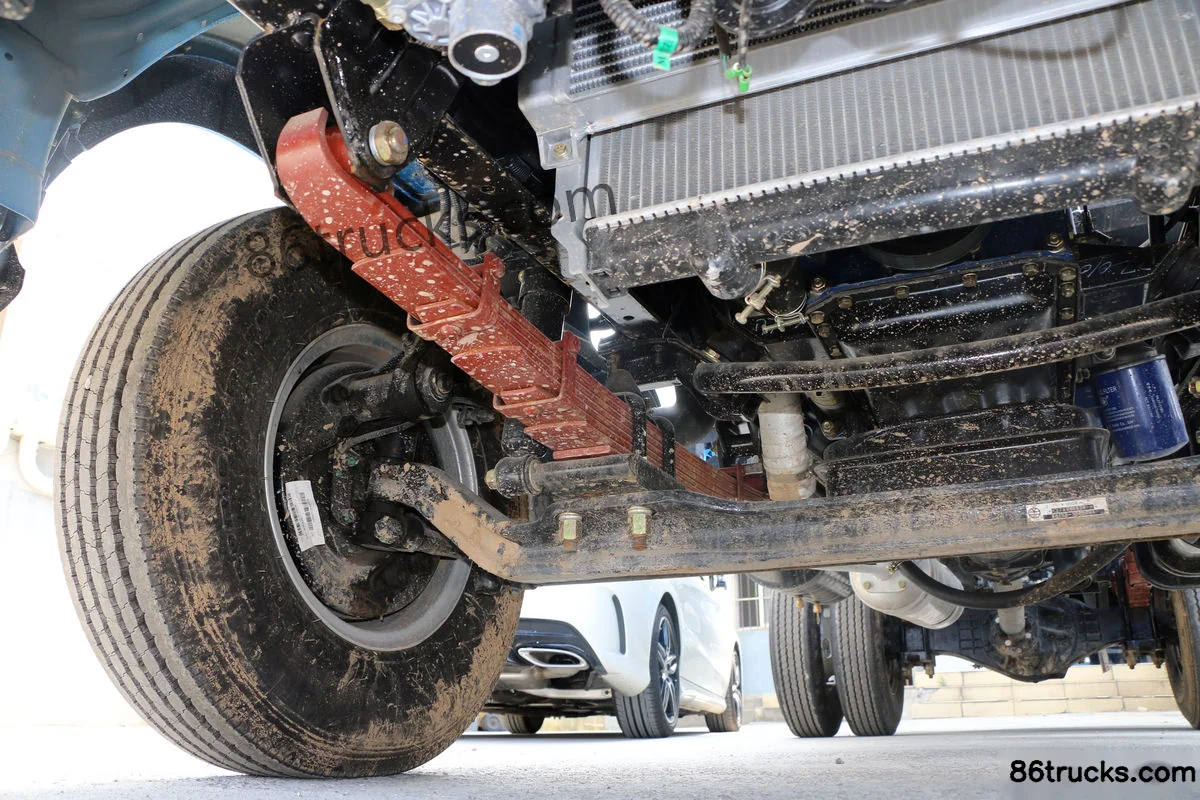

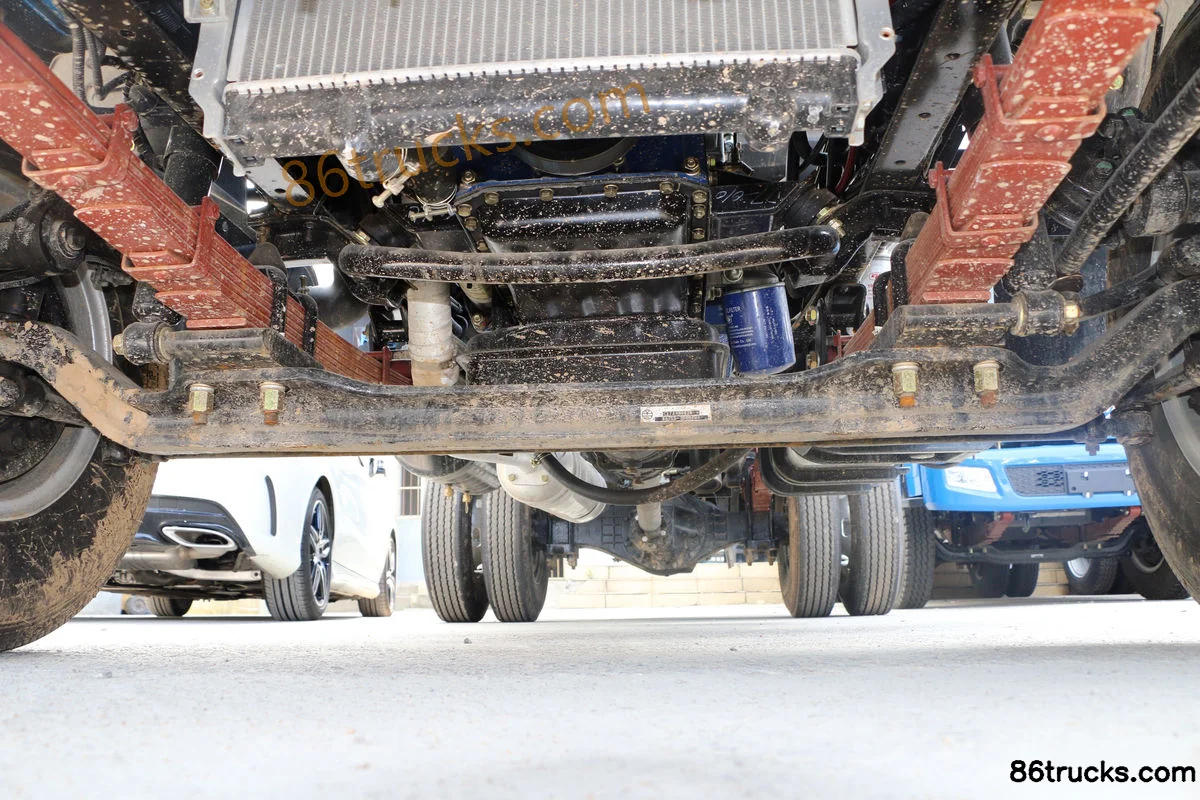

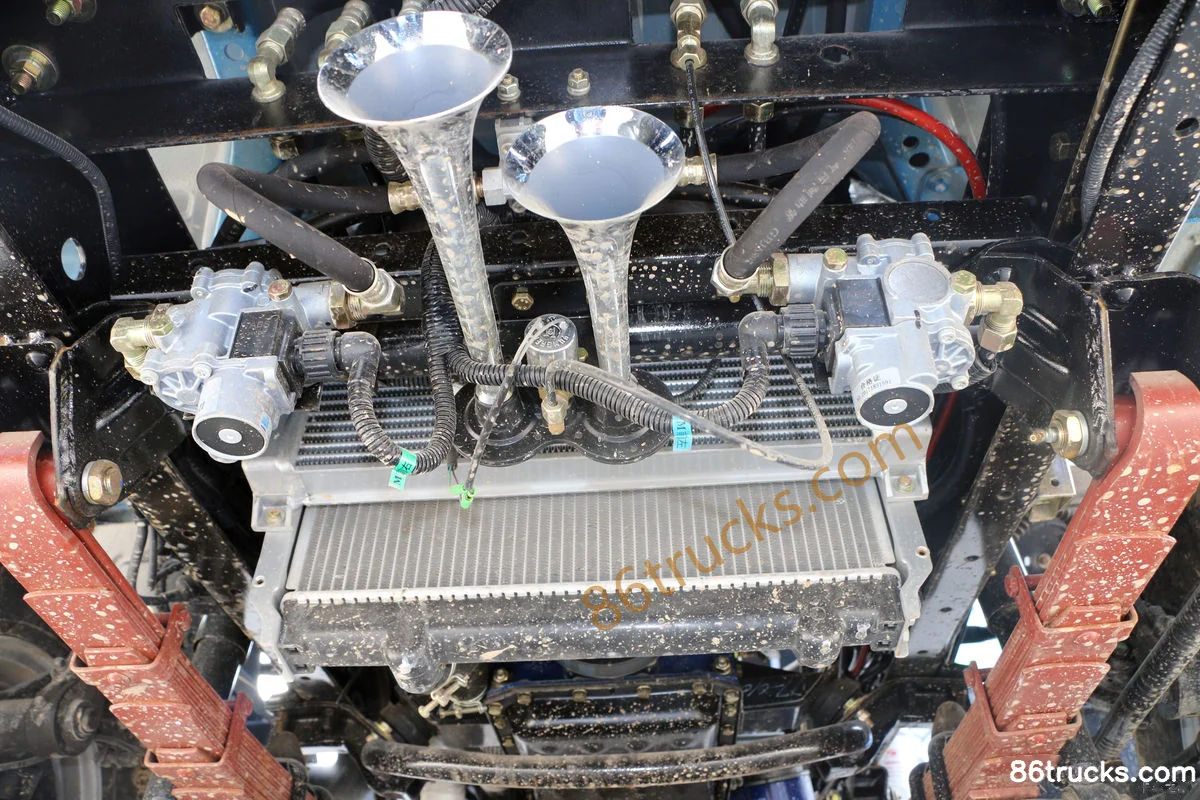

Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck Chassis (1) | 86Trucks Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck Chassis (2) | 86Trucks Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck?

Key specs of Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck suited for?

Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck differ from other variants in the same series?

Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck belongs to Yuejin Kaituo X500 Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Kaituo X500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
