Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof)

Export reference
MSRP N/A
Fuel: Compressed Natural Gas (CNG)
Gross Trailer Weight:: 38.89ton
Wheelbase:: 3800+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 11.813L
Drive 6X4 (10 wheels)
Horsepower 410
Emission China V
Transmission Hanma

Overview

The Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof) is a Heavy truck featuring 6X4 (10 wheels) drive, 410 hp, 25t GVW and China V emissions. On the powertrain side, it comes with a HanmaCM6T28.410 50 engine, Hanma transmission and Compressed Natural Gas (CNG) fuel.

China V 410 Compressed Natural Gas (CNG) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN4251NGH41C8M5
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: HanmaCM6T28.410 50
transmission: Hanma16SOBY2250
Rear Axle Ratio: 4.11
Cab length: 7.54m
Cab width: 2.55m
Cab height: 3.93m
Front track width: 2065mm
rear track: 1860/1860mm
Gross Trailer Weight: 38.89ton
Curb Weight: 9.98ton
GVWR: 25ton
Max. speed: 98km/h
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Version: CNG Version
Energy Type: Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: Hanma
Engine Model: HanmaCM6T28.410 50
Number of cylinders: 6cylinder
fuel type: Compressed Natural Gas (CNG)
Cylinder arrangement: Inline
Displacement: 11.813L
Emission standard: China V
Max output power: 300kW
Max hp: 410Horsepower
Max torque: 1750N·m
Max torque speed: 1100-1450rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Hanma16SOBY2250
Transmission Brand: Hanma
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Sunroof: Manual sunroof
Chassis Specs
Suspension type: Leaf spring
Fifth wheel: 90#
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.11
Leaf spring count: 9/12
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Independent Heater:
Power Windows:
Power Mirrors:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:

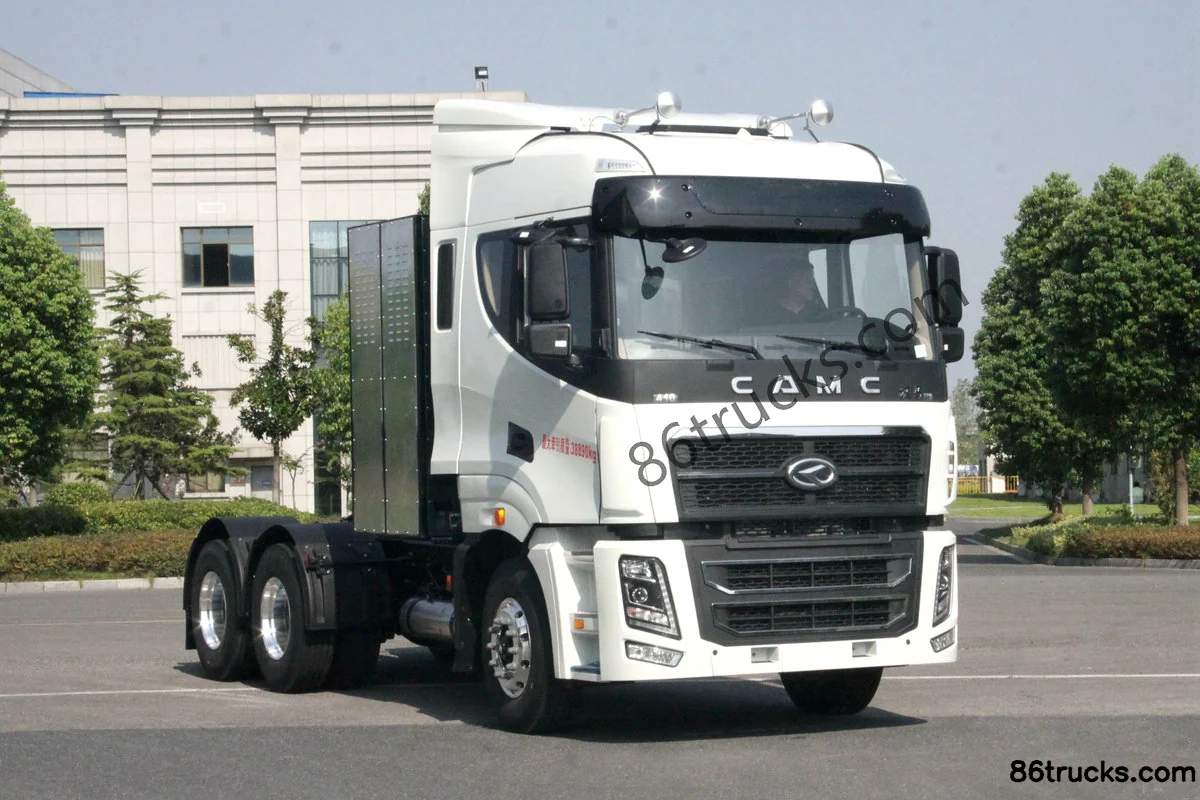

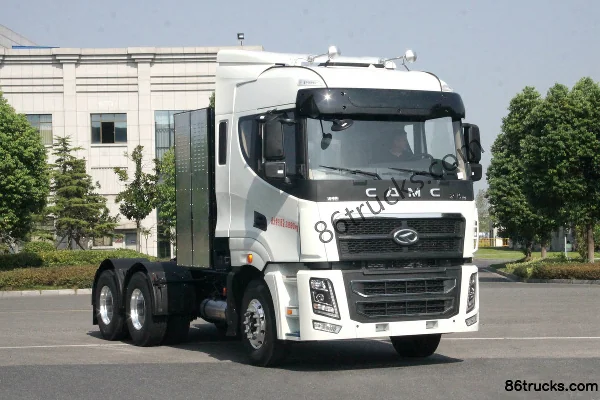

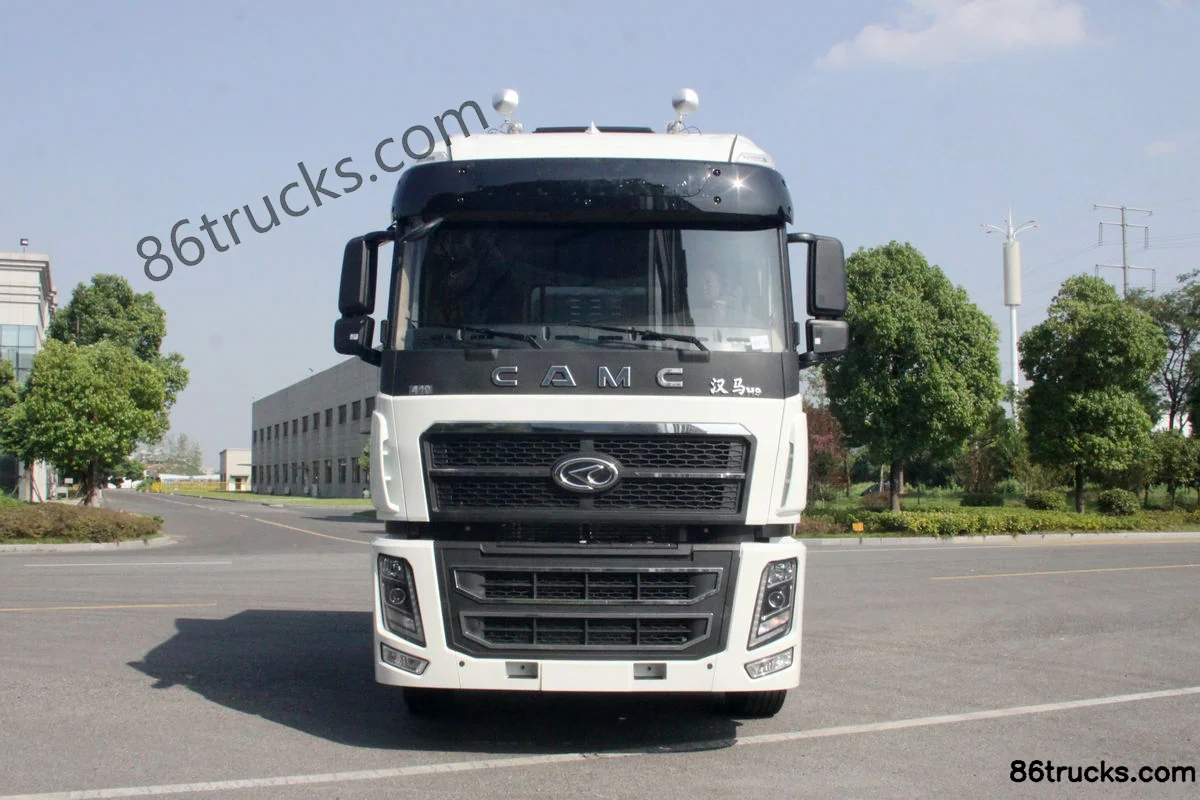

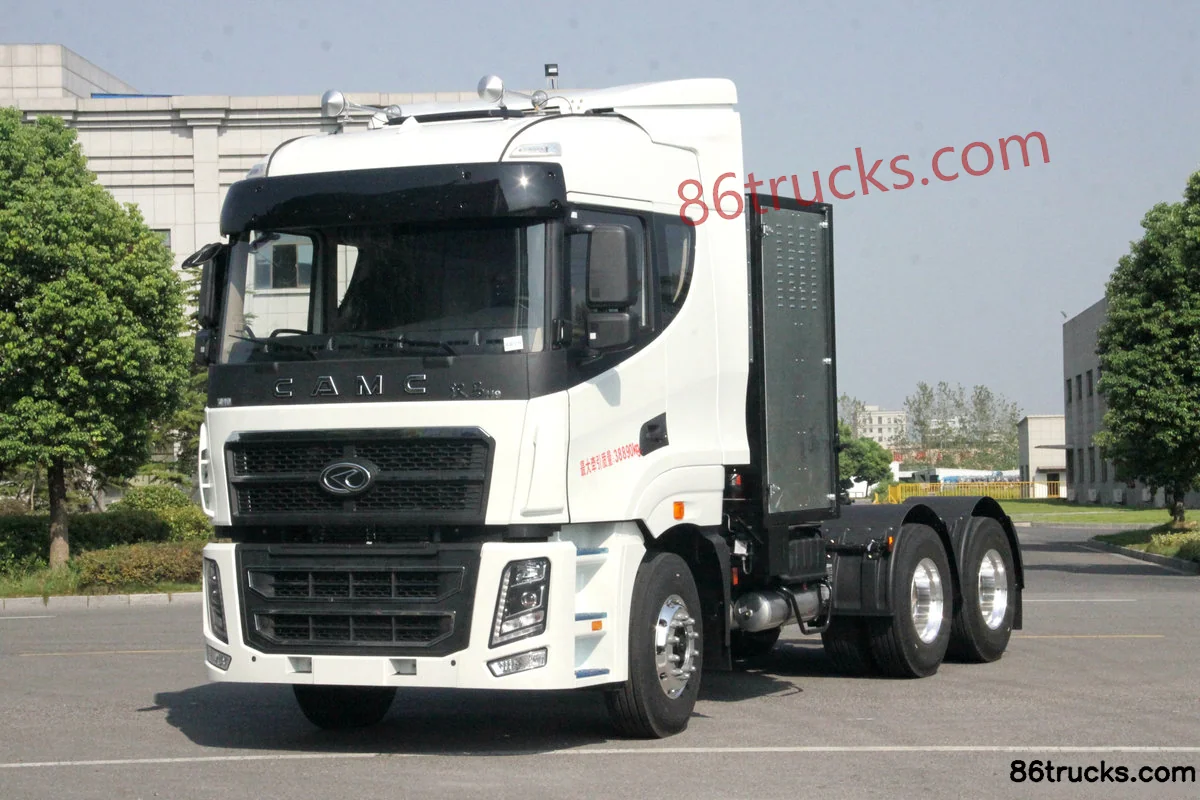

Photos

Exterior3

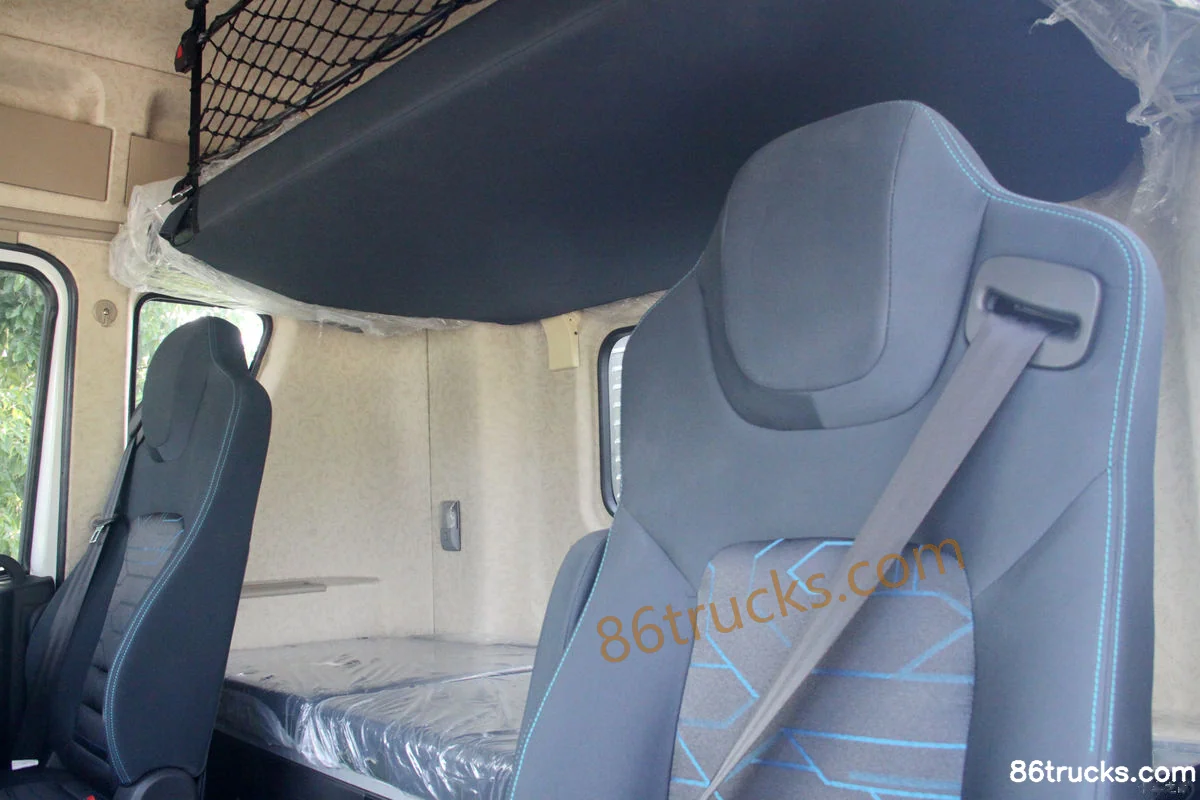

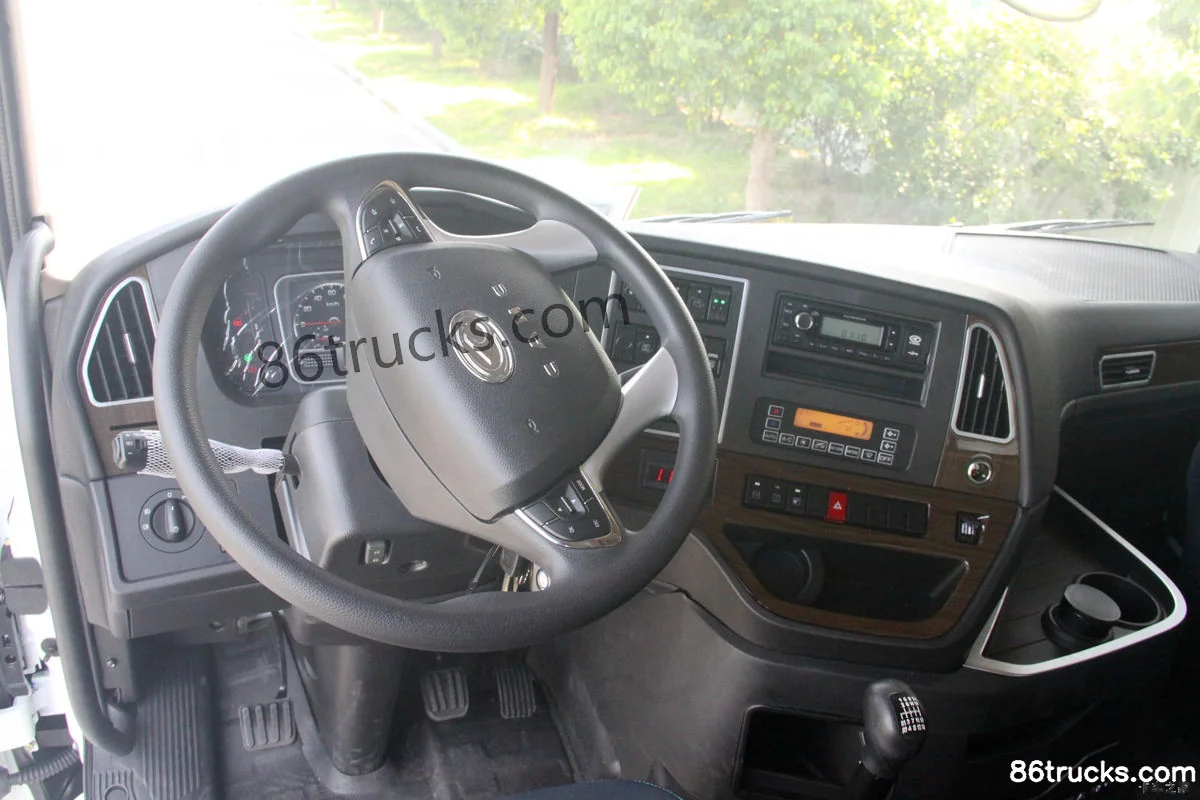

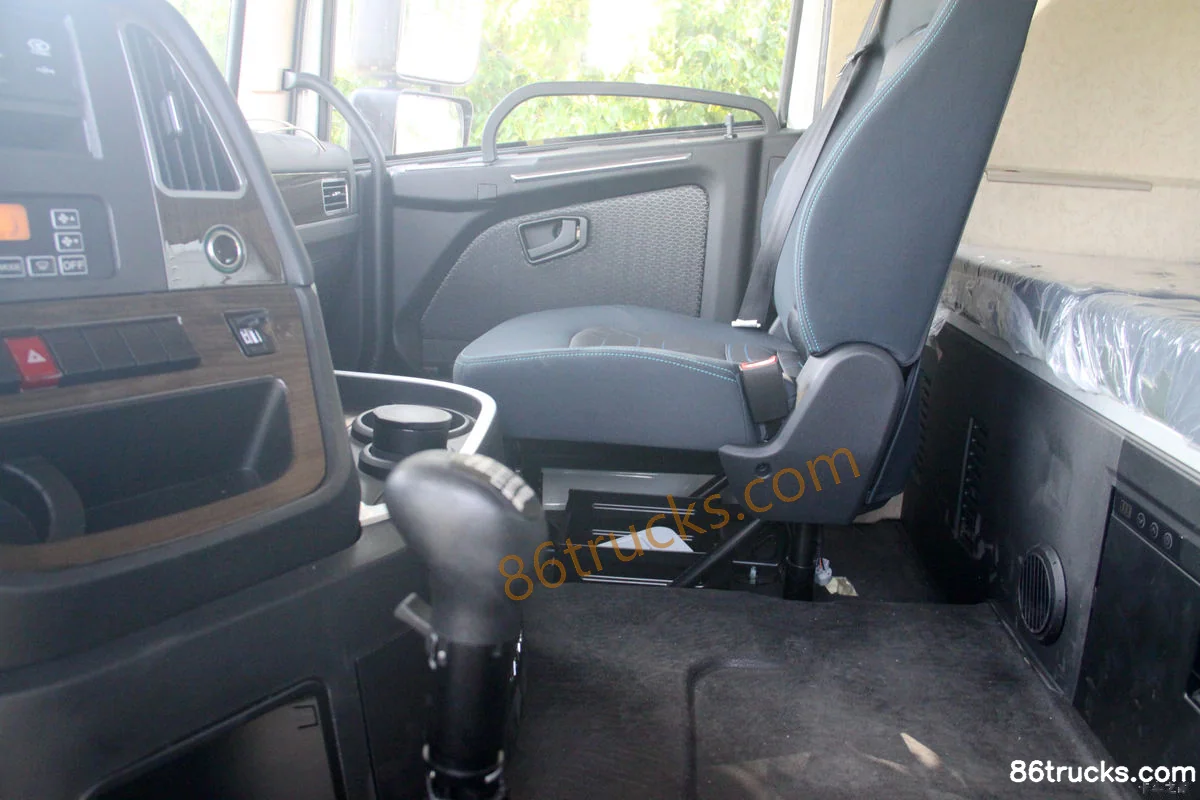

Cab3

6 photos

FAQ

What emission standard does Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof)?

Key specs of Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof): Drive: 6x4; Horsepower: 410 hp; Emission: China V; Fuel: Compressed Natural Gas (CNG); Transmission: Hanma. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof) suited for?

Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof) differ from other variants in the same series?

Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof) belongs to HualingHanma H9 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Hanma H9 Heavy Truck 410 hp 6X4(10 wheels) CNG Tractor Truck (High Roof)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
