Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio)

Export reference
From $48,486
MSRP ¥34.91M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5
Front axle allowable load:: 7000kg
Displacement:: 11.596L
Drive 6X4 (10 wheels)
Horsepower 430
Emission China V
Transmission Fast Gear

Overview

The Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio) is a Heavy truck featuring 6X4 (10 wheels) drive, 430 hp, 25t GVW and China V emissions. Its segment focus covers Logistics distribution, coal transport and sand & gravel transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP12.430E50 engine, Fast Gear transmission and Diesel fuel.

China V 430 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QCC4252D654-2
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: WeichaiWP12.430E50
transmission: Fast Gear12JSD220T
Rear Axle Ratio: 3.083
Cab length: 6.873m
Cab width: 2.5m
Cab height: 3.65m
Front track width: 2040mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Wuhu, Anhui
tonnage class: Heavy truck
market segment: Logistics distribution, coal transport, sand & gravel transport, bulk material transport
Remarks: Imported clutch
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.430E50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.596L
Emission standard: China V
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2060N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD220T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cab parameters
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Driver seat type: air suspension seat
Lower Bunk Width: 710mm
Sunroof: Manual sunroof
fuel tank
Fuel tank capacity: 700L
Chassis Specs
Front axle description: Sanhuan 6.5T maintenance-free
Fifth wheel: 90# standard type
Front axle allowable load: 7000kg
Steering gear: Domestic
rear axle description: Fuwa Q470
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 3.083
Leaf spring count: 3/4
Suspension (front/rear): front leaf spring, rear leaf spring
Tire
Tire Size: 12R22.5
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
AC control type: Automatic
Service brake
Engine brake: engine brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

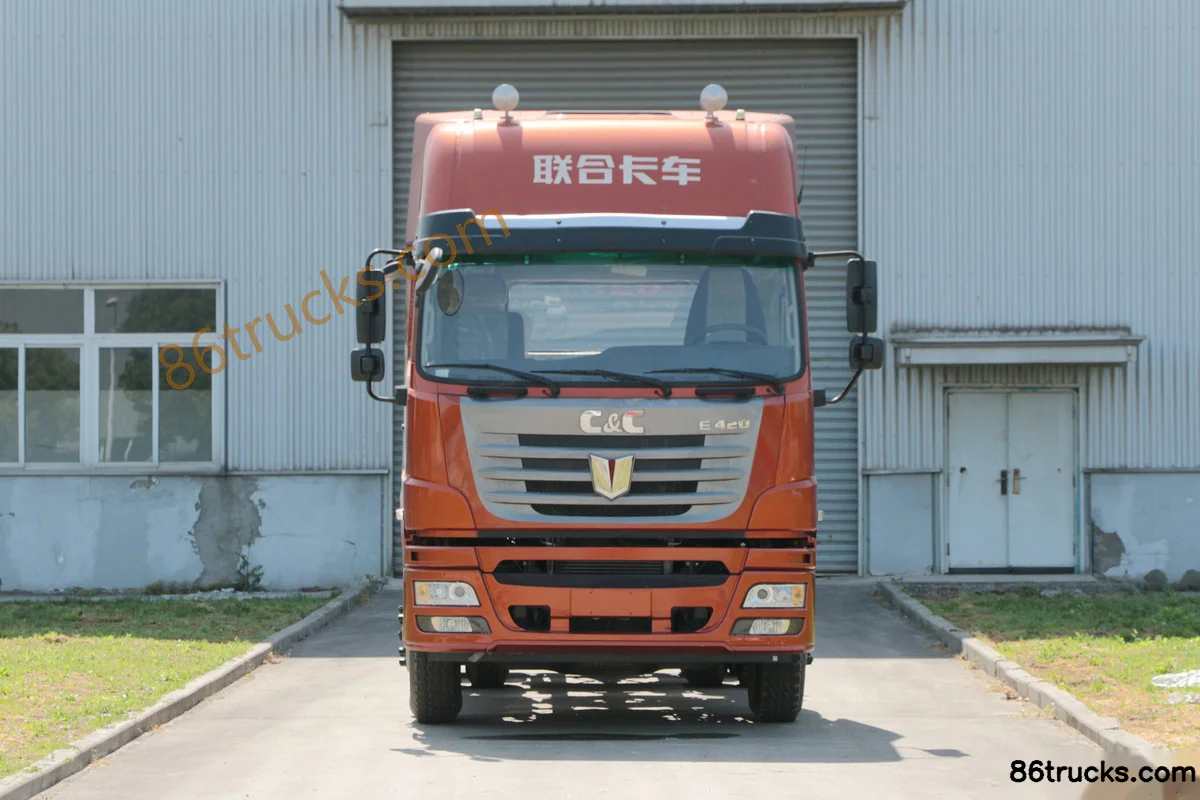

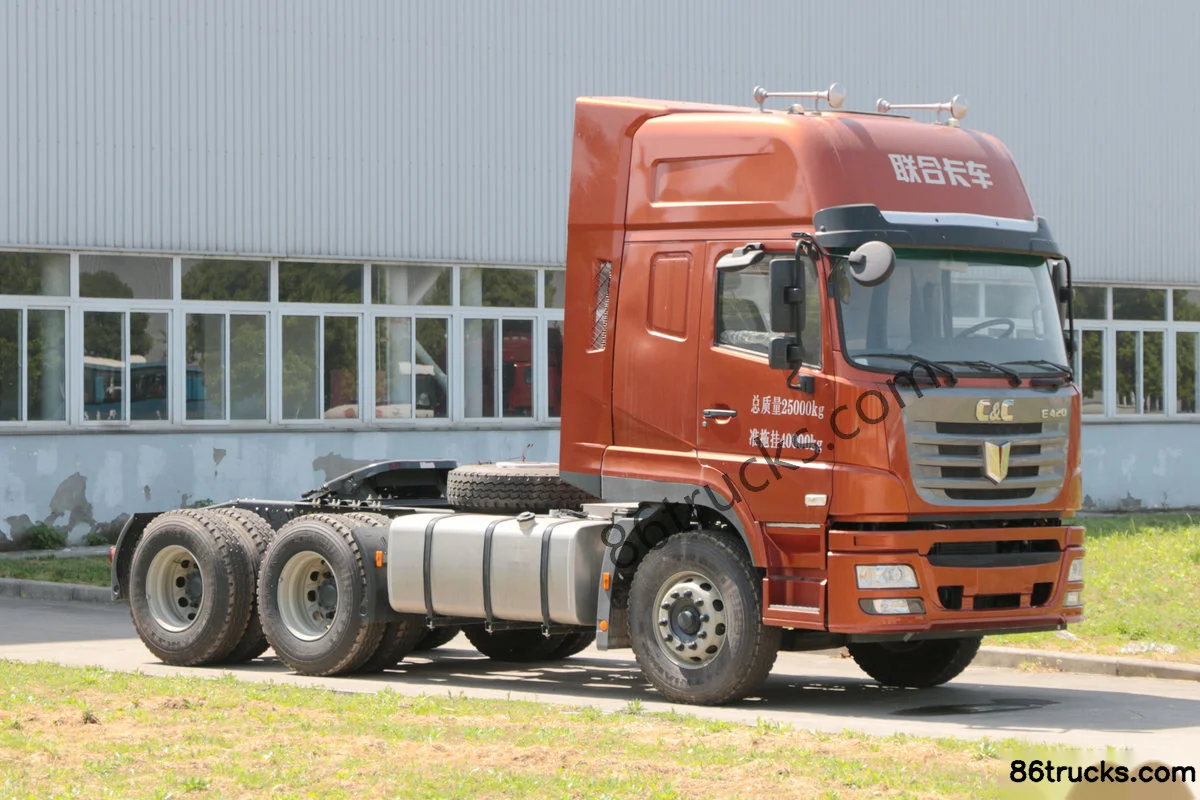

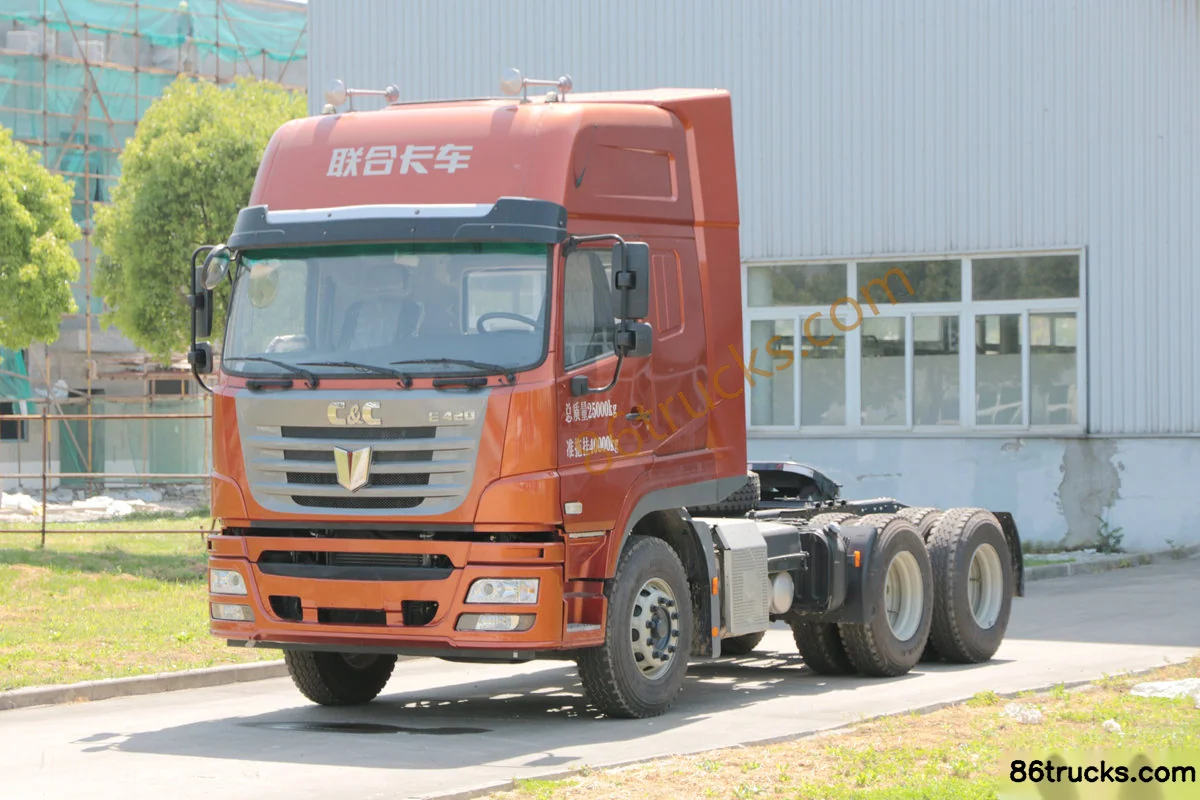

Exterior3

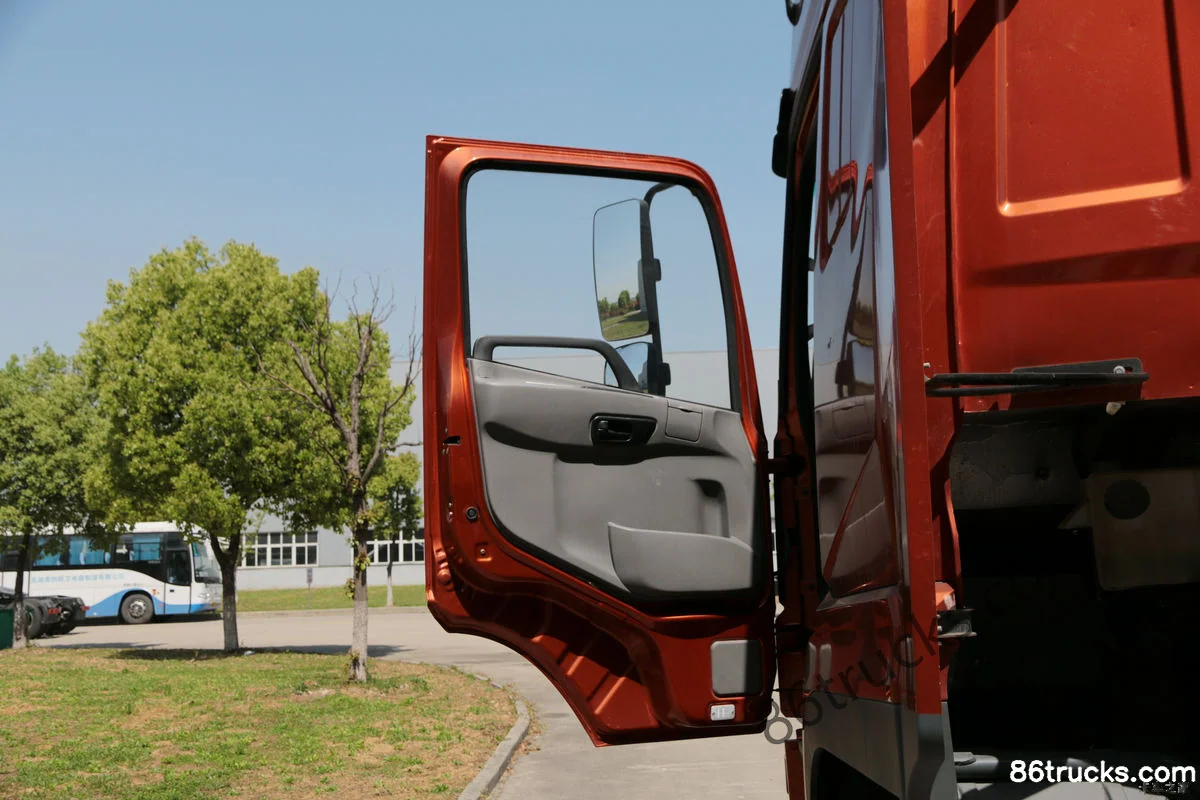

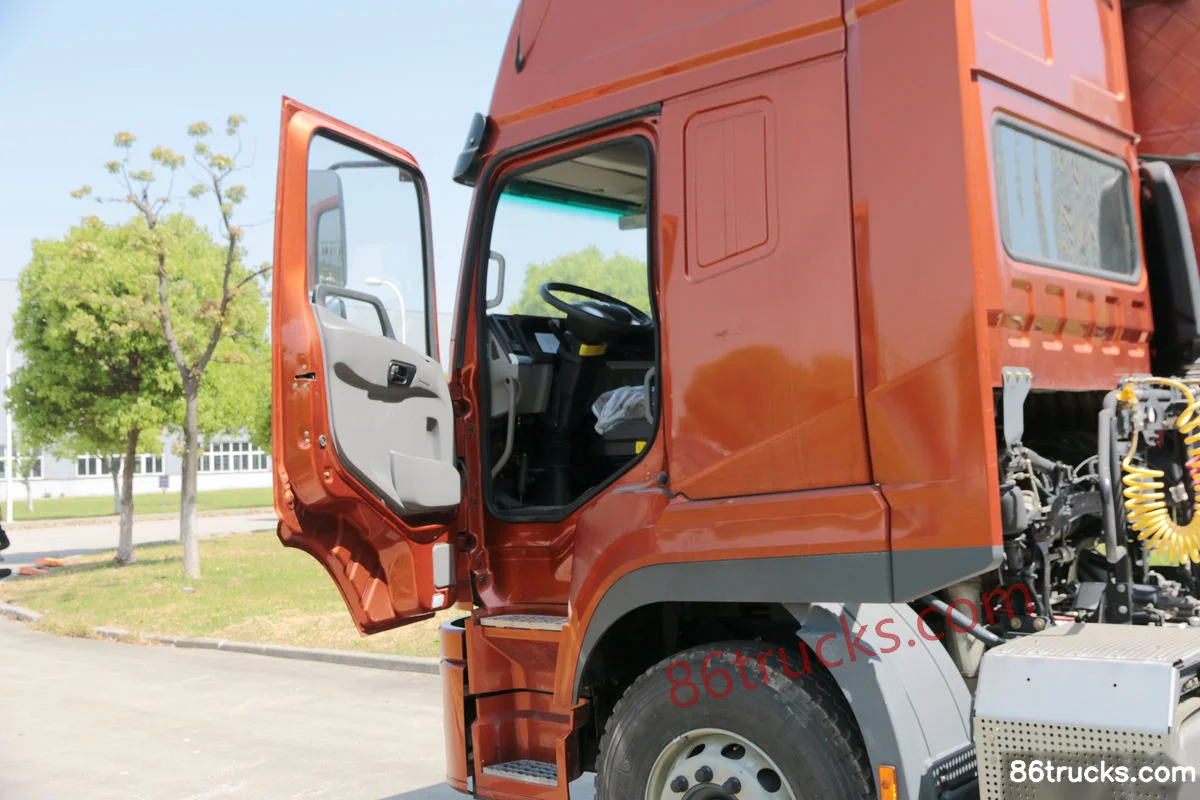

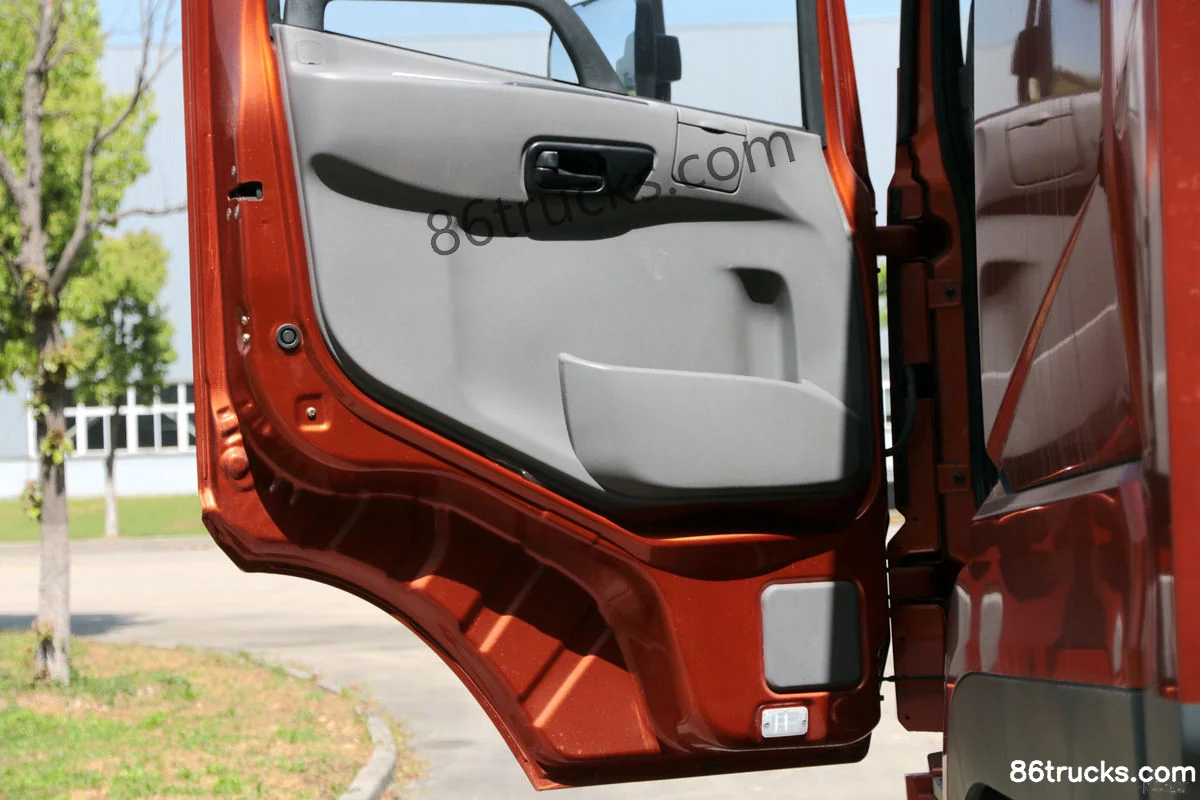

Cab3

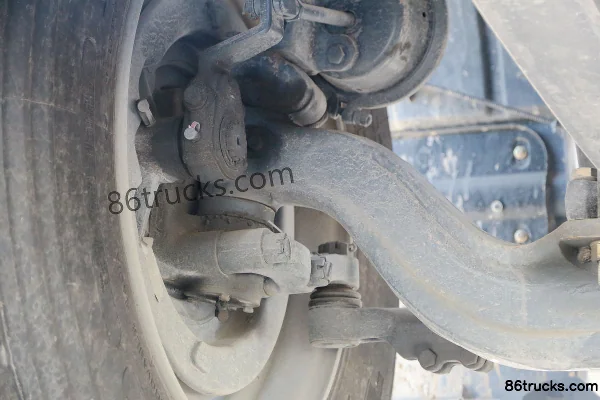

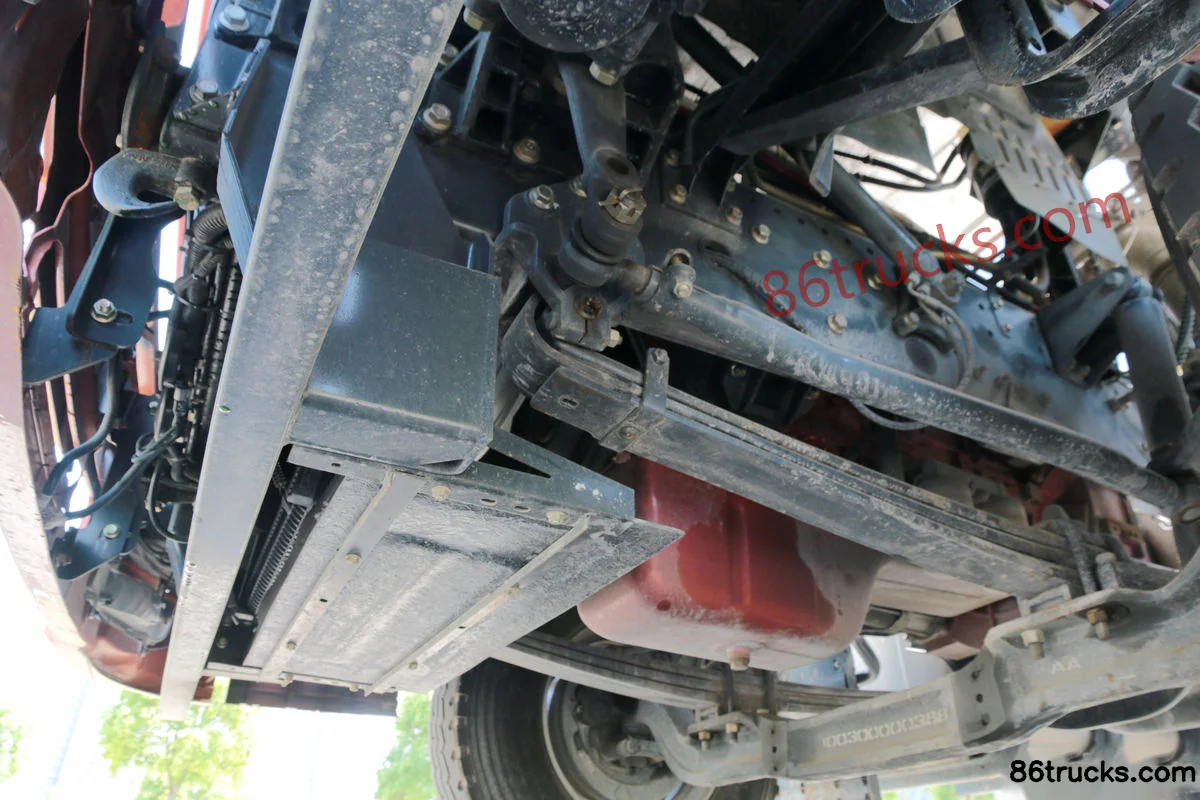

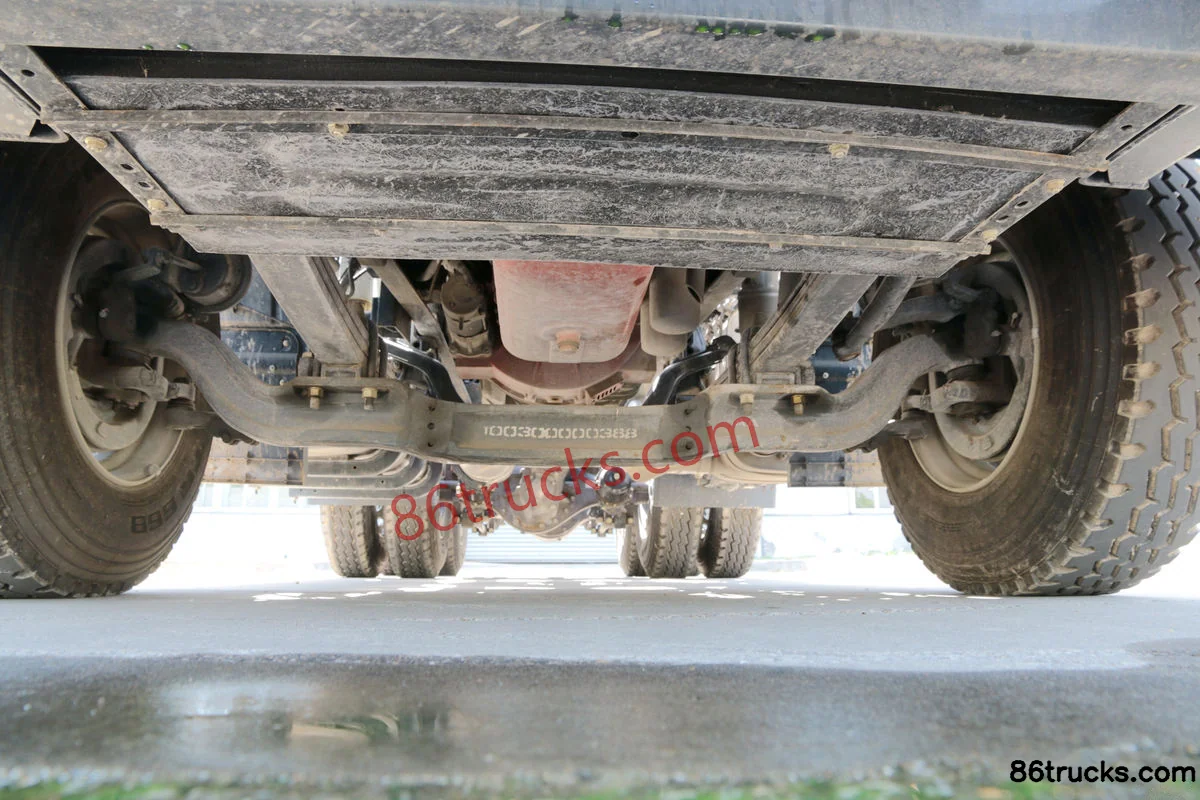

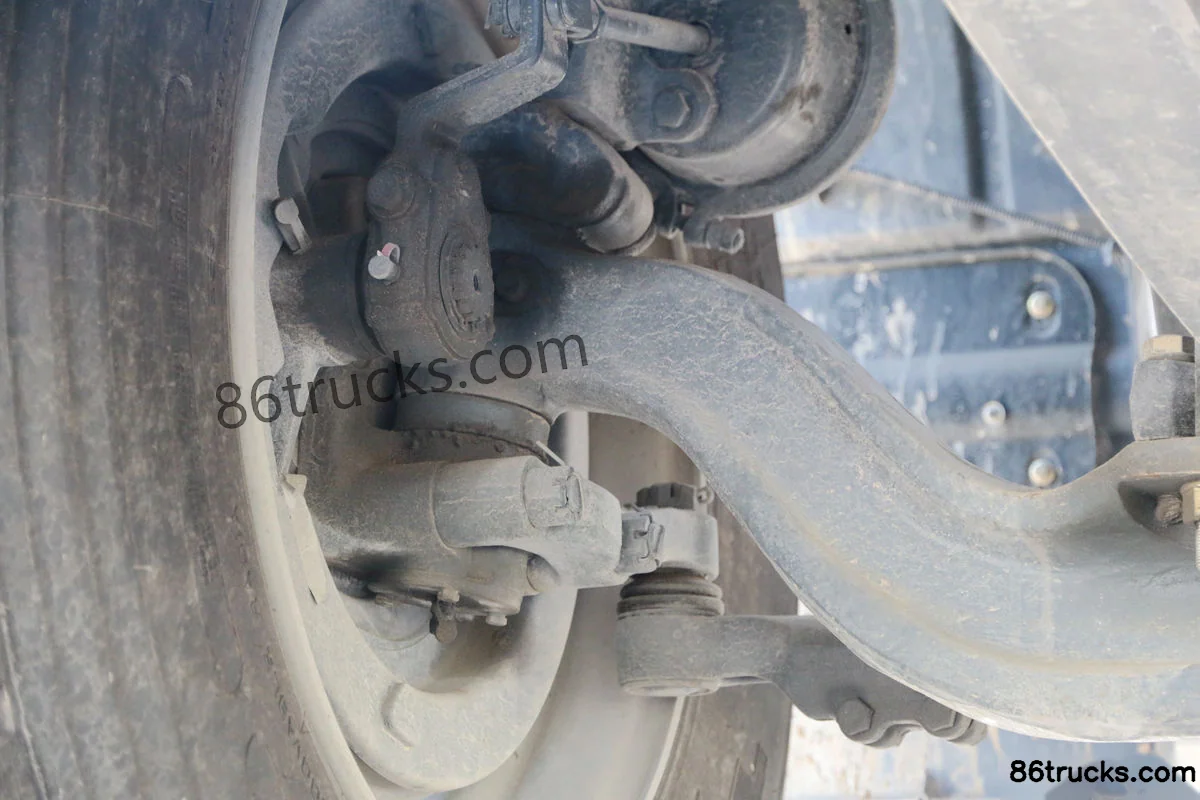

Chassis3

9 photos

FAQ

What is the export price of Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio), and what does it include?

Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio) export reference is about From $48,486; MSRP is ¥34.91M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio)?

Key specs of Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio): Drive: 6x4; Horsepower: 430 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio) suited for?

Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio) differ from other variants in the same series?

Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio) belongs to Union Truck U-Series Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U430 heavy truck 430hp 6X4(10 wheels) tractor truck (3.083 ratio)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
