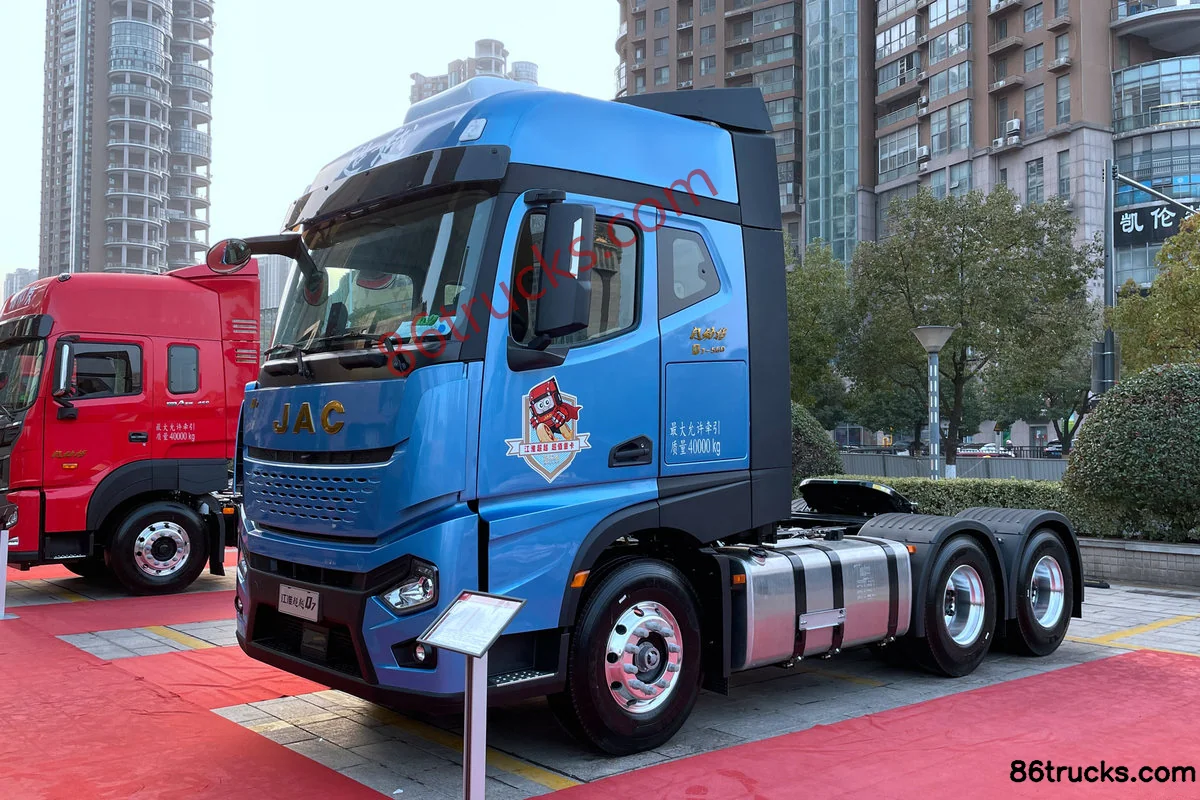

JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF)

Export reference
From $64,889
MSRP ¥46.72M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 13.48L
Drive 6X4 (10 wheels)
Horsepower 560
Emission China VI
Transmission ZF

Overview

The JAC Gallop JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF) is a Heavy truck featuring 6X4 (10 wheels) drive, 560 hp, 25t GVW and China VI emissions. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a DongfengZ14NS6B560 engine, ZF transmission and Diesel fuel.

China VI 560 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4254P1K8E33S
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: DongfengZ14NS6B560
transmission: ZF12TX2620TD
Rear Axle Ratio: 2.846
Cab length: 7.18m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2040mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
market segment: Logistics Freight
Remarks: Features: onboard WiFi, standard wiper, multi-function folding key, 4G-TBOX, engine compression brake, electric pump fuel filter, AC condenser, grade-0 fuel filter, corrugated plate.
Version: Chaoyue Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengZ14NS6B560
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13.48L
Emission standard: China VI
Max output power: 418kW
Max hp: 560Horsepower
Max torque: 2650N·m
Max torque speed: 900-1400rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: ZF12TX2620TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 4pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1100L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Sunroof: Manual sunroof
Chassis Specs
Front axle description: 6.5t drum ConMet wheel end
Fifth wheel: 50#
Front axle allowable load: 7000kg
Frame Dimensions: 280×80×8mm
rear axle description: 445 drum standard wheel end
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.846
Leaf spring count: 2/3
Aluminum wheels:
Maintenance-free wheel end:
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
Traction Control (ASR/TCS/TRC etc.):
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
lighting configuration
LED headlight:
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Service features
subsidy available:
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:
maintenance service
24-hour service hotline:
Rescue service:

Photos

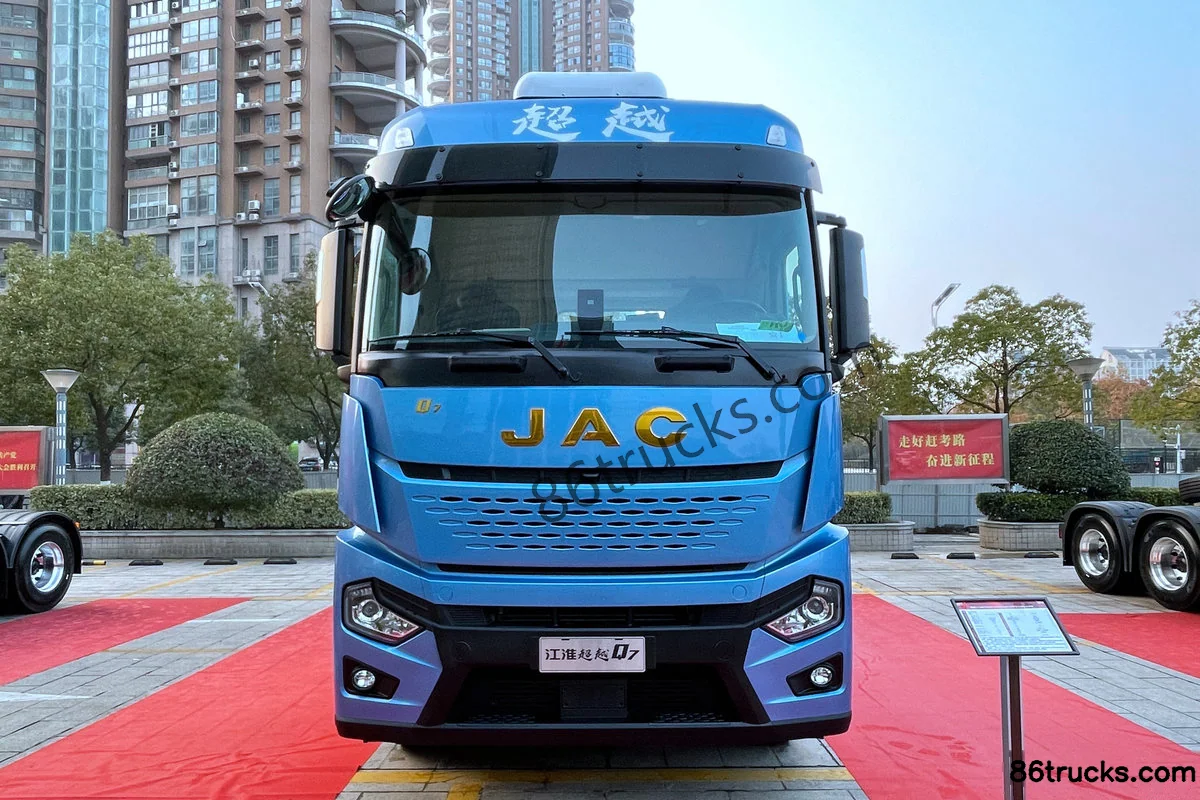

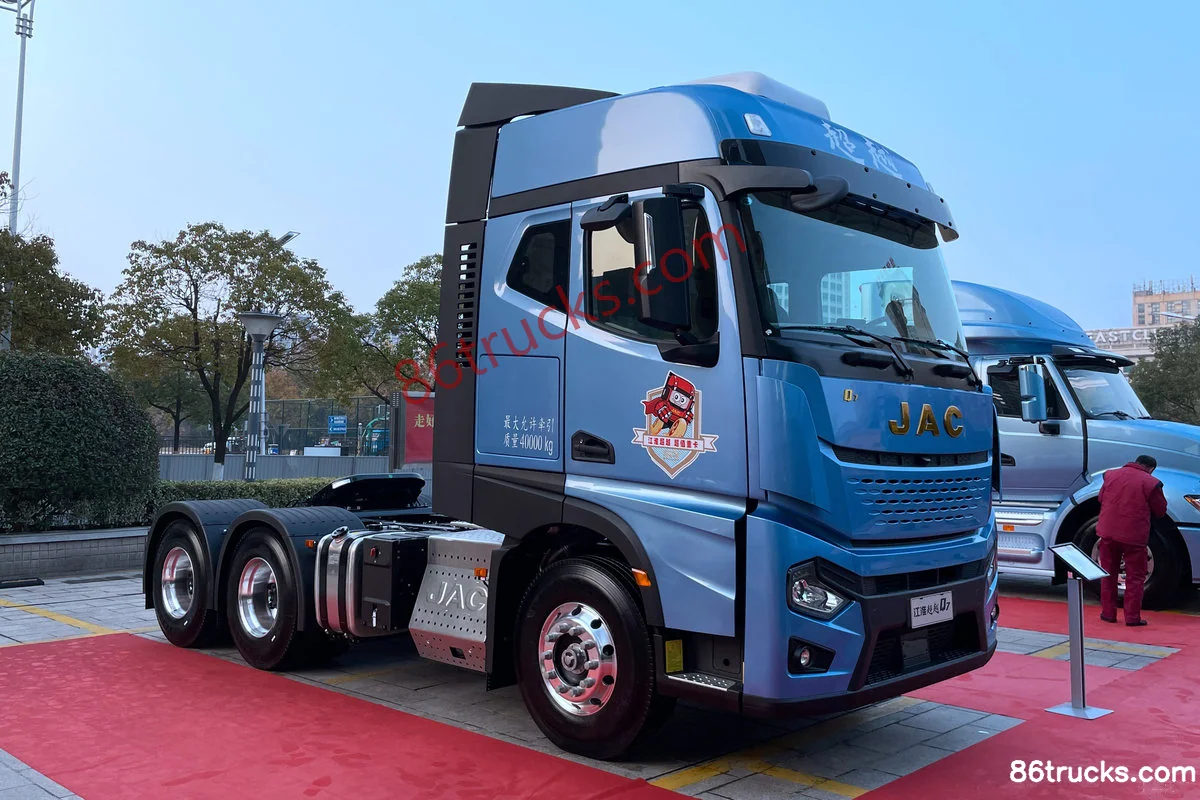

Exterior3

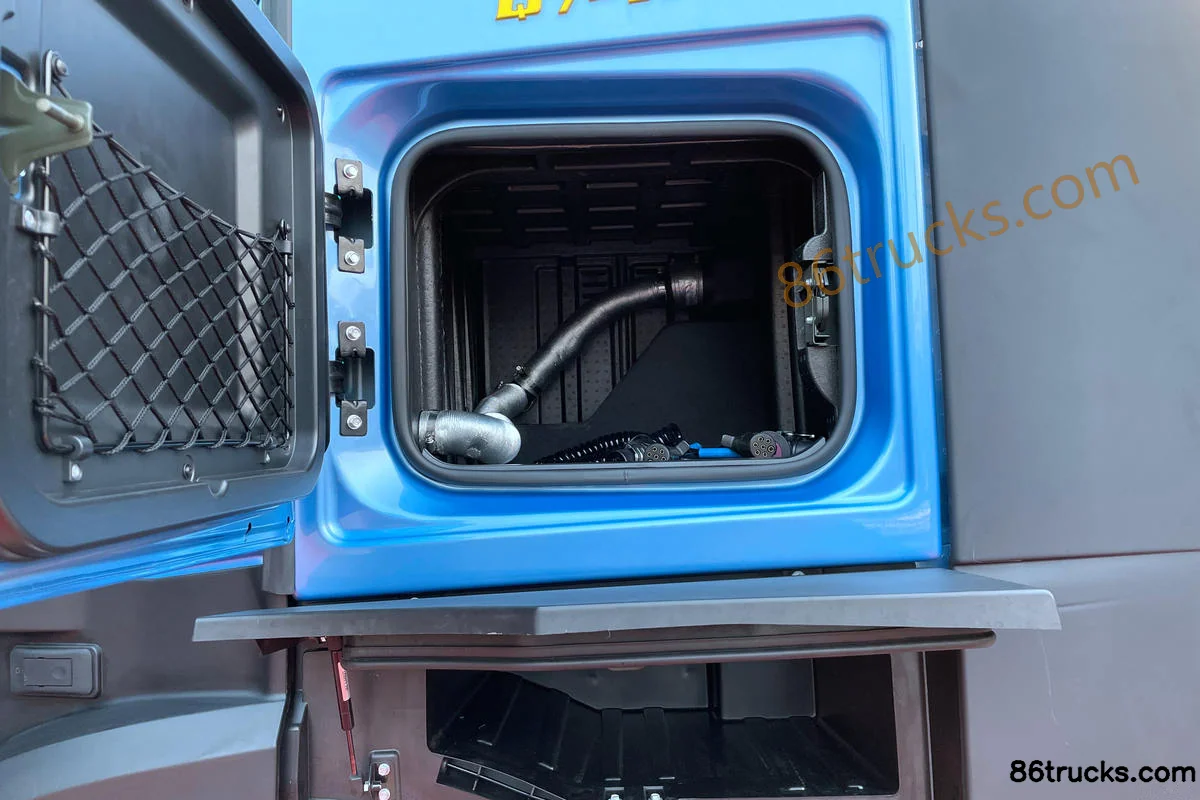

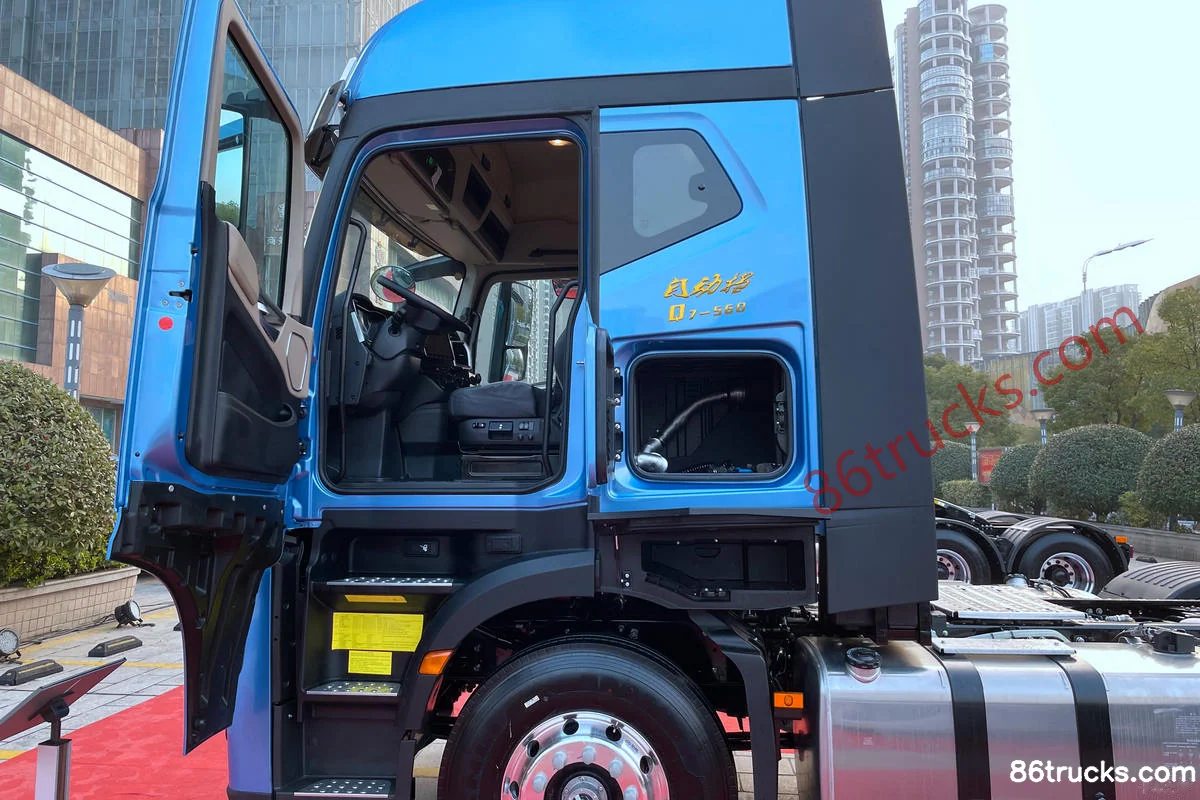

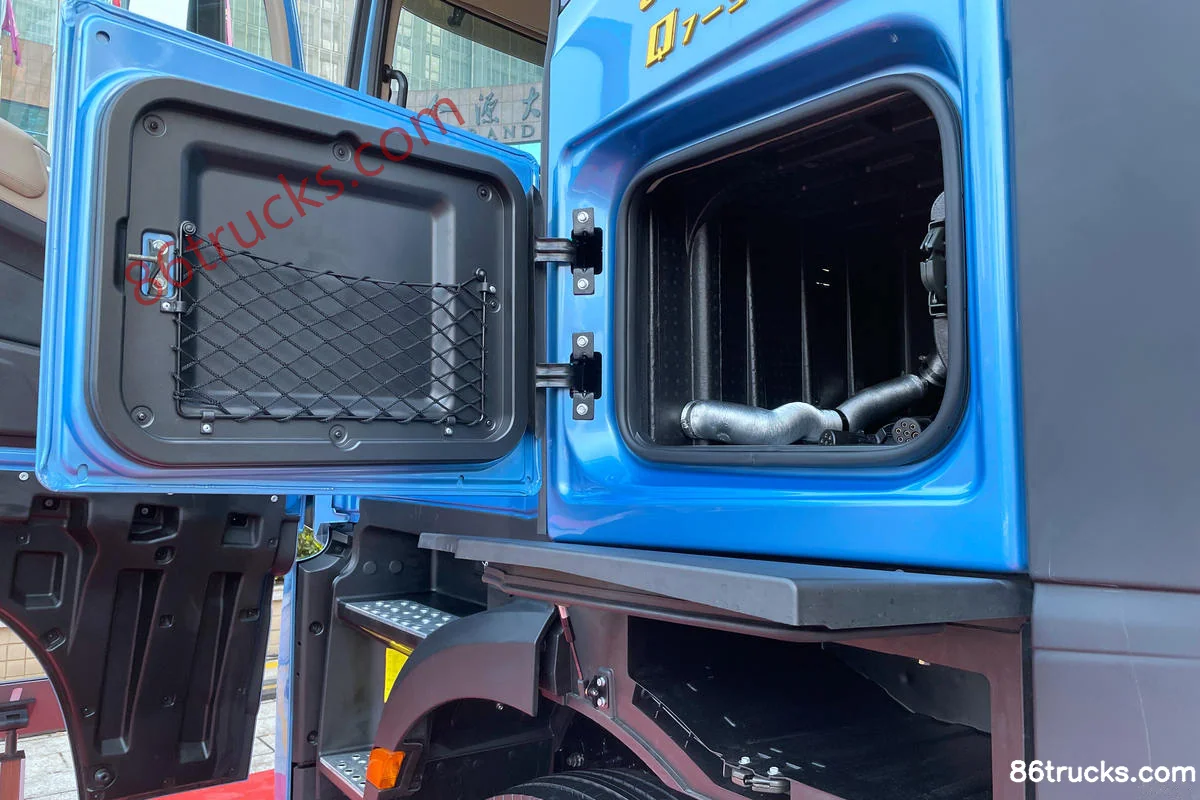

Cab3

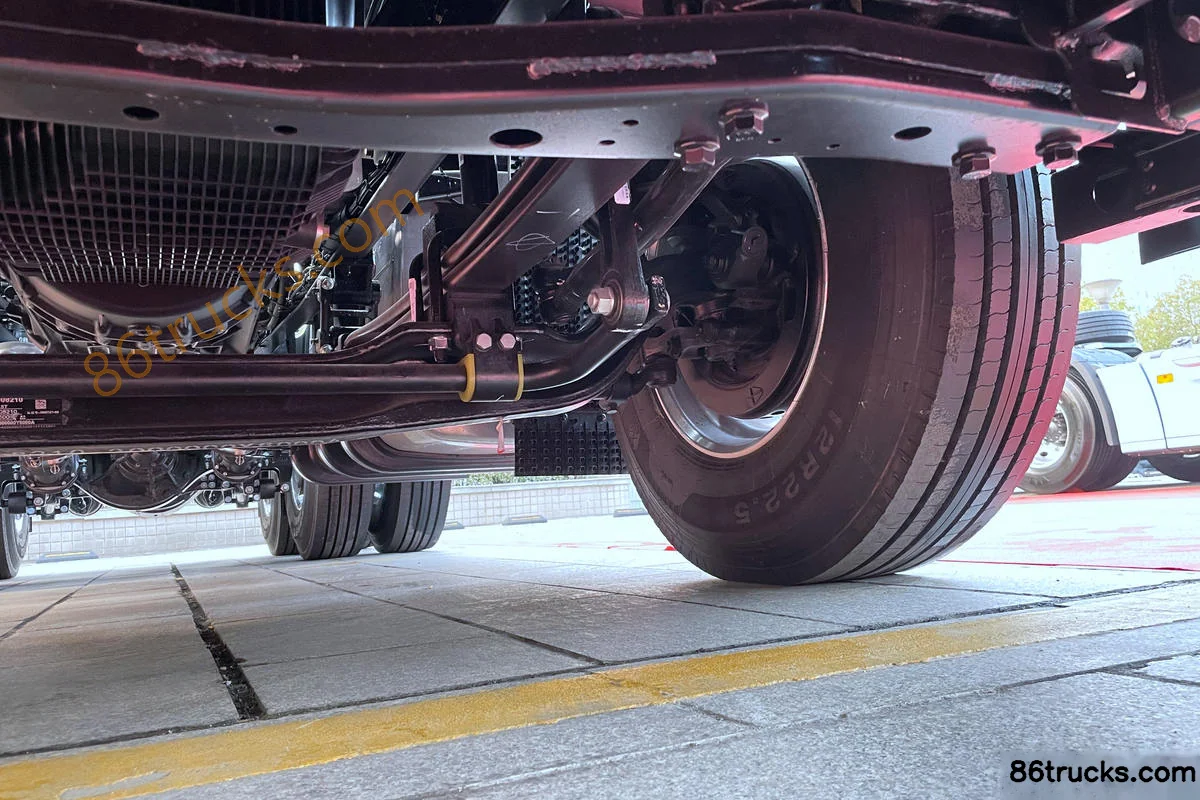

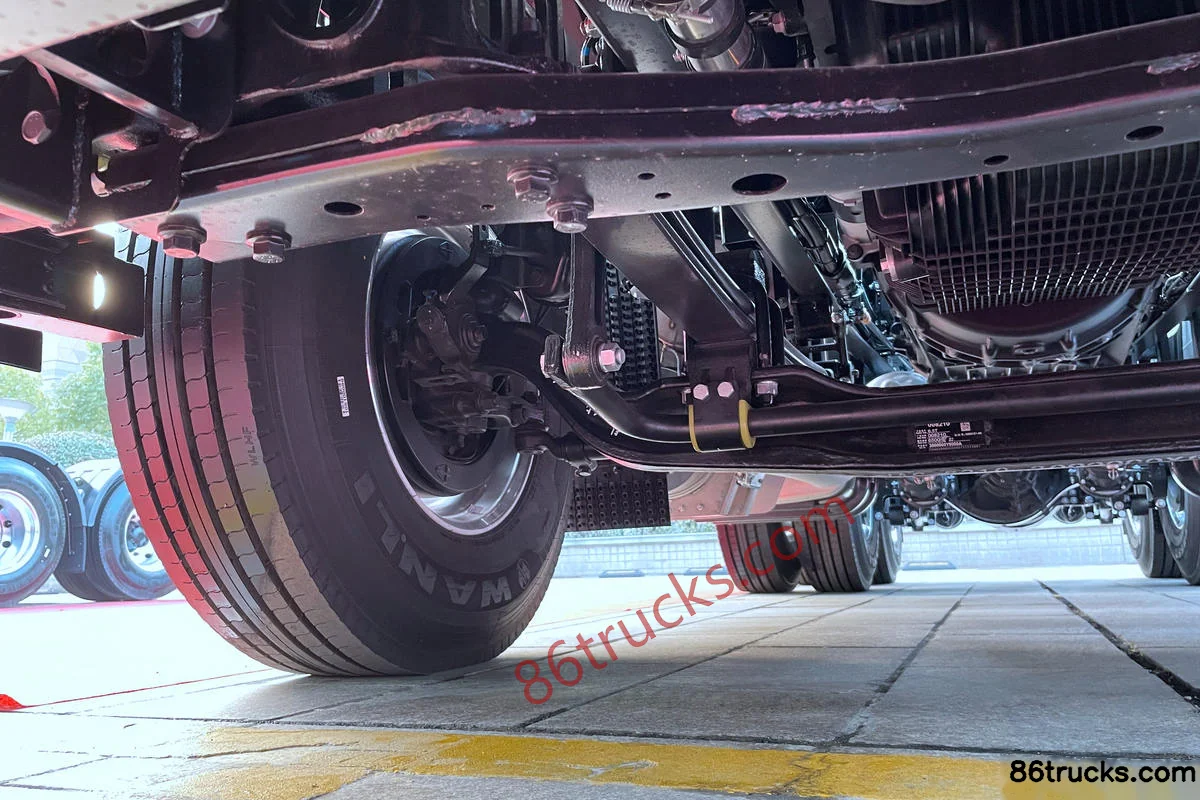

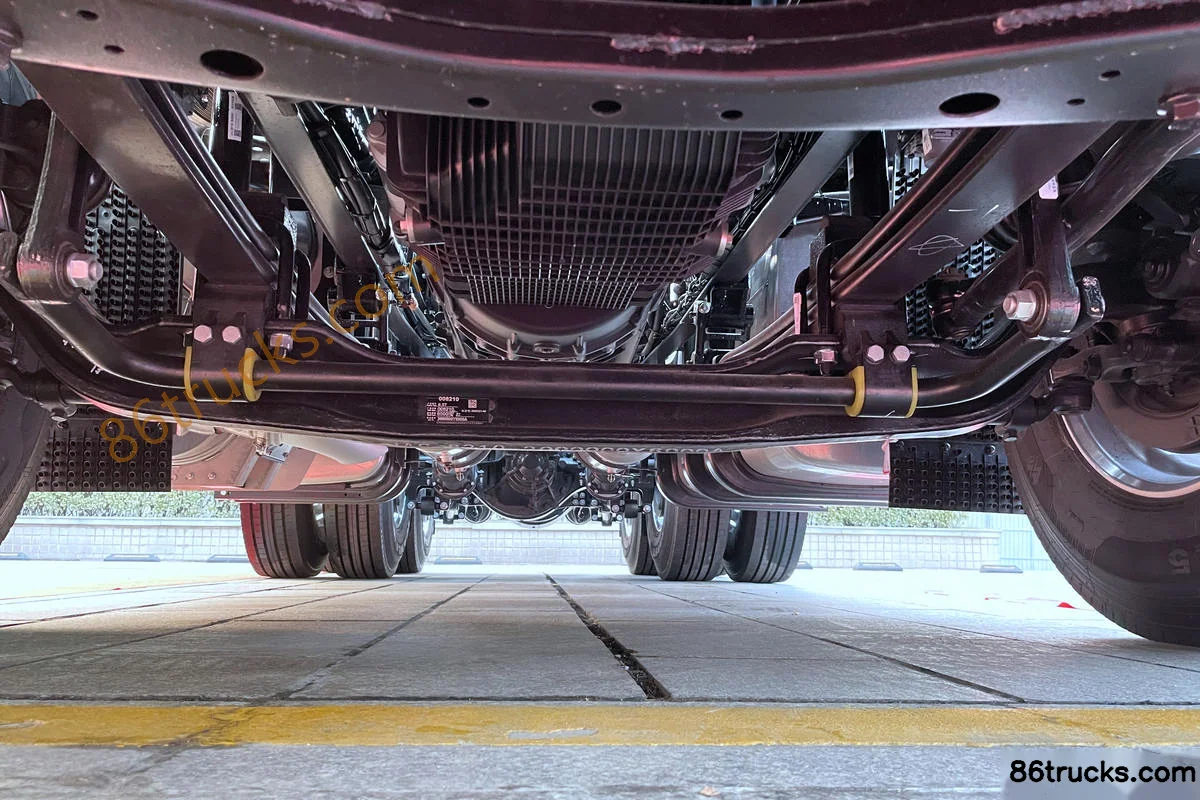

Chassis3

9 photos

FAQ

What is the export price of JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF), and what does it include?

JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF) export reference is about From $64,889; MSRP is ¥46.72M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF)?

Key specs of JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF): Drive: 6x4; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF) suited for?

JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF) differ from other variants in the same series?

JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF) belongs to JAC Chaoyue Q7 heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Beyond Q7 Heavy Truck 560hp 6X4(10 wheels) AMT Automatic Tractor Truck (ZF)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
