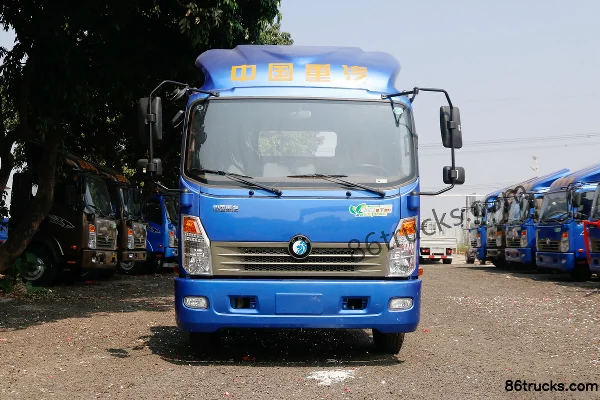

Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck

Export reference
From $16,611
MSRP ¥11.96M CNY
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei F40E
Transmission: Fast Gear
Curb Weight:: 2.975ton
seating capacity: 3Personnel
Rated payload: 0.995ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck is a Light Truck featuring 4.15m cargo length, Stake type cargo body, 3Personnel volume and 0.995t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei F40E engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW2040CCYHA1R5
Type: stake truck
Drive type: 4X2
Wheelbase: 3600mm
Box length class: 3.8m
engine: Yunnei PowerYNF40E2
transmission: Fast Gear 8-speed
Cab length: 5.995m
Cab width: 2.46m
Cab height: 3.21m
Front track width: 1740mm
rear track: 1645mm
Curb Weight: 2.975ton
Rated payload: 0.995ton
GVWR: 4.165ton
Max. speed: 90km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 24°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.285/1.11m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYNF40E2
Engine info: Yunnei Dewei F40E
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.92L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 500N·m
Max torque speed: 1200-2000rpm
Rated speed: 2600rpm
Engine Type: 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.15m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1655kg
rear axle allowable load: 2510kg
Leaf spring count: 11/11+9
Tire
Tire Size: 8.25R16 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck, and what does it include?

Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck export reference is about From $16,611; MSRP is ¥11.96M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck?

Key specs of Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei F40E; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck suited for?

Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck differ from other variants in the same series?

Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck belongs to Sinotruk Wangpai 7 series light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai 7 Series 156hp 4X2(6 wheels) 3.85m Half Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
