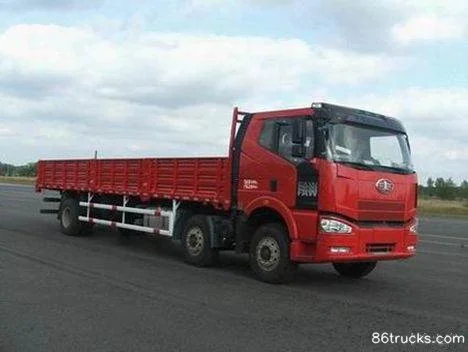

FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck

Export reference
MSRP N/A
Horsepower: 260
Emission: China IV
Fuel: Diesel
Engine: Dachai7.2L
Transmission: FAW Jiefang
Curb Weight:: 9.5ton
seating capacity: 2Personnel
Rated payload: 15.37ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck is a Heavy-duty cargo trucks featuring 9.4m cargo length, stake body cargo body, 2Personnel volume and 15.37t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai7.2L engine, 260 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 260 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1250P63K1L6T3E4
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1950+5600mm
Box length class: 9.4m
engine: DachaiBF6M1013-26E4
transmission: FAW JiefangCA10TA130M
Rear Axle Ratio: 4.111
Cab length: 11.995m
Cab width: 2.5m
Cab height: 2.97m
Front track width: 1950/1950mm
rear track: 1847mm
Curb Weight: 9.5ton
Rated payload: 15.37ton
GVWR: 25ton
Max. speed: 99km/h
Origin: Changchun, Jilin
tonnage class: Heavy-duty cargo trucks
Approach angle: 21°
departure angle:
market segment: Building materials, agricultural products
Remarks: Optional equipment: CA10TAX130M overdrive transmission, rear axle ratio 4.444, CA9TB160 (aluminum) transmission
Front/rear suspension: 1.4/3.045m
Version: Composite type
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiBF6M1013-26E4
Engine info: Dachai7.2L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.146L
Emission standard: China IV
Max output power: 192kW
Max hp: 260Horsepower
Max torque: 950N·m
Max torque speed: 1100-1400rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic unit pump
Transmission Parameters
Transmission Model: FAW JiefangCA10TA130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.4m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: J6M Semi-Float High-Roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6650/6850kg
rear axle description: 457
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/3/10+9,3/3/8+7,2/2/4+3,2/2/-
Tire
Tire Size: 11.00R20
Number of tires: 8pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck?

Key specs of FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck: Drive: 6x2; Horsepower: 260 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai7.2L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck suited for?

FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck differ from other variants in the same series?

FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck belongs to FAW Jiefang J6M Near-Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6M Heavy Truck Composite Type 260 hp 6X2(8 wheels) 9.4m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
