Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 340
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 13.05ton
seating capacity: 3Personnel
Rated payload: 17.82ton
Drive 8X4 (12 wheels)
Cargo box type: Chassis

Overview

The Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis is a Heavy-duty cargo trucks featuring 9.6m cargo length, Chassis cargo body, 3Personnel volume and 17.82t payload. On the powertrain side, it comes with a SinotrukMAN7L engine, 340 hp, 8X4 (12 wheels) drive and China V emissions.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5313XXYN466GE1
Type: Chassis
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
Box length class: 9.6m
engine: SinotrukMC07.34-50
transmission: SinotrukHW13710C
Rear Axle Ratio: 4.11
Cab length: 11.99m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2015/2015mm
rear track: 1860/1860mm
Curb Weight: 13.05ton
Rated payload: 17.82ton
GVWR: 31ton
Max. speed: 101km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 14°
departure angle: 17°
Front/rear suspension: 1.5/2.74m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13710C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 9.6m
Cargo box width: 2.42m
Cargo box height: 2.5m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: H153 front axle
Front axle allowable load: 6500/7000kg
rear axle description: H457 Rear Axle
rear axle allowable load: 17500 (tandem axle)kg
Axle ratio: 4.11
Leaf spring count: 11/11/10
Suspension (front/rear): Leaf spring
Tire
Tire Size: 12R22.5,11.00R20,12.00R20 16PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

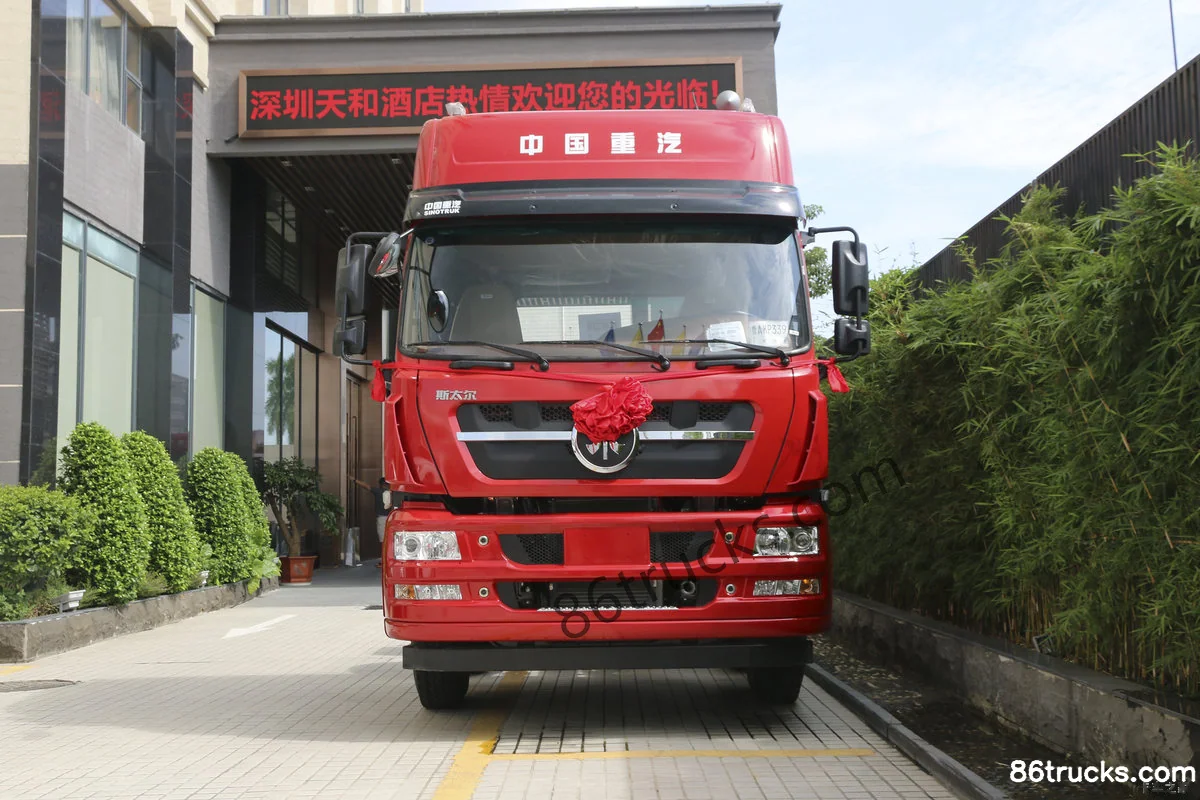

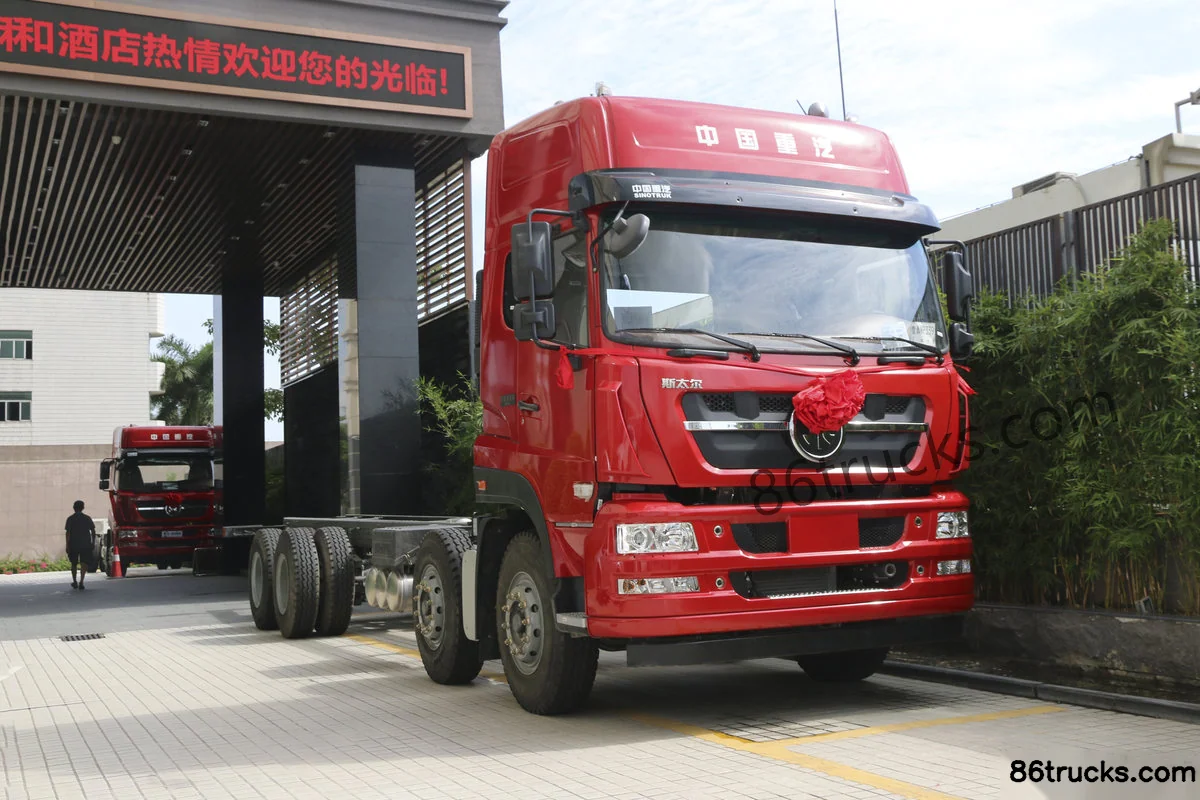

Exterior3

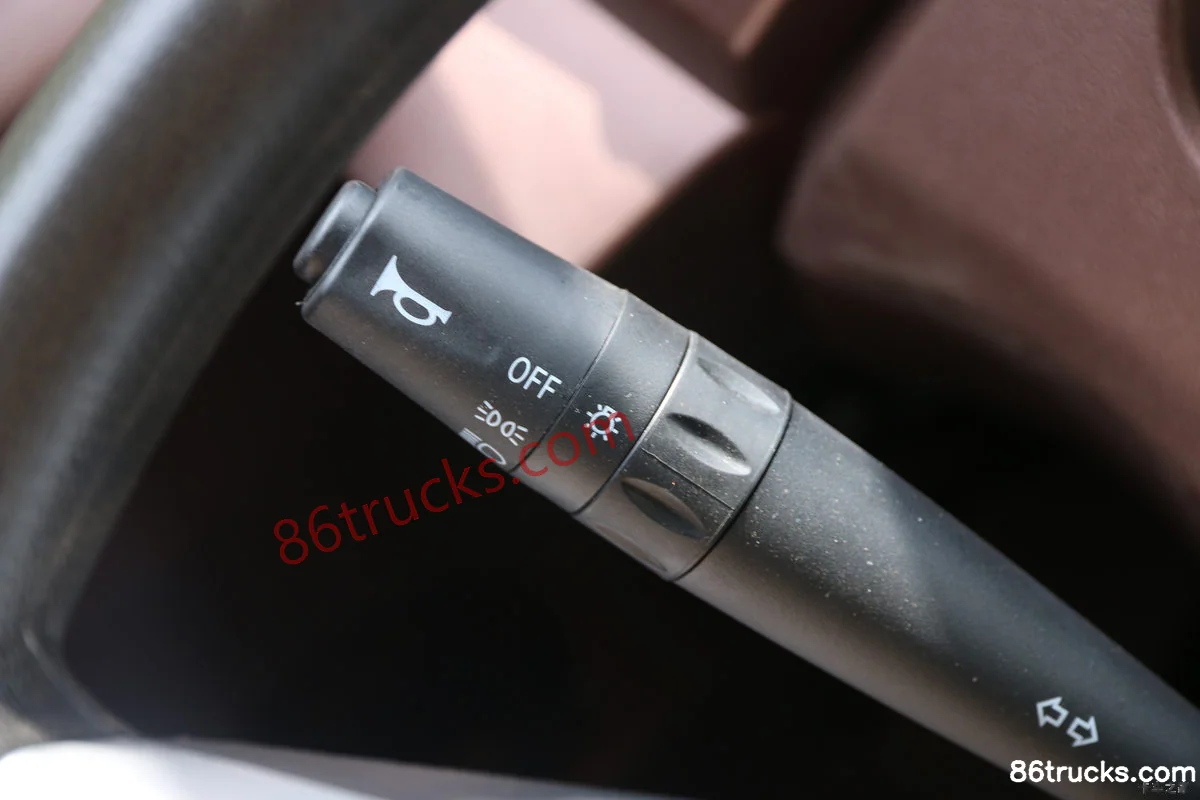

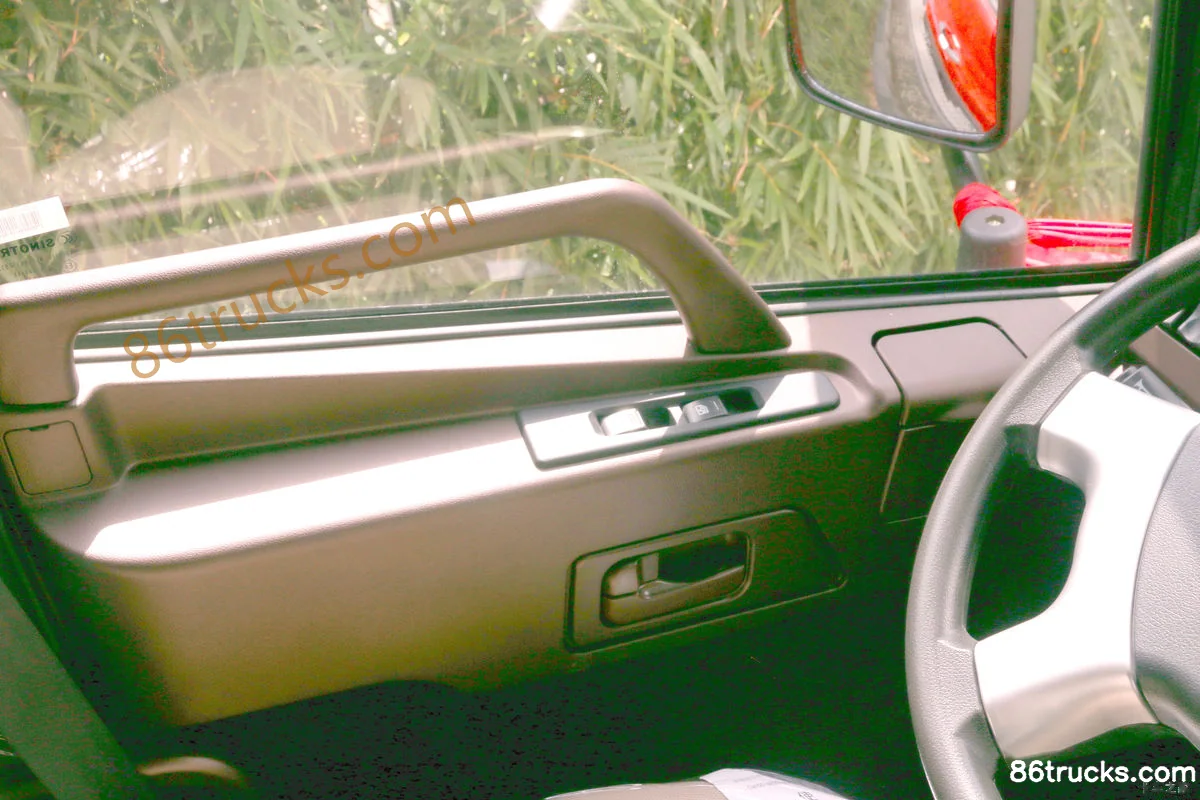

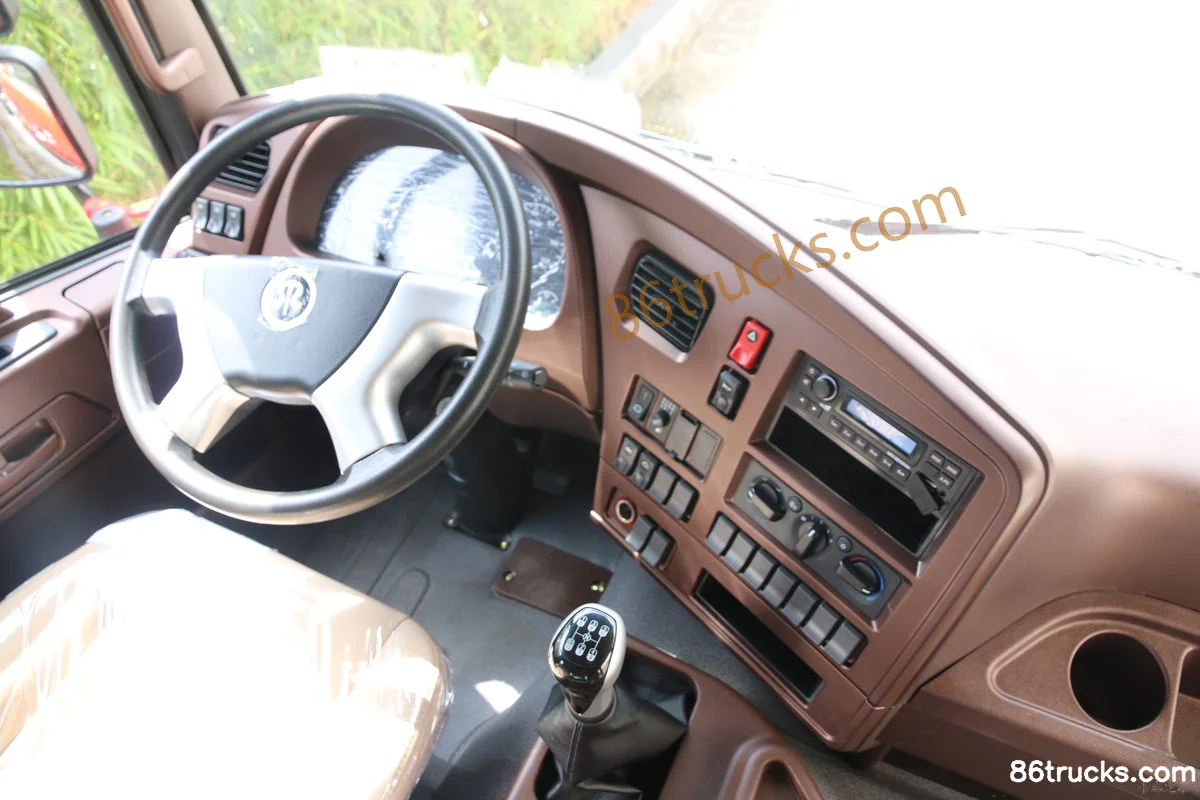

Cab3

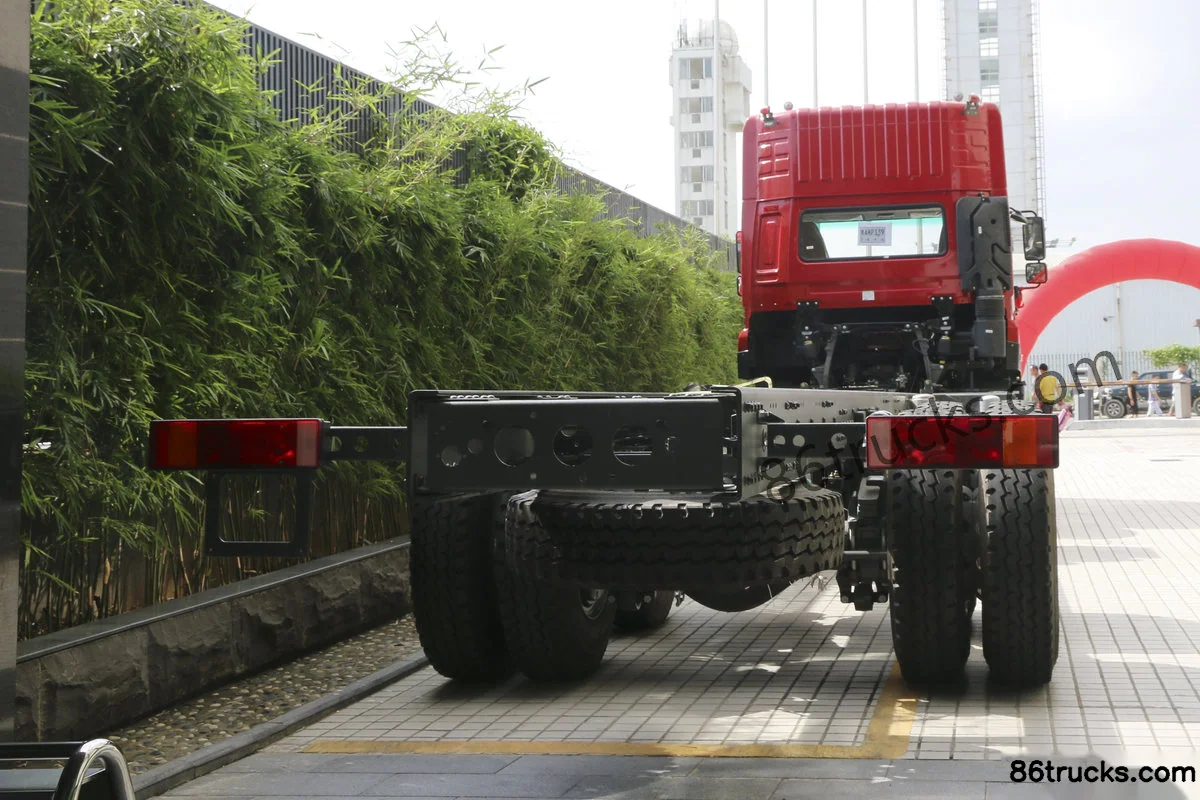

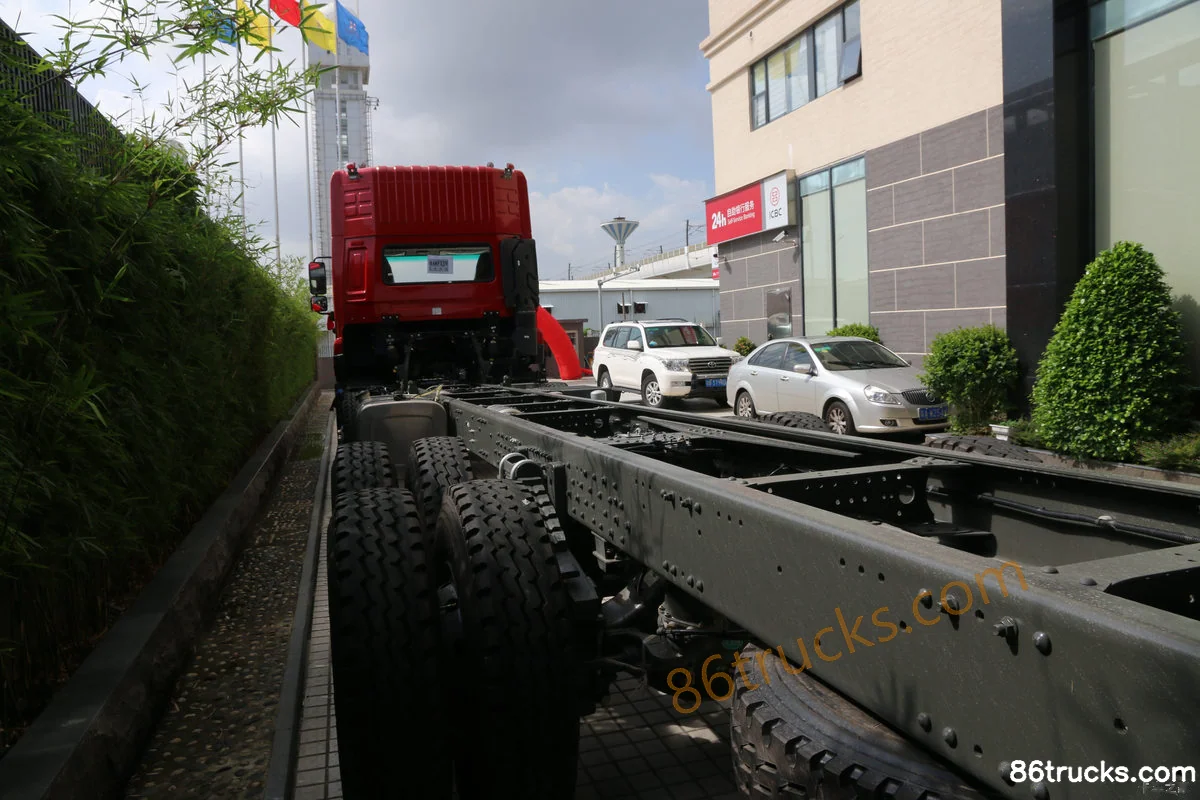

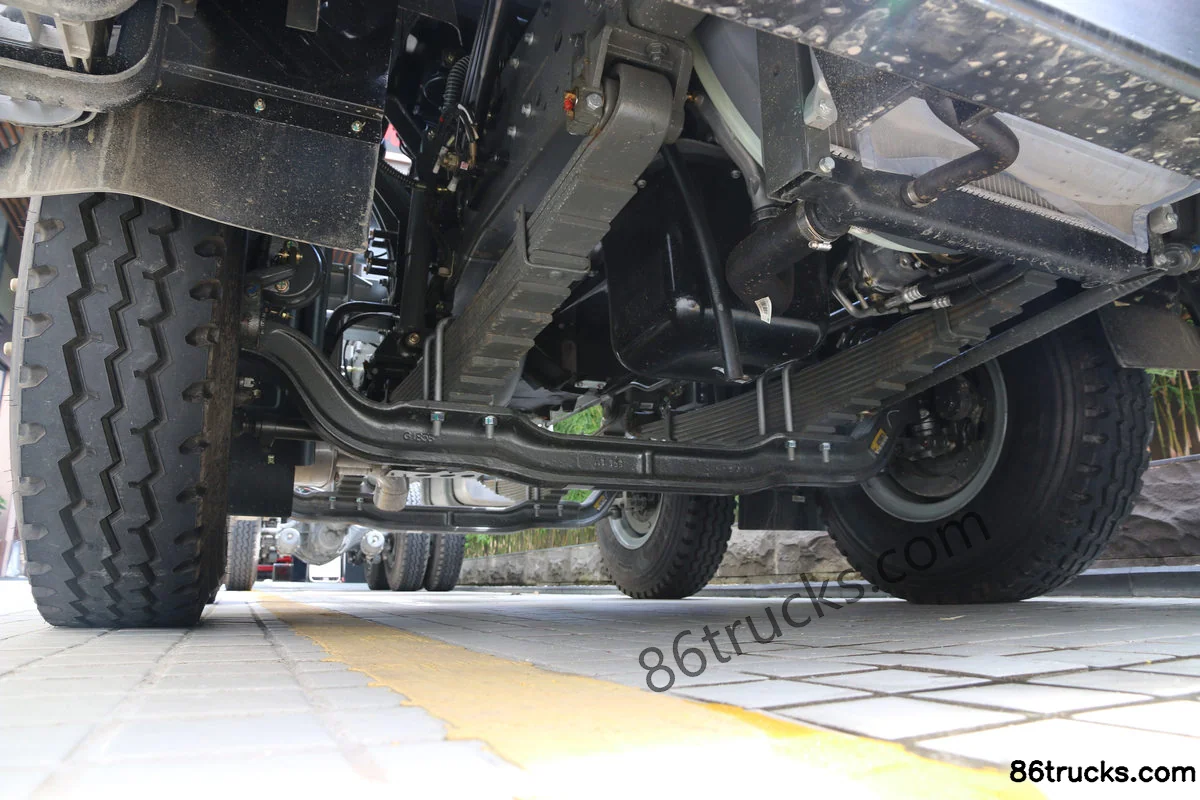

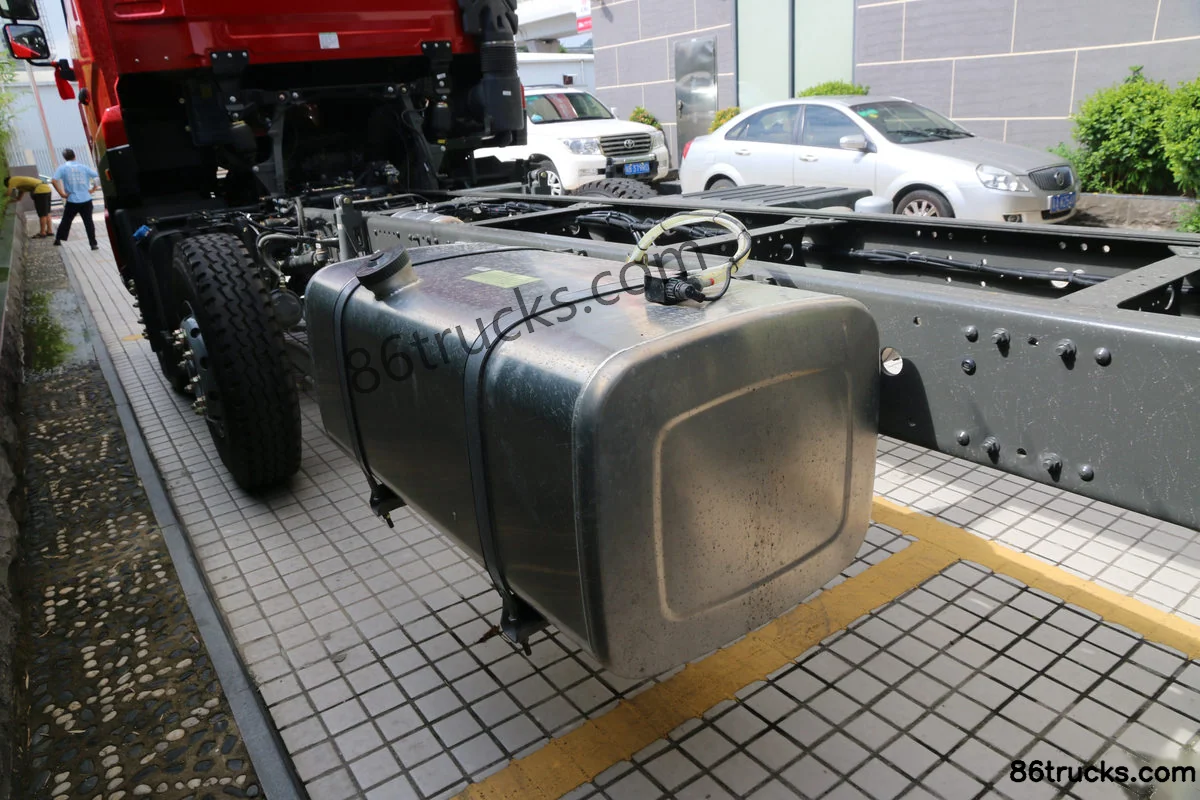

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis?

Key specs of Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis suited for?

Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis differ from other variants in the same series?

Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis belongs to Sinotruk M5G Quasi-heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Steyr M5G Heavy Truck 340hp 8X4(12 wheels) 9.6m Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
