Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Wheelbase:: 3800mm
seating capacity: 3Personnel
Rated payload: 2.615ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume, 2.615t payload and 3800mm wheelbase. On the powertrain side, it comes with a Fukang 3.8 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1129VGJEA-F1
Type: Chassis
Drive type: 4X2
Wheelbase: 3800mm
engine: FotonISF3.8s5154
transmission: WLYWLY6T53
Cab length: 6.8m
Cab width: 2.19m
Cab height: 2.44m
Front track width: 1710mm
rear track: 1680mm
Rated payload: 2.615ton
GVWR: 11.99ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
Front/rear suspension: 1.195/1.805m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY6T53
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 4795kg
rear axle description: 7.0T
rear axle allowable load: 7195kg
Leaf spring count: 9/11+7
Tire
Tire Size: 9R22.5
Number of tires: 6pcs
Control configuration
ABS:

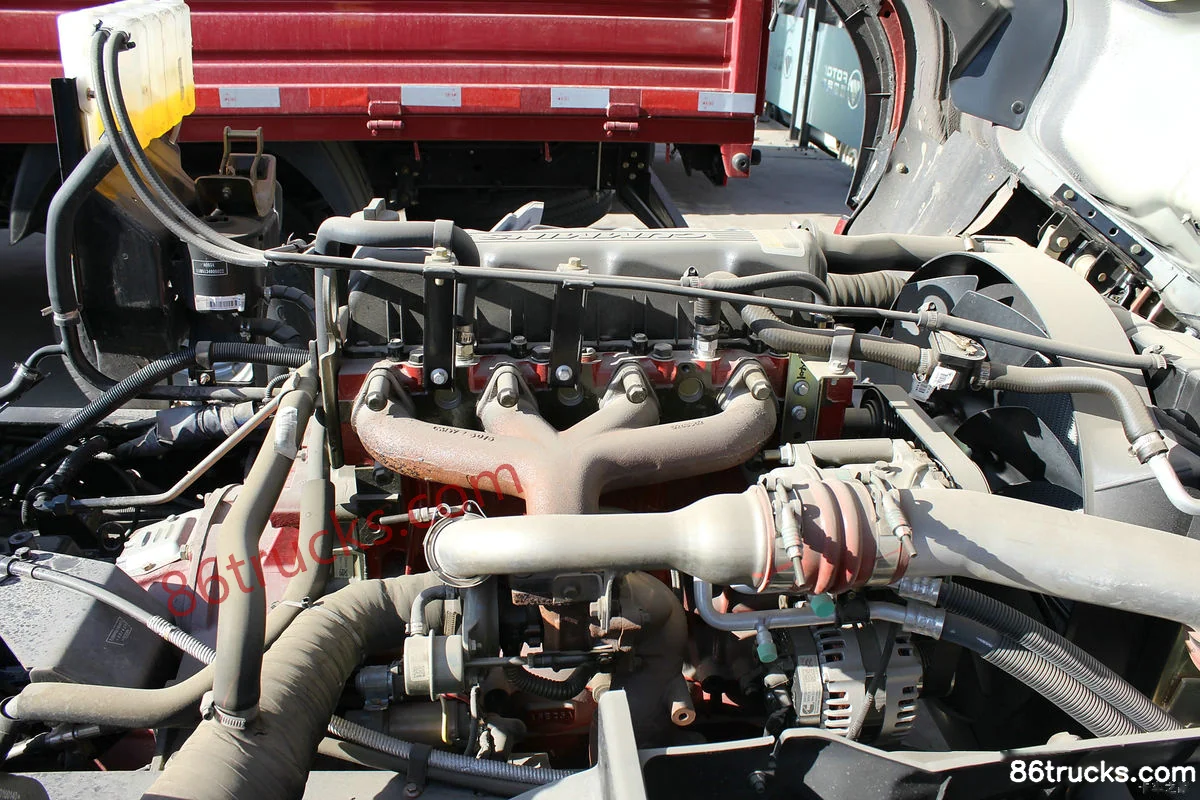

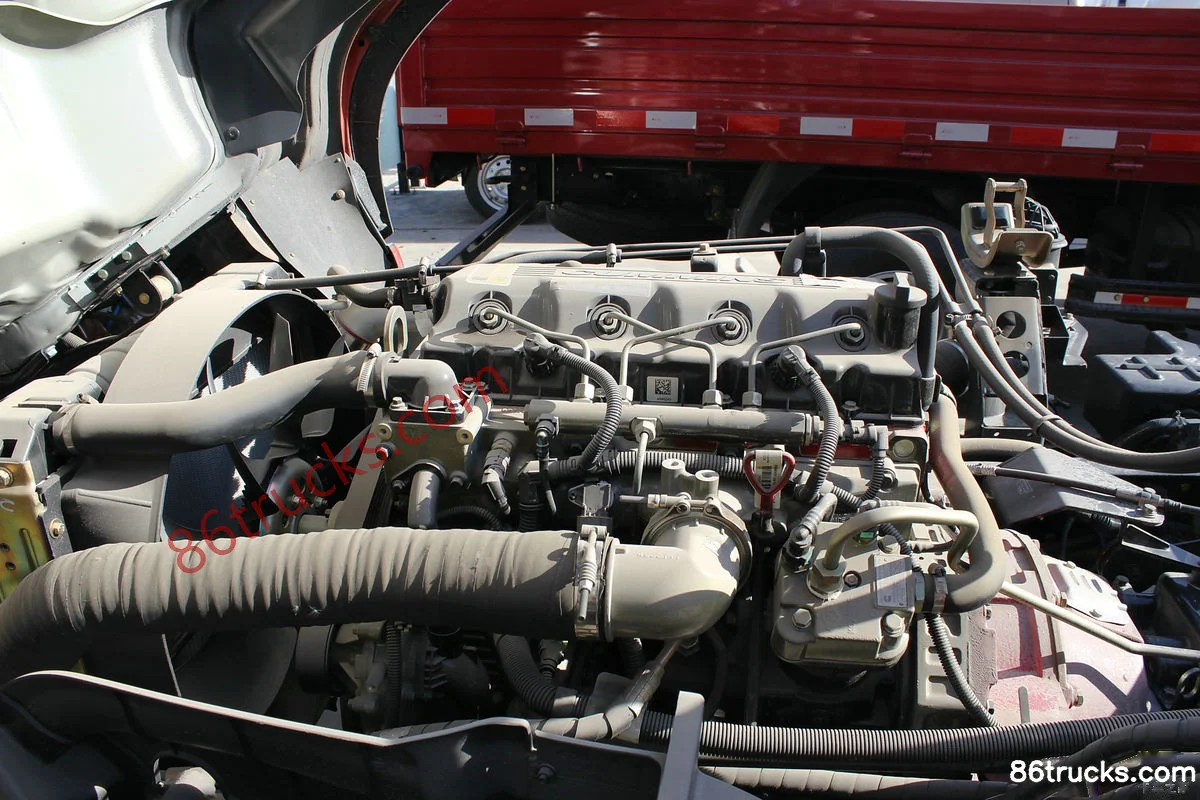

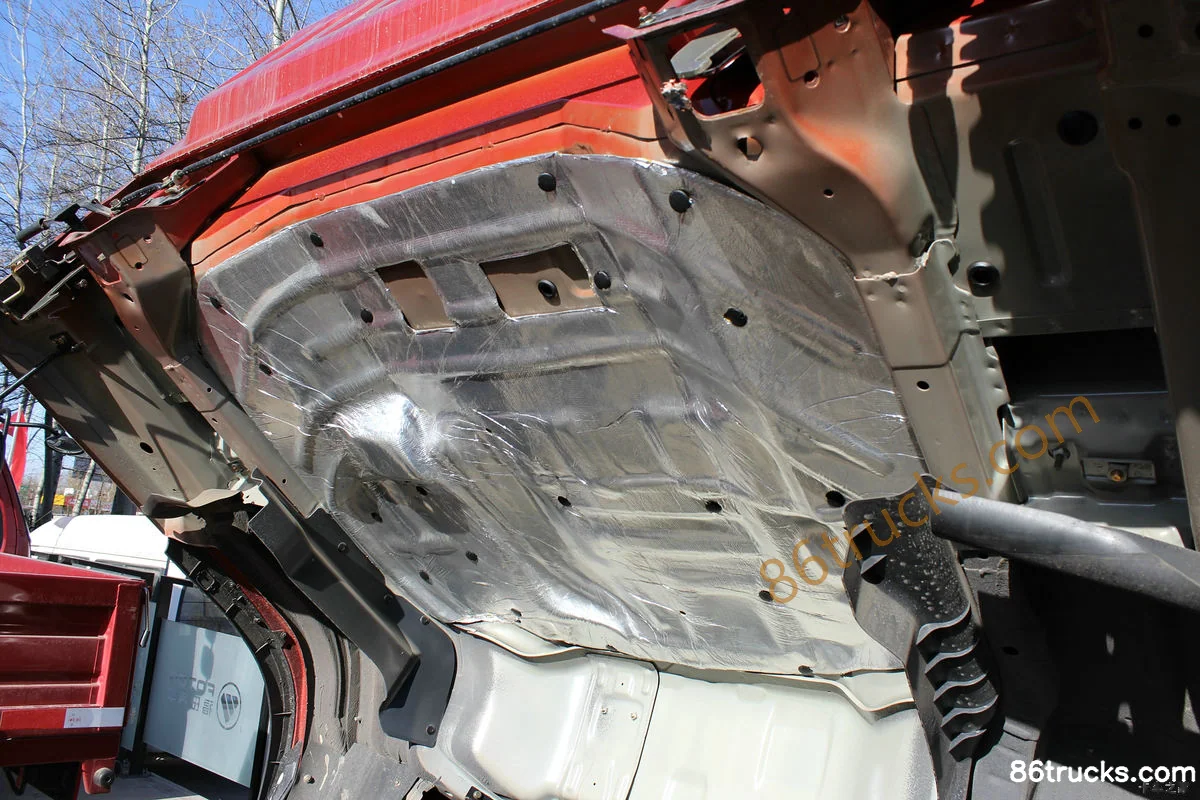

Photos

Chassis3

3 photos

FAQ

What emission standard does Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis?

Key specs of Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis suited for?

Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis differ from other variants in the same series?

Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis belongs to Foton CTX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling CTX 156hp 4X2(6 wheels) Semi-row Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
