FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand)

Export reference
MSRP N/A
Curb Weight:: 15.26ton
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 2000+4300+1350mm
Cab dimensions:: 11.98×2.5×3.85m
Truck Type:: fuel tanker truck
Tank Size: 9.3×2.46×1.89m
Rated payload: 15.5ton
Drive 8X4 (12 wheels)
Horsepower 320

Overview

The CIMC FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand) is a fuel tanker truck featuring 9.3×2.46×1.89m tank capacity, 15.5t payload, 23.1m³ volume and 15.26ton GVW. On the powertrain side, it comes with 320 hp, 8X4 (12 wheels) drive, China III / Euro III emissions and Diesel fuel.

China III / Euro III 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.98×2.5×3.85m
Drive type: 8X4
Truck Type: fuel tanker truck
Vehicle origin: Shenzhen
Wheelbase: 2000+4300+1350mm
Front track width: 2020/2020mm
Curb Weight: 15.26ton
Rated payload: 15.5ton
Max. speed: 75km/h
Front/rear suspension: 1.418/2.912m
Energy Type: Diesel
Body Parameters
Tank Size: 9.3×2.46×1.89m
Tank Volume: 23.1m3
Transport medium: gasoline
Medium Density: 0.7ton/cubic meter
Vehicle certification code: ZJV5312GYYHJCA
Body Brand: CIMC brand
Others: Optional breather valve
Engine parameters
Engine Brand: Xichai
Engine Model: CA6DL1-32E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China III / Euro III
Max output power: 235kW
Max hp: 320Horsepower
Max torque: 1250N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Engine Type: Inline, electronic, common rail, turbocharged, air-to-air intercooled
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Aowei (J5P)
Chassis Model: CA1312P21K2L2T4E
Leaf spring count: 9/9/12
Tire
Tire Size: 11.00-20,11.00R20,12.00-20,12.00R20
Number of tires: 12pcs

Photos

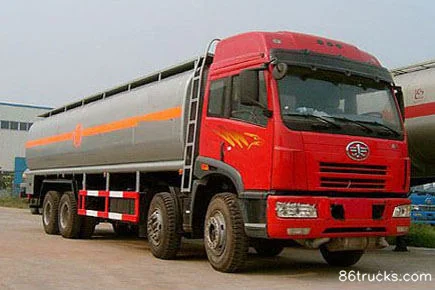

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand)?

Key specs of FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand): Drive: 8x4; Horsepower: 320 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand) suited for?

FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand) is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand) differ from other variants in the same series?

FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand) belongs to CIMC FAW Jiefang Qingdao chassis (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Aowei (J5P) 320hp 8X4(12 wheels) Oil Transport Truck (Zhongji Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
