Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5 16PR
Front axle allowable load:: 7000kg
Displacement:: 12.82L
Drive 6X4 (10 wheels)
Horsepower 490
Emission China V
Transmission Fast Gear

Overview

The Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine) is a Heavy truck featuring 6X4 (10 wheels) drive, 490 hp, 25t GVW and China V emissions. Its segment focus covers Standard, matching those duty cycles. On the powertrain side, it comes with a Daimler OM460LA.E3B/3 engine, Fast Gear transmission and Diesel fuel.

China V 490 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC4250D5ZCCH
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: Daimler OM460LA.E3B/3
transmission: Fast Gear12JSD220TA
Rear Axle Ratio: 4.11
Cab length: 6.835m
Cab width: 2.5m
Cab height: 3.68m
Front track width: 2030mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 120km/h
Origin: Shanxi Yuncheng
tonnage class: Heavy truck
market segment:
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Mercedes-Benz
Engine Model: Mercedes-BenzOM460LA.E3B/3
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.82L
Emission standard: China V
Max output power: 361.1kW
Max hp: 490Horsepower
Transmission Parameters
Transmission Model: Fast Gear12JSD220TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 600L
Cab parameters
Cab: High roof
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 6.5T
Front axle allowable load: 7000kg
Frame Dimensions: 280×80×8mm
rear axle description: 13T
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.11
Leaf spring count: 3/4
Tire
Tire Size: 12R22.5 16PR
Number of tires: 10pcs
Control configuration
ABS:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

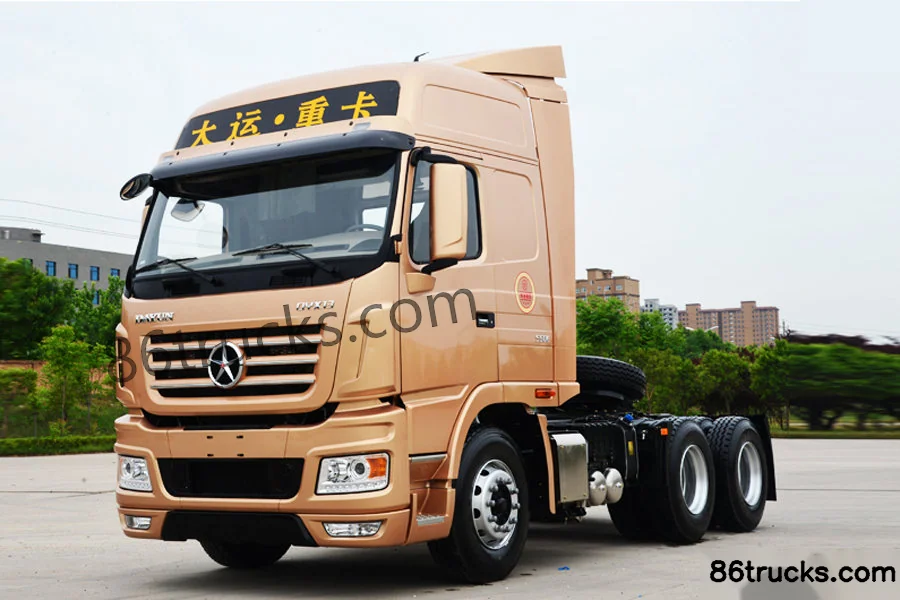

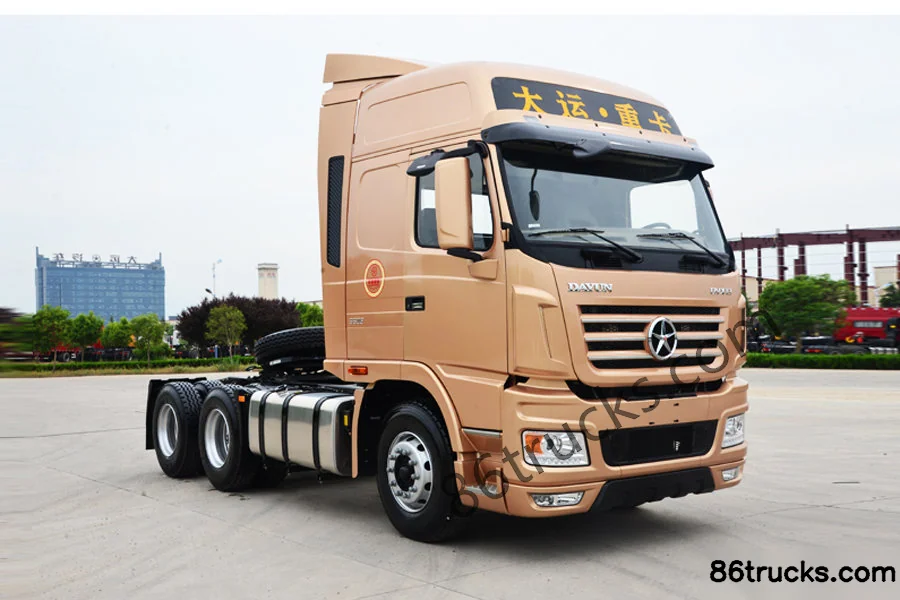

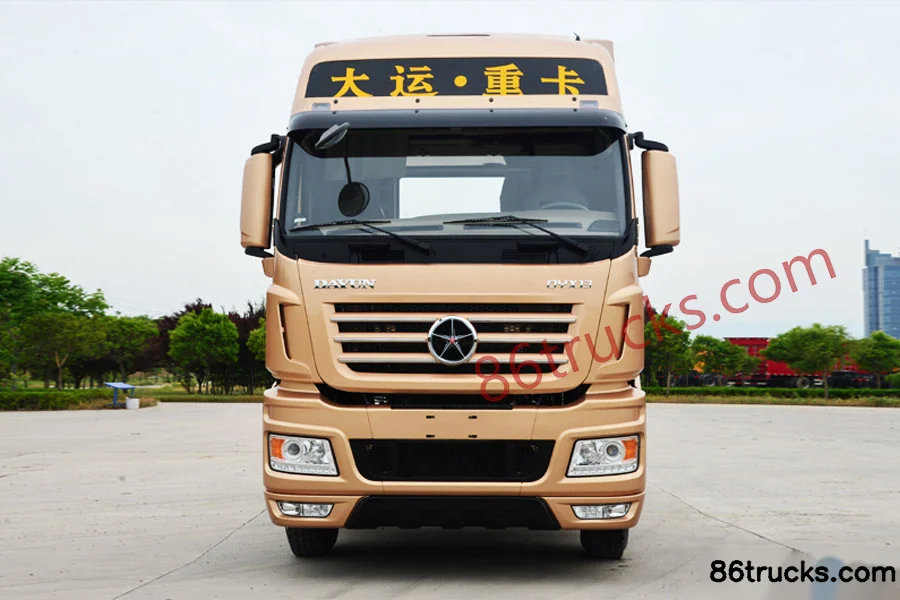

Photos

Exterior3

3 photos

FAQ

What emission standard does Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine)?

Key specs of Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine): Drive: 6x4; Horsepower: 490 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine) suited for?

Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine) differ from other variants in the same series?

Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine) belongs to Dayun N9H Heavy-duty Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun N9H Heavy Truck Standard Load Edition 490 hp 6X4(10 wheels) Tractor Truck (Mercedes-Benz Engine)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
