Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck

Export reference
From $45,556
MSRP ¥32.8M CNY
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: Yuchai7.5L
Transmission: Fast Gear
Curb Weight:: 11.25ton
seating capacity: 3Personnel
Rated payload: 19.555ton
Drive 8X2 (10 wheels)
Cargo box type: Stake type

Overview

The Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 19.555t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yuchai7.5L engine, 280 hp, 8X2 (10 wheels) drive and China V emissions.

China V 280 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ5311CCYA5
Type: stake truck
Drive type: 8X2
Wheelbase: 1850+3500+1300mm
Box length class: 9.6m
engine: YuchaiYC6L280-58
transmission: Fast Gear10JSD120TB
Rear Axle Ratio: 4.11
Cab length: 11.99m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 1940/1940mm
rear track: 1940/1860mm
Curb Weight: 11.25ton
Rated payload: 19.555ton
GVWR: 31ton
Max. speed: 88km/h
Origin: Shiyan, Hubei
tonnage class: Heavy-duty cargo trucks
Approach angle: 25°
departure angle: 15°
market segment: Agricultural product transport, green channel
Remarks: Four-in-one lock, air dryer, widened bumper, self-adjusting arm
Front/rear suspension: 1.5/2.24m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L280-58
Engine info: Yuchai7.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.424L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Rated speed: 2200rpm
Engine Type: Vertical, Water-cooled, Four-stroke, Inline six-cylinder, Electronically controlled direct injection
Transmission Parameters
Transmission Model: Fast Gear10JSD120TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: T280 High-roof Double Sleeper Luxury Edition
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 153 wide brake dual front + air axle
Front axle allowable load: 6590/6590kg
Frame Dimensions: 280(8+4)mm
rear axle description: 457 wide brake
rear axle allowable load: 6470/11350kg
Axle ratio: 4.11
Leaf spring count: 9/9/7/10+8
Tire
Tire Size: 11.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:

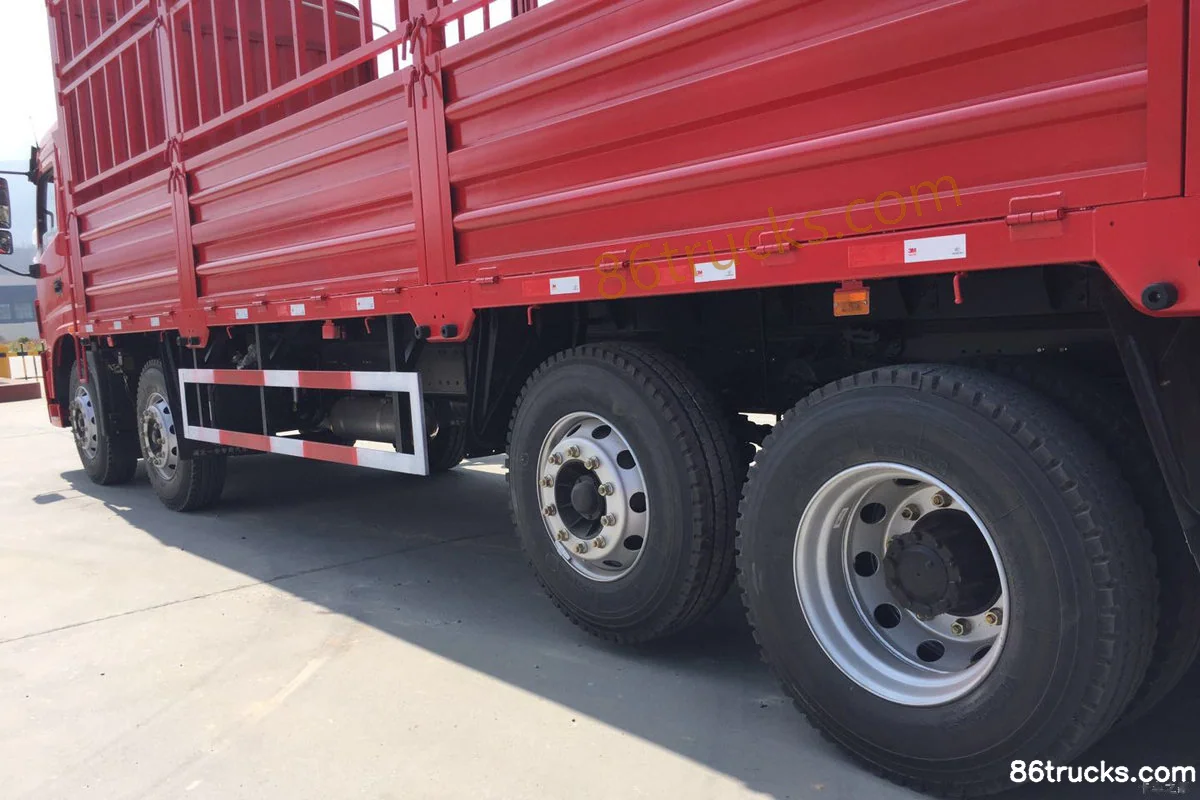

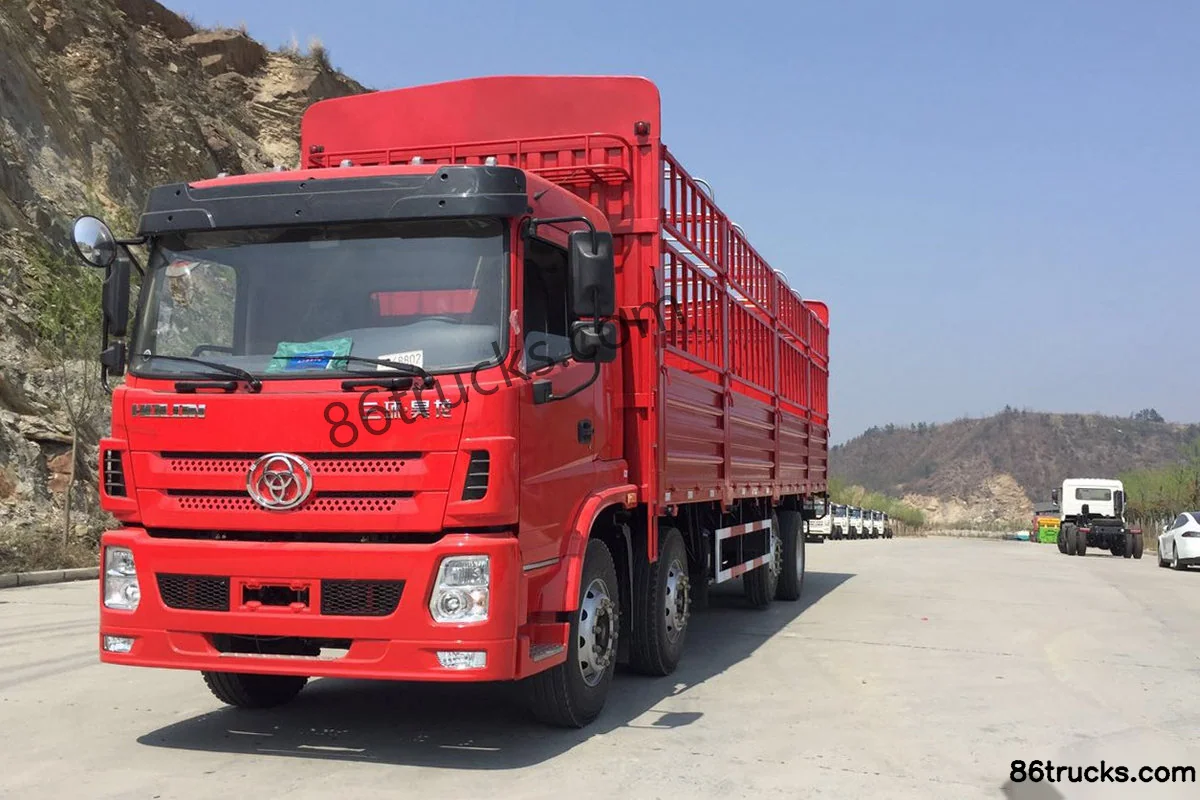

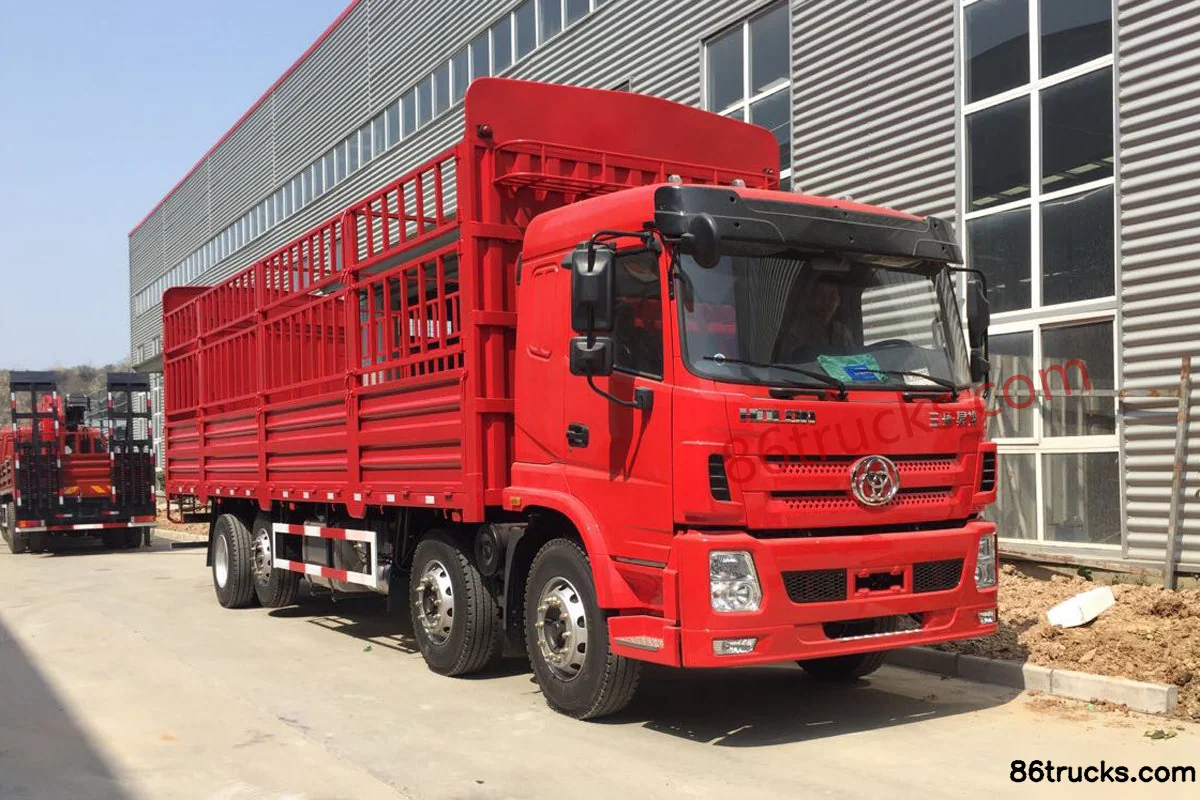

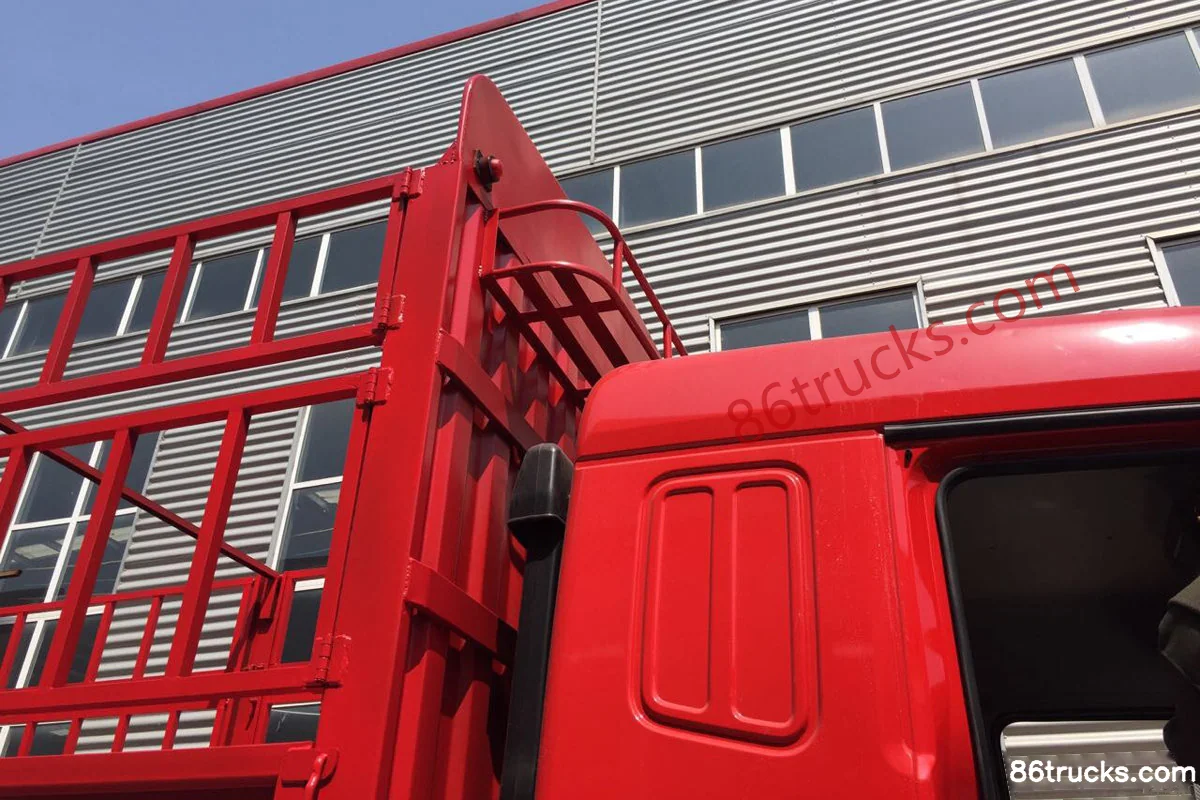

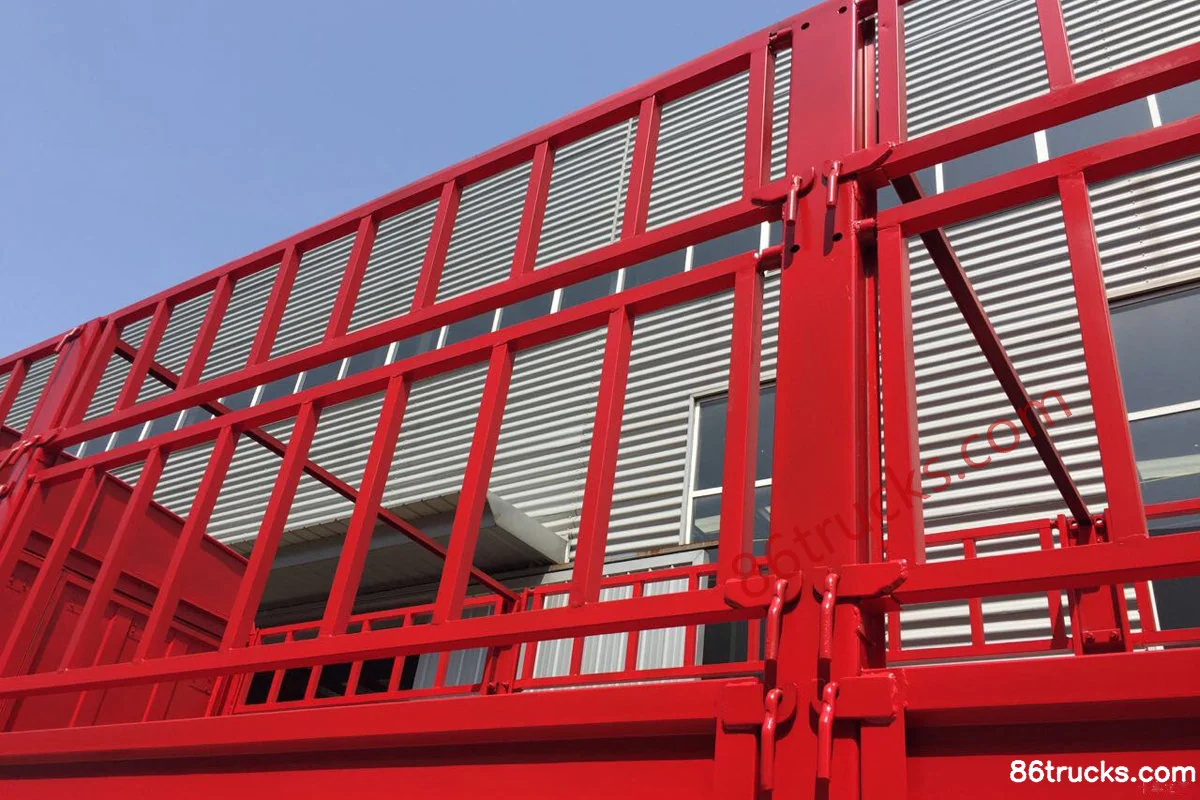

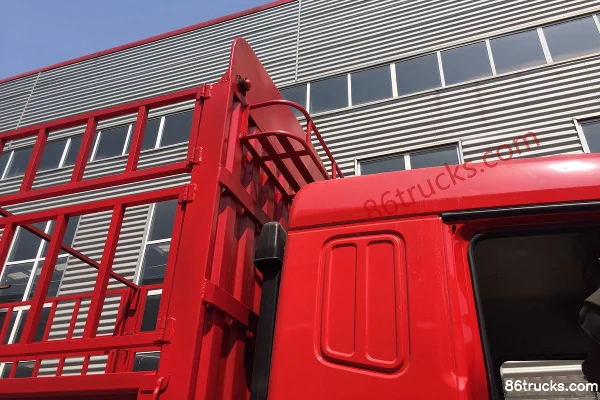

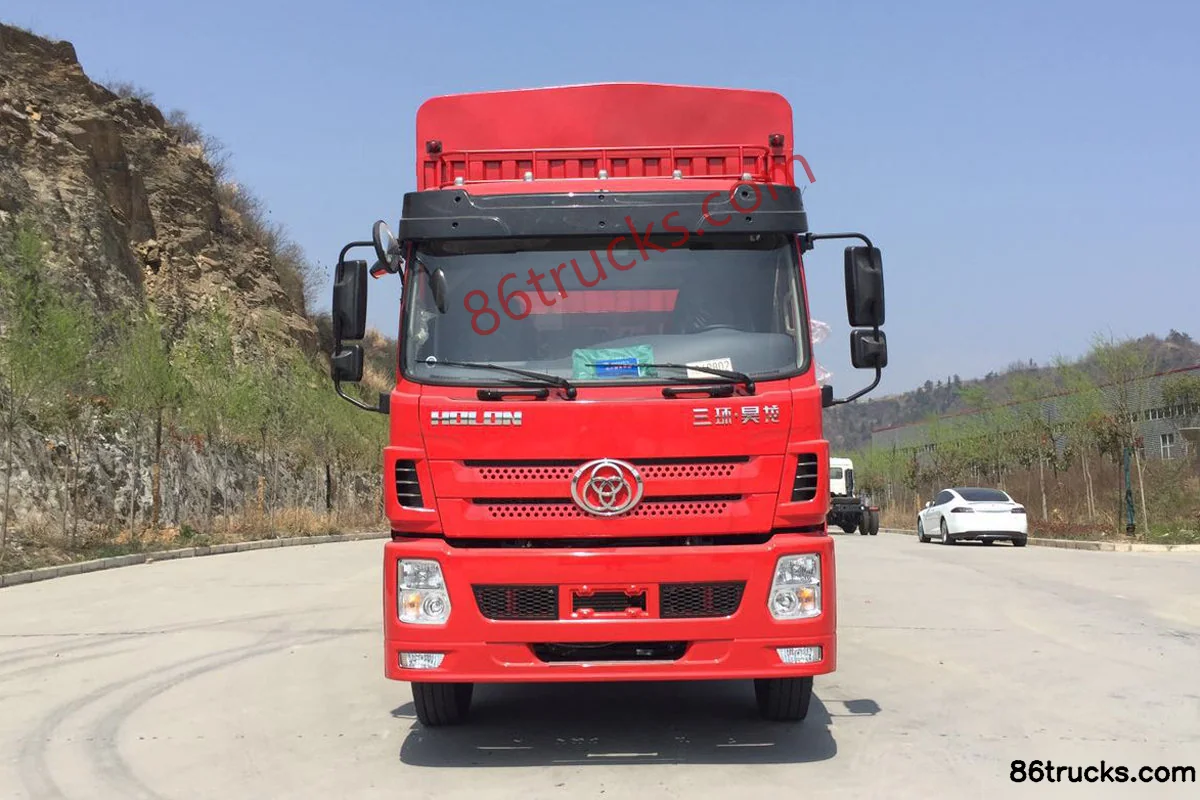

Photos

Exterior3

Cab1

Chassis2

6 photos

FAQ

What is the export price of Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck, and what does it include?

Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck export reference is about From $45,556; MSRP is ¥32.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck?

Key specs of Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck: Drive: 8x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai7.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck suited for?

Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck differ from other variants in the same series?

Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck belongs to Sanhuan Shitong Haolong Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong 280hp 8X2(10 wheels) 9.6m Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
