FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission

Export reference
MSRP N/A
Features:: This series of transmissions adds an AMT system to the existing 12-speed aluminum housing mechanical transmission with retarder. The gear selection and shift actuator is electrically controlled, and the clutch actuator is pneumatically controlled. In addition to the common advantages of the 12-speed twin countershaft design, the main box is equipped with a brake device for faster shifting.
Max input torque:: 2300N·m
1st gear ratio:: 12.189
FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission exterior
View more photos (3)
Transmission Model: CA12TAX230A5
Transmission Brand: FAW Jiefang
Matching Range: Suitable for heavy-duty tractor trucks, dump trucks, and cargo trucks in the 460–500 hp power range, widely adapted to current road conditions and transport needs in China.

Overview

The FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission is a parts product with spec CA12TAX230A5.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA12TA(X) series
Matching Range: Suitable for heavy-duty tractor trucks, dump trucks, and cargo trucks in the 460–500 hp power range, widely adapted to current road conditions and transport needs in China.
Features: This series of transmissions adds an AMT system to the existing 12-speed aluminum housing mechanical transmission with retarder. The gear selection and shift actuator is electrically controlled, and the clutch actuator is pneumatically controlled. In addition to the common advantages of the 12-speed twin countershaft design, the main box is equipped with a brake device for faster shifting.
Max input torque: 2300N·m
1st gear ratio: 12.189
synchronizer: Yes (Auxiliary box synchronizer, main box sliding gear sleeve)
Main box center distance: 148.18mm
2nd gear ratio: 9.459
3rd gear ratio: 7.368
4th gear ratio: 5.784
5th gear ratio: 4.475
Auxiliary box center distance: 165mm
6th gear ratio: 3.502
7th gear ratio: 2.724
8th gear ratio: 2.114
Reverse Gear 1 Ratio: 11.846
Transmission weight: 392kg
Transmission oil capacity: 18/18.5 (with PTO)L
9th gear ratio: 1.646
10-speed gear ratio: 1.293
11-speed gear ratio:
12-speed gear ratio: 0.783
Number of gears: 12Gear
Transmission Model: CA12TAX230A5
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears:

Photos

Exterior3

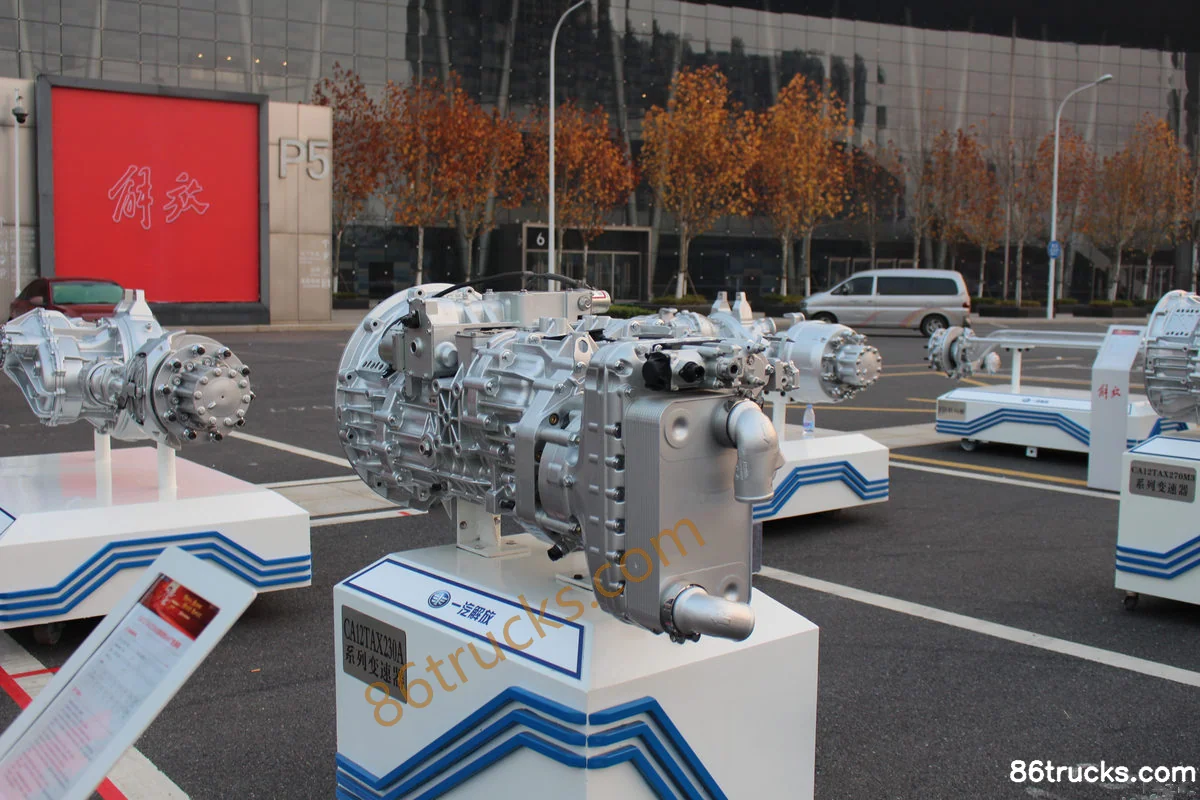

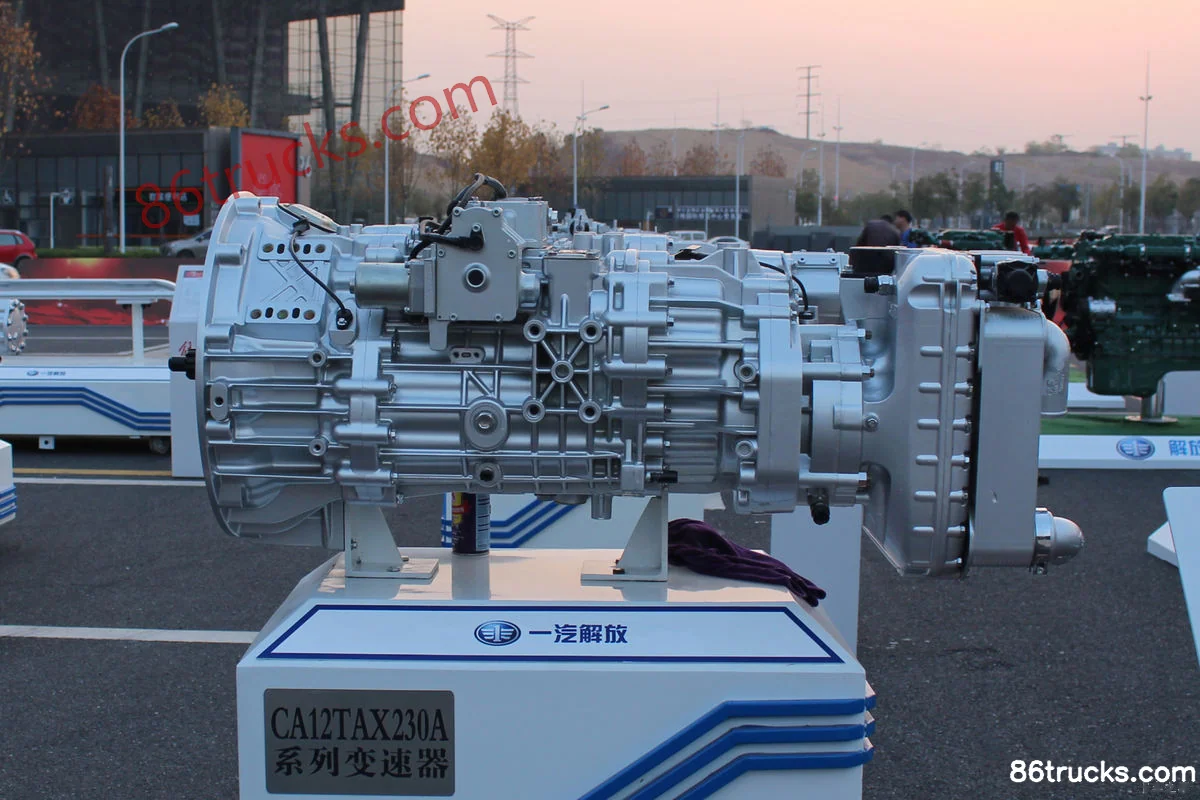

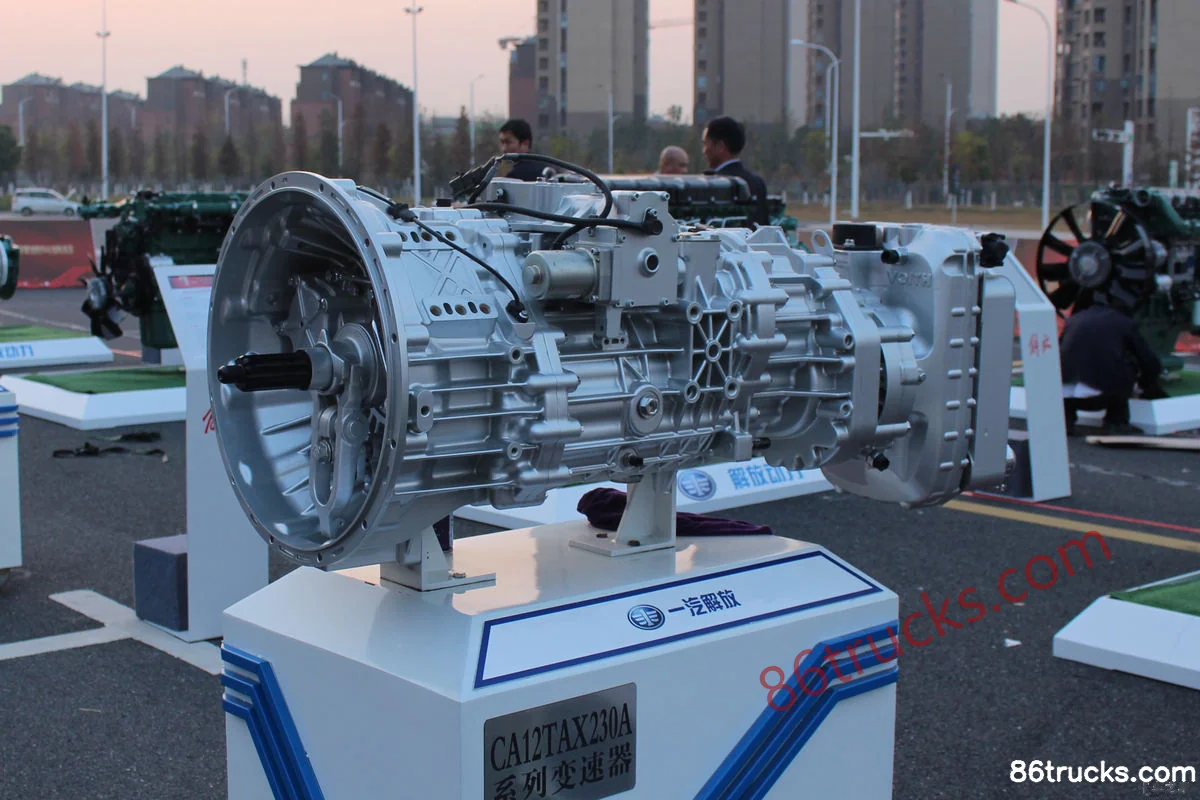

FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission Exterior (1) | 86Trucks FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission Exterior (2) | 86Trucks FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission suited for?

Match FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission differ from other variants in the same series?

FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission belongs to FAW Jiefang AMT Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang CA12TAX230A5 12-speed AMT Automatic Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
