King Long Kaiwo D10 3.5T 5.2m Electric Refrigerated Truck 55.1kWh

Export reference
MSRP N/A
Wheelbase:: 2890mm
Model code (announced):: NJL5038XLCBEV
Cab length:: 5.2m
GVWR:: 3.49ton
Max. speed:: 100km/h
Energy Type:: Electric
CLTC range: 257km
Motor 1 Brand: King Long
Curb Weight: 2.26ton
Rated payload: 1.1ton

Overview

The King Long Kaiwo D10 3.5T 5.2m Electric Refrigerated Truck 55.1kWh is a Electric Panel Van featuring 257km battery/range, King Long motor, 1.1t payload and 3.49t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJL5038XLCBEV
Wheelbase: 2890mm
Cab length: 5.2m
Cab width: 1.7m
Cab height: 2.15m
CLTC range: 257km
Curb Weight: 2.26ton
Rated payload: 1.1ton
GVWR: 3.49ton
Max. speed: 100km/h
Energy Type: Electric
electric motor
Motor 1 Brand: King Long
Motor 1 Model: TZ208XS103
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 55kW
Peak power: 100kW
total peak torque: 310N·m
Battery/Charging
Battery Brand: Zhaoqing Aoyou
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 55.1kWh
Energy Density: 125.18
Battery Model: AYP100265200F36
Chassis Specs
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
Tailgate type: back door
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 195/70R15LT 10PR
Rear Wheel Specification: 195/70R15LT 10PR
Control configuration
ABS:

Photos

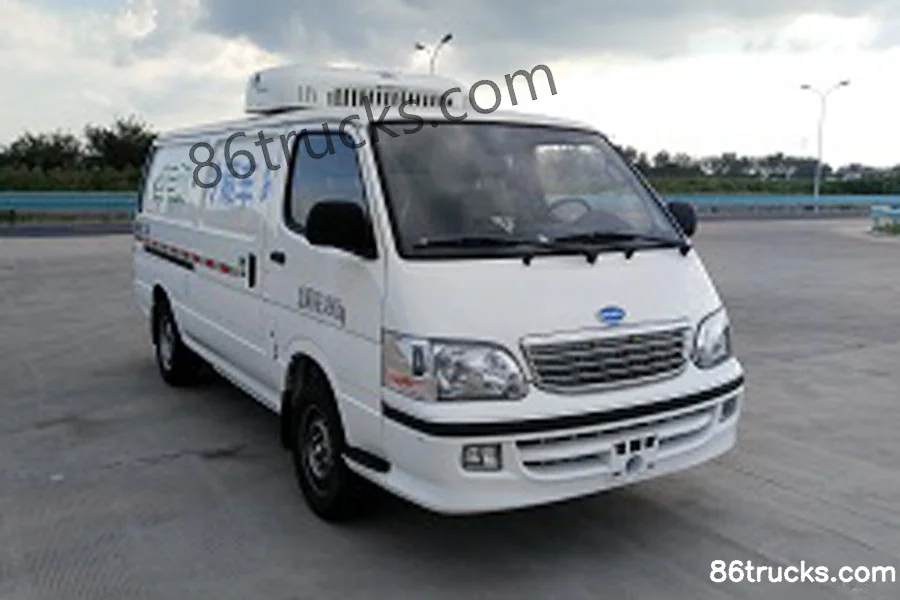

Exterior1

1 photos

FAQ

What transport jobs is King Long Kaiwo D10 3.5T 5.2m Electric Refrigerated Truck 55.1kWh suited for?

King Long Kaiwo D10 3.5T 5.2m Electric Refrigerated Truck 55.1kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does King Long Kaiwo D10 3.5T 5.2m Electric Refrigerated Truck 55.1kWh differ from other variants in the same series?

King Long Kaiwo D10 3.5T 5.2m Electric Refrigerated Truck 55.1kWh belongs to King Long Skyworth D10 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for King Long Kaiwo D10 3.5T 5.2m Electric Refrigerated Truck 55.1kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export King Long Kaiwo D10 3.5T 5.2m Electric Refrigerated Truck 55.1kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
