Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 87
Emission: China V
Fuel: Diesel
Engine: Xichai490
Transmission: WLY
Curb Weight:: 2.12ton
Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck exterior
View more photos (12)
seating capacity: 5Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Shenyang Jinbei Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck is a Light Truck featuring 2.65m cargo length, stake body cargo body, 5Personnel volume and 1.995t payload. On the powertrain side, it comes with a Xichai490 engine, 87 hp, 4X2 (6 wheels) drive and China V emissions.

China V 87 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SY1045SLVL
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 2.7m
engine: Xichai4DW93-84E5
transmission: WLYWLY525
Cab length: 5.37m
Cab width: 1.91m
Cab height: 2.22m
Front track width: 1486mm
rear track: 1400mm
Curb Weight: 2.12ton
Rated payload: 1.995ton
GVWR: 4.44ton
Max. speed: 90km/h
Origin: Shenyang, Liaoning
tonnage class: Light Truck
Approach angle: 22°
departure angle: 19°
Front/rear suspension: 1.03/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DW93-84E5
Engine info: Xichai490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.54L
Emission standard: China V
Max output power: 64kW
Max hp: 87Horsepower
Max torque: 220N·m
Max torque speed: 1900-2100rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Model: WLYWLY525
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.65m
Cargo box width: 1.81m
Cargo box height: 0.38m
*Cargo box interior width: 1.8099999427795
Cab parameters
Cab width: 1690mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1930kg
rear axle description: Standard 130 axle
rear axle allowable load: 2510kg
Leaf spring count: 8/9+3
Tire
Tire Size: 6.50-16 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

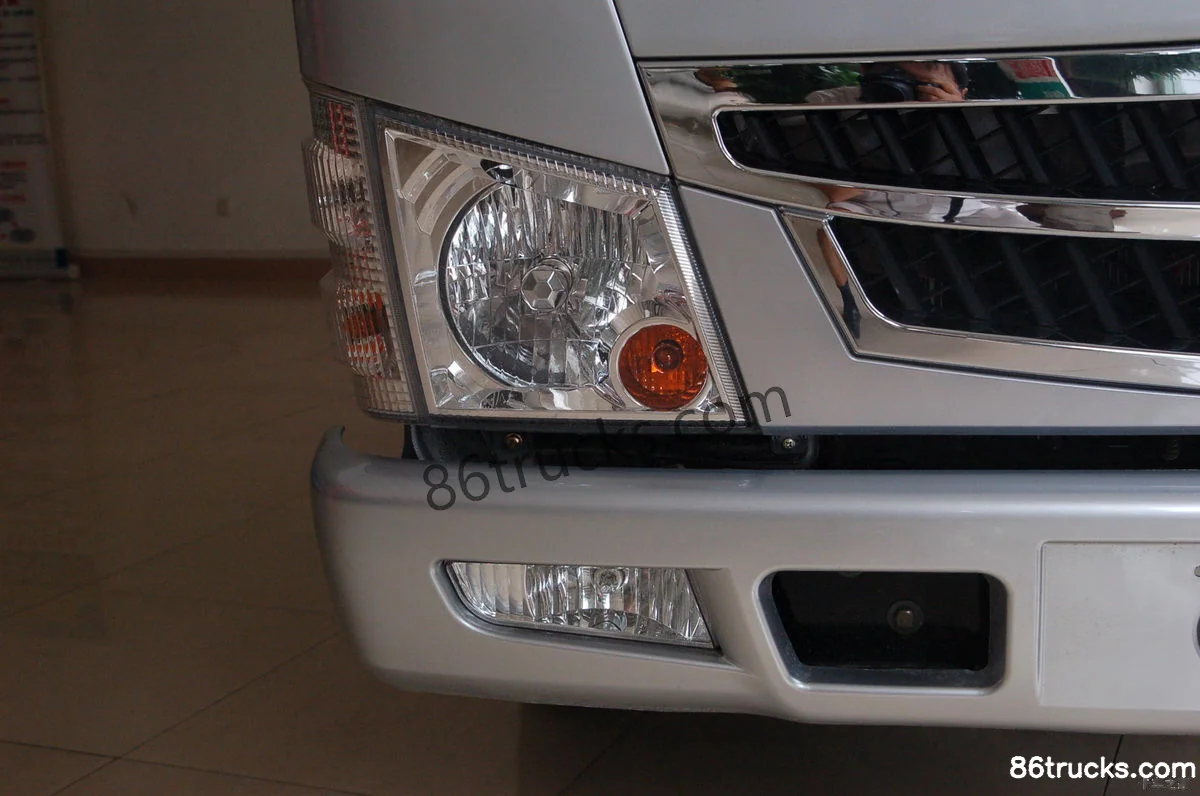

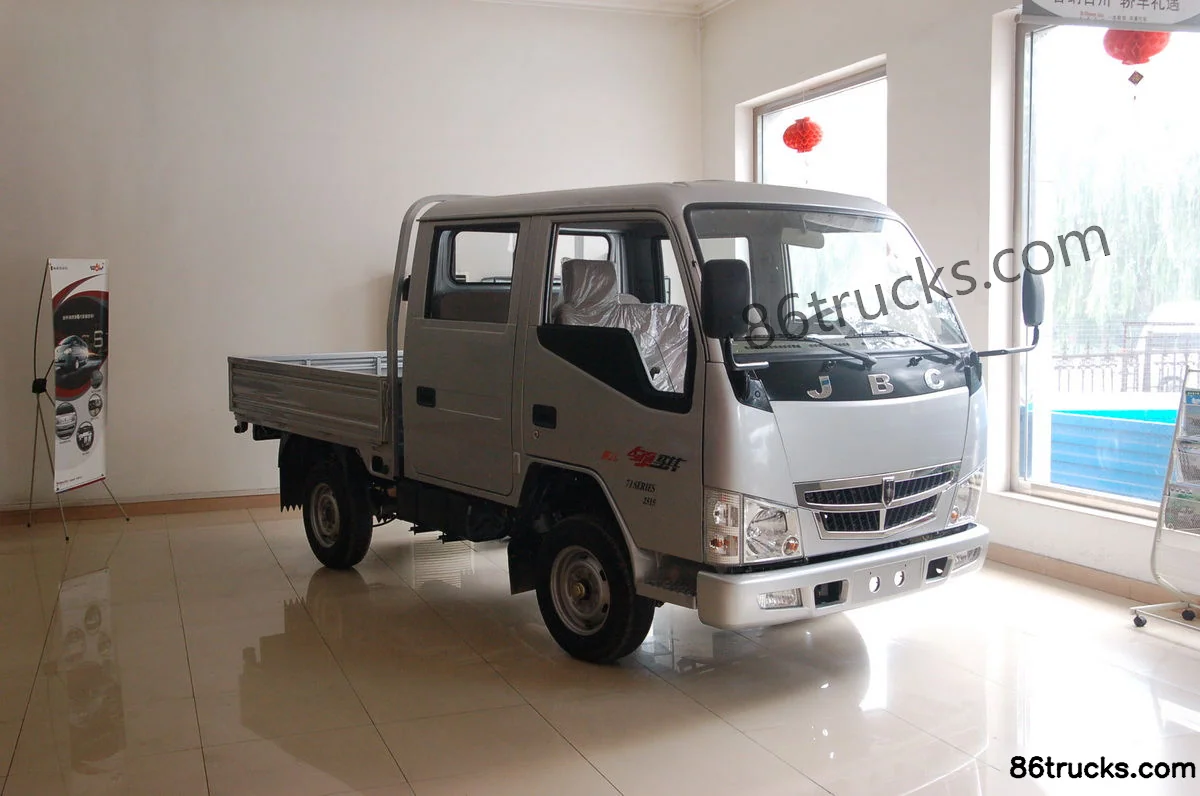

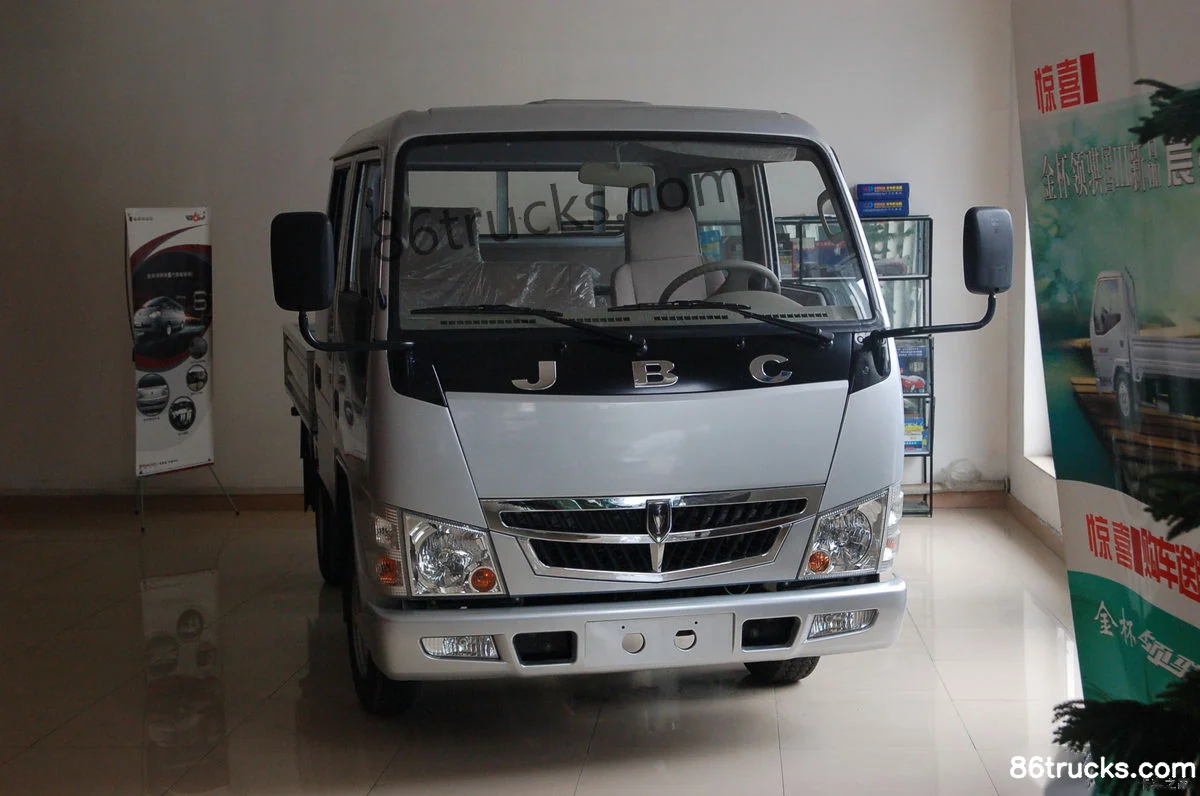

Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Exterior (1) | 86Trucks Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Exterior (2) | 86Trucks Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Exterior (3) | 86Trucks

Cab3

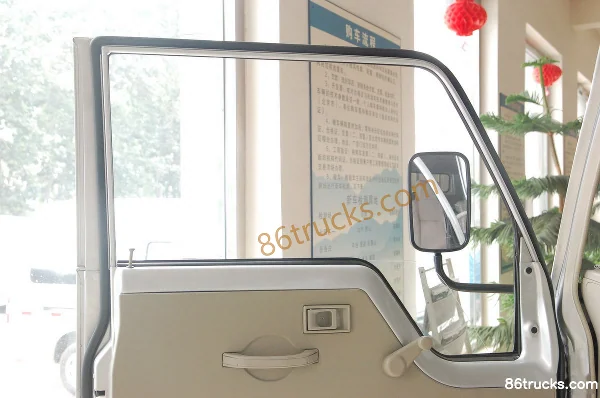

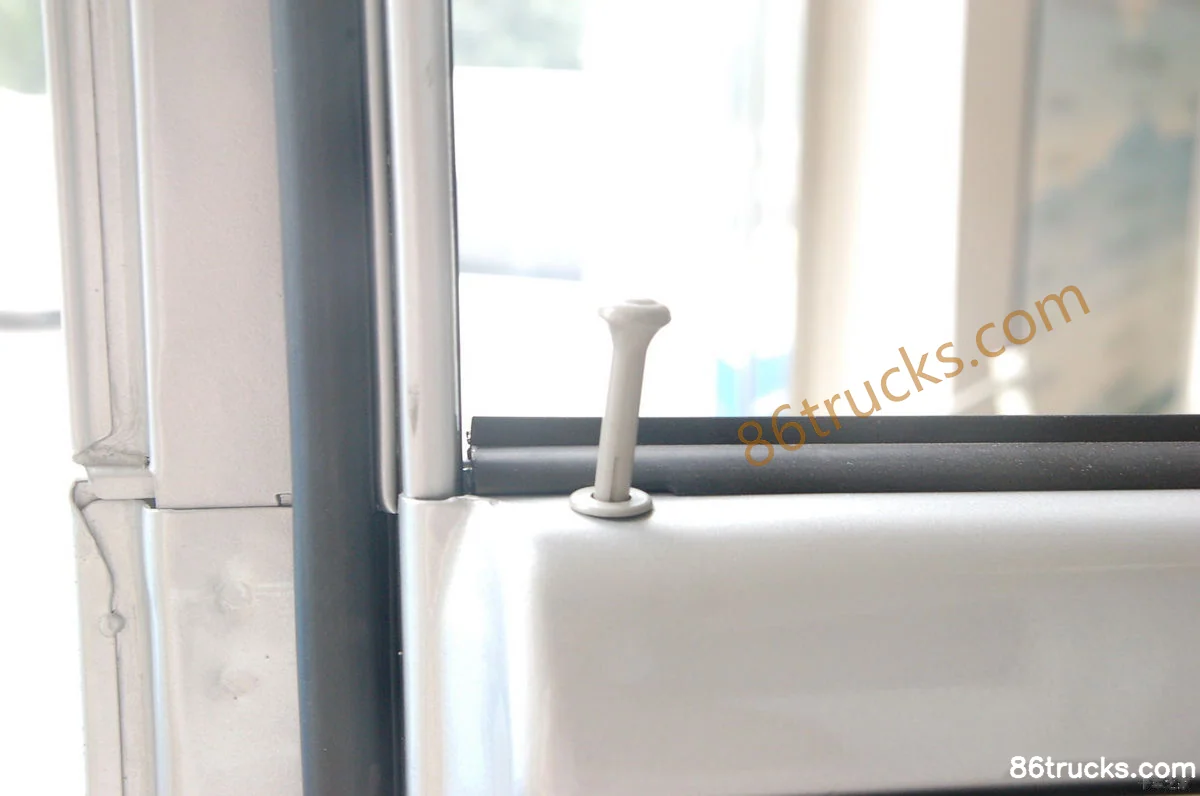

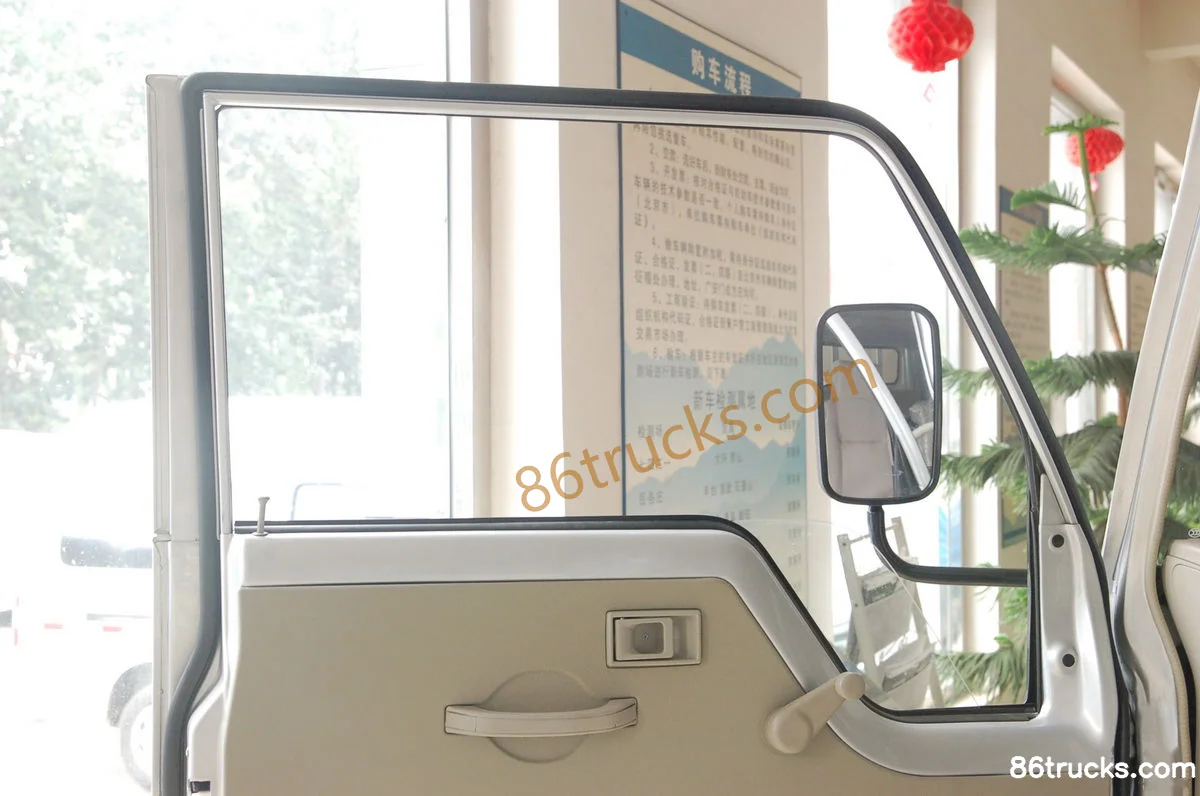

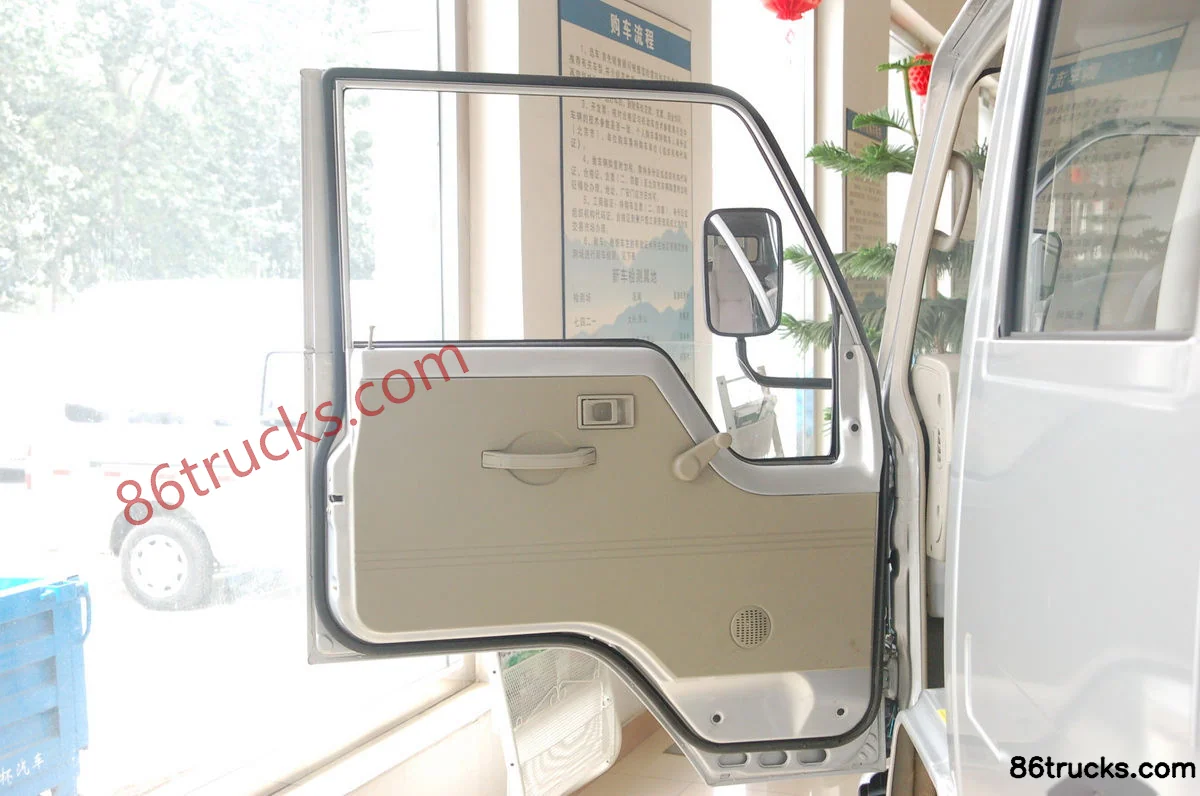

Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Cab (1) | 86Trucks Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Cab (2) | 86Trucks Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Cab (3) | 86Trucks

Chassis3

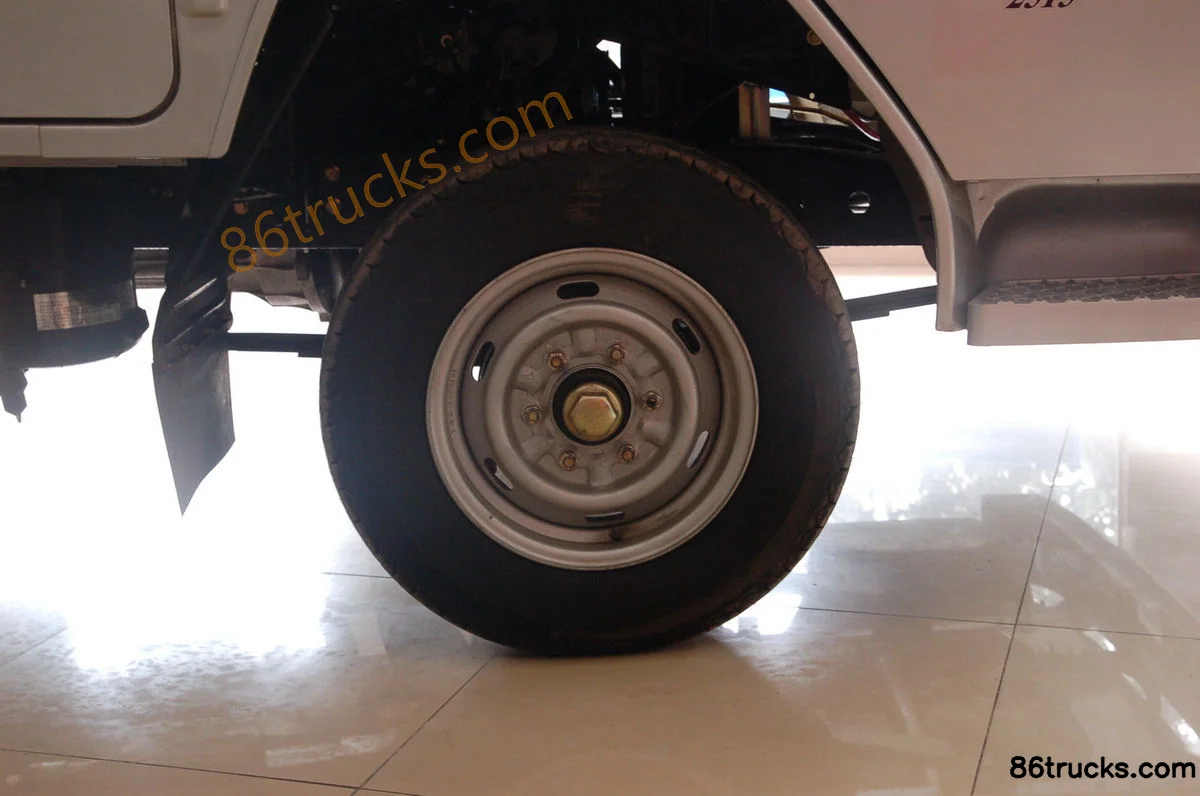

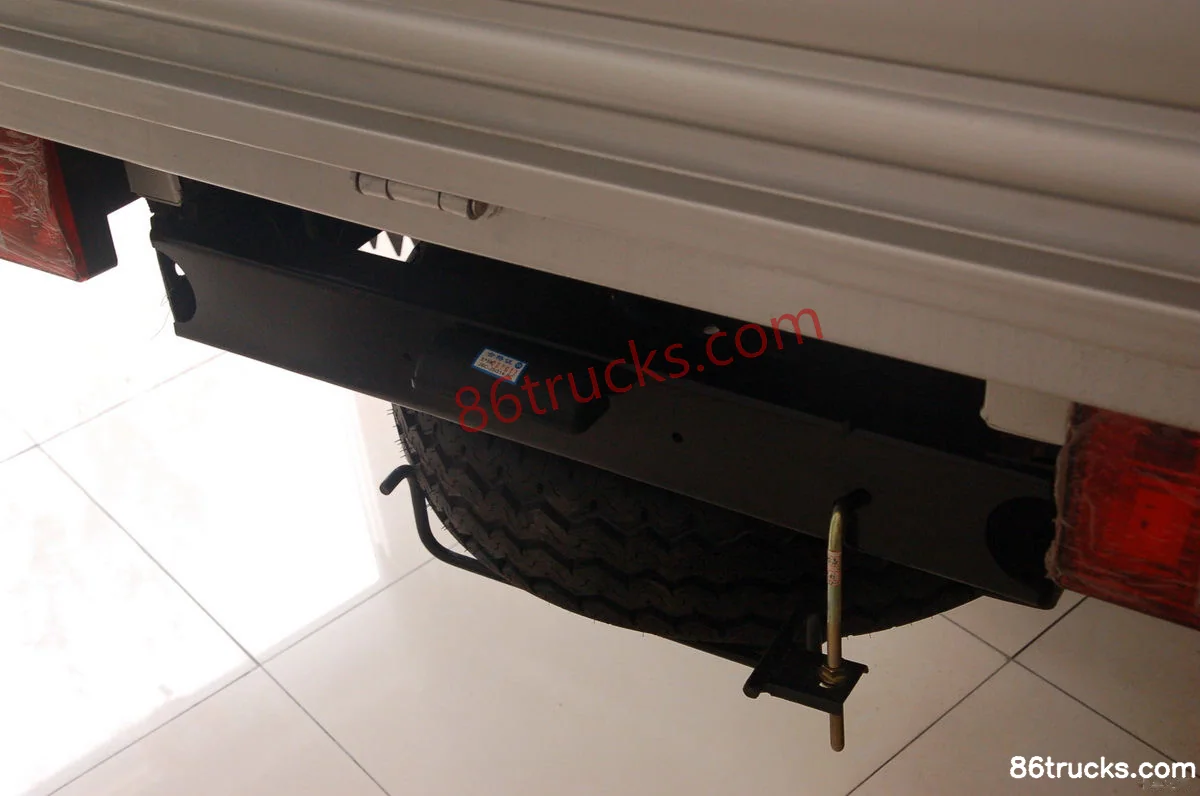

Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Chassis (1) | 86Trucks Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Chassis (2) | 86Trucks Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Chassis (3) | 86Trucks

Body3

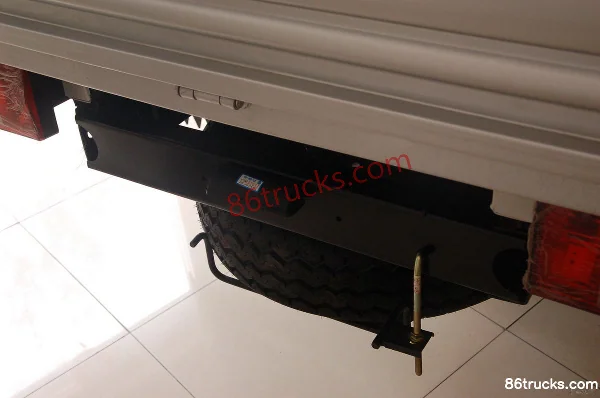

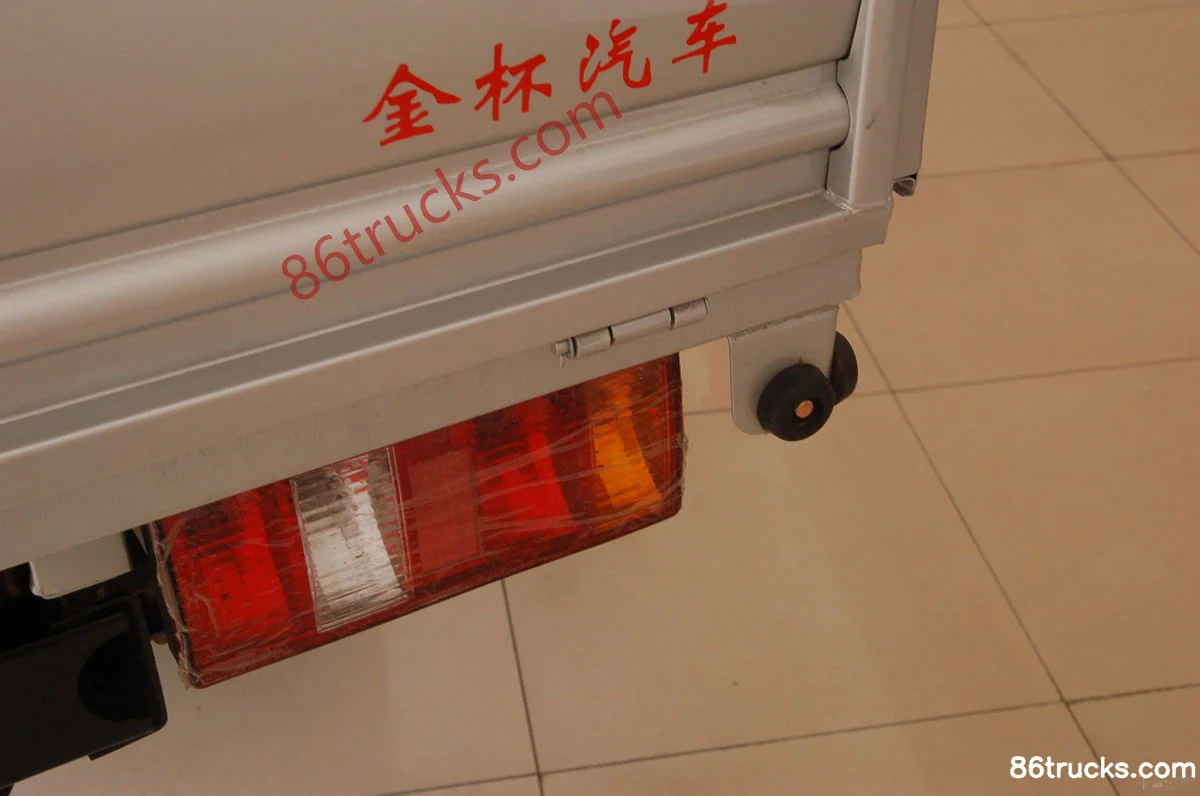

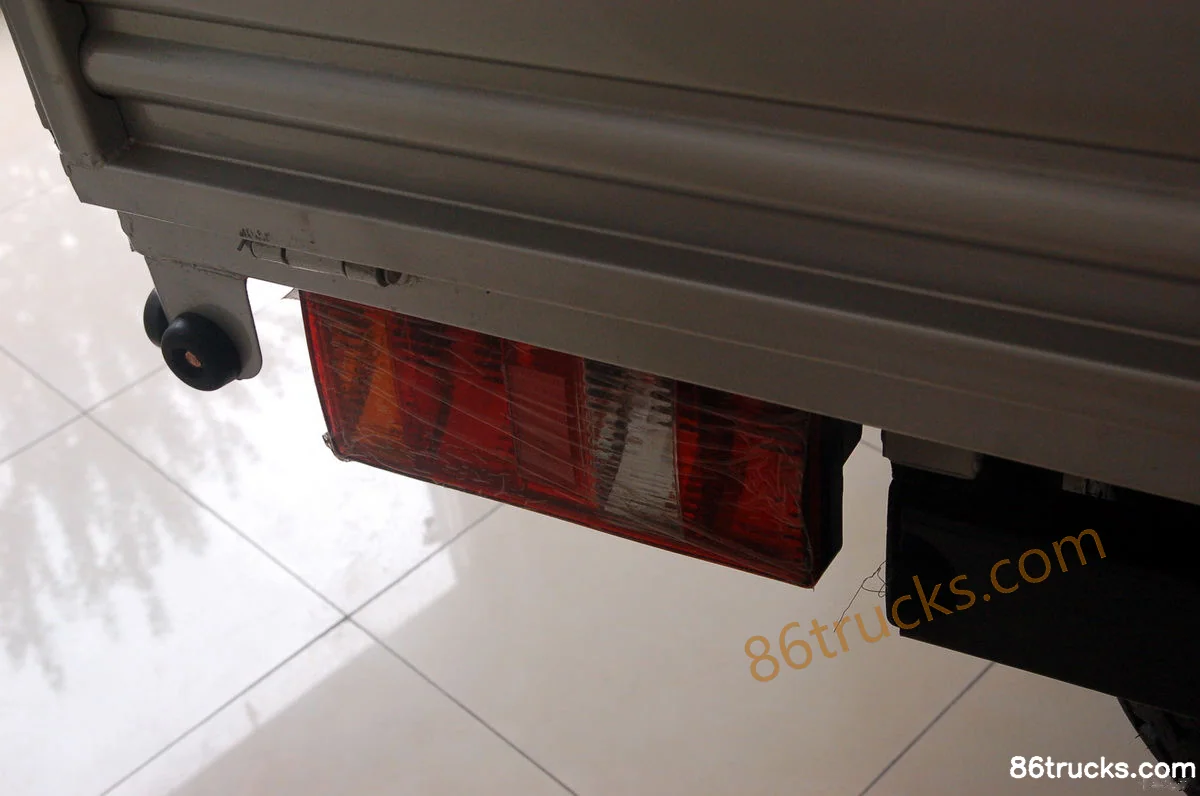

Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Body (1) | 86Trucks Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Body (2) | 86Trucks Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck?

Key specs of Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck: Drive: 4x2; Horsepower: 87 hp; Emission: China V; Fuel: Diesel; Engine: Xichai490; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck suited for?

Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck differ from other variants in the same series?

Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck belongs to Shenyang Jinbei Lingqi Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jinbei Lingqi 87hp 4X2(6 wheels) 2.65m Double Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
