Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875)

Export reference
From $9,125
MSRP ¥6.57M CNY
Horsepower: 68
Emission: China V
Fuel: Diesel
Engine: Quanchai485
Transmission: Mengwo
Curb Weight:: 1.69ton
seating capacity: 2Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Forland Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875) is a Light Truck featuring 3.34m cargo length, stake body cargo body, 2Personnel volume and 1.995t payload. On the powertrain side, it comes with a Quanchai485 engine, 68 hp, 4X2 (6 wheels) drive and China V emissions.

China V 68 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1046V9JB4-K1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.3m
engine: Quanchai4A2-68C50
transmission: Mengwo5T20
Rear Axle Ratio: 4.875
Cab length: 5.355m
Cab width: 1.735m
Cab height: 2.125m
Front track width: 1385mm
rear track: 1280mm
Curb Weight: 1.69ton
Rated payload: 1.995ton
GVWR: 3.815ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 18°
departure angle: 22°
Front/rear suspension: 1.185/1.37m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-68C50
Engine info: Quanchai485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.27L
Emission standard: China V
Max output power: 50kW
Max hp: 68Horsepower
Max torque: 170N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: MengwoMW5T20
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.34m
Cargo box width: 1.65m
Cargo box height: 0.36m
*Cargo box interior width: 1.6499999761581
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Driver seat type: Rigid connection seat
Sunroof: Manual sunroof
fuel tank
Fuel tank capacity: 70L
Chassis Specs
Front axle allowable load: 1450kg
rear axle allowable load: 2365kg
Axle ratio: 4.875
Leaf spring count: 3/5+1,3/5+3
Suspension (front/rear): leaf spring suspension
Tire
Tire brand: Luye
Tire Size: 6.00-15LT 10PR,185R15LT
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
Power Windows:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
smart configuration
Cruise control (CCS):

Photos

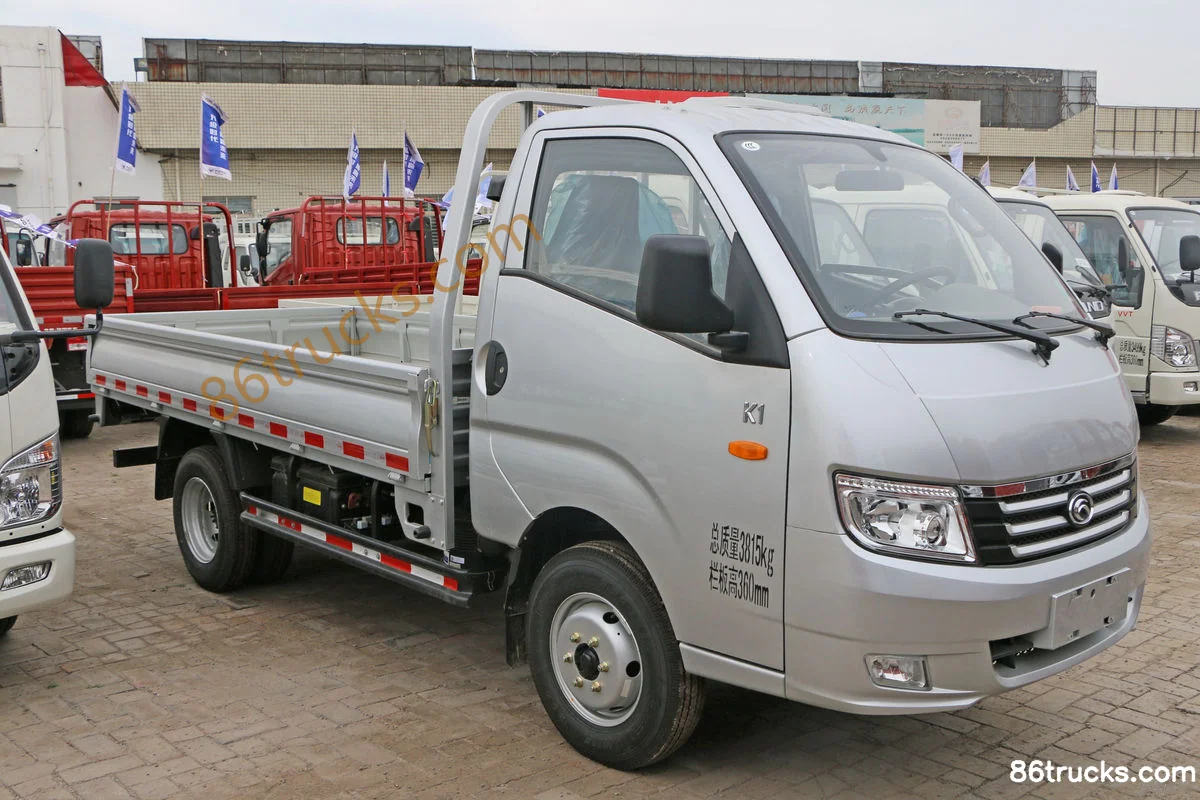

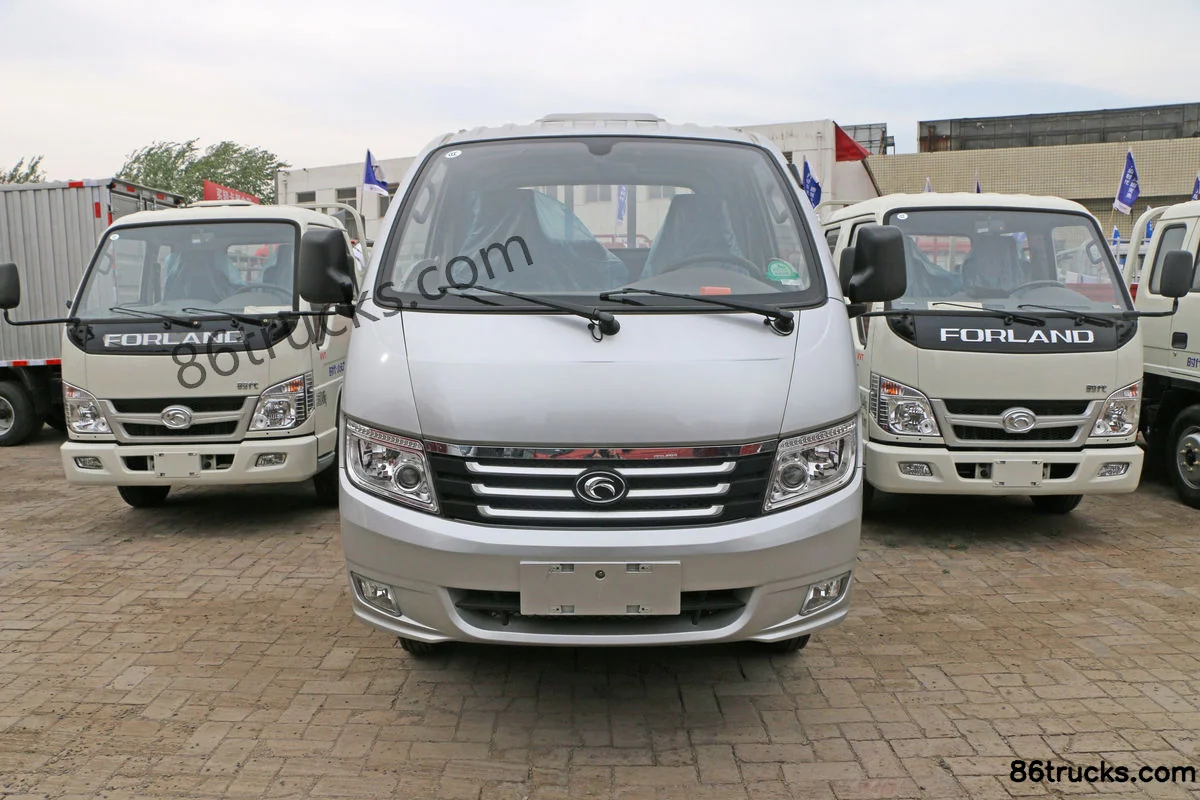

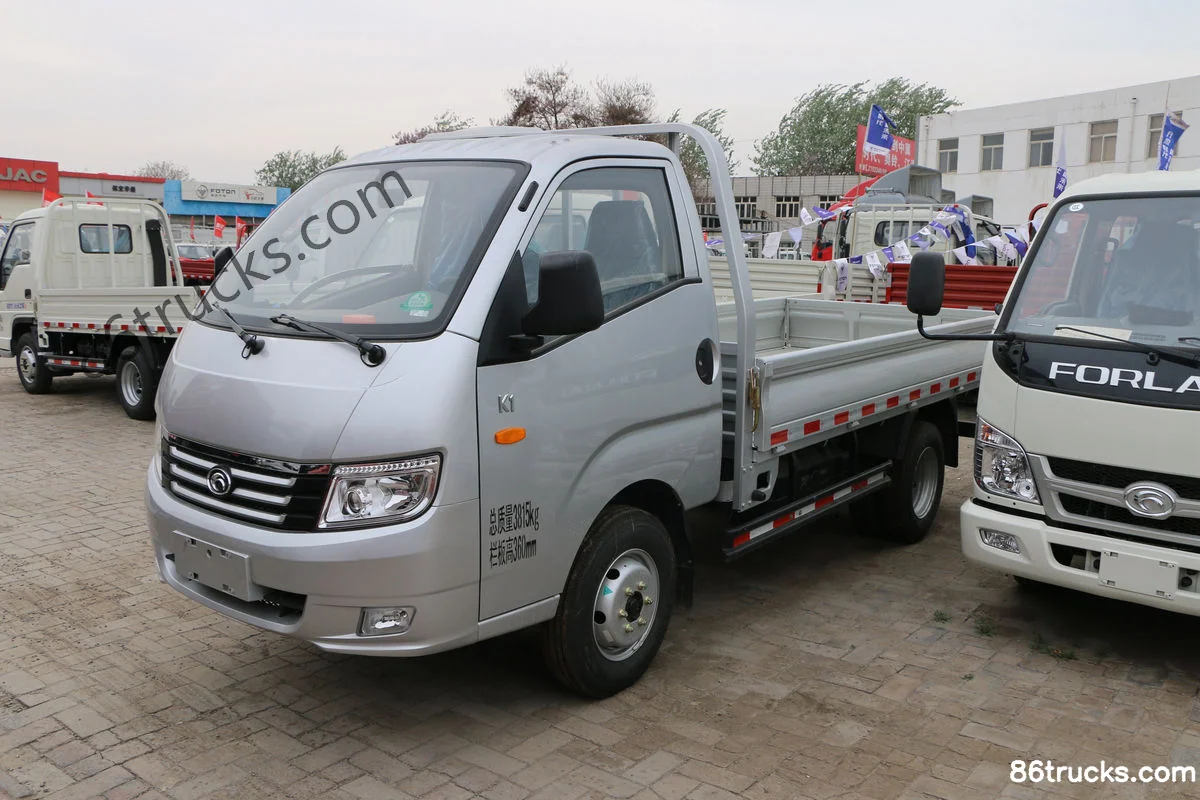

Exterior3

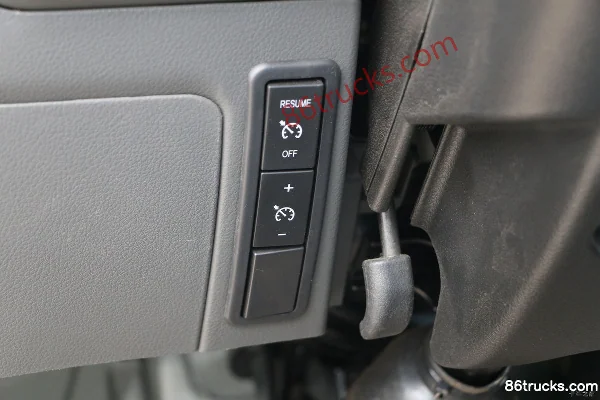

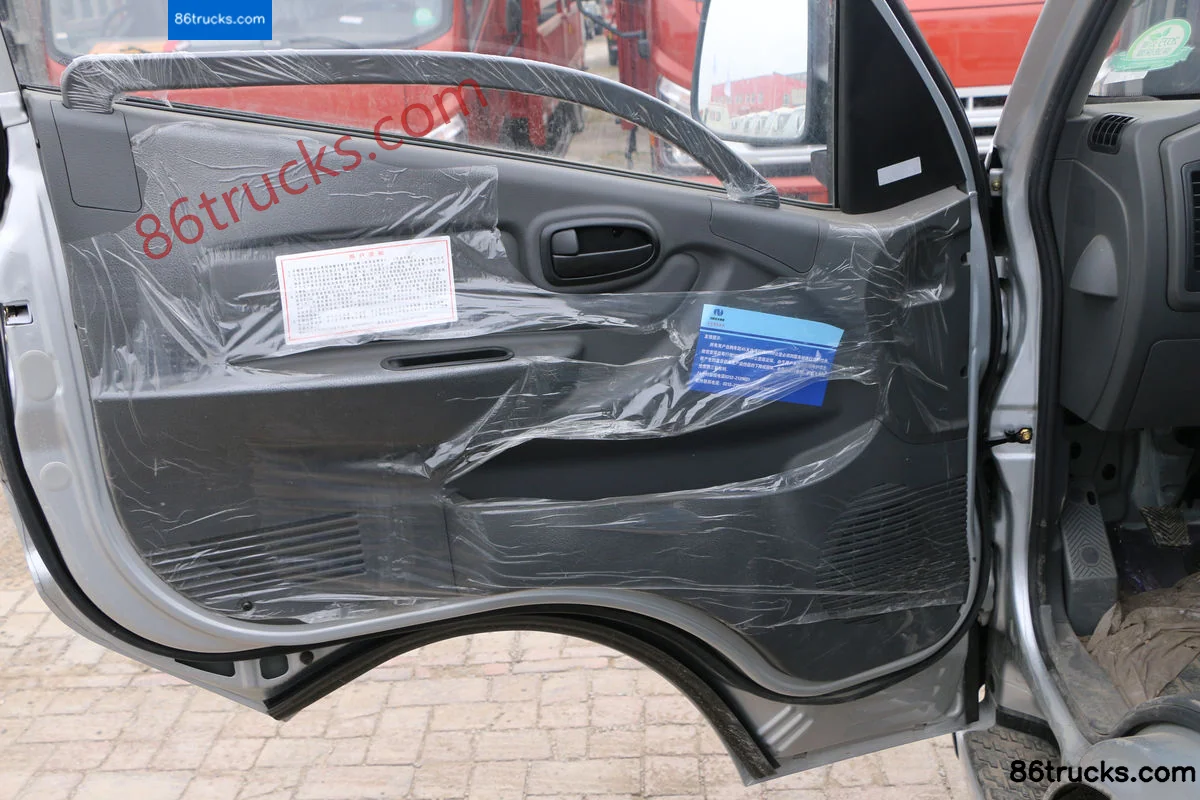

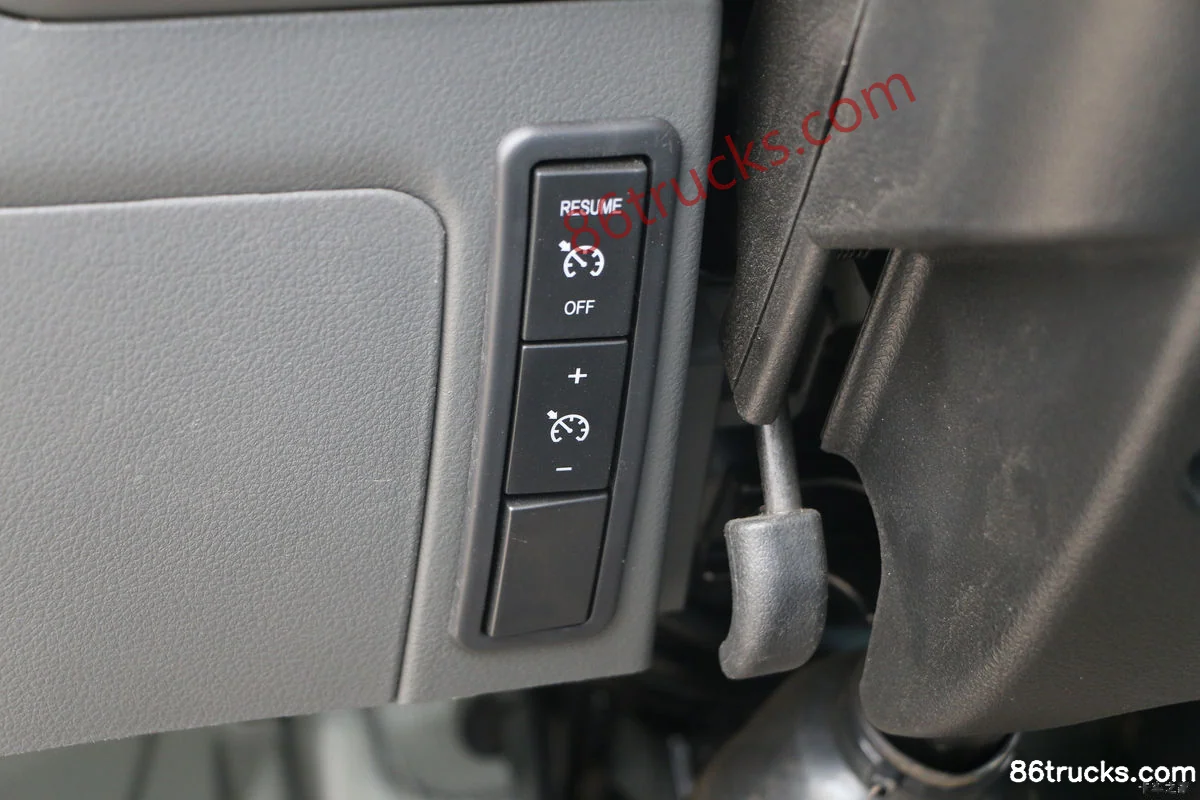

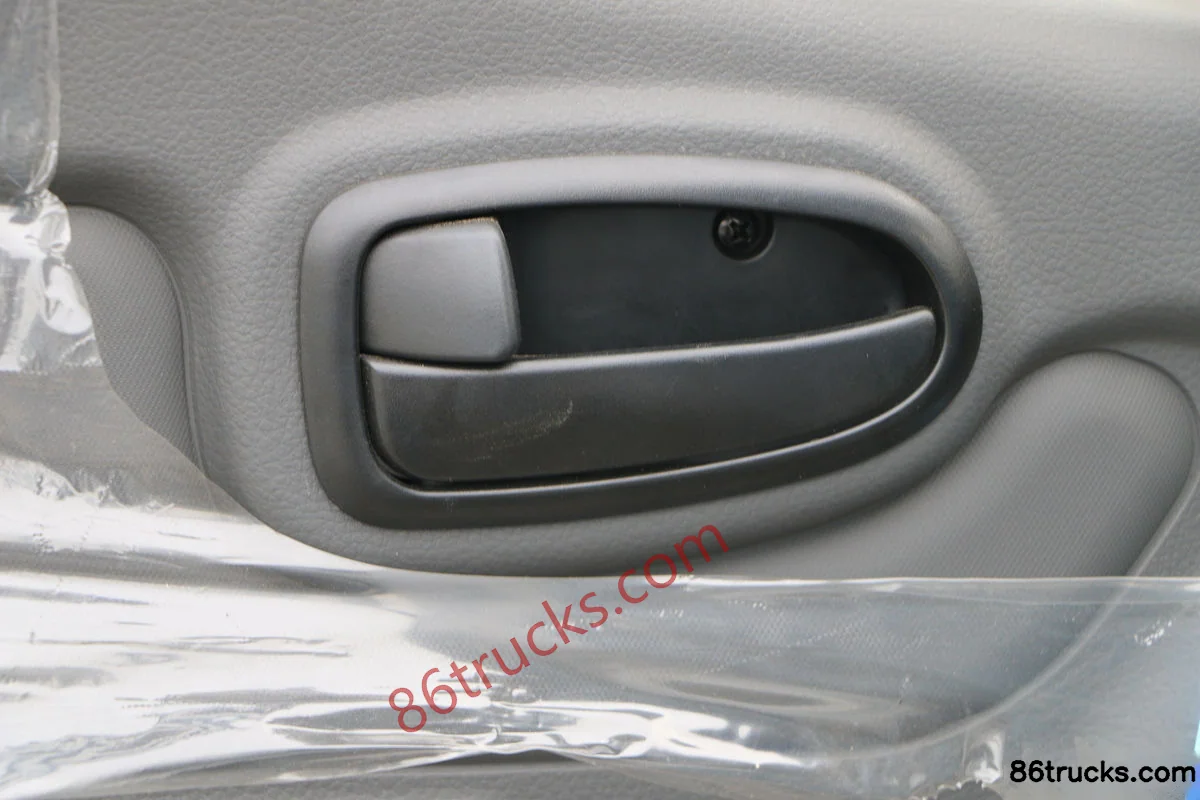

Cab3

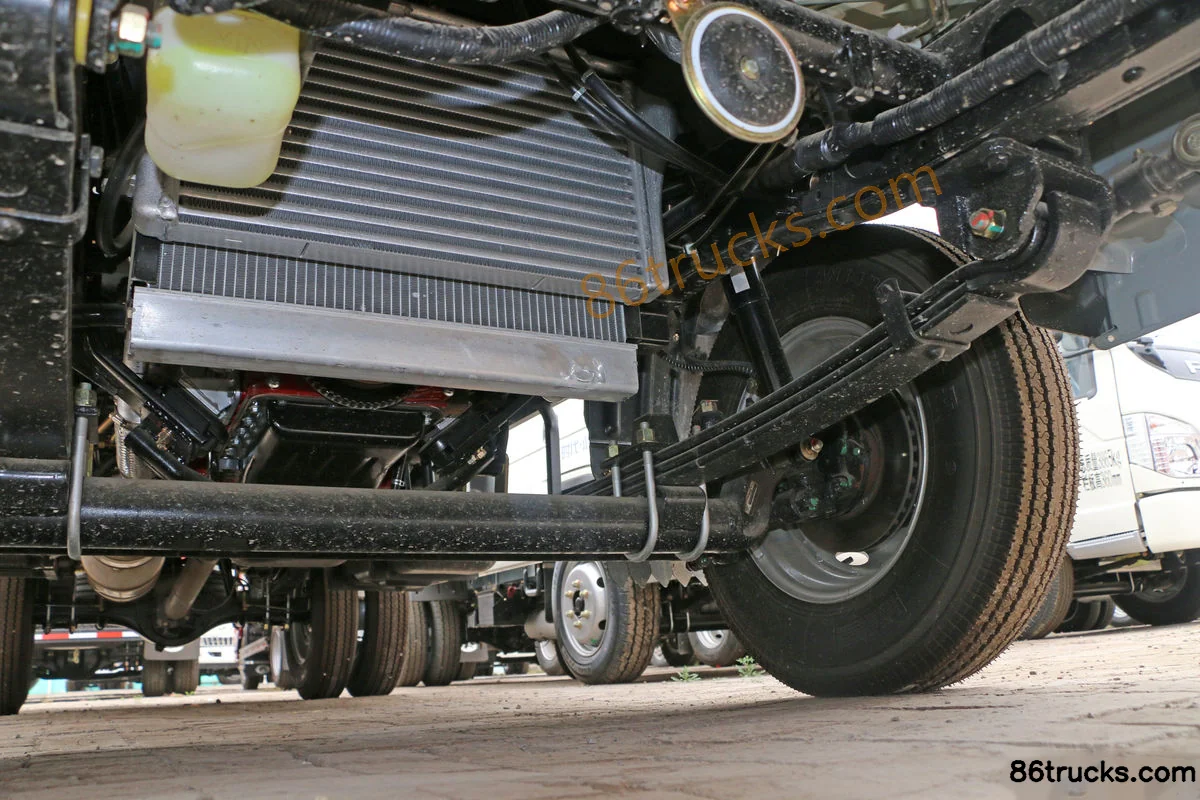

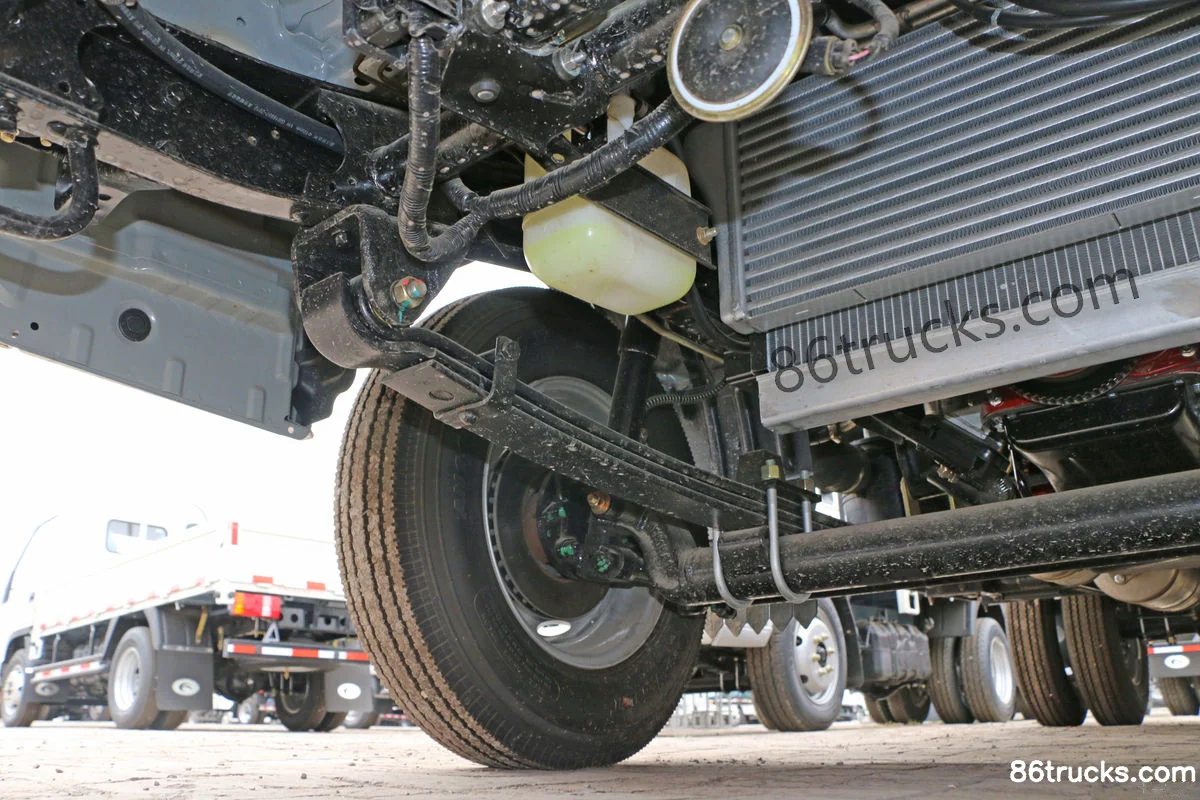

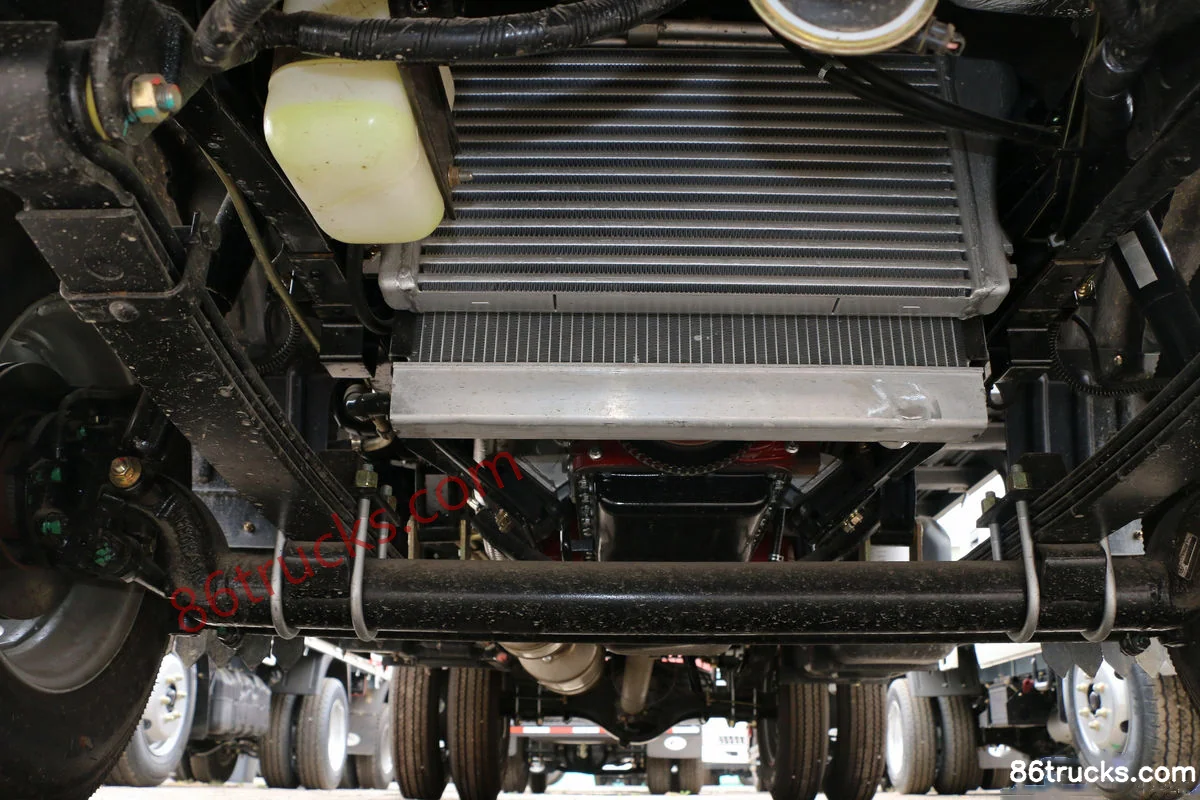

Chassis3

9 photos

FAQ

What is the export price of Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875), and what does it include?

Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875) export reference is about From $9,125; MSRP is ¥6.57M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875)?

Key specs of Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875): Drive: 4x2; Horsepower: 68 hp; Emission: China V; Fuel: Diesel; Engine: Quanchai485; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875) suited for?

Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875) differ from other variants in the same series?

Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875) belongs to Foton Forland K Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times K1 68hp 4X2(6 wheels) 3.34m Single Row Flatbed Light Truck (Ratio 4.875)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
