Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis

Export reference
From $24,403
MSRP ¥17.57M CNY
Horsepower: 210
Emission: China IV
Fuel: Diesel
Engine: Sinotruk MAN 4-cylinder
Transmission: Dachi
Curb Weight:: 5.88ton
seating capacity: 3Personnel
Rated payload: 9.925ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis is a Medium-duty truck featuring 6.2m cargo length, Chassis cargo body, 3Personnel volume and 9.925t payload. On the powertrain side, it comes with a Sinotruk MAN 4-cylinder engine, 210 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 210 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1165G5113D1B
Type: Chassis
Drive type: 4X2
Wheelbase: 4700mm
engine: SinotrukMC05.21-40
transmission: DachiDC6J95T
Rear Axle Ratio: 5.143
Cab length: 8.52m
Cab width: 2.496m
Cab height: 2.96m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 5.88ton
Rated payload: 9.925ton
GVWR: 16ton
Max. speed: 102km/h
Origin: Jinan, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
Remarks: Rear axle ratio optional (4.444, 4.875)
Front/rear suspension: 1.35/2.47m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC05.21-40
Engine info: Sinotruk MAN 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.58L
Emission standard: China IV
Max output power: 151kW
Max hp: 210Horsepower
Max torque: 830N·m
Max torque speed: 1300-1700rpm
Rated speed: 2400rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: DachiDC6J95T
Transmission Brand: Dachi
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 6.2m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 6000kg
Frame Dimensions: 865×190/250×80×(7+4)mm
rear axle description: 153 casting
rear axle allowable load: 10000kg
Axle ratio: 5.143
Leaf spring count: 4/-,4/2+-,4/5,4/9+8,11/-,11/2+-,11/9+8
Tire
Tire Size: 9.00R20(10.00R20/10R22.5/275)
Number of tires: 6pcs
Control configuration
ABS:

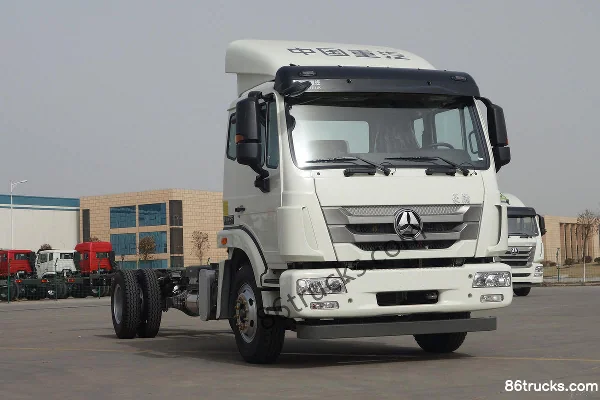

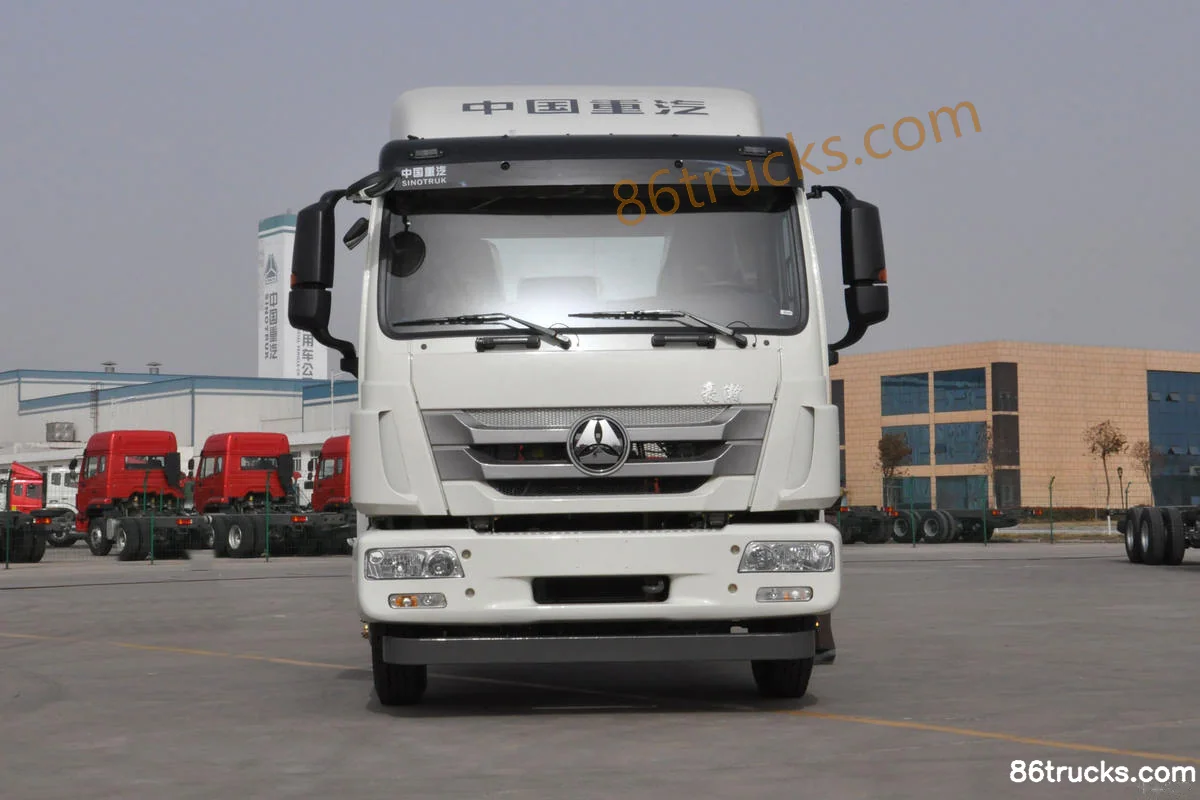

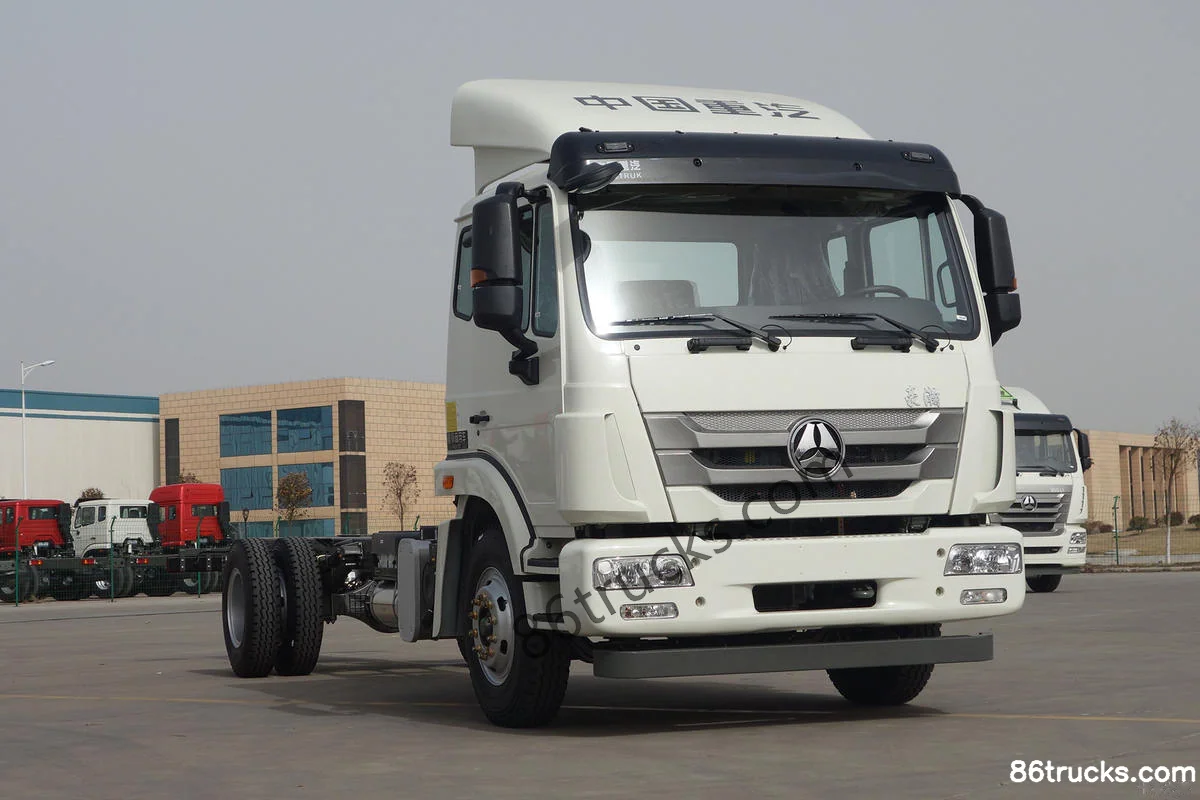

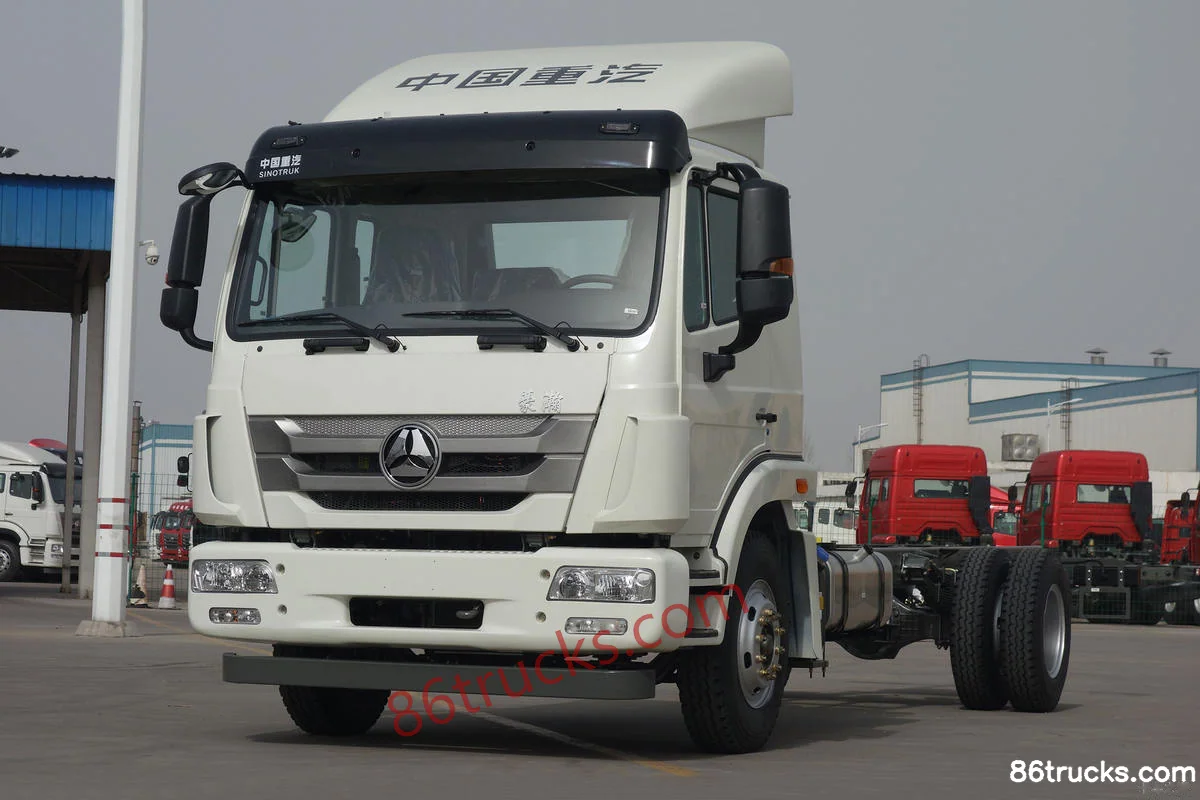

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis, and what does it include?

Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis export reference is about From $24,403; MSRP is ¥17.57M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis?

Key specs of Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis: Drive: 4x2; Horsepower: 210 hp; Emission: China IV; Fuel: Diesel; Engine: Sinotruk MAN 4-cylinder; Transmission: Dachi. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis suited for?

Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis differ from other variants in the same series?

Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis belongs to Sinotruk J5G Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G Medium Truck 206 hp 4X2(6 wheels) Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
