FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis

Export reference
From $15,806
MSRP ¥11.38M CNY
Horsepower: 141
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 2.72ton
FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis is a Light Truck featuring 4.21m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 141 hp, 4X2 (6 wheels) drive and China V emissions.

China V 141 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5041CCYP40K17L1E5A84-1
Type: Chassis
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: FotonISF3.8s5141
transmission: WLYWLY6TS55
Rear Axle Ratio: 4.875
Cab length: 5.998m
Cab width: 2.47m
Cab height: 3.31m
Front track width: 1800mm
rear track: 1740mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Agricultural product transport, green channel
Remarks: Front brake: disc brake optional
Front/rear suspension: 1.15/1.548m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 105kW
Max hp: 141Horsepower
Max torque: 440N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.21m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2050kg
Frame Dimensions: 180×780/216×865mm
rear axle description: 1068 stamped-welded axle
rear axle allowable load: 2445kg
Axle ratio: 4.875
Leaf spring count: 7/10+3
Aluminum wheels:
Tire
Tire Size: 7.50R16 8PR,8.25-16 6PR,8.25R16 6PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster: none
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

Exterior3

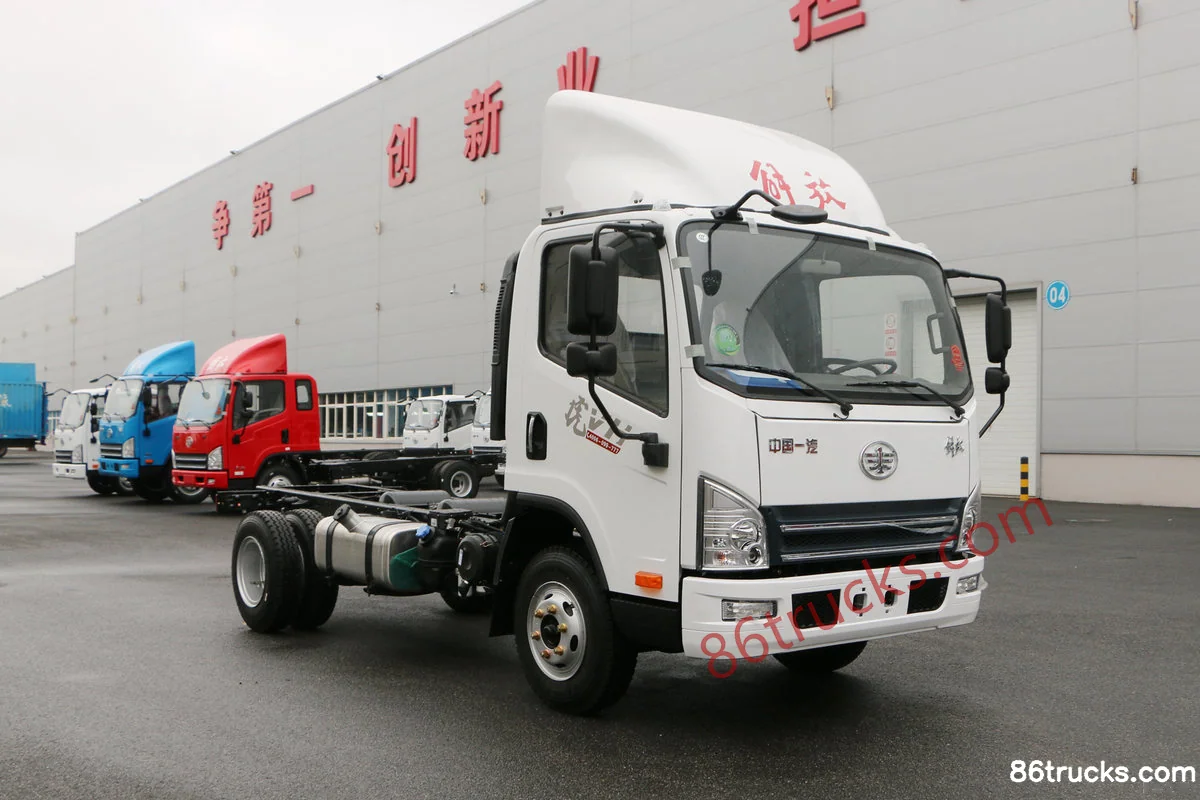

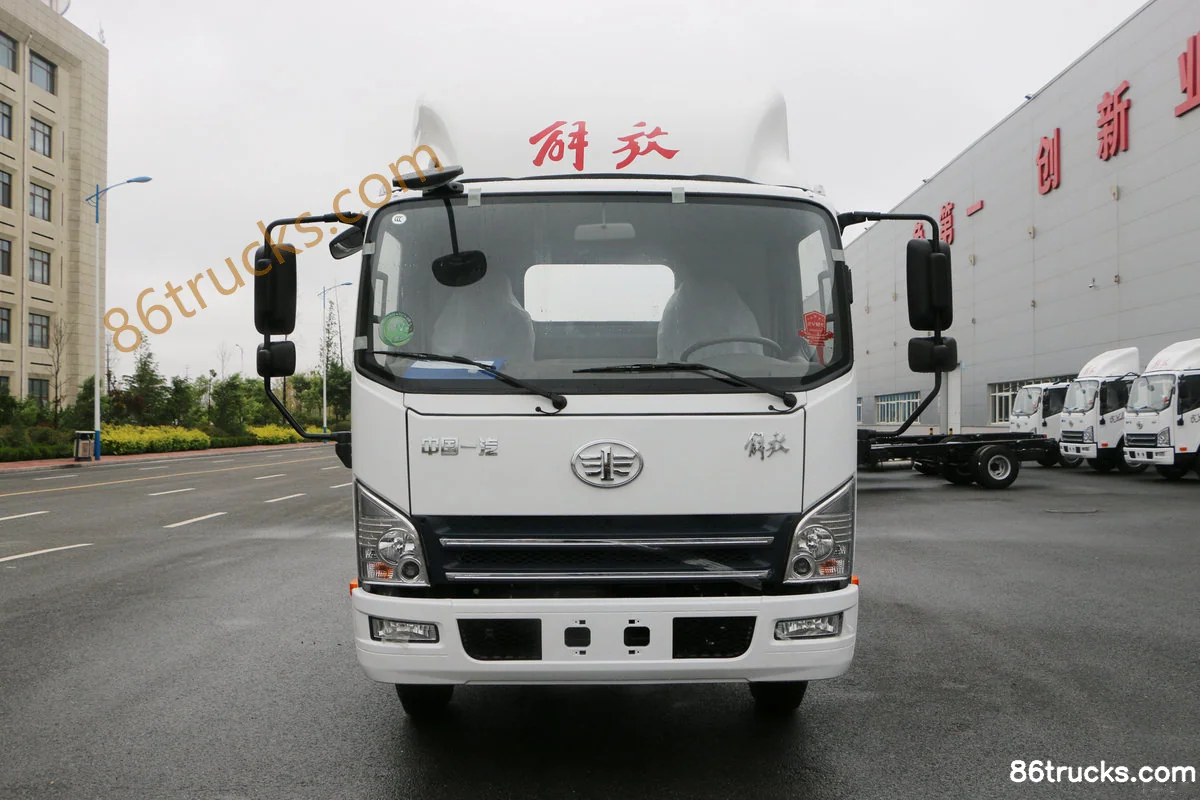

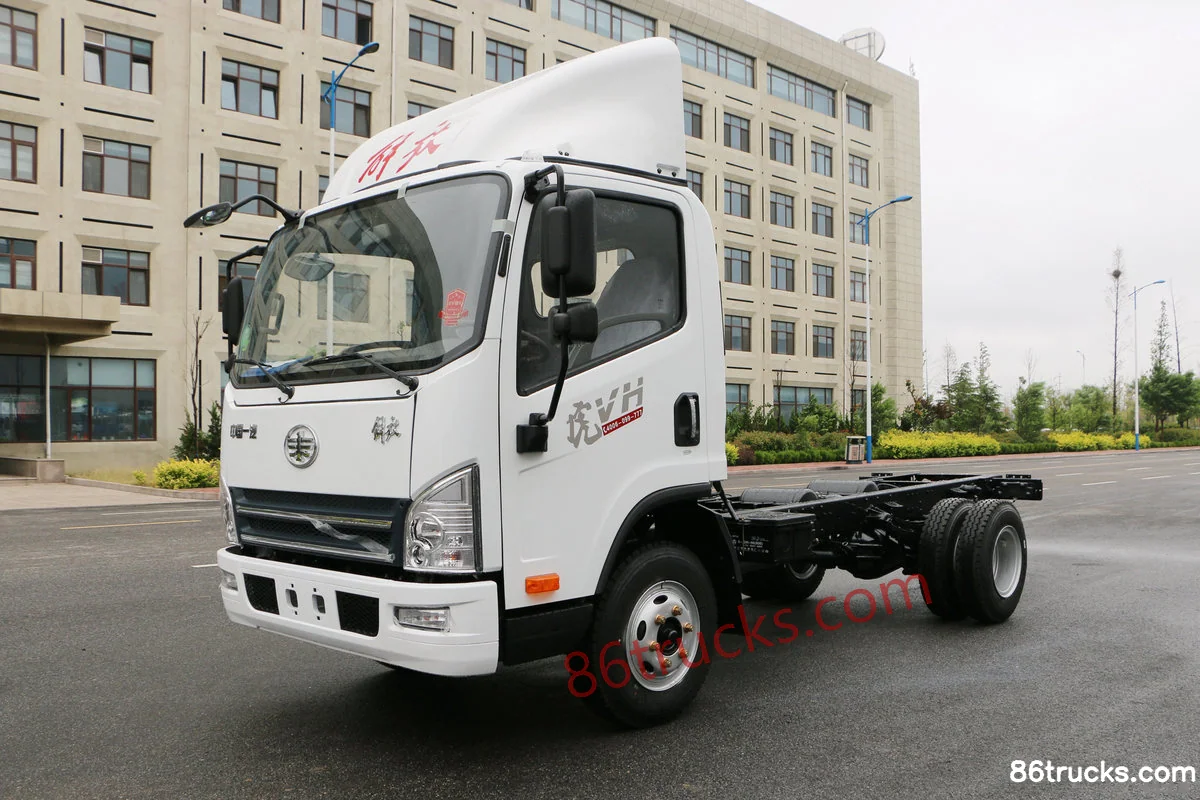

FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis Exterior (1) | 86Trucks FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis Exterior (2) | 86Trucks FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis Exterior (3) | 86Trucks

Cab3

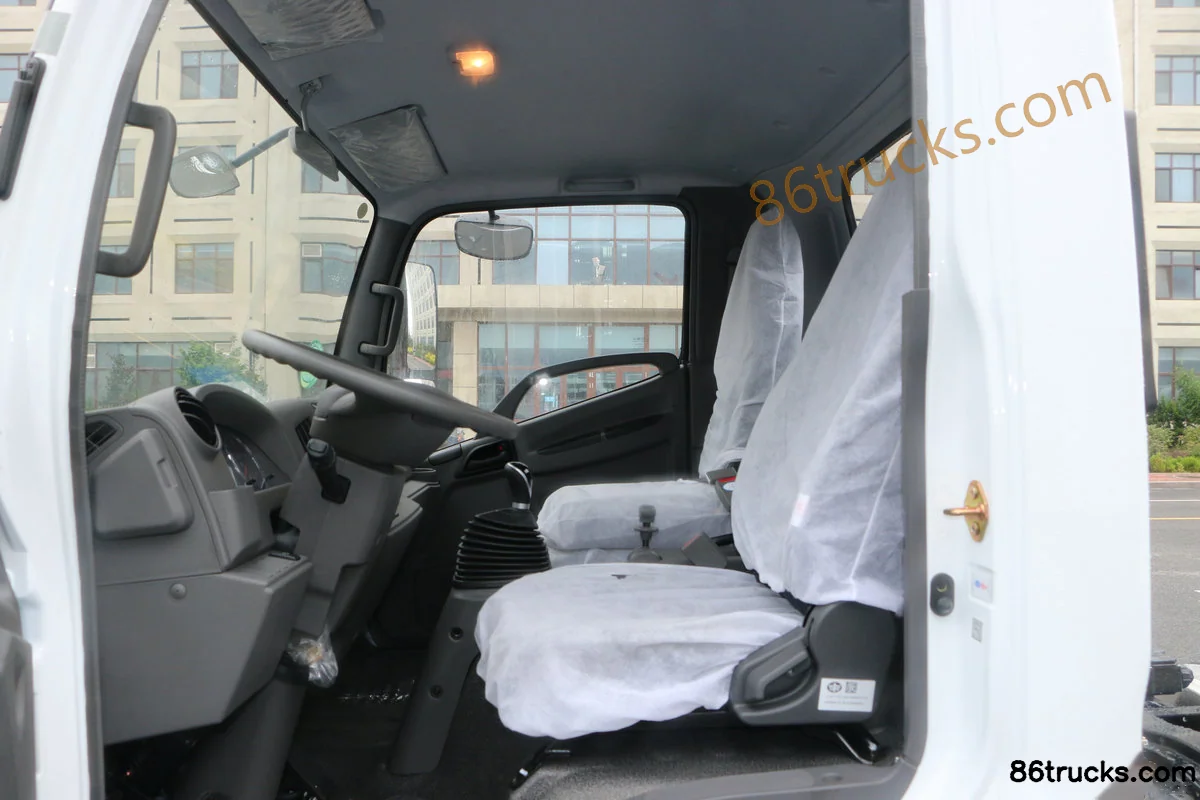

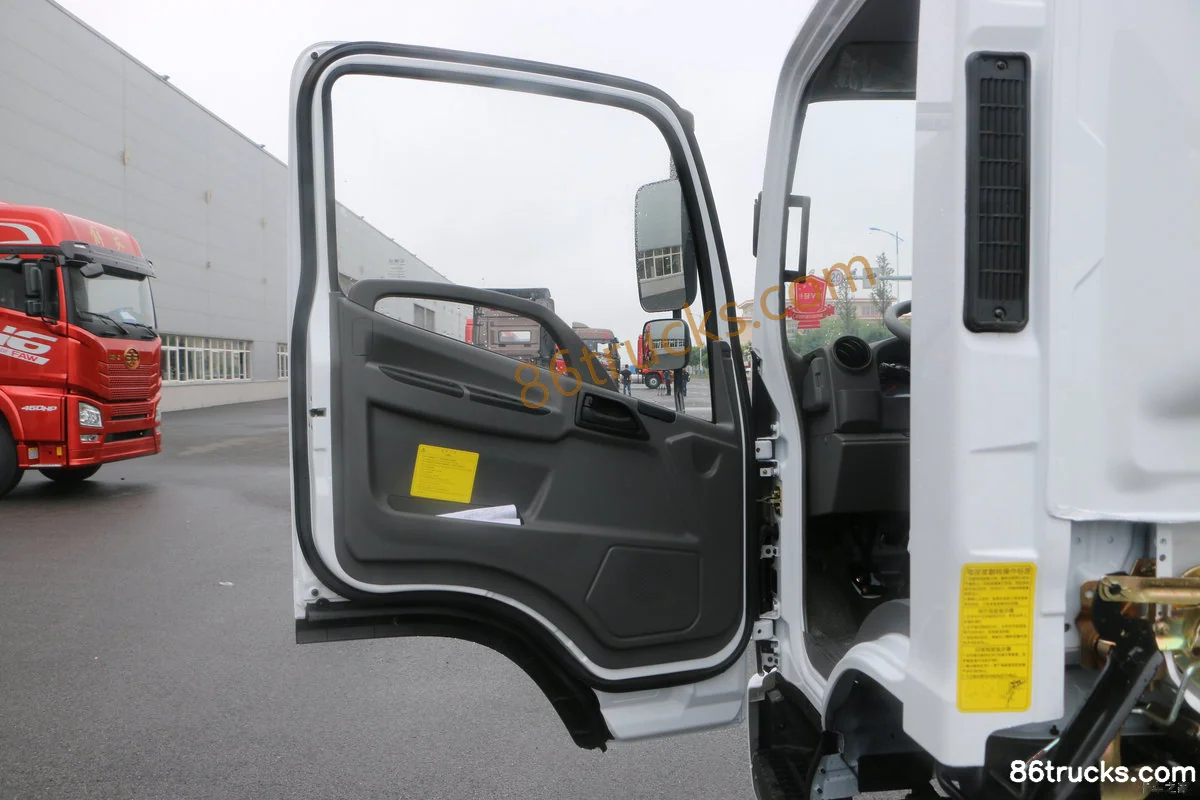

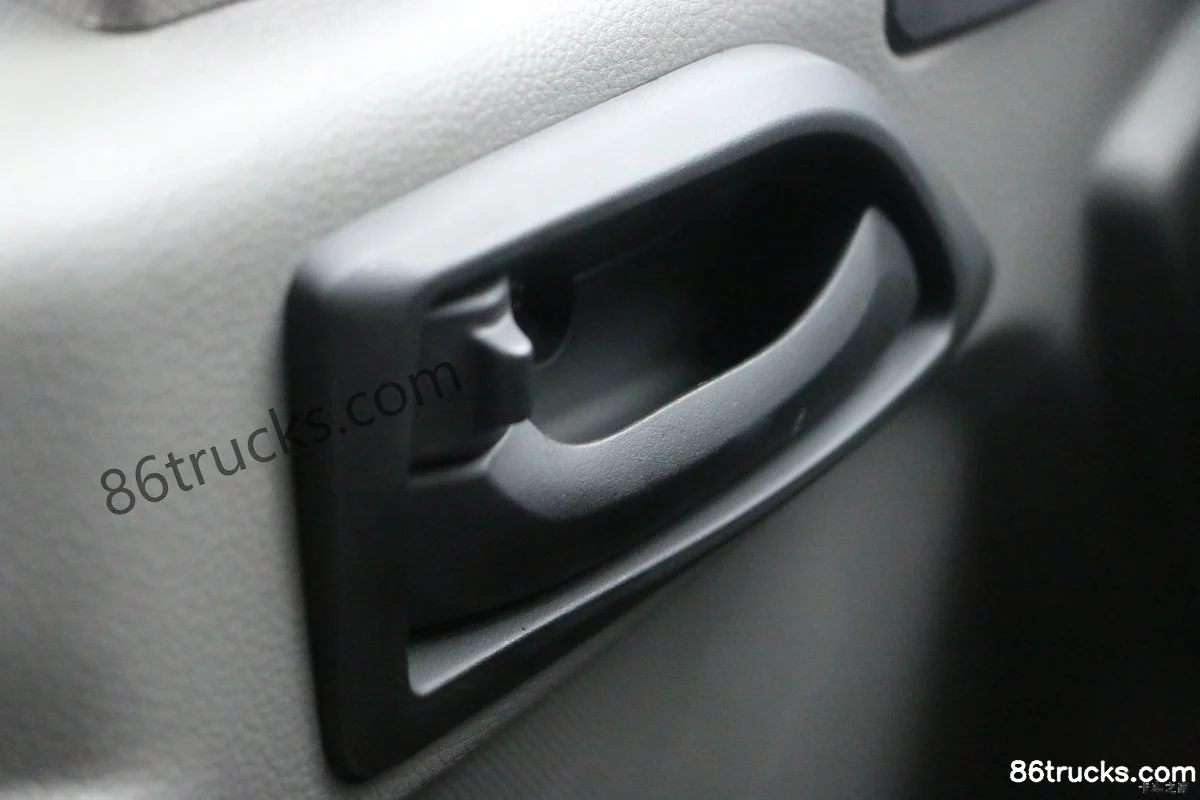

FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis Cab (1) | 86Trucks FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis Cab (2) | 86Trucks FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis Cab (3) | 86Trucks

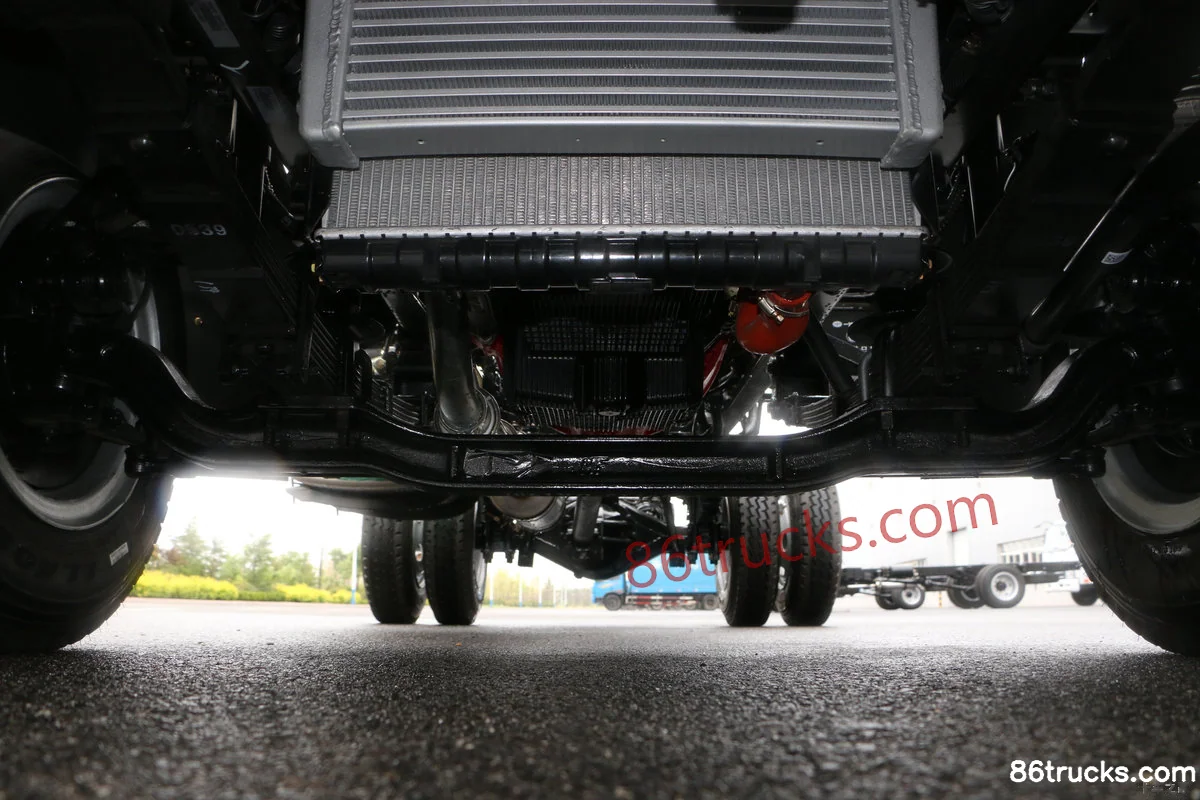

Chassis3

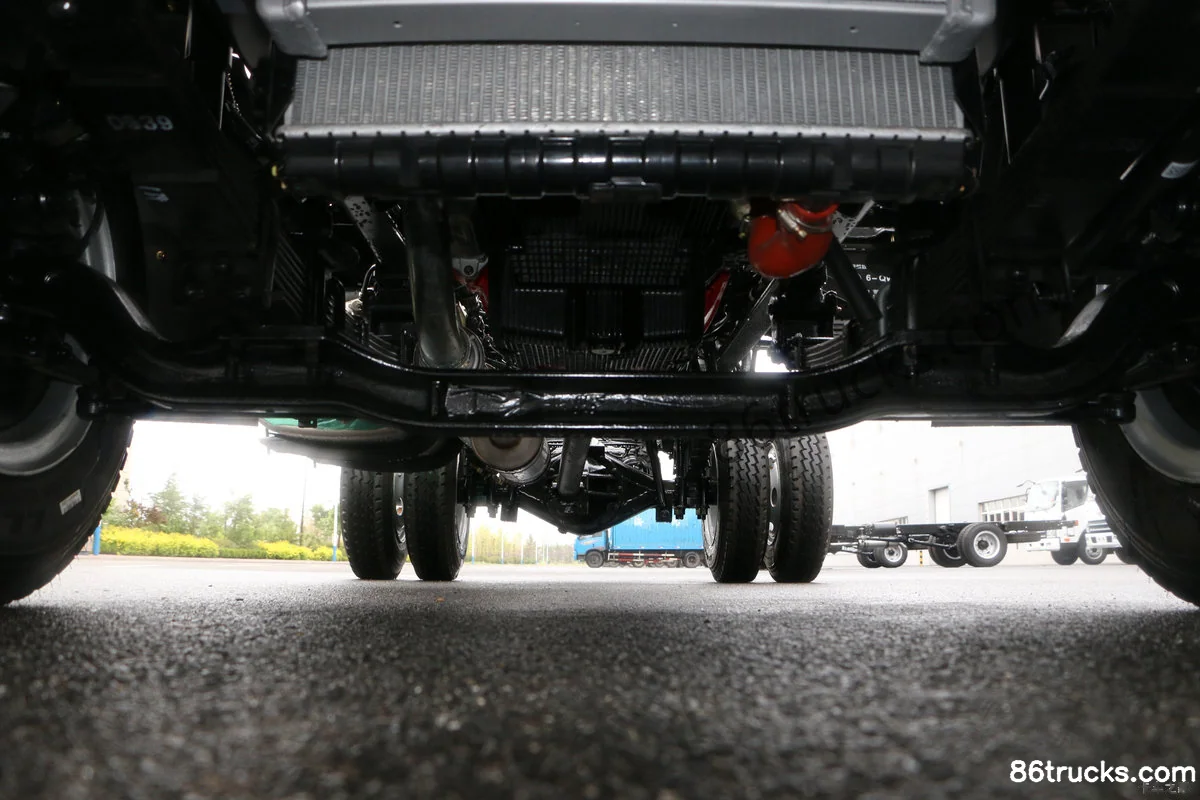

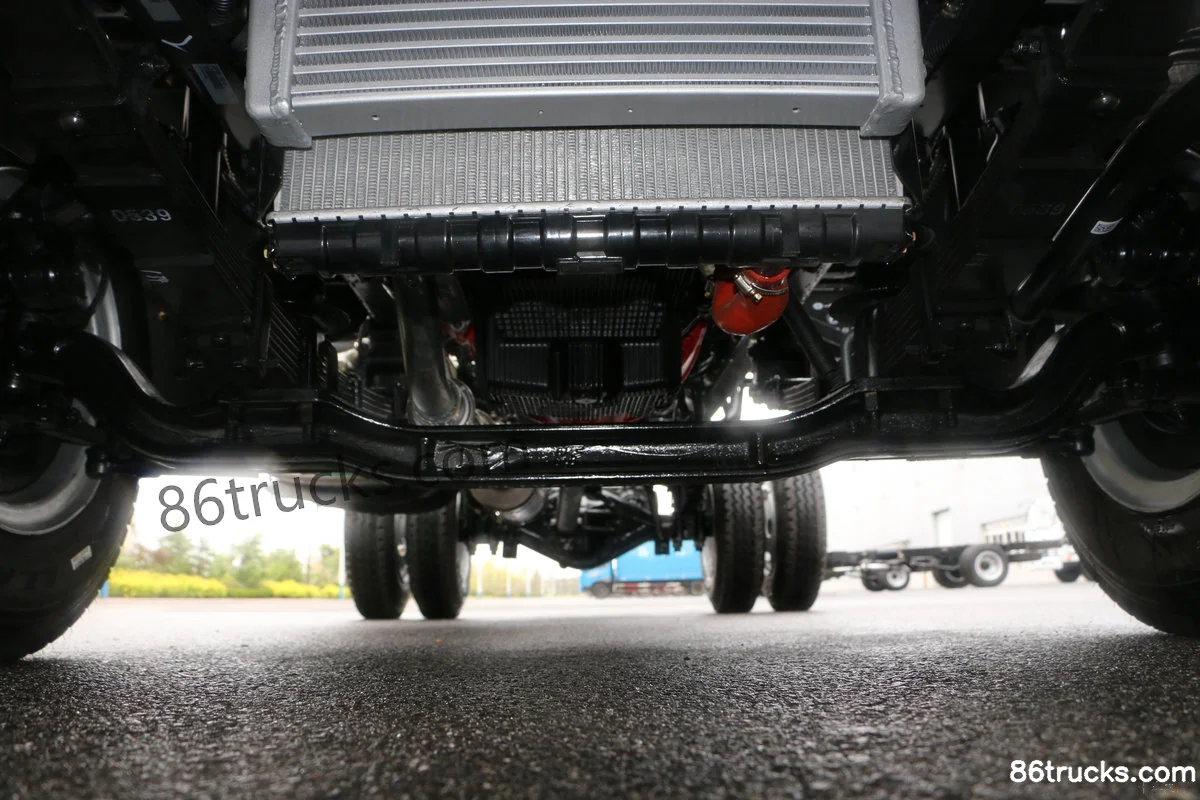

FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis (1) | 86Trucks FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis (2) | 86Trucks FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis, and what does it include?

FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis export reference is about From $15,806; MSRP is ¥11.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis?

Key specs of FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis: Drive: 4x2; Horsepower: 141 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis suited for?

FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis differ from other variants in the same series?

FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 141 hp 4X2(6 wheels) 4.21m single-row stake truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
