Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels)

Export reference
From $30,250
MSRP ¥21.78M CNY
Rated payload:: 1.515ton
Wheelbase:: 3360mm
Cargo box type:: stake body
Model code (announced):: FD1040W17SHEV-1
Type:: Cargo Trucks
Box length class:: 4.2m
Drive 4X2 (6 wheels)
Battery Brand: Lishen
Horsepower 122
Curb Weight: 2.85ton

Overview

The Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels) is a Light Truck featuring Lishen battery/range, 4X2 (6 wheels) drive, 1.515t payload and 4.15m cargo length. On the powertrain side, it comes with 122 hp.

122 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD1040W17SHEV-1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.37m
Curb Weight: 2.85ton
Rated payload: 1.515ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Remarks: electric range 100km, combined range 700km
Energy Type: Hybrid
electric motor
Fuel Type: Hybrid
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Battery Brand: Lishen
Battery type: Lithium Iron Phosphate Battery
Slow charge time: 8h
Engine parameters
Engine Model: Sokon PowerH15RT
Number of cylinders: 4cylinder
Displacement: 1.5L
Max output power: 90kW
Max hp: 122Horsepower
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 0.5m
Cab parameters
Cab: Single Row
Cab width: 1830mm
Cab tilting: Manual
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1840kg
rear axle allowable load: 2655kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

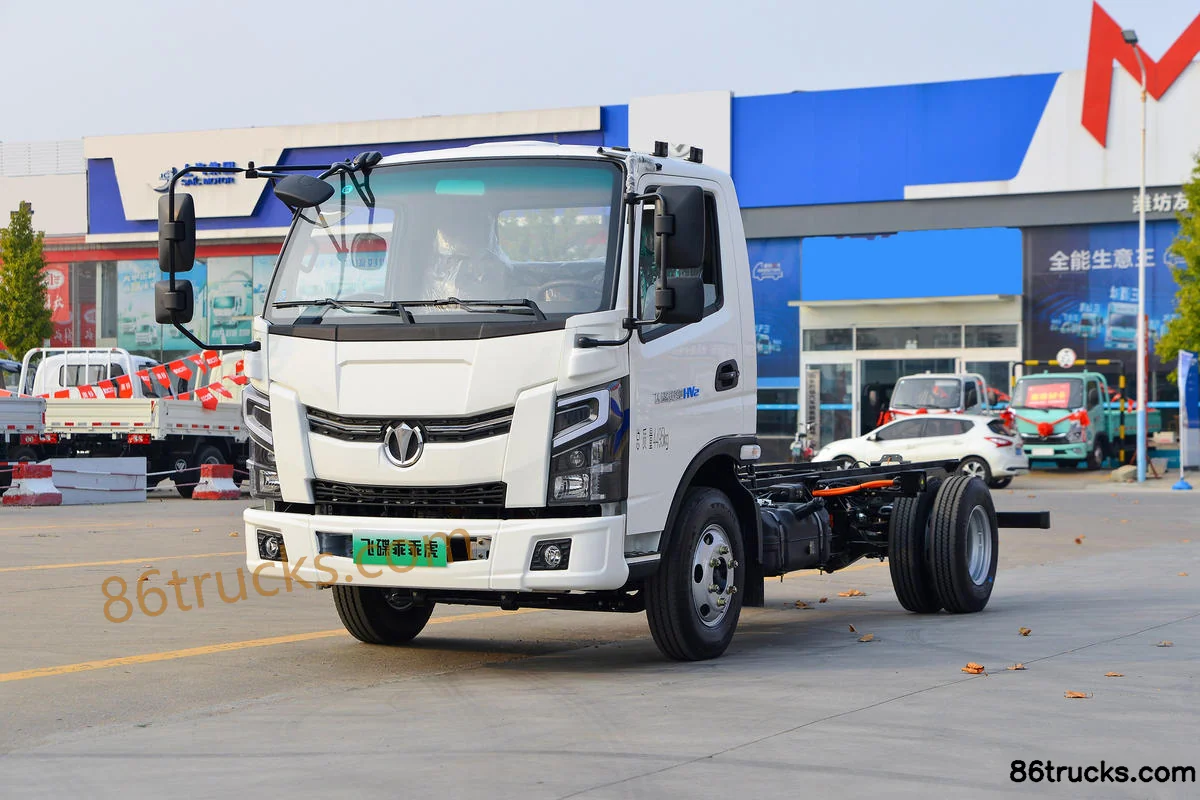

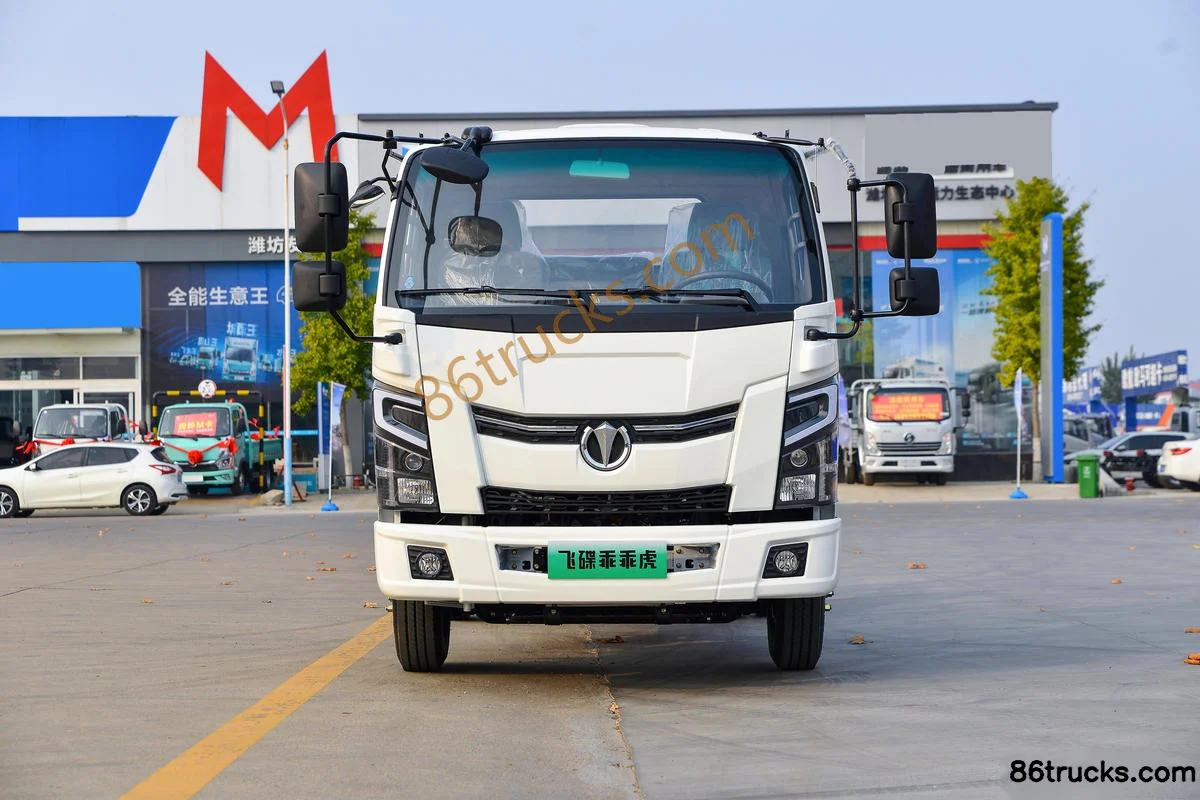

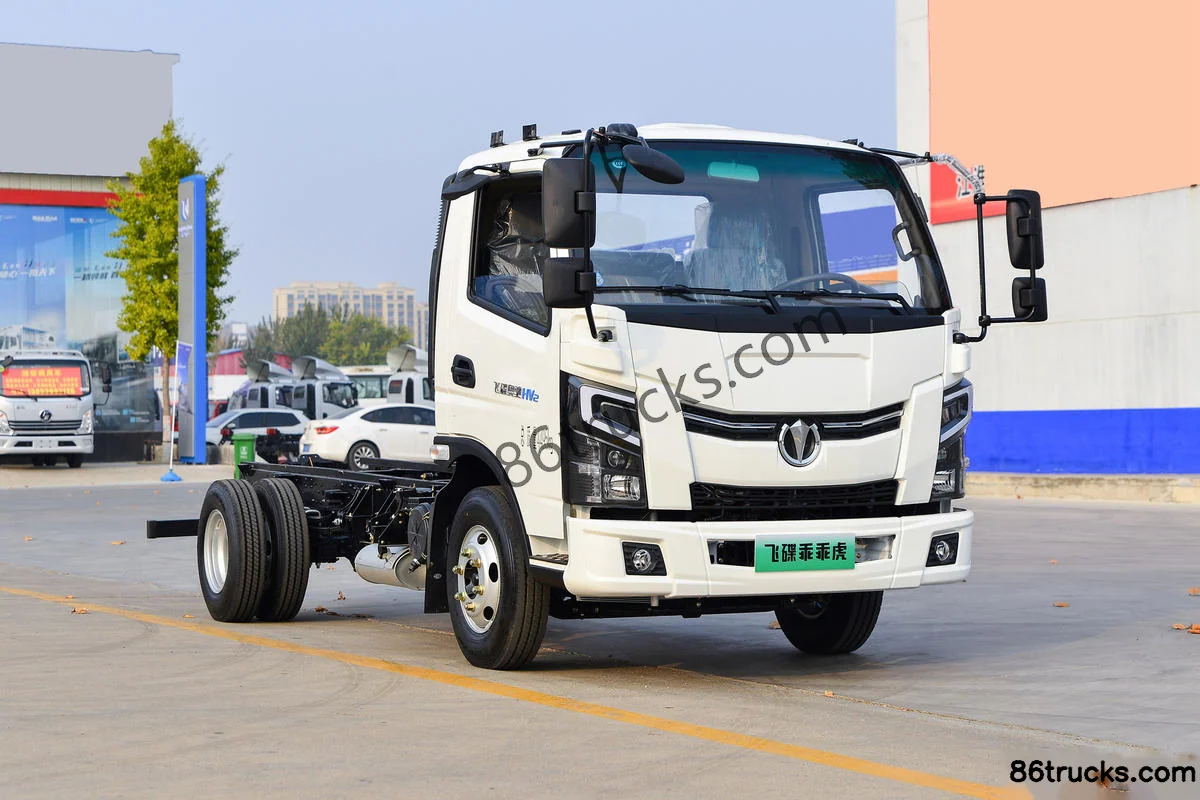

Exterior3

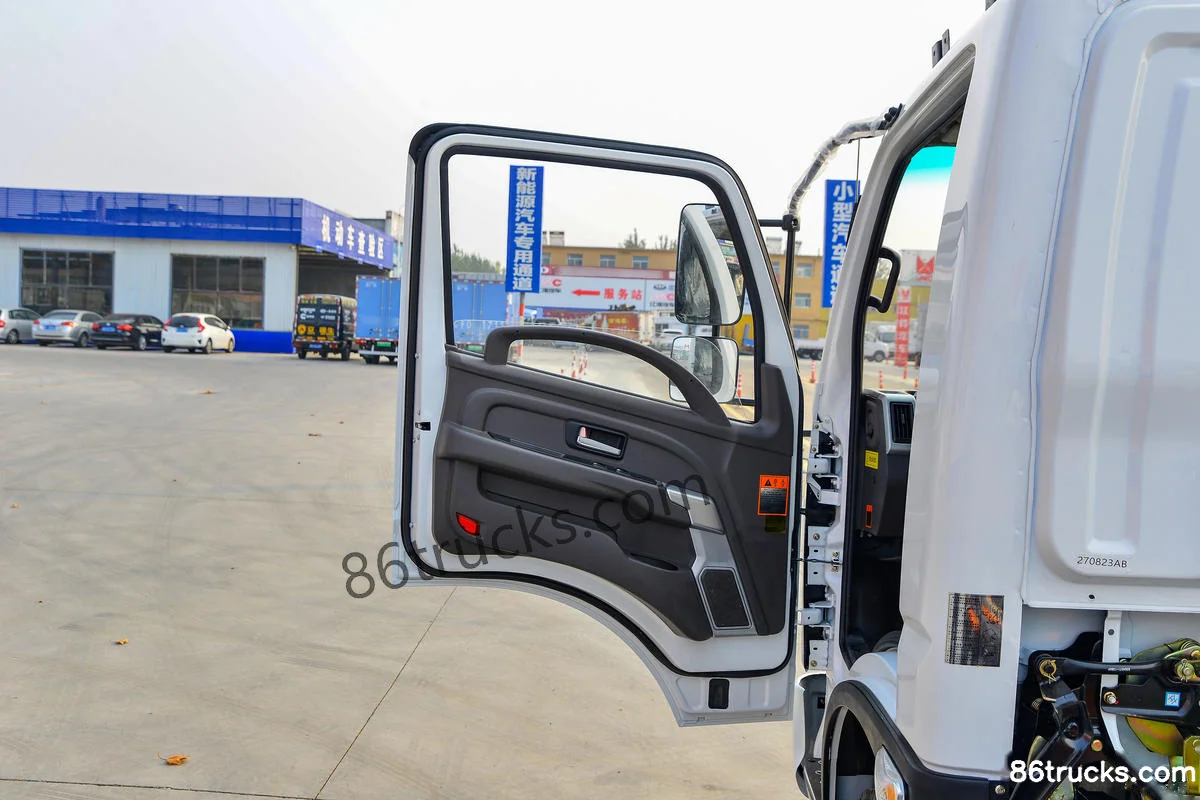

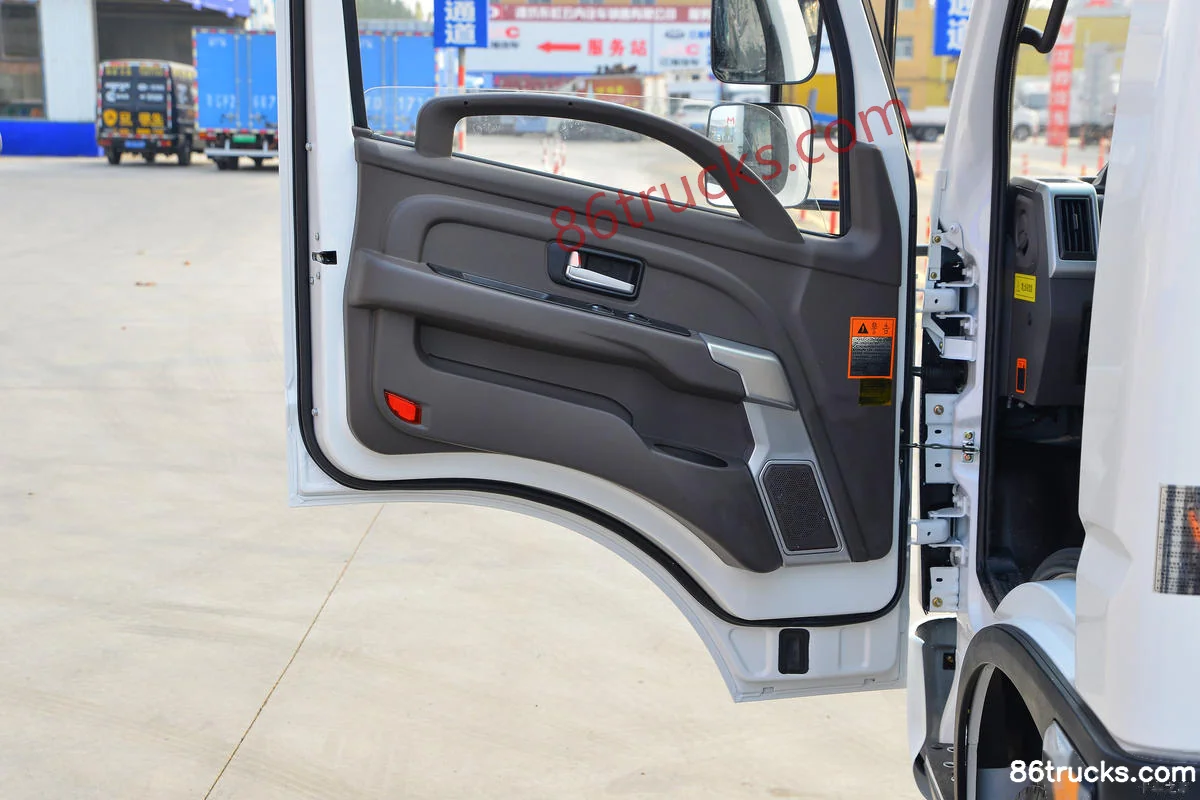

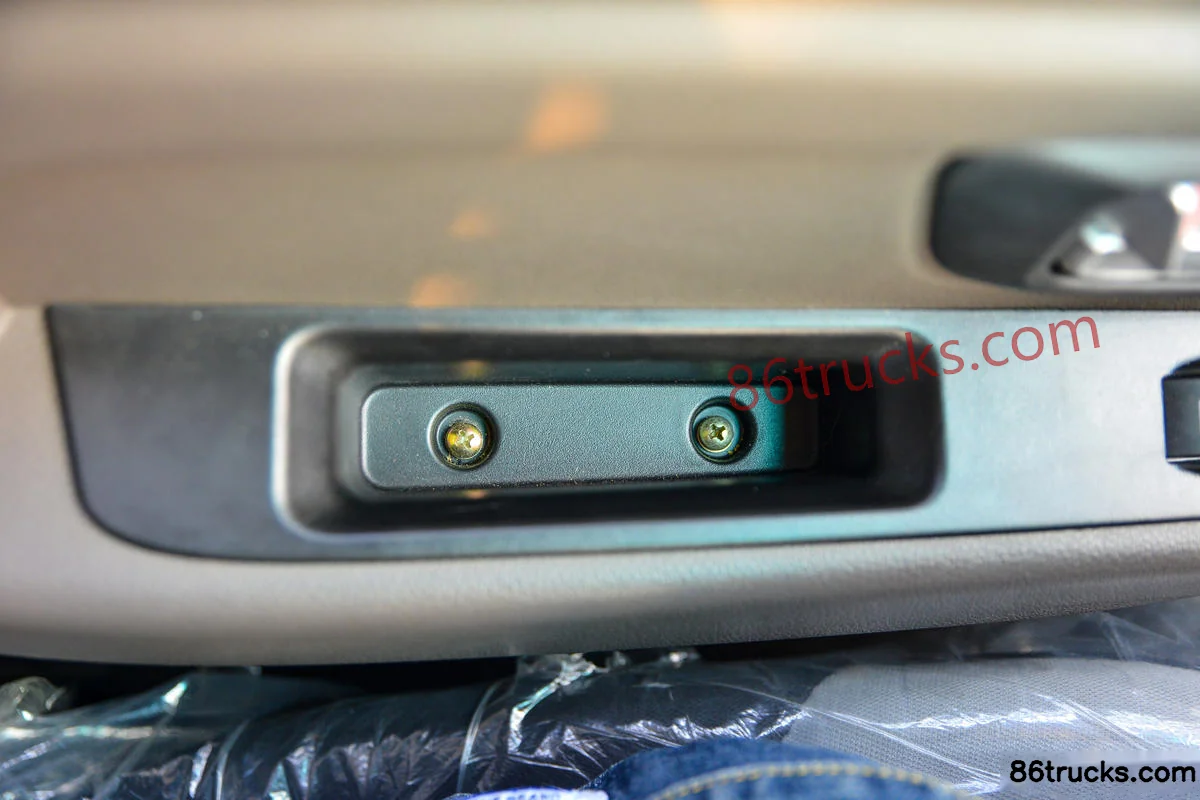

Interior3

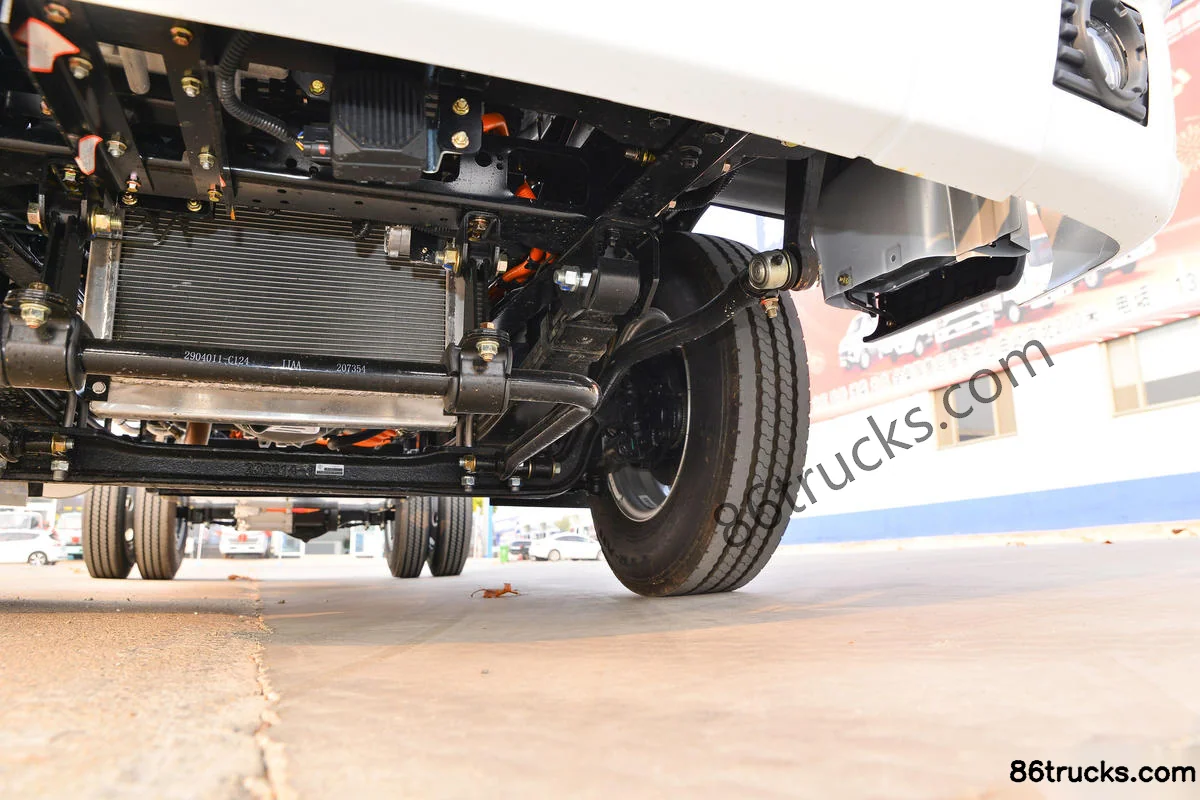

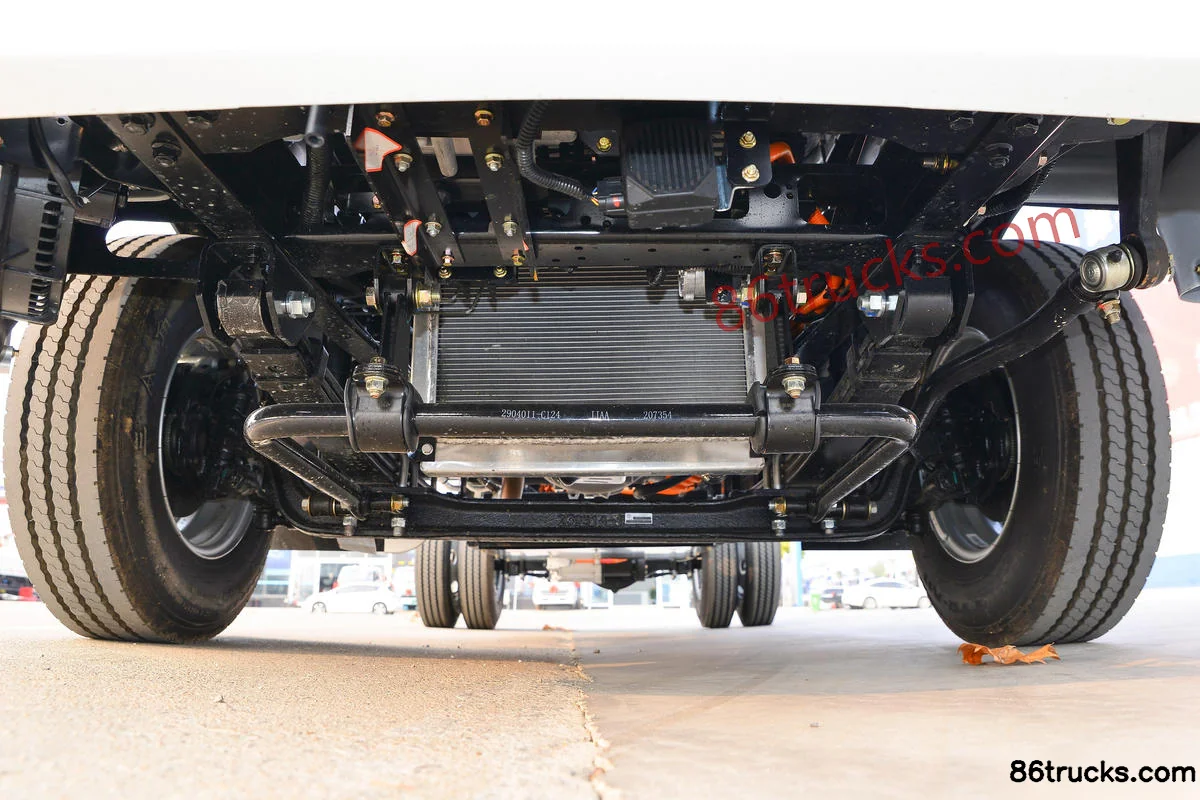

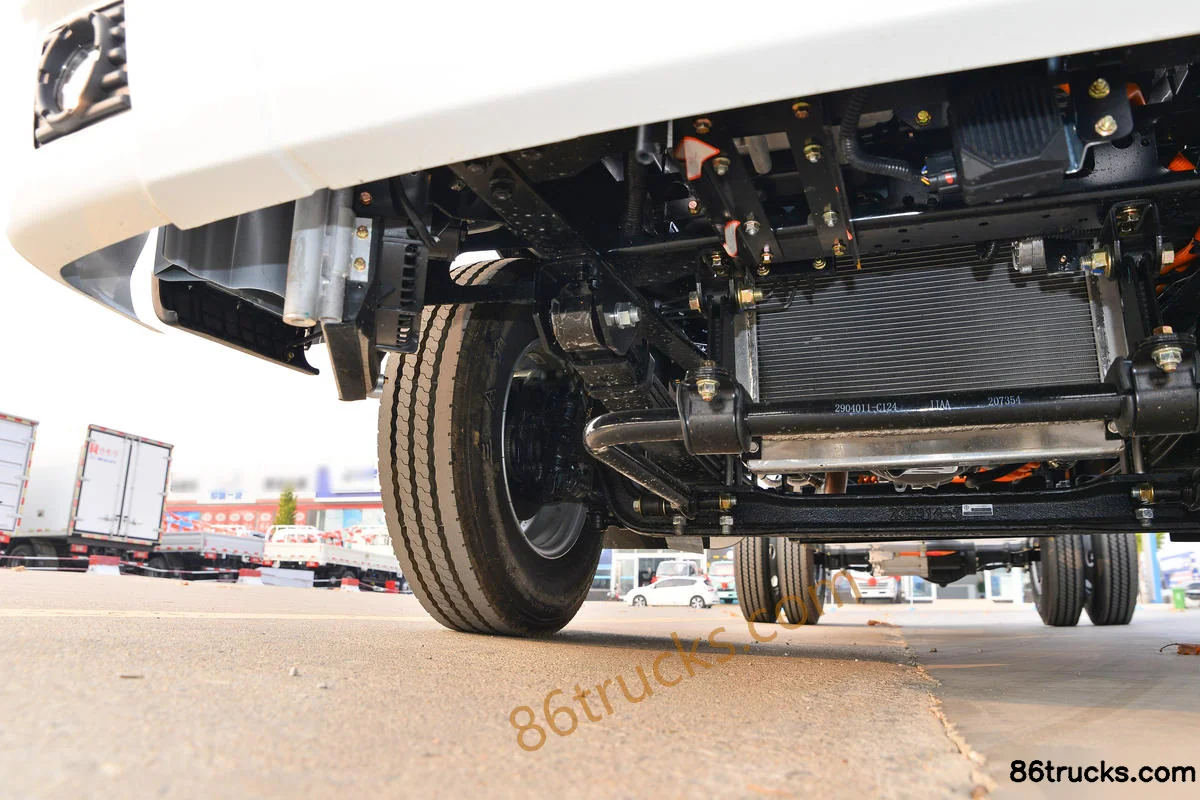

Chassis3

9 photos

FAQ

What is the export price of Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels), and what does it include?

Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels) export reference is about From $30,250; MSRP is ¥21.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels)?

Key specs of Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 122 hp. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels) suited for?

Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels) differ from other variants in the same series?

Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels) belongs to FeidiHV5 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi HV5 4.15m Single Row Plug-in Extended Range Hybrid Panel Light Truck 41.6kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
