JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck

Export reference
From $14,139
MSRP ¥10.18M CNY
Horsepower: 152
Emission: China V
Fuel: Diesel
Engine: Ankang 152
Transmission: Xingrui
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck is a Light Truck featuring 3.905m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Ankang 152 engine, 152 hp, 4X2 (6 wheels) drive and China V emissions.

China V 152 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1045P92K3C2V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.9m
engine: JACHFC4DE1-1D
transmission: Xingrui ML642A
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.35m
Front track width: 1580mm
rear track: 1395mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 16°
market segment: Building materials, agricultural products
Front/rear suspension: 1.075/1.612m
Energy Type: Diesel
Engine parameters
Engine Brand: Anhui Cummins
Engine Model: Anhui CumminsHFC4DE1-1D
Engine info: Ankang 152
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.746L
Emission standard: China V
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 355N·m
Max torque speed: 1800-2600rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, high-pressure common rail, turbocharged, SCR aftertreatment
Transmission Parameters
Transmission Model: Xingrui ML642A
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.905m
Cargo box width: 2.08m
Cargo box height: 0.4m
Cargo box material: Steel
*Cargo box interior width: 2.0799999237061
Cab parameters
Cab: Shuailing E Mid-Body
Cab width: 1900mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2875kg
Leaf spring count: 3/9+7,5/9+7,5/5+6
Tire
Tire Size: 6.50R16LT 10PR,7.00R16LT 8PR,6.50R16LT 8PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
lighting configuration
daytime running lights:
LED taillight:

Photos

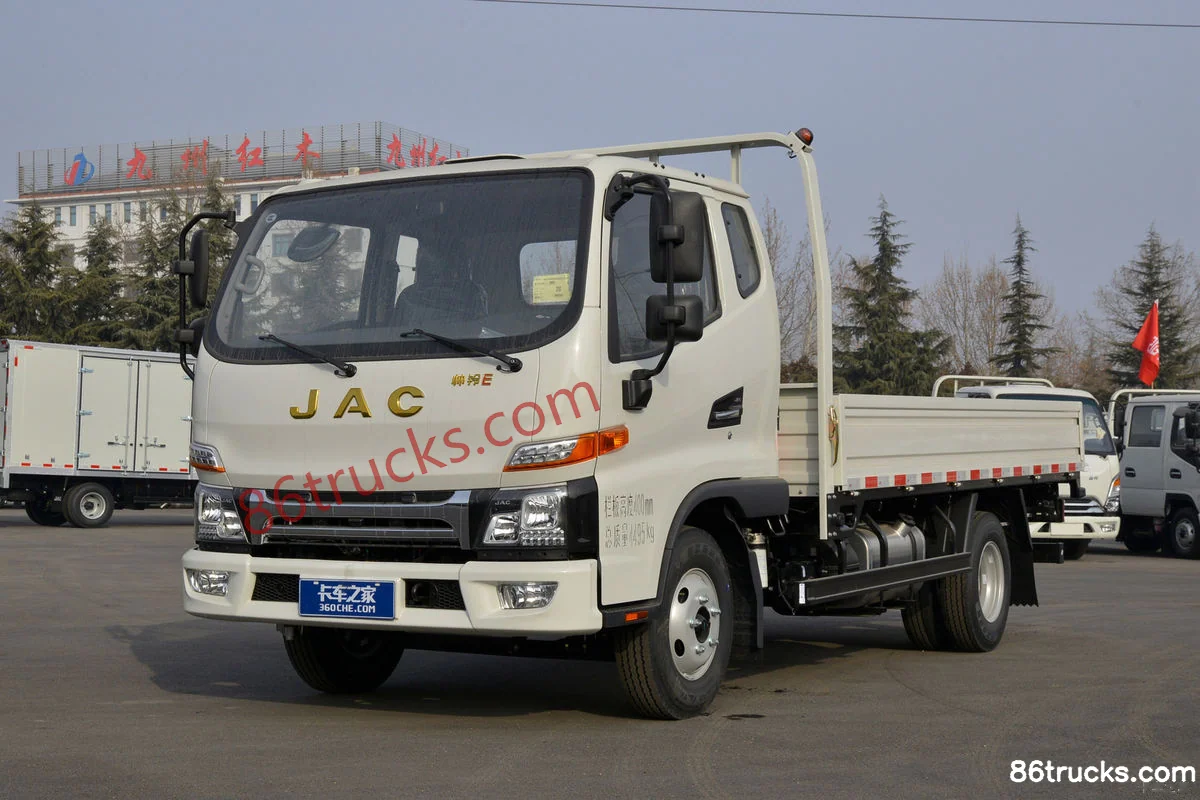

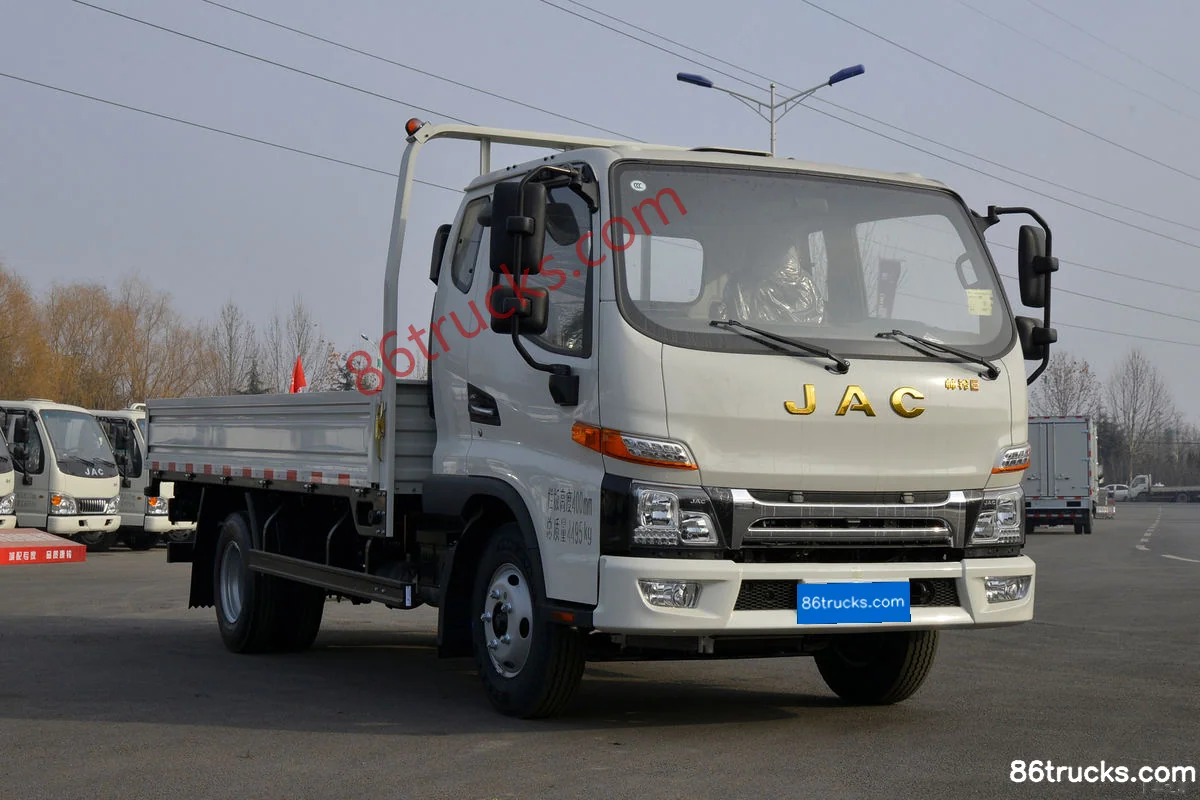

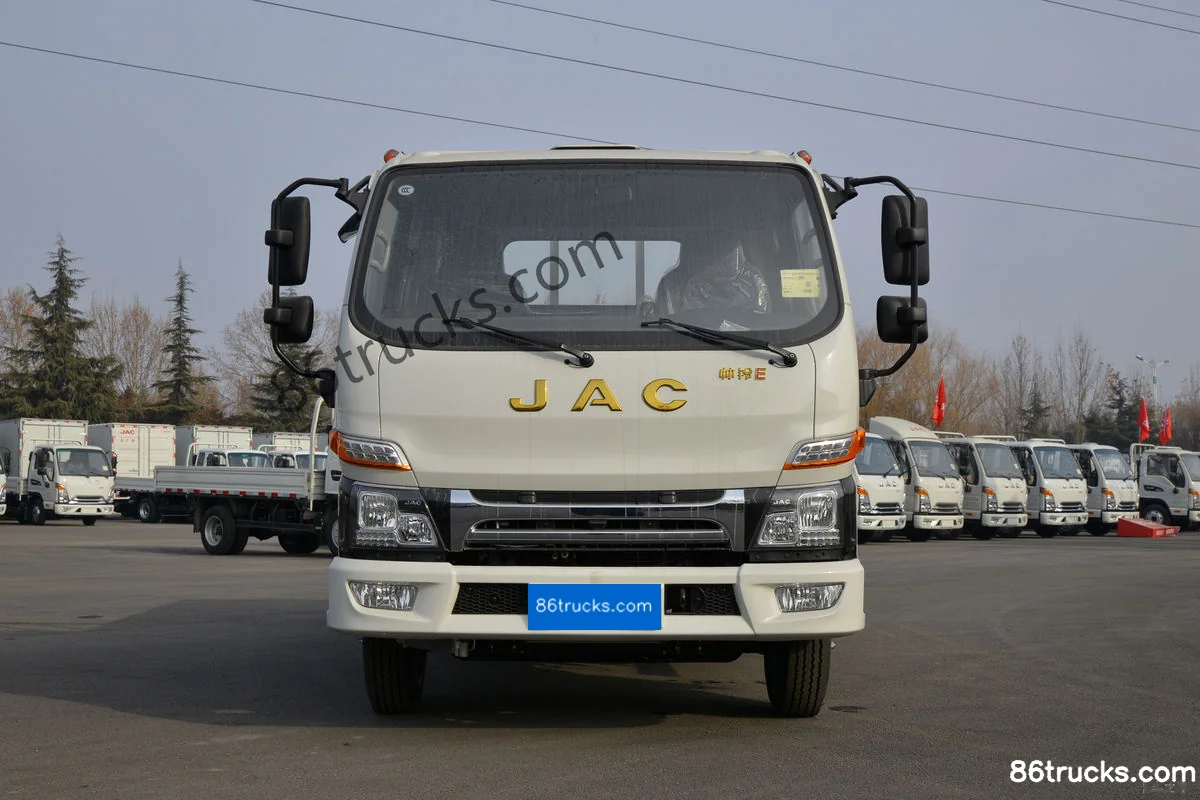

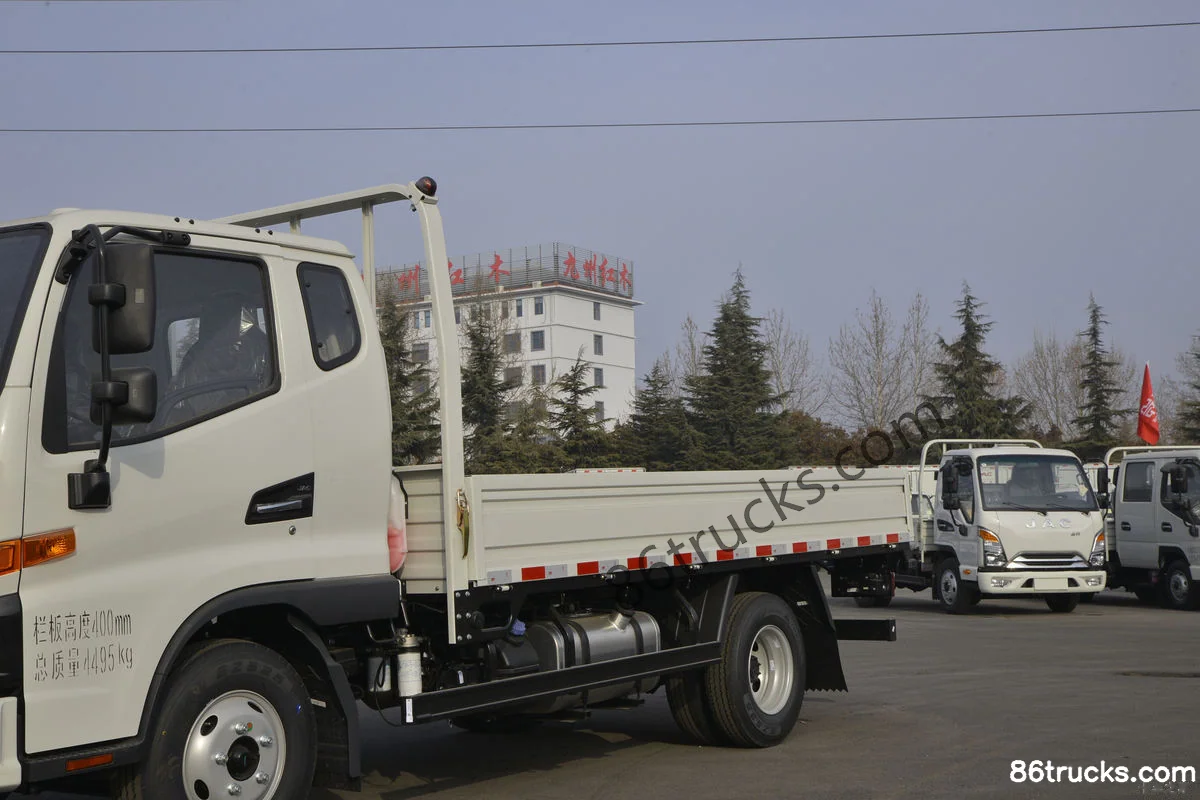

Exterior3

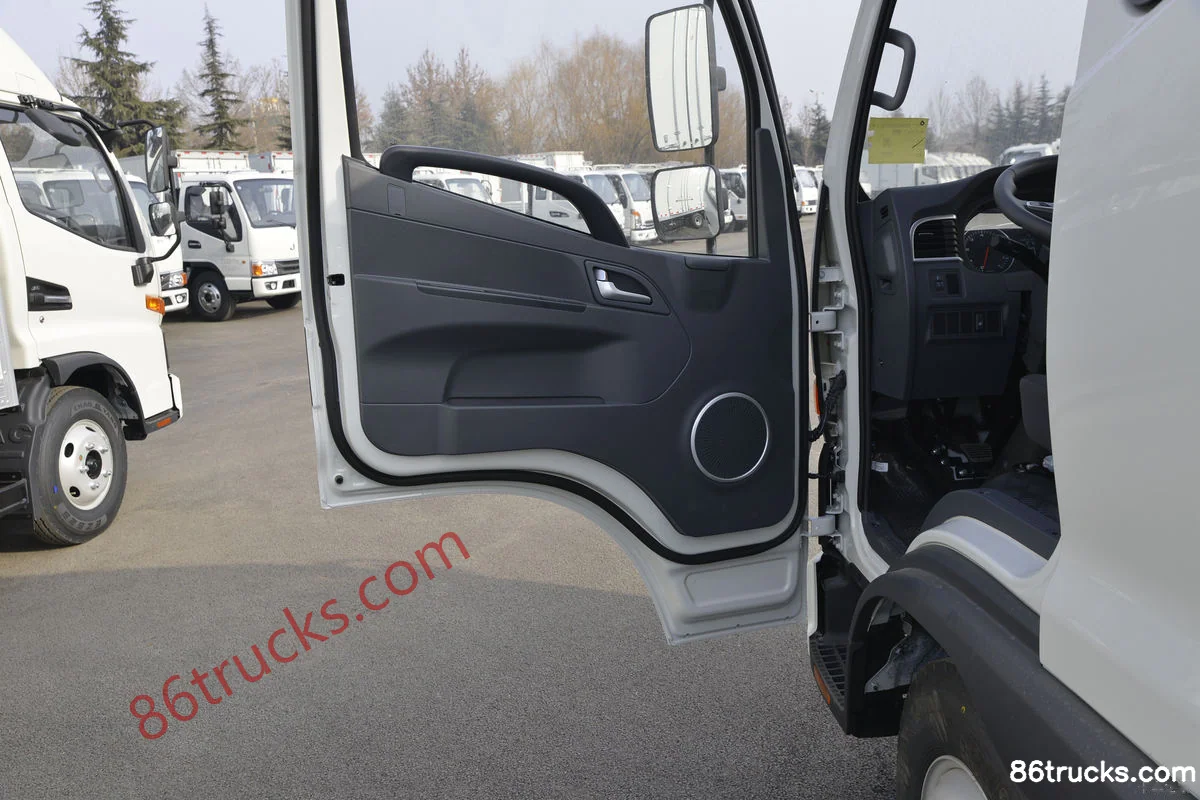

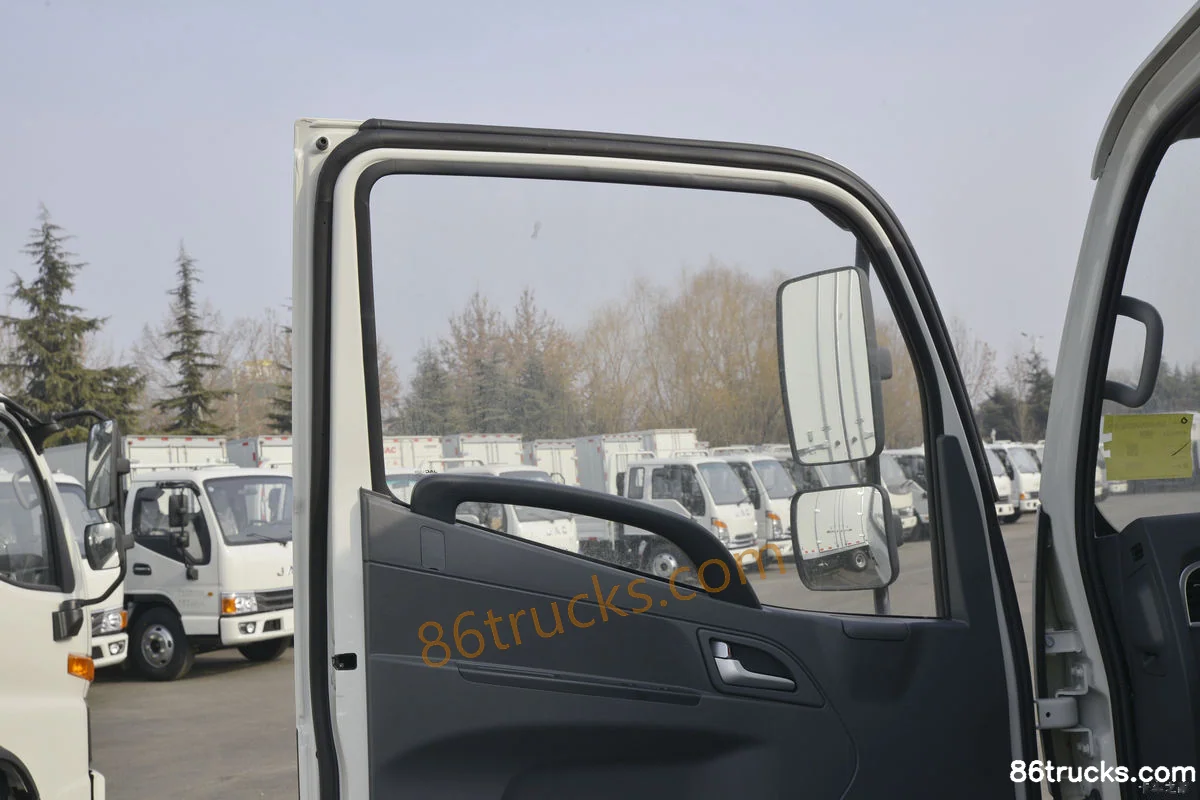

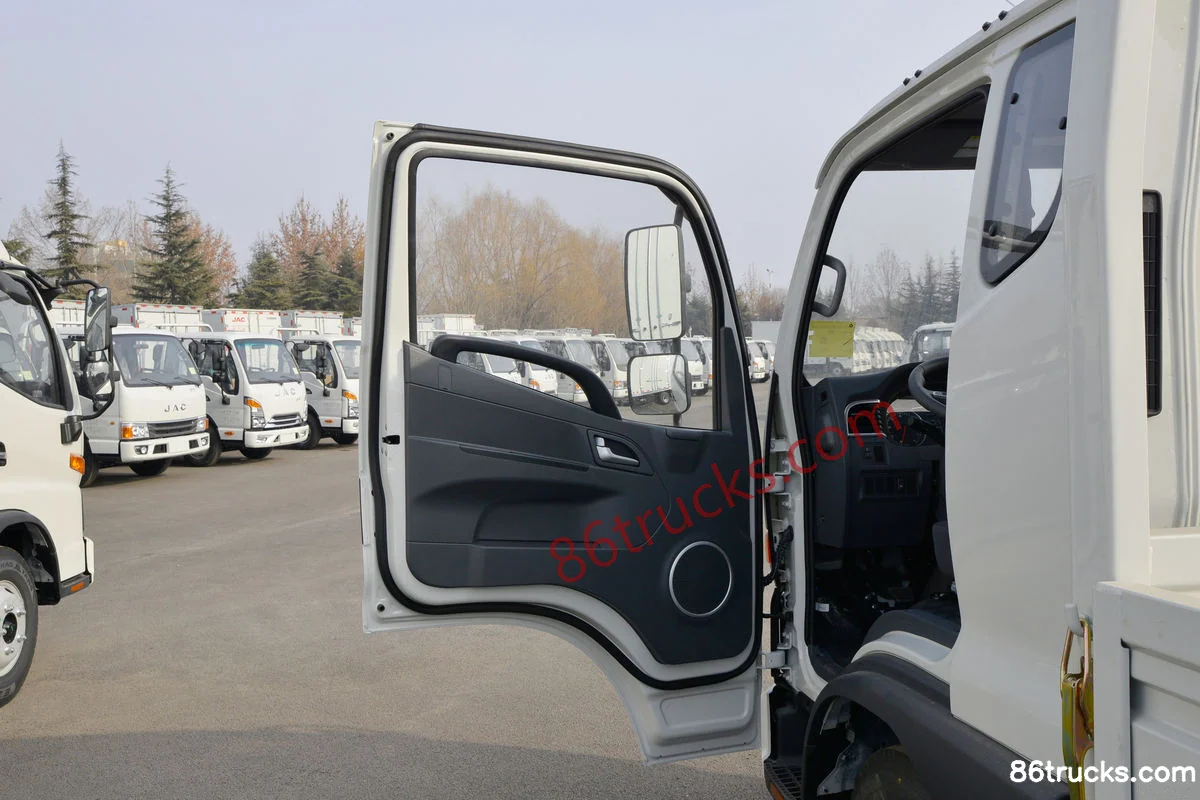

Cab3

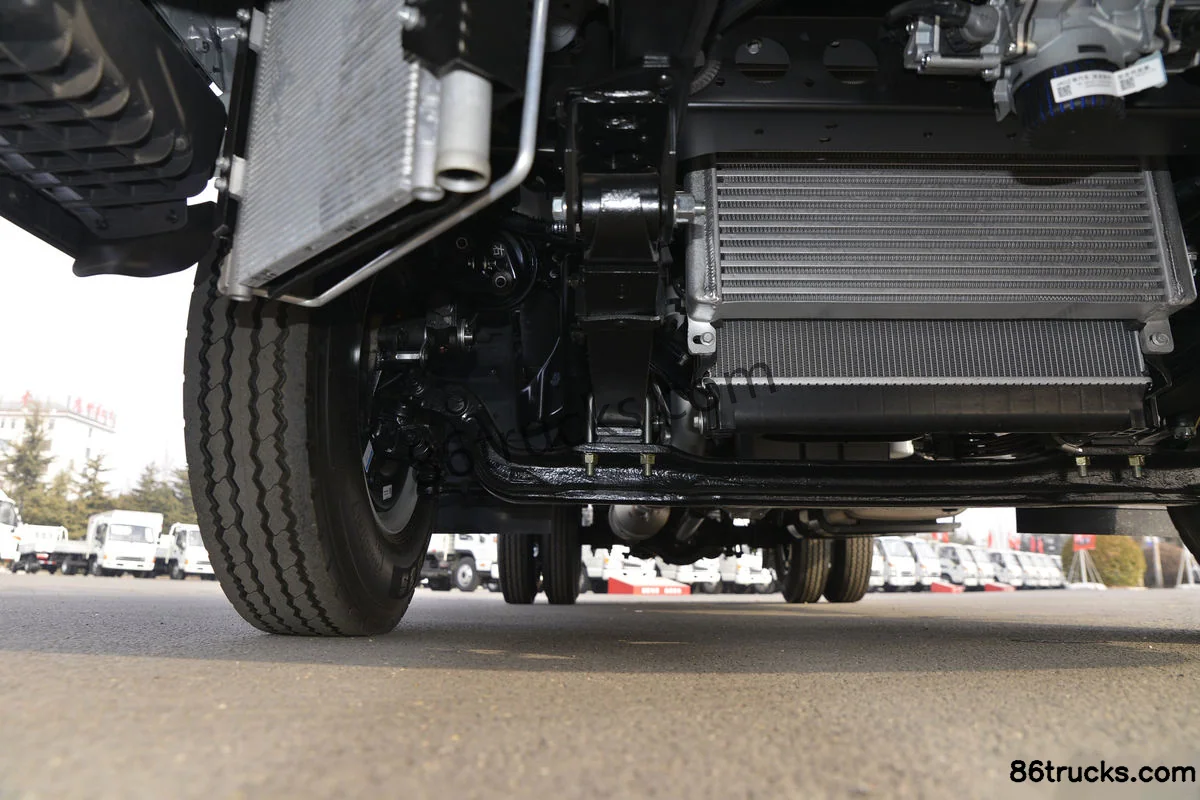

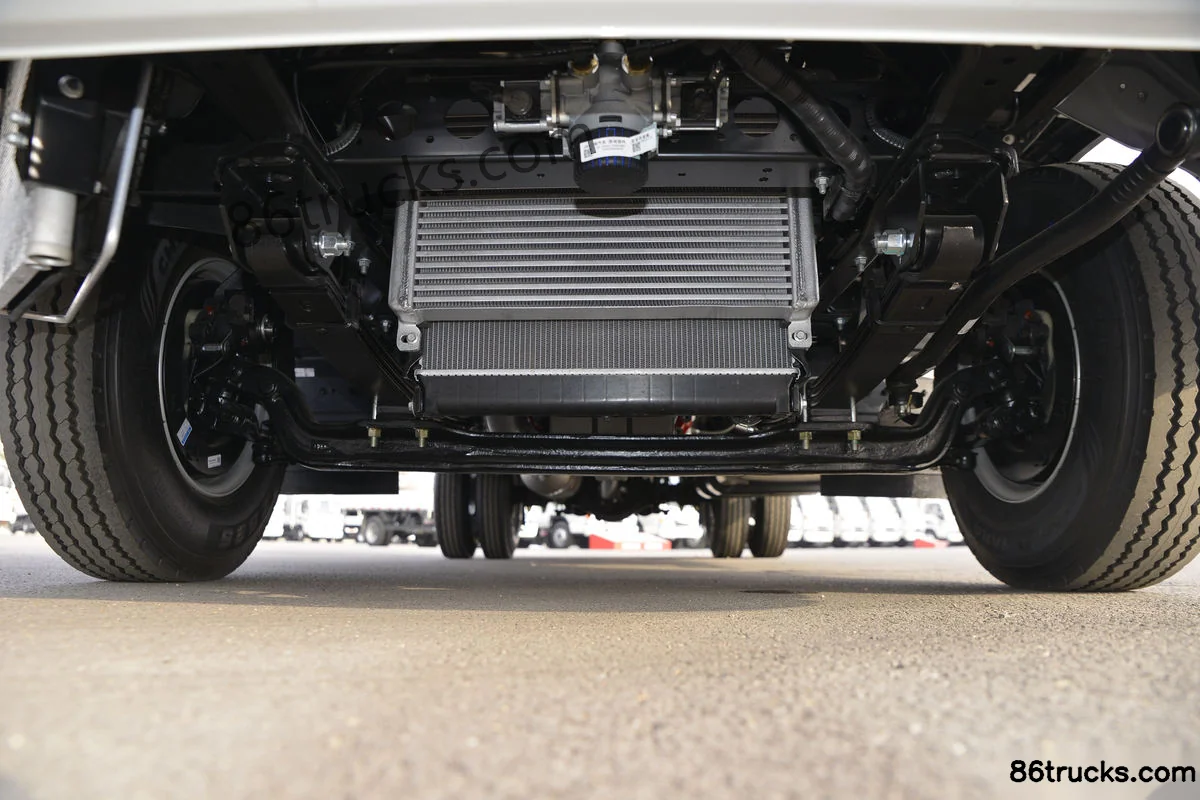

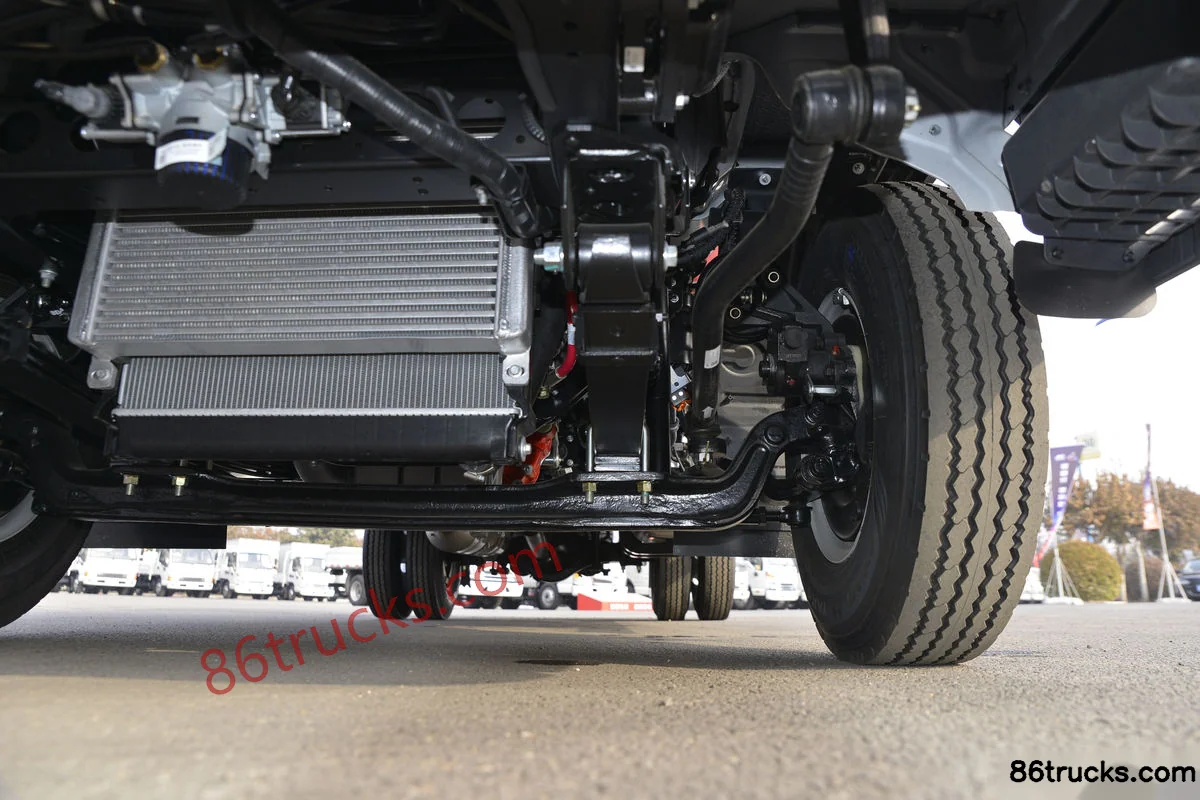

Chassis3

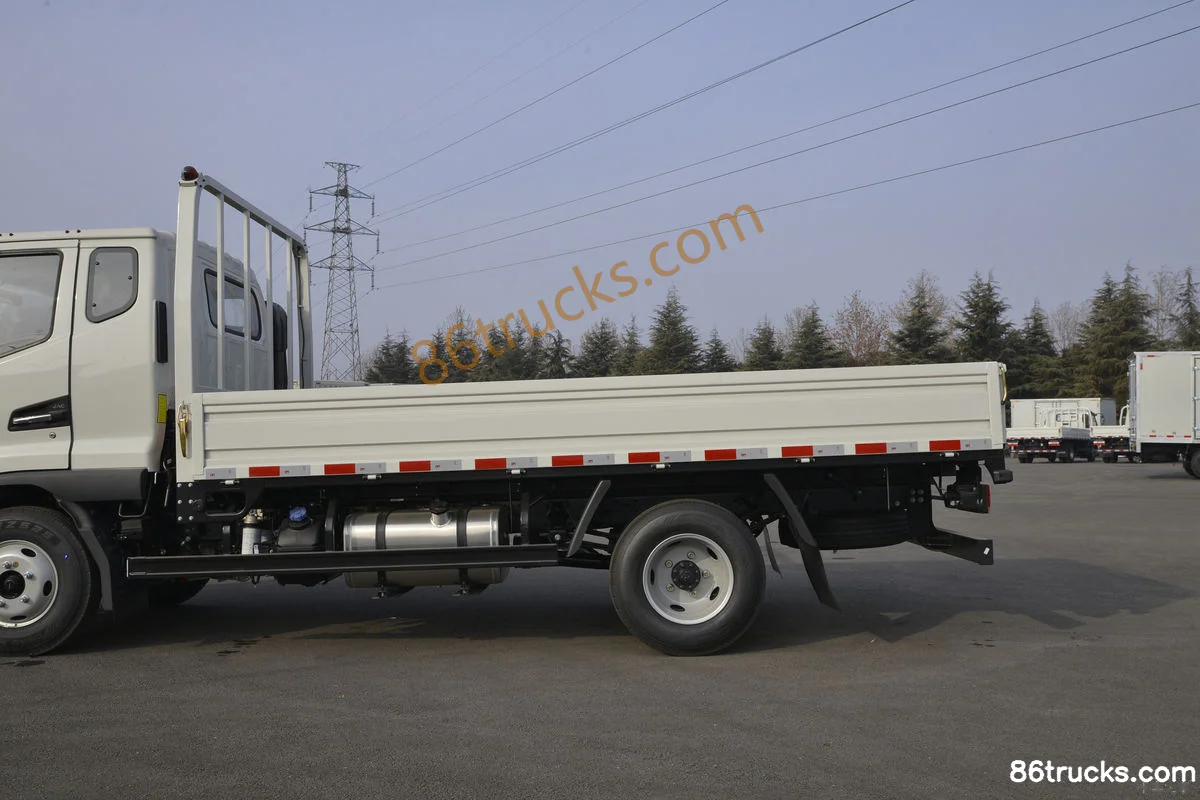

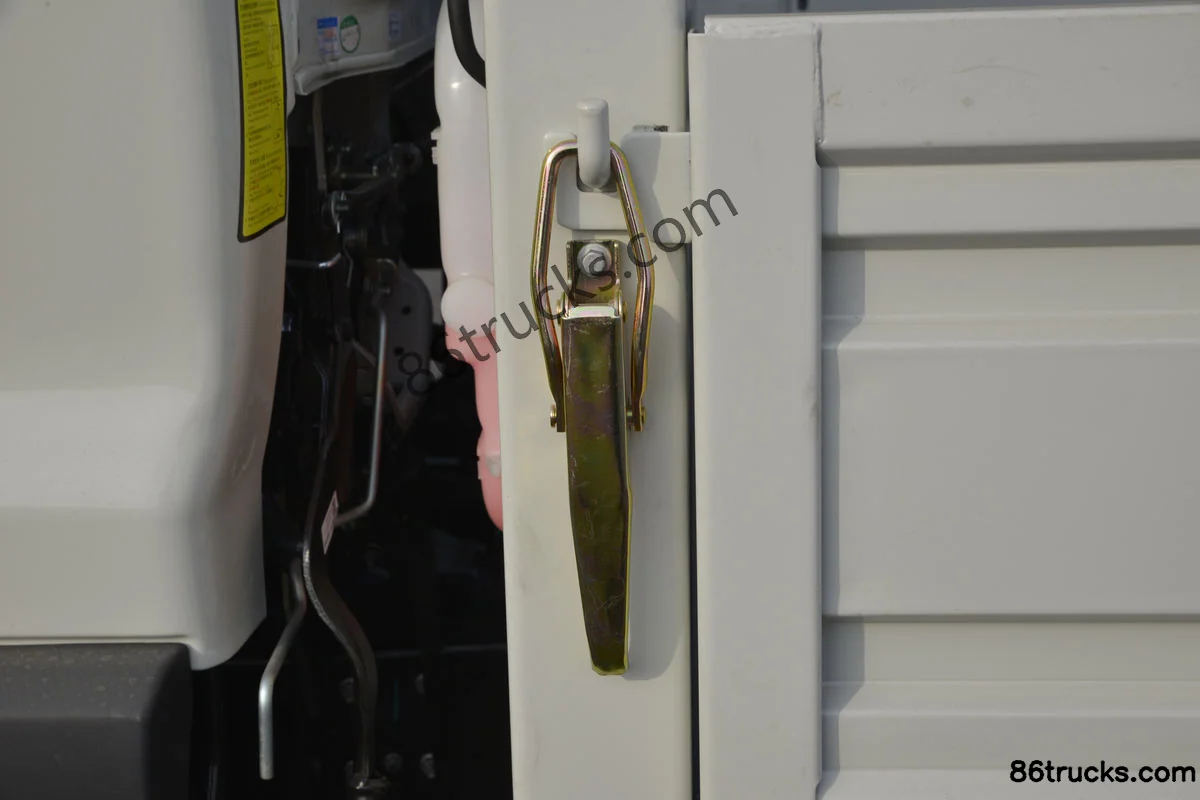

Body3

12 photos

FAQ

What is the export price of JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck, and what does it include?

JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck export reference is about From $14,139; MSRP is ¥10.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck?

Key specs of JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck: Drive: 4x2; Horsepower: 152 hp; Emission: China V; Fuel: Diesel; Engine: Ankang 152; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck suited for?

JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck differ from other variants in the same series?

JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck belongs to JAC E Zhongti (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing E Medium Body 152 hp 4X2(6 wheels) 3.905m semi-cab flatbed truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
