FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 3.2ton
Wheelbase:: 3300mm
Tire Size:: 7.50R16LT
Cab dimensions:: 5.998×2.31×3.38m
FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck exterior
View more photos (12)
Rated payload: 1.1ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.13×2.2×2.1m
Horsepower 154

Overview

The FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck is a Refrigerated Truck featuring 4.13×2.2×2.1m cargo body, 1.1t payload, Single Row cab and 3300mm wheelbase. On the powertrain side, it comes with 154 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 154 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 5.998×2.31×3.38m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Qingdao, Shandong
Wheelbase: 3300mm
Front track width: 1640mm
rear track: 1540mm
Curb Weight: 3.2ton
Rated payload: 1.1ton
Max. speed: 110km/h
Front/rear suspension: 1.15/1.548m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISF3.8s5154
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Cargo box parameters
Cargo box dimensions: 4.13×2.2×2.1m
Cargo box width: 2.2m
Cargo box height: 2.1m
Body Parameters
Vehicle certification code: CA5044XLCP40K2L1E5A84
Body Brand: FAW Jiefang

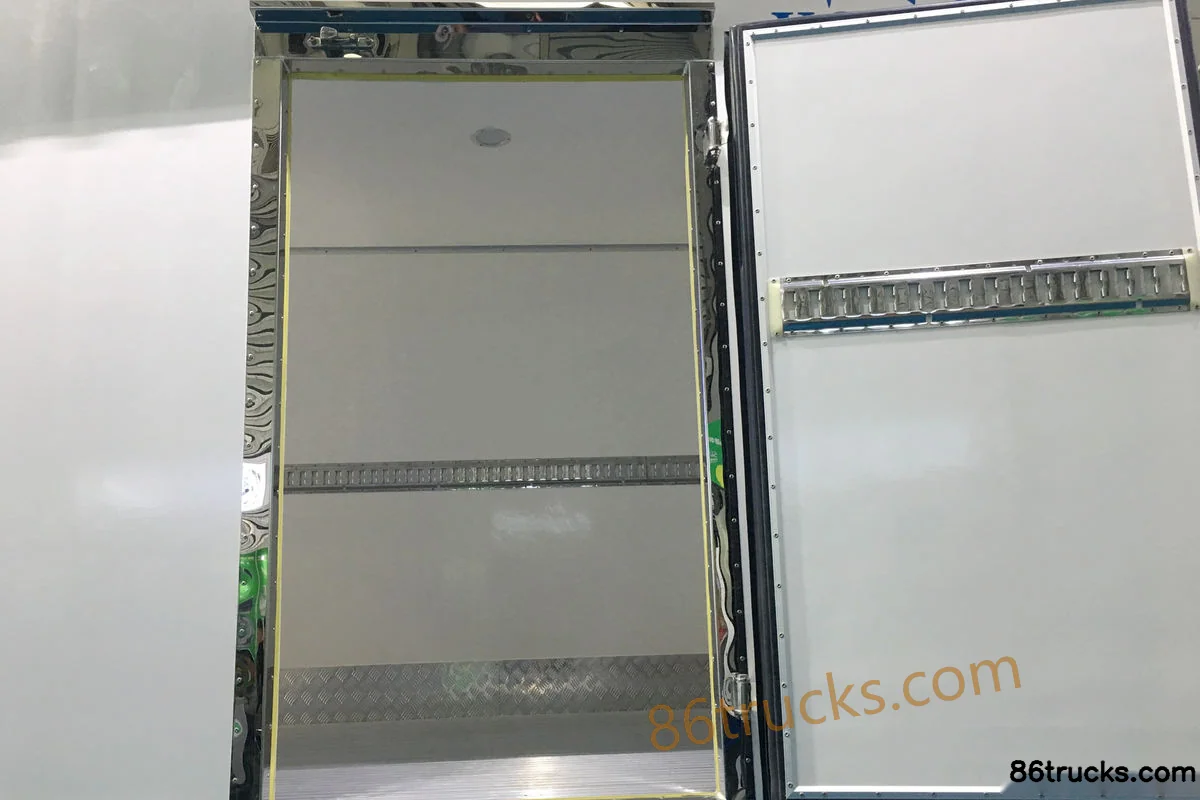

Others: Aluminum rails, single side door, cargo retaining groove, mirror-finished stainless steel door frame, LED interior ceiling light, hidden rivet aluminum edging, thermal insulation strip
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: J6F
Chassis Model: CA1044P40K2L1BE5A84
rear axle description: 325H rear axle
Axle ratio: 3.9
Leaf spring count: 7/10+3,3/3+4,3/10+4,3/4+4,7/10+4
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8-speed
Cab parameters
Cab: Single Row
Tire
Tire Size: 7.50R16LT
Number of tires: 6pcs

Photos

Exterior3

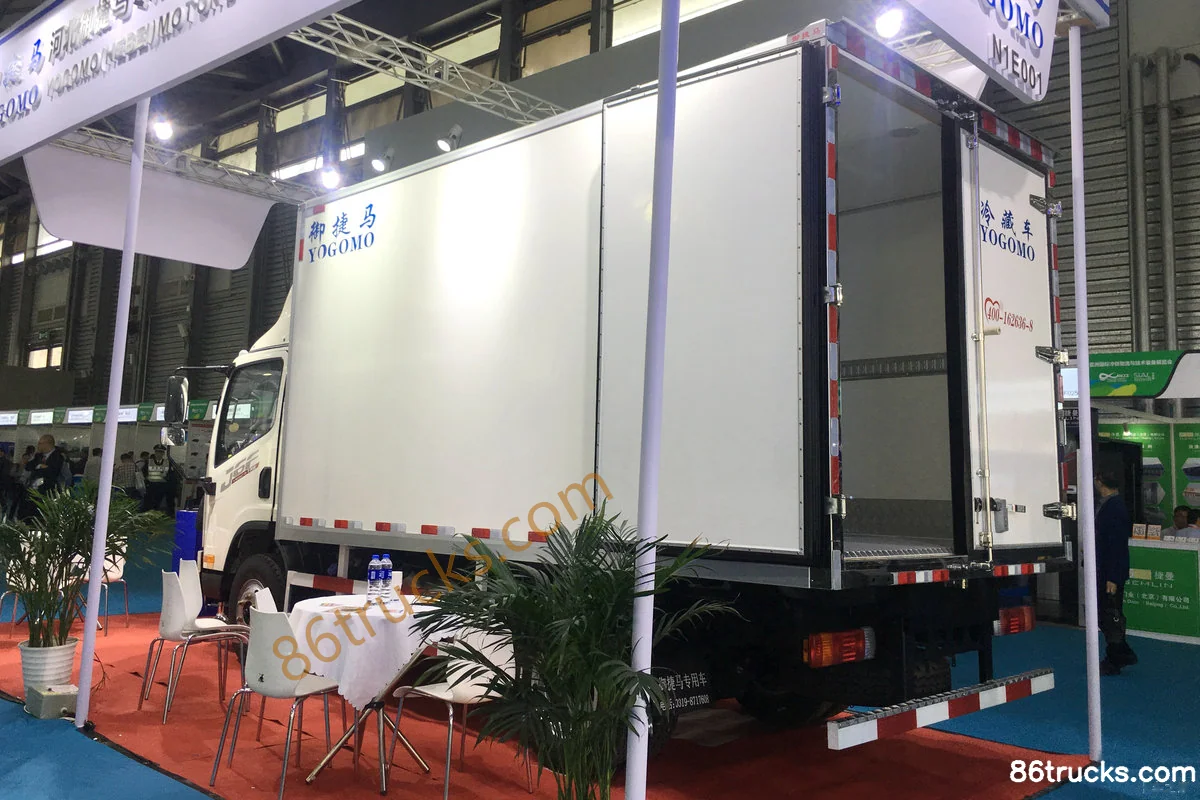

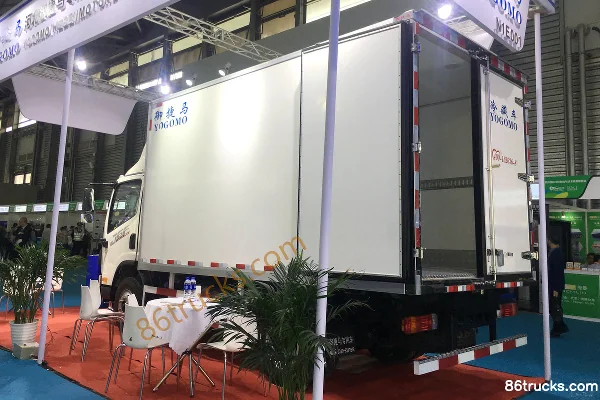

FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Exterior (1) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Exterior (2) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Exterior (3) | 86Trucks

Cab3

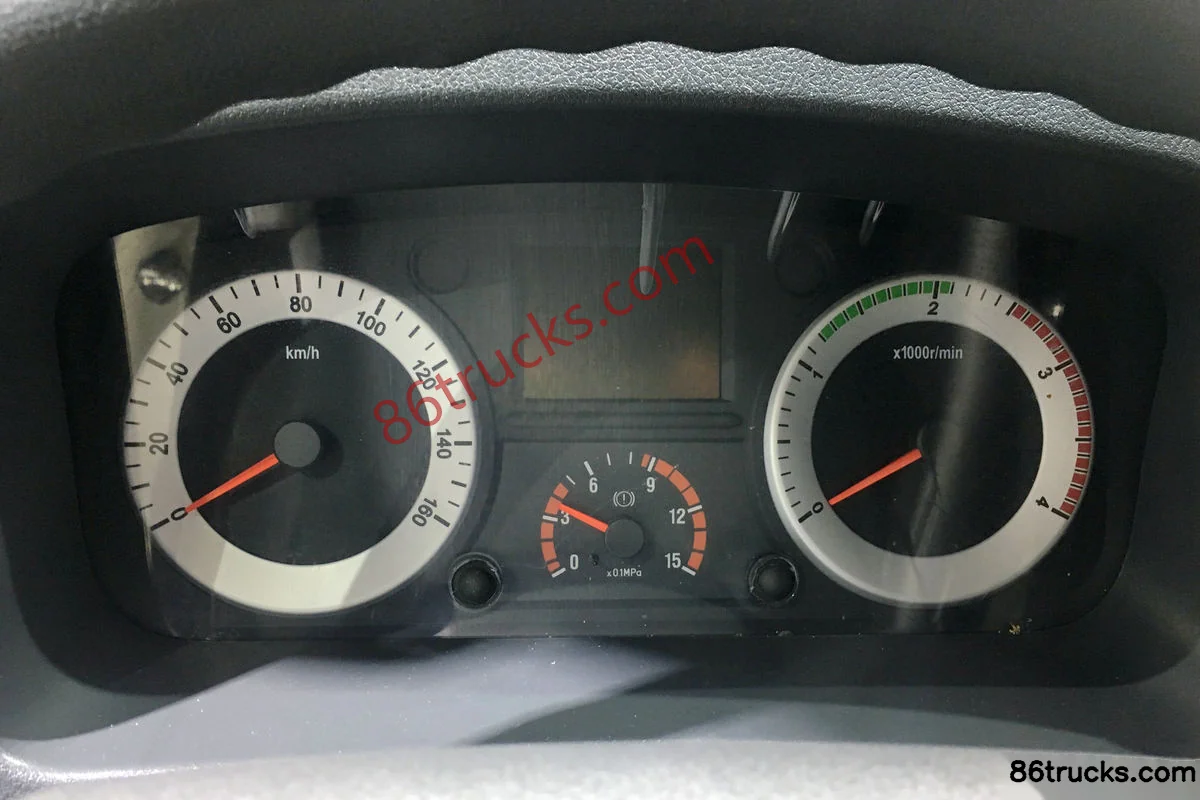

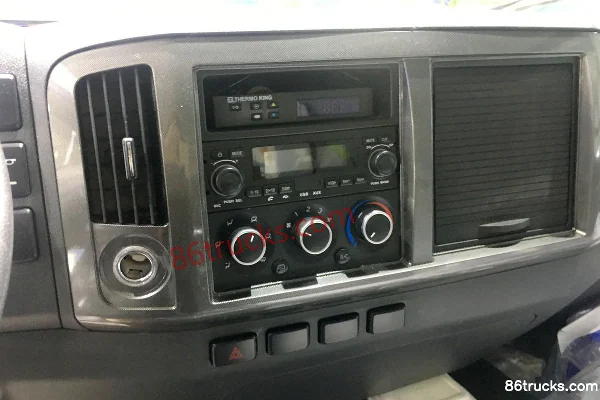

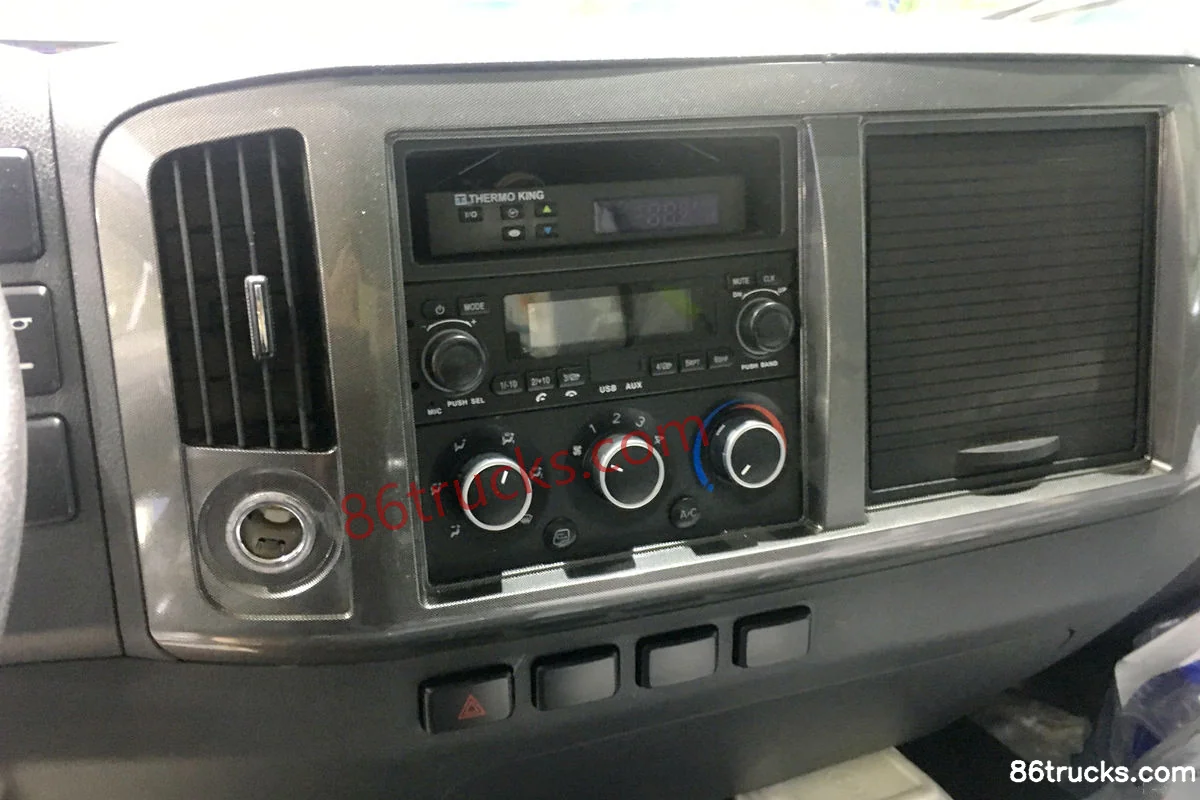

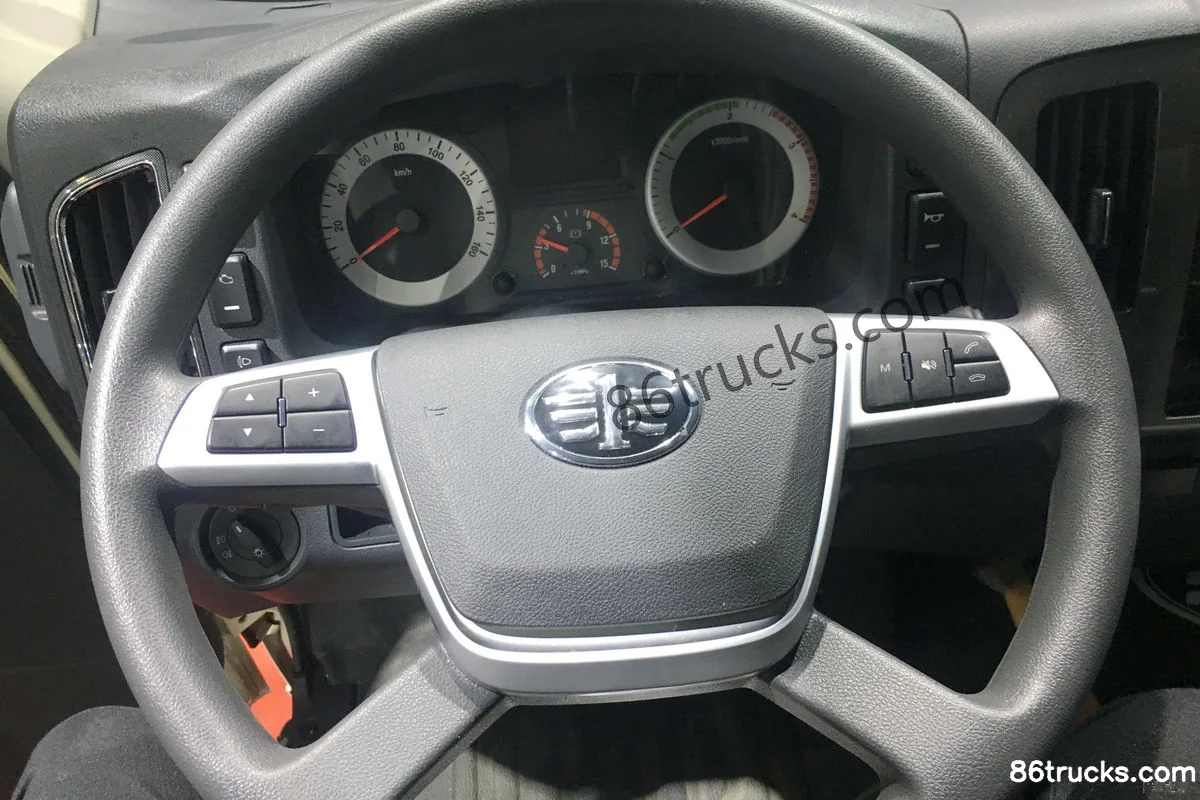

FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Cab (1) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Cab (2) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Cab (3) | 86Trucks

Chassis3

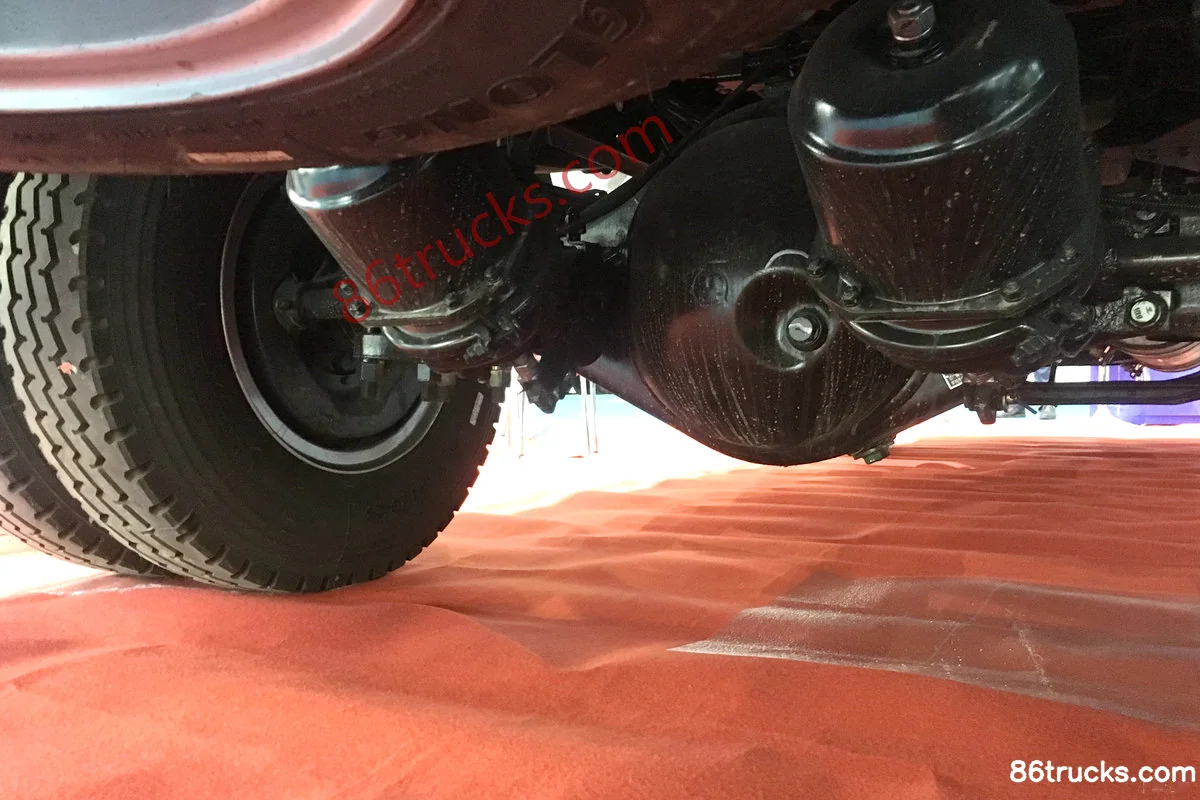

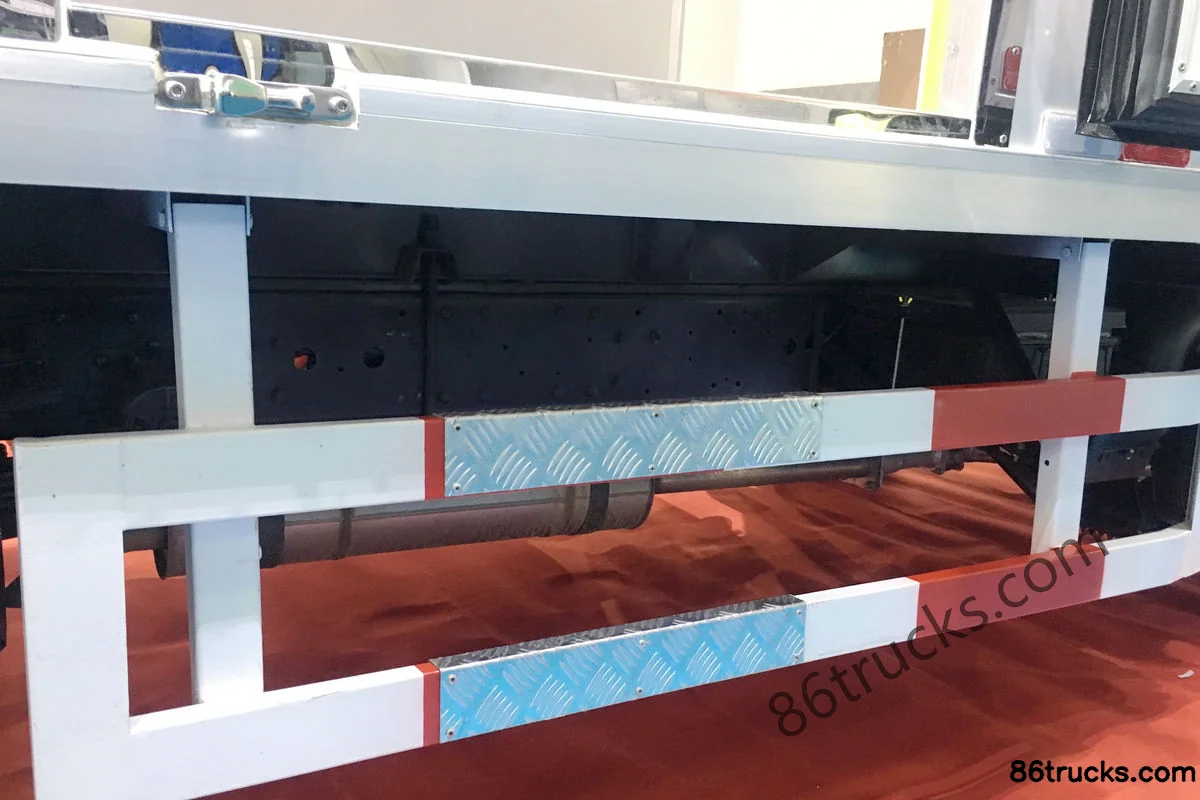

FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Chassis (1) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Chassis (2) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Chassis (3) | 86Trucks

Body3

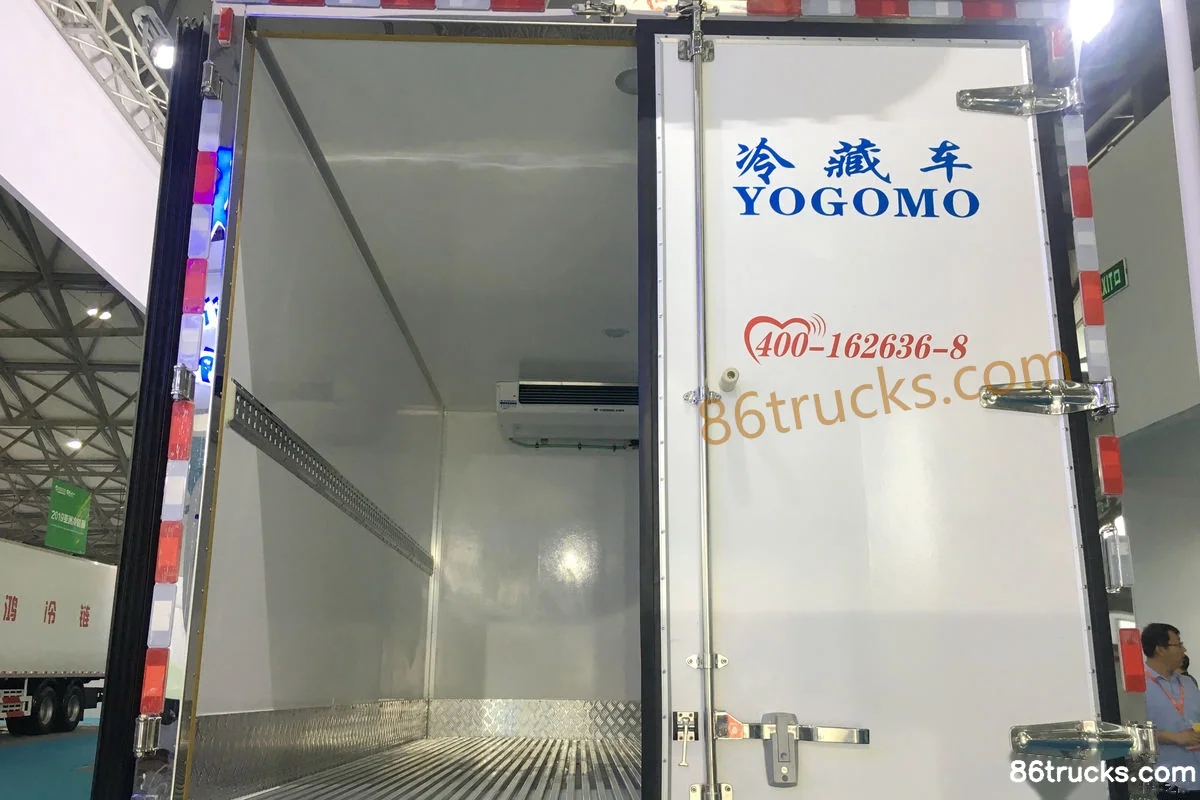

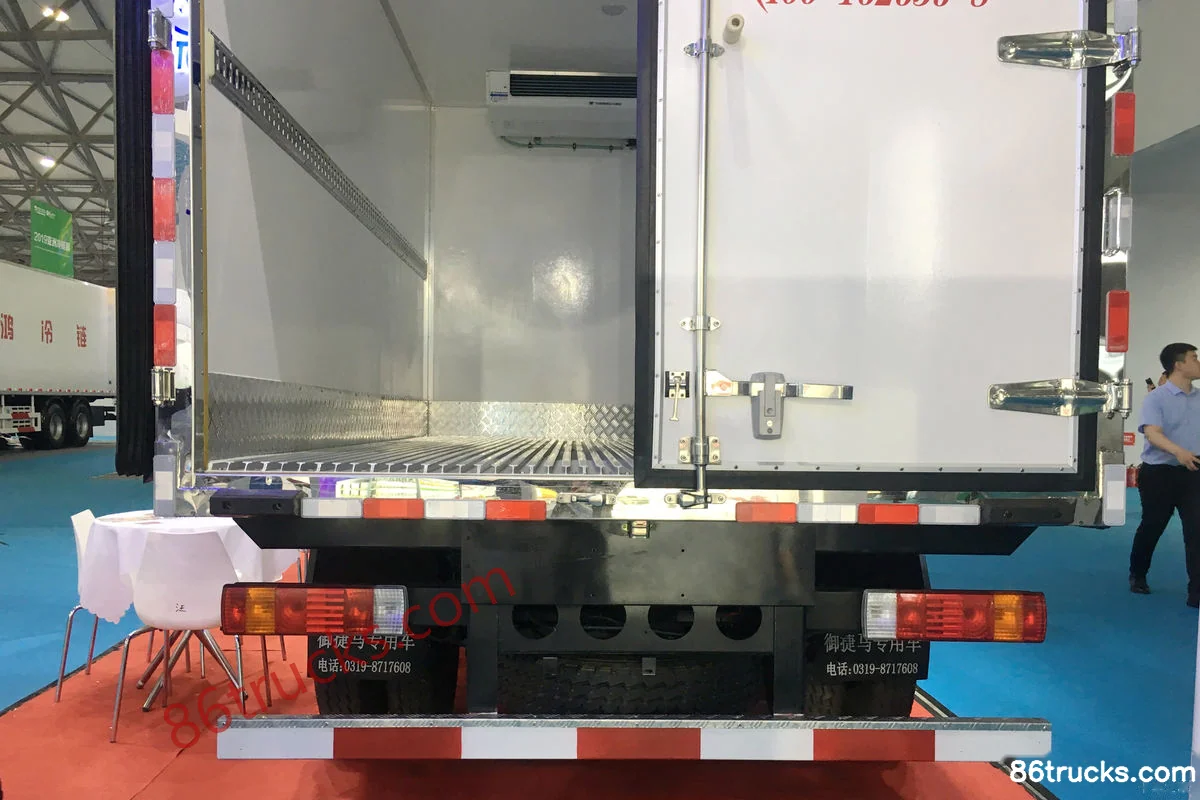

FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Body (1) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Body (2) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck?

Key specs of FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck: Drive: 4x2; Horsepower: 154 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck suited for?

FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck differ from other variants in the same series?

FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck belongs to FAW Jiefang J6F Light-duty Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6F 154hp 4X2(6 wheels) 4.13m refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
