Sanhuan Shitong Chuangke 7.5T 4.1m single-row pure electric refrigerated truck chassis 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 2.995ton
Wheelbase:: 3380mm
Cargo box width:: 2.1m
Model code (announced):: STQ5078XLCNBEV
Cab length:: 5.995m
GVWR:: 7.495ton
Drive 4X2 (6 wheels)
Battery Brand: Penghui
Motor 1 Brand: INVT
Curb Weight: 4.305ton

Overview

The Sanhuan Shitong Chuangke 7.5T 4.1m single-row pure electric refrigerated truck chassis 4X2(6 wheels) is a Electric Refrigerated Truck featuring Penghui battery/range, INVT motor, 4X2 (6 wheels) drive and 2.995t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ5078XLCNBEV
Drive type: 4X2
Wheelbase: 3380mm
Cab length: 5.995m
Cab width: 2.28m
Cab height: 3.3m
Curb Weight: 4.305ton
Rated payload: 2.995ton
GVWR: 7.495ton
Max. speed: 80km/h
Origin: Shiyan, Hubei
Energy Type: Electric
electric motor
Motor 1 Brand: INVT
Motor 1 Model: TZ327XS-INVT60G01
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Battery Brand: Penghui
Battery type: multi-element composite lithium battery
Battery rated voltage: 539.6V
Chassis Specs
Chassis Series: Sanhuan Chuangke
Chassis Model: STQ1078L02Y1NBEV
Leaf spring count: 8/10+7,3/3
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.05m
Tire
Tire Size: 7.50R16LT 14PR
Number of tires: 6pcs

Photos

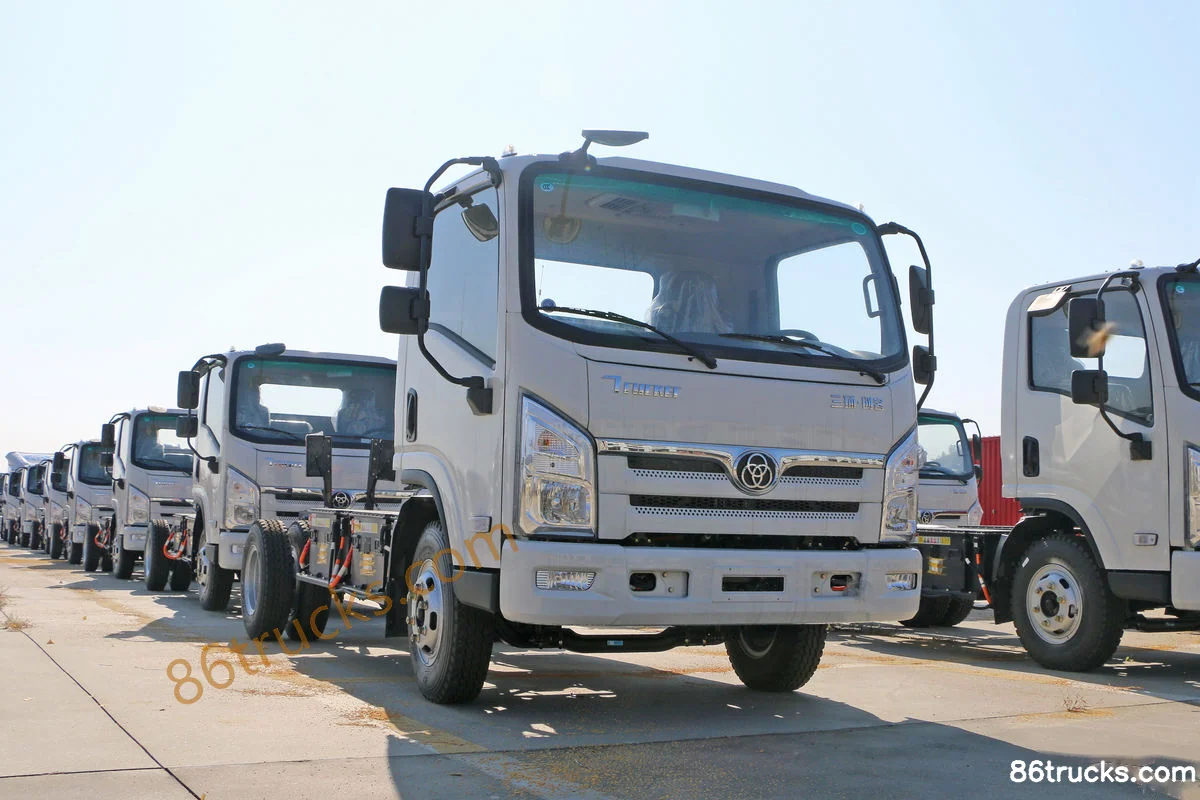

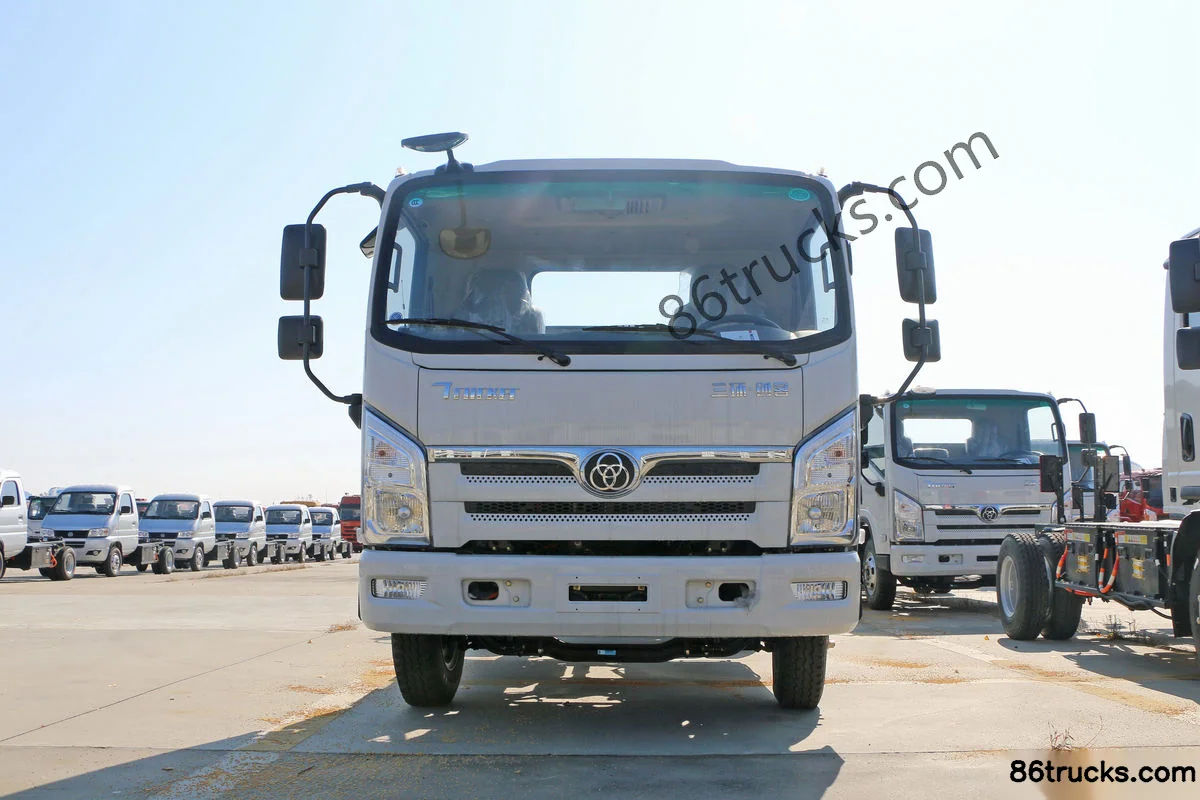

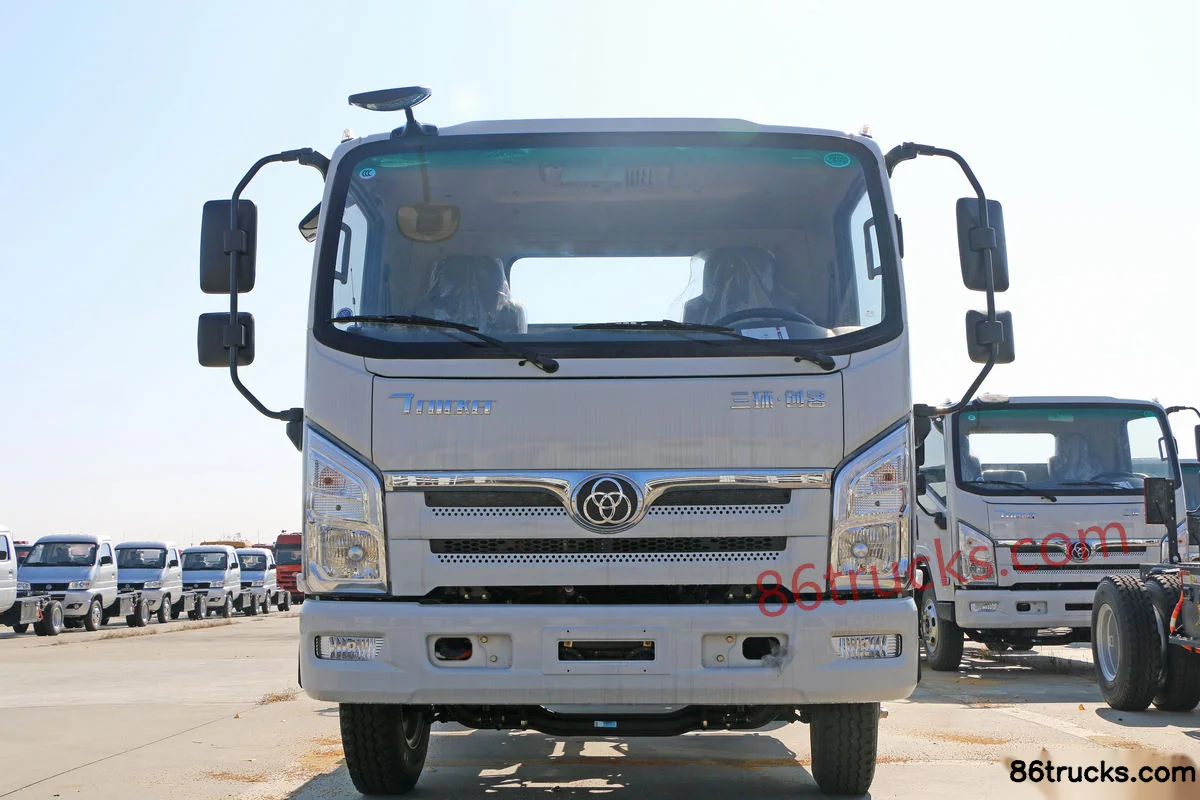

Exterior3

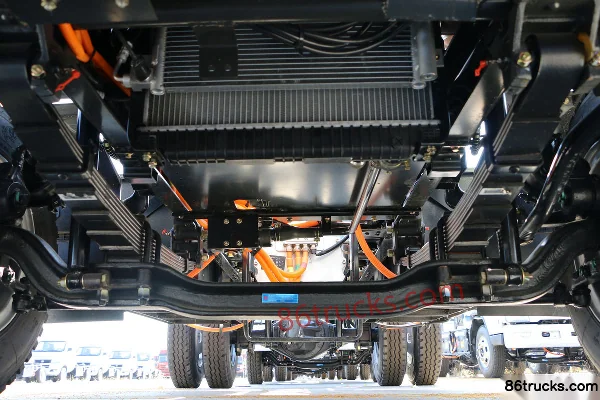

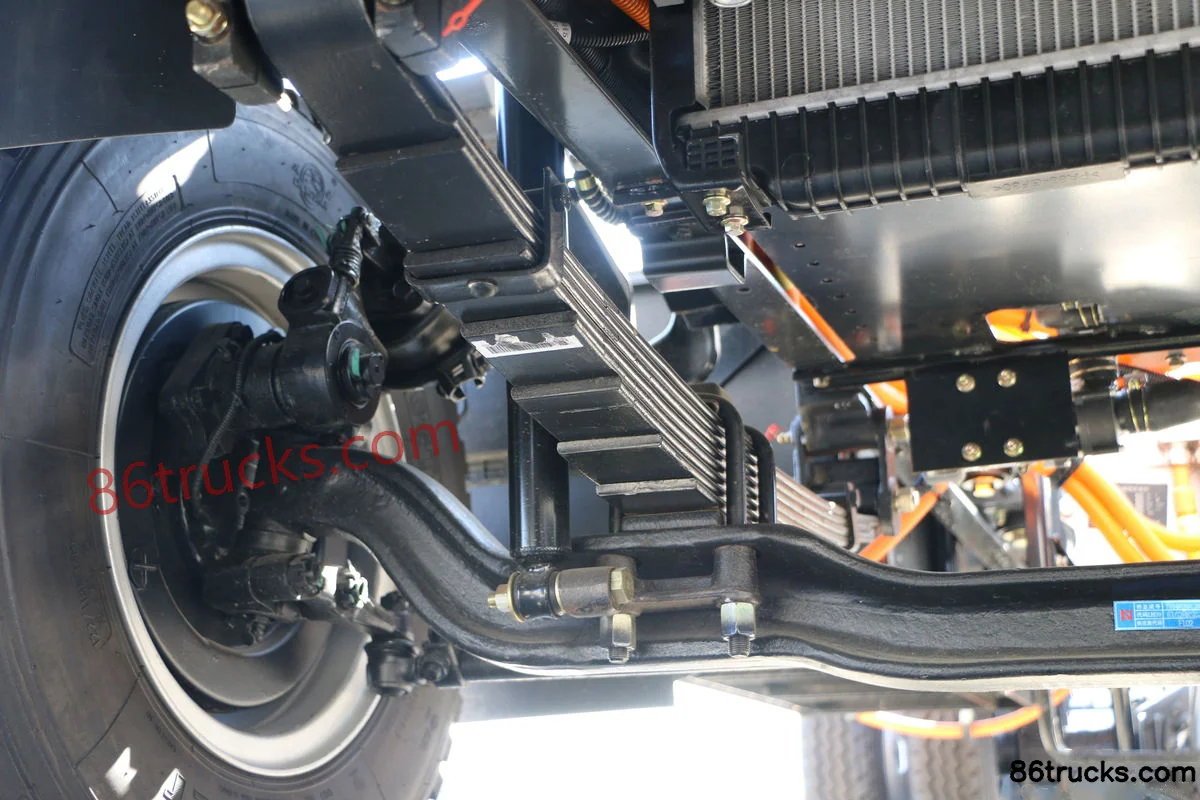

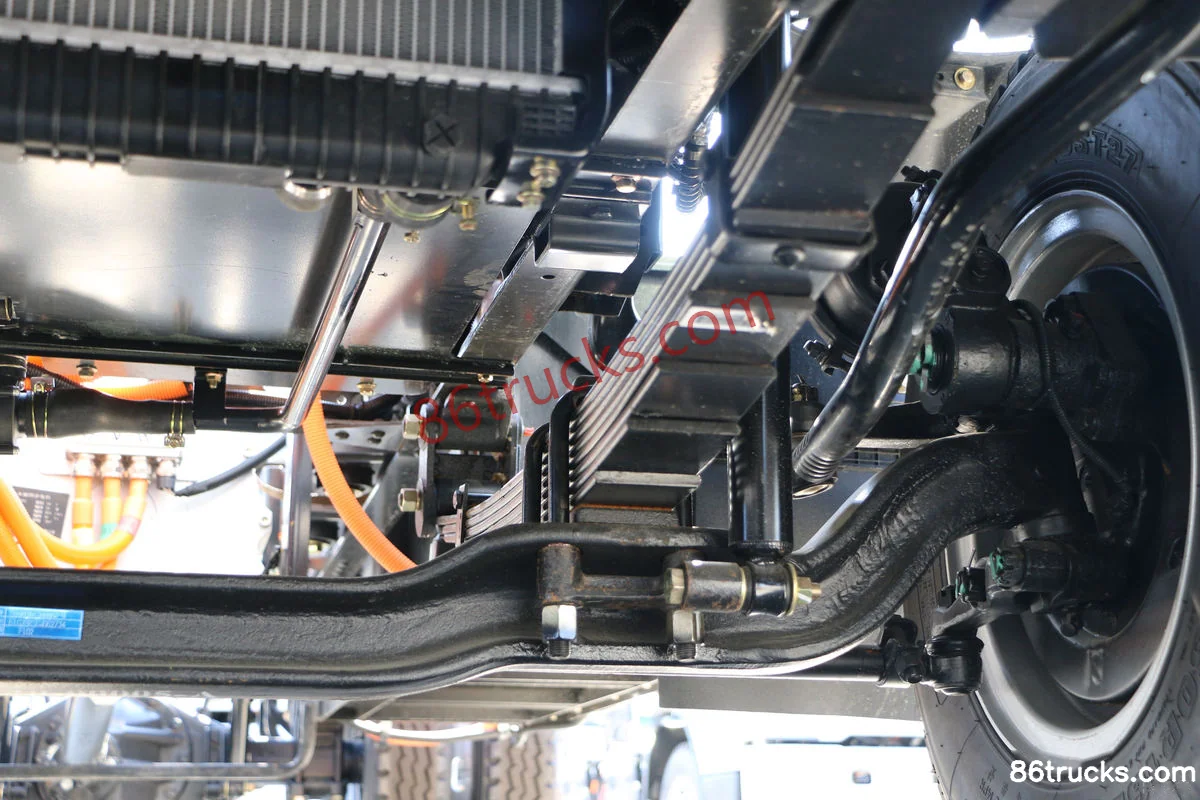

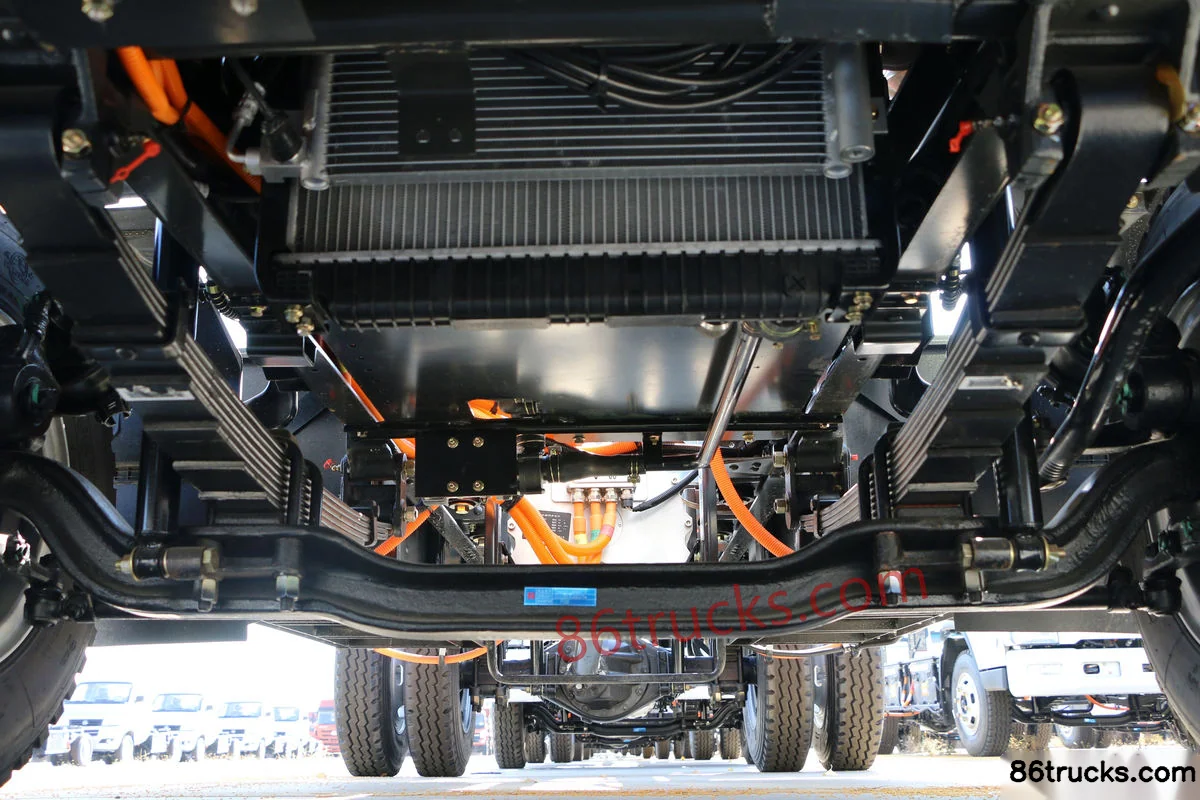

Chassis3

6 photos
