Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck

Export reference
From $31,597
MSRP ¥22.75M CNY
Horsepower: 240
Emission: China IV
Fuel: Diesel
Engine: Yuchai7.3L
Transmission: Fast Gear
Curb Weight:: 9.48ton
seating capacity: 3Personnel
Rated payload: 15.325ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck is a Medium-duty truck featuring 9.5m cargo length, stake body cargo body, 3Personnel volume and 15.325t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai7.3L engine, 240 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 240 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1255VNPHP-1
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1800+5650mm
Box length class: 9.5m
engine: YuchaiYC6A240-46
transmission: Fast Gear9JS119A
Rear Axle Ratio: 4.444
Cab length: 11.999m
Cab width: 2.495m
Cab height: 3.48m
Front track width: 1939mm
rear track: 1860mm
Curb Weight: 9.48ton
Rated payload: 15.325ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 12°
departure angle: 8.3°
market segment: Building materials, agricultural products
Front/rear suspension: 1.445/3.104m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A240-46
Engine info: Yuchai7.3L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.255L
Emission standard: China IV
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1300-1600rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection
Transmission Parameters
Transmission Model: Fast Gear9JS119A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.5m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6750/6750kg
Frame Dimensions: 284×75×8+5-865mm
rear axle description: 1153
rear axle allowable load: 11500kg
Axle ratio: 4.444
Leaf spring count: 10/10/10+9
Tire
Tire Size: 10.00R20 (with spare tire)
Number of tires: 8pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Independent Heater:
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake

Photos

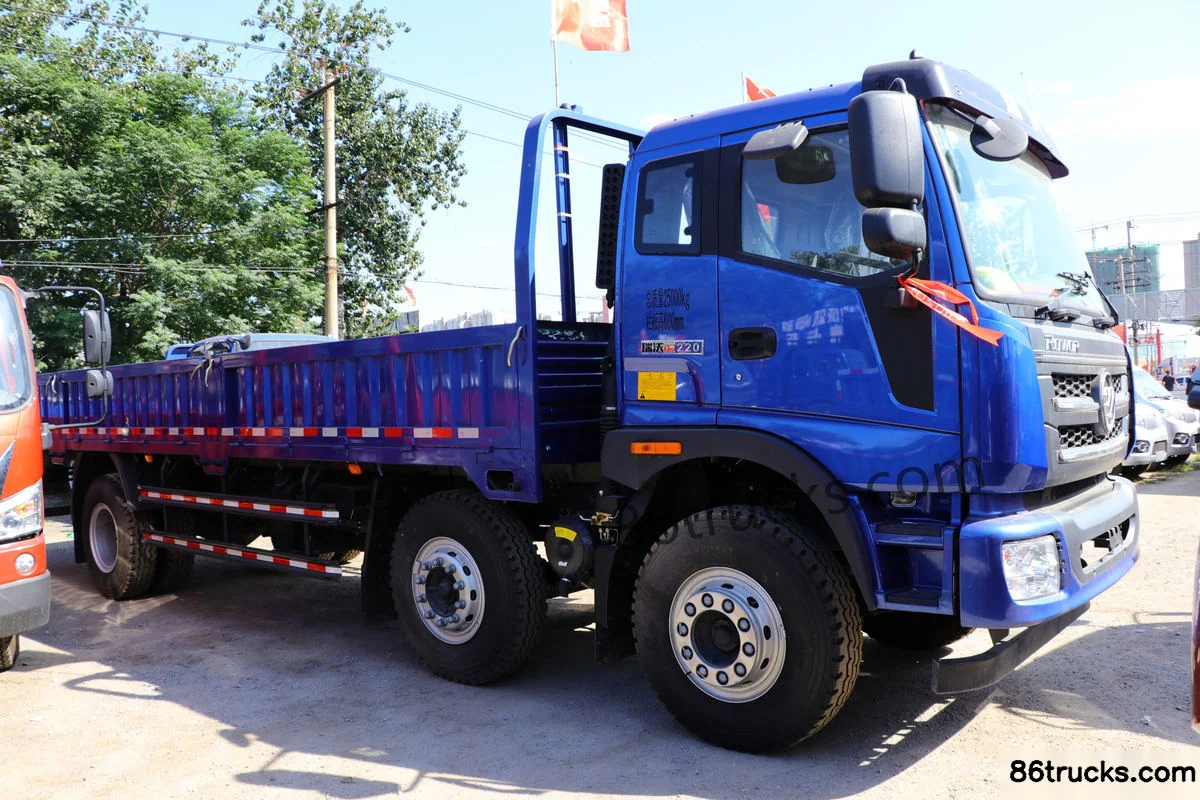

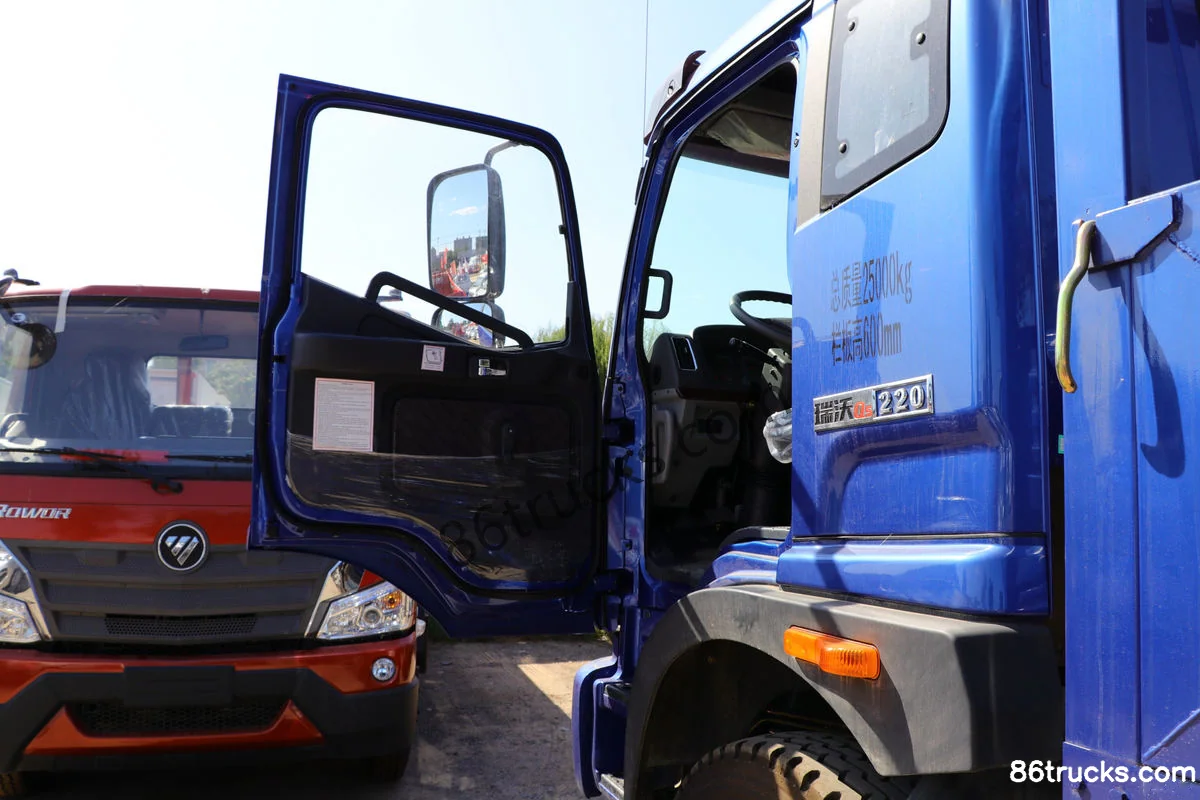

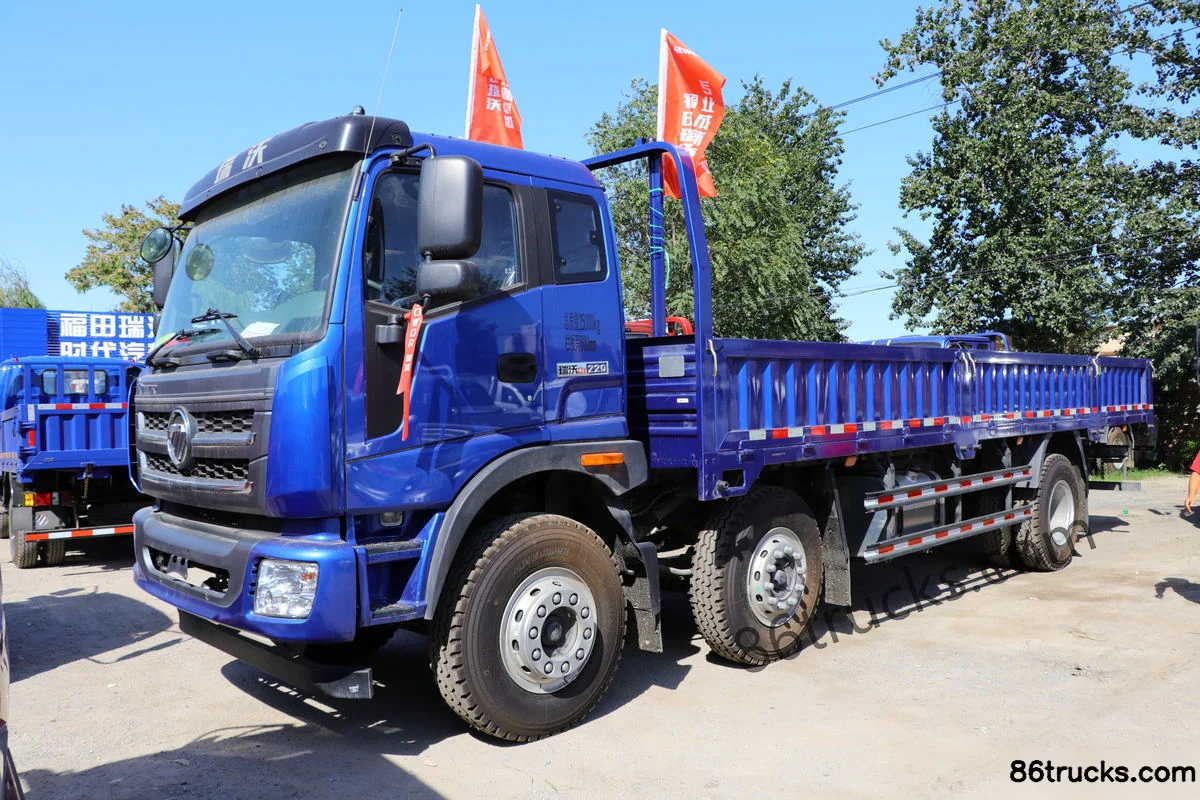

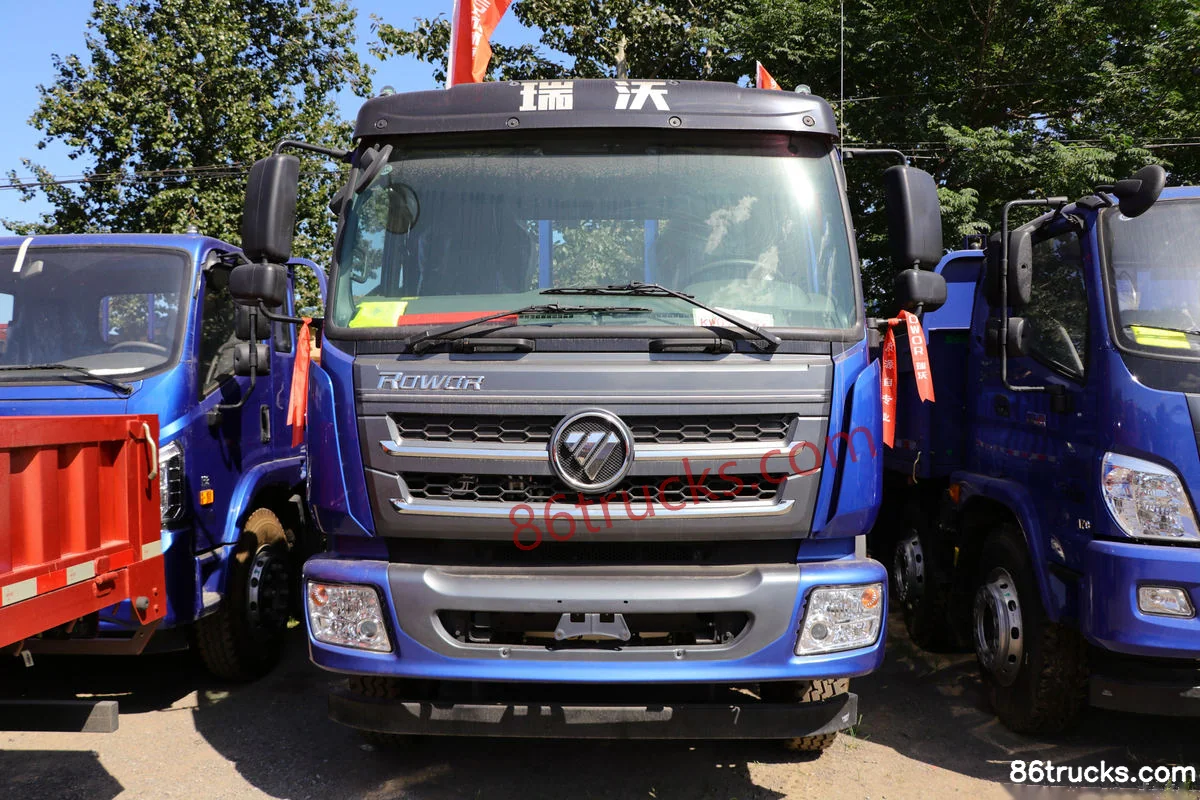

Exterior3

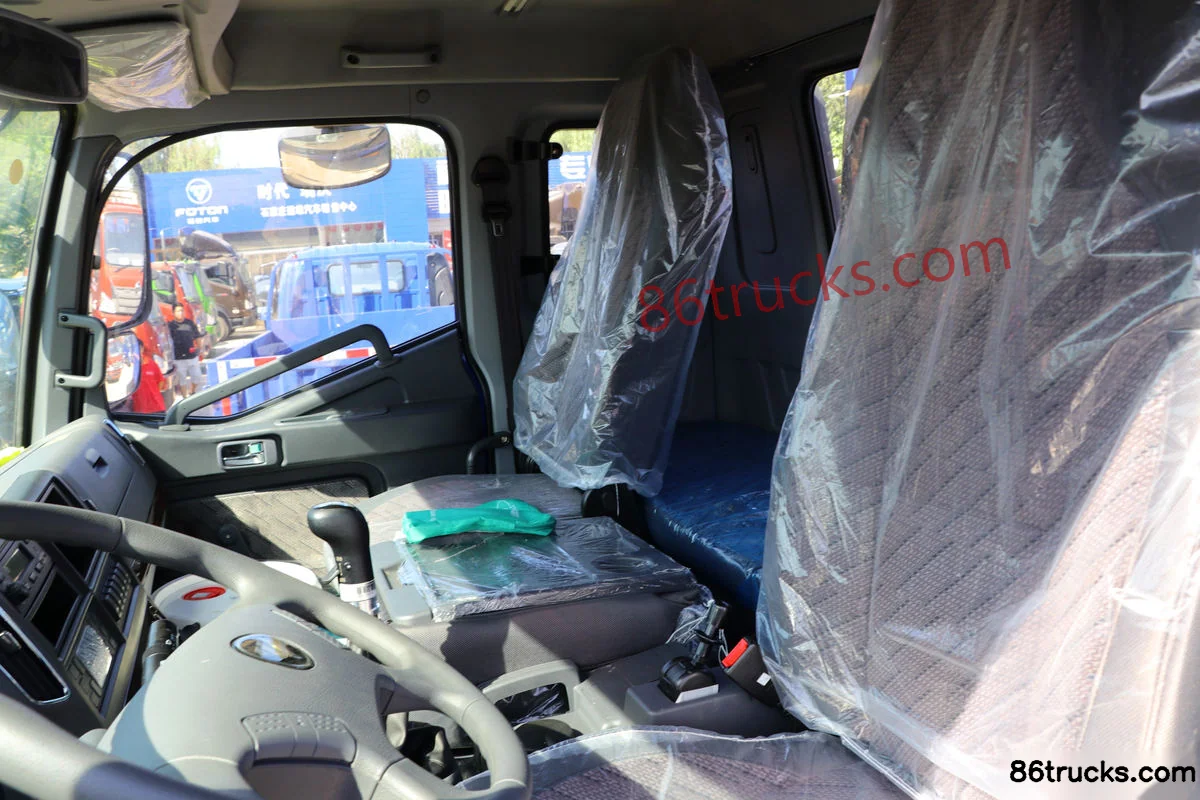

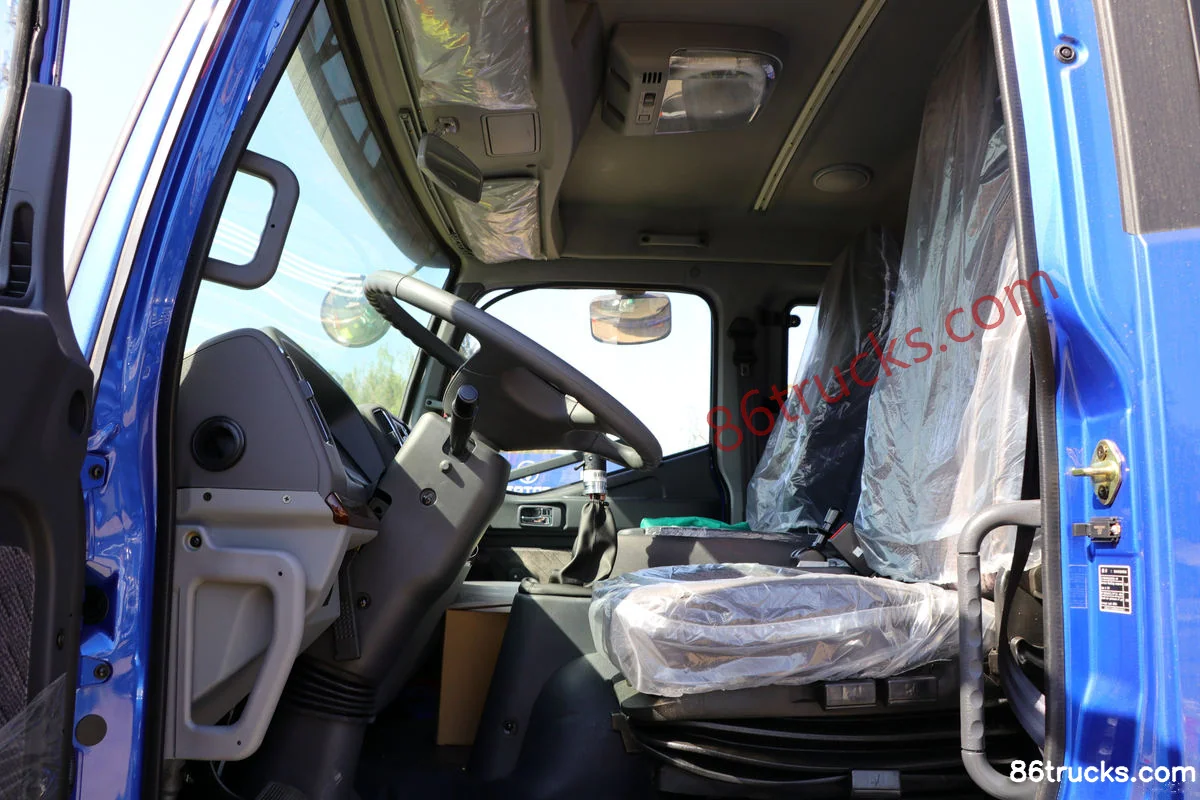

Cab3

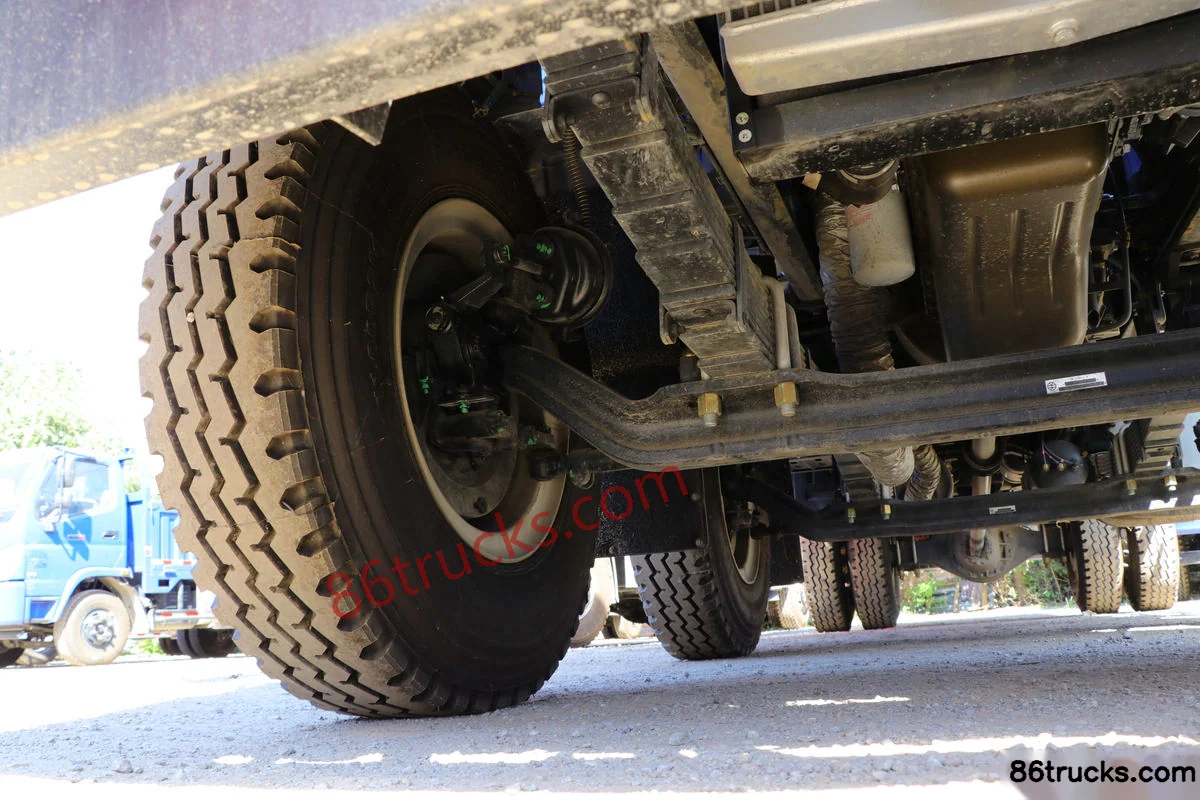

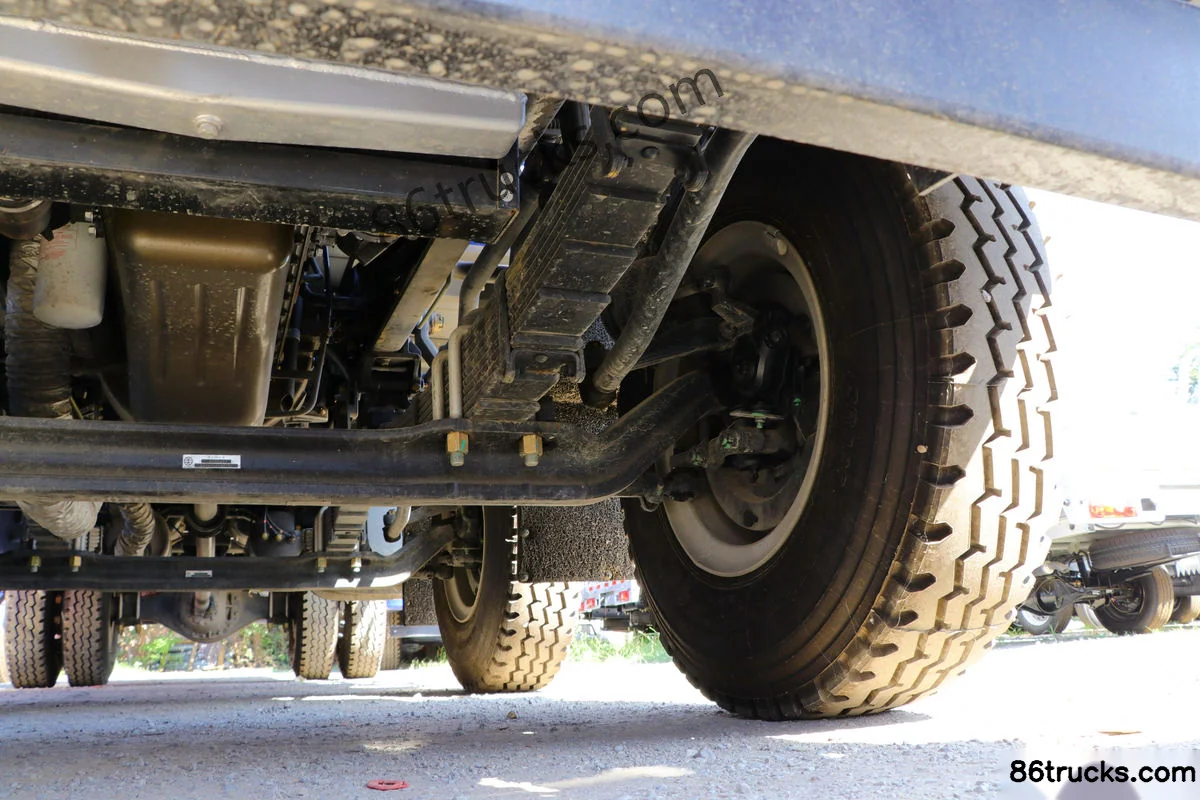

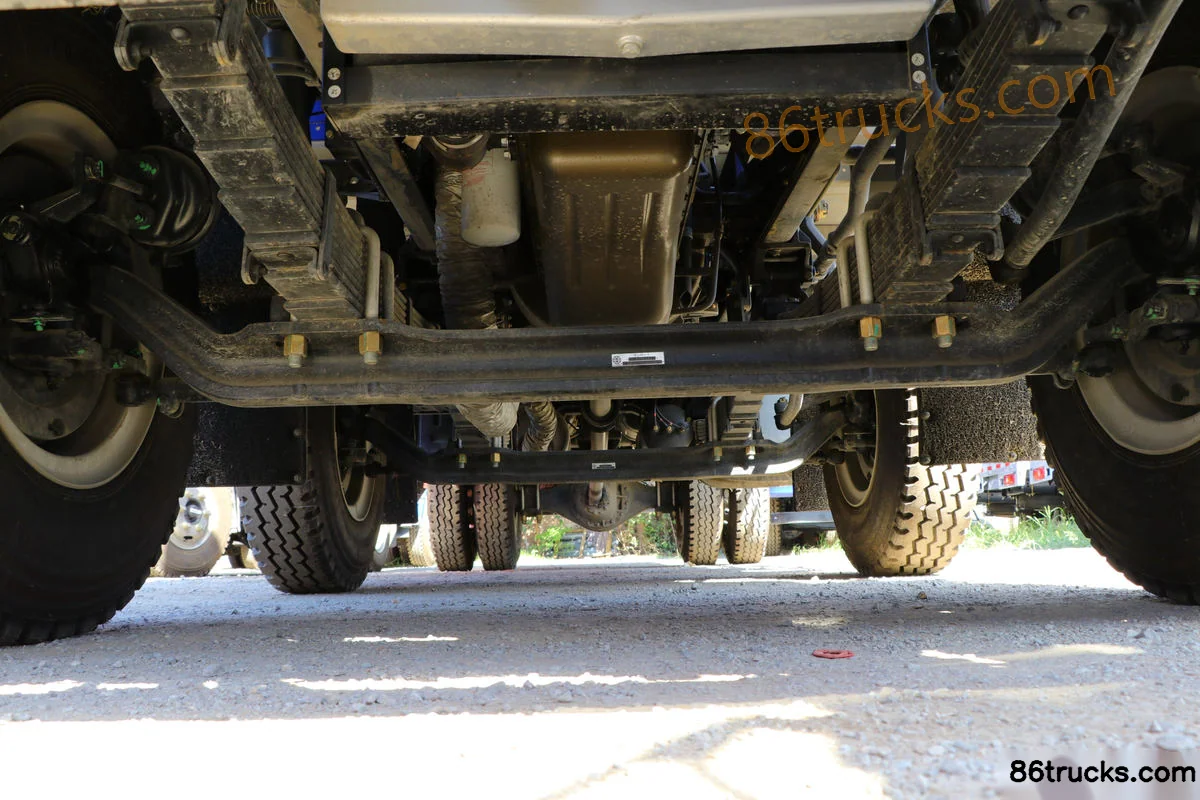

Chassis3

9 photos

FAQ

What is the export price of Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck, and what does it include?

Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck export reference is about From $31,597; MSRP is ¥22.75M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck?

Key specs of Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck: Drive: 6x2; Horsepower: 240 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai7.3L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck suited for?

Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck differ from other variants in the same series?

Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo Medium Truck 240hp 6X2(8 wheels) 9.5m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
