Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck

Export reference
MSRP N/A
Horsepower: 54
Emission: China III / Euro III
Fuel: Diesel
Engine: Quanchai480
Curb Weight:: 1.32ton
Wheelbase:: 2800mm
seating capacity: 5Personnel
Rated payload: 0.675ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck is a Light Truck featuring 2.28m cargo length, stake body cargo body, 5Personnel volume and 0.675t payload. On the powertrain side, it comes with a Quanchai480 engine, 54 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 54 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC1023S3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 2.3m
engine: Quanchai4D18F
Cab length: 4.62m
Cab width: 1.615m
Cab height: 1.98m
Front track width: 1285mm
rear track: 1185mm
Curb Weight: 1.32ton
Rated payload: 0.675ton
GVWR: 2.32ton
Max. speed: 86km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 35°
departure angle: 25°
Remarks: Correction: optional FAW Jiefang 4DW83-65E3 and Weichai YZ4DC2-30 engine without OBD. Extended optional 2011 front panel, front lights and bumper.
Front/rear suspension: 0.79/1.27m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4D18F
Engine info: Quanchai480
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.809L
Emission standard: China III / Euro III
Max output power: 40kW
Max hp: 54Horsepower
Max torque: 135N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Direct injection, turbocharged & intercooled, electronic VE pump, water-cooled EGR
Transmission Parameters
shift method: Manual
Forward gears: 5Gear
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.28m
Cargo box width: 1.5m
Cargo box height: 0.32m
*Cargo box interior width: 1.5
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Leaf spring count: 3/5
Tire
Tire Size: 6.00-13,6.00-14
Number of tires: 6pcs

Photos

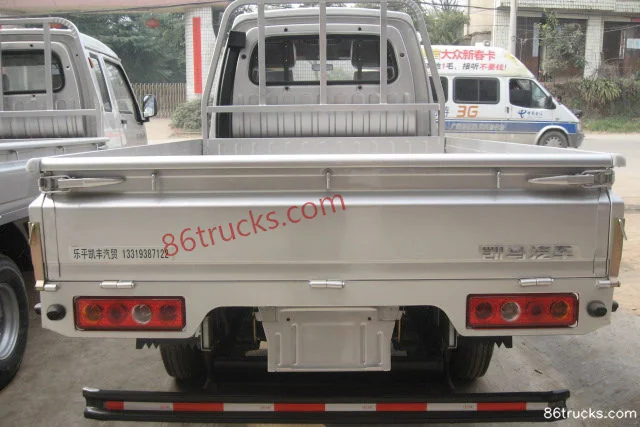

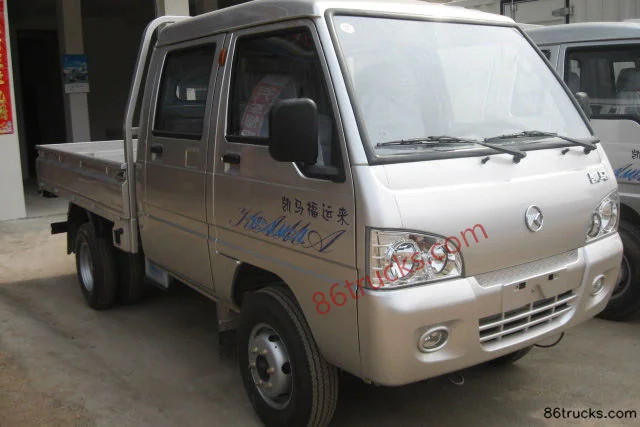

Exterior2

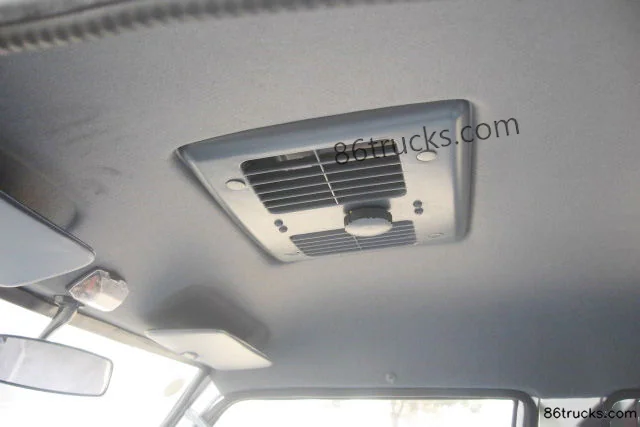

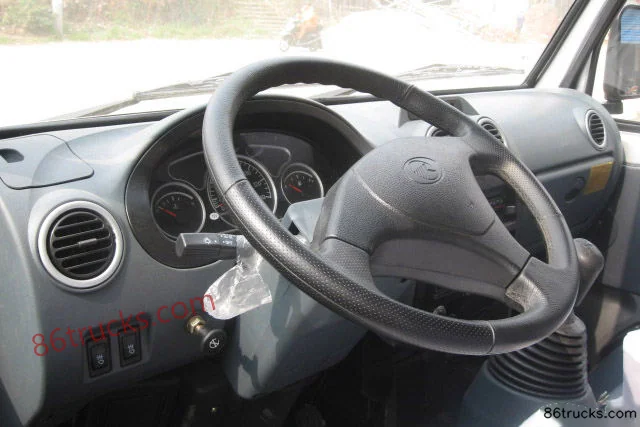

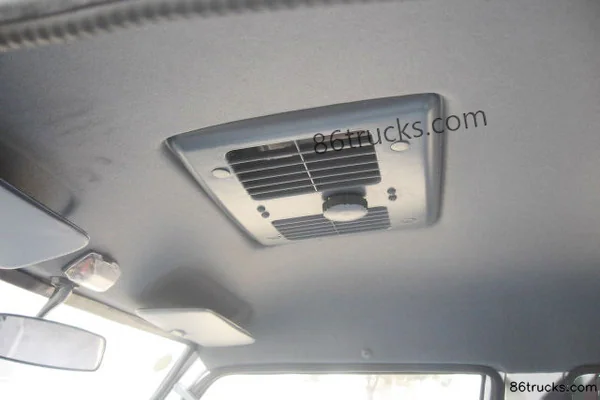

Cab2

4 photos

FAQ

What emission standard does Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck?

Key specs of Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck: Drive: 4x2; Horsepower: 54 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Quanchai480. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck suited for?

Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck differ from other variants in the same series?

Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck belongs to Kama K8 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Fuyunlai 1.8L 54hp 4X2(6 wheels) Diesel 2.3m Double Row Flatbed Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
