Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI)

Export reference
MSRP N/A
Horsepower: 460
Emission: China VI
Fuel: Diesel
Engine: Yuchai11L
Transmission: Fast Gear
Curb Weight:: 12.67ton

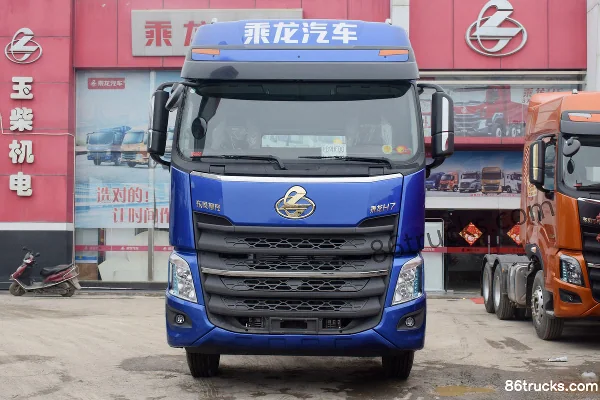

Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI) exterior
seating capacity: 2Personnel
Rated payload: 19.2ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI) is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 2Personnel volume and 19.2t payload. On the powertrain side, it comes with a Yuchai11L engine, 460 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 460 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ5321CCYH7FC1
Type: stake truck
Drive type: 8X4
Wheelbase: 2050+4400+1350mm
Box length class: 9.6m
engine: YuchaiYCK11460-60
transmission: Fast Gear12JSD200TA-B
Rear Axle Ratio: 3.7
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 12.67ton
Rated payload: 19.2ton
GVWR: 32ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 11°
Remarks: Full air suspension cab, electric hydraulic tilt, laminated glass, electric window regulators, premium leather driver seat, LCD instrument cluster, multi-state switch, electronically controlled silicone oil fan, imported valves (air treatment unit, parking hand control valve, brake master cylinder), automatic slack adjuster, right-turn audible warning, 165AH battery, front aluminum alloy wheels, rear lightweight steel wheels, lightweight balance suspension, 10.1-inch MP5, Chenglong V+ connected vehicle 3.0 system, speed limited to 89 km/h, rain guard, 220V power outlet (2000W)
Front/rear suspension: 1.512/2.688m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK11460-60
Engine info: Yuchai11L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.98L
Emission standard: China VI
Max output power: 339kW
Max hp: 460Horsepower
Max torque: 2200N·m
Max torque speed: 1000-1500rpm
Rated speed: 1900rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear12JSD200TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: 2022 model H73D
Cab width: 2490mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 800L
Chassis Specs
Front axle description: 2*5.5T/ConMet
Front axle allowable load: 6500/6500kg
Frame Dimensions: 282(8)mm
Steering gear: Domestic
rear axle description: 2*400ConMet
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 3/3/-/-
Aluminum wheels:
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
Rear Axle Lift:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
LCD instrument cluster:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Lane Keeping Assist System (B.LKA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:
AEB automatic emergency braking system:

Photos

0 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI)?

Key specs of Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI): Drive: 8x4; Horsepower: 460 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai11L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI) suited for?

Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI) differ from other variants in the same series?

Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI) belongs to Dongfeng Chenglong H7 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H7 Heavy Truck 460 hp 8X4(12 wheels) 9.6m Cage Cargo Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
