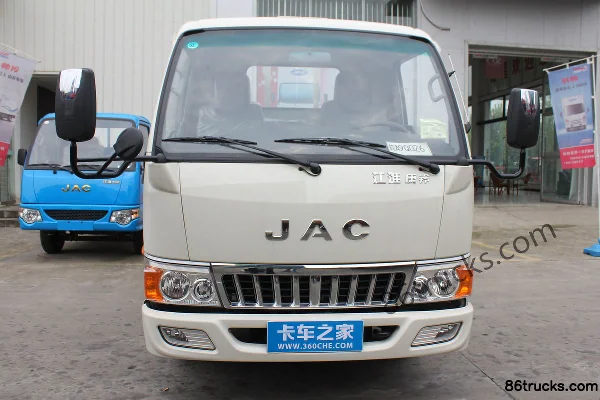

JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck

Export reference
MSRP N/A
Horsepower: 88
Emission: China IV
Fuel: Diesel
Engine: JAC490
Transmission: Xingrui
Curb Weight:: 2.53ton
seating capacity: 3Personnel
Rated payload: 1.72ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck is a Light Truck featuring 3.85m cargo length, Stake type cargo body, 3Personnel volume and 1.72t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a JAC490 engine, 88 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041CCYP92K1C2
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: JACHFC4DF1-2C
transmission: Xingrui LC5T28
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 1.91m
Cab height: 2.9m
Front track width: 1420mm
rear track: 1395mm
Curb Weight: 2.53ton
Rated payload: 1.72ton
GVWR: 4.445ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 20°
departure angle: 15°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.105/1.582m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DF1-2C
Engine info: JAC490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.544L
Emission standard: China IV
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 200N·m
Max torque speed: 1800-2000rpm
Rated speed: 3200rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.85m
Cargo box width: 1.81m
Cargo box height: 0.4m
*Cargo box interior width: 1.8099999427795
Cab parameters
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1600kg
rear axle description: 2845
rear axle allowable load: 2845kg
Axle ratio: 4.875
Leaf spring count: 11/9+7
Tire
Tire Size: 6.50R16,6.50-16,7.00R16,7.00-16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
Service brake
Brake Type: Hydraulic brake

Photos

0 photos

FAQ

What emission standard does JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck?

Key specs of JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck: Drive: 4x2; Horsepower: 88 hp; Emission: China IV; Fuel: Diesel; Engine: JAC490; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck suited for?

JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck differ from other variants in the same series?

JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck belongs to JAC H1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling 33 Narrow Body 88 hp 4X2(6 wheels) 3.8m Semi-Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
