Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck

Export reference
MSRP N/A
Horsepower: 60
Emission: China IV
Fuel: gasoline
Engine: Liuji gasoline 1.1L
Transmission: Qingshan
Curb Weight:: 1.22ton
Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck is a mini truck featuring 2.93m cargo length, stake body cargo body, 2Personnel volume and 1.495t payload. On the powertrain side, it comes with a Liuji gasoline 1.1L engine, 60 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 60 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZB1030ADB7F
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2400mm
Box length class: 2.9m
engine: Wuling LiujiLJ465Q-2AE
transmission: Qingshan5-14
Cab length: 4.48m
Cab width: 1.63m
Cab height: 1.93m
Front track width: 1278mm
rear track: 1260mm
Curb Weight: 1.22ton
Rated payload: 1.495ton
GVWR: 2.845ton
Max. speed: 85km/h
Origin: Zibo, Shandong
tonnage class: mini truck
Approach angle: 31°
departure angle: 24°
Front/rear suspension: 0.845/1.236m
Energy Type: gasoline
Engine parameters
Engine Brand: Wuling Liuji
Engine Model: Wuling LiujiLJ465Q-2AE
Engine info: Liuji gasoline 1.1L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.051L
Emission standard: China IV
Max output power: 45kW
Max hp: 60Horsepower
Max torque: 85N·m
Max torque speed: 3500-4000rpm
Rated speed: 5600rpm
Engine Type: 4-stroke, inline inclined, mechanically adjusted roller rocker arm, electronic fuel injection, electronic ignition
Transmission Parameters
Transmission Model: Qingshan5-14
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.93m
Cargo box width: 1.52m
Cargo box height: 0.32m
*Cargo box interior width: 1.5199999809265
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Leaf spring count: 3/5,5/5
Tire
Tire Size: 165R13LT，175R13LT
Number of tires: 4pcs

Photos

Exterior3

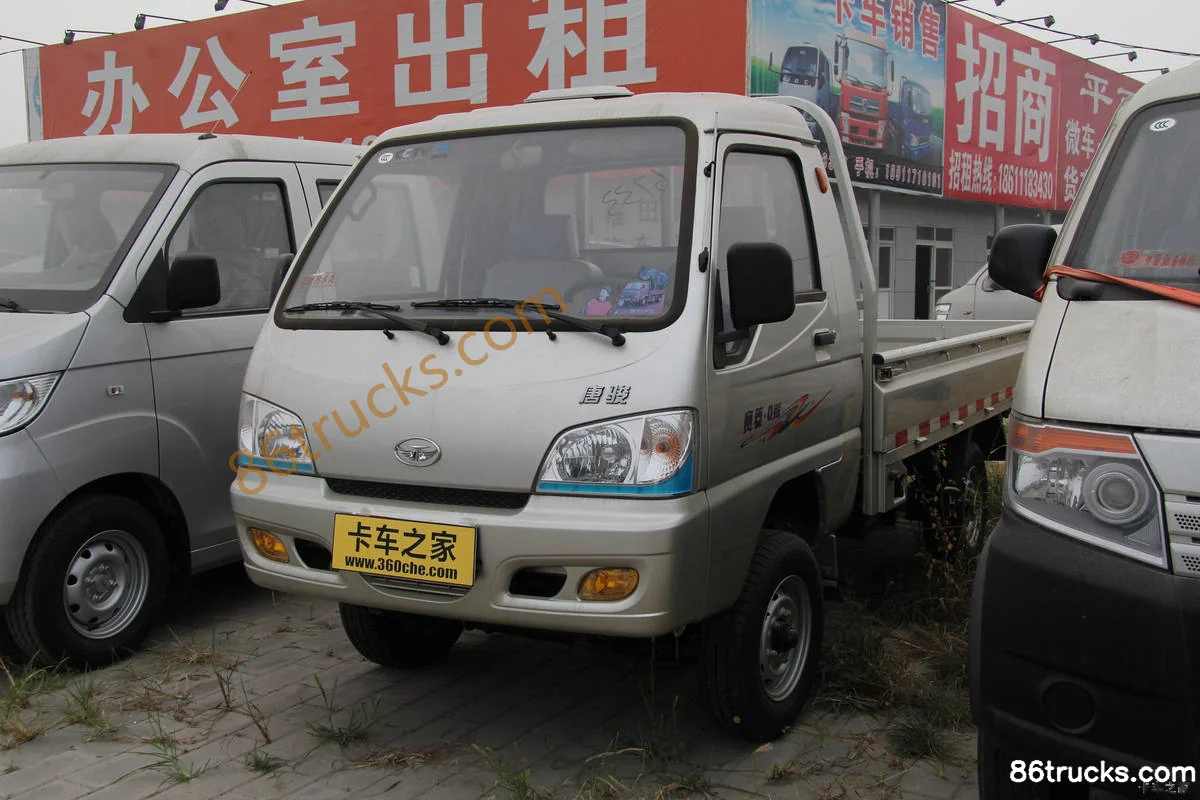

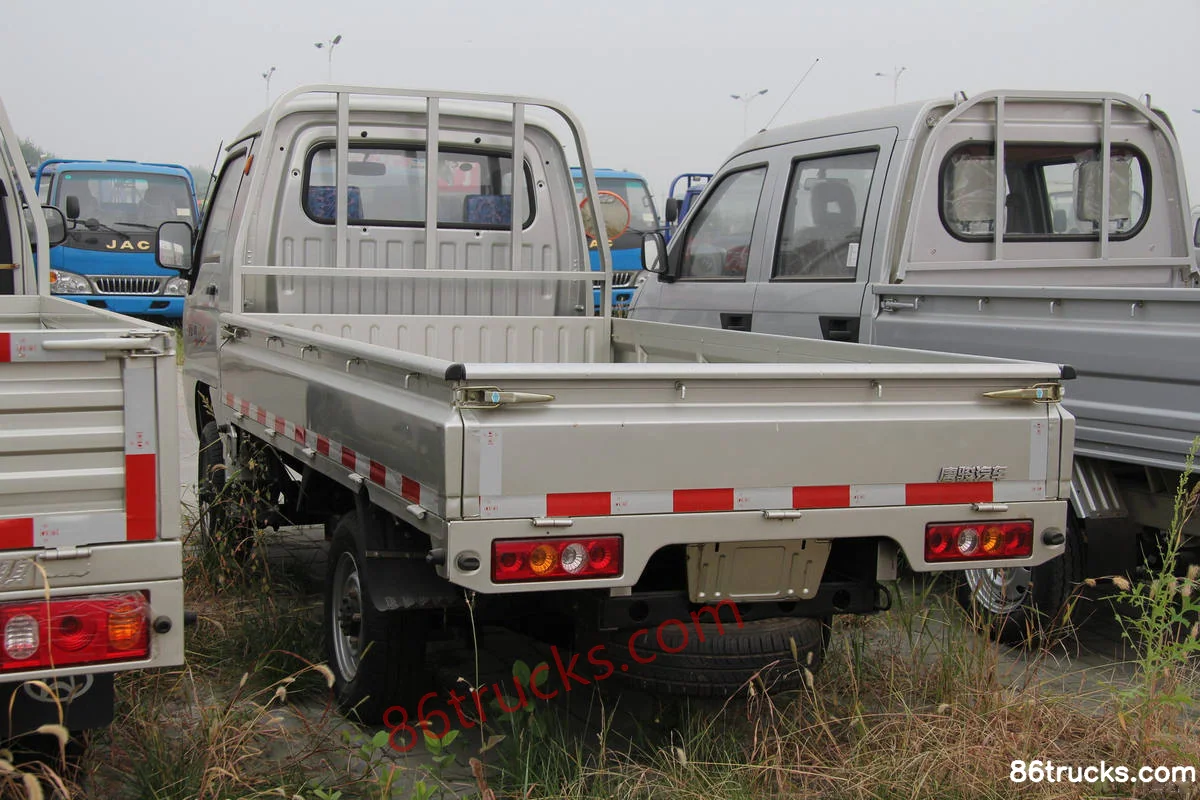

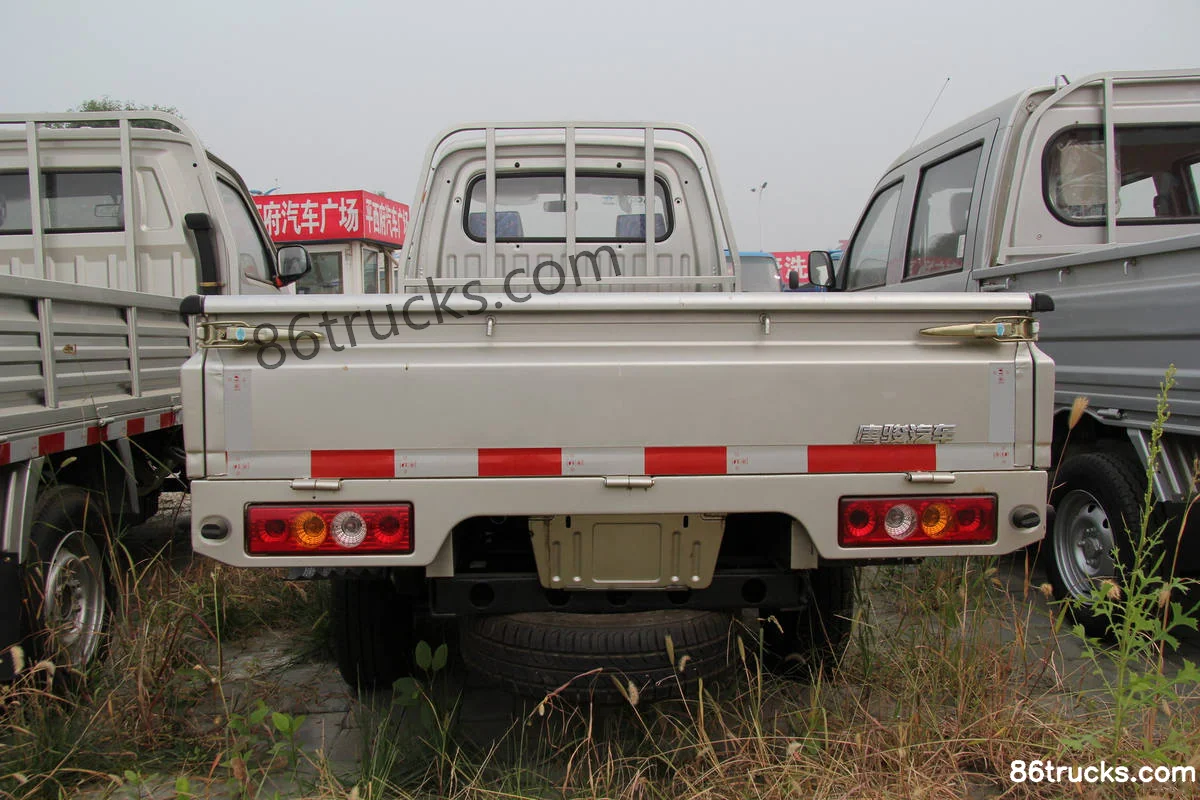

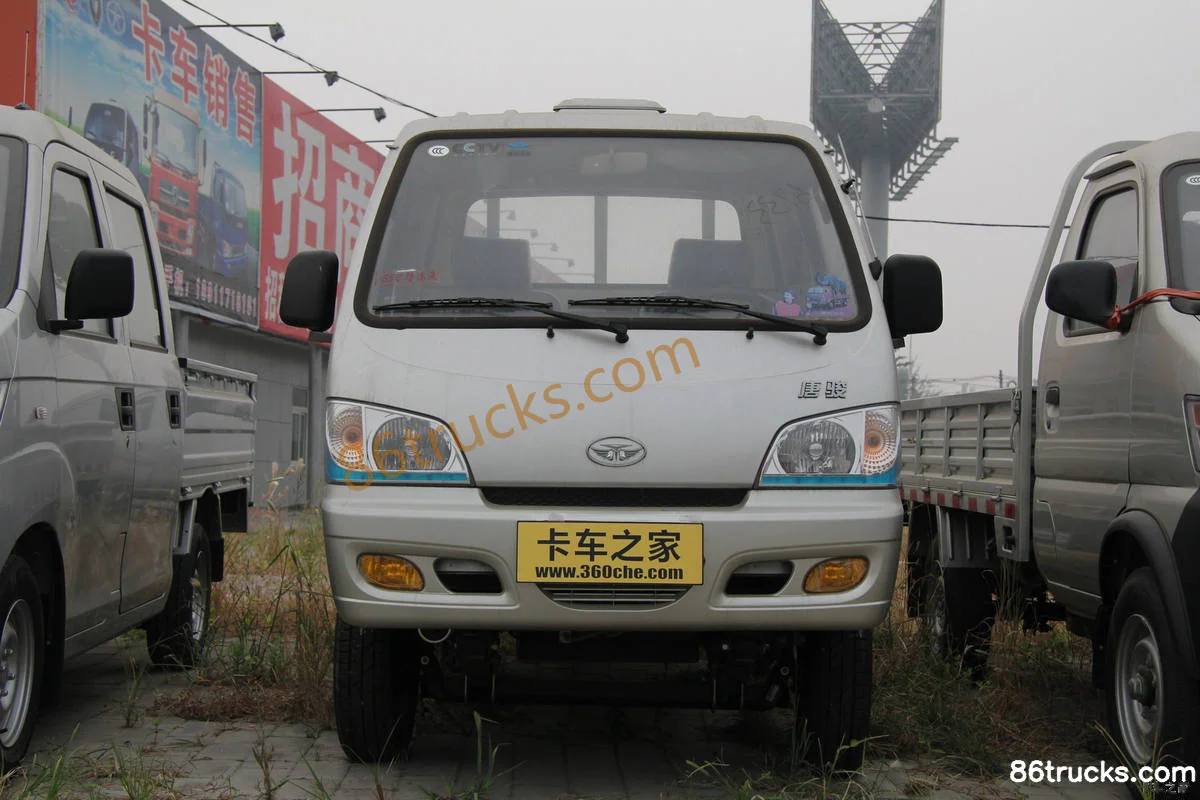

Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Exterior (1) | 86Trucks Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Exterior (2) | 86Trucks Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Exterior (3) | 86Trucks

Cab3

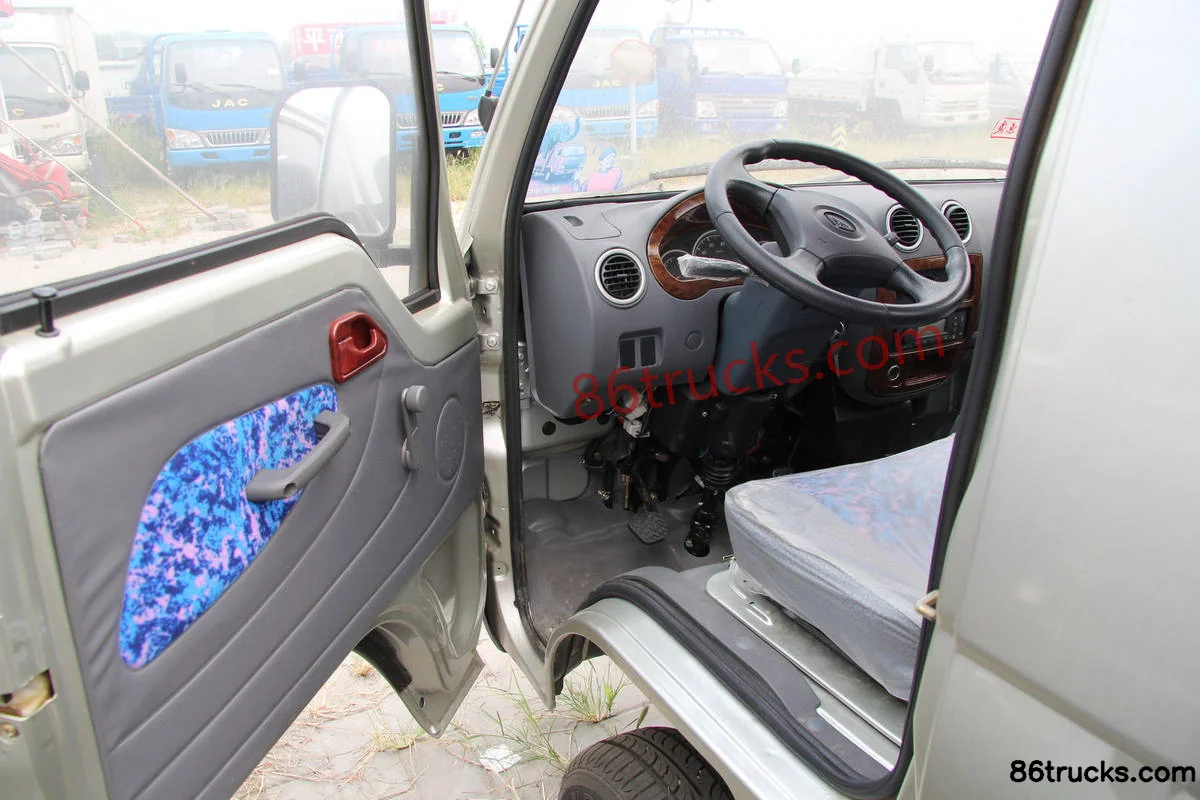

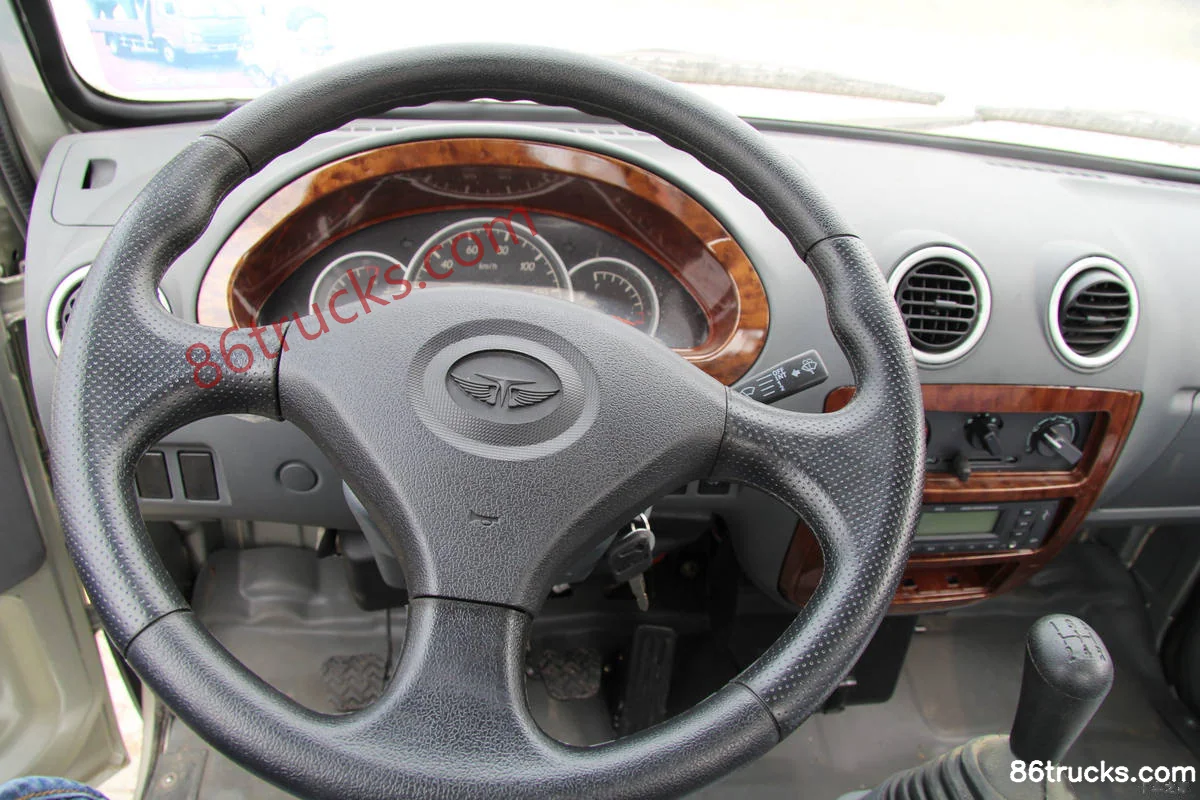

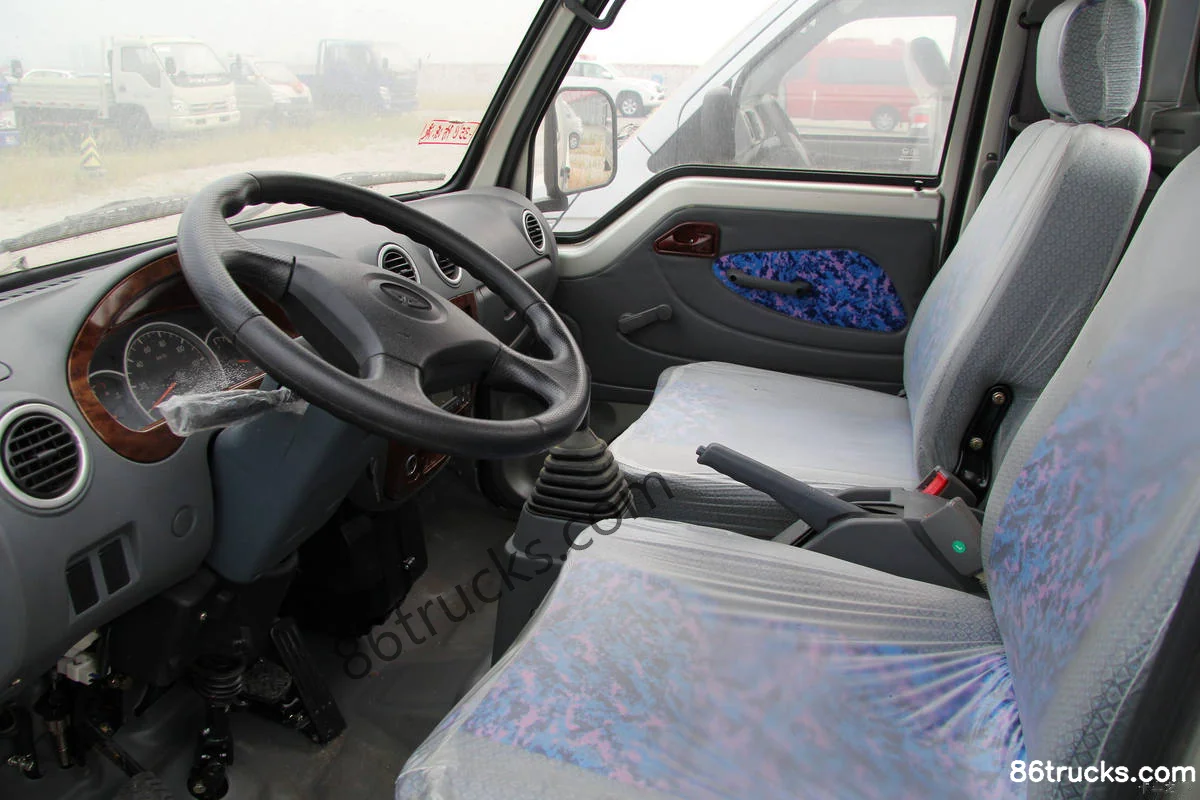

Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Cab (1) | 86Trucks Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Cab (2) | 86Trucks Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Cab (3) | 86Trucks

Chassis3

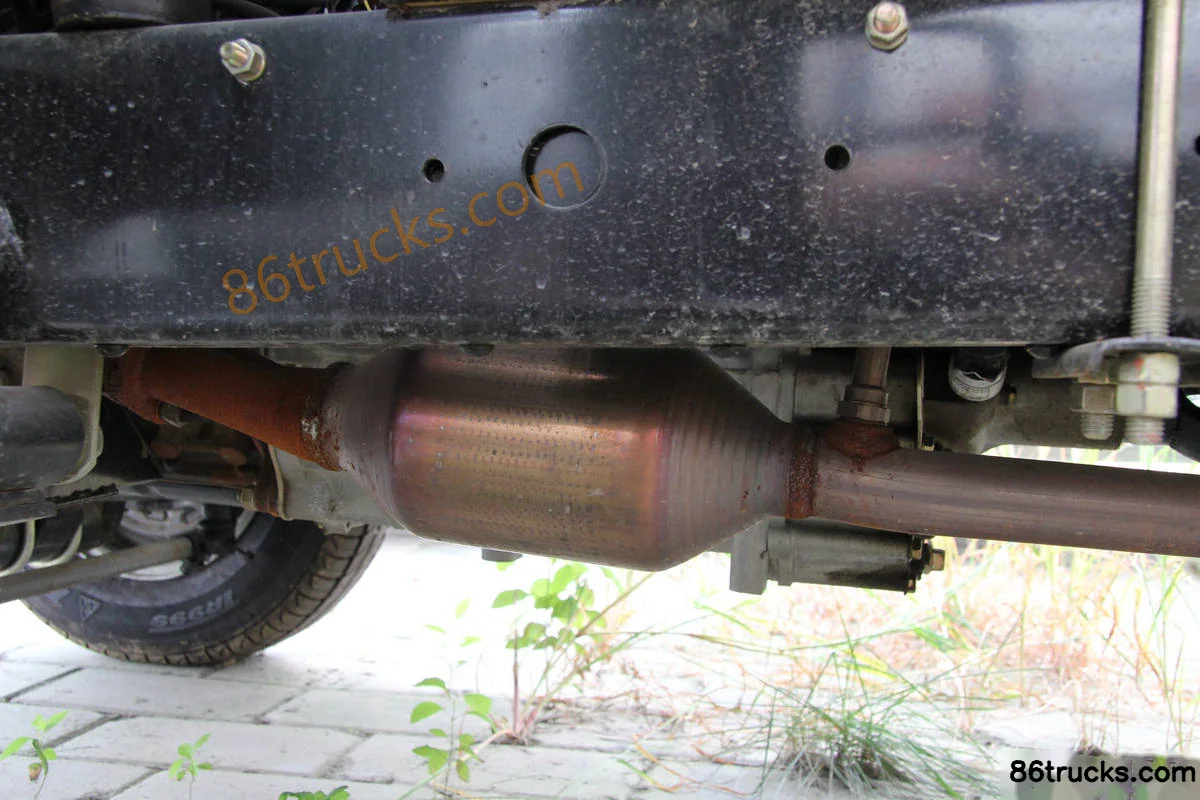

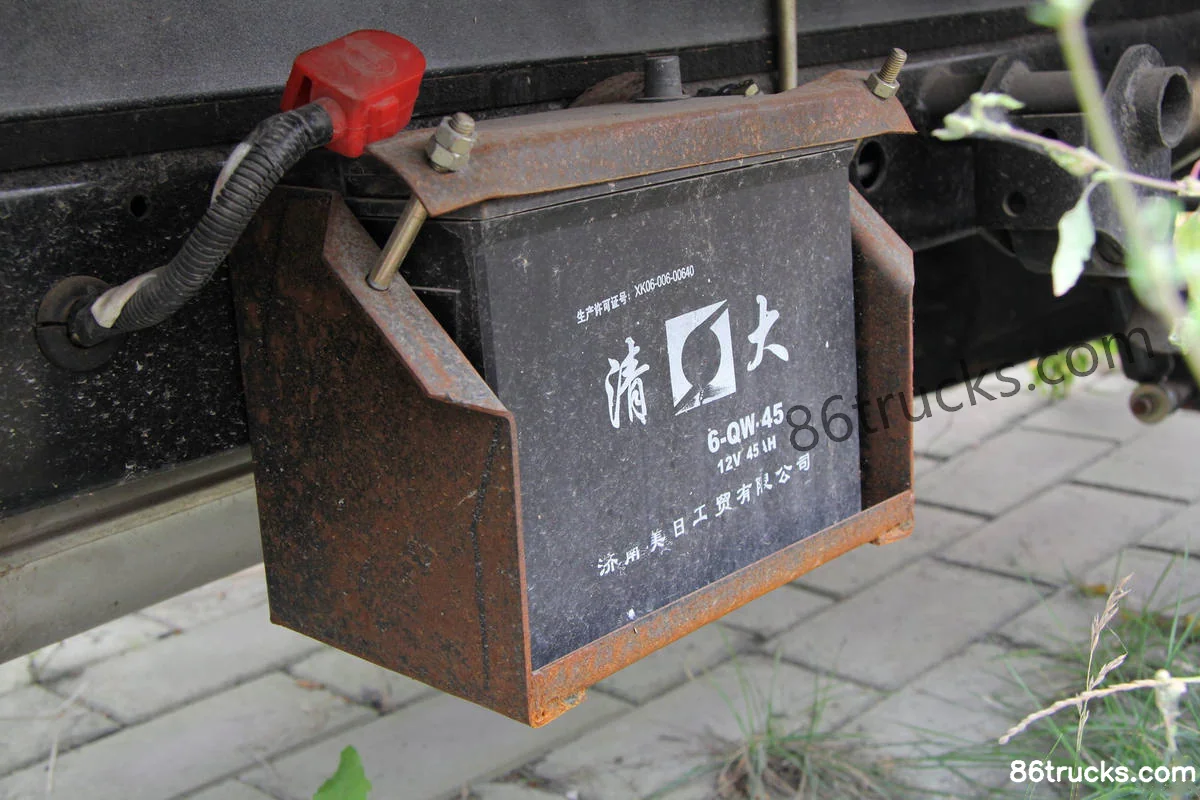

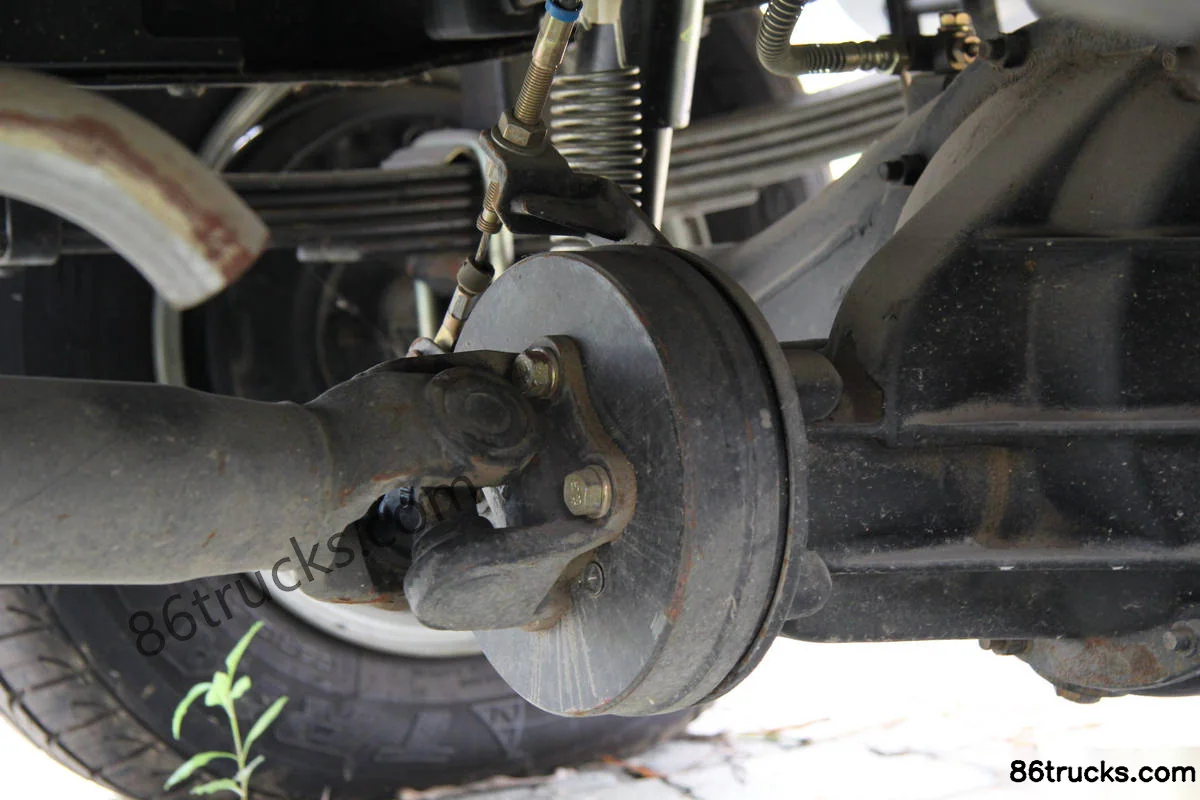

Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Chassis (1) | 86Trucks Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Chassis (2) | 86Trucks Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Chassis (3) | 86Trucks

Body3

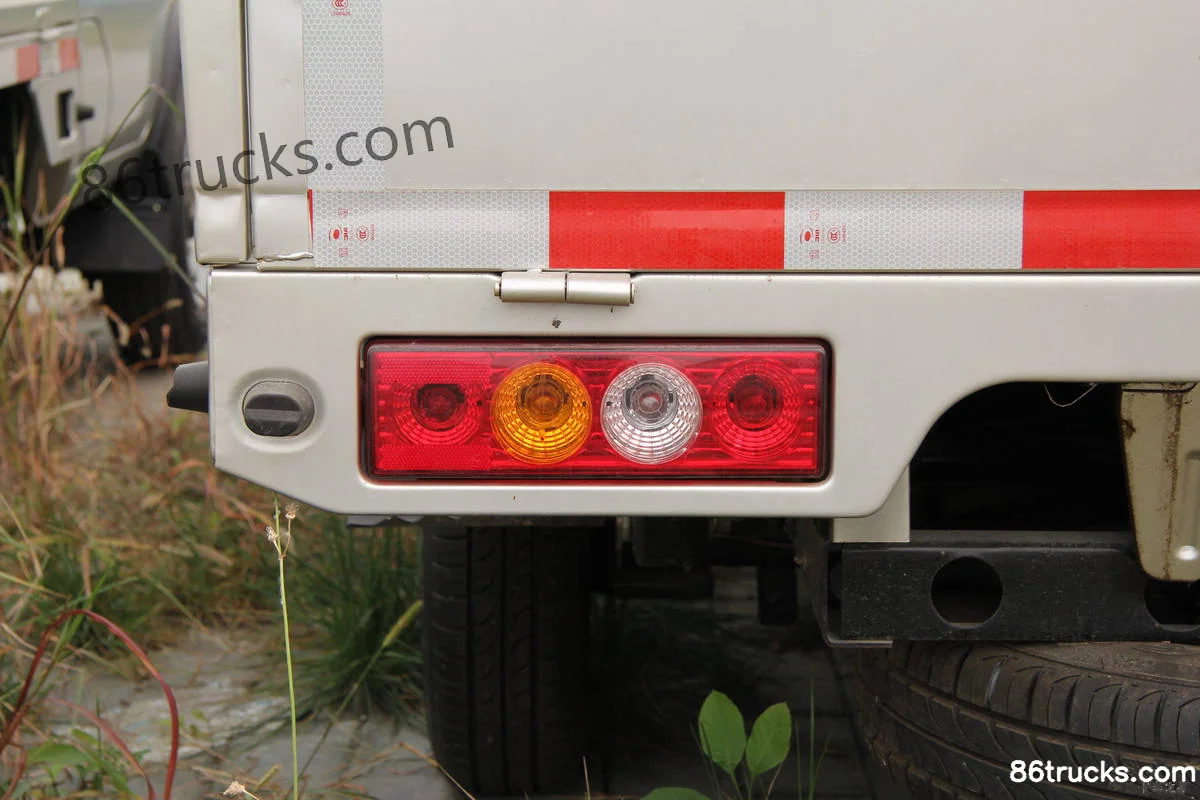

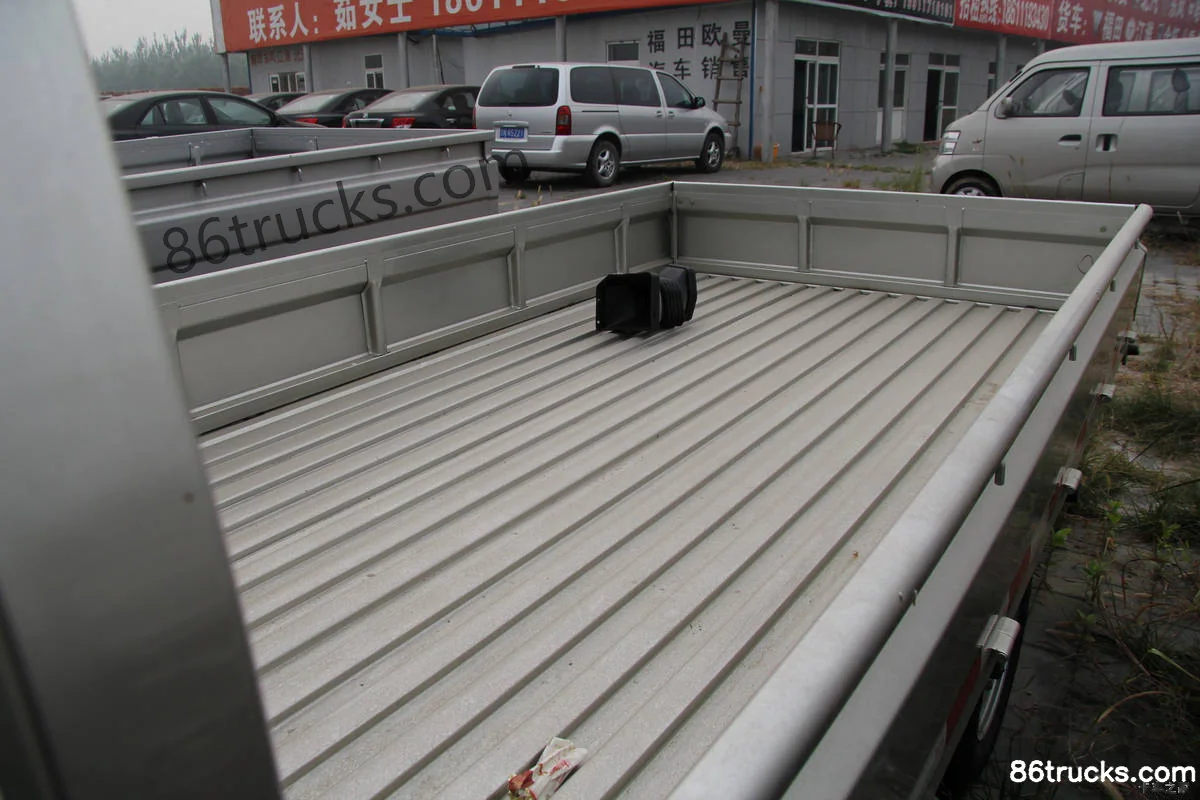

Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Body (1) | 86Trucks Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Body (2) | 86Trucks Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck?

Key specs of Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck: Drive: 4x2; Horsepower: 60 hp; Emission: China IV; Fuel: gasoline; Engine: Liuji gasoline 1.1L; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck suited for?

Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck differ from other variants in the same series?

Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck belongs to Tangjun Sailing Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Sailing 1.1L 61hp 4X2(6 wheels) Gasoline 2.9m Single Row Flatbed Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
