JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck

Export reference
From $7,222
MSRP ¥5.2M CNY
Horsepower: 68
Emission: China V
Fuel: Diesel
Engine: Quanchai485
Transmission: Qingshan
Curb Weight:: 1.64ton
seating capacity: 2Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck is a mini truck featuring 3.33m cargo length, stake body cargo body, 2Personnel volume and 1.995t payload. On the powertrain side, it comes with a Quanchai485 engine, 68 hp, 4X2 (6 wheels) drive and China V emissions.

China V 68 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5042XXYPW4K1B3V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2600mm
Box length class: 3.3m
engine: Quanchai4A2-68C50
transmission: QingshanMR70
Rear Axle Ratio: 4.875
Cab length: 4.991m
Cab width: 1.636m
Cab height: 2.1m
Front track width: 1294mm
rear track: 1200mm
Curb Weight: 1.64ton
Rated payload: 1.995ton
GVWR: 3.765ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 26°
departure angle: 16.5°
Front/rear suspension: 0.975/1.416m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-68C50
Engine info: Quanchai485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.27L
Emission standard: China V
Max output power: 50kW
Max hp: 68Horsepower
Max torque: 170N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: QingshanMR70
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.33m
Cargo box width: 1.56m
Cargo box height: 0.32m
*Cargo box interior width: 1.5599999427795
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1355kg
rear axle allowable load: 2410kg
Axle ratio: 4.875
Leaf spring count: 3/5
Tire
Tire Size: 175R14LT,185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

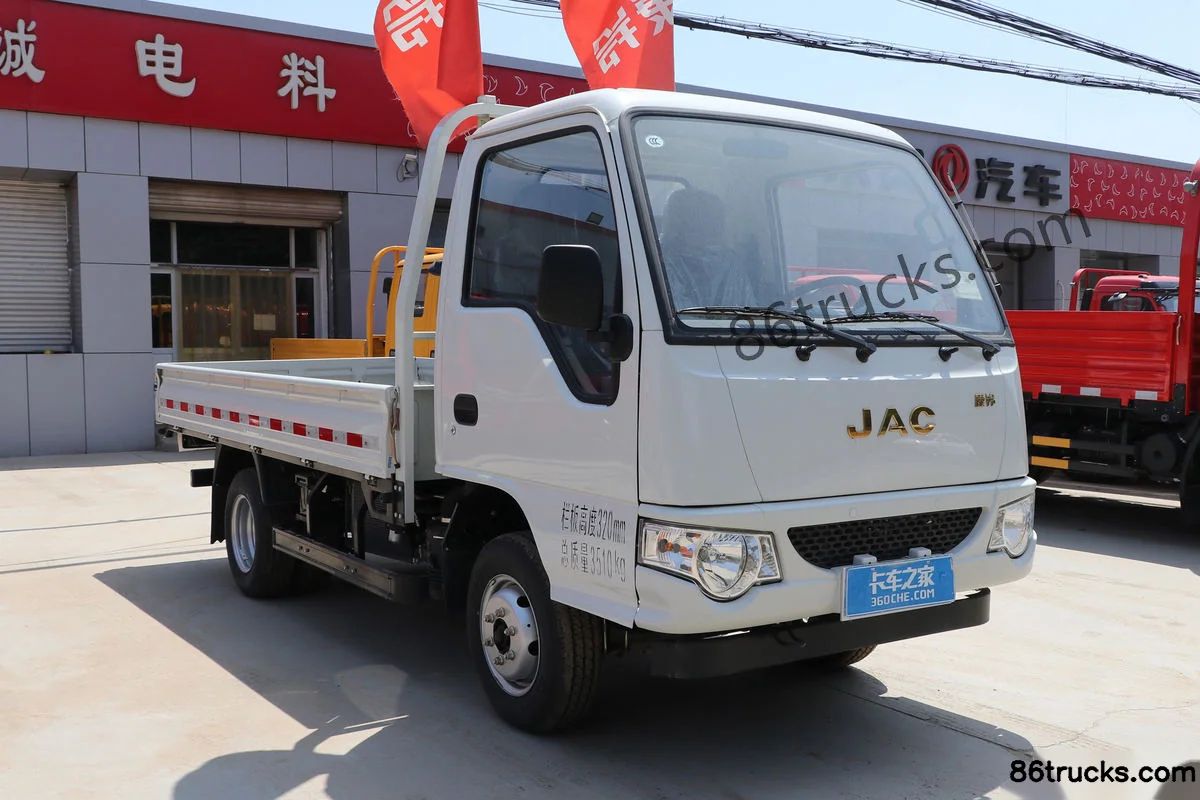

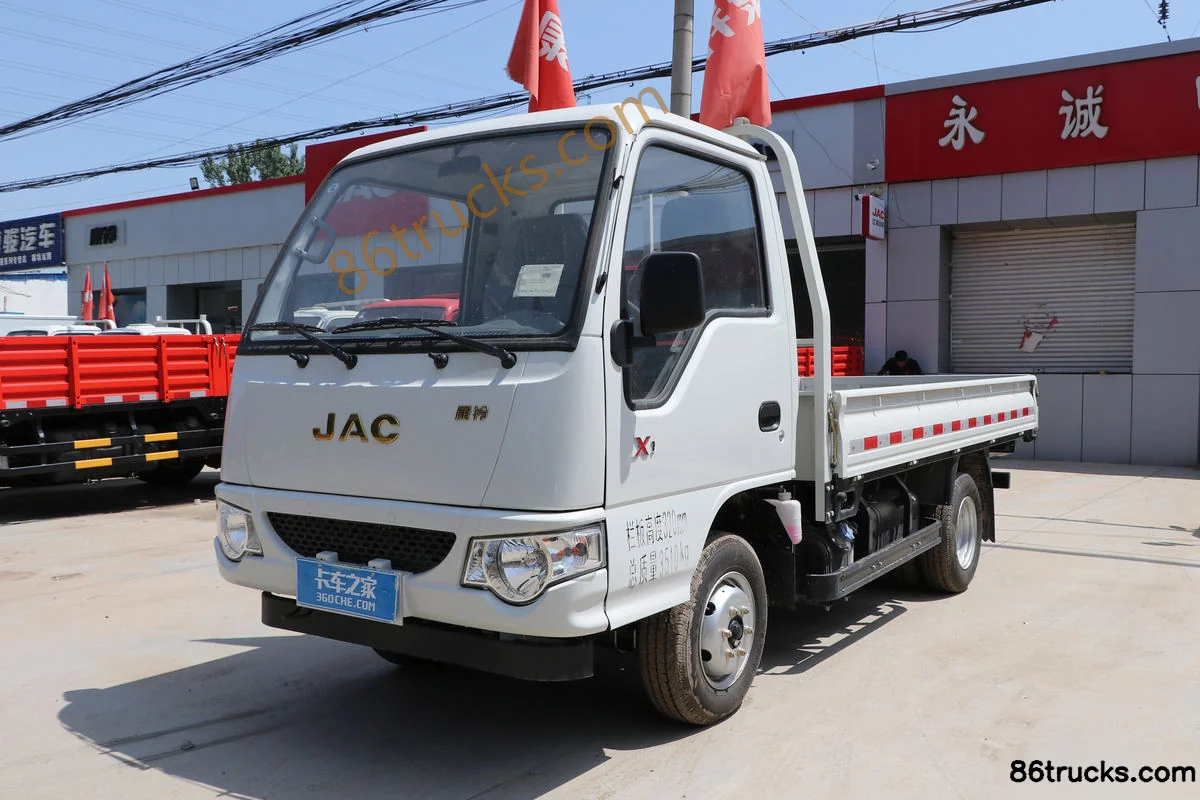

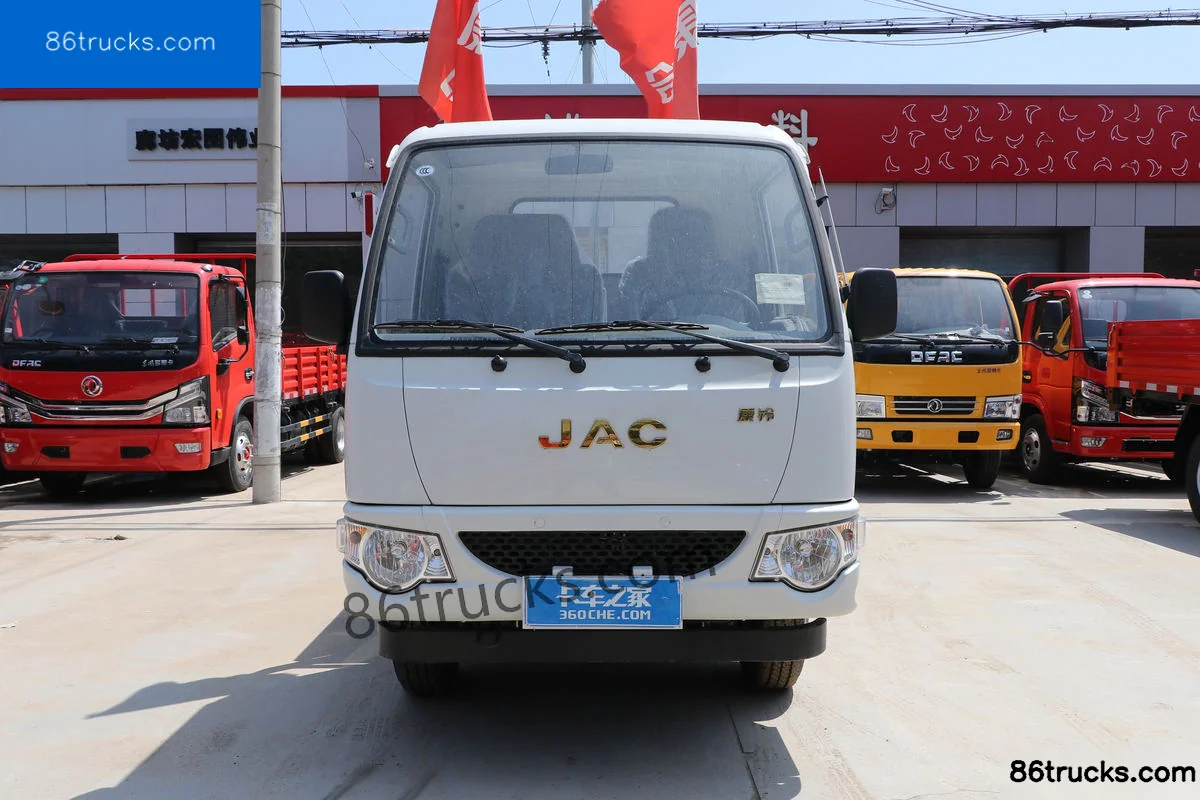

Exterior3

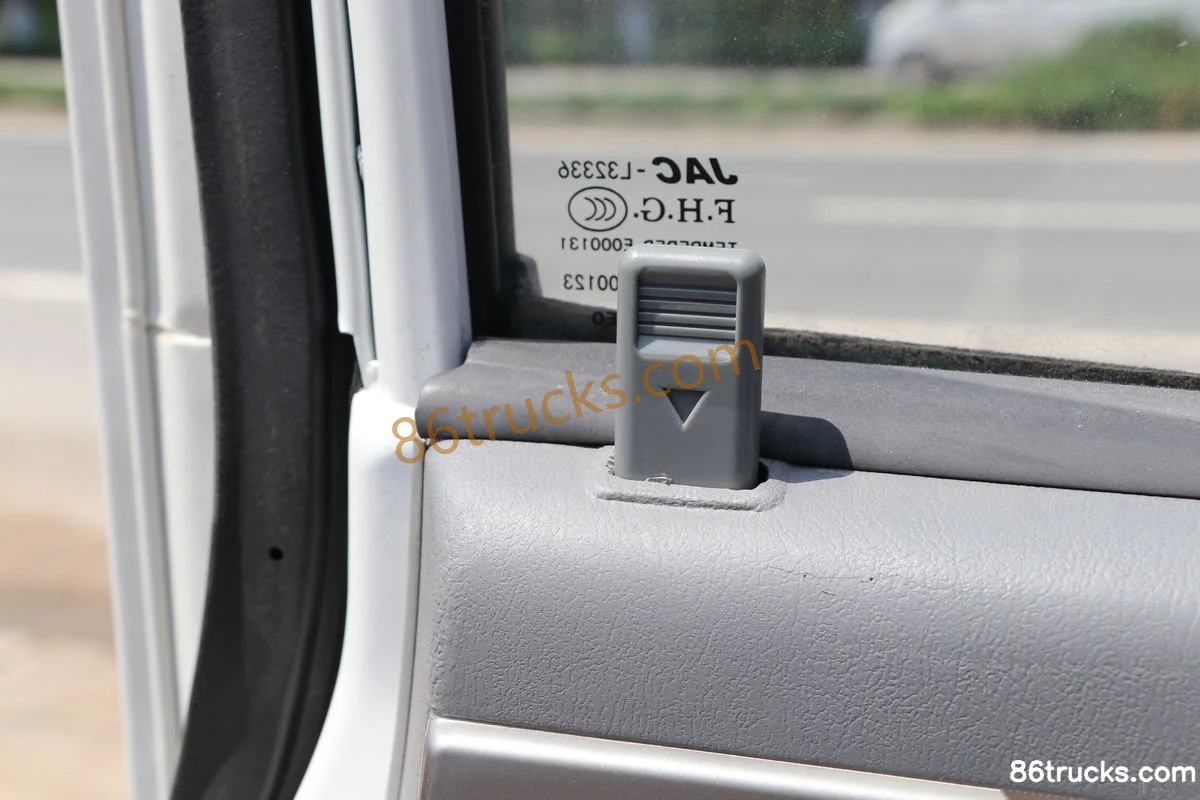

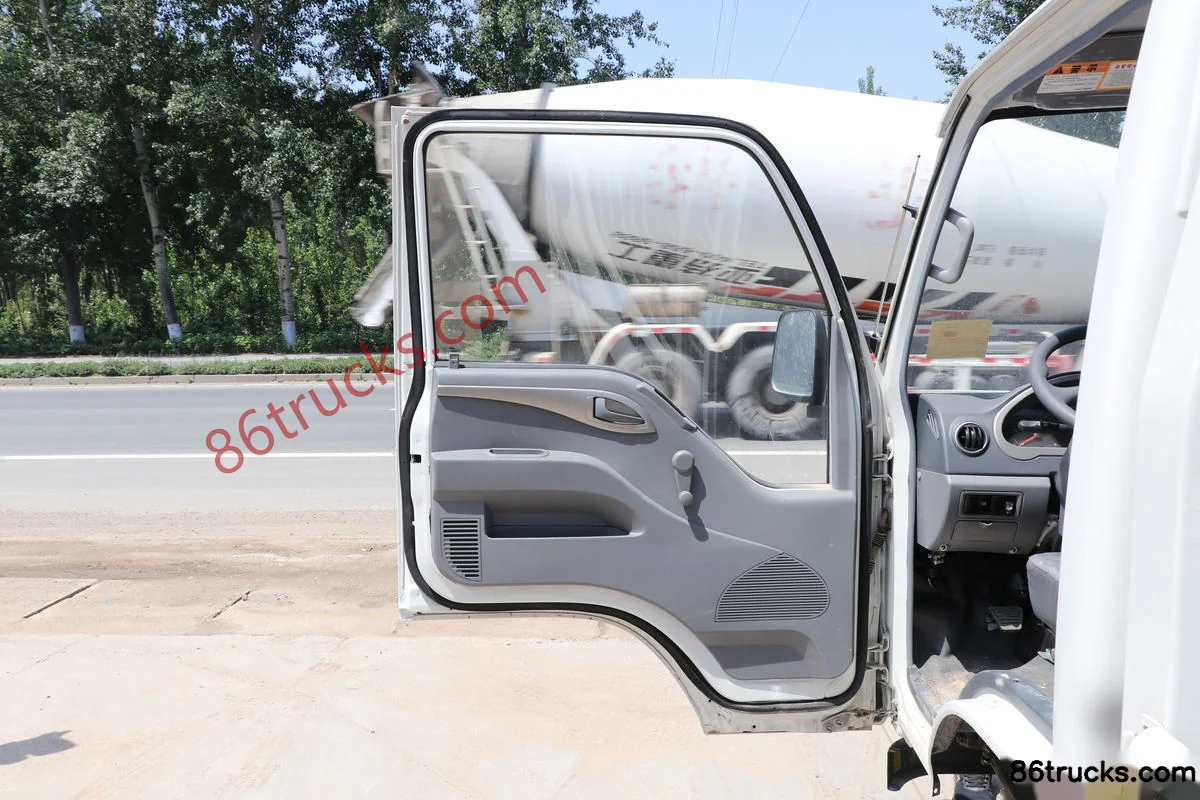

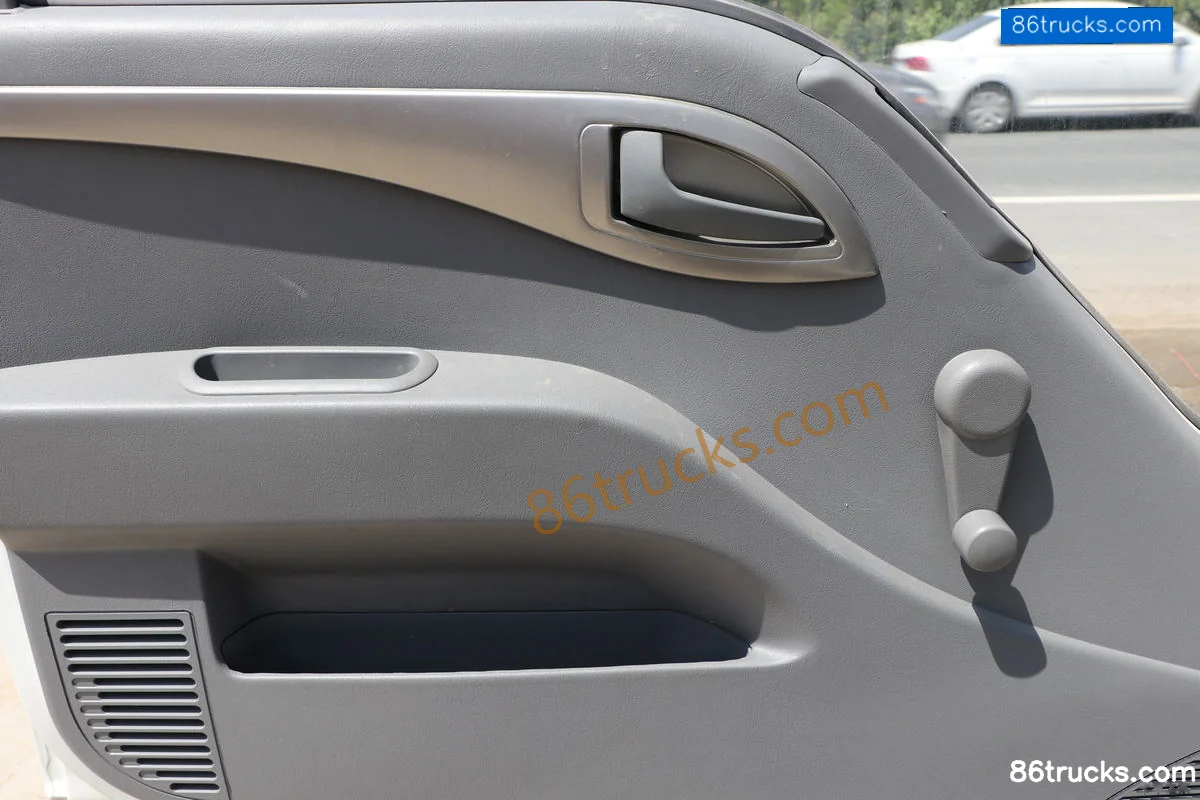

Cab3

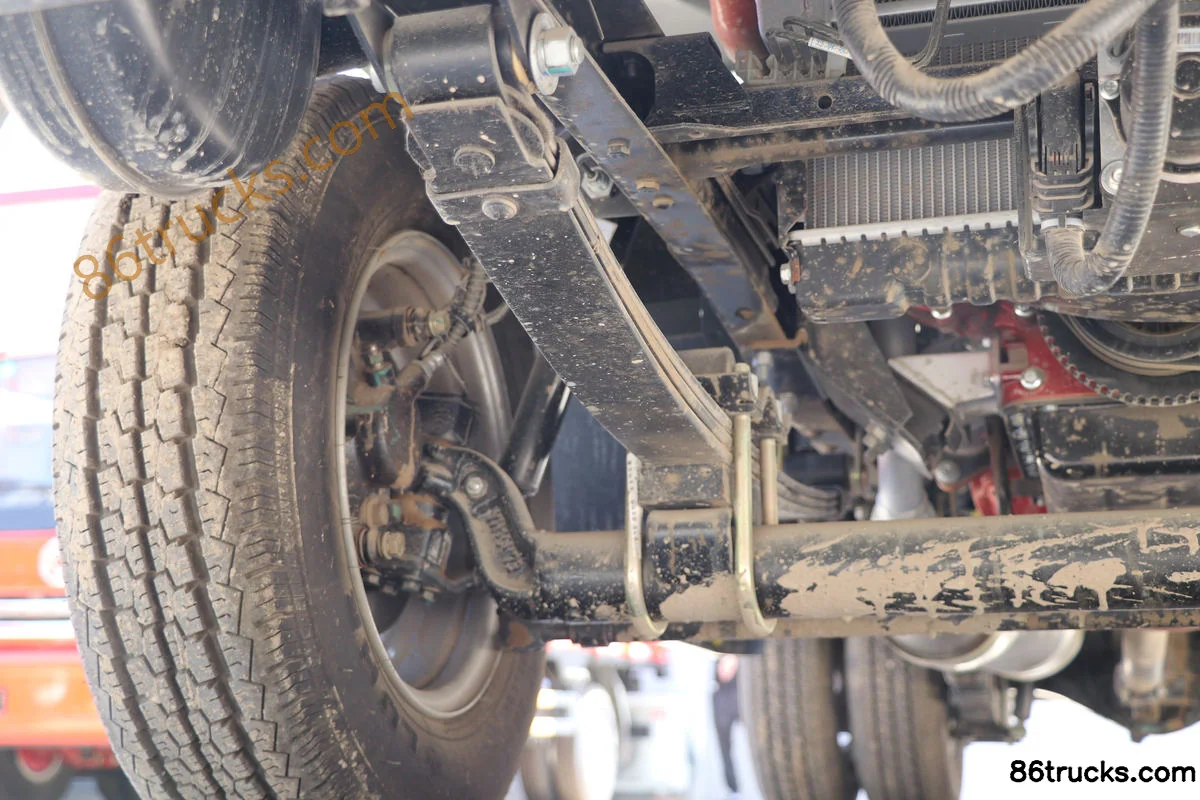

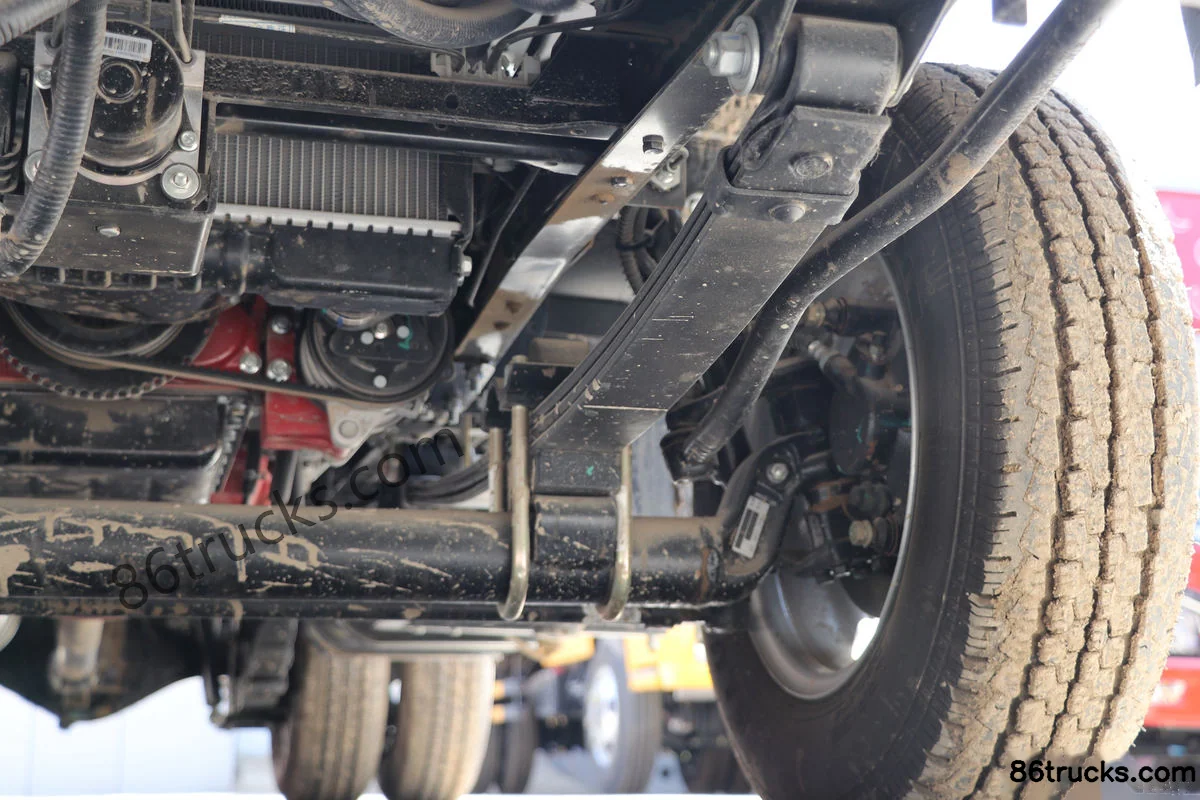

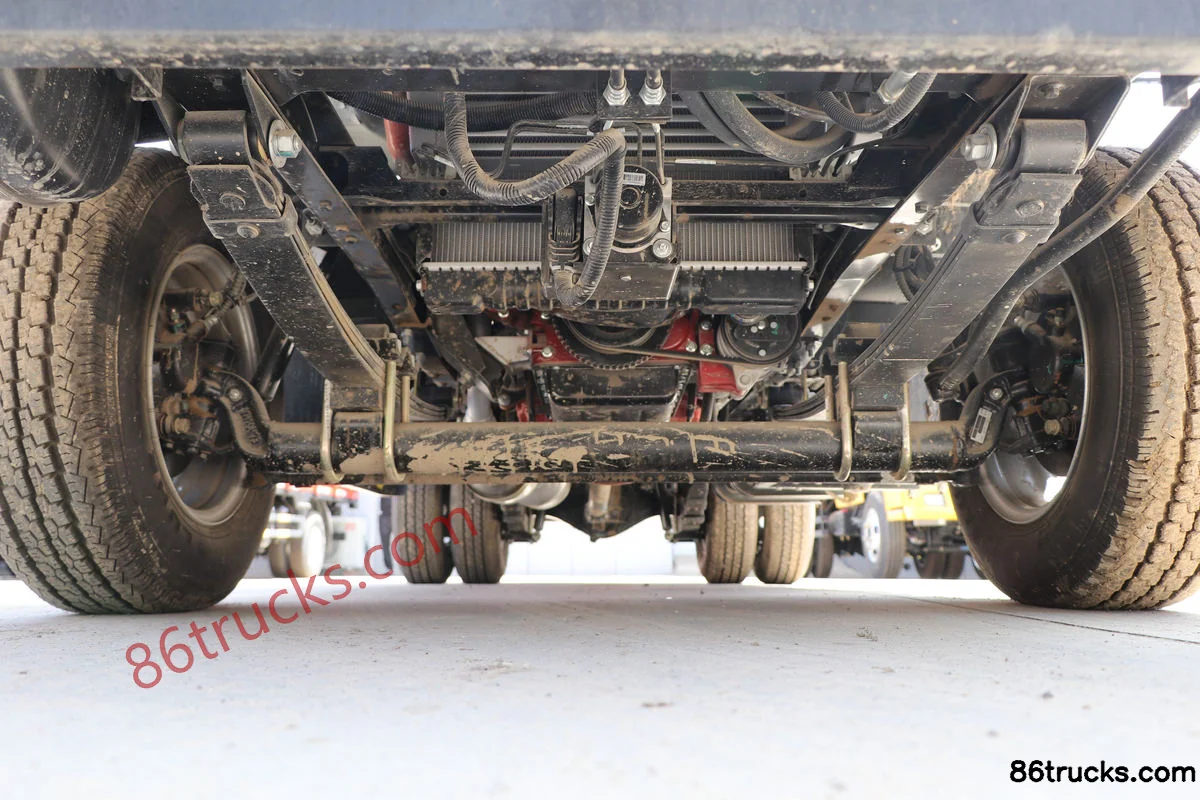

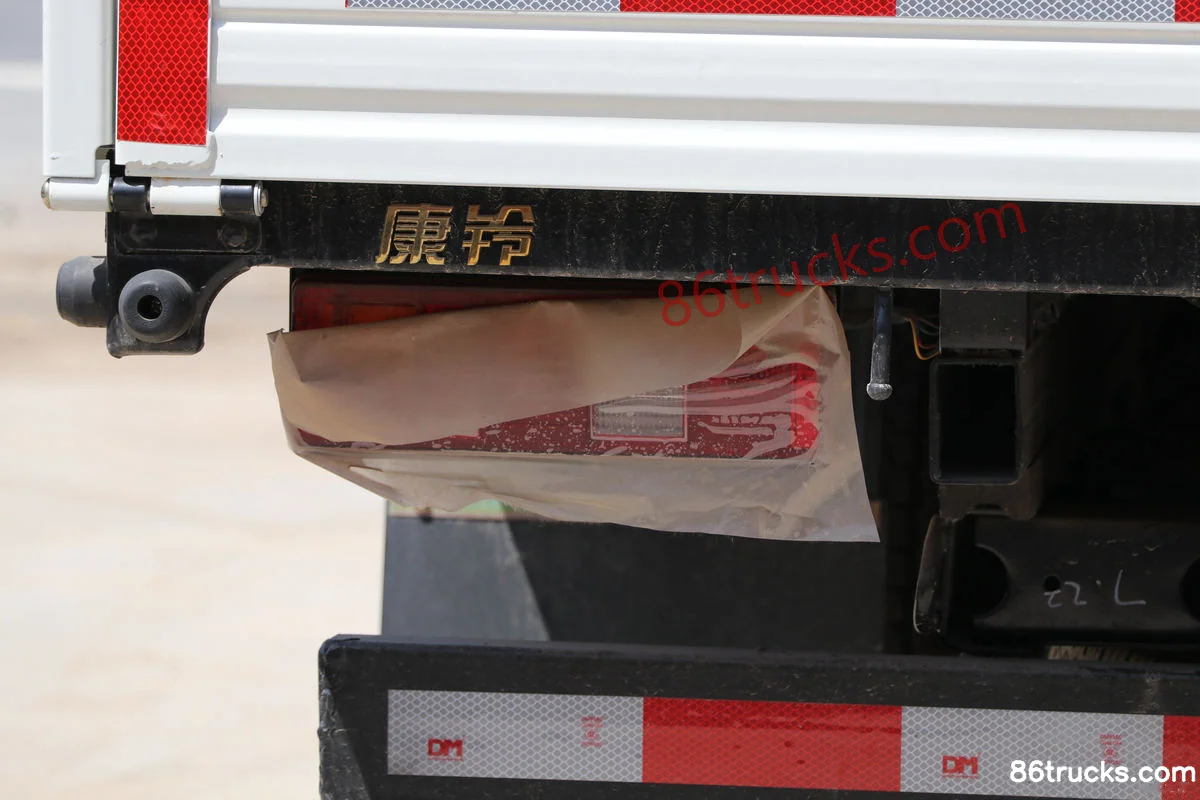

Chassis3

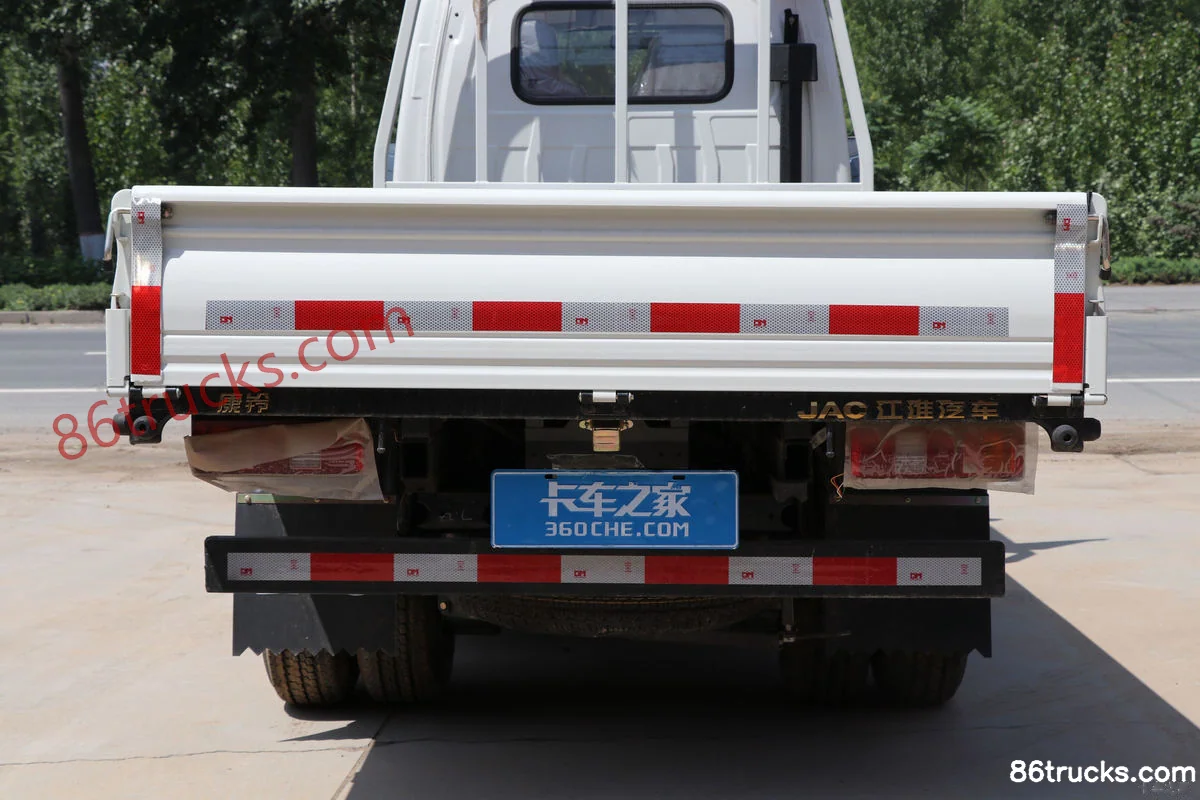

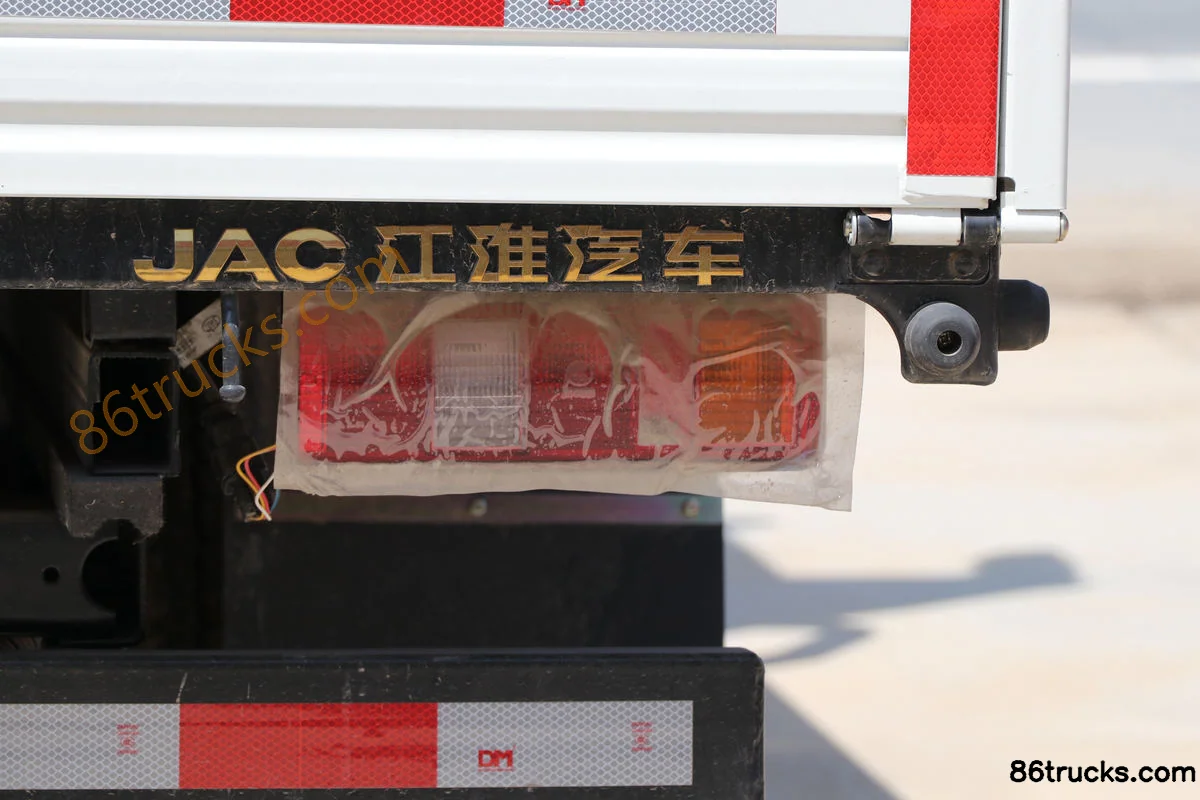

Body3

12 photos

FAQ

What is the export price of JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck, and what does it include?

JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck export reference is about From $7,222; MSRP is ¥5.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck?

Key specs of JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck: Drive: 4x2; Horsepower: 68 hp; Emission: China V; Fuel: Diesel; Engine: Quanchai485; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck suited for?

JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck differ from other variants in the same series?

JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck belongs to JACX1 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling X1 68 hp 4X2(6 wheels) 3.33m Single Row Flatbed Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
