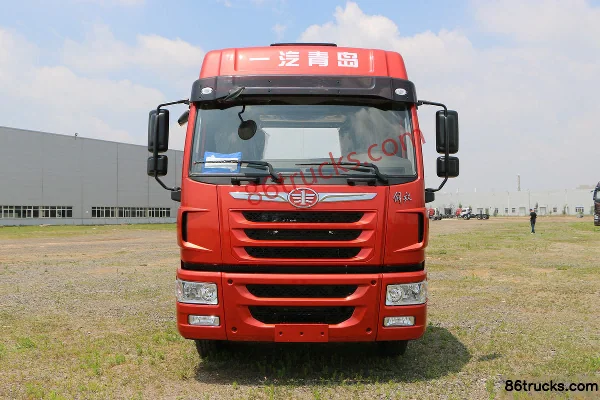

FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck

Export reference
From $23,792
MSRP ¥17.13M CNY
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Dachai4DK
Transmission: Fast Gear
Curb Weight:: 7.7ton
seating capacity: 3Personnel
Rated payload: 8.105ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck is a Medium-duty truck featuring 7.65m cargo length, Van body cargo body, 3Personnel volume and 8.105t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Dachai4DK engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5160XXYPK2L5E5A80-3
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5700mm
Box length class: 7.7m
engine: DachaiCA4DK1-18E51
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 10m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 7.7ton
Rated payload: 8.105ton
GVWR: 16ton
Max. speed: 98km/h
Origin: Changchun, Jilin
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Front/rear suspension: 1.332/2.963m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-18E51
Engine info: Dachai4DK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.764L
Emission standard: China V
Max output power: 139kW
Max hp: 180Horsepower
Max torque: 720N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.65m
Cargo box width: 2.45m
Cargo box height: 2.62m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: Long V mid-roof semi-floating cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: Upgraded X135
Front axle allowable load: 5600kg
rear axle description: 385 improved cast axle
rear axle allowable load: 10400kg
Axle ratio: 4.875
Leaf spring count: 7/10+3,4/4+3,3/4+3,7/7+3
clutch: Φ380
Tire
Tire Size: 9.00R20,10R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck, and what does it include?

FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck export reference is about From $23,792; MSRP is ¥17.13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck?

Key specs of FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Dachai4DK; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck suited for?

FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck differ from other variants in the same series?

FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck belongs to FAW Jiefang Qingdao Long VH Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Long VH medium truck 180hp 4X2(6 wheels) 7.65m van cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
