SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels)

Export reference
MSRP N/A
Rated payload:: 14.37ton
Wheelbase:: 1800+3200+1350mm
Cargo box type:: Rear-dump body
Model code (announced):: SYM3311ZZX1BEV
Cab length:: 9.53m
GVWR:: 31ton
SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) exterior
View more photos (12)
Drive 8X4 (12 wheels)
CLTC range: 360km
Motor 1 Brand: Lv Kong
Curb Weight: 16.5ton

Overview

The SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) is a Heavy truck featuring 360km battery/range, Lv Kong motor, 8X4 (12 wheels) drive and 14.37t payload.

8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SYM3311ZZX1BEV
Drive type: 8X4
Wheelbase: 1800+3200+1350mm
Cab length: 9.53m
Cab width: 2.54m
Cab height: 3.42m
CLTC range: 360km
Curb Weight: 16.5ton
Rated payload: 14.37ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Changsha, Hunan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ410XS-LKM2001
Motor Type: Permanent magnet synchronous motor
total rated power: 240kW
Peak power: 360kW
total peak torque: 2000N·m
Electronic Control
ECU Brand: LvKong Transmission
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 422.88kWh
Battery total voltage: 618.24V
Energy Density: 160.26
Battery Model: L228C01/L228H01
Cargo box parameters
Cargo box type: Rear-dump body
Cargo box length: 5.4m
Cargo box width: 2.3m
Cargo box height: 1.2m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 11R22.5
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Power Windows:

Photos

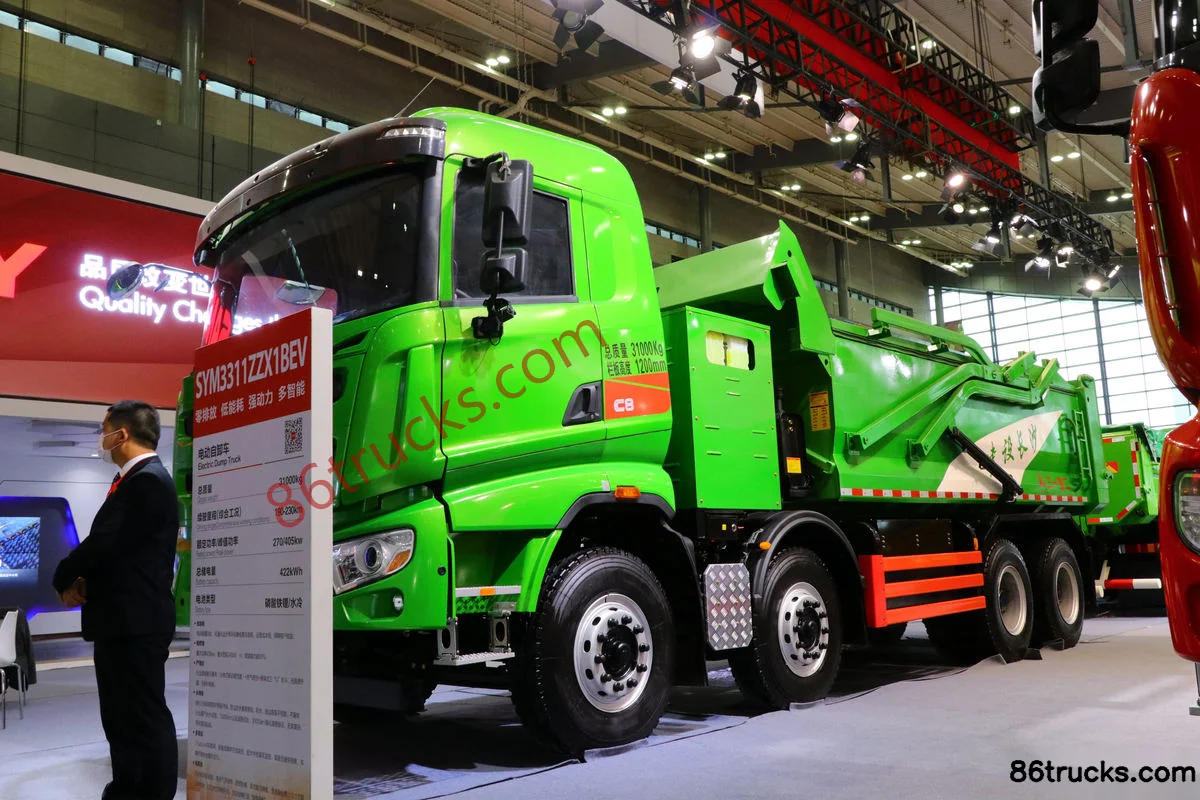

Exterior3

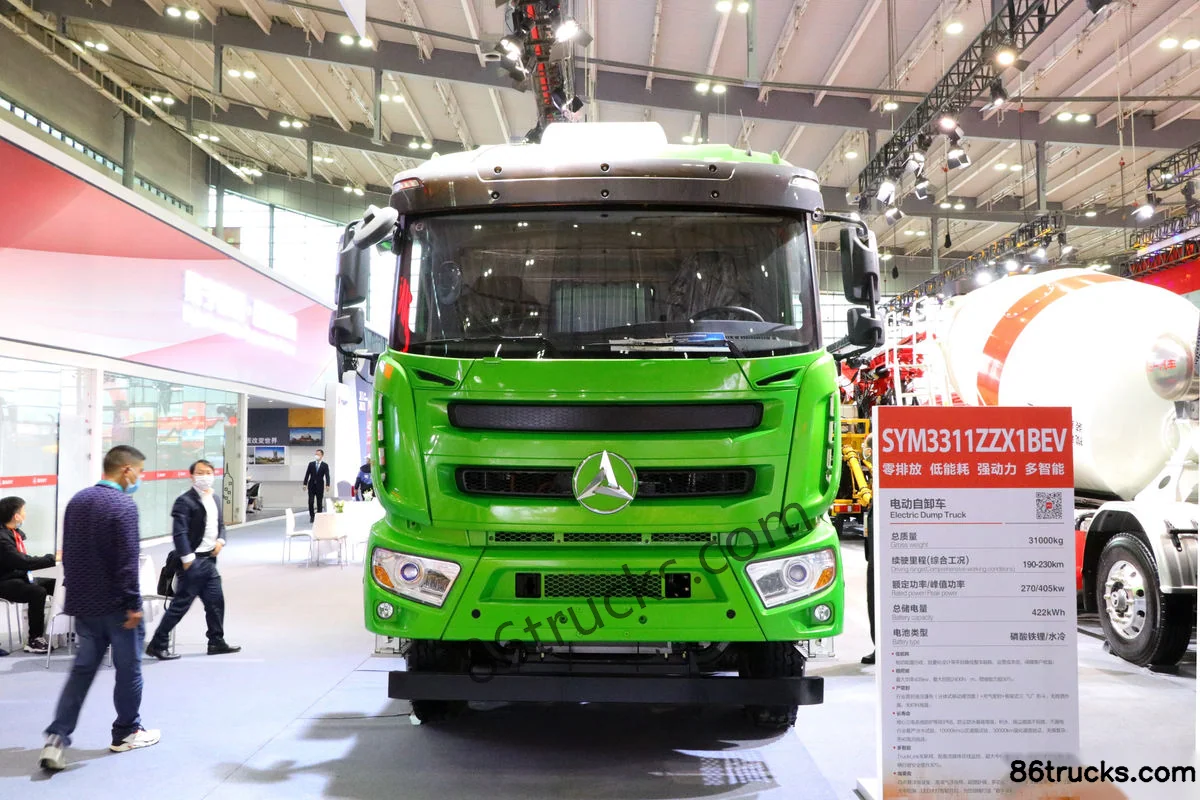

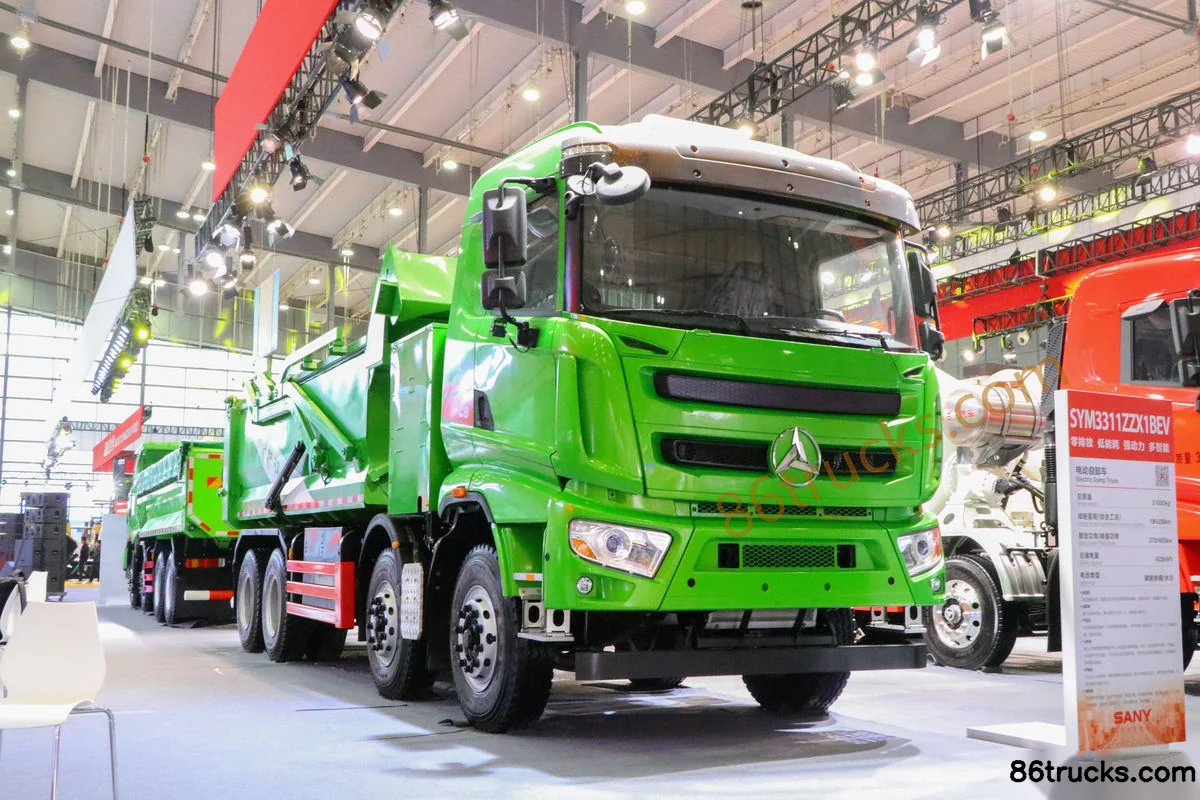

SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Exterior (1) | 86Trucks SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Exterior (2) | 86Trucks SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Exterior (3) | 86Trucks

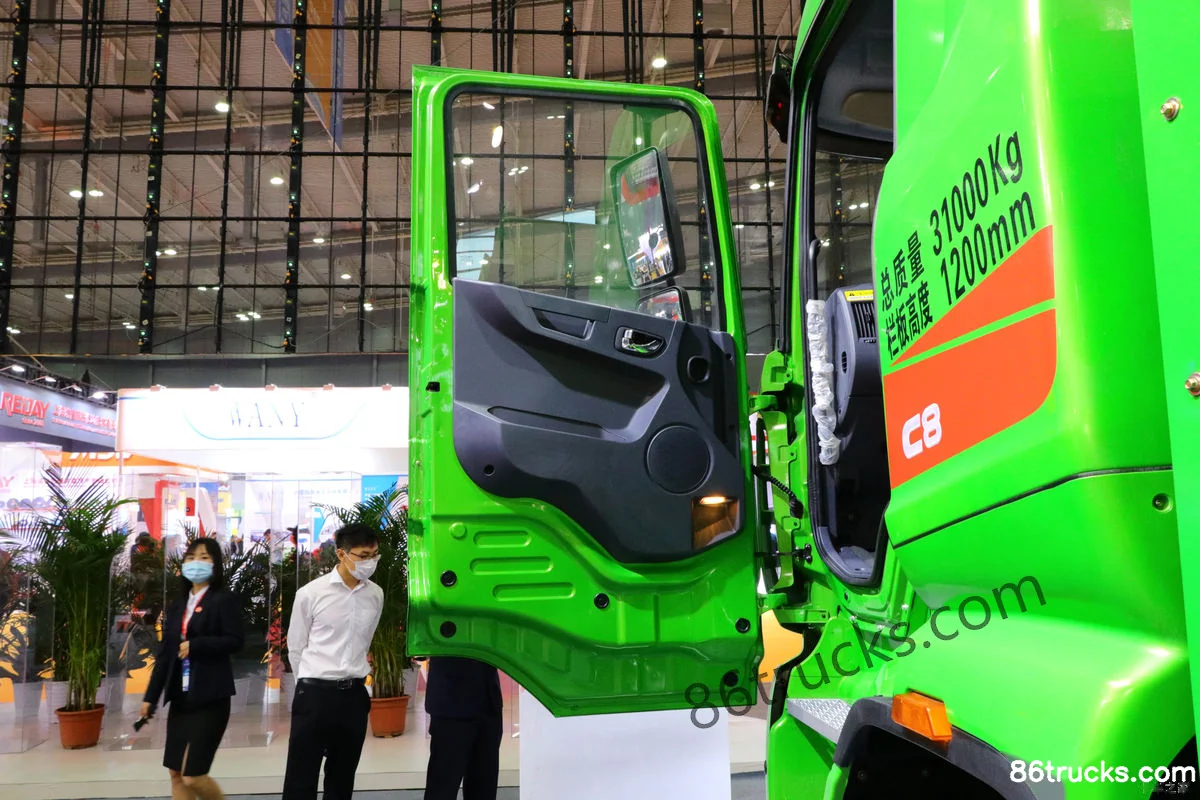

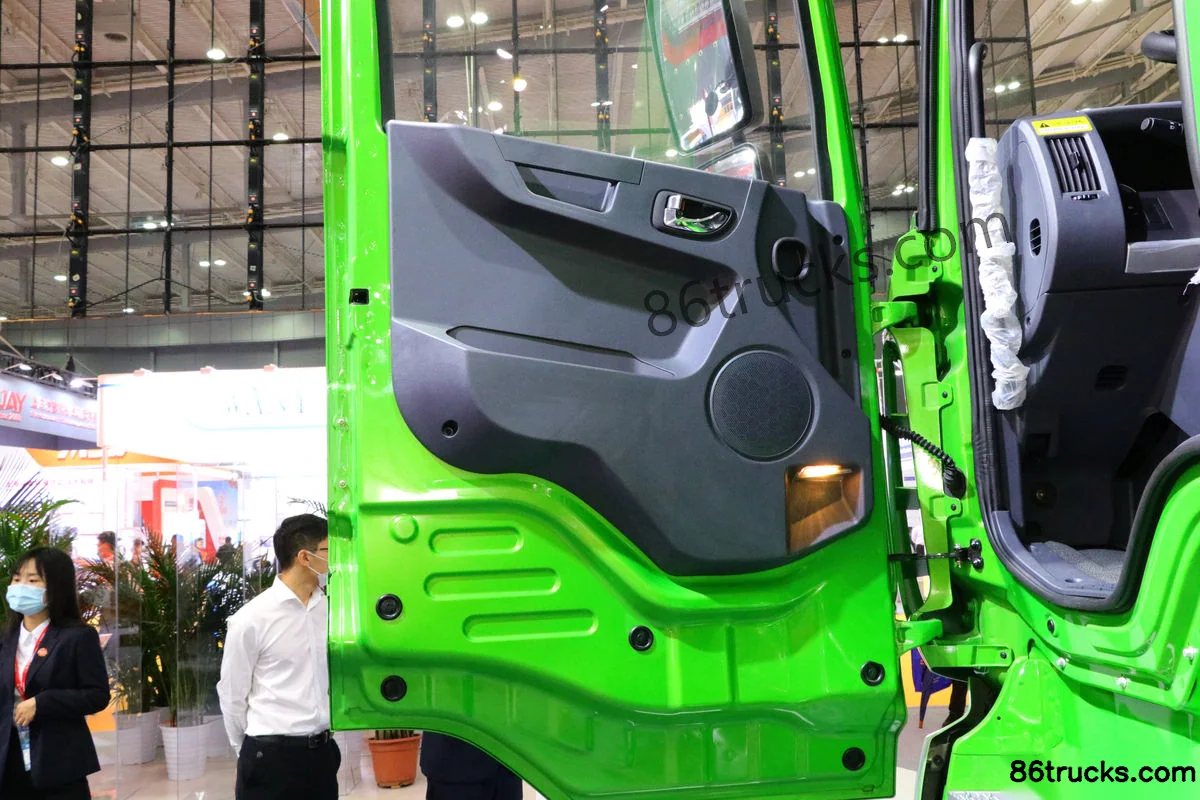

Cab3

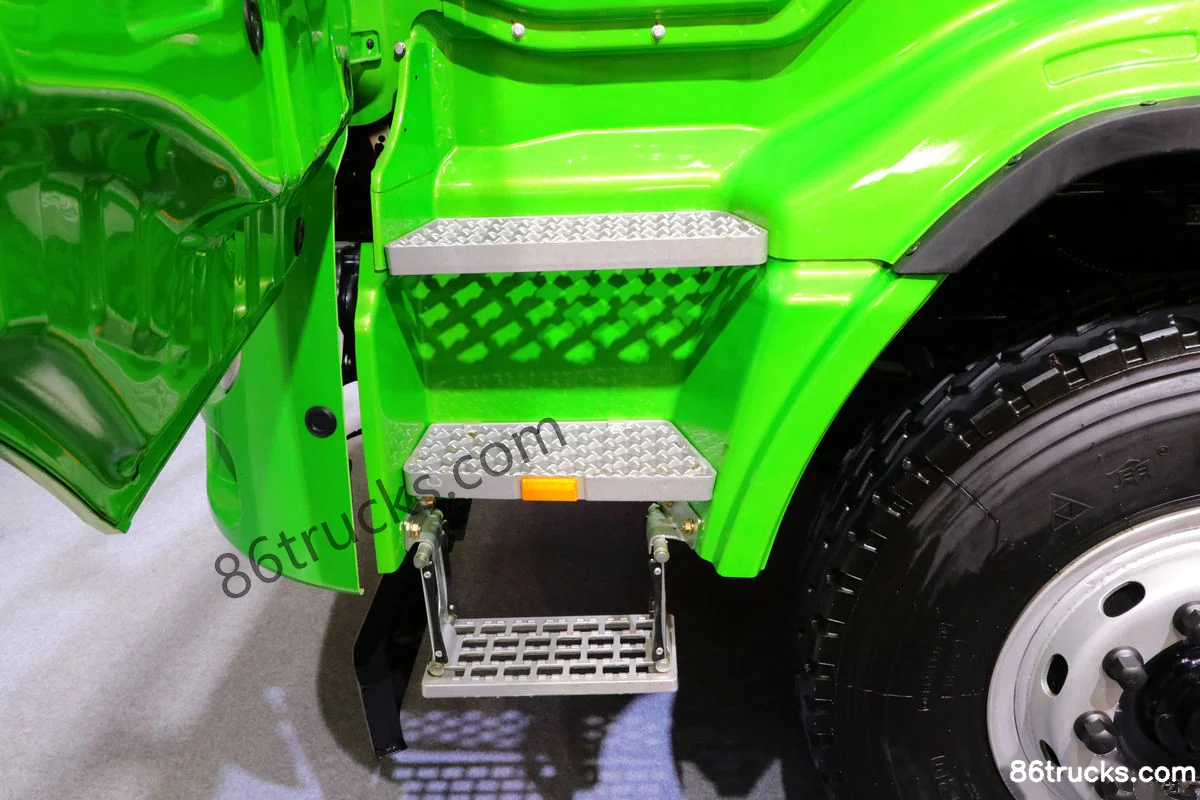

SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Cab (1) | 86Trucks SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Cab (2) | 86Trucks SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Cab (3) | 86Trucks

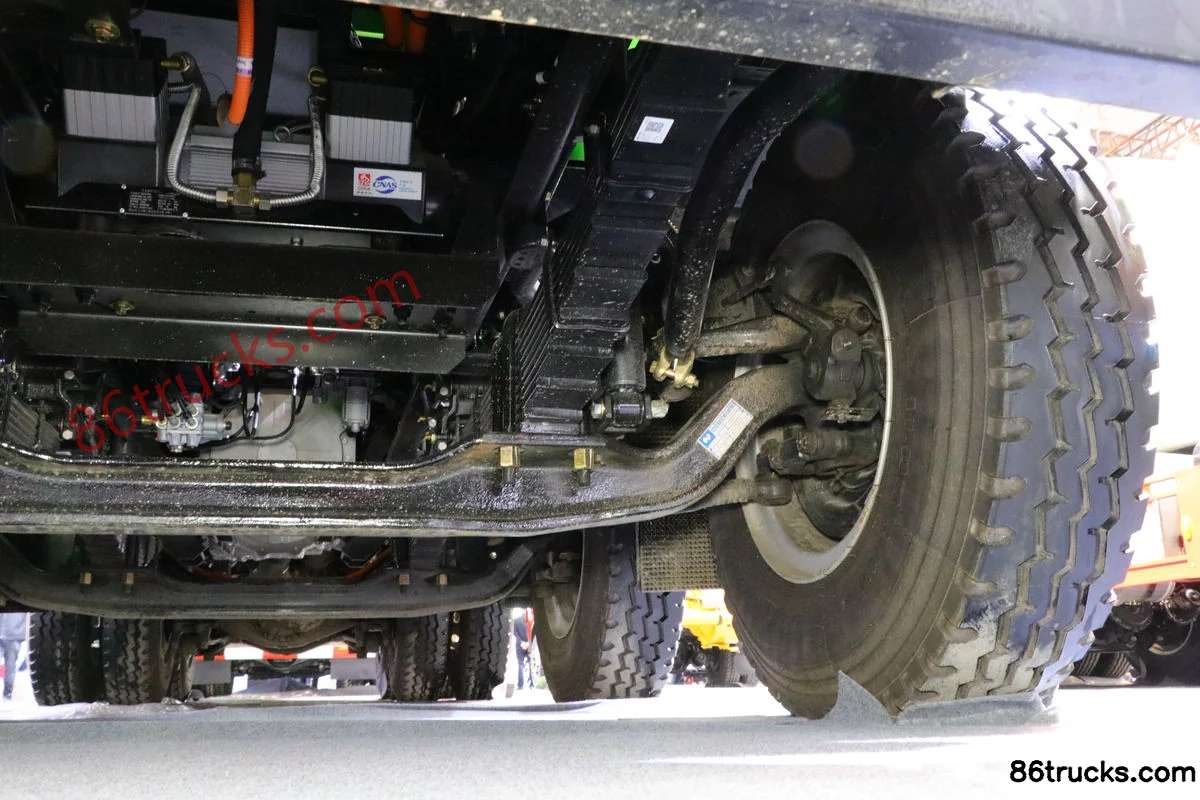

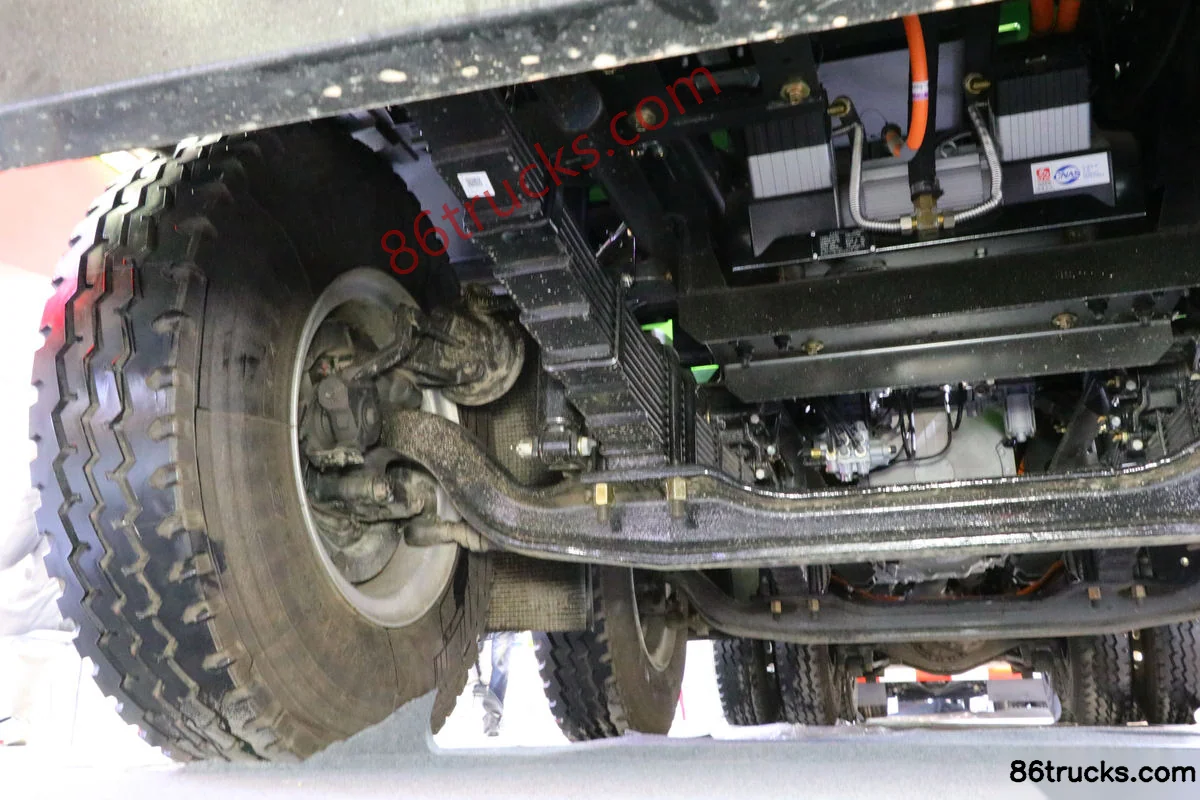

Chassis3

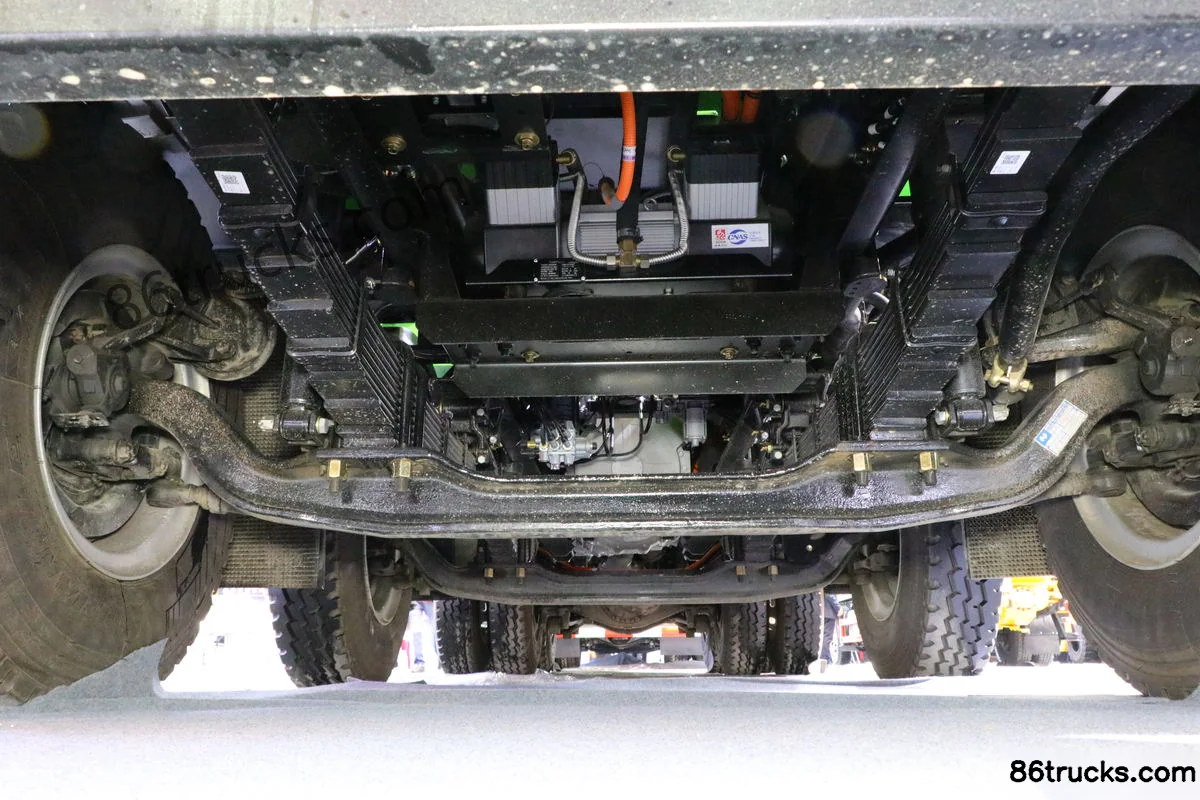

SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Chassis (1) | 86Trucks SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Chassis (2) | 86Trucks SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Chassis (3) | 86Trucks

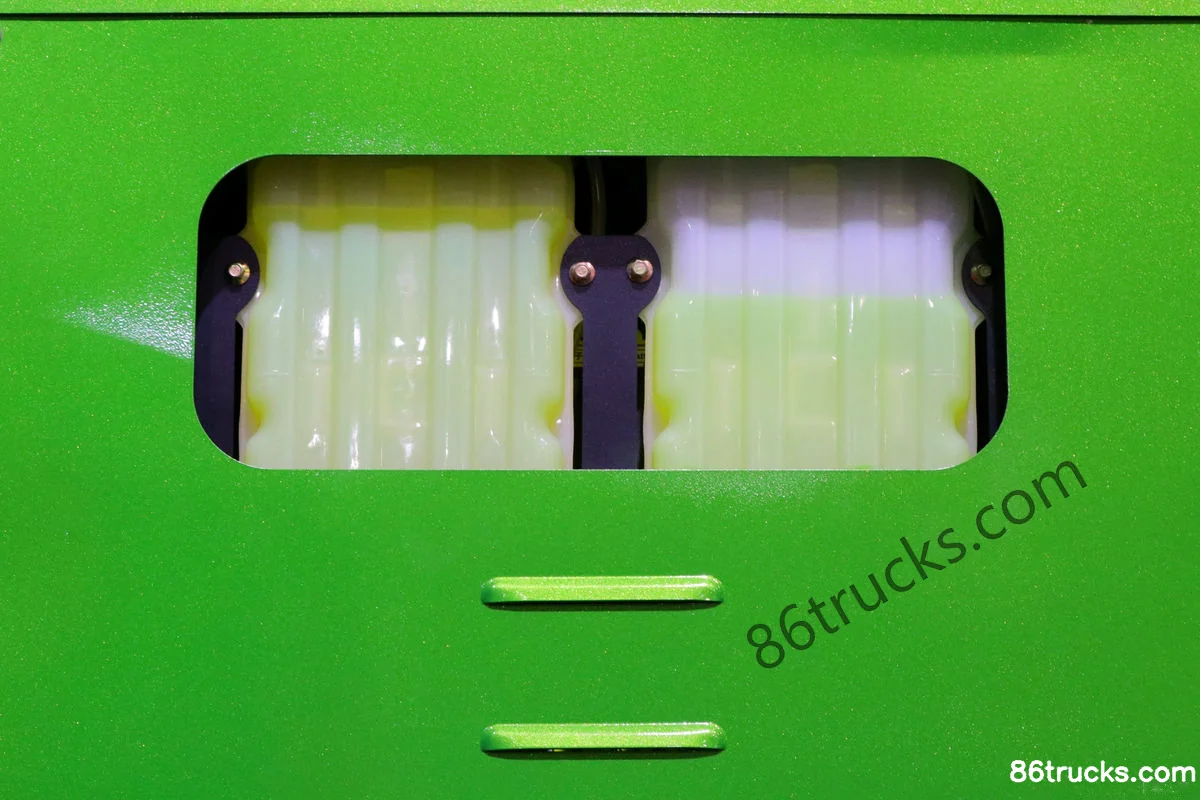

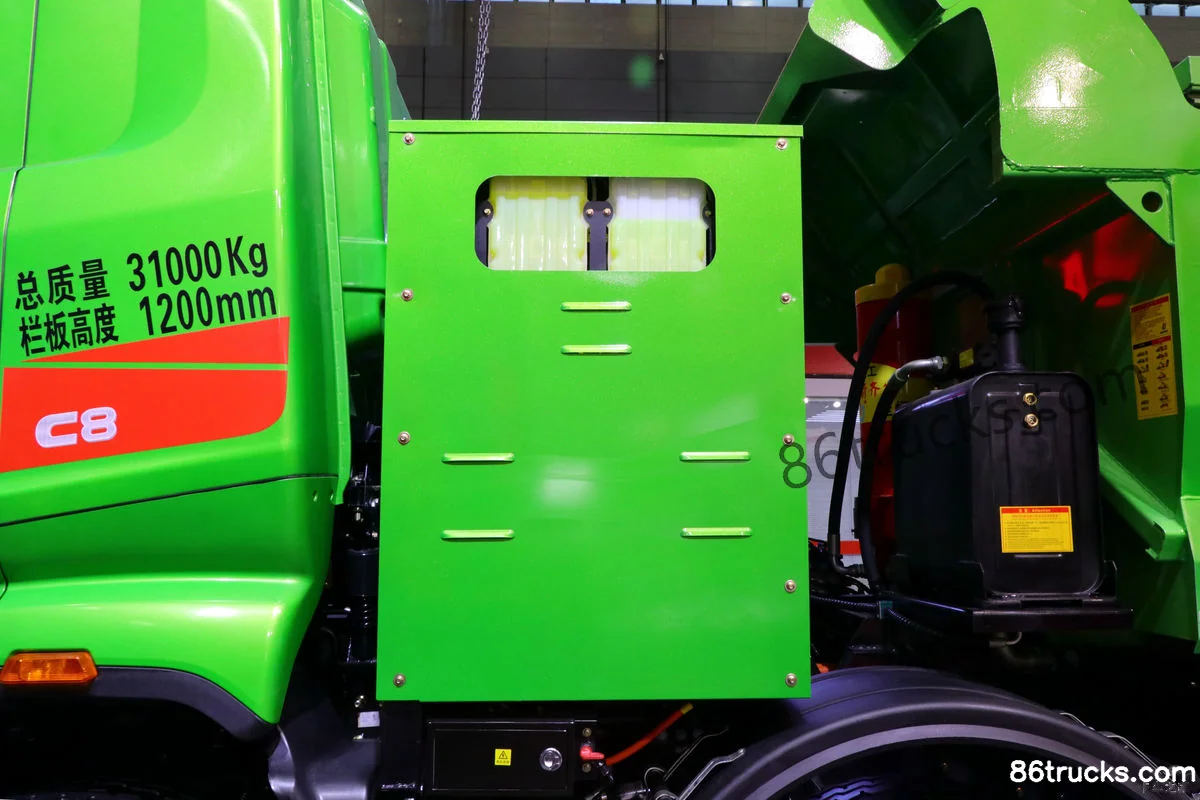

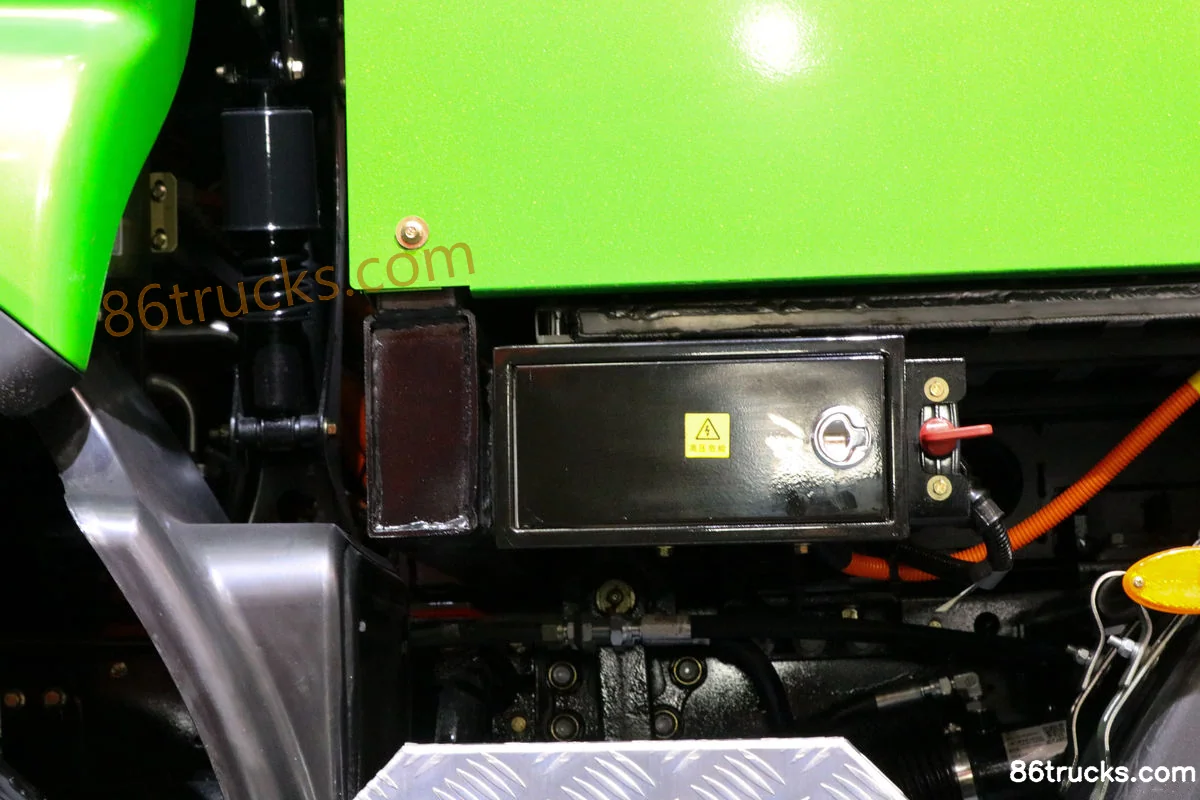

Body3

SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Body (1) | 86Trucks SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Body (2) | 86Trucks SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels)?

Key specs of SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels): Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) suited for?

SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) differ from other variants in the same series?

SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels) belongs to SANY Heavy Industry C series (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY Heavy Industry C8 31T 5.4m Electric Dump Truck 422.88kWh 8X4(12 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
