Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.545ton
Wheelbase:: 3300mm
Cargo box type:: Van body
Model code (announced):: HQG5043XXYEV13
Type:: enclosed cargo truck
Box length class:: 4.2m

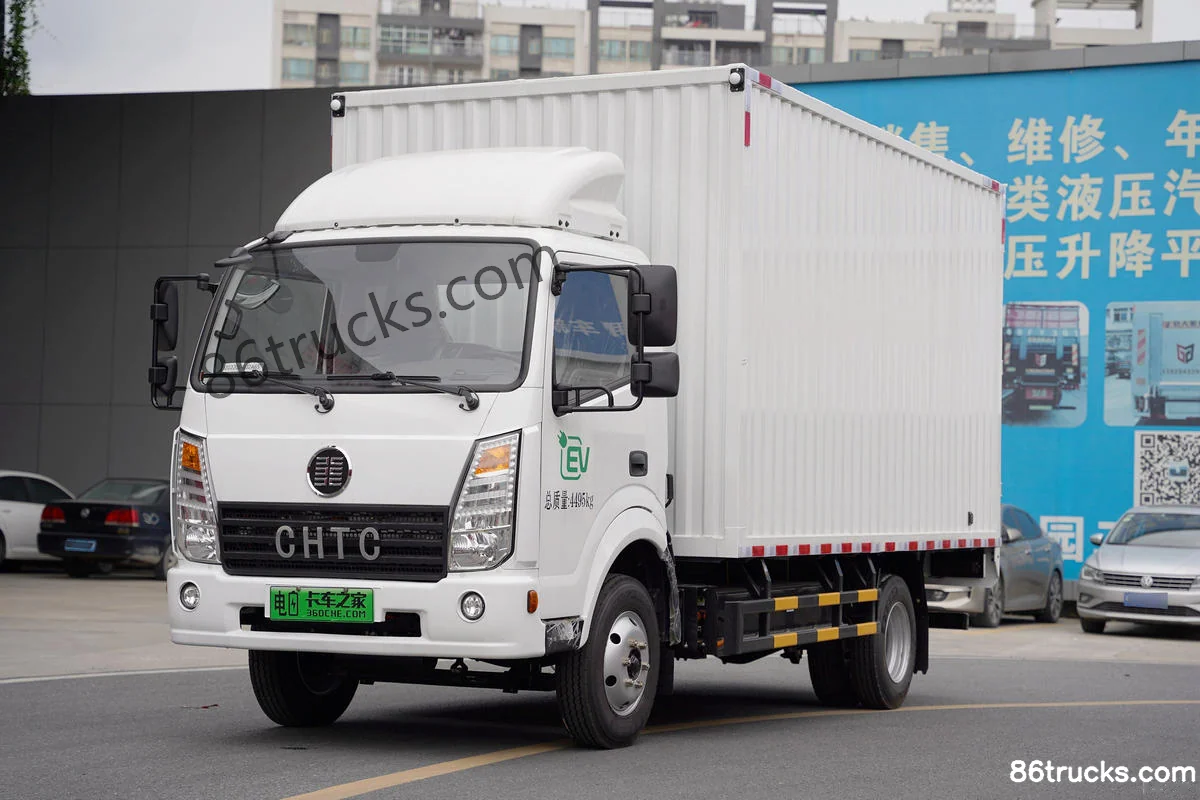

Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: CRRC Times
Curb Weight: 2.82ton

Overview

The Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) is a Light Truck featuring CATL battery/range, CRRC Times motor, 4X2 (6 wheels) drive and 1.545t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HQG5043XXYEV13
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.99m
Cab width: 2.21m
Cab height: 2.9m
Curb Weight: 2.82ton
Rated payload: 1.545ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Suizhou, Hubei
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: CRRC Times
Motor 1 Model: TZ190XS38F
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 65kW
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 40.57kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.16m
Cargo box width: 2.1m
Cargo box height: 2m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1900kg
rear axle allowable load: 2595kg
Tire
Tire Size: 6.50R16LT 12PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake

Photos

Exterior3

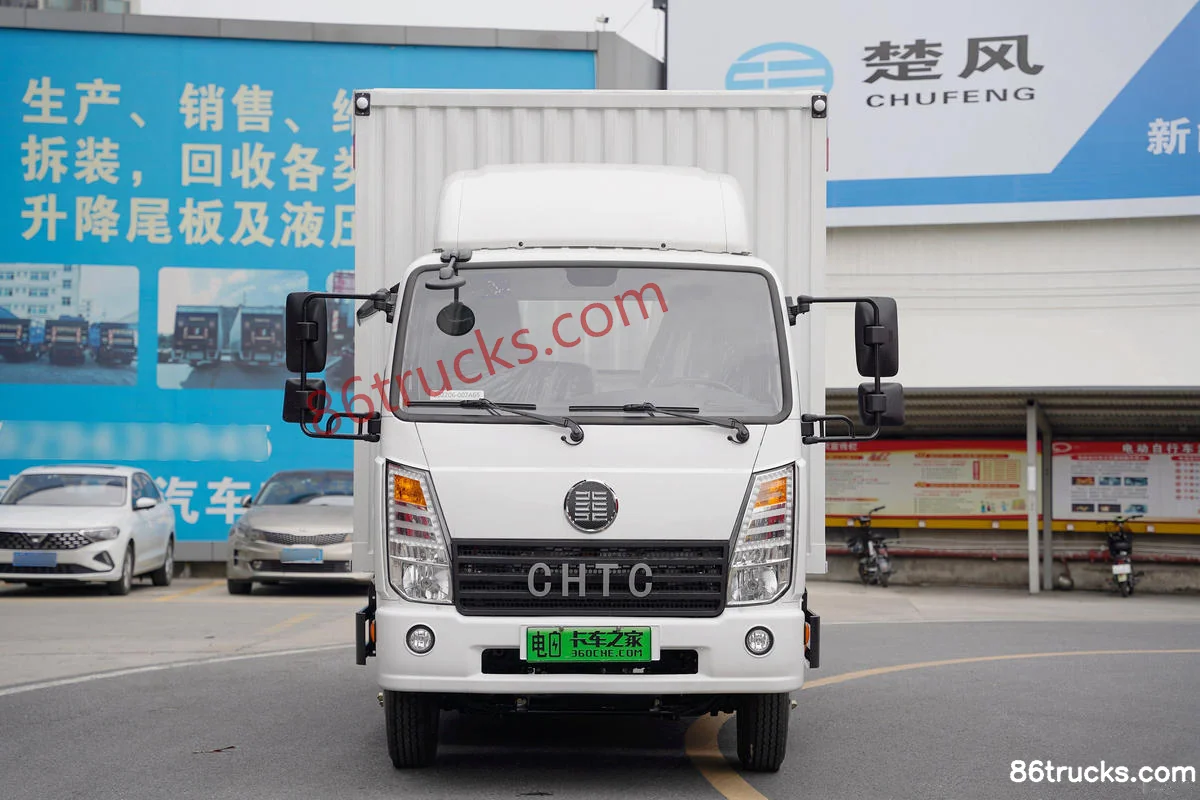

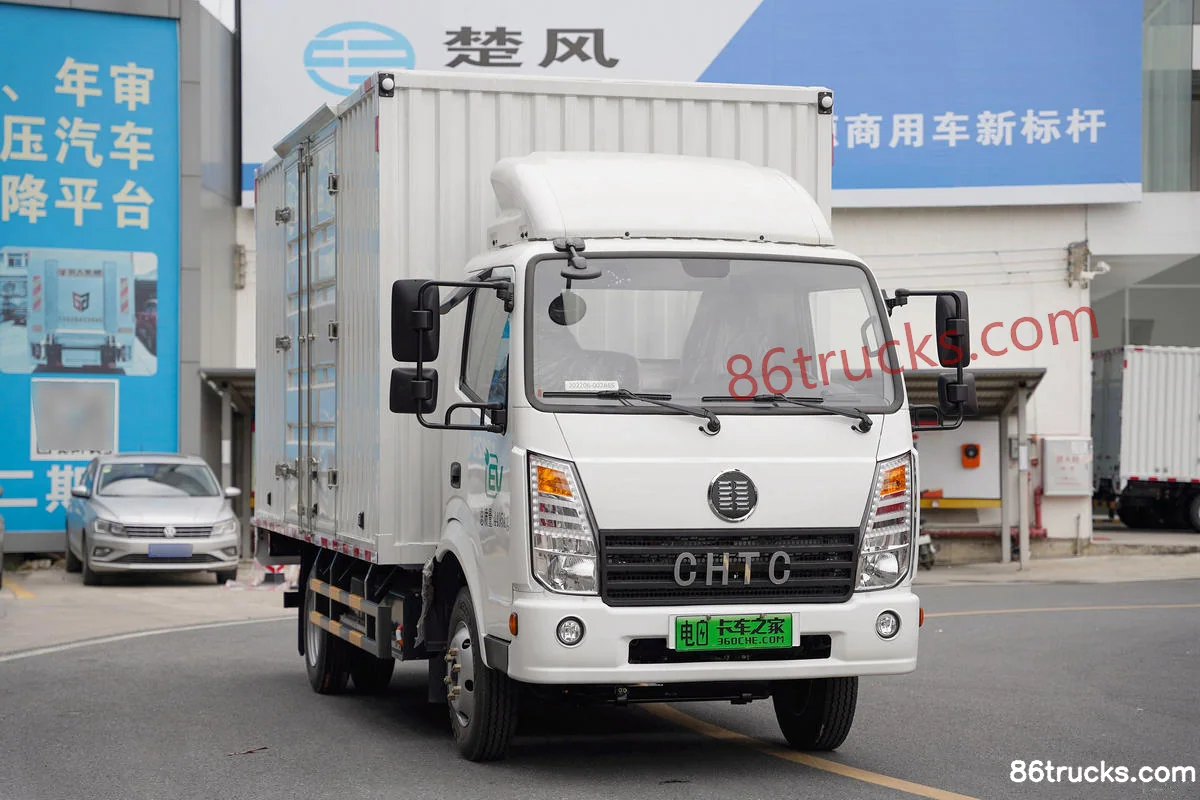

Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Exterior (1) | 86Trucks Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Exterior (2) | 86Trucks Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Exterior (3) | 86Trucks

Interior3

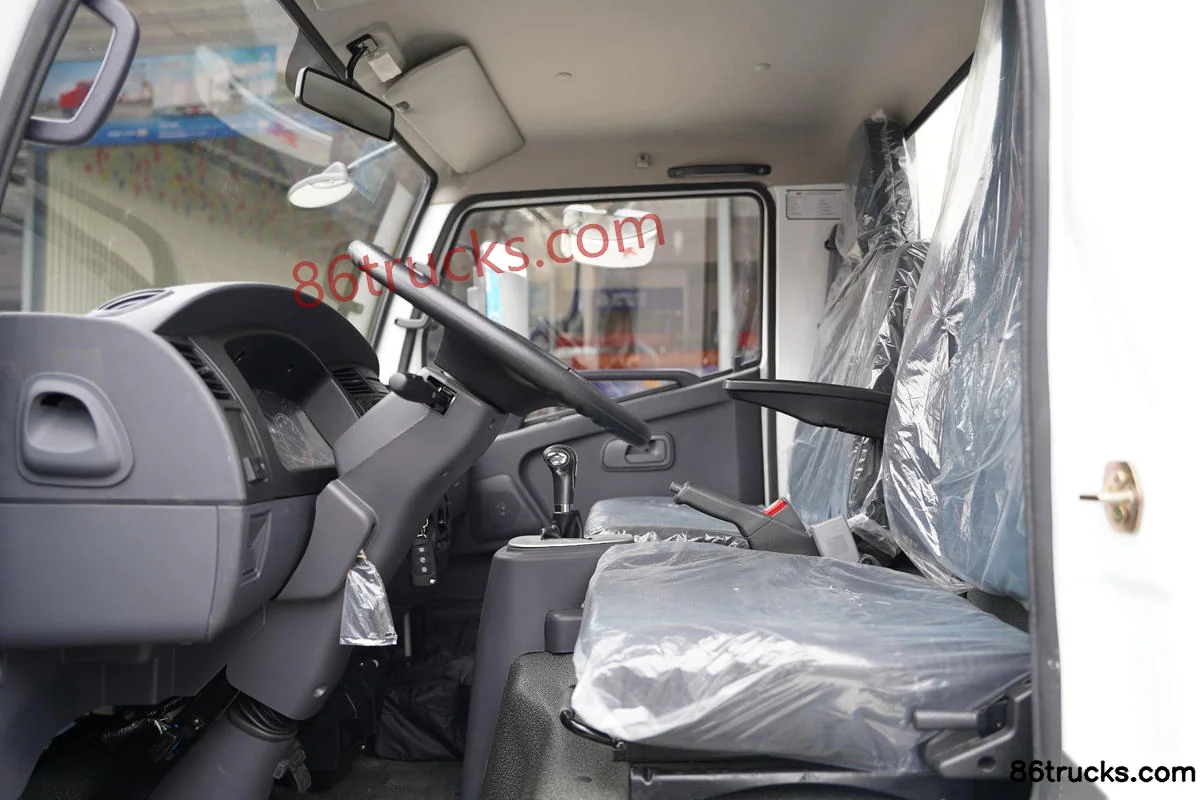

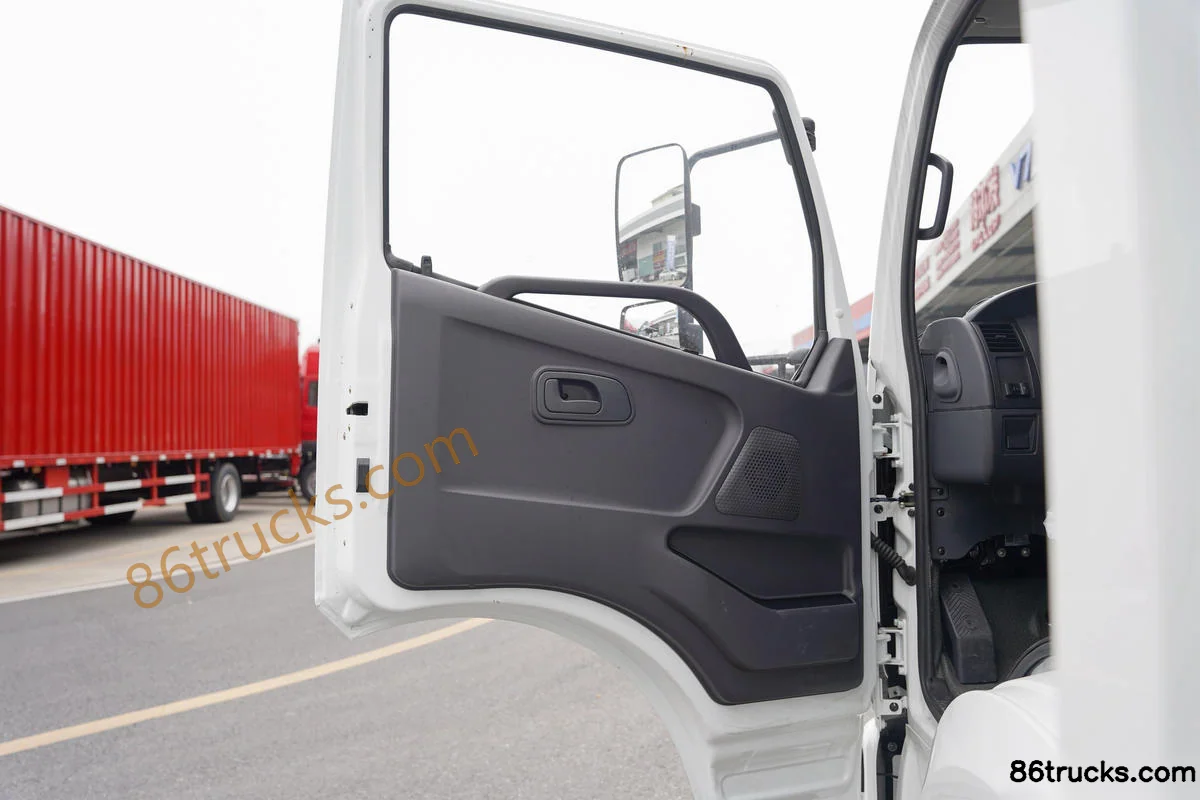

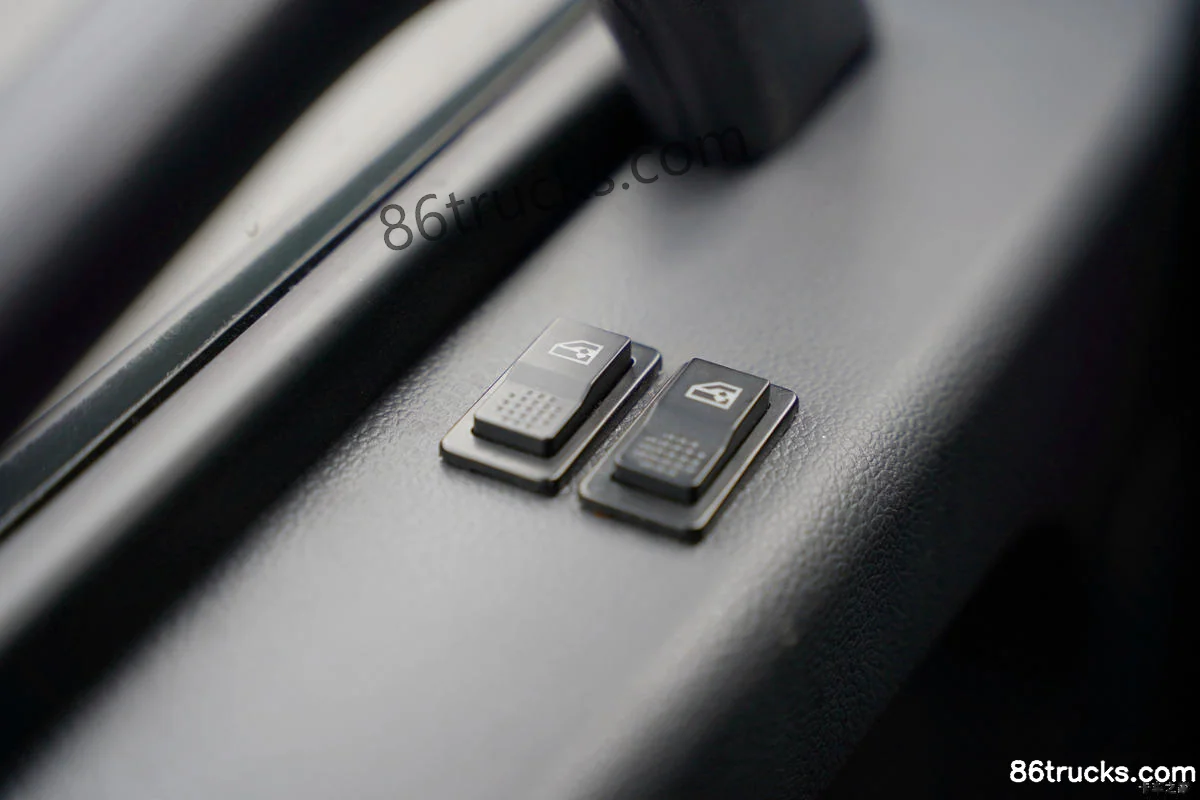

Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Interior (1) | 86Trucks Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Interior (2) | 86Trucks Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Interior (3) | 86Trucks

Chassis3

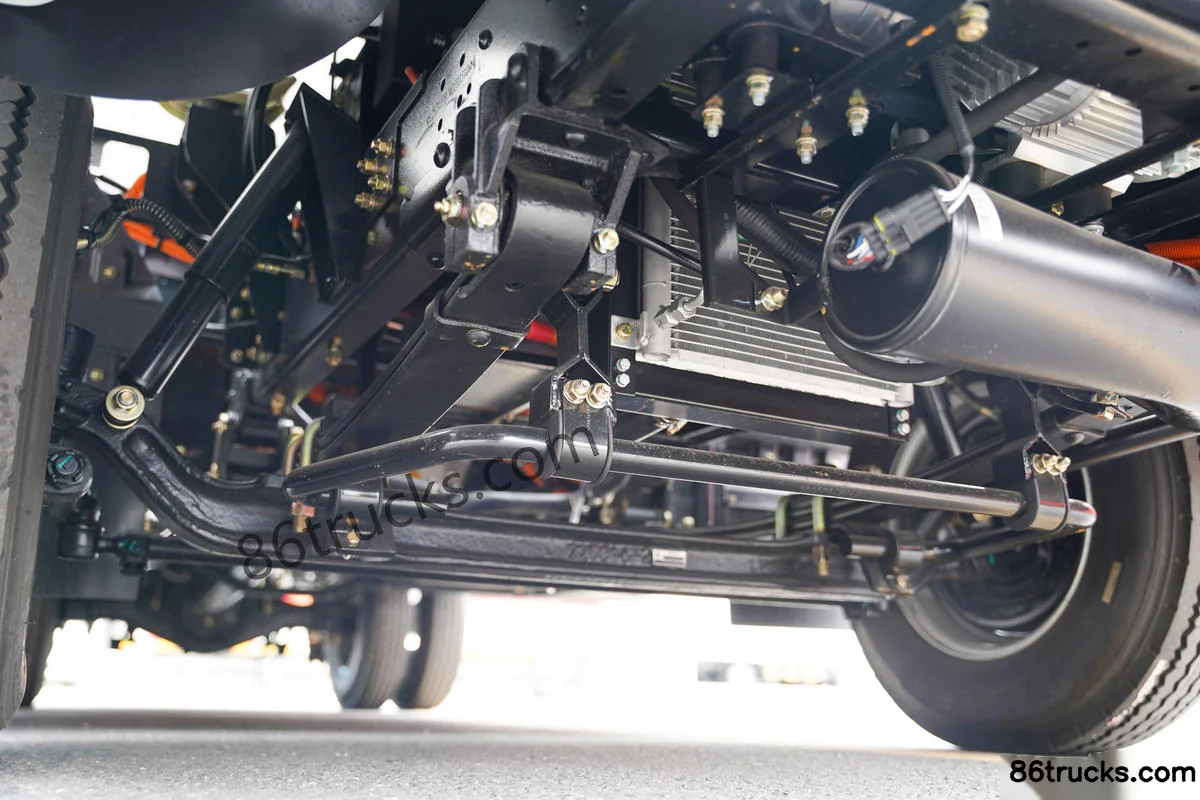

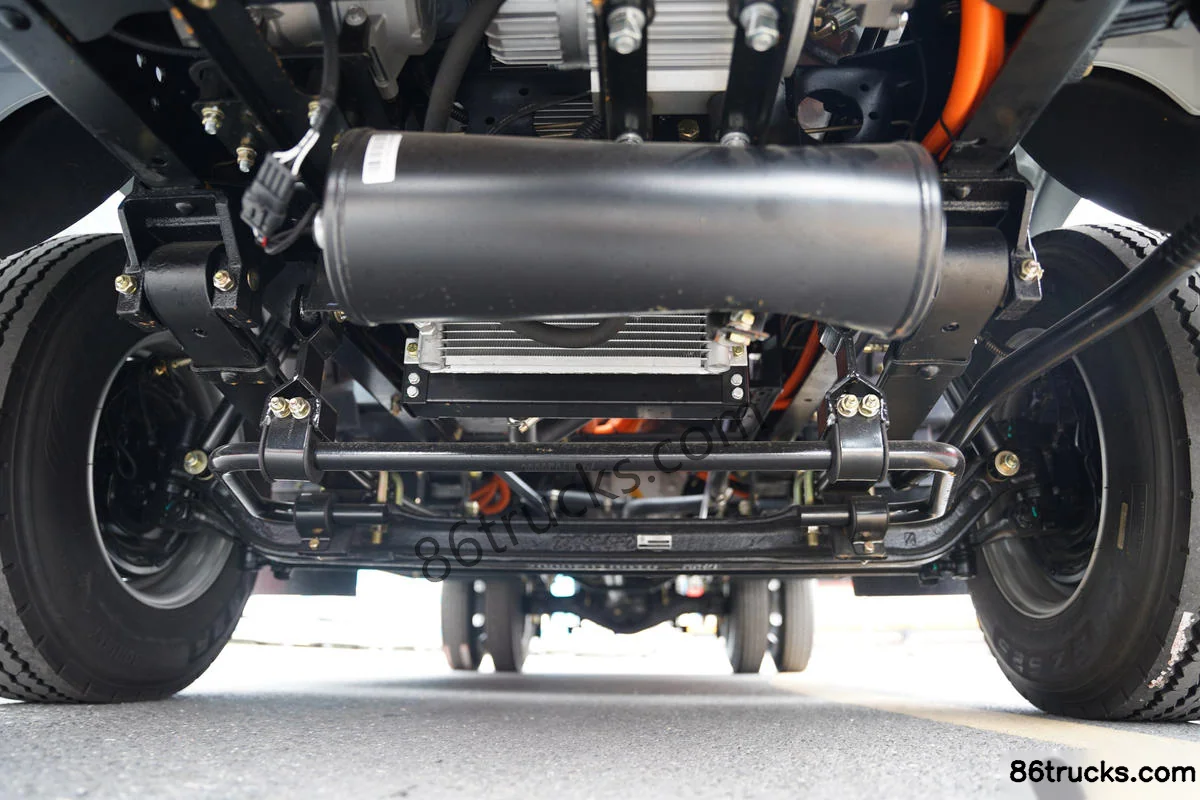

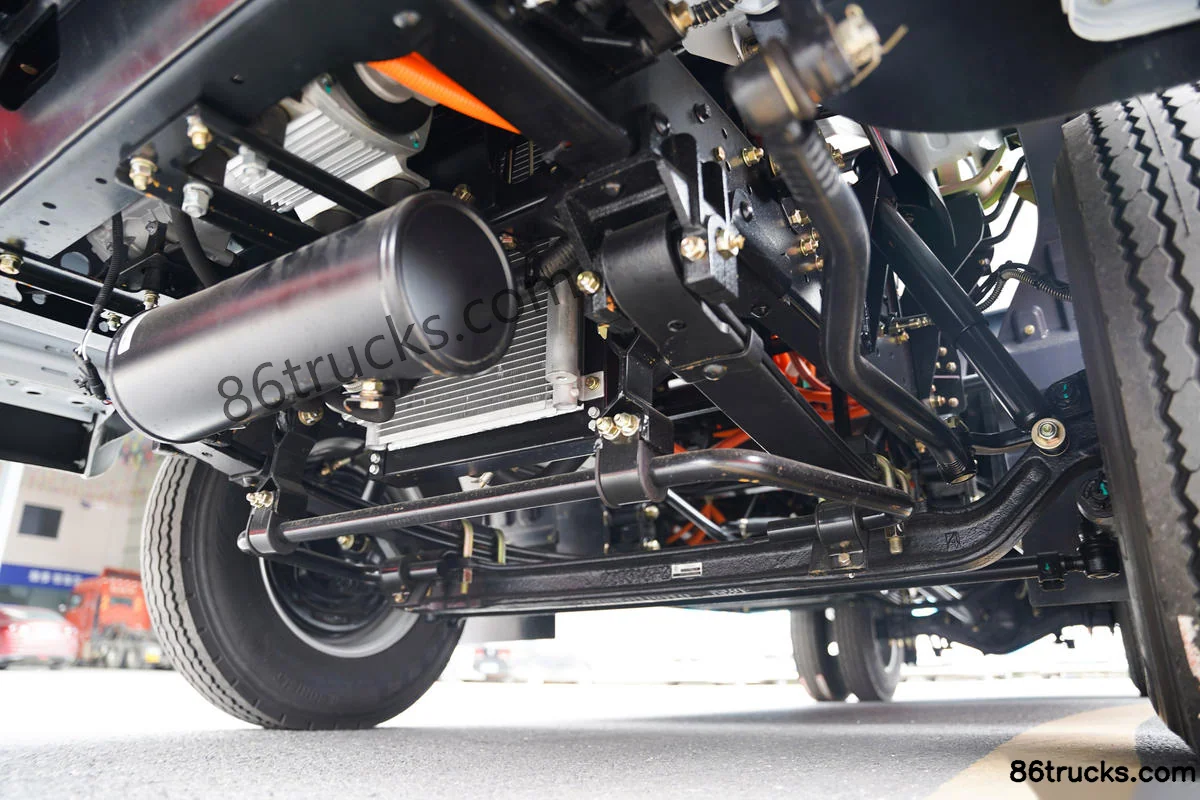

Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Chassis (1) | 86Trucks Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Chassis (2) | 86Trucks Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Chassis (3) | 86Trucks

Body3

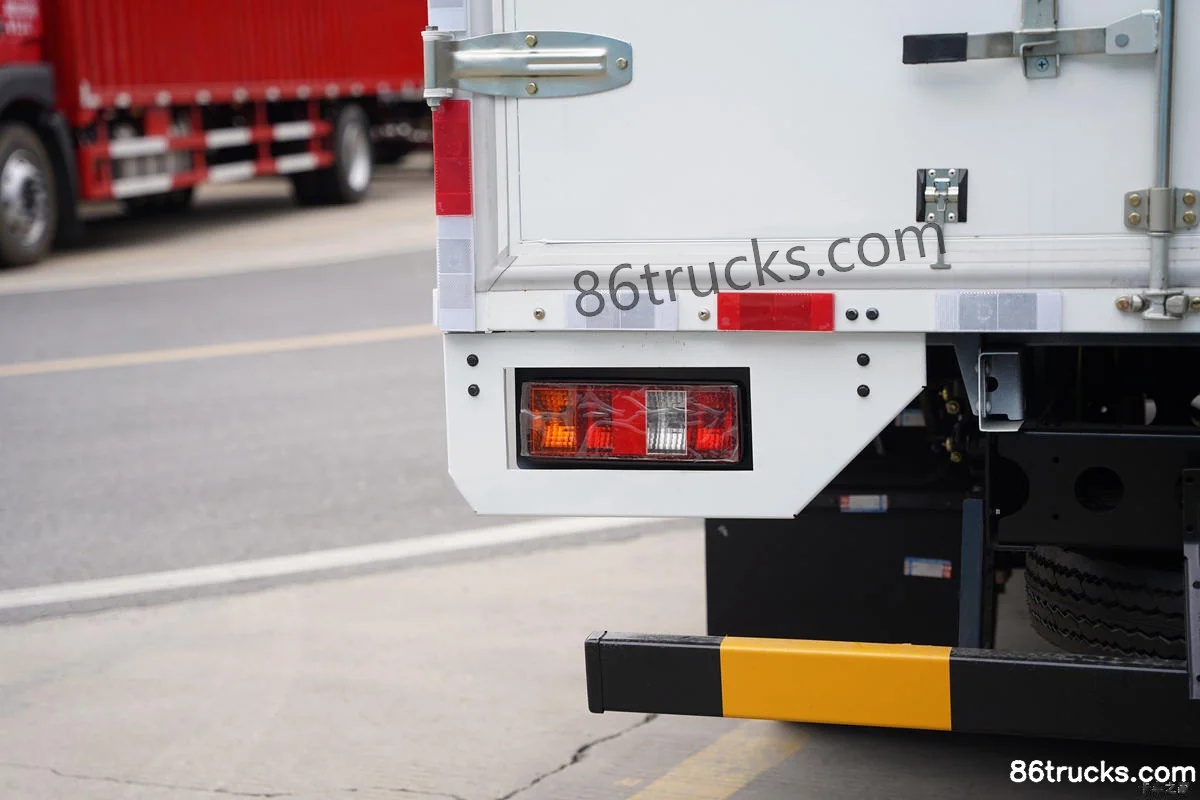

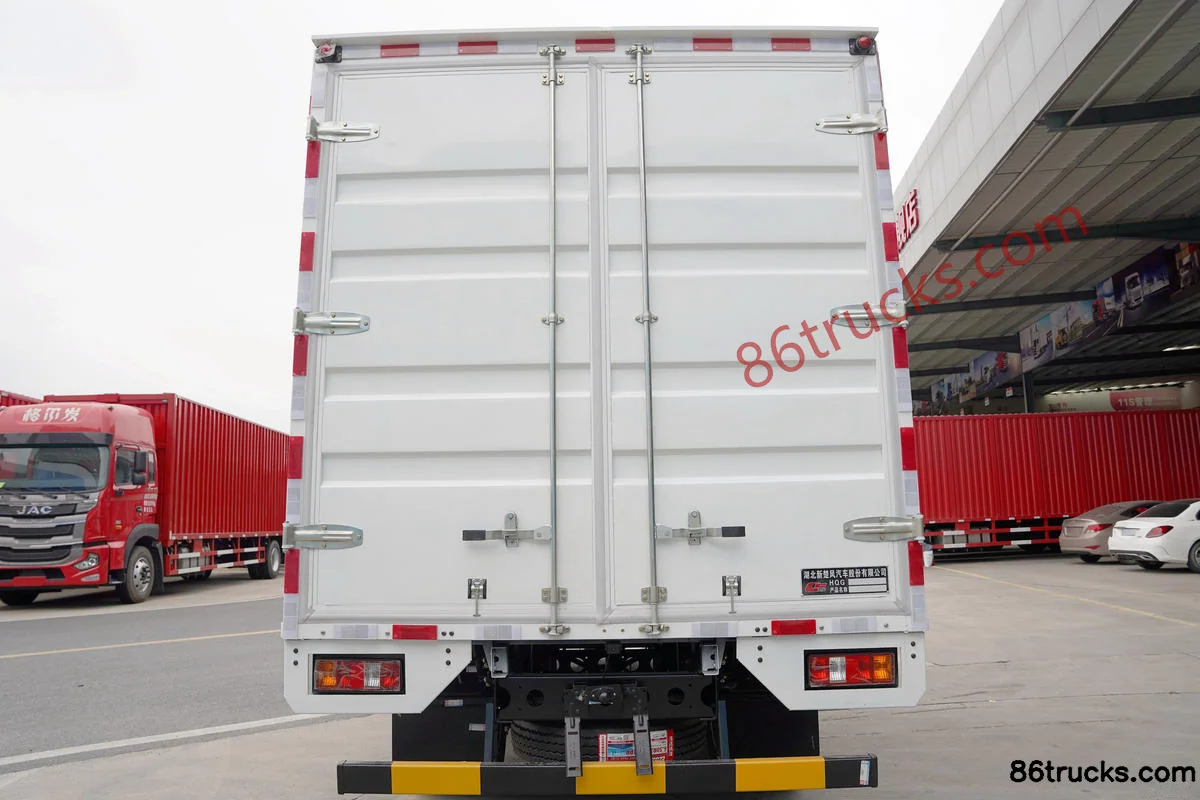

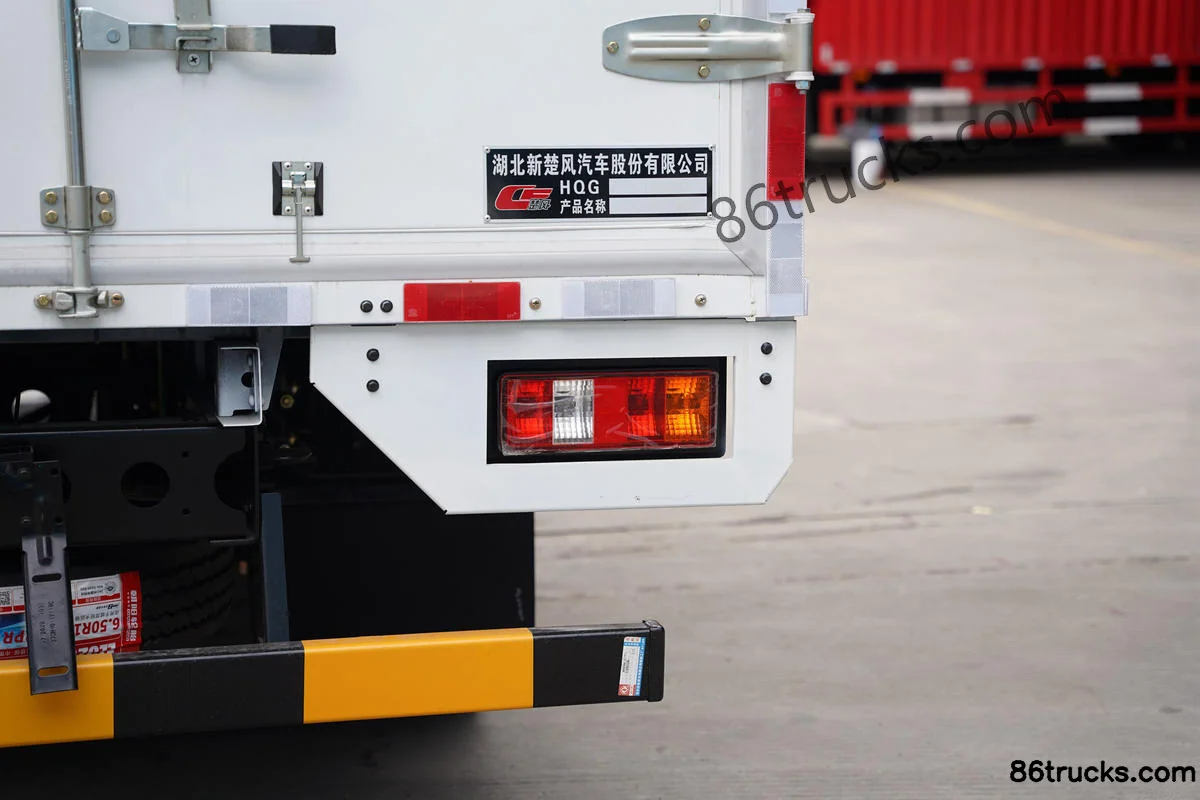

Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Body (1) | 86Trucks Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Body (2) | 86Trucks Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels)?

Key specs of Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) suited for?

Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) differ from other variants in the same series?

Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels) belongs to XinchufengH3 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Xinchufeng H3 4.5T 4.16m Single Row Electric Van Truck 40.57kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
