Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck

Export reference
From $9,431
MSRP ¥6.79M CNY
Horsepower: 102
Emission: China VI
Fuel: gasoline
Engine: Xinyuan Jinbei1.5L
Curb Weight:: 1.72ton
Wheelbase:: 3150mm
seating capacity: 5Personnel
Rated payload: 1.055ton
Drive 4X2 (6 wheels)
Cargo box type: Vending truck.

Overview

The Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck is a mini truck featuring 2.8m cargo length, Vending truck. cargo body, 5Personnel volume and 1.055t payload. On the powertrain side, it comes with a Xinyuan Jinbei1.5L engine, 102 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 102 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5032XSHS6L0
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3150mm
Box length class: 2.8m
engine: Xinyuan JinbeiSWC15M
transmission: 5-speed transmission
Rear Axle Ratio: 3.909
Cab length: 5.7m
Cab width: 1.86m
Cab height: 2.7m
Front track width: 1425mm
rear track: 1435mm
Curb Weight: 1.72ton
Rated payload: 1.055ton
GVWR: 3.1ton
Max. speed: 100km/h
Origin: Chongqing Fuling New City
tonnage class: mini truck
Approach angle: 27°
departure angle: 12°
Remarks: Optional 4.778
Front/rear suspension: 0.66/1.89m
Version: Classic Version
Energy Type: gasoline
Engine parameters
Engine Brand: Xinyuan Jinbei
Engine Model: Xinyuan JinbeiSWC15M
Engine info: Xinyuan Jinbei1.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.451L
Emission standard: China VI
Max output power: 75kW
Max hp: 102Horsepower
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Vending truck.
Cargo box length: 2.8m
Cargo box width: 1.7m
Cargo box height: 1.85m
*Cargo box interior width: 1.7
Cab parameters
Cab width: 1680mm
seating capacity: 5Personnel
Seat rows: Double cab
Driver seat type: Rigid connection seat
Chassis Specs
Front axle allowable load: 1550kg
rear axle allowable load: 1550kg
Axle ratio: 3.909
Leaf spring count: -/6
Tire
Tire Size: 175/70R14C
Number of tires: 4pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Optional manual.
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

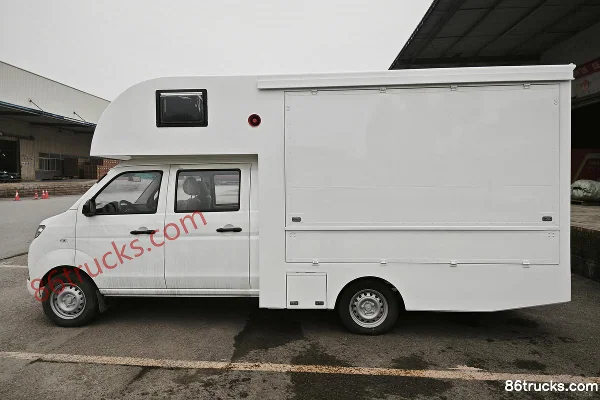

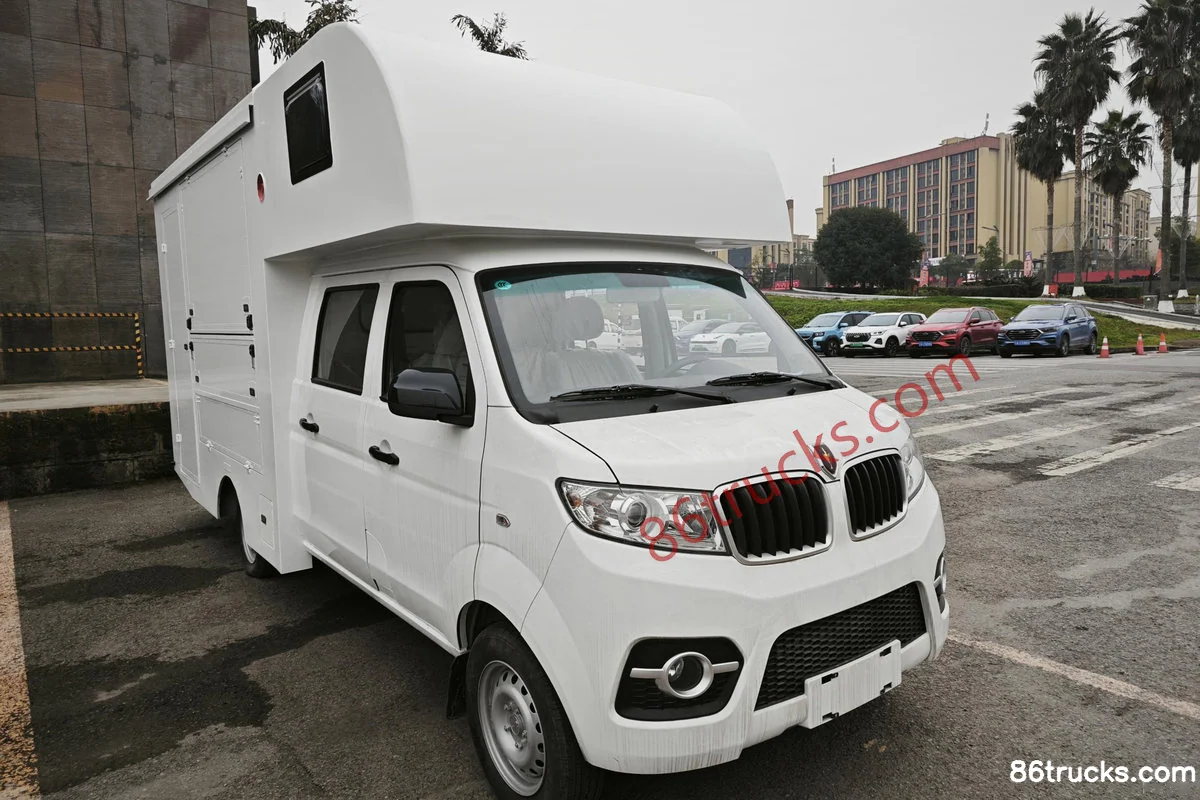

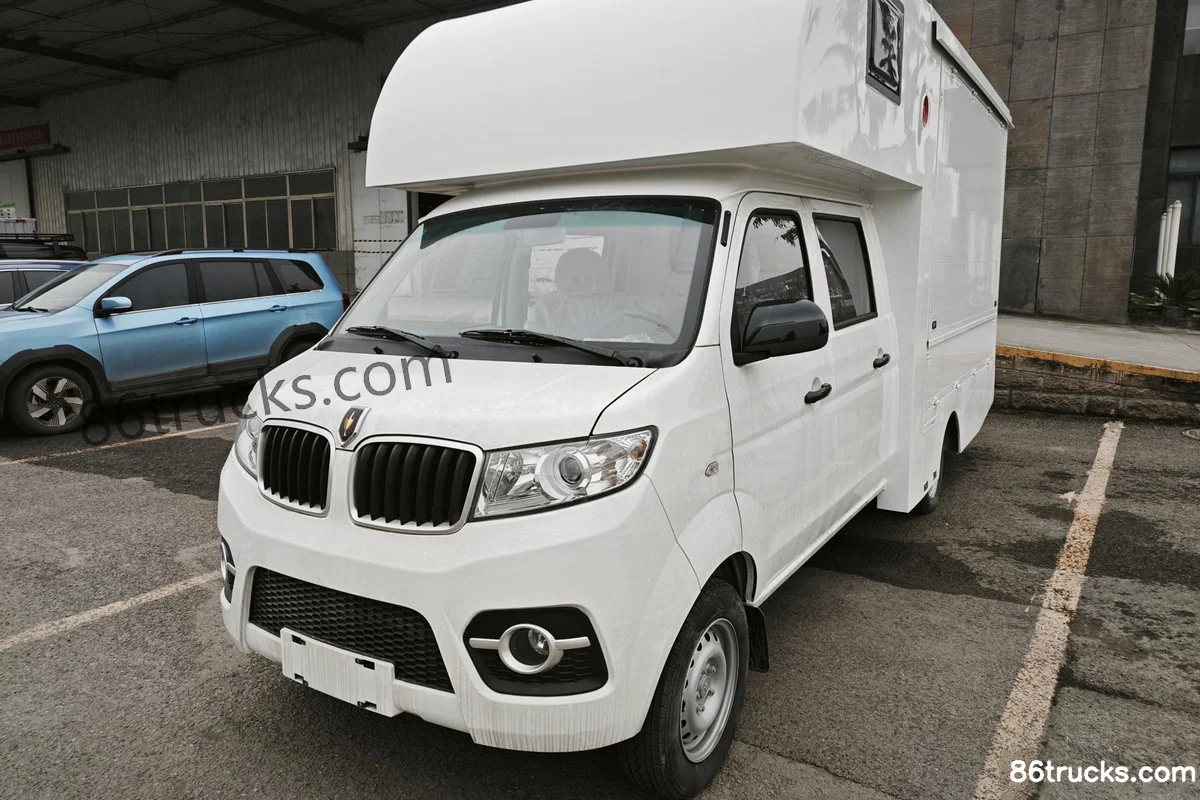

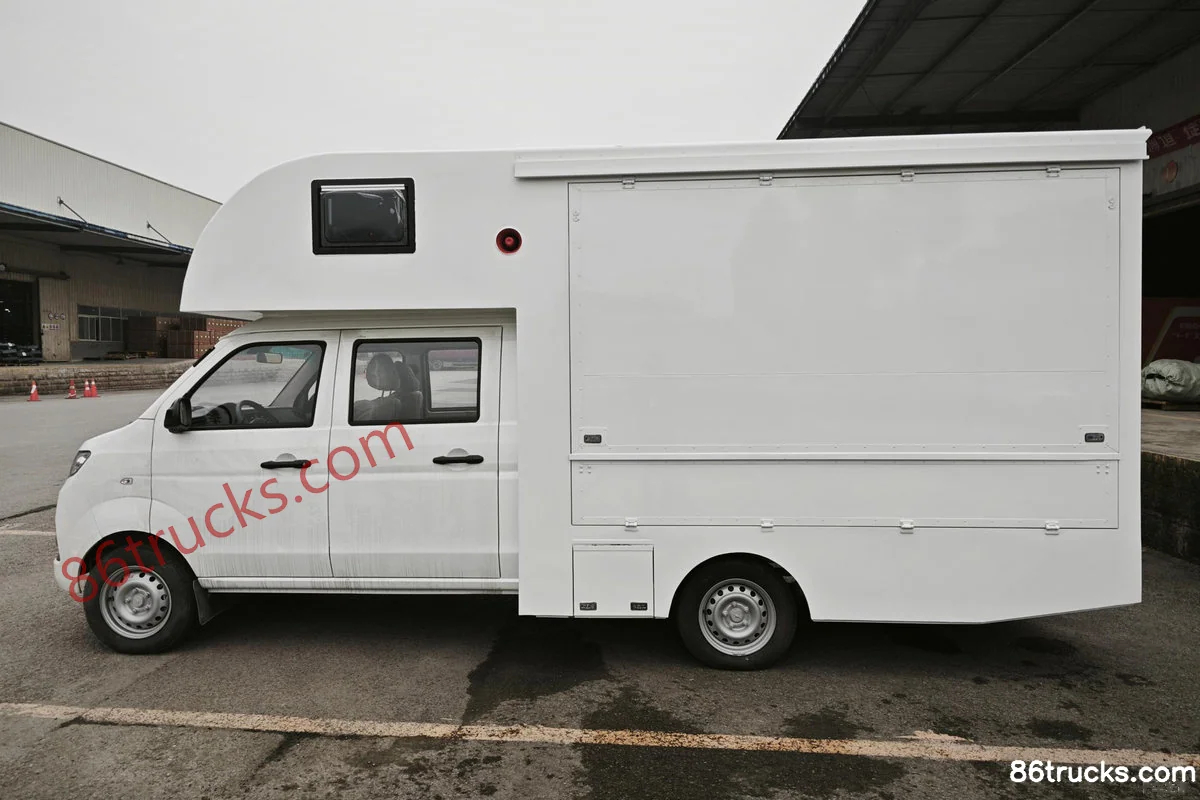

Photos

Exterior3

3 photos

FAQ

What is the export price of Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck, and what does it include?

Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck export reference is about From $9,431; MSRP is ¥6.79M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck?

Key specs of Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China VI; Fuel: gasoline; Engine: Xinyuan Jinbei1.5L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck suited for?

Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck differ from other variants in the same series?

Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck belongs to Jinbei T3 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Xinyuan Jinbei T3 Classic 1.5L Gasoline 102hp 4X2(6 wheels) 5-Speed Hydraulic Brake 2.8m Double Row Sales Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
