Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels)

Export reference
From $30,278
MSRP ¥21.8M CNY
Curb Weight:: 3.1ton
Rated payload:: 1.2ton
Wheelbase:: 3360mm
Cargo box type:: stake body
Emission: China VI
Model code (announced):: FD1041W68PHEV-1
Drive 4X2 (6 wheels)
CLTC range: 1300km
Motor 1 Brand: Yunnei Power
Horsepower 150

Overview

The Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels) is a Light Truck featuring 1300km battery/range, Yunnei Power motor, 4X2 (6 wheels) drive and 1.2t payload. On the powertrain side, it comes with 150 hp.

China VI 150 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD1041W68PHEV-1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.35m
CLTC range: 1300km
Curb Weight: 3.1ton
Rated payload: 1.2ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Yunnei Power
Motor 1 Model: TZ310XS-LKM0322
Max torque: 320N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hybrid
total rated power: 30kW
Peak power: 65kW
total rated torque: 130N·m
Battery/Charging
Battery Brand: Guoxuan High-Tech
Battery type: NMC lithium battery pack
Battery capacity: 17.52kWh
Battery total voltage: 350.4V
Battery Model: DTH 2203A
Engine parameters
Engine Model: Yunnei PowerD25TCIF1
Number of cylinders: 4cylinder
Displacement: 2.5L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 2.08m
Cargo box height: 0.4m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1840kg
rear axle allowable load: 2655kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

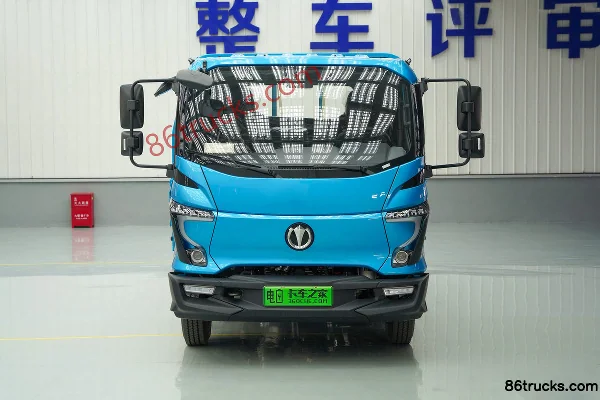

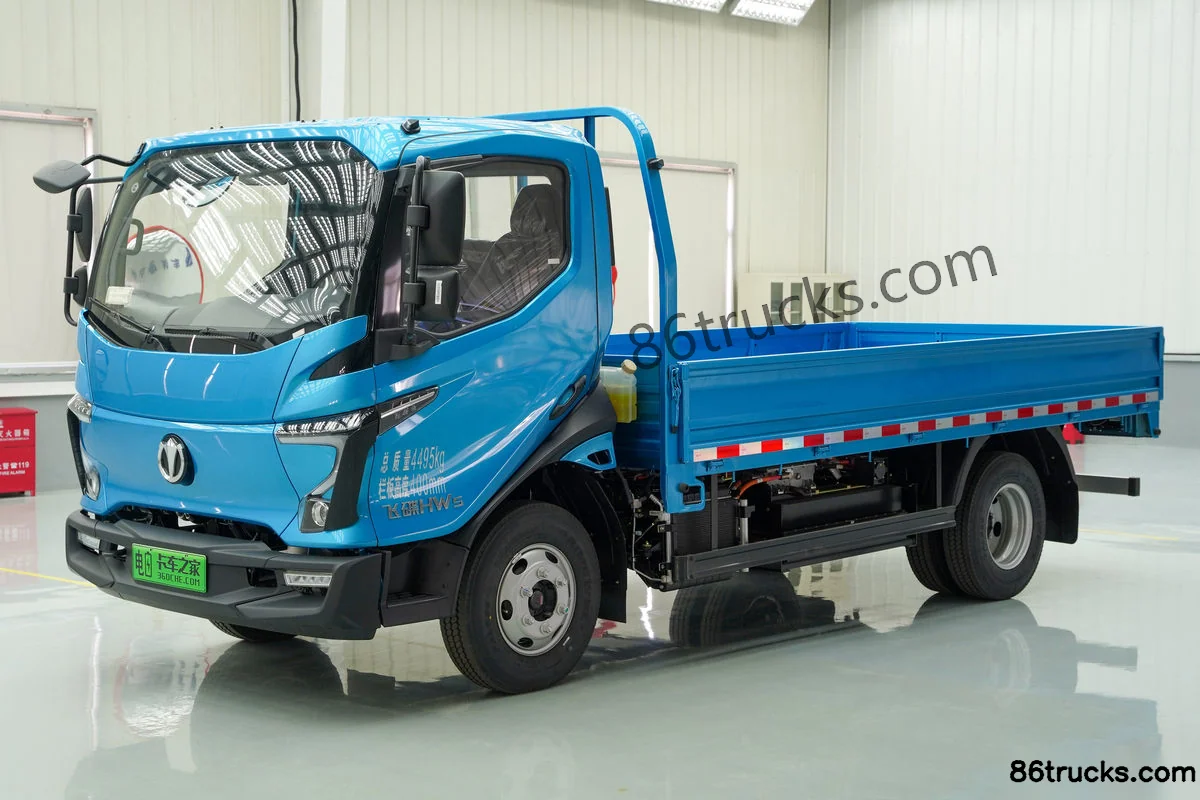

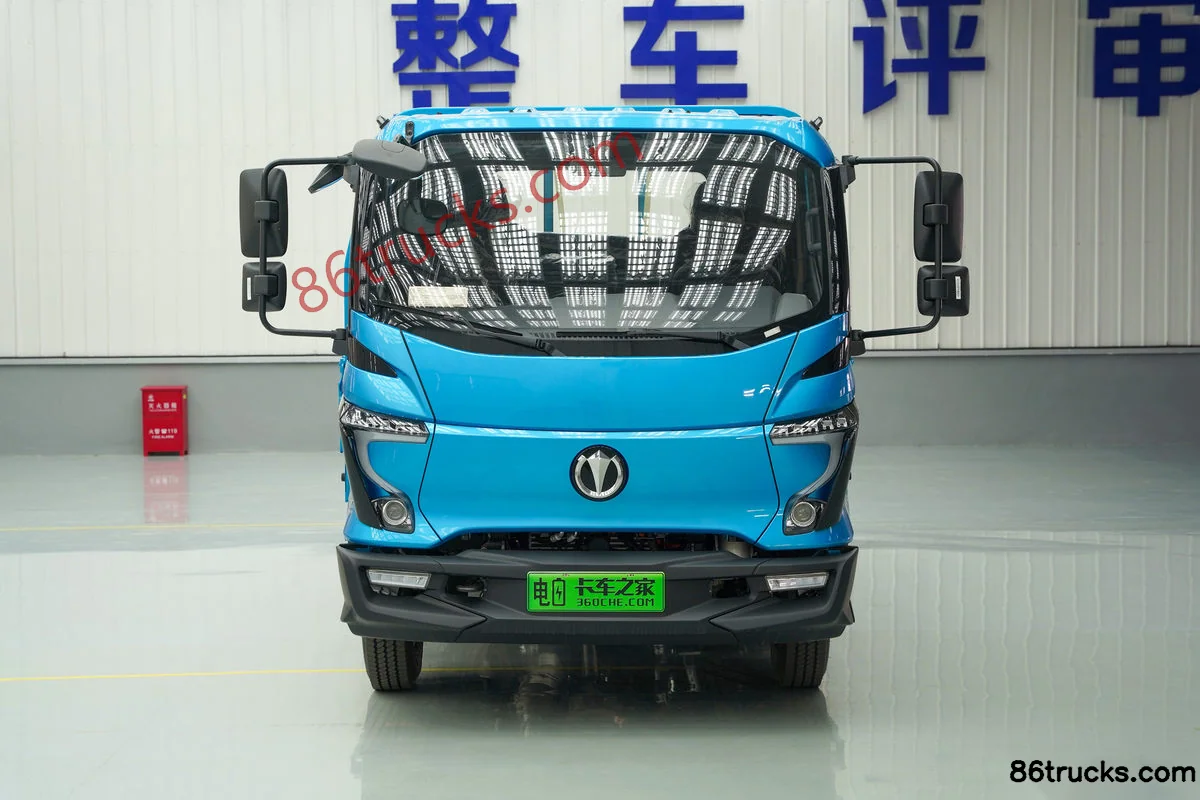

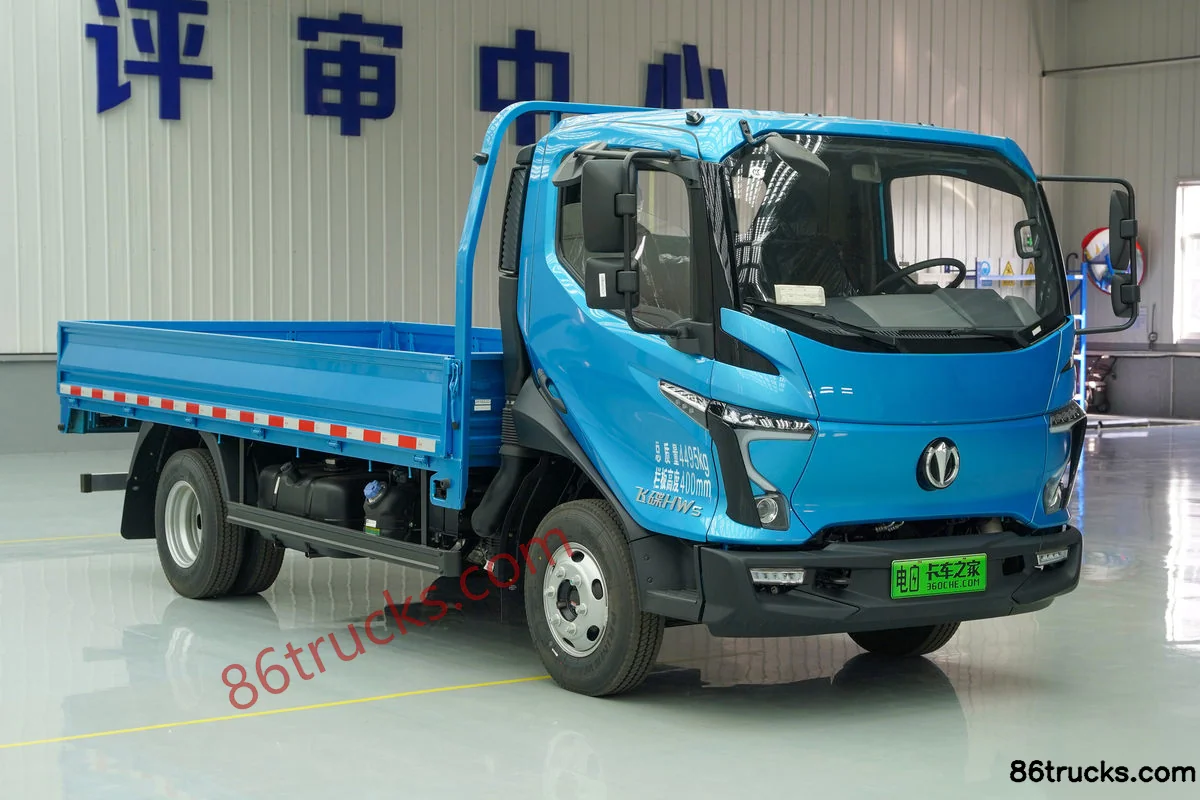

Exterior3

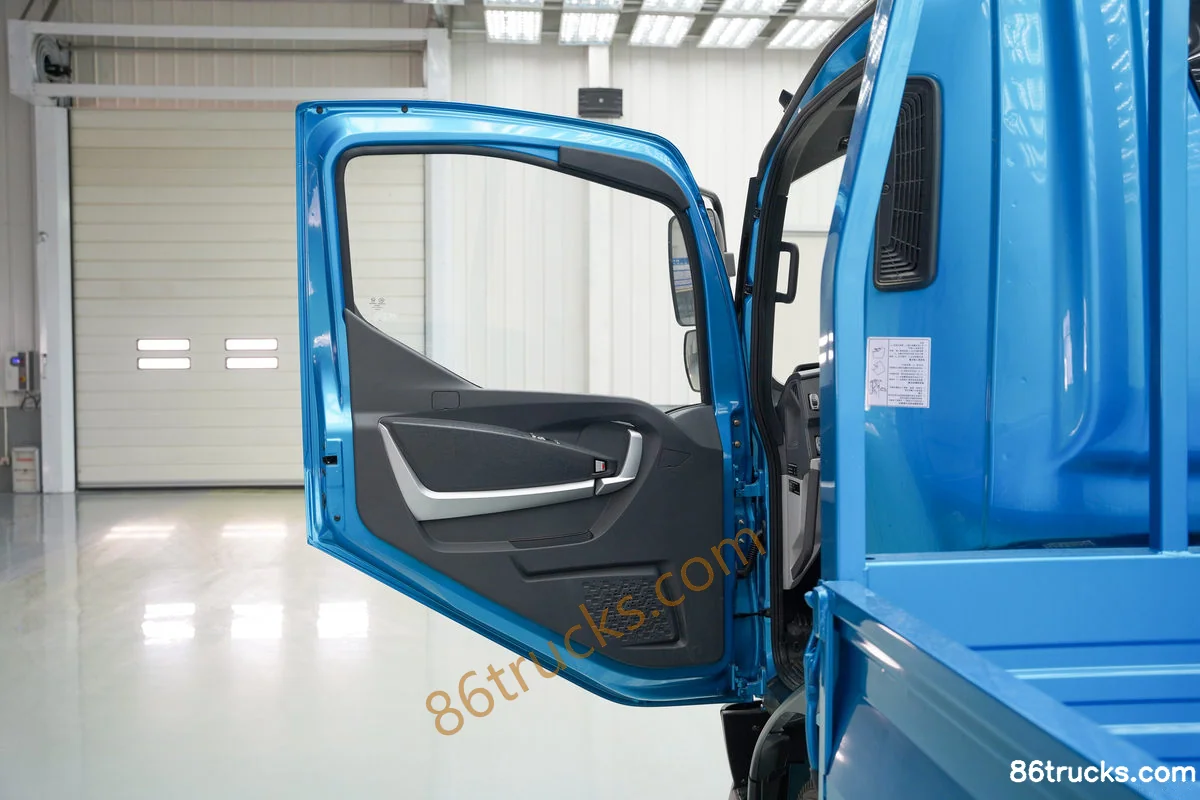

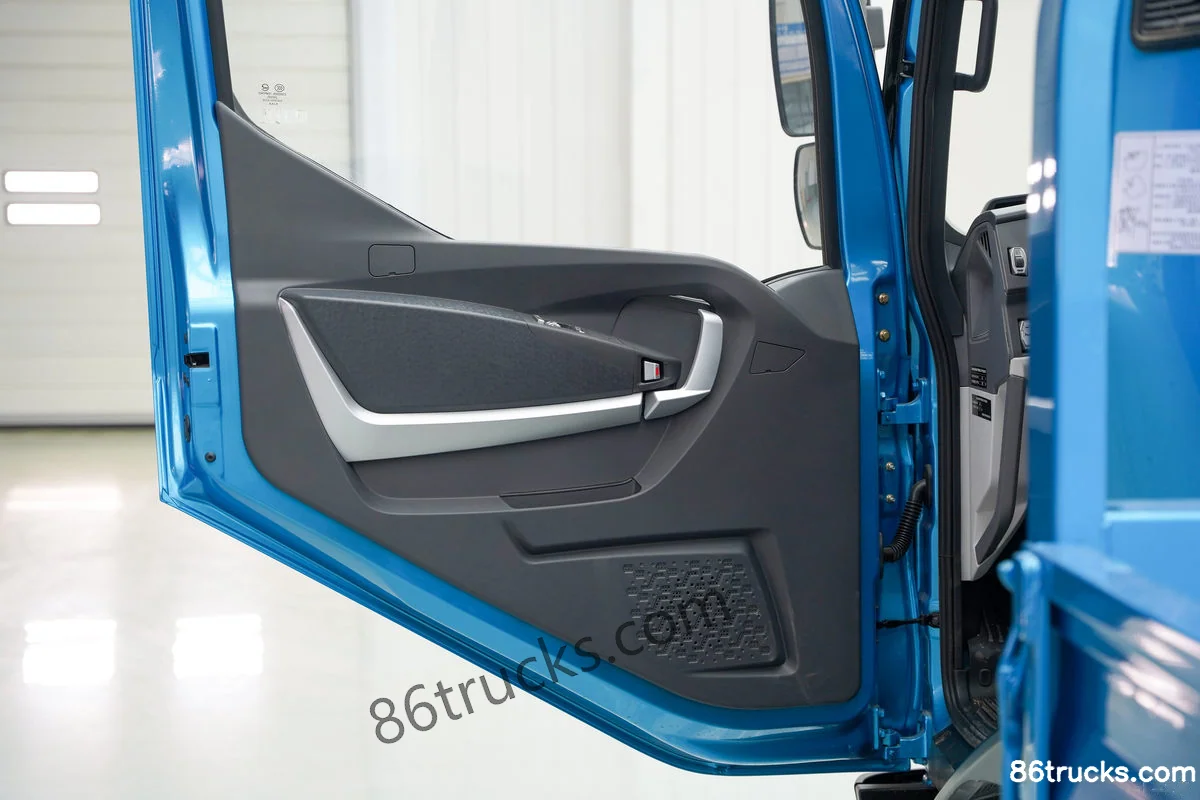

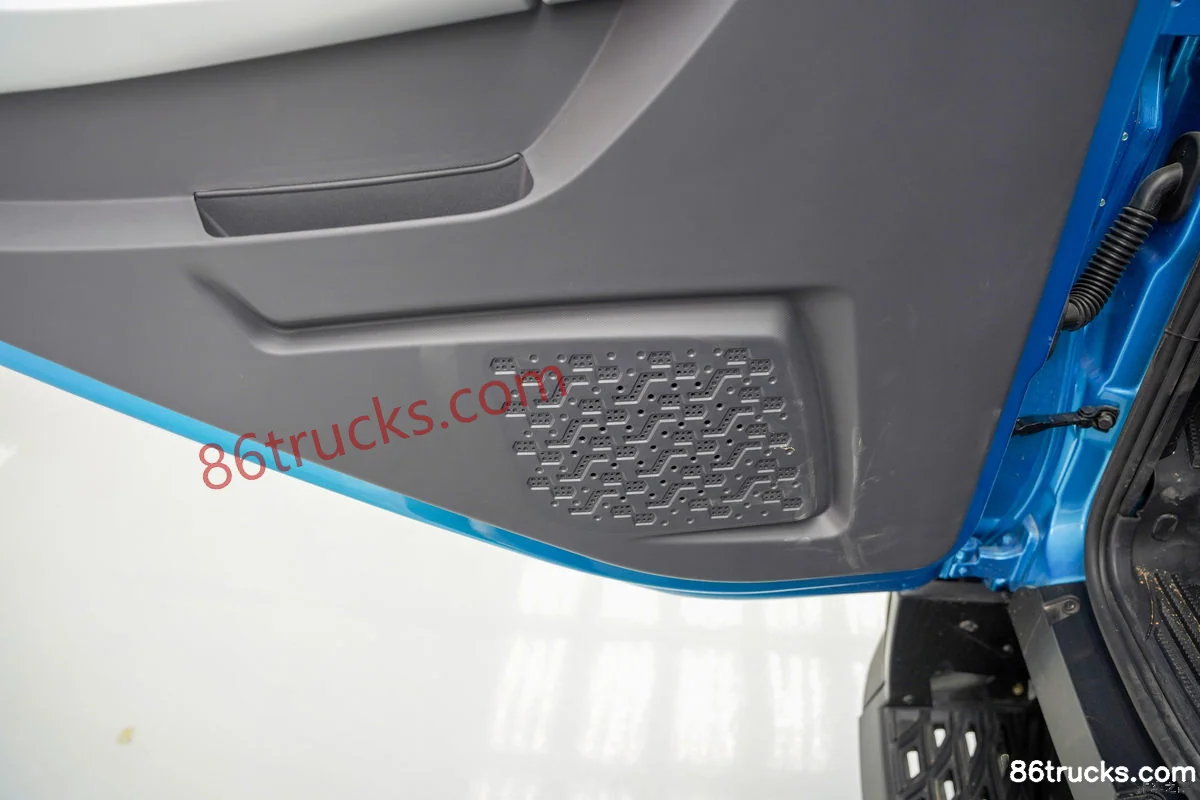

Interior3

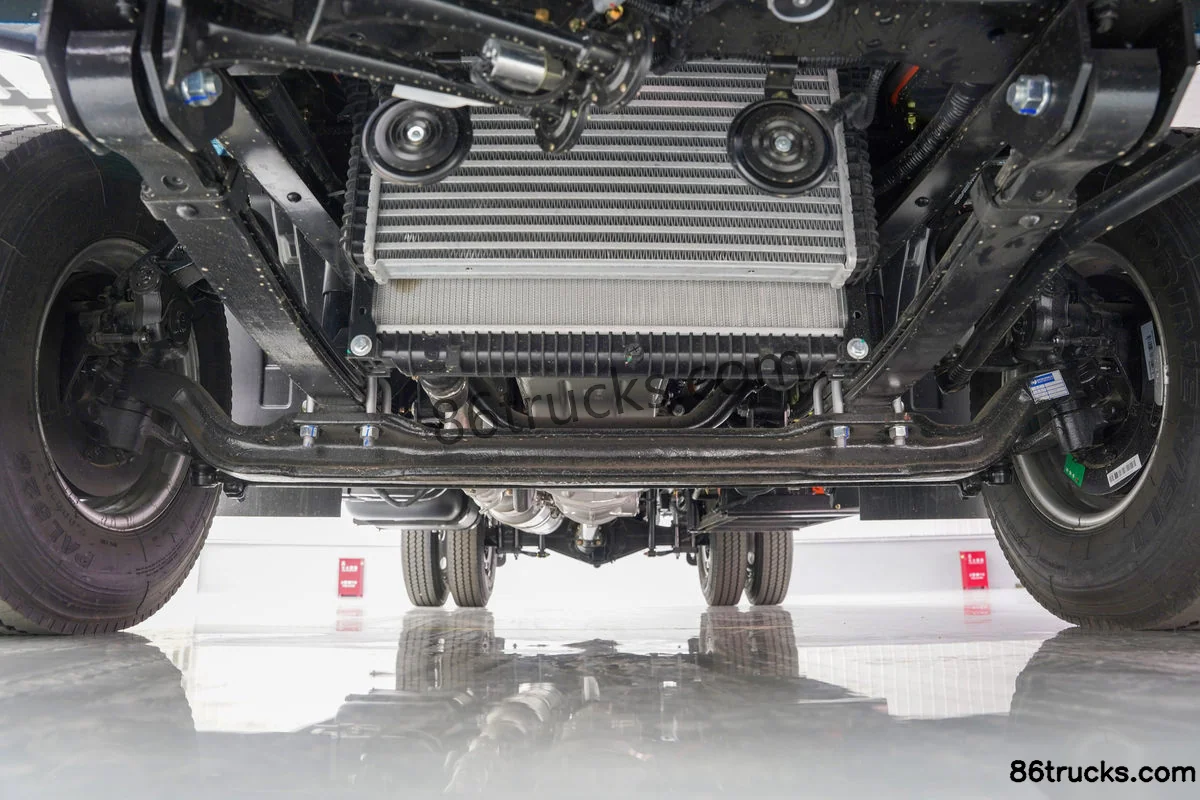

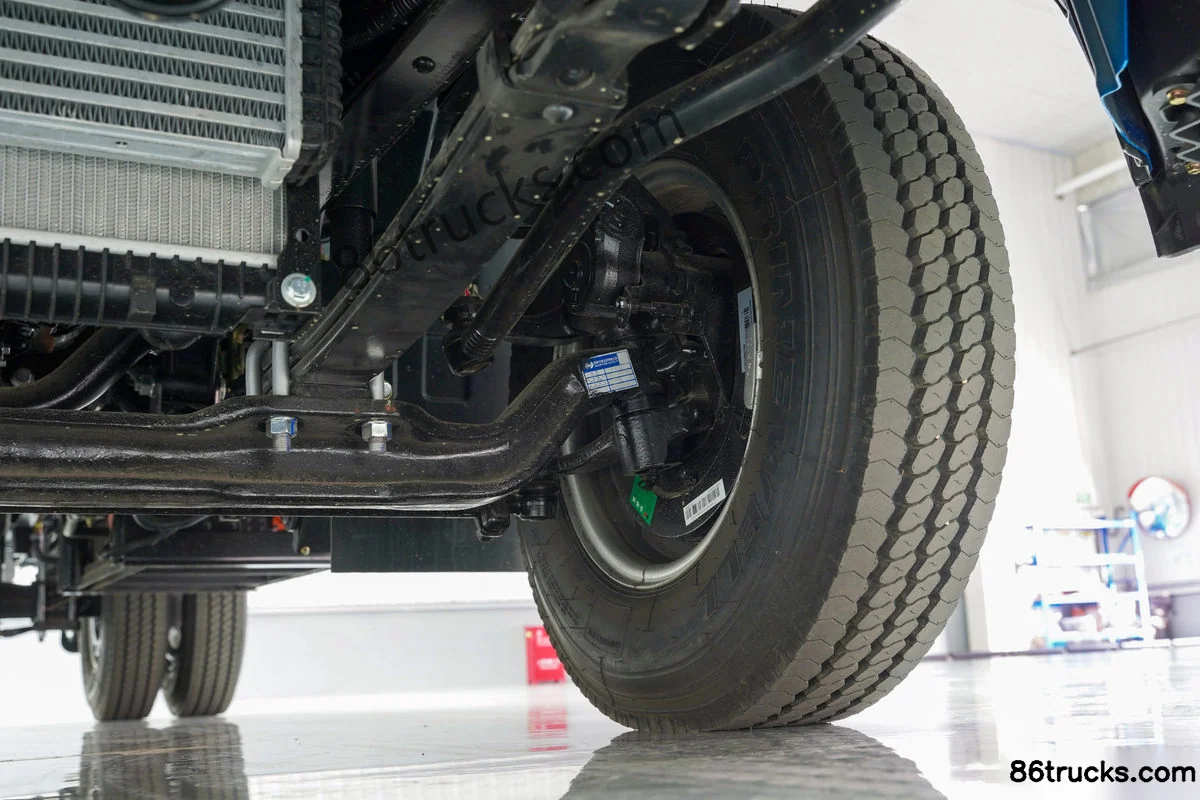

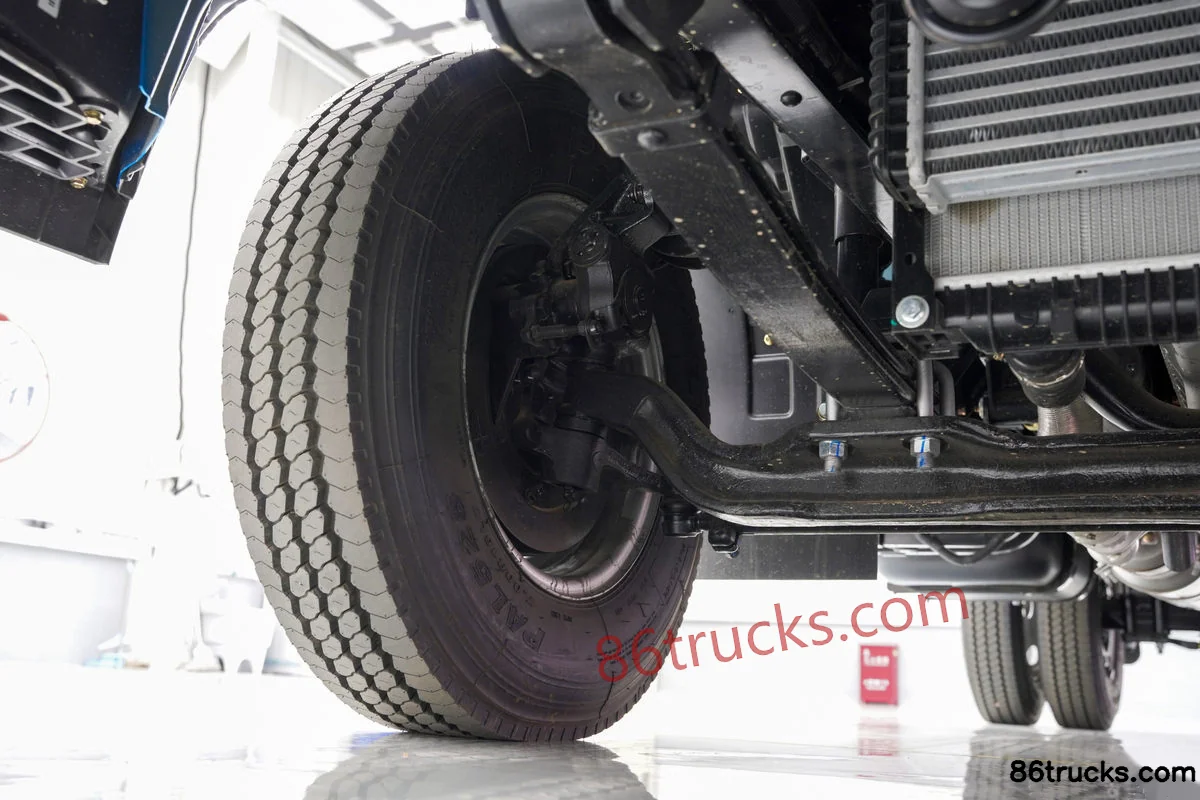

Chassis3

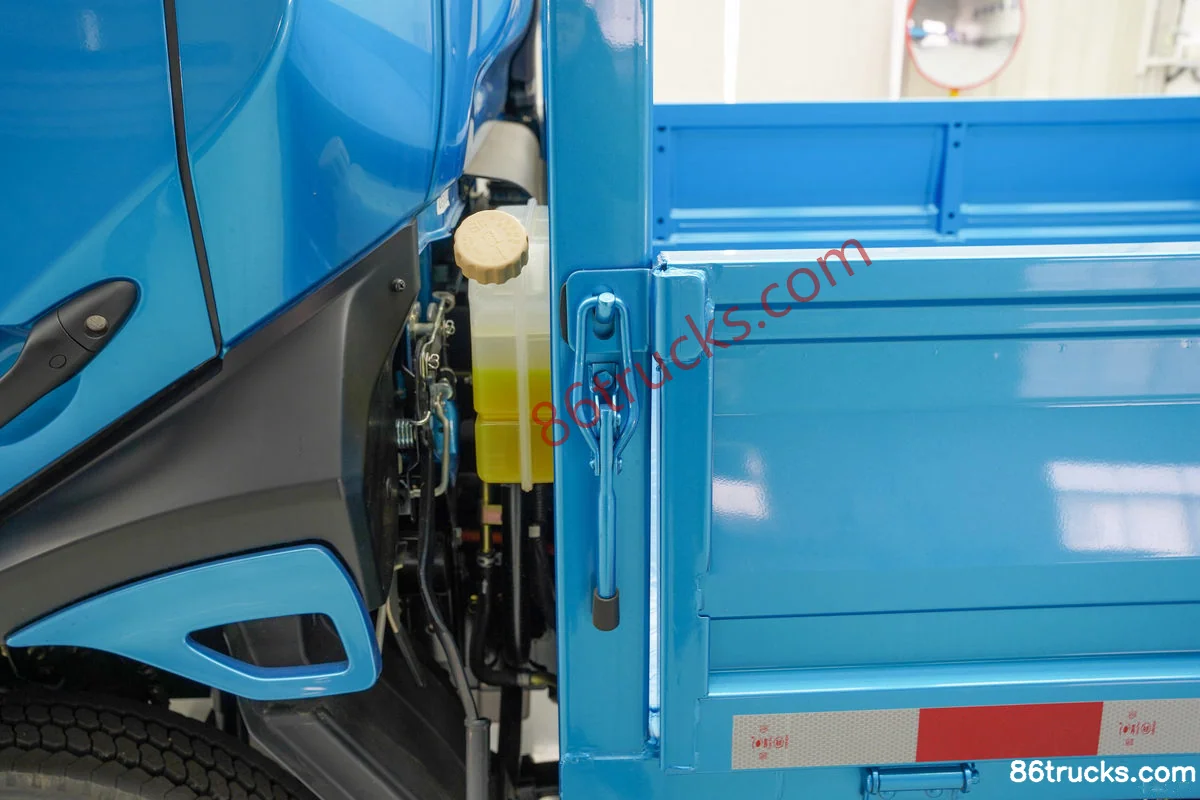

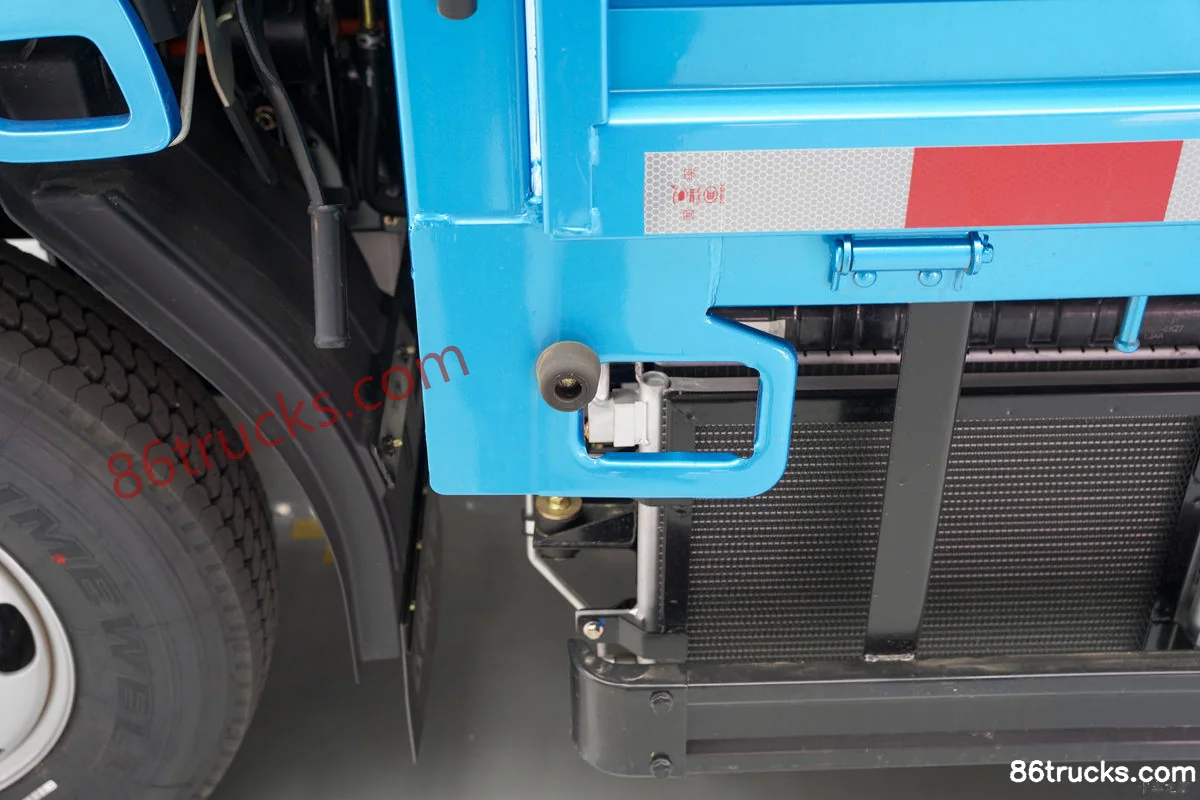

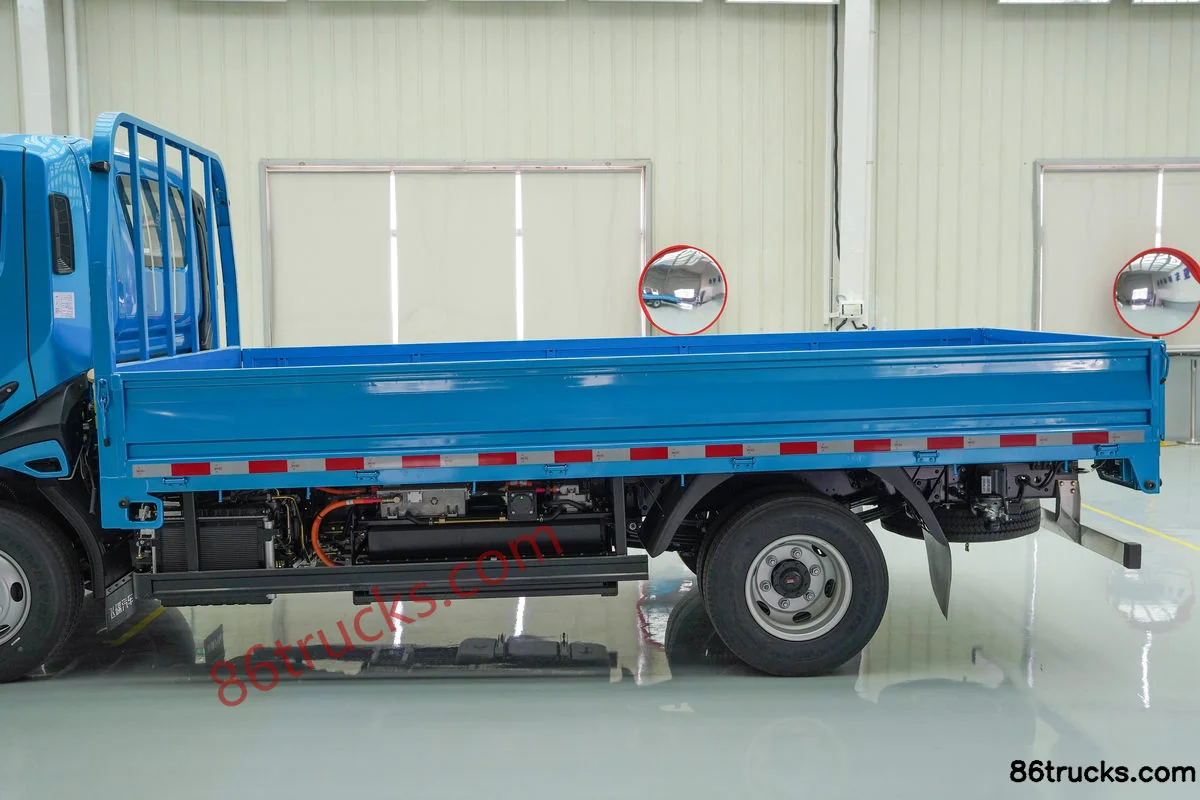

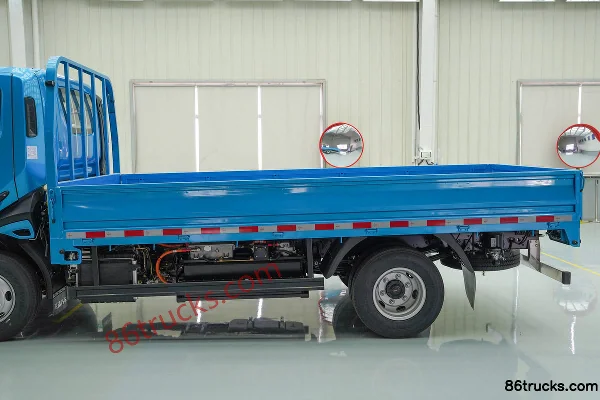

Body3

12 photos

FAQ

What is the export price of Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels), and what does it include?

Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels) export reference is about From $30,278; MSRP is ¥21.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels)?

Key specs of Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 150 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels) suited for?

Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels) differ from other variants in the same series?

Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels) belongs to FeidiHW5 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi HW5 4.18m single-row plug-in hybrid flatbed light truck 17.52kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
