Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis

Export reference
From $16,472
MSRP ¥11.86M CNY
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 3.5ton
Wheelbase:: 3800mm
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 156

Overview

The Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume and 3800mm wheelbase. On the powertrain side, it comes with a Fukang 3.8 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1109VEJEA-FB
Type: Chassis
Drive type: 4X2
Wheelbase: 3800mm
engine: FotonISF3.8s5154
transmission: WLYWLY653
Rear Axle Ratio: 4.33
Cab length: 6.8m
Cab width: 2.135m
Cab height: 2.32m
Front track width: 1665mm
rear track: 1630mm
Curb Weight: 3.5ton
GVWR: 9.995ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
Remarks: Transmission optional: WLYWLY6T120
Front/rear suspension: 1.12/1.88m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY653
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 120L
Chassis Specs
rear axle description: Yaxiya stamped welded integral axle housing
Axle ratio: 4.33
Leaf spring count: 9/11+7
Tire
Tire Size: 8.25R16LT
Number of tires: 6pcs
Service brake
Brake Type: Air brake

Photos

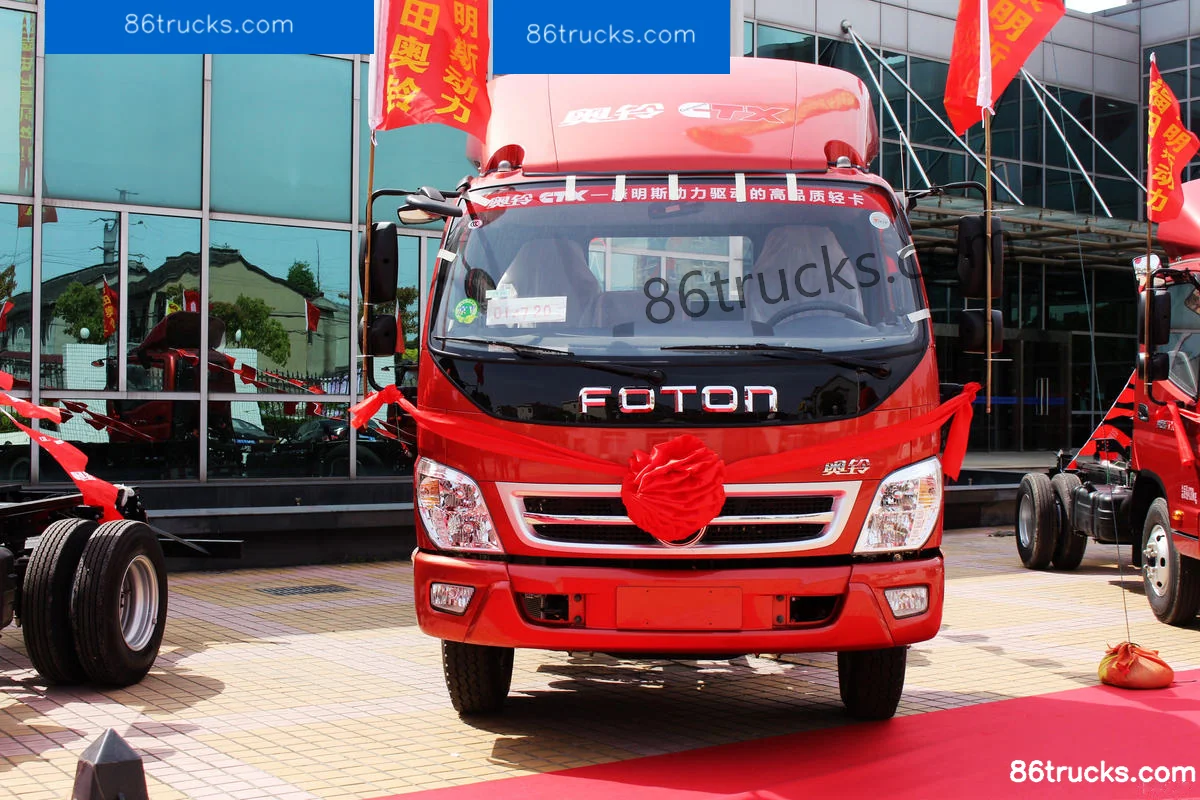

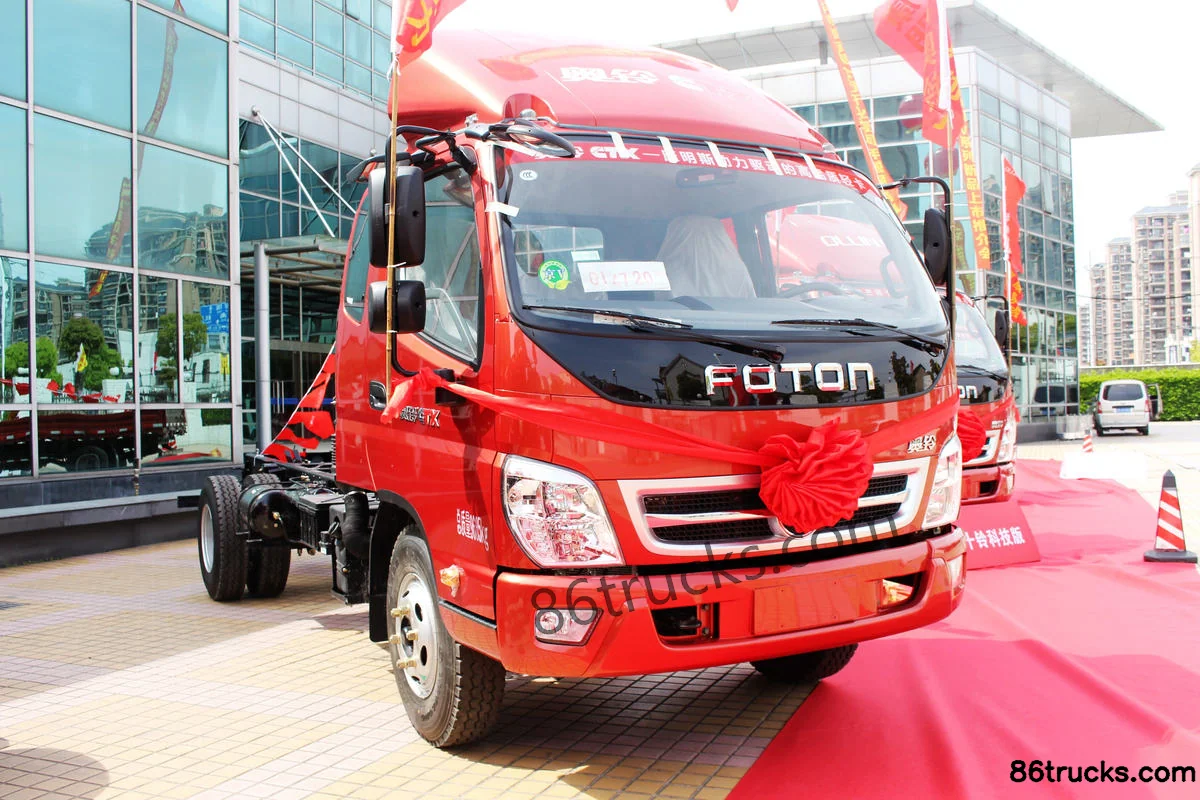

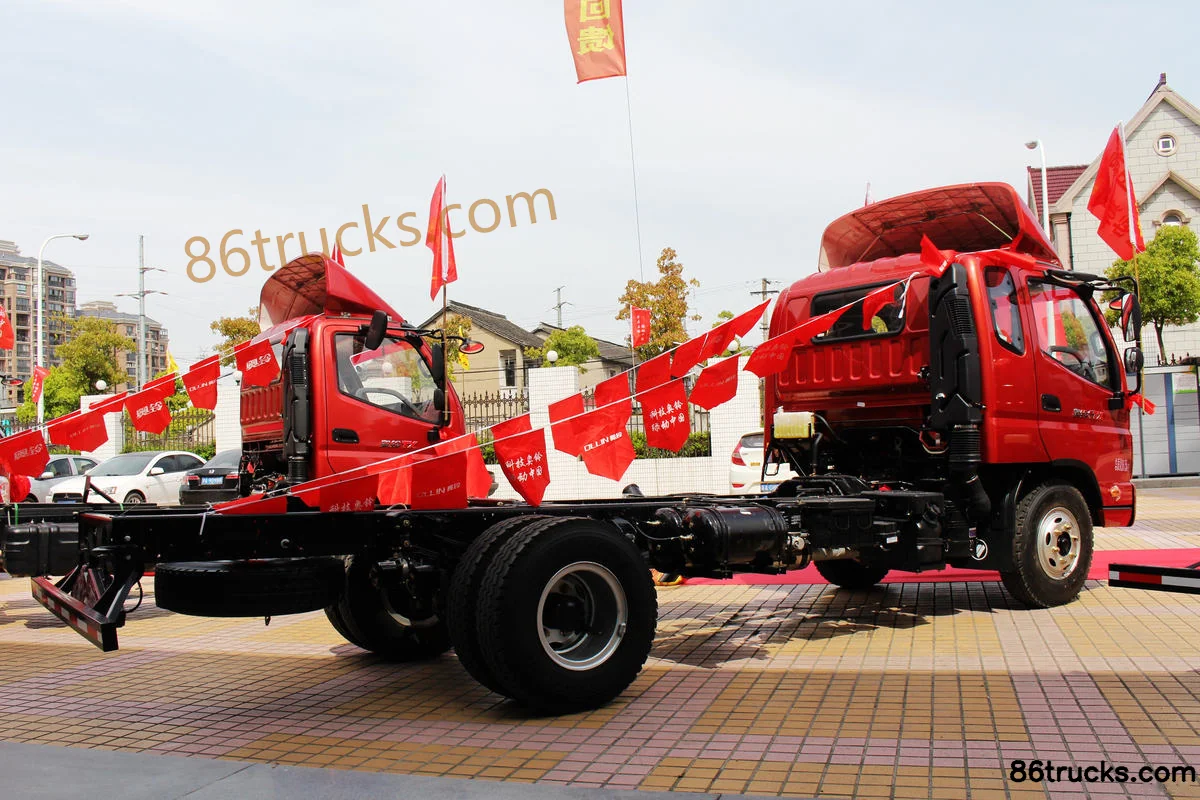

Exterior3

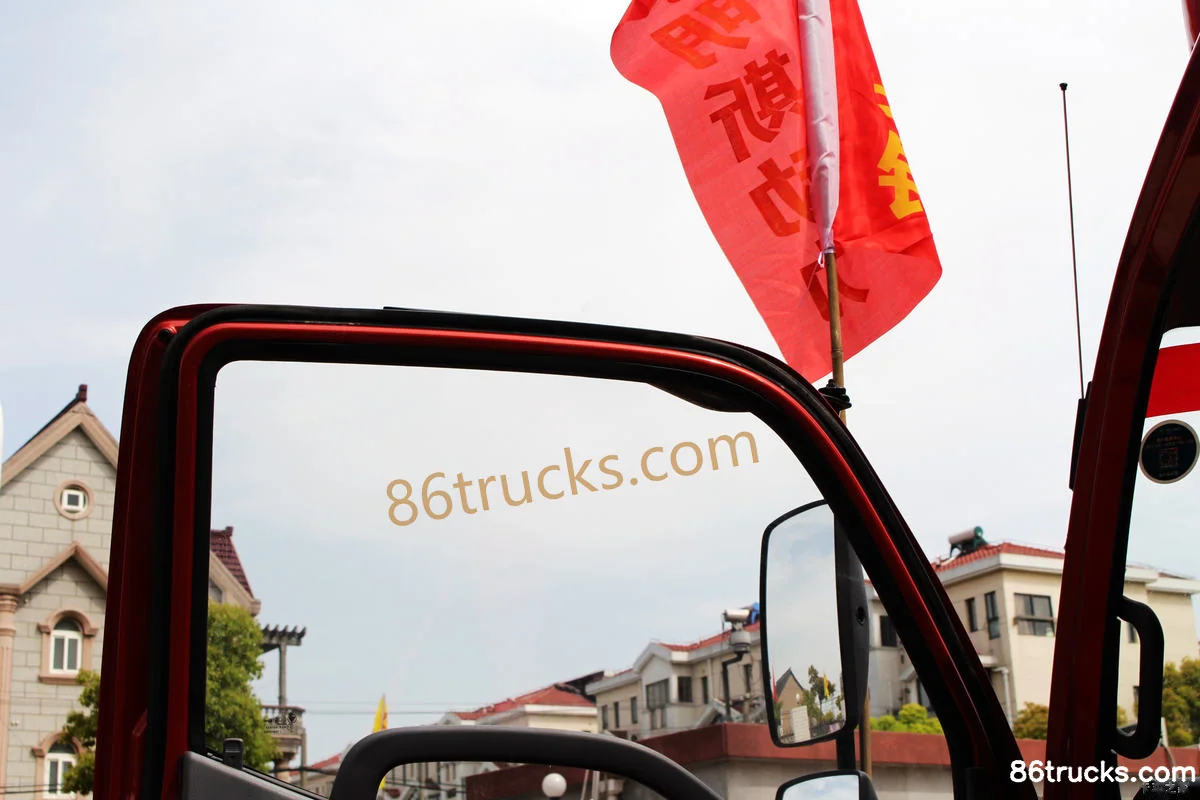

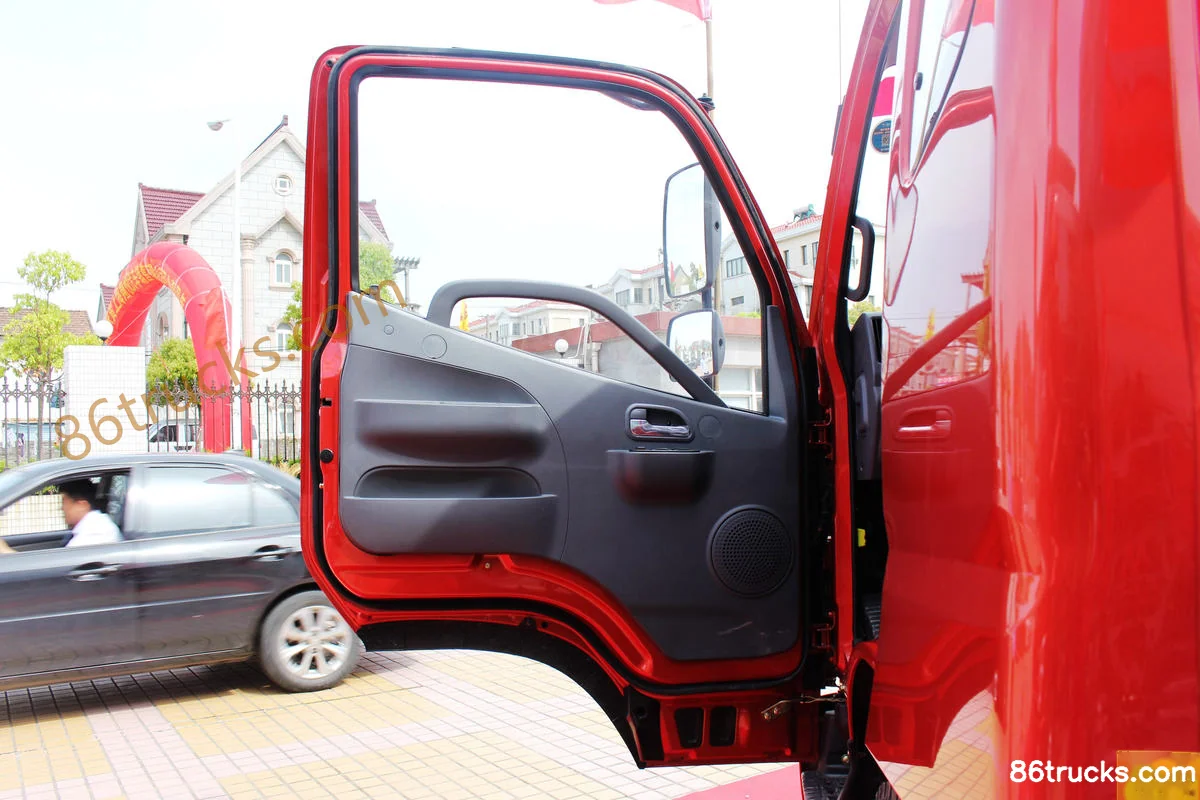

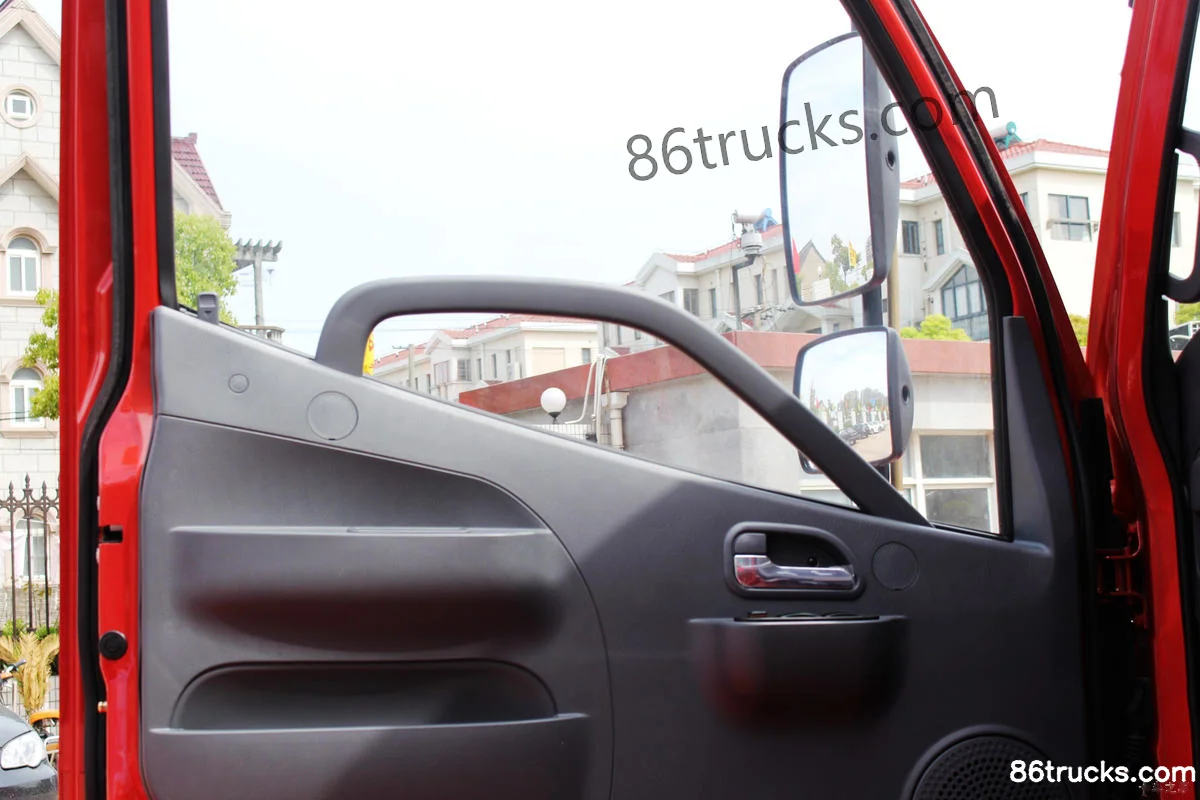

Cab3

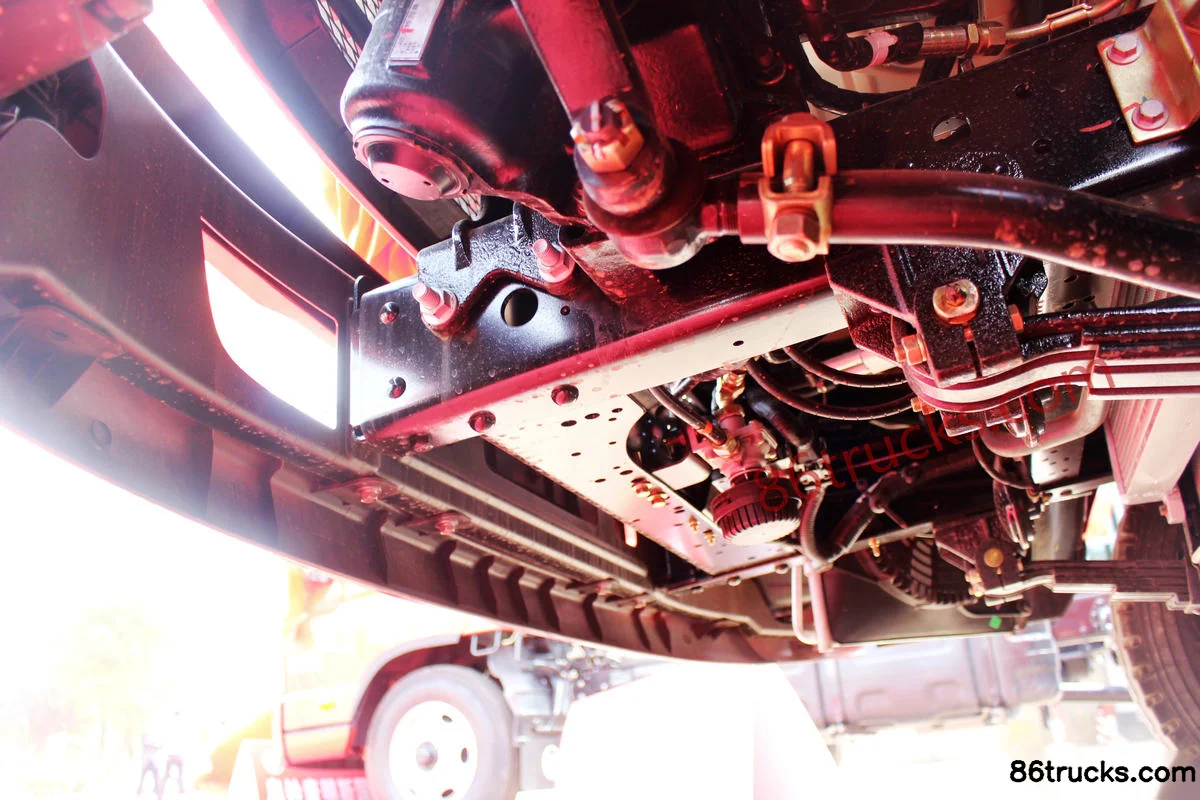

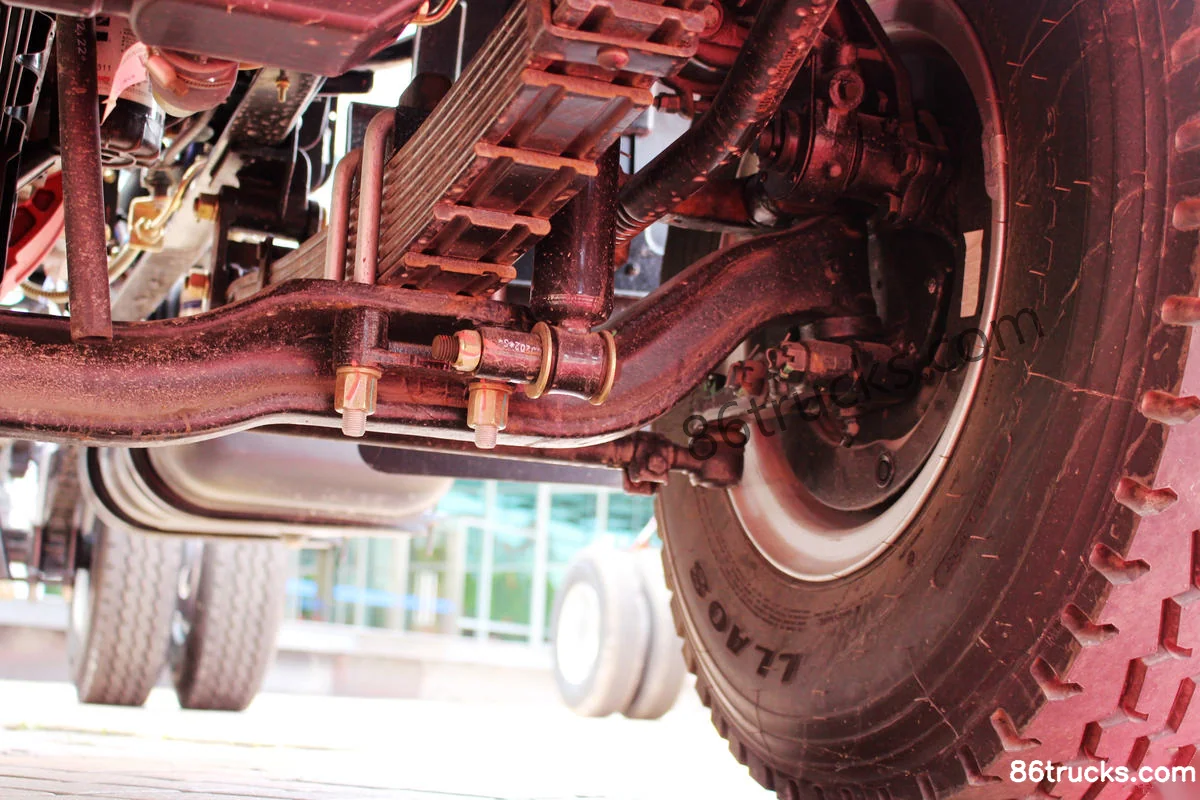

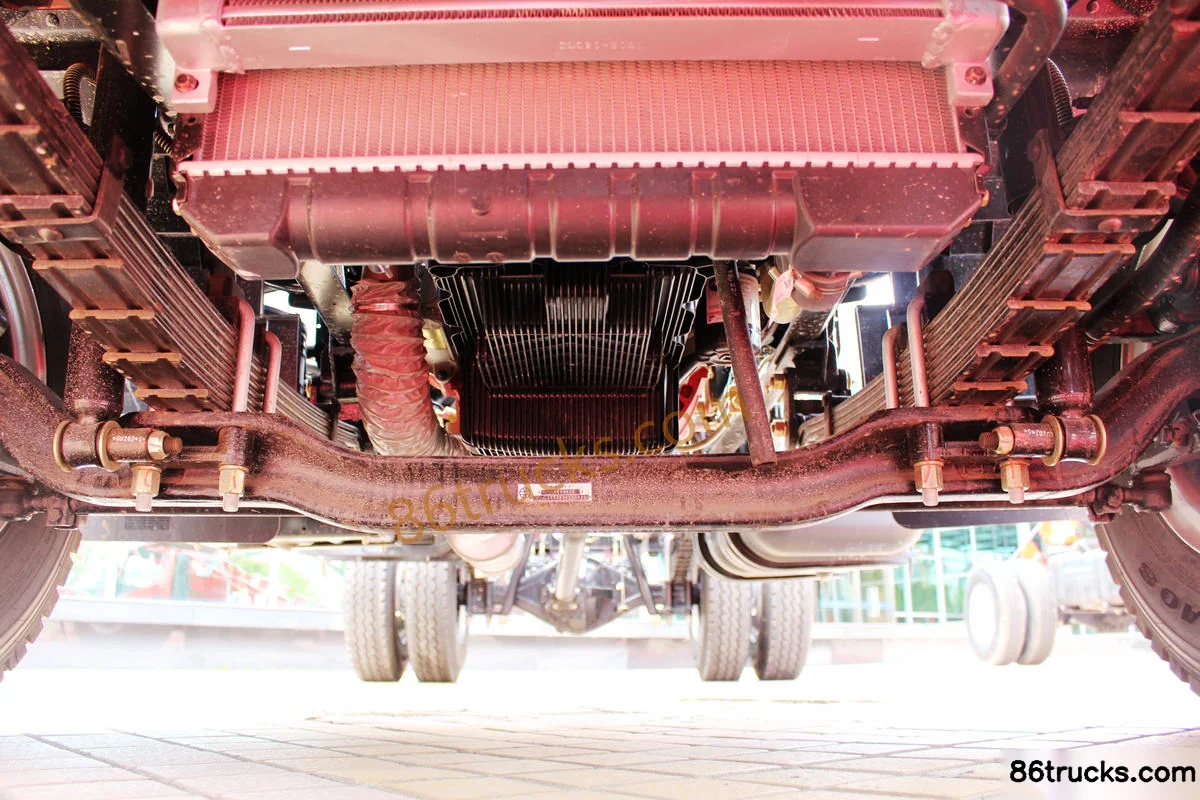

Chassis3

9 photos

FAQ

What is the export price of Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis, and what does it include?

Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis export reference is about From $16,472; MSRP is ¥11.86M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis?

Key specs of Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis suited for?

Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis differ from other variants in the same series?

Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis belongs to Foton CTX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling CTX 156hp 4X2(6 wheels) 3800mm wheelbase single-row light truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
