JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck

Export reference
From $22,403
MSRP ¥16.13M CNY
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: Ankang B4.5
Transmission: Fast Gear
Curb Weight:: 7.875ton
seating capacity: 3Personnel
Rated payload: 9.93ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck is a Medium-duty truck featuring 5.48m cargo length, stake body cargo body, 3Personnel volume and 9.93t payload. Its segment focus covers General dry cargo, matching those duty cycles. On the powertrain side, it comes with a Ankang B4.5 engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1181B80K1D4S
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.5m
engine: Anhui CumminsB4.5NS6B220
transmission: Fast Gear8JS85TC
Rear Axle Ratio: 4.875
Cab length: 7.775m
Cab width: 2.55m
Cab height: 3.58m
Front track width: 1915mm
rear track: 1800mm
Curb Weight: 7.875ton
Rated payload: 9.93ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 26°
departure angle: 12°
market segment: General dry cargo
Remarks: Optional 4.333 ratio.
Front/rear suspension: 1.3/2.275m
Energy Type: Diesel
Engine parameters
Engine Brand: Anhui Cummins
Engine Model: Anhui CumminsB4.5NS6B220
Engine info: Ankang B4.5
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Max torque speed: 1300-1500rpm
Rated speed: 2300rpm
Engine Type: DOC+DPF+SCR
Engine Oil Change Interval: 60,000 km
Transmission Parameters
Transmission Model: Fast Gear8JS85TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Transmission oil change interval: 100,000 km
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.48m
Cargo box width: 2.45m
Cargo box height: 0.55m
*Cargo box interior width: 2.45
Cab parameters
Cab width: 2235mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 3.7t front axle
Front axle allowable load: 6500kg
rear axle description: 9T (cast standard) rear axle
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 4/9+7
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Power steering:
EBS electronic braking system:
clutch booster:
Load-sensing proportioning valve (SABS):
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
Service brake
Engine brake: engine brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
smart configuration
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
maintenance service
24-hour service hotline: none
Rescue service: none

Photos

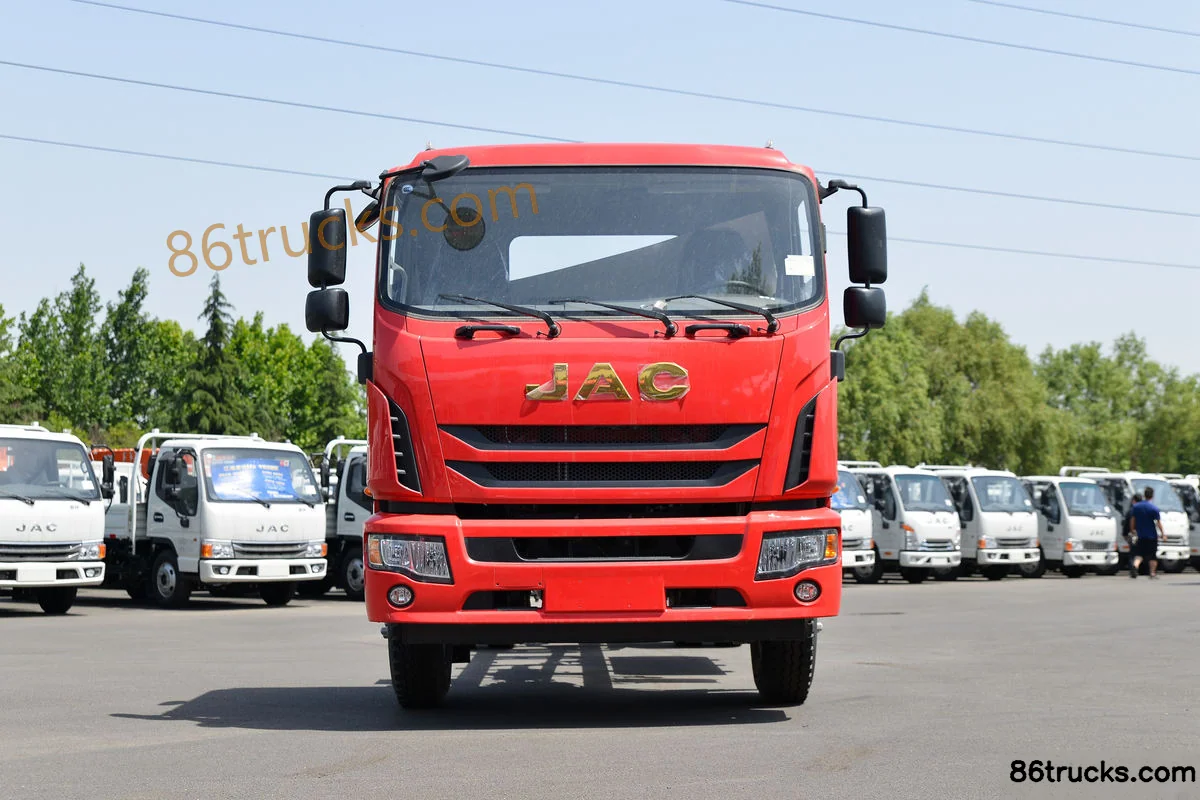

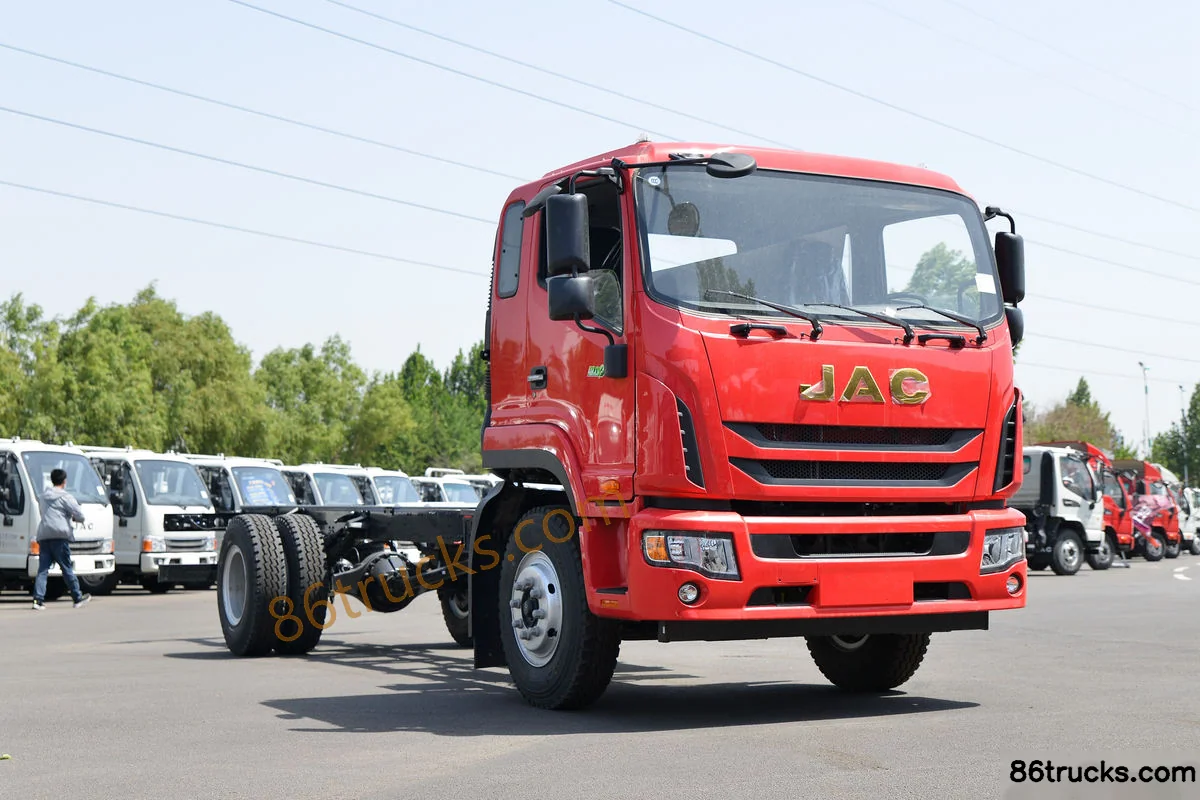

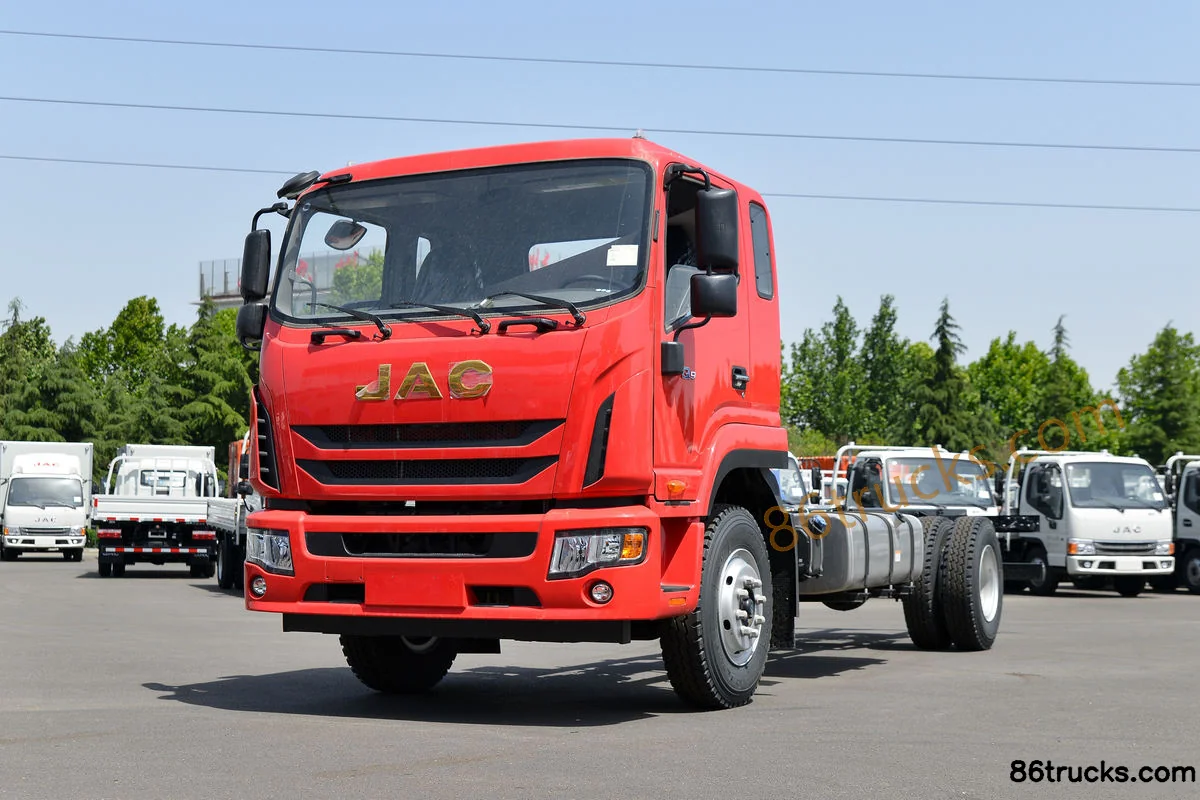

Exterior3

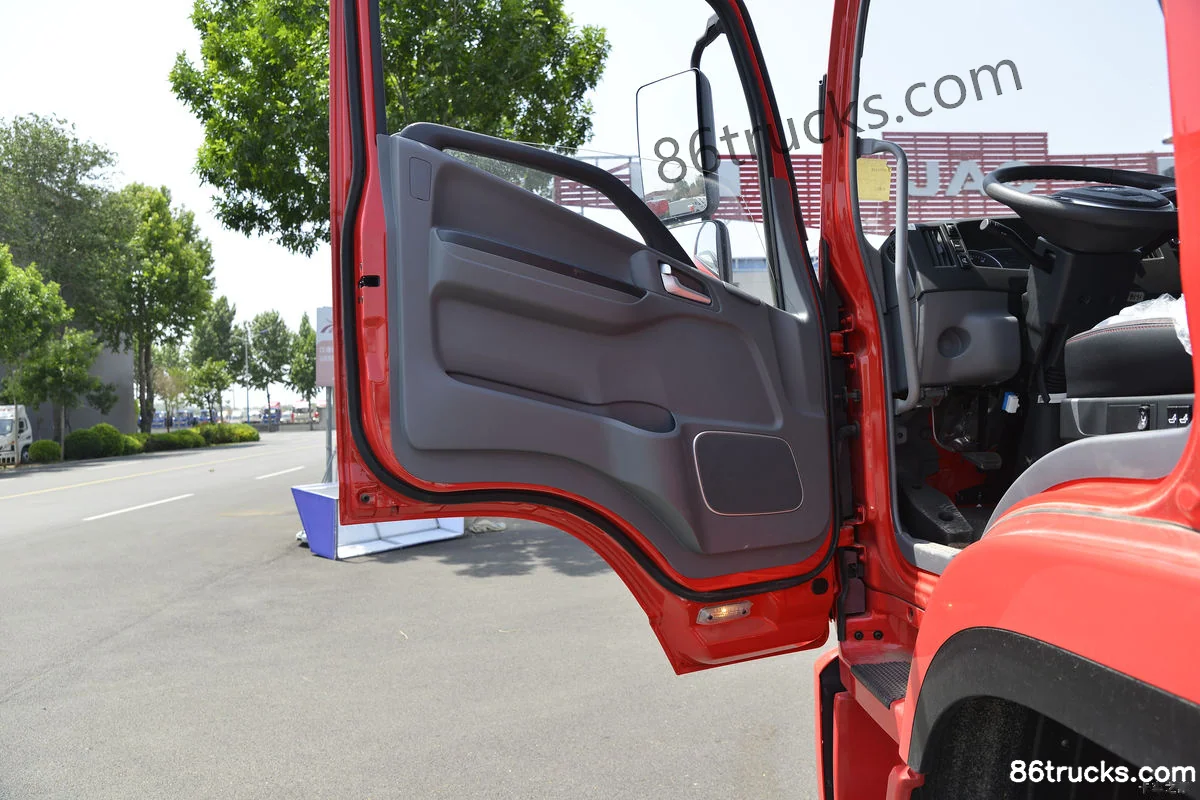

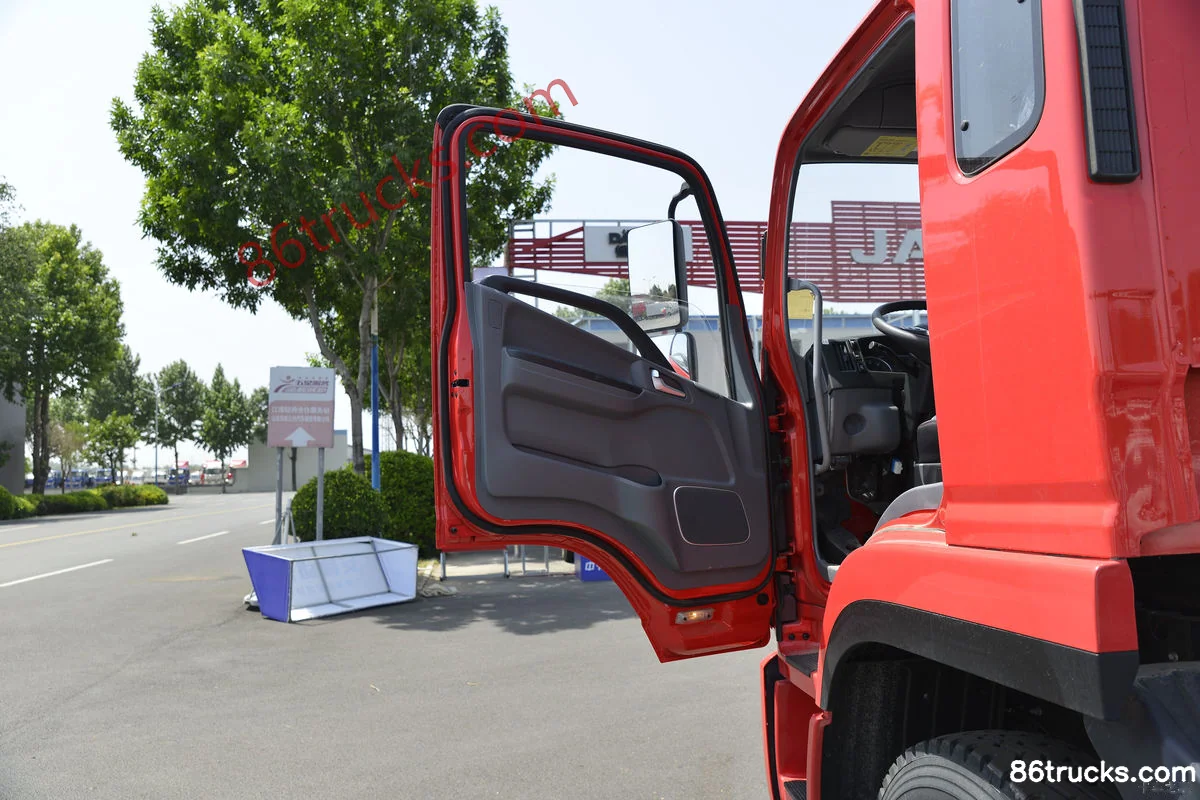

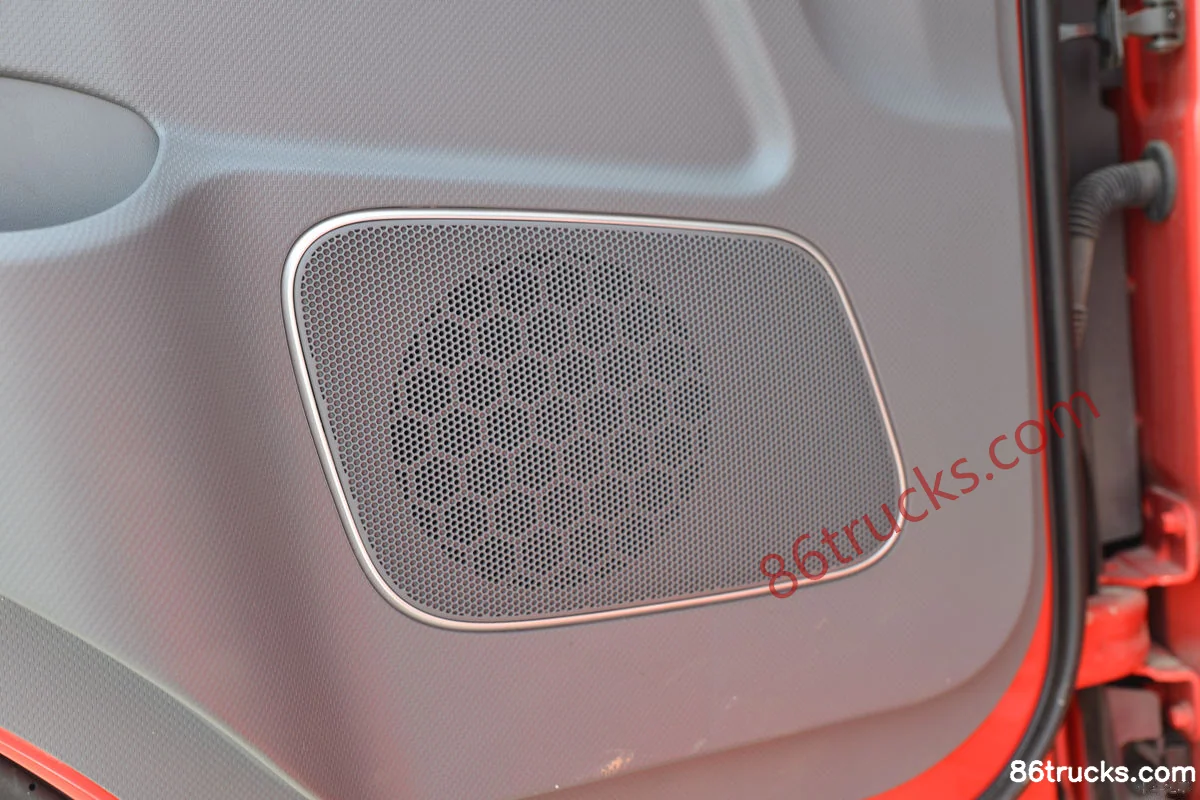

Cab3

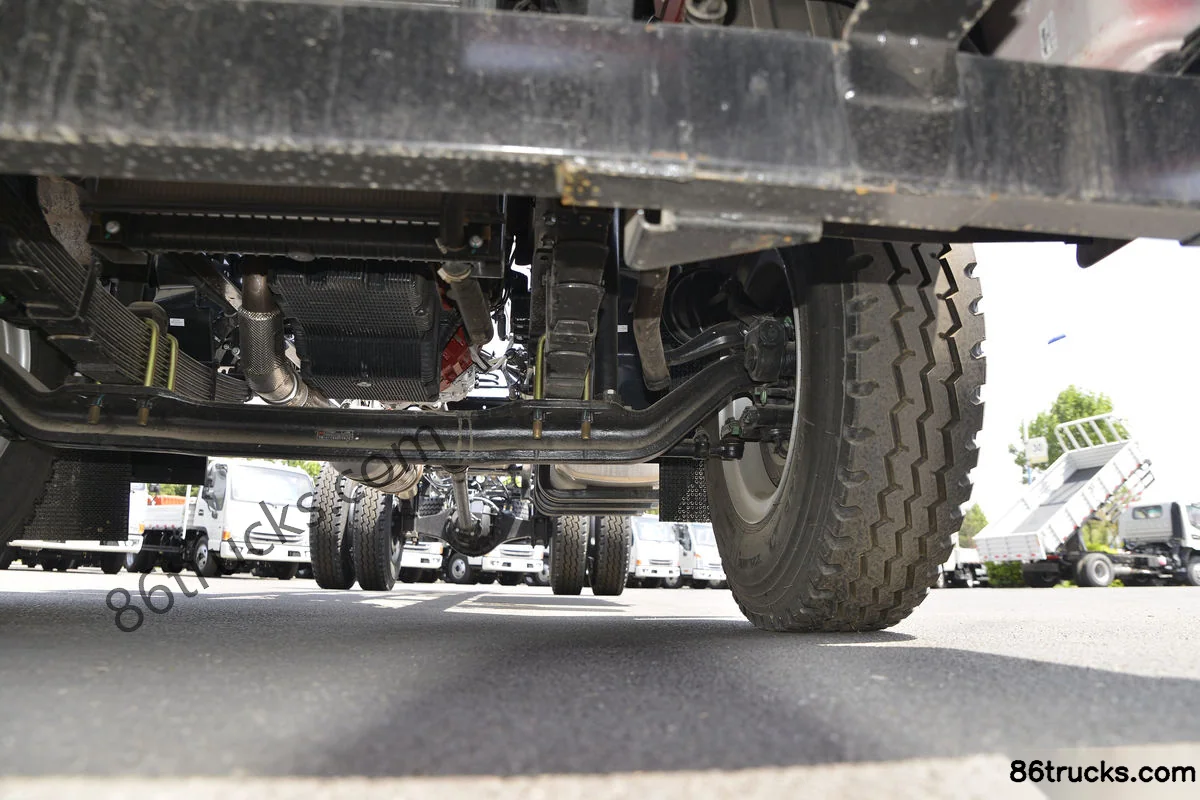

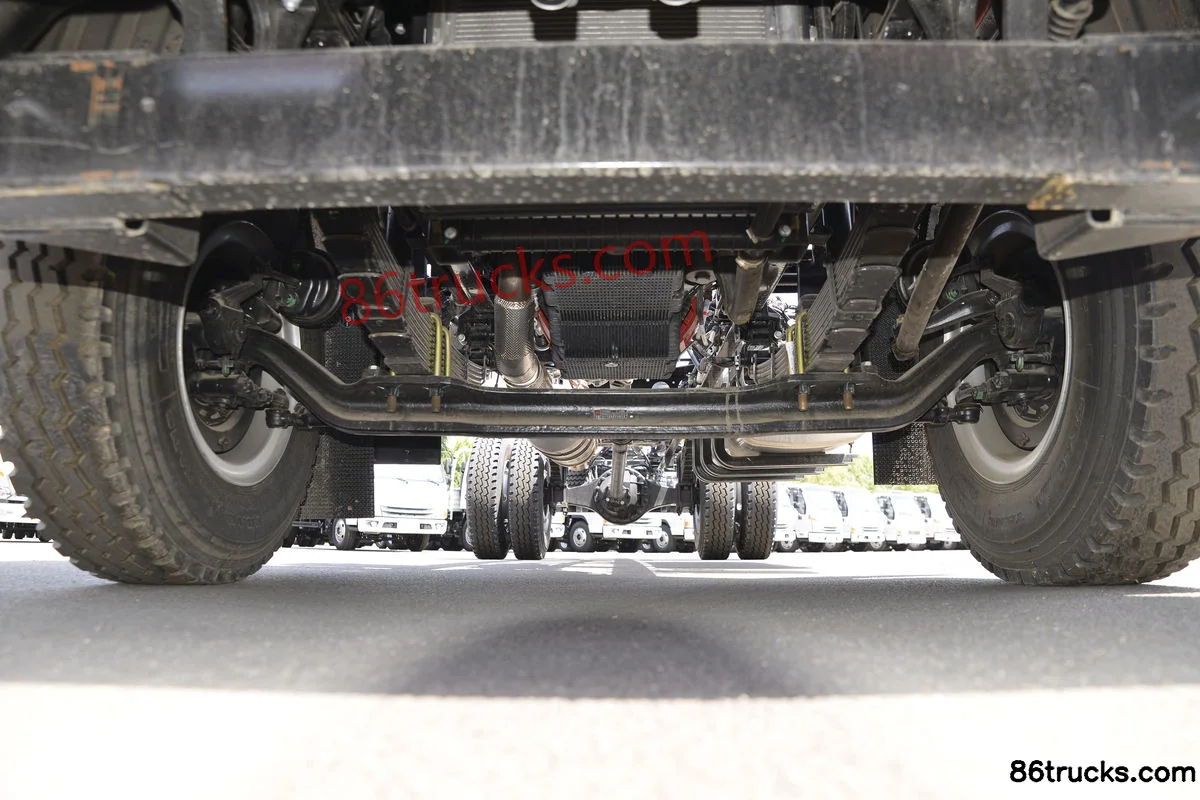

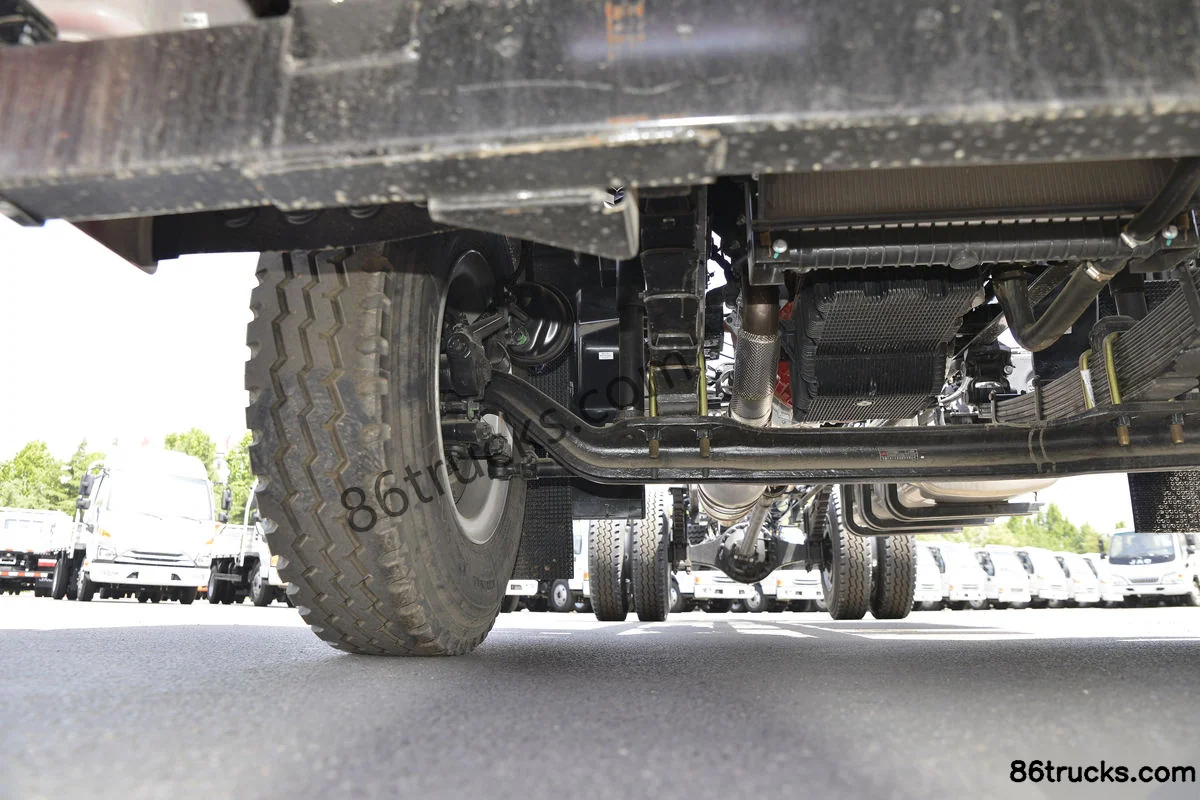

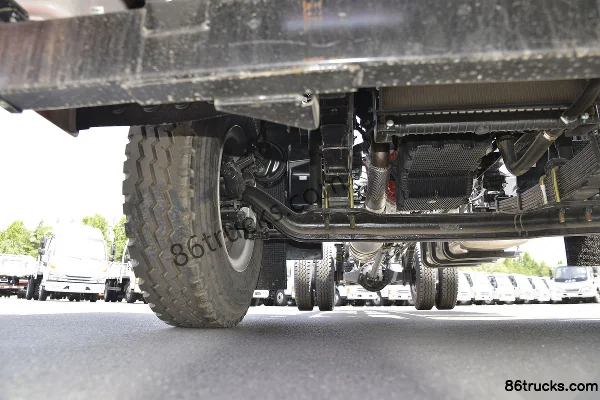

Chassis3

9 photos

FAQ

What is the export price of JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck, and what does it include?

JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck export reference is about From $22,403; MSRP is ¥16.13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck?

Key specs of JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: Ankang B4.5; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck suited for?

JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck differ from other variants in the same series?

JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck belongs to JAC Q9 medium-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Dewos Q9 220 hp 4X2(6 wheels) 5.48m Cab-over Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
