Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck

Export reference
From $14,583
MSRP ¥10.5M CNY
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Isuzu493
Transmission: WLY
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck is a Light Truck featuring 4.15m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Isuzu493 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB5041CCYJDD6V
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Jiangxi IsuzuJE493ZLQ5
transmission: WLYWLY6TS40
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2.22m
Cab height: 3.06m
Front track width: 1650mm
rear track: 1600mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Zibo, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.14/1.495m
Energy Type: Diesel
Engine parameters
Engine Brand: Jiangxi Isuzu
Engine Model: Jiangxi IsuzuJE493ZLQ5
Engine info: Isuzu493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3800rpm
Engine Type: Inline, water-cooled, common rail, turbocharged intercooled, four-stroke
Transmission Parameters
Transmission Model: WLYWLY6TS40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.15m
Cargo box width: 2.05m
Cargo box height: 0.46m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab: T3
Cab width: 1900mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1500kg
rear axle description: Isuzu air brake
rear axle allowable load: 2995kg
Axle ratio: 5.375
Leaf spring count: 6/9+5
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

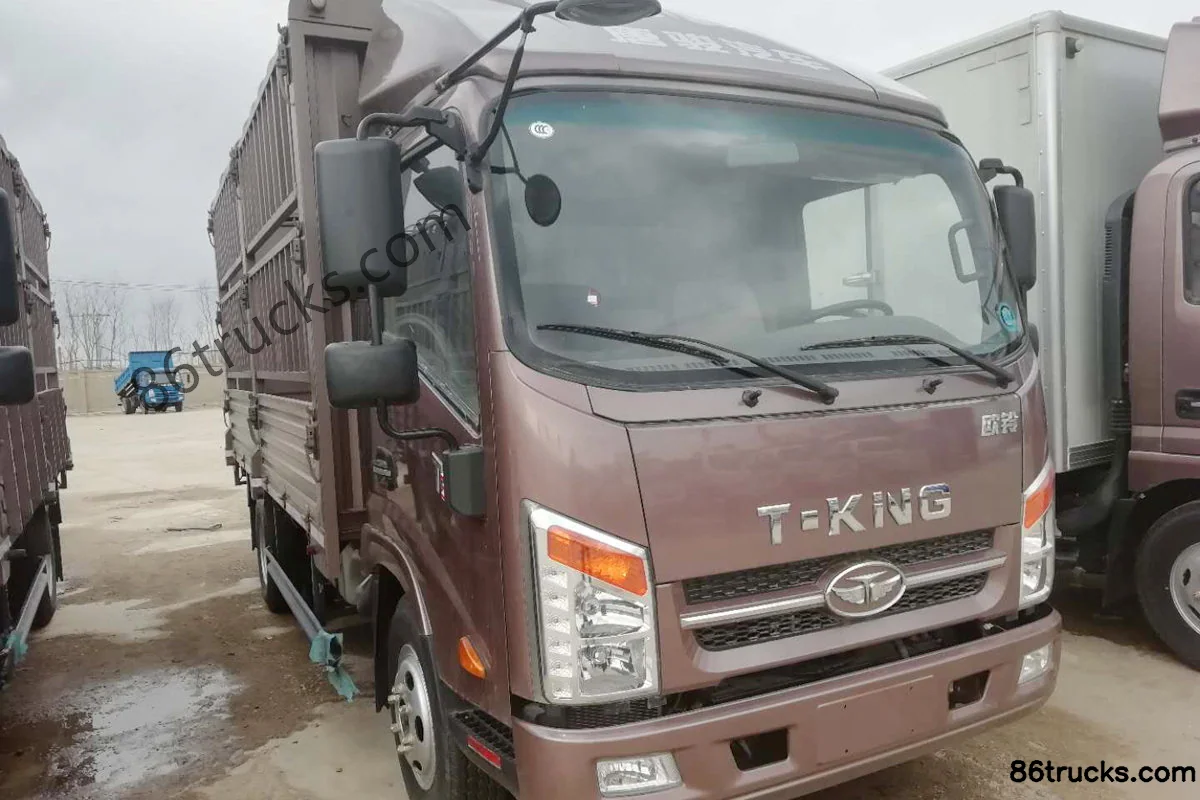

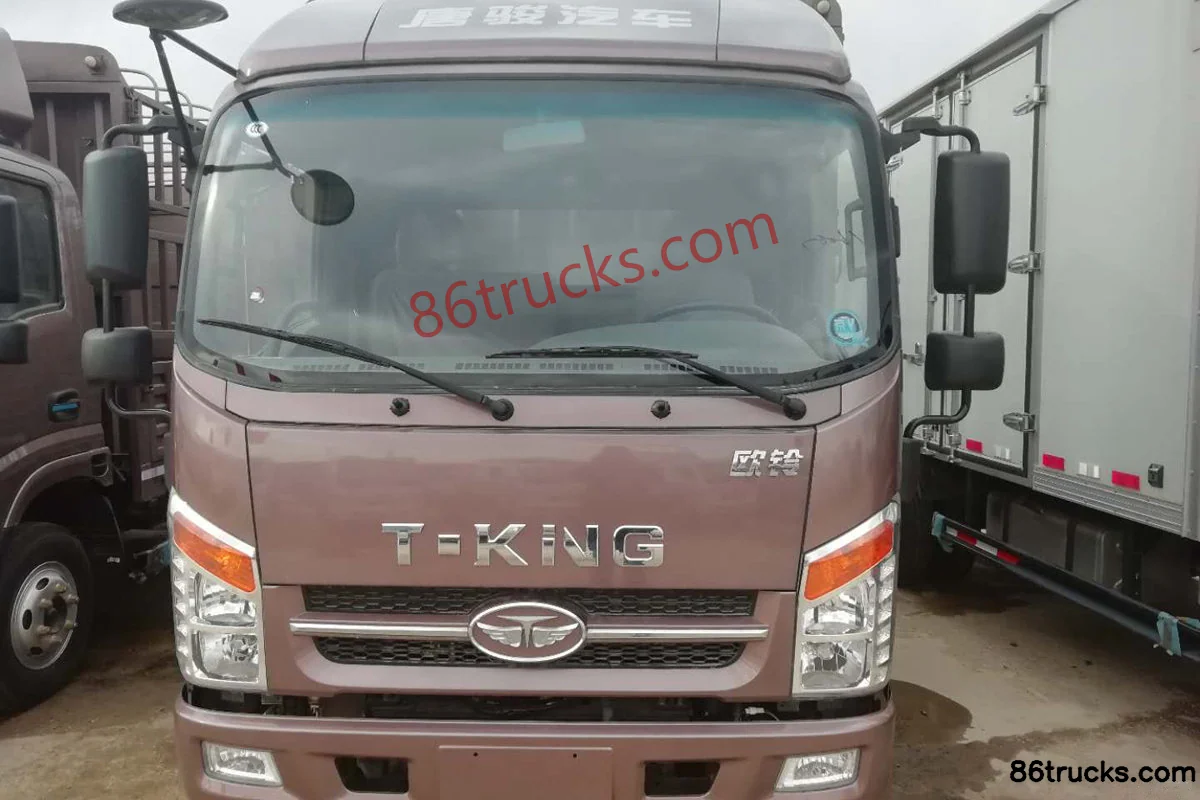

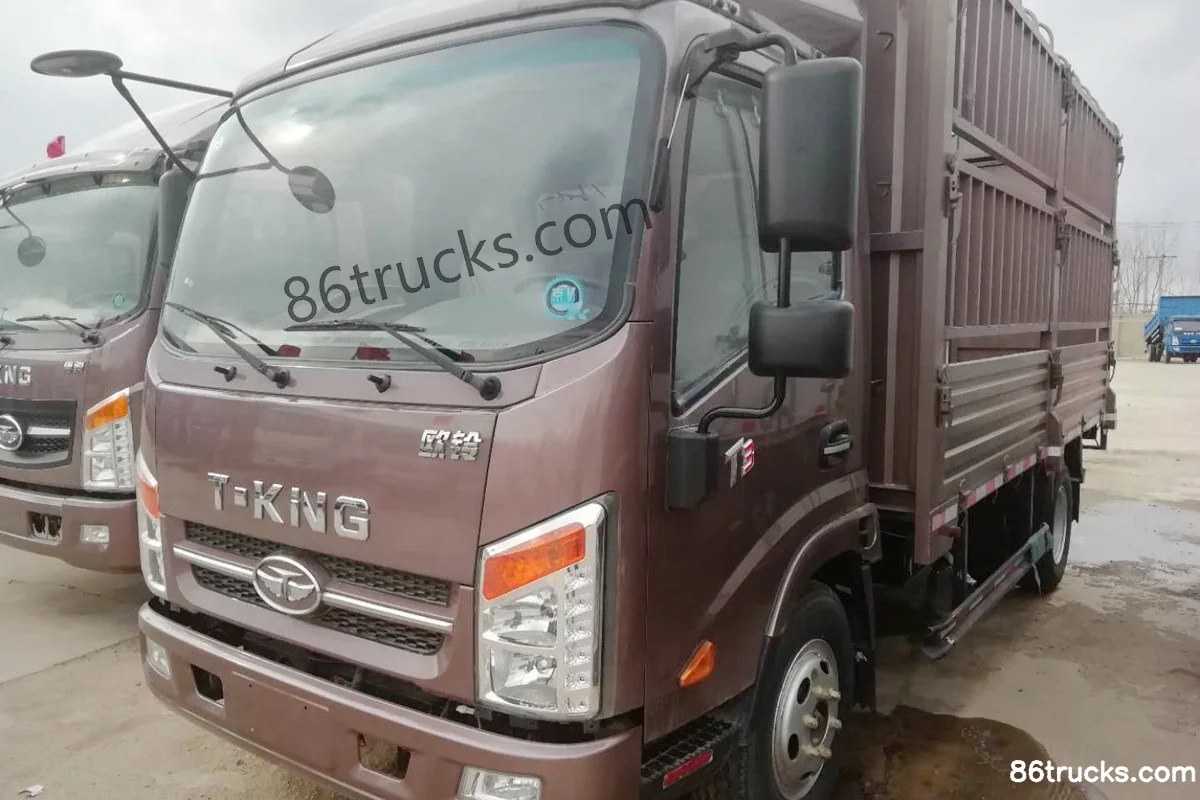

Photos

Exterior3

3 photos

FAQ

What is the export price of Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck, and what does it include?

Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck export reference is about From $14,583; MSRP is ¥10.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck?

Key specs of Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu493; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck suited for?

Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck differ from other variants in the same series?

Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck belongs to T3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m single-row stake truck light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
