Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 3800+1400mm
Model code (announced):: ZZ4257V384GZ1SBEV35
Front/rear track width:: Front track: 2036mm; Rear track: 1830/1830mm
Cab length:: 7.485m
GVWR:: 25ton
Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh exterior
View more photos (9)
Drive 6X4 (10 wheels)
CLTC range: 220km
Motor 1 Brand: Sinotruk
Gross Trailer Weight: 37.57ton

Overview

The Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh is a Heavy truck featuring 220km battery/range, Sinotruk motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ4257V384GZ1SBEV35
Drive type: 6X4
Front/rear track width: Front track: 2036mm; Rear track: 1830/1830mm
Wheelbase: 3800+1400mm
Cab length: 7.485m
Cab width: 2.496m
Cab height: 3.39m
Gross Trailer Weight: 37.57ton
CLTC range: 220km
Curb Weight: 11.3ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Jinan
battery swap support: Battery swap
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Sinotruk
Motor 1 Model: TZ388XS-ZQV13
Motor Type: Permanent magnet synchronous motor
total rated power: 340kW
Peak power: 490kW
Motor 1 Peak Power: 490kW
Number of drive motors: Single motor
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400.619kWh
Cab parameters
Cab: TX-F
seating capacity: 3Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle description: VGD71
Front axle allowable load: 7000kg
rear axle description: MCJ13BGY
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
smart configuration
Trailer stability system:
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Tire Pressure Monitoring System (TPMS):
lighting configuration
Headlight height adjustment:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

Exterior3

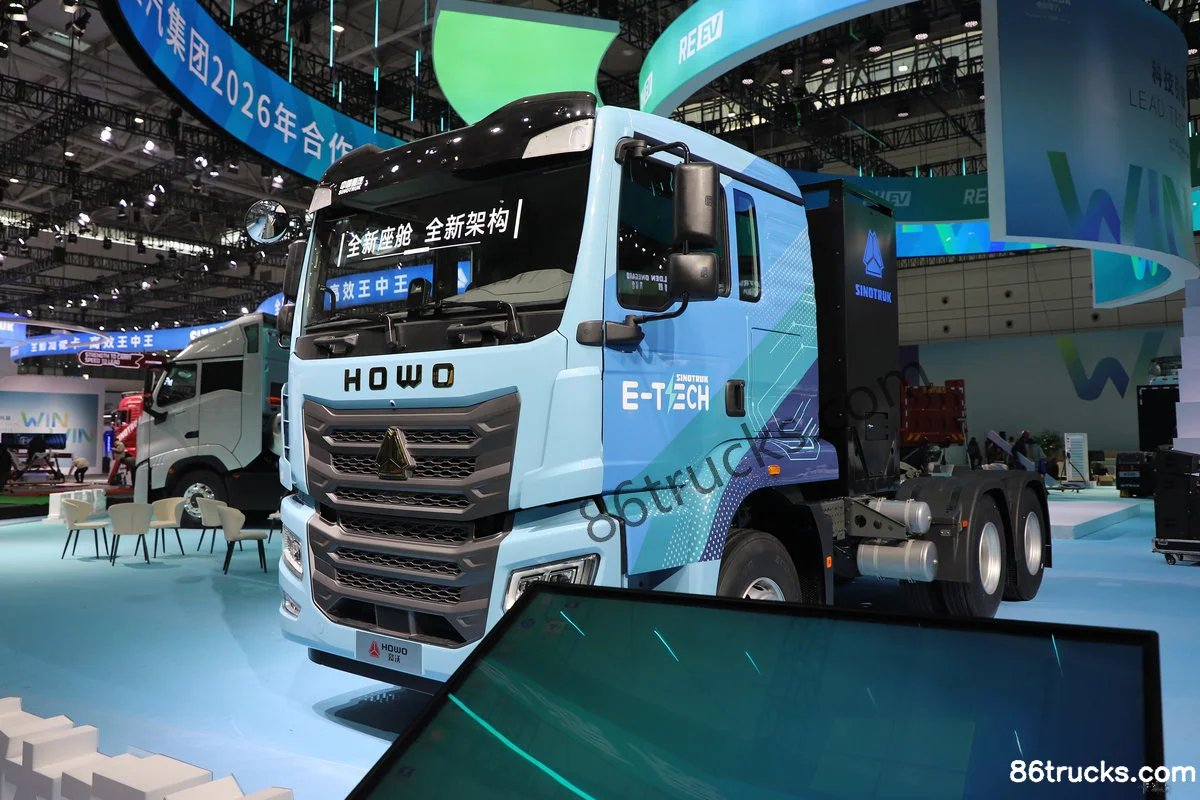

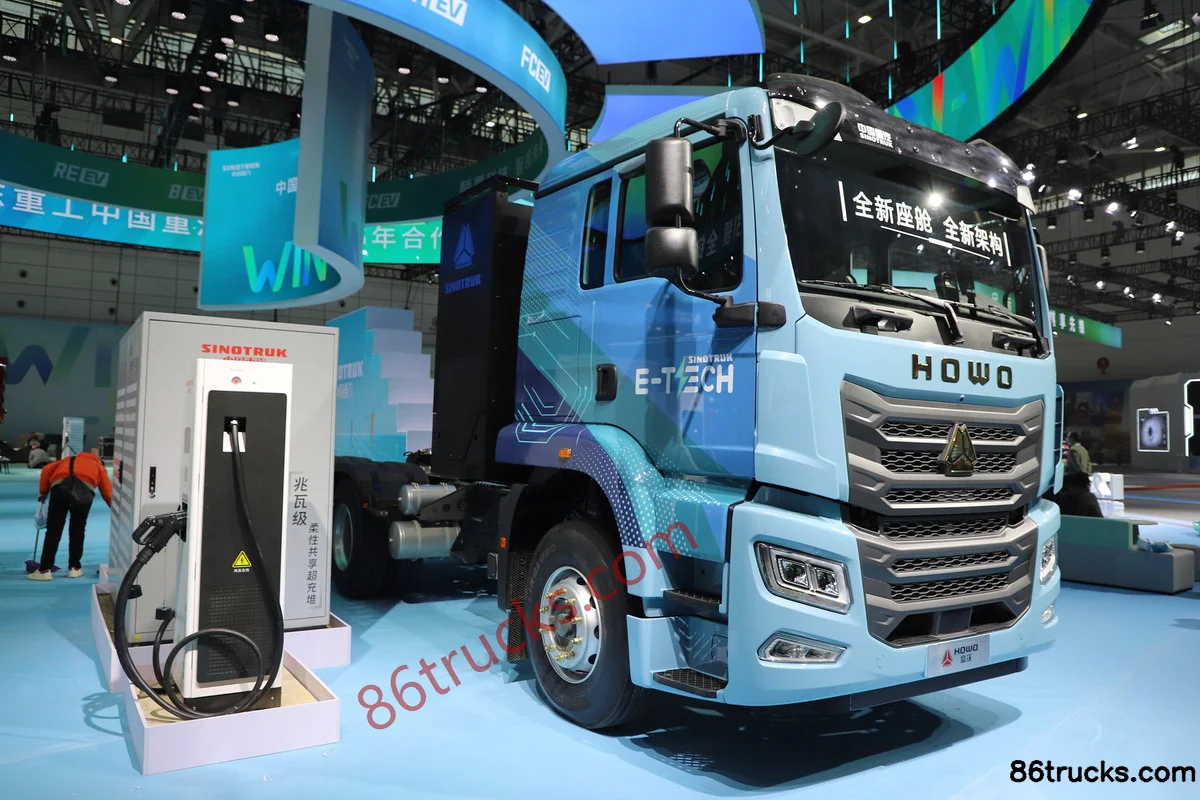

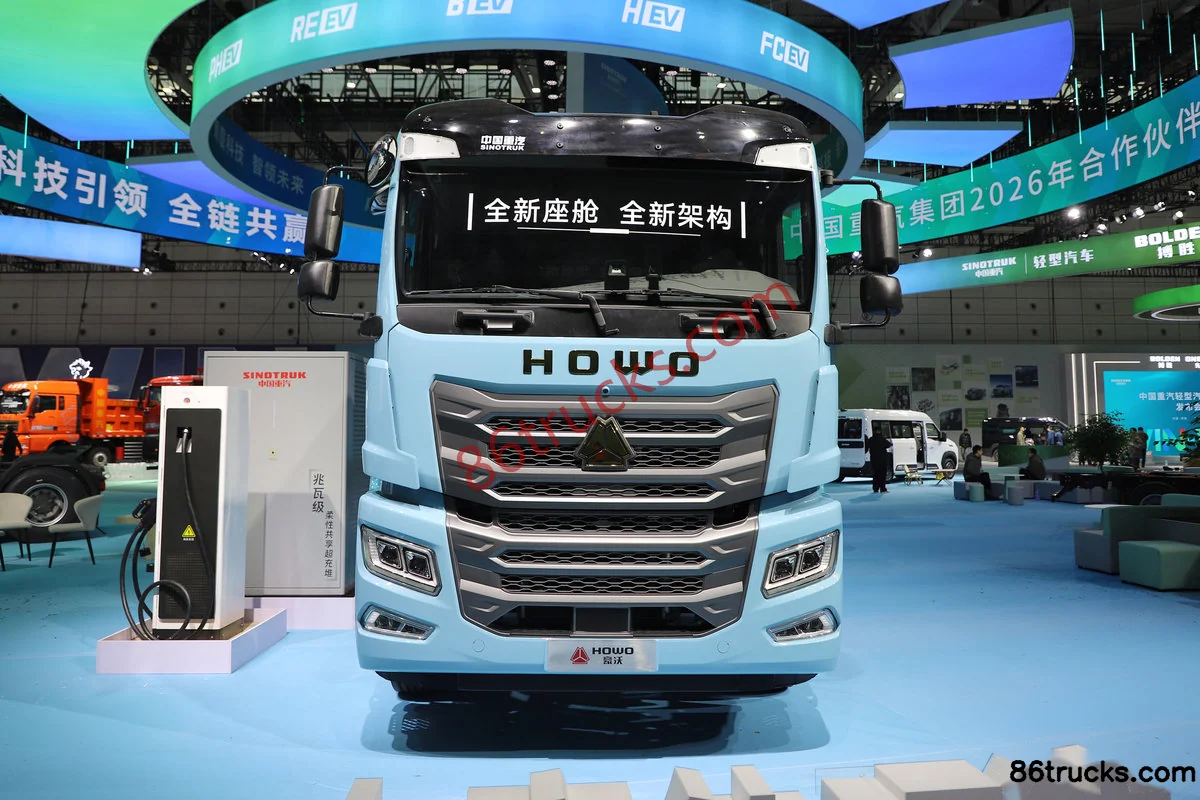

Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh Exterior (1) | 86Trucks Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh Exterior (2) | 86Trucks Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh Exterior (3) | 86Trucks

Cab3

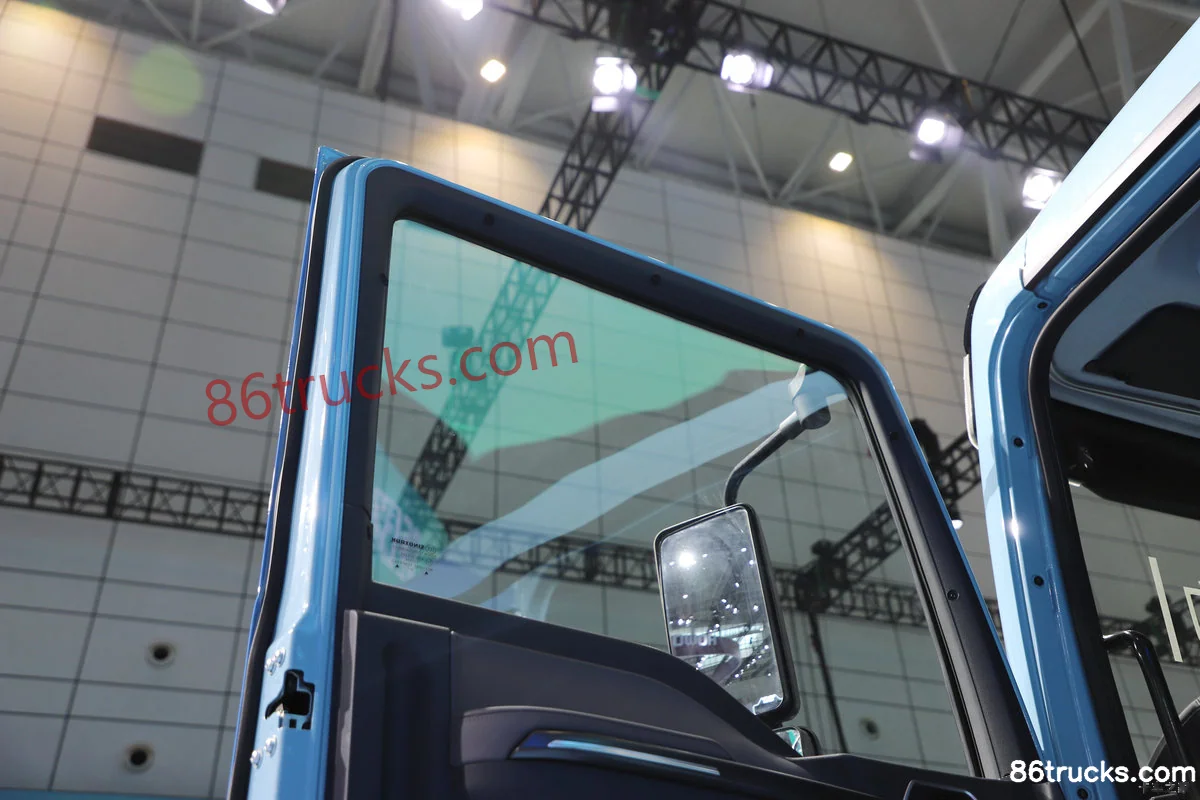

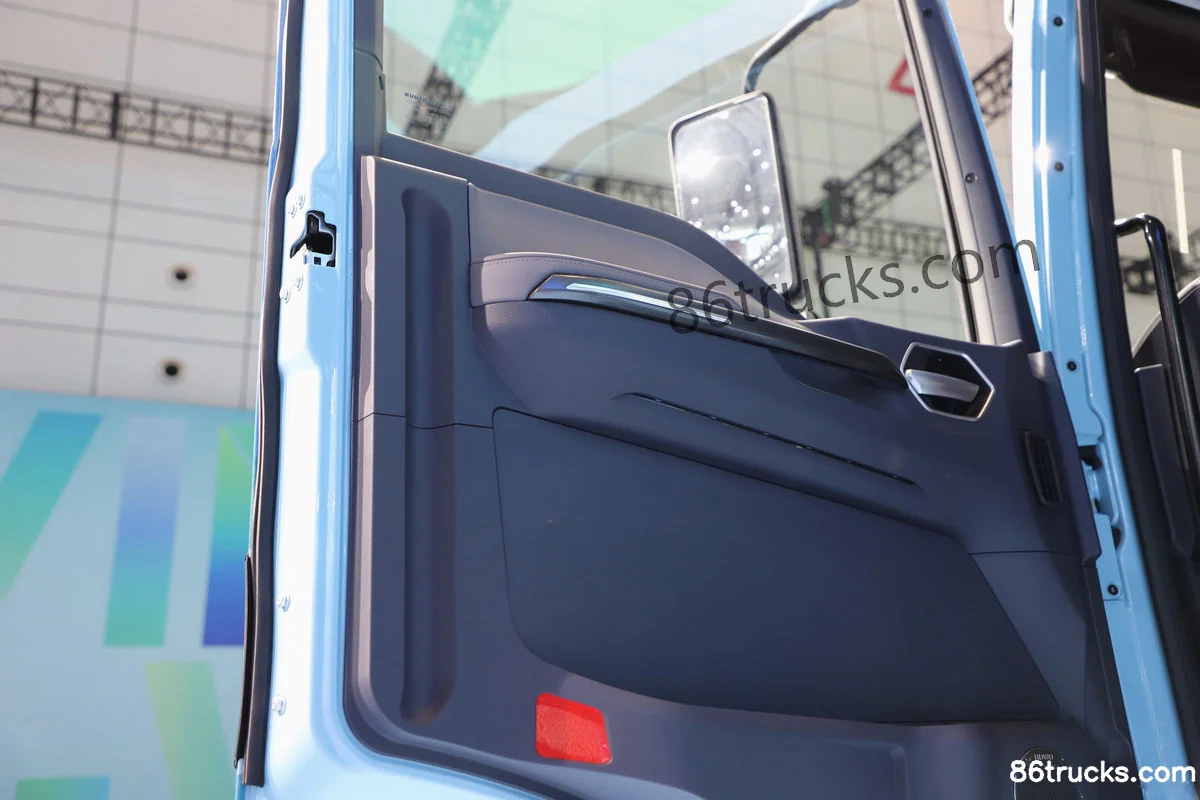

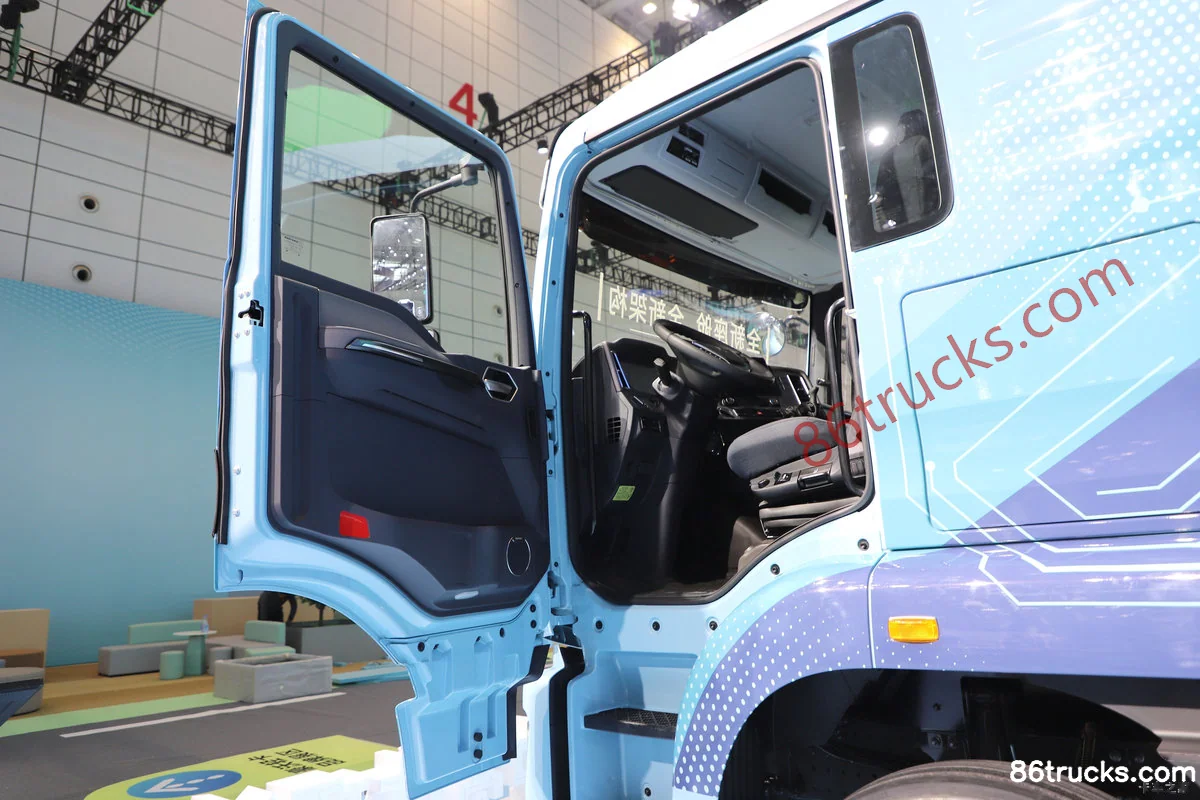

Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh Cab (1) | 86Trucks Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh Cab (2) | 86Trucks Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh Cab (3) | 86Trucks

Chassis3

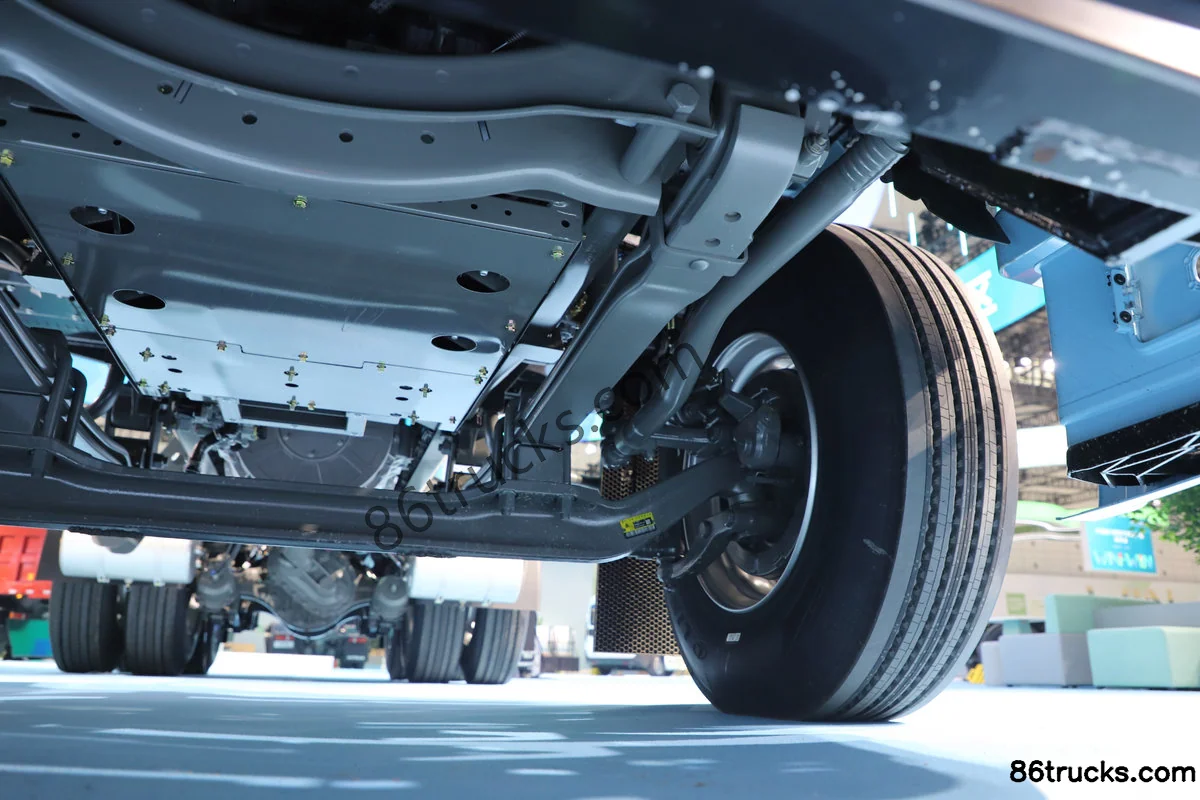

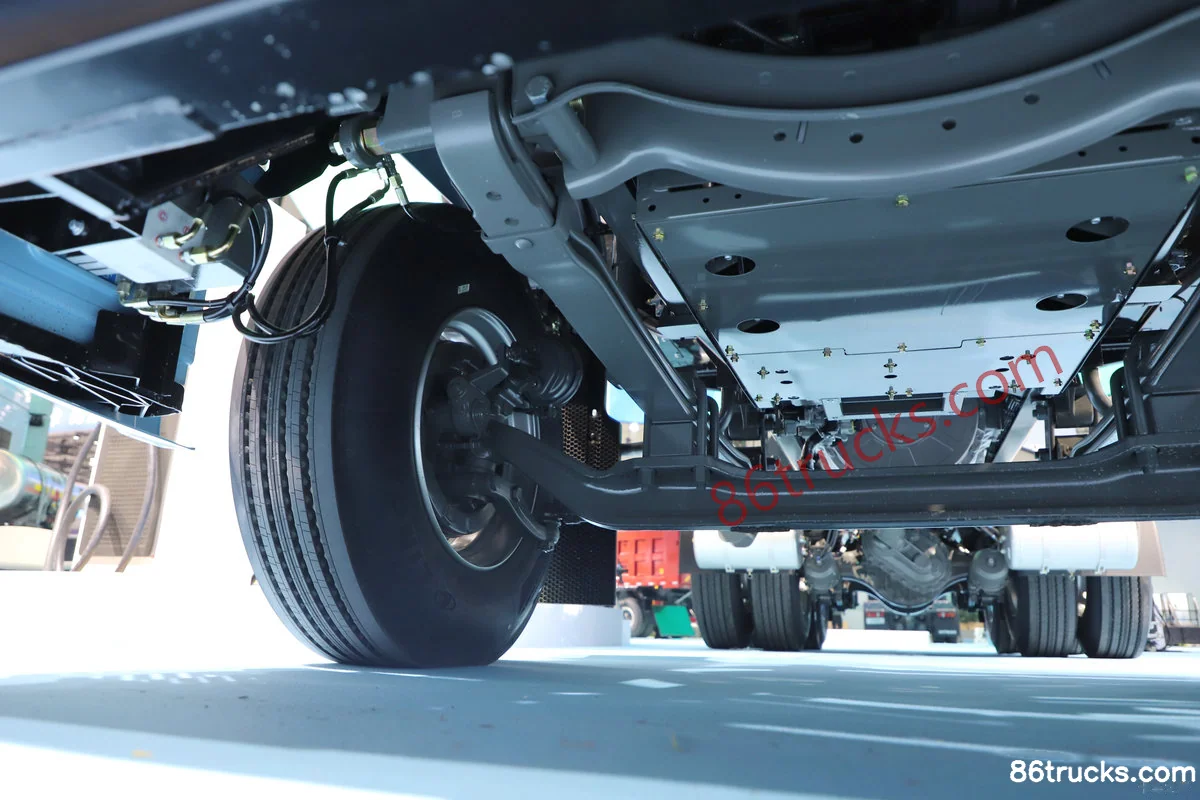

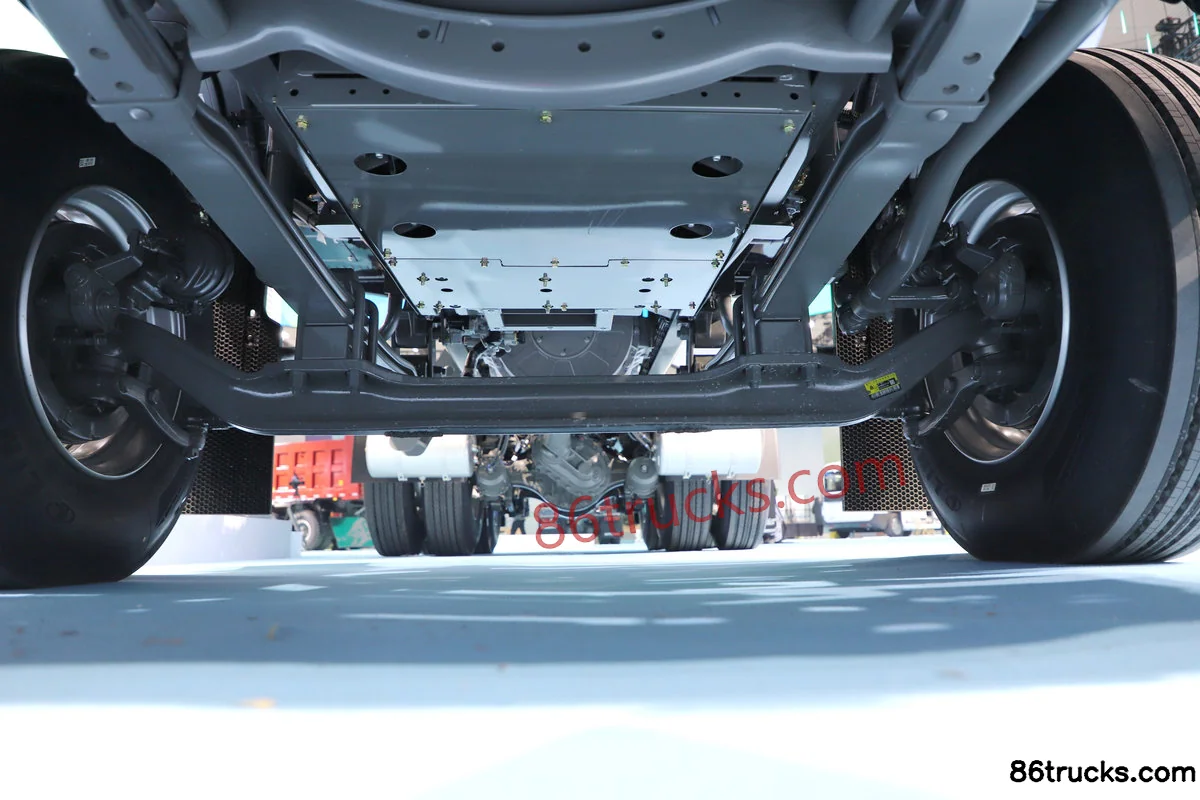

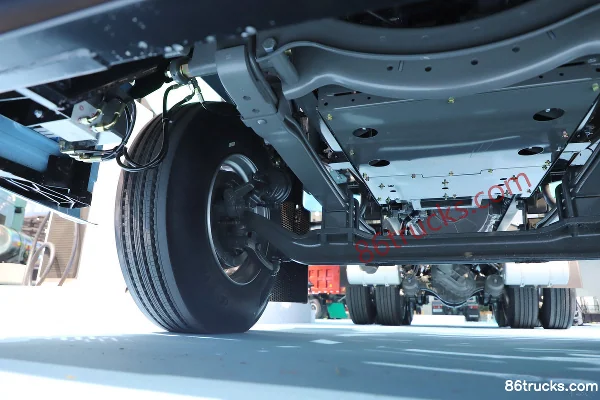

Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh Chassis (1) | 86Trucks Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh Chassis (2) | 86Trucks Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh?

Key specs of Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh suited for?

Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh differ from other variants in the same series?

Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh belongs to SinotrukHOWOHOWO TX EV (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TX EV 6X4(10 wheels) Battery Swap Electric Tractor Truck 400.619kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
